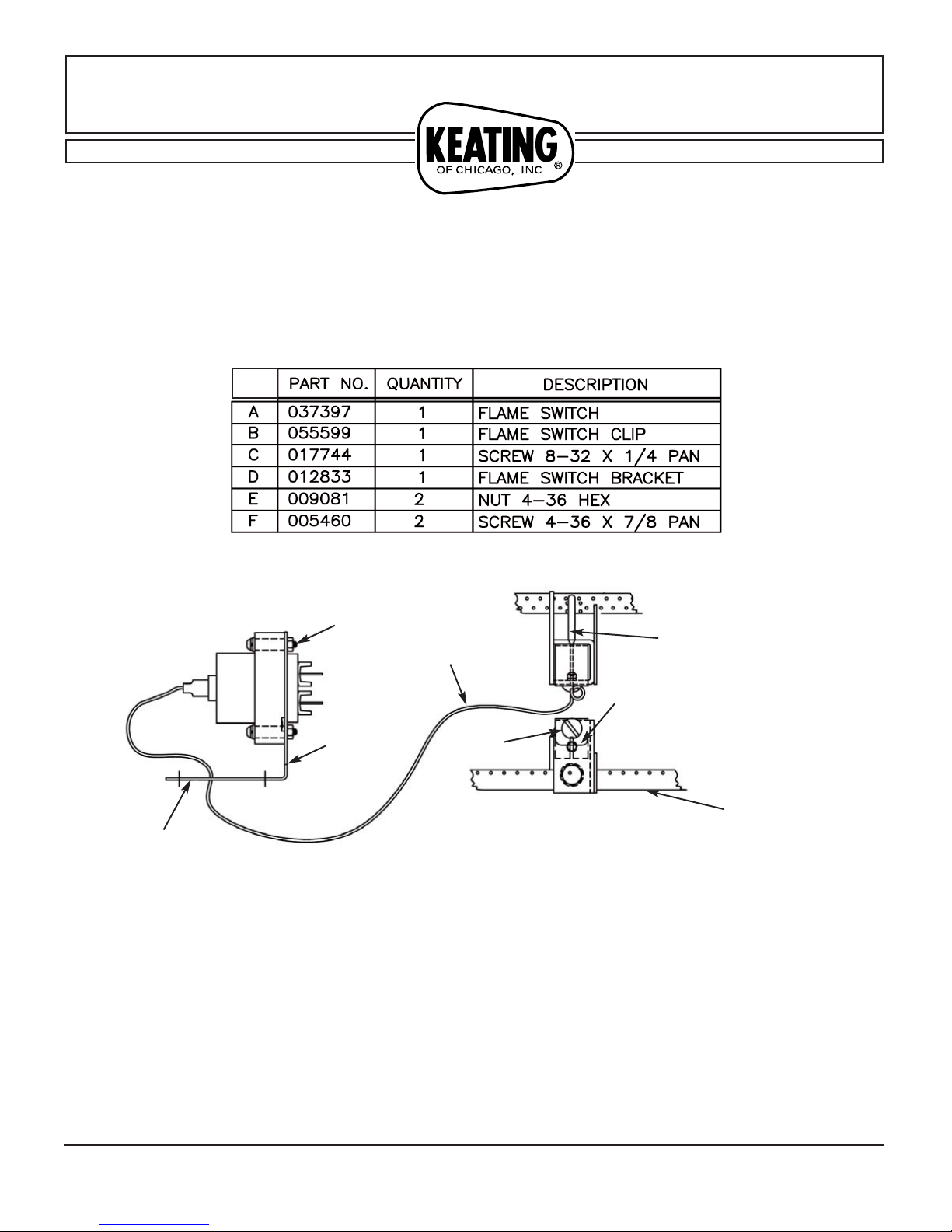

Keating Of Chicago Flame Switch Mode d'emploi

SERVICE INSTRUCTIONS

FLAME SWITCH REPLACEMENT KIT

Part # 037406

1.) Remove old flame switch and bracket located inside control panel. (Retain hardware). Assemble

flame switch item A to bracket item D with items E and F. Slide bulb end of flame switch through

center hold in item D flame switch bracket and through hole located in control panel. If needed, use

a letter “n” drill to open hole. Reassemble to control panel with retained hardware.

2.) Remove old flame switch and clip (bulb end) and replace with new flame switch item A (as

shown in view “A”.)

3.) Insert flame switch clip item B as shown in view “A.” Secure with screw item C.

FlameSwitchRplcKit

8/08

www.keatingofchicago.com 1-800-KEATING

Part No. 037407

ITEM

D

Your kit includes:

ITEM

NO.

ITEMS

E, F

SEE NOTE #1

ITEM

A

ITEM

C

ITEM

B

CORRECT POSITION FOR

FLAME SWITCH BULB

PILOT RUNNER TUBE

VIEW “A”

SEE NOTES 2 AND 3
