Ventilating Fan
20AUH
25AUH
30AUH
WARNING
This service information is designed for experienced repair technicians only and is not designed for use by
the general public. It does not contain warnings or cautions to advise non-technical individuals of potential
dangers in attempting to service a product. Products powered by electricity should be serviced or repaired
only by experienced professional technicians. Any attempt to service or repair the product or products dealt
with in this service information by anyone else could result in serious injury or death.
IMPORTANT SAFETY NOTICE
There are special components used in this equipment which are important for safety. These parts are
marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential
that these critical parts should by replaced with manufacturer s specified parts to prevent shock, fire
or other hazards. Do not modify the original design without permission of manufacture.
20ALH
25ALH
30ALF
CONTENTS
2 Parts Identification
3 Wiring Diagram
4 Parts List
PAGE
2~8
9
10~15
Voltage Rate:220-240V,50Hz
110-127V,60Hz
1 Specifications 1
1. Specifications
1
Air
direction Voltage Frequency Power
consumption Speed Air delivery Power
factor Weight
[V] [Hz] [W] [min-1][m3/min] [%] [Kg]
220 50 22 1245 9.7 100
127 60 26 1405 11.3 93
220 50 29 1125 15.3 94
127 60 30 1145 15.8 98
220 50 29 1030 20.0 94
127 60 34.5 1000 20.0 97
220 50 22 1210 9.1 100
127 60 26 1340 10.0 93
220 50 29 1055 13.9 94
127 60 30 1077 14.5 98
220 50 29 905 15.6 94
127 60 34.5 874 17.2 97
2.0
Exhaust
30ALF
2.7
2.7
3.1
Exhaust
Exhaust
Exhaust
Type of Insulation:Functional Insulation
Insulation class E IP code:IPX4(outside)
25ALH
Model
30AUH
20ALH 2.2
2.4
Exhaust
Exhaust
20AUH
25AUH

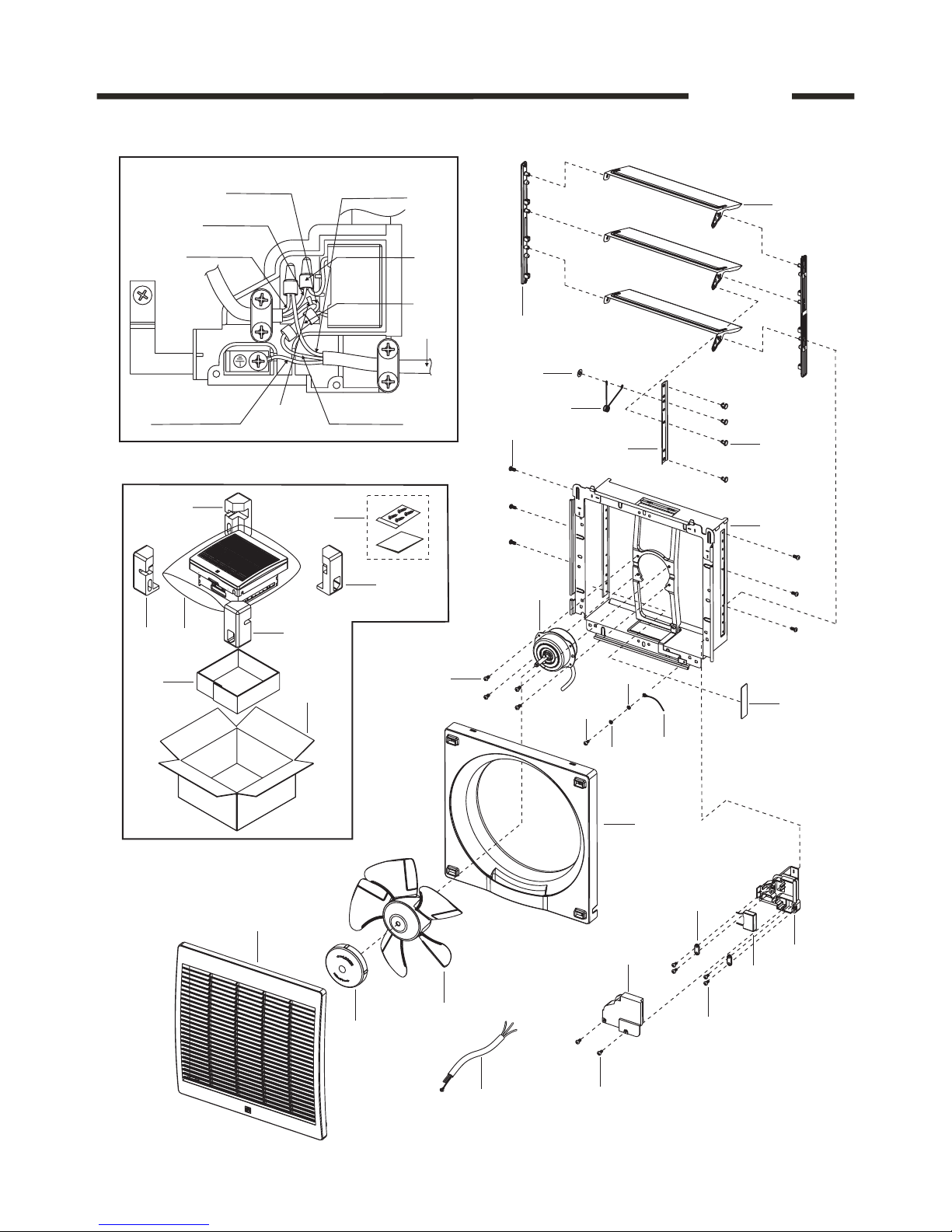

2. Parts Identification
20AUH
2
Details of Wiring
Main Packing Materials
1(2pcs)
(8)(4pcs)
(Yellow/Green)
Earth Lead
Power Lead
(Blue)
Motor Lead
(White)
Motor Lead
(Red)
Power Lead
(Brown)
Motor Lead
(Black)
Operating
Instructions
2
4
5
6
7
(4pcs)
8(4pcs)
9
11
13
14
15
16
17(2pcs)
18
(4pcs)
19
(18)(2pcs)
12
10
NMark
21
Earth Lead
22
(2pcs)
23
(24)
25
26
(4pcs)
27
28
30
29
20
3(2pcs)
24
2. Parts Identification
3
Operating
Instructions
Main Packing Materials
1(3pcs)
2(2pcs)
3
4
5
6
(4pcs)
7(6pcs)
8
10
11
12
25
15
Power Lead
Power Lead
(Brown)
(Blue)
Details of Wiring
Motor Lead
(Black)
Motor Lead
Motor Lead
(Red)
(White)
(Yellow/Green)
Earth Lead
13
9(4pcs)
16
17(2pcs)
18
(4pcs)
19
(18)(2pcs)
Earth Lead
20
21
22
(2pcs)
23
(24)
NMark
26
(4pcs)
27
30
28
29
14 24
25AUH
2. Parts Identification
Power Lead
Power Lead
(Brown)
(Blue)
Details of Wiring
Motor Lead
(Black)
Motor Lead
Motor Lead
(Red)
(White)
(Yellow/Green)
Earth Lead
22
(2pcs)
23
(24)
NMark
Operating
Instructions
1(3pcs)
2(2pcs)
3
4
56
(4pcs)
7(6pcs)
8
Earth Lead
9(4pcs)
20
10
11
12
25
13
14
15
16
17(2pcs)
18
(4pcs)
(18)(2pcs)
19
21
26
(4pcs)
27
28
29
30
4
24
30AUH
Main Packing Materials
2. Parts Identification
5
Details of Wiring
Main Packing Materials
Operating
Instructions
1(2pcs)
2
3(2pcs)
4
5
6
7
(4pcs)
8(4pcs)
9
(8)(4pcs)
Earth Lead
12
11
10
13
14
16
15
17
18(2pcs)
19
(4pcs)
20
(19)(2pcs)
22
21
(Yellow/Green)
Earth Lead
Power Lead
(Blue)
Motor Lead
(White)
Motor Lead
(Red)
Power Lead
(Brown)
Motor Lead
(Black)
NMark
23
(2pcs)
24
(25)
(27)
26
(28)
29
30
32
31
28
27
25
20ALH
2. Parts Identification
1(3pcs)
2(2pcs)
3
4
56
(4pcs)
7(6pcs)
8
9(4pcs)
21
10
Earth Lead
11
12
13
14
15
16
17
18(2pcs)
19
(4pcs)
(19)(2pcs)
20
22
Power Lead
Power Lead
(Brown)
(Blue)
Details of Wiring
Motor Lead
(Black)
Motor Lead
Motor Lead
(Red)
(White)
(Yellow/Green)
Earth Lead
23
(2pcs)
24
(25)
NMark
Operating
Instructions
Main Packing Materials
28
27 29 (28)
(27)
32
30 31 26
6
25
25ALH
2. Parts Identification
Power Lead
Power Lead
(Brown)
(Blue)
Details of Wiring
Motor Lead
(Black)
Motor Lead
Motor Lead
(Red)
(White)
(Yellow/Green)
Earth Lead
23
(2pcs)
24
(25)
NMark
Operating
Instructions
Main Packing Materials
28
27 29 (28)
32
30 31
1(3pcs)
2(2pcs)
3
4
56
(4pcs)
7(6pcs)
8
9(4pcs)
21
Earth Lead
10
11
12
13
14
15
16
17
22
18(2pcs)
19
(4pcs)
(19)(2pcs)
20
26
(27)
7
25
30ALF
8
2. Parts Identification
23-30W 0.22-0.24A
Matsushita Ecology Systems Co.,Ltd.
23-30W 0.22-0.24A
Matsushita Ecology Systems Co.,Ltd.
220-240V
50Hz
29-34W 0.14-0.15A
Made in China
Matsushita Ecology Systems Co.,Ltd.
220-240V
50Hz
29-34W 0.14-0.15A
Made in China
Matsushita Ecology Systems Co.,Ltd.
25ALH
Ventilating Fan
Head Office:4017,Takaki-cho,
Kasugai,Aichi,Japan
Matsushita Ecology Systems Co.,Ltd.
25ALH
Ventilating Fan
Made in China
Matsushita Ecology Systems Co.,Ltd.
25AUH
Ventilating Fan
Matsushita Ecology Systems Co.,Ltd.
Head Office:4017,Takaki-cho,
Kasugai,Aichi,Japan
AU Series
(For Style Reference)
AL Series
(For Style Reference)
For Style B(220-240V,50Hz)
For Style A (220-240V,50Hz)
(Printed"Made in China")
25AUH
Ventilating Fan
Matsushita Ecology Systems Co.,Ltd.
Made in China
220-240V
50Hz
29-34W 0.14-0.15A
Matsushita Ecology Systems Co.,Ltd.
220-240V
50Hz
29-34W 0.14-0.15A
Matsushita Ecology Systems Co.,Ltd.
25ALH
Ventilating Fan
Head Office:4017,Takaki-cho,
Kasugai,Aichi,Japan
Matsushita Ecology Systems Co.,Ltd.
25AUH
Ventilating Fan
Matsushita Ecology Systems Co.,Ltd.
Head Office:4017,Takaki-cho,
Kasugai,Aichi,Japan
For Style C(110-127V,60Hz)
For Style B(220-240V,50Hz)
For Style A (220-240V,50Hz)
(Printed"Made in China")
For Style C(110-127V,60Hz)
Packing Case Assy. & Name Plate(Only For Reference)
3. Wiring Diagram
THERMAL FUSE
(IN MOTOR) WHITE
BLUE
RED BLACK
BROWN
YELLOW
/GREEN
DOUBLE POLE
SWITCH
N
L
M
114 C
250V
BLACK
C
BLACK
9
~
