Kawai CA48 Manuel

CA48 MIDI Settings Manual

MIDI Settings

The term MIDI is an acronym for Musical Instrument Digital Interface, an international standard for

connecting musical instruments, computers, and other devices to allow the exchange of performance data.



MIDI terminals

MIDI terminal Function

MIDI IN Receiving note, program change, and other data.

MIDI OUT Sending note, program change, and other data.



MIDI channels

MIDI uses channels to exchange data back and forth between MIDI devices. There are receive (MIDI IN) and transmit (MIDI OUT)

channels. Most musical instruments or devices with MIDI functions are equipped with both MIDI IN and OUT jacks and are

capable of transmitting and receiving data via MIDI. The receive channels are used to receive data from another MIDI device and

the transmit channels are used to transmit data to another MIDI device.

The illustration below shows three musical instruments, connected together using MIDI.

Transmitting instrument aReceiving instrument bReceiving instrument c

Transmitting instrument asends transmit channel and keyboard information to receiving instruments b/c.

The information arrives at the receiving instruments b/c.

Receiving instruments b/cwill respond to MIDI data that is sent if their receive channel is the same as the transmit channel of

the transmitting instrument a.

If the channels do not match, then the receiving instruments b/cwill not respond to any data that is sent.

For both receiving and transmitting, channels 1~16 can be used.



Recording/playing with a sequencer

When connected to a sequencer, the CA48 digital piano can

be used to record and playback multi-track songs, with

separate sounds playing simultaneously on each channel.

Sequencer

CA48 MIDI Settings Manual

MIDI Settings



MIDI functions

The CA48 digital piano supports the following MIDI functions:



MIDI settings

Function name Description Default setting

Transmit Program

Change Number

Specify whether or not program change information is sent when sounds are changed.

Send a MIDI program change number from 1 to 128.

Local Control Specify whether or not internal sounds will be heard when the keyboard is pressed. On

MIDI Channel Specify the channel used to transmit/receive MIDI information. 1ch

Multi-timbral Mode Specify whether or not MIDI information can be received on more than one channel. O

Transmit/receive note information

Transmit/receive note information from a MIDI-connected

musical instrument or device.

Transmit/receive channel settings

Specify transmit/receive channels within the range of 1 to 16.

Transmit/receive exclusive data

Transmit/receive front panel or menu function settings as

exclusive data.

Multi-timbral mode setting

Receive multiple channel MIDI data from a MIDI-connected

musical instrument or device.

* Multi-timbral mode setting must be enabled.

Transmit/receive Program Change number

Transmit/receive program change data to/from a MIDI-

connected musical instrument or device.

Transmit/receive pedal data

Transmit/receive sustain, sostenuto, and soft pedal data from

a MIDI-connected musical instrument or device.

Receive volume data

Receive MIDI volume data sent from a MIDI-connected

musical instrument or device.

* Please refer to the ‘MIDI Implementation Chart’ on page 8 for further

information regarding the MIDI capabilities of the CA48 digital piano.

CA48 MIDI Settings Manual

MIDI Settings

Transmit MIDI Program Change

The Send Program Change Number setting determines whether or not the CA48 digital piano will transmit

program change information when sounds are changes. It is also possible to transmit a program change

number (ranging from 1 to 128) in order to change the sound of an external MIDI device.



Transmit MIDI Program Change settings

Transmit PGM# Description

O The instrument will NOT transmit program change numbers when changing sounds.

On (default) The instrument will transmit program change numbers when changing sounds.



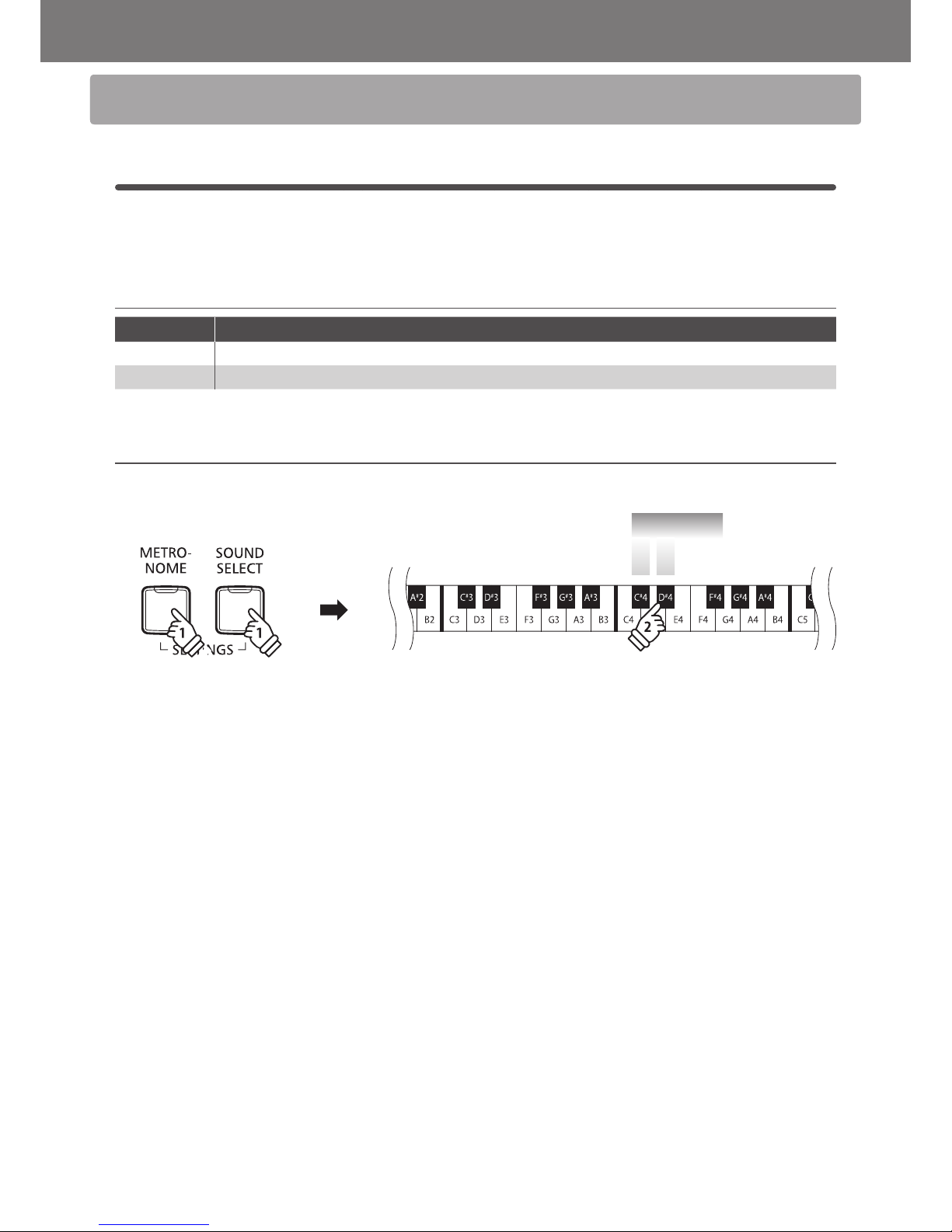

Changing the Transmit MIDI Program Change setting

Press and hold the METRONOME and SOUND SELECT buttons, then press the key assigned to the desired Transmit MIDI Program

Change setting.

Transmit PGM#

Off

hold

* Any changes made to the Transmit MIDI Program Change setting will remain until the power is turned o.

* Preferred Transmit MIDI Program Change settings can be stored to the Startup Settings memory for automatic selection when the instrument is

turned on. Please refer to Owner’s Manual page 39 for more information.



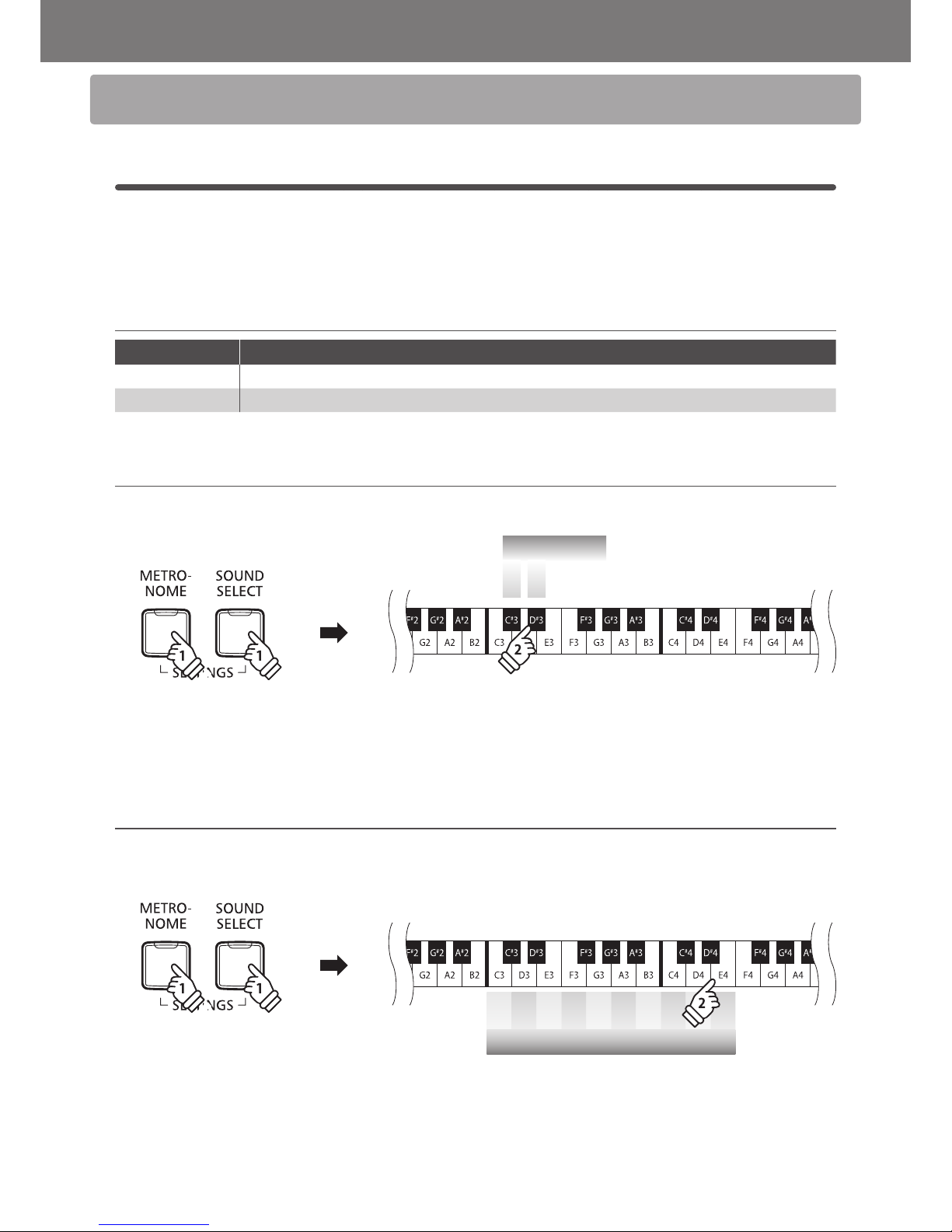

Sending a Program Change number

Press and hold the METRONOME and SOUND SELECT buttons, then enter the desired program change number to send using the

number keys.

Example: Transmit PGM#064

Enter 0, 6, then 4

1234567890

Transmit PGM#

hold

* Program change numbers are specied as three digits within the range of 001~128.

* The program change number will be transmitted automatically when the key for the third digit number is pressed.

CA48 MIDI Settings Manual

MIDI Settings

Local Control

The Local Control setting determines whether the instrument will play an internal sound when the keys are

pressed. This setting may be useful when using the CA48 digital piano to control an external MIDI device.



Local Control settings

Local Control Description

O The instrument will transmit information to an external MIDI device only.

On (default) The instrument will play an internal sound and transmit information to an external MIDI device.



Changing the Local Control setting

Press and hold the METRONOME and SOUND SELECT buttons, then press the key assigned to the desired Local Control setting.

Local Control

Off

hold

* Any changes made to the Local Control setting will remain until the power is turned o.

* Preferred Local Control settings can be stored to the Startup Settings memory for automatic selection when the instrument is turned on. Please refer

to Owner’s Manual page 39 for more information.

CA48 MIDI Settings Manual

MIDI Settings

MIDI Channel (transmit/receive)

The MIDI Channel setting allows the transmit/receive channel to be specied. The selected channel will

function as both the transmit and receive channel (separate transmit/receive channels cannot be specied).



Changing the MIDI Channel setting

Press and hold the METRONOME and SOUND SELECT buttons, then press the key assigned to the desired MIDI channel.

hold

1356810 12 13 15

MIDI Channel

Highest key

MIDI Channel

119742 1614

* The MIDI channel can be specied within the range of 1~16.

* The MIDI channel is automatically set to ‘1’ when the instrument is turned on (default setting).

* Preferred MIDI Channel settings can be stored to the Startup Settings memory for automatic selection when the instrument is turned on. Please refer

to Owner’s Manual page 39 for more information.

CA48 MIDI Settings Manual

MIDI Settings

Multi-timbral Mode

The Multi-timbral mode setting determines whether or not the CA48 digital piano is able to receive MIDI

information on more than one MIDI channel simultaneously. This allows the instrument to play back multi-

track, multi-timbral performance data sent from an external MIDI device.



Multi-timbre settings

Multi-timbre Description

O (default) Multi-timbral mode disabled

On Multi-timbral mode enabled*

* Please refer to the ‘Program Change Number List’ on page 7.



Changing the Multi-timbral mode setting

Press and hold the METRONOME and SOUND SELECT buttons, then press the key assigned to the desired Multi-timbre setting.

Multi-timbral mode

Off

Highest key

hold

* MIDI data received through channel 10 will not be performed when Multi-timbre is enabled.

CA48 MIDI Settings Manual

Program Change Number List



Program Change Number List

Sound name Multi-timbral mode O Multi-timbral mode On

Program number Program number Bank MSB Bank LSB

SK Concert Grand 1 1 121 0

EX Concert Grand 2 1 95 27

Upright Piano 3 1 95 25

Studio Grand 4 1 121 1

Studio Grand 2 5 1 95 28

Mellow Grand 6 1 121 2

Mellow Grand 2 7 1 95 29

Modern Piano 8 2 121 1

Classic E.Piano 9 5 121 0

Modern E.Piano 10 6121 0

Jazz Organ 11 18 121 0

Church Organ 12 20 121 0

Harpsichord 13 7121 0

Vibraphone 14 12 121 0

String Ensemble 15 49 121 0

Slow Strings 16 45 95 1

Choir 17 53 121 0

New Age Pad 18 89 121 0

Atmosphere 19 100 121 0

CA48 MIDI Settings Manual

MIDI Implementation Chart



Kawai CA48 digital piano

Date : November 2017 Version : 1.0

Function Transmit Receive Remarks

Basic

channel

At power-up 1 1

Settable 1 - 16 1 - 16

Mode

At power-up Mode 3 Mode 1 ** Omni mode is on at power-up. Omni

mode can be turned o through

MIDI channel setting operations.

Message X Mode 1, 3**

Alternative ***** X

Note number

15 - 113* 0 - 127

* 15 - 113, including transpose

Range ***** 0 - 127

Velocity

Note on O O

Note o O O

After touch

Key specic X X

Channel specic X X

Pitch bend X X

Control

change

7 X O Volume

64 O (Right pedal) ODamper pedal

66 O (Middle pedal) OSostenuto pedal

67 O (Left pedal) OSoft pedal

Program change

settable range

O (0 - 127) O(Please refer to the ‘Program

Change Number List’)[page 7]

*****

Exclusive O O Transmission can be selected

Common

Song position X X

Song selection X X

Tune X X

Real time

Clock X X

Commands X X

Other

functions

Local On / O X O

All notes O X O

Active sensing X O

Reset X X

Remarks

Mode 1: omni mode On, Poly Mode 2: omni mode On, Mono O : Yes

Mode 3: omni mode O, Poly Mode 4: omni mode O, Mono X : No

KPSZ-0932 R100
