Karma BM 661USB Manuel utilisateur

Instruction Manual

www.karmaitaliana.it

BM 661USB

BM 661USB-2RM

Professional Procession System

Congratulation for your choice!

Congratulations for your choice! The Karma product you have purchased is

the result of careful planning by specialized engineers . High quality materials

have been used for its construction, to ensure its functioning over time. The

product is manufactured in compliance with strict regulations imposed by the

European Union, a guarantee of reliability and safety. Please read this manual

carefully before starting to use the xture in order to exploit its full potential.

Karma has several products’ accessories that can complete your device. We

invite you to see the whole range of our products by visiting our website:

www.karmaitaliana.it, where you will nd , in addition to all our items, detailed

descriptions and further documents related to the product. We hope that you

will be satised with your purchase and we thank you again for your trust in

our brand.

Warning: this manual is referred to models BM 863 and BM 863RM (respectively

without or with wireless microphone)

More informations: www.karmaitaliana.it

• Keep this User Manual for future reference. If you sell the product to another user,

be sure to give this manual to the next owner.

• Make sure the voltage of the power source used for the product is correct.

• This product is not suitable for outdoor use.

• To avoid the risk of re or short-circuits never expose the xture to rain or moisture.

• Do not operate the product in an ambient temperature higher than 35°.

• In the event of a serious operating problem, stop using the product immediately.

Never try to repair the product, but contact the authorized technical assistance

center.

• Repairs carried out by untrained people can lead to damage both to the xture and

to persons.

• Make sure the power cord is not damaged.

CAUTION:

When you receive the product you have to check

carefully that the parcel is not damaged from shipping or

open. Even if the packaging is not damaged you have

to check the product’s conditions within three (3) days

from the reception. For any kind of problem found on

the item, it is necessary to address a claim to the seller

and to our o󰀩ces (also by e-mail), describing in detail

the damage. Any claim received beyond the 3-day time

limit, will not be accepted. It is suggested to save all the

packaging, labels, delivery bill and all that can be useful

to solve quickly the problem.

Safety notes

This symbol alerts you to the presence of important operating and maintenance, in the manual or

in the documentation accompanying the product

This symbol indicates that the product complies with international standards RoHS (Restriction

of certain Hazardous Substances) which restricts the use of certain hazardous substances in

electrical and electronic equipment put on the European market from 1 July 2006. It is part of a

series of EU Directives and environment and ‘ closely connected to the WEEE Directive ( Waste

Electrical and Electronic Equipment).

The symbol of the crossed-out dustbin indicates that the product at the end of its life must be

collected separately from other waste . The user must , therefore , take the remote control

integrates the essential components come to an authorized disposal center for collection of

waste electronic and electrical , or returning it to the dealer when buying new equipment of

equivalent type , at a rate of one to one. Appropriate separate collection for the decommissioned

equipment to recycling , treatment and environmentally compatible disposal helps to prevent

negative impact on the environment and human health and promotes recycling of the materials

making up the product. Illegal dumping of the product by the user entails the application of

administrative sanctions pursuant to Legislative Decree n. 49 (14/03/2014)

The CE mark indicates that this product complies with the European Community standards RED

and LVD ( Low Voltage Directive ). Compliance documentation in complete form is available at

the company Karma Italian Srl.

More informations: www.karmaitaliana.it

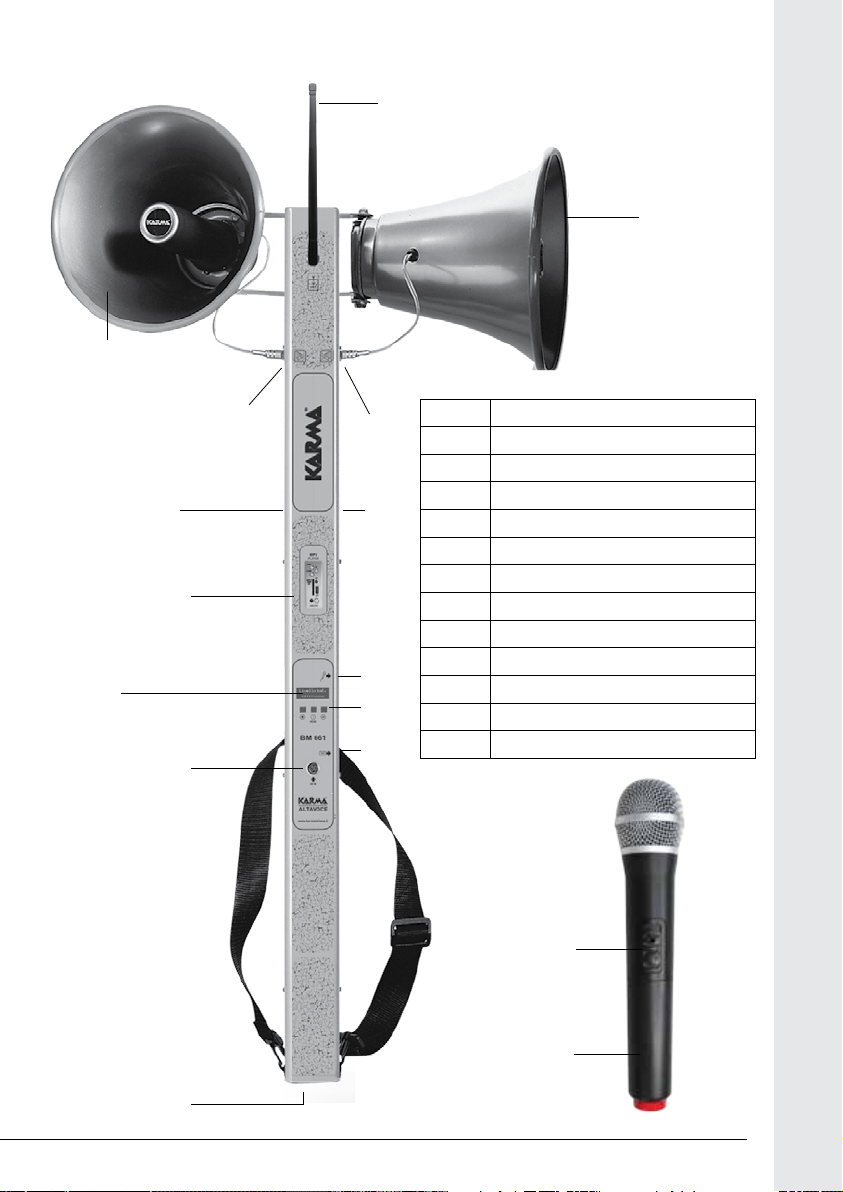

1Telescopic Antenna

2 Horn

3 Connectors for trumpets

4 Mp3 / USB / SD / AUX player

5 Corded microphone socket

6 LCD backlit display

7 Command keys

8 Socket for 12V power supply

9 220V battery charger socket

10 Interruption OFF / standby / ON

11 Battery compartment

12-13 Dipswitches

14 Tripod hole

STAND

Mount the stand to support the procession pole during use or recharge,

but also when the product is not used.

WIRELESS MICROPHONE

Remove the cap (11) on the bottom of the handheld microphone to

insert the battery (please remember to respect the correct polarities)

The amplied pole also includes a battery requiring a monthly recharge

cycle to keep maximum e󰀩ciency for a long time

Connect the antenna (1) to the upper socket

BATTERY RECHARGE

• Make sure that the procession unit is o󰀨 and put it in a suitable

place. If necessary use the specic stand.

• Connect the included adaptor to the pole’s socket (9)

• Put the adaptor’s plug into the domestic 230V power source. The

recharge status will be shown on the LCD display.

• The recharge cycle will be completed in about 10 hours.

• It is also possible to use a car’s cigarette lighter socket to give

More informations: www.karmaitaliana.it

power to the procession unit. It will be enough to connect the

cable coming from the cigarette lighter’s socket to the side 12V

socket (8). The internal polarity must be positive.

• If you are close to a 230V power socket you can connect the

procession system to it, thanks to the included adaptor, obtaining

in this way an endless autonomy. To connect the adaptor to the

pole use the front socket (9).

- Never let the procession pole’s battery go completely empty

- Use only the original charger to recharge the battery

- The battery will be 100% performant only after 8 recharge cycles

WARNING

ONLY FOR THE FIRST RECHARGE

When you recharge the battery for the rst time, proceed as

follows:

• Connect the adaptor to the power source

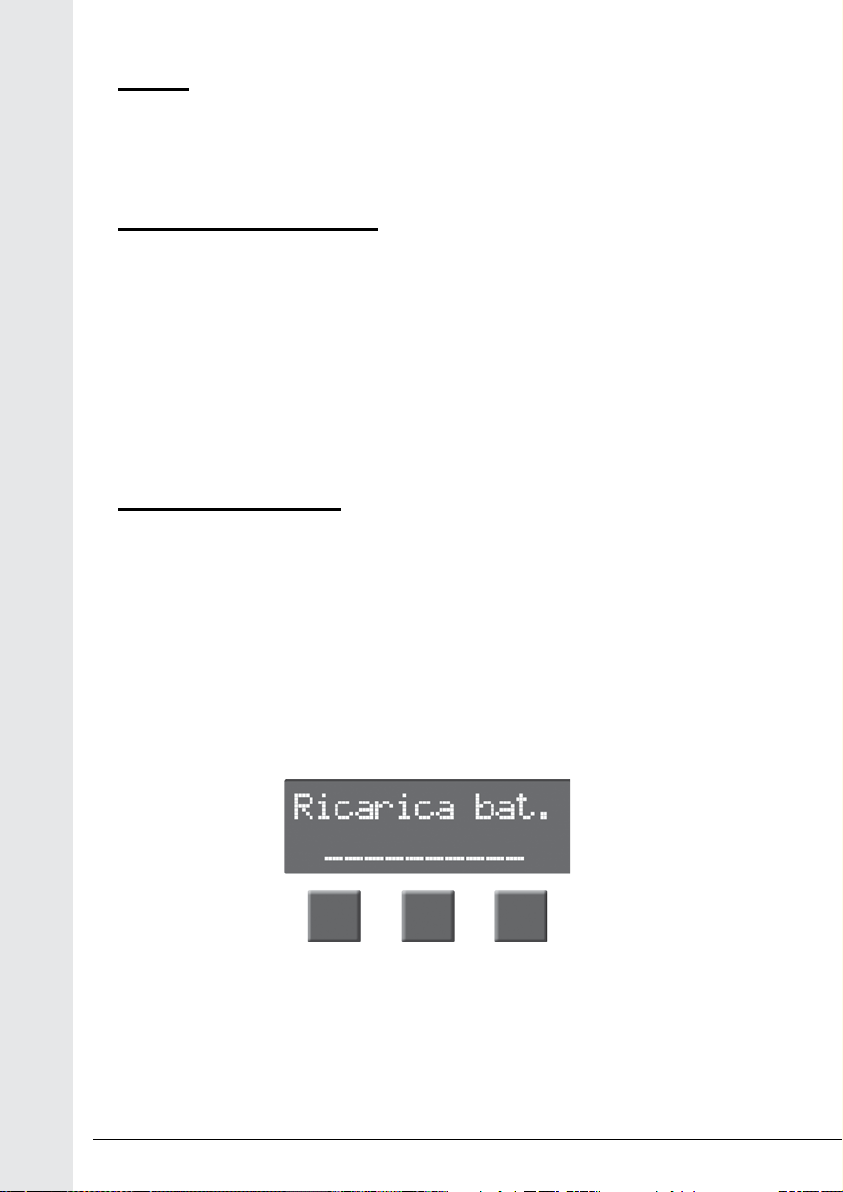

• If the indication RICARICA COMPLETATA (recharge

completed) appears on the display, disconnect and connect

again the adaptor until the display shows the writing

RICARICA BAT (battery recharge)

• If the message ERRORE BATTERIA (battery error) appears

disconnect and connect again the adaptor until the writing

RICARICA BAT (battery recharge) is displayed.

• This means that recharge has started correctly.

For any further necessity contact our technical support

HORN SPEAKERS

Connect the two horn speakers on the upper part (2), through the

specic brackets. You can adjust the speakers as you wish to obtain

an ideal sound di󰀨usion. The speakers’ connectors are to be plugged

into the side sockets (3).

• A wired microphone can be connected to the side socket (5)

• A CD or Mp3 player or any audio “line” signal can be connected to

the side socket (4).

• Fasten the strap to the specic rings

Once you have assembled all the components and with full batteries,

press for two seconds the central button of the control panel. In this way

you will turn on the device.

After some introduction screens, the display will show the battery charge

level. This screen will automatically appear also if you don’t press any

key for some seconds. This will allow you to check constantly the battery

level.

By pressing once the central button, the rst adjustable setting (total

volume) will be displayed.

More informations: www.karmaitaliana.it

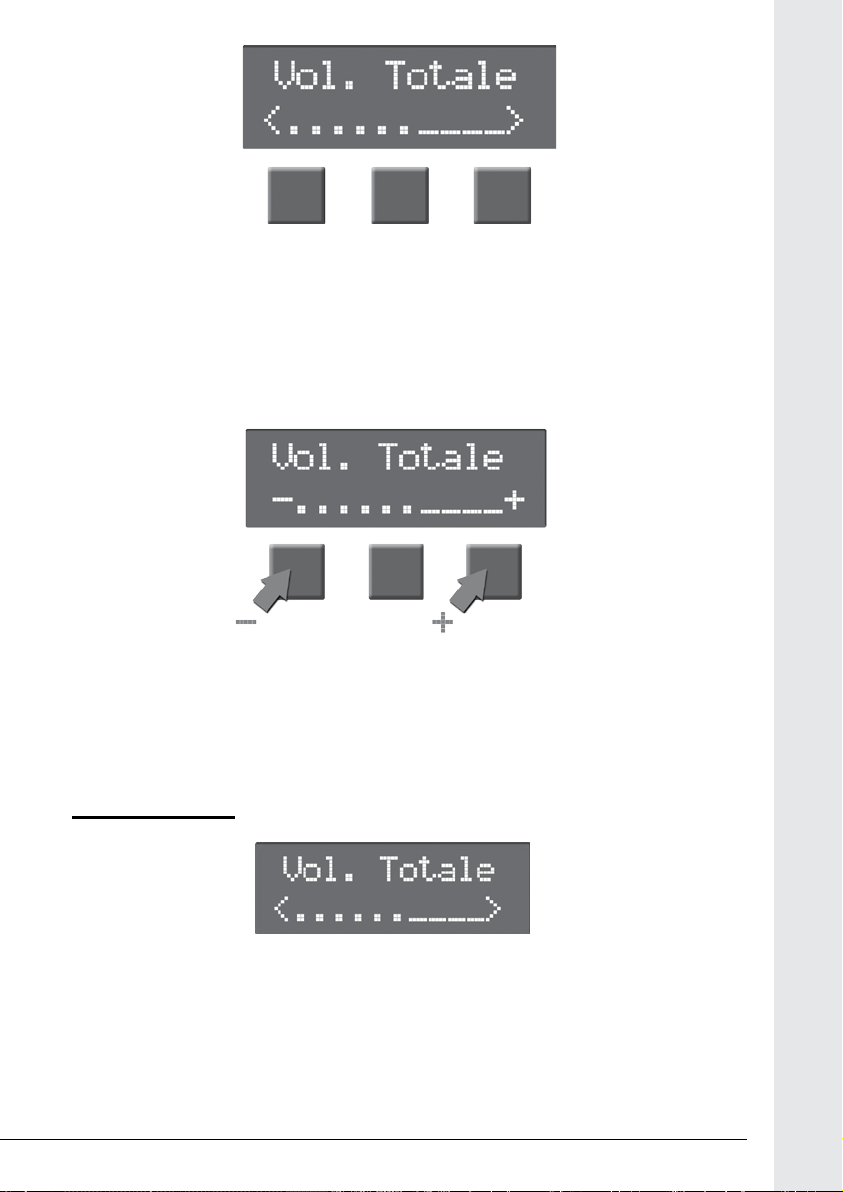

The parenthesis indicate that you are in selection mode; by pressing

the side buttons you can scroll through the settings and, by clicking

on the central button, you can modify them. When you conrm the

settings to be modied, through the pressing of the central button, the

parenthesis will disappear and the symbols + and - will appear.

Use the side keys to increase or reduce the level of the selected setting

It is possible to modify the following settings:

TOTAL VOLUME

It allows to adjust the “Master” volume level (i.e the volume of the whole

mixing reproduced by the horn speakers)

1110

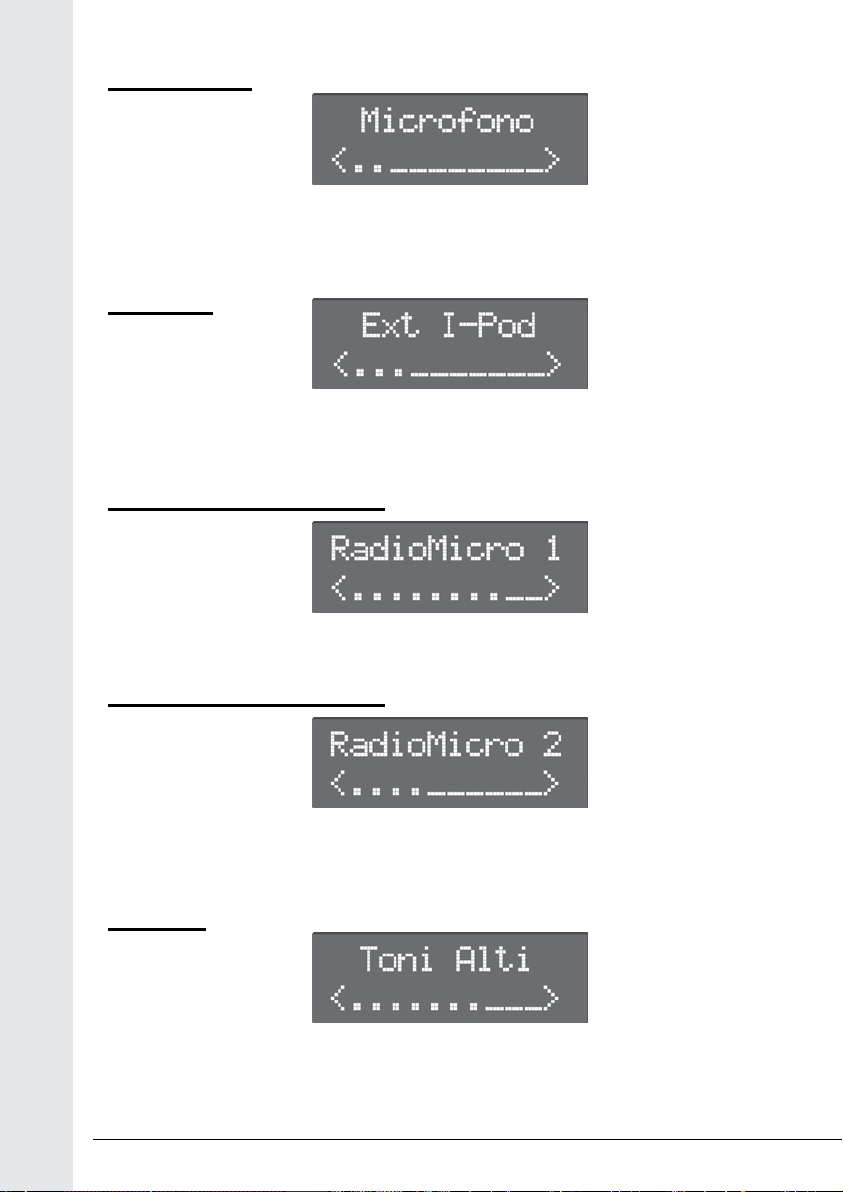

MICROPHONE

If a microphone is connect to the side socket (5) , it allows to adjust its

volume level.

EXT I-POD

It allows to adjust the volume level of a CD or Mp3 player, if connected

to the side socket (4).

WIRELESS MICROPHONE 1

It allows to adjust the wireless microphone’s volume

WIRELESS MICROPHONE 2

It allows to adjust the volume lever of the second wireless microphone

(only for model BM 661USB 2RM)

TREBLES

It allows to adjust the trebles’ e󰀨ect on the whole mixing
