Operating instructions NT 65/2 Eco *VEX English

Important

Prior to initial operation of the unit

we request you to carefully read

the information given in the

operating instructions.

Inform your dealer immediately

of shipping damage.

Environmental protection

Items used when working, such as

fuel, oil, cleaning agent and

contaminated maintenance

materials, are to be deposited at a

special collection point.

Packaging materials, metal and

plastic containers are to be set

aside for recycling as appropriate.

Disposal of used units

Your Kärcher retailer will provide

you with information on disposal

means harmless to the

environment.

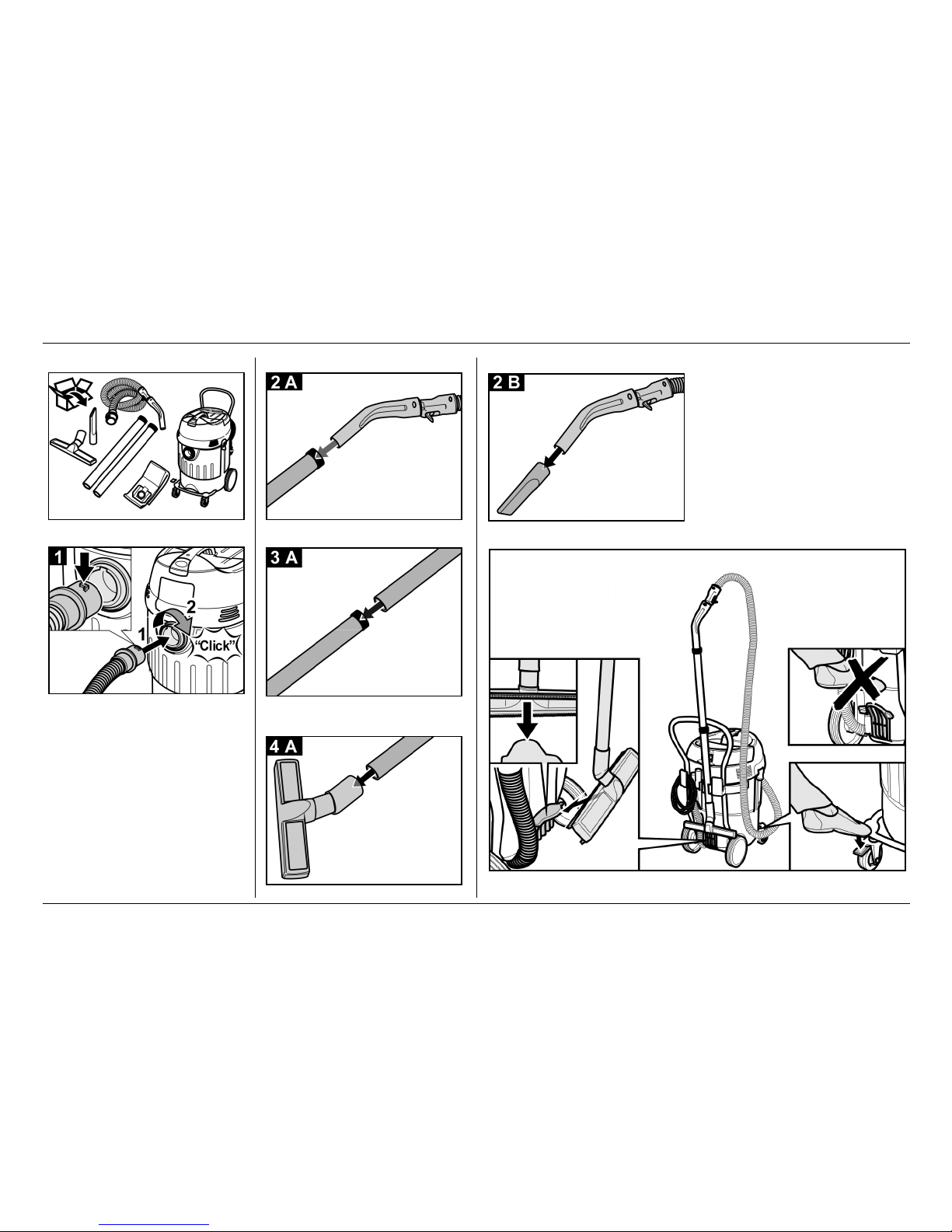

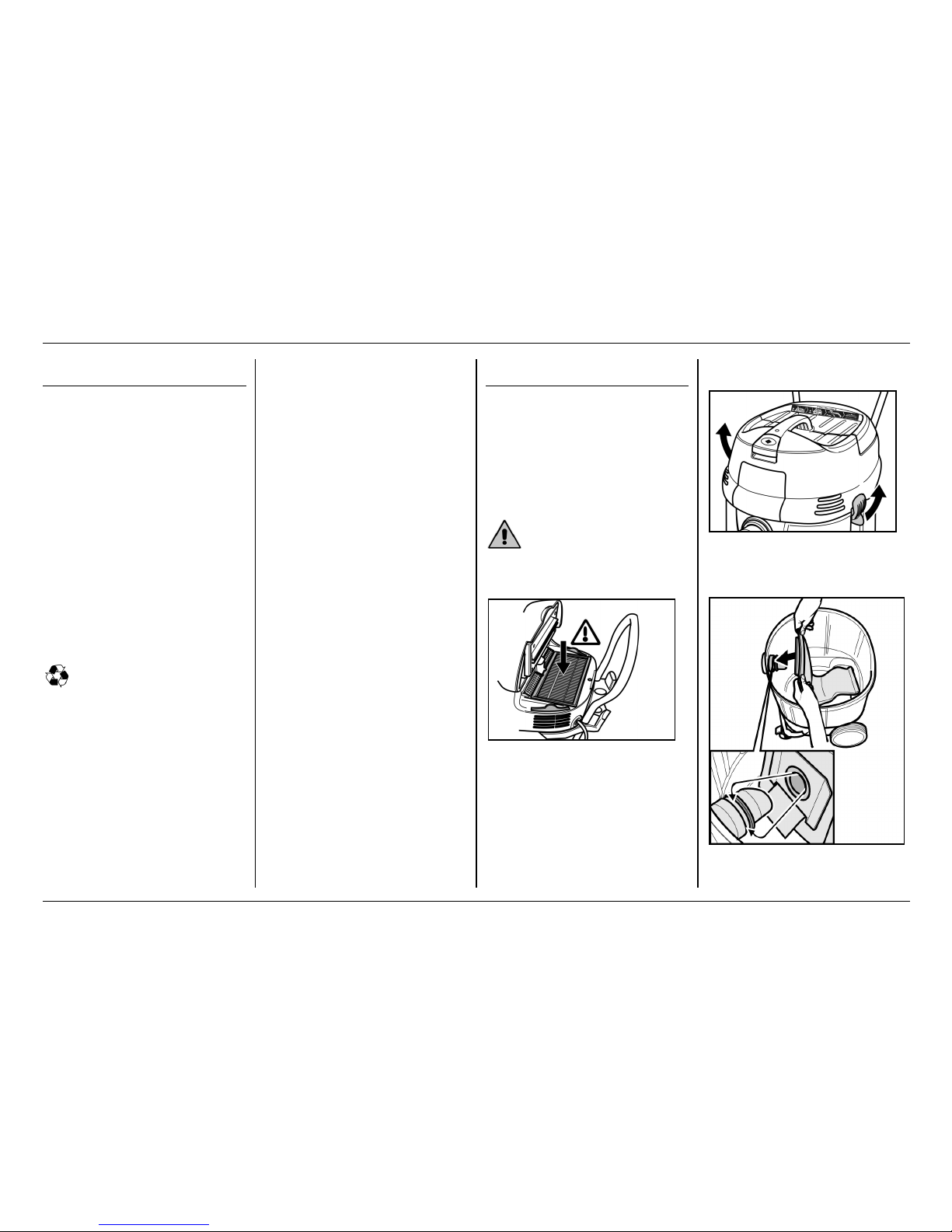

Intended use

—This vacuum cleaner is a

cleaning unit for industrial

applications.

—The unit is designed for wet

and dry cleaning of floors and

walls in the home, in business

and industrial premises in

accordance with these

operating instructions.

—When the unit is used it is not

permissible for the ambient

temperature to exceed 40°C.

Dry suction

Warning!

During vacuuming it is not

permitted to ever remove the flat

pleated filter.

A paper filter bag or a diaphragm

filter (special accessories) can

additionally be used to vacuum

fine dust.

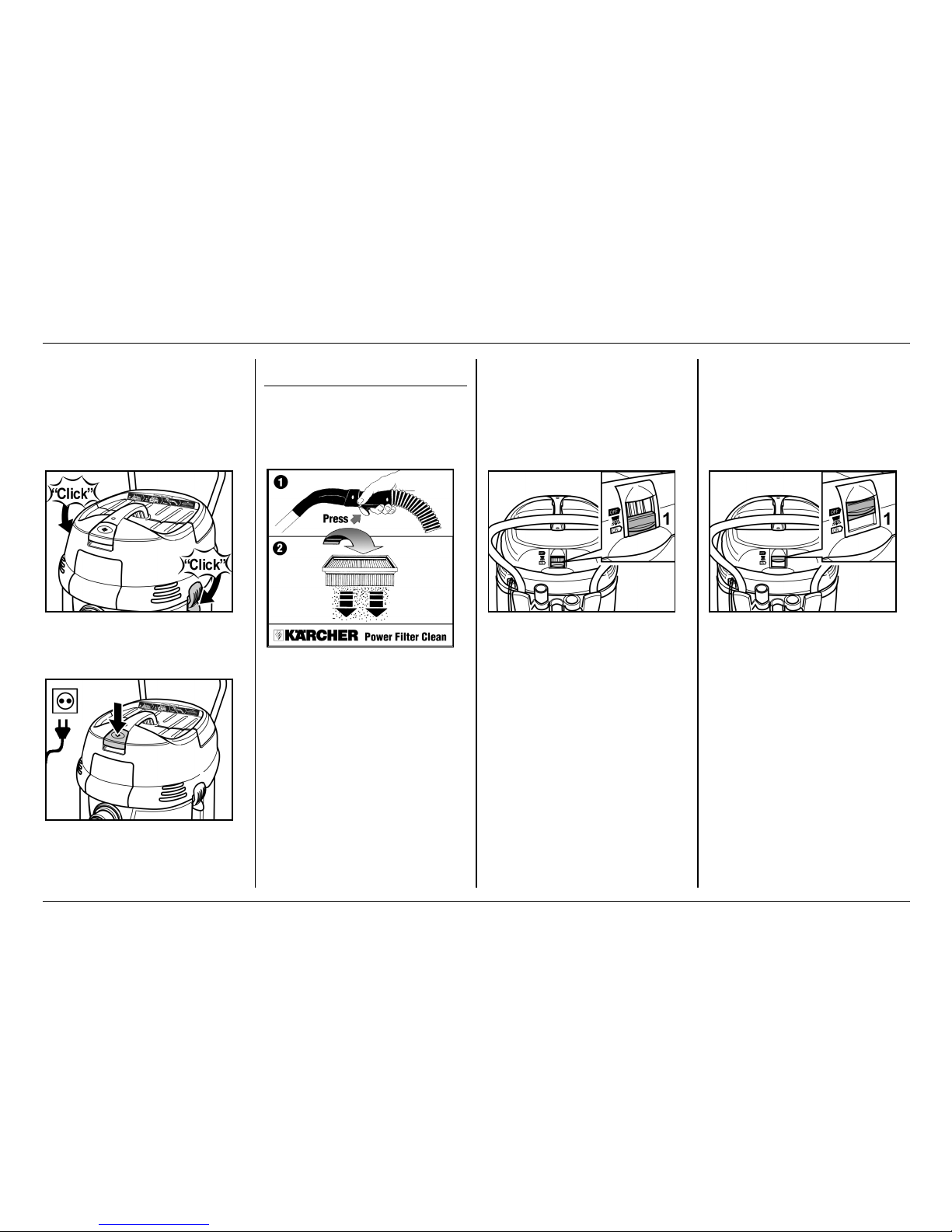

Fitting the paper filter bag

!Unlock and remove the suction

head

!Attach the paper filter bag

Operating instructions NT 65/2 Eco *VEX English

!Replace the suction head and

lock it in place

!Insert power plug

!Switch on the machine and

start using it

Filter de-duster

Power Filter Clean

Your vacuum cleaner is provided

with a new type of filter cleaner –

especially effective for fine dust.

The flat pleated filter is

automatically cleaned by an air

blast if you press the push button

at the handle for approx. 5 to

10 seconds (pulsating sound)

Prior to that the Power Filter Clean

must be activated.

To activate Power Filter Clean

Slider (1) position - down

Note:

Actuating the push button at the

handle every 5 to 10 minutes

increases the filter service life.

To deactivate Power Filter Clean

Slider (1) position - up.

Note:

For vacuuming with the upholstery

or crevice nozzle or for

predominantly sucking up water.

Operating instructions NT 65/2 Eco *VEX English

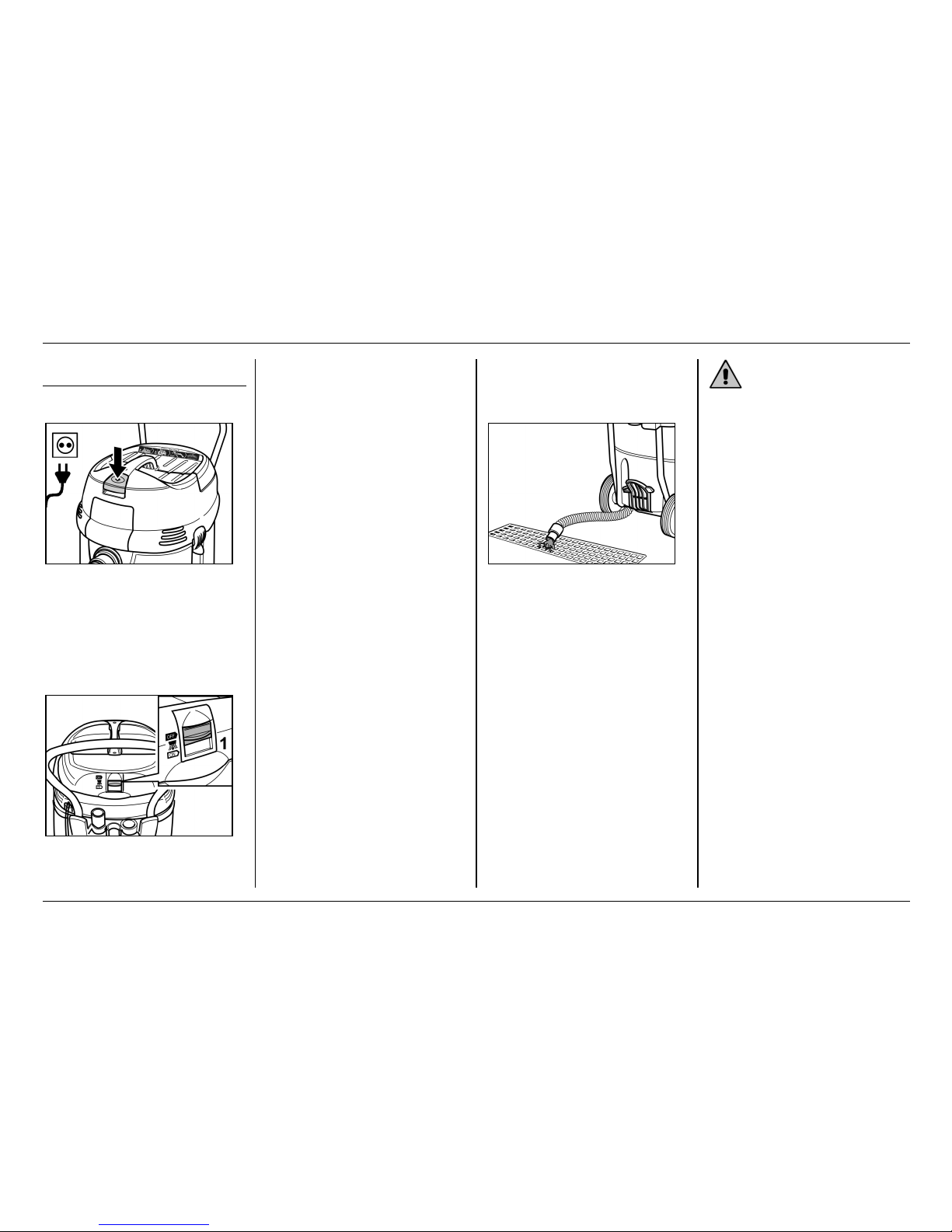

Wet-vacuuming

!Remove the paper filter bag

!Insert power plug

!To deactivate Power Filter

Clean

!Switch on the machine and

start using it

To deactivate Power Filter Clean

Slider (1) position - up.

Note:

—It is advisable to deactivate the

- Power Filter Clean - function

when vacuuming with the

upholstery or crevice nozzle or

if predominantly water is to be

sucked out of a container.

Upon reaching the maximum liquid

level the unit automatically turns

itself off.

!Switch the appliance off and

empty the container.

Automatic shutoff is reset by

turning off the unit.

!Clean and dry the flat pleat

filter and the electrodes as well

as the container after finishing

wet vacuuming jobs.

!Drain dirty water using the

drain (not provided for all units)

Warning!

—During vacuuming it is not

permitted to ever remove the

flat pleated filter.

—The paper filter bag and the

membrane filter (optional

accessories) respectively must

always be removed for

vacuuming wet dirt. The use of

a special filter bag (wet type) is

recommended

(see filter systems).

—The unit does not switch off

when the container is full when

non-conductive liquids (e.g.

drilling emulsion, oils and

greases) are vacuumed. The fill

level must be regularly checked

and the container emptied

before it is too full.

—On request, the unit can be

retrofitted by maintenance

service with a shutoff for

dielectric liquids.

Operating instructions NT 65/2 Eco *VEX English

Care and maintenance

Danger!

Always pull out the mains plug

when working on the suction

machine.

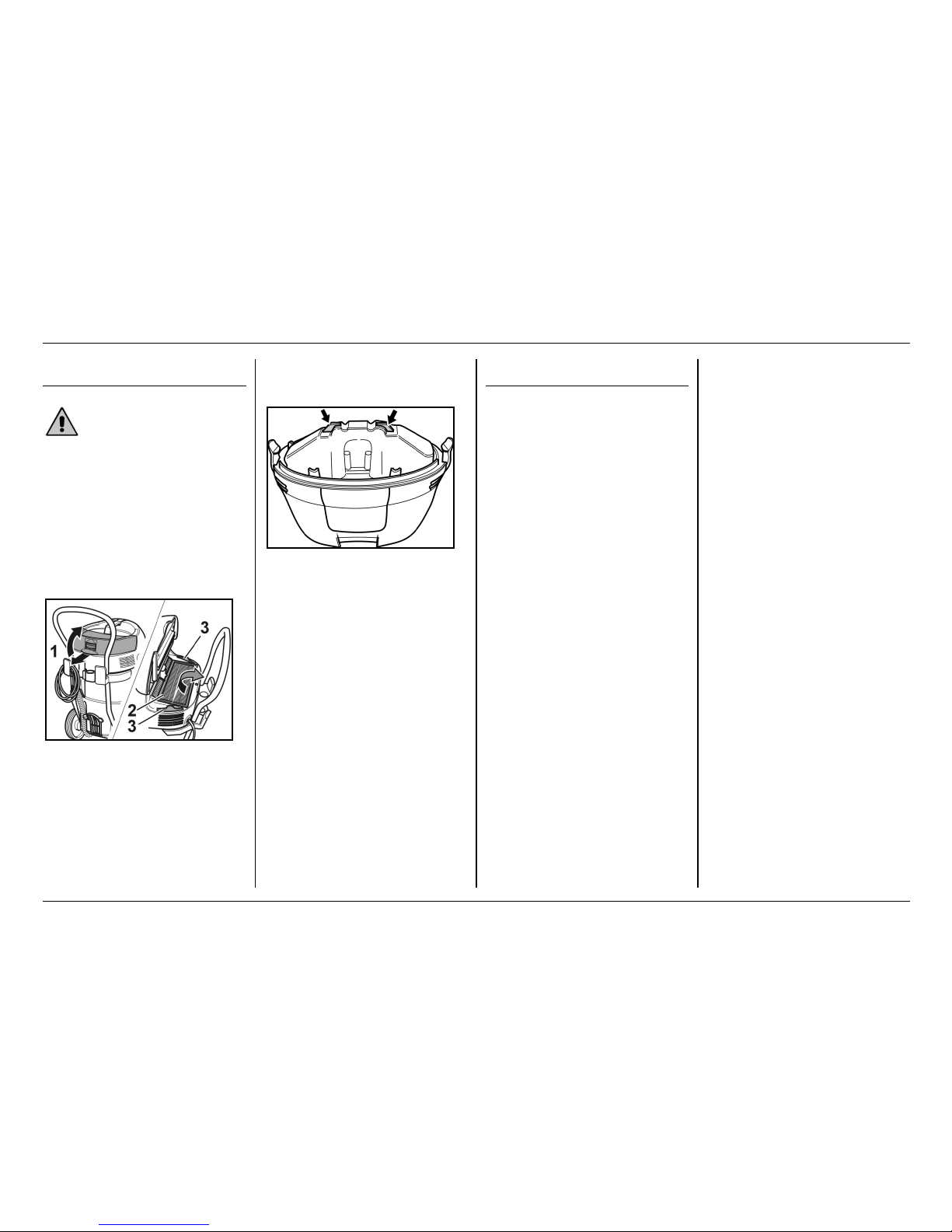

Replacing the flat pleated filter

or the exhaust air filter

!Open the filter cover (1)

!Replace the flat pleated

filter (2) or the exhaust air

filter (3)

!Close the filter cover, it must

engage audibly

Clean electrodes

!Unlock and remove the suction

head

!Clean electrodes

!Replace the suction head and

lock it in place

Fault instructions

The suction turbine does not

run

!Check the cable, plug, fuse and

socket.

!Switch on the machine.

The suction turbine switches off

!Empty the container.

The suction turbine does not

restart following emptying of

the container

!Switch the appliance off and

wait for 5 s, switch it on again

after 5 s.

!Clean the electrodes as well as

the space between them.

The suction power decreases

!Remove the parts clogging up

the suction nozzle, the suction

tube, the Power Filter Clean

handle, the suction hose or the

flat pleat filter.

!Change the paper filter bag.

!Actuate the filter

cleaner: Power Filter Clean

several times at the handle.

!Engage the filter cover

properly.

!Replace the flat pleat filter.

!Check drain hose for leaks

(if provided).

Dust ejects when sucking

!Check the proper mounting

position of the flat pleat filter.

!Replace the flat pleat filter.

The (wet-vacuuming) automatic

switch-off does not respond

!Clean the electrodes as well as

the space between them.

!Constantly check fill level when

vacuuming electrically non-

conductive liquids.

Power Filter Clean switches

regularly

!Detach blocked suction nozzle

or end of hose.

!Stop continuous vacuuming

from liquid tank or deactivate

the Power Filter Clean function

(see chapter on wet-

vacuuming).

!Remove the parts clogging up

the suction nozzle, the suction

tube, the Power Filter Clean

handle, the suction hose or the

flat pleat filter.

!Replace the flat pleat filter.

Operating instructions NT 65/2 Eco *VEX English

EC conformity

declaration

We hereby declare that the

machine specified below

as the marketed desigh, the

machine specified below

complies with the relevant

fundamental safety and health

requirements of the EC directives

listed below.

Modification of the machine

without our approval invalidates

this declaration.

Product: Wet and dry vacuum

cleaner

Type: 1.325-xxx

Relevant EC directives

EC machine directive (98/37/EC)

EC low voltage directive

(73/23/EEC) amended by

93/68/EEC

EC directive on electromagnetic

compatability (89/336/EEC)

amended by 91/263/EEC,

92/31/EEC, 93/68/EEC

Applied harmonised standards

DIN EN 60335-1

DIN EN 60335-2-69

DIN EN 55014-1:2000 + A1:2001

DIN EN 55014-2:1997

DIN EN 61000-3-2:2000

DIN EN 61000-3-3:1995 +

A1:2001

Applied national standards

Internal measures ensure that the

in series produced units always

comply with the requirements of

current EC directives and applied

standards. The signatories act for

and in authority of management.

5.957-701 (05/02)

Alfred Kärcher Limited

Partnership.

Registered office: Winnenden.

Company Register: Waiblingen,

HRA 169.

Personally liable partner. Kärcher

Reinigungstechnik GmbH.

Registered office Winnenden,

2404 Waiblingen Company

Managing directors:

Dr. Bernhard Graf,

Hartmut Jenner, Georg Metz

Alfred Kärcher GmbH & Co. KG

Cleaning Systems

Alfred-Kärcher-Strasse 28-40

P.O.Box 160

D-71349 Winnenden

Phone: ++49 7195 14-0

Fax :++49 7195 14-2212

NT 65/2 Eco *VEX

Alfred Kärcher Ges. m.b.H.

Lichtblaustraße 7

A-1220 Wien

Kärcher (Pty.) Ltd.

2/158 Browns Road

Noble Park 3174

Melbourne, Vict.

BE, LU, NL

Kärcher Benelux

Industrieweg 12

2320 Hoogstraden

Kärcher Industria e Comércio Ltda.

Av. Prof. Benedicto Montenegro

n°419

Paulinia – Estado de Sao Paulo

CEP 13.140-000

Kärcher Cleaning Systems Inc.

1770 Alstep Drive

Mississauga, Ontario L5S1W1

Kärcher Variorapid AG

Industriestr. 16

CH - 8101 Dällikon

Kärcher spol. S. r. a.

Za Mototschnou

155 00 Praha – Stodůlky

Alfred Kärcher GmbH & Co

Vertrieb Deutschland

Friedrich - List - Straße 4

D - 71364 Winnenden

Kärcher A/S

Gejihavegaard 5

DK – 6000 Kolding

Kärcher S.A.

Pol. Industrial Font del Radium

Calle Doctor Trueta 6-7

E - 08400 Granollers (Barcelona)

Kärcher S.A.

Z.A. des Petits Carreaux

5, avenue des Coquelicots

F - 94865 Bonneuil s. Marne/CEDEX

Kärcher Oy

Yrittäjäntie 17

FIN - 01800 Klaukkala

Kärcher (U.K.) Ltd.

Kärcher House

Beaumont Road

Banbury Oxon, OX 16 7TB

Kärcher S.A.

Cleaning Systems

99 Aristoutelous & Ioanninon

GR - 136 71 Aharnes

Kärcher Hungaria Kft.

H-2051 Biatorbagy (Vendelpark)

Tormasret ut 2

Kärcher Ltd.

Unit 10, 17/FL. APEC Piaza

49 Hoi Yuen Road

Kwun Tong, Kowloon

Kärcher S.p.A.

Via Elvetia 4

I - 25050 Cantello (VA)

Kärcher (Japan) Co., Ltd.

Irene Kärcher Building

No. 2, Matsusaka-Daira 3-chome

Taiwa-cho, Kurokawa-gun

Miyagi, 981-34, Japan

Kärcher A/S

Gjerdrumsvei 4

Postboks 94, Grefsen

N - 0409 Oslo

Neoparts

Comercio e Indústria Autómovel, Lda

Largo Vitorino Damásio. 10

1200 Lisabon

Kärcher Poland Ltd.

Sp. zo. o.

Ul. Godlewskiego 22

30-198 Kraków

Kärcher AB

Box 24

S - 42502 Hisings - Kärra

USA

Alfred Kärcher Inc.

P.O. Box 6510

1600 Cottontail Lane

Somerset, NJ 08875

Kärcher (Pty.) Ltd.

P.O. Box 2417

Kempton Park 1620

NT 65/2 Eco *VEX

120 V AC 60 Hz

10,0 m

SSTW-A 14/3 AWG 6.648-919

74 dB (A)

I: 18 A

65 l

50 l

max. 2 x 54 l/s

max. 235 mbar

Umgebungs- max. 40 °C

temperatur

Ambient temperature

Température ambiante

600 mm x 480 mm x 920 mm

ohne Zubehör 19 kg

without accessories

sans accessoires

40 mm

Autres manuels pour NT 65/2 ECO TC

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kärcher Aspirateur

Kärcher

Kärcher Puzzi 400 K Manuel utilisateur

Kärcher

Kärcher DE 4002 Manuel utilisateur

Kärcher

Kärcher ProT 200 Manuel utilisateur

Kärcher

Kärcher SE 4002 Instructions de fonctionnement

Kärcher

Kärcher SE 4002 Manuel utilisateur

Kärcher

Kärcher VC 6300 Manuel utilisateur

Kärcher

Kärcher RC 3000 Manuel utilisateur

Kärcher

Kärcher WD 3.300 M Manuel utilisateur

Kärcher

Kärcher NT 27/1 Advanced Manuel utilisateur

Kärcher

Kärcher NT 72/2 ECO TC Manuel utilisateur

Kärcher

Kärcher EB 30/1 Manuel utilisateur

Kärcher

Kärcher Puzzi 10/1 Manuel utilisateur

Kärcher

Kärcher WD 4 Premium Manuel utilisateur

Kärcher

Kärcher VC 6100 Manuel utilisateur

Kärcher

Kärcher T 12/1 Manuel utilisateur

Kärcher

Kärcher WV 50 Plus Manuel utilisateur

Kärcher

Kärcher SC 2.500 C Manuel utilisateur

Kärcher

Kärcher WD 4 Manuel utilisateur

Kärcher

Kärcher NT 20/1 ME Classic Manuel utilisateur

Kärcher

Kärcher A 2054 Me Manuel utilisateur

Kärcher

Kärcher CV 66/2 Manuel utilisateur

Kärcher

Kärcher A 2801 plus Manuel utilisateur

Kärcher

Kärcher NT 48/1 Manuel utilisateur

Kärcher

Kärcher K1102 Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
