Kärcher T 350 Manuel utilisateur

T 350

T-Racer

5.961521.0 (05/05)

12" Hard Surface Cleaner

Designed for gasoline pressure washers

with screw-on trigger guns up to 2650 PSI.

12" Nettoyeur de surface dure

Adaptable aux netto eurs haute pression avec

moteur à essence d´une puissance a 2650 lb/po2.

12" Lavador de superficies duras

Para lavadoras de presión a gasolina a 2650 PSI.

2.641005.0

English ................. 2

Español ................ 8

Français ............. 14

T 350 OVERVIEW

Item Description

1 Nozzle height adjustment

2 Hand grip

3 Air flow control (hovering effect)

Item Description

4 Housing

5 Handle (2 piece)

6 Adaptor

Kärcher Support USA

Call: 1-800-537-4129 for help

or visit our website: .karcher-usa.com/home

Kärcher Customer Service CDN

Call: 1-800-465-4980 for help

or visit our website: .karcher.ca

Kärcher Support Mexico

Call: 01-800-024-13-13 for help

or visit our website: .karcher.com.mx

IMPORTANT SAFETY INSTRUCTIONS

WARNING  When using this

product basic precautions should

alwa s be followed, including the

following:

Read all the instructions before

using the product.

Please observe the safet instruc-

tions of our pressure washer.

The T-Racer must not be used b

children.

Onl trigger the gun of the pressure

washer if the T-Racer is located on

the surface to be cleaned.

Keep all persons/animals clear of

the immediate vicinit of the

cleaning head.

Keep hands awa from moving

parts.

Turn off the pressure washer when

examining or changing the T-Racer

and after the completion of the

cleaning operation.

Maximum water temperature

allowed is 140 °F/ 60 °C. Please

follow the instructions for our

pressure washer.

 SAVE THESE INSTRUCTIONS 

CAUTION!

 Do not use on windows.

 The T-Racer is not suited for

scouring or scrubbing!

 Do not run over freestanding

corners!

 For the optimum setting, test the

TRacer in an inconspicuous area.

 Never operate in the same area

for more than 2 seconds, damage

ma occur.

Intended Use

The T 350 T-Racer can be used with

all Kärcher gasoline pressure wash-

ers with 2400 to 2650 PSI and most

other gasoline pressure washers with

screw-on trigger guns up to 2650 PSI

(with included adaptor).

Use on horizontal surfaces like drive-

wa s, patios, side walks, etc.

Use on vertical surfaces like brick

walls, hardiplank, stucco and other

siding. (Alwa s test in inconspicuous

area first.)

The T350 has not been designed for

commercial use. Commercial users

should consider Kärcher`s FR 30 Hard

Surface Cleaner

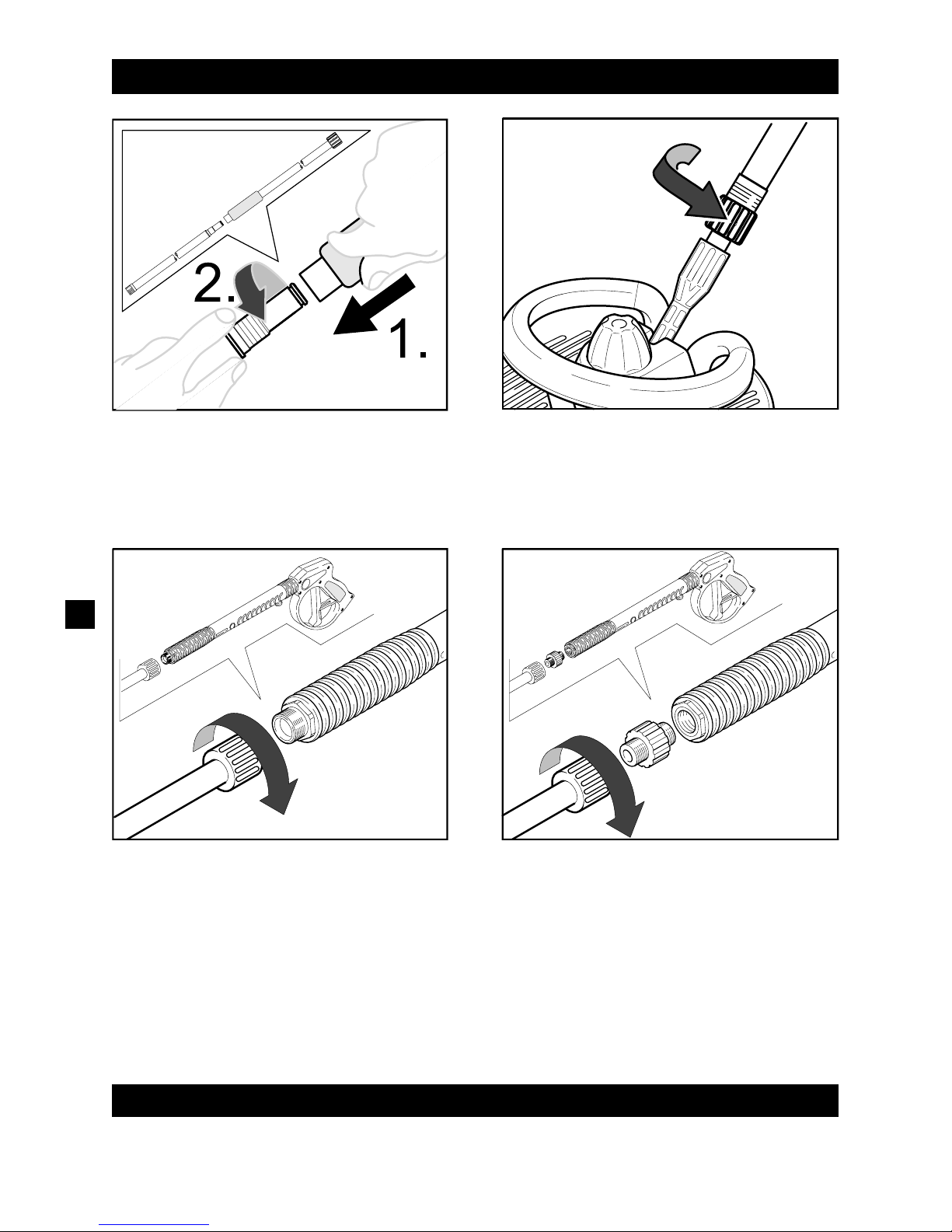

ASSEMBLY INSTRUCTIONS

Step 1

 Insert upper handle into the lower

handle b twisting together.

Step 2

 Insert lower handle into main

housing.

 Turn collar clockwise until tight.

Step 3

For Kärcher ith male scre -on

trigger gun.

 Insert male screw-on trigger gun

into upper handle.

 Turn collar clockwise until tight.

Step 3

For female scre -on trigger gun.

 Screw adaptor on female screw-on

trigger gun.

 Insert trigger gun with adaptor into

upper handle.

 Turn collar clockwise until tight.

Cleaning vertical surfaces

 Connect the T-Racer directl with the trigger gun.

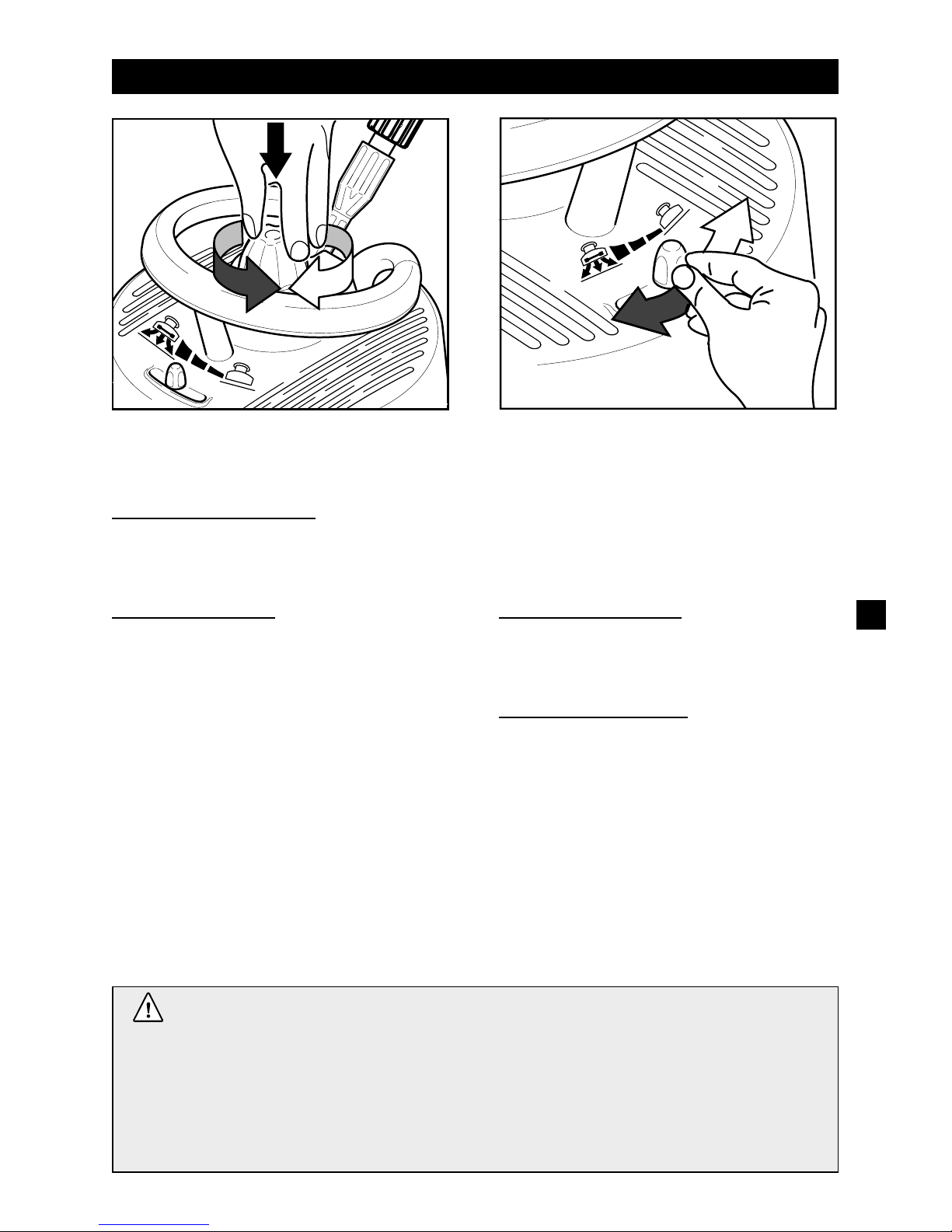

OPERATION CONTROLS

Spray Po er

Adjust height of propeller spra head.

For sensitive surfaces

 Turn nozzle height adjustment

clockwise.

For hard surfaces

 Turn nozzle height adjustment

counterclockwise.

Air Flo Control

Adjust the hovercraft effect of the

T-Racer b pushing the Air Flow Con-

trol into one of the positions from No

hovercraft effect to Full hovercraft

effect.

No hovercraft effect

(Air flow vents closed)

 Push counterclockwise to the stop.

Full hovercraft effect

(Air flow vents opened)

 Push clockwise to the stop.

Please Note:

 For optimum setting test the T-Racer in an inconspicuous area first.

 Never operate in the same area for more than 2 seconds, damage

ma occur.

 Do not use on windows.

Suggested Settings for T pical Applications

Horizontal Wood and Decks

 Adjust height of the spra

head clockwise.

 Open the air flow vents.

Vertical Wood, Siding and Facades

 Connect the T-Racer directl

with the trigger gun.

 Adjust height of the spra

head clockwise.

 Close the air flow vents.

Do not use on indo s.

Horizontal Tile, Concrete and Stone

 Adjust height of the spra

head counterclockwise.

 Open the air flow vents.

Vertical Tile, Concrete and Stone

 Connect the T-Racer directl

with the trigger gun.

 Adjust height of the spra

head counterclockwise.

 Close the air flow vents.

APPLICATION DIRECTIONS

Cleaning of vertical surfaces:

Alwa s hold Trigger Gun and T-Racer with both hands.

Do not reach under the edge of the T-Racer while the device is in operation.

REPLACEMENT OF THE NOZZLES

Kärcher Support USA

Call: 1-800-537-4129 for help

or visit our website: .karcher-usa.com/home

Kärcher Customer Service CDN

Call: 1-800-465-4980 for help

or visit our website: .karcher.ca

Kärcher Support Mexico

Call: 01-800-024-13-13 for help

or visit our website: .karcher.com.mx

Note: The nozzles must be

removed for cleaning or for the

exchange of the nozzles.

1. Remove the clamp.

2. Pull out the old nozzle.

3. Insert the new nozzle.

4. Secure nozzle with clamp.

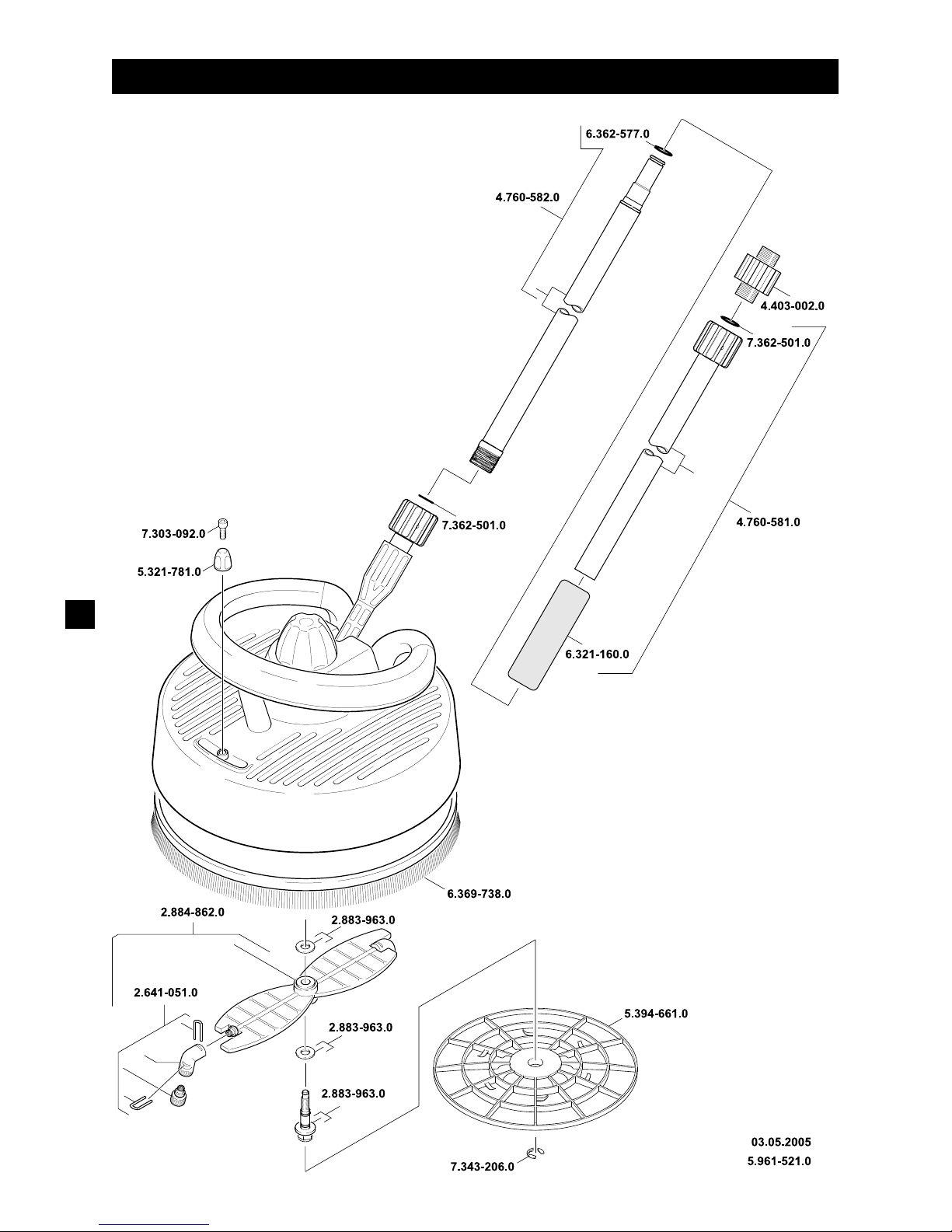

PARTS LIST
