KARBON A/V K3899R Manuel utilisateur
VER 1.0
HDMI over IP Extender with
Loop Out (150m)
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction...........................................................................................
2. Features.................................................................................................
3. Package Contents...............................................................................
4. Specifications.......................................................................................
5. Operation Controls and Functions.....................................................
5.1 Encoder Panel................................................................................
5.2 Decoder Panel...............................................................................
6. Application Example...........................................................................
1
1
1
2
3
3
4
5
1. Introduction
2. Features
3. Package Contents
①1× HDMI over IP Extender (Encoder)
②1× HDMI over IP Extender (Decoder)
③1× IR Blaster cable (1.5 meters)
④ 1× 20~60KHz IR Receiver cable (1.5 meters)
⑤ 2× 5V/1A Power Adapters
⑥ 1× User Manual
HDMI over IP Extender is based on AV over IP solution for distribution of
one HD content to one HD display device or to multiple HD display devices
over a standard network switcher, and extends distance up to 492ft / 150m
between encoder and decoder via a CAT5e/6 cable. It offers configurable
high quality, low-bandwidth H.265 compression video. The resolution is up
to 1920x1200@60Hz. It also supports HDMI loop output on transmitter.
HDMI over IP Extender includes two units: Encoder and Decoder.
Encoder is responsible for obtaining HDMI signals for encoding,
transmitting via CAT5e/6 cables. It supports HDMI loop output; Decoder
is responsible for signal decoding and outputting HDMI signals to HD displays.
The product supports one-way IR control signal transmission. It offers the
most convenient solution for HDMI extension over a single CAT5e/6 cable
and is the perfect solution for any application.
1 / 6
☆HDMI 1.3 and HDCP 1.4 compliant
☆Support 6.75Gbps video bandwidth
☆Video resolution is up to 1920×1200@60Hz
☆Extend distance up to 492ft / 150m between encoder and decoder via a
single CAT5e/6 cable
☆Adopt standard H.265 encoding / decoding
☆Support standard IP swticher / router / hub
☆Support one-way IR control signal transmission
☆Compact design for easy and flexible installation
4. Specifications
640x480@60Hz~1920x1200@60Hz
Human body model—±8kV (Air-gap discharge) &
±4kV (Contact discharge)
ESD Protection
Technical
Video Bandwidth 6.75Gbps
Encoder
Video Resolution
HDMI Audio Formats LPCM 2.0CH, 32KHz, 44.1KHz, 48KHz
Connection
HDCP Compliance HDCP 1.4
IR Frequency 20Hz ~ 60KHz
Compression
Technology H.265
Request for Switcher
/Router Support IGMP, Support DHCP
Color Space
Color Depth
RGB, YCbCr 4:4:4, YCbCr 4:2:2
8-bit
Operation Temperature -10°C ~ 50°C / 14°F ~ 122°F
Decoder
Input: 1×CAT IN [RJ45 connector]
Output: 1×HDMI OUT [Type A 19-pin female]
Control:1×IR IN [3.5mm Stereo Mini-jack]
88mm (W) × 61.2mm (D) × 16.5mm (H)
Power Supply
Dimensions
Weight Encoder: 158g, Decoder: 155g
Housing Metal Enclosure
Color Black
Power Consumption Encoder: 2.55W, Decoder: 3.7W
Mechanical
Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A
(US/EU standard, CE/FCC/UL certified)
Input: 1×HDMI IN [Type A 19-pin female]
Output: 1×HDMI OUT [Type A 19-pin female]
1×CAT OUT [RJ45 connector]
Control:1×IR OUT [3.5mm Stereo Mini-jack]
2 / 6
HDMI Compliance HDMI 1.3
5. Operation Controls and Functions
HDMI Loopout port for connecting the HDMI display device.
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)
HDMI INHDMI OUT RESET IR OUT DC 5VCAT OUT
Name Function Description
HDMI OUT
HDMI IN HDMI source input port for connecting the HDMI source
device.
RESET
button
CAT OUT
The CAT OUT port is connected to the CAT IN port on
Decoder or connected to switcher / router / hub with CAT
cable for sending signal to receiver.
5.1 Encoder Panel
IR OUT Connect to the IR blaster cable. The IR blaster signal is
from IR IN on the Decoder.
Resolution /
Distance 1920x1200@60Hz - Feet / Meter
CAT 5e/6 cable 492ft / 150 meters
Resolution /
Cable length 1920x1200@60Hz - Feet / Meter
HDMI IN / OUT 50ft / 15 meters
3 / 6
Press and hold the button for 3 seconds to reset the product.
The EDID will restore default status: 1920*1080@60Hz.
5.2 Decoder Panel
HDMI OUT RESET IR IN DC 5VCAT IN
HDMI output port for connecting the HDMI display device.
Name Function Description
HDMI OUT
RESET
button
■ Press and hold the button for 3 seconds to reset the product
to the factory default status.
■ Short press the button to copy EDID from decoder display
device to encoder’s HDMI source device.
CAT IN
The CAT IN port is connected to the CAT OUT port on
Encoder or connected switcher / router / hub with CAT cable
for receiving encoder signal.
IR IN Connect to wideband IR receiver cable. The IR signal is sent
to IR OUT port on the Encoder.
LINK LED The LED will flash blue when decoder is connected encoder
or connected switcher / router / hub.
POWER
LED
The LED will illuminate blue when the Decoder is powered
on.
DC 5V Plug the DC 5V/1A power supply into the unit and connect
the adapter to an AC outlet.
LINK LED The LED will flash blue when encoder is connected to
decoder or connected to switcher / router / hub.
POWER
LED
The LED will illuminate blue when the encoder is powered
on.
DC 5V Plug the DC 5V/1A power supply into the unit and connect
the adapter to an AC outlet.
4 / 6
6. Application Example
HDMI INHDMI OUT RESET
IR OUT DC 5VCAT OUT
HDMI OUT RESET
IR IN DC 5VCAT IN
Encoder Decoder
DVD or Blu-ray Player
TV TV
Power Supply
Power Supply
IR Receiver
IR Blaster
Ethernet CAT5e/6
Figure 1: Encoder connects directly Decoder
5 / 6
HDMI INHDMI OUT RESET IR OUT DC 5VCAT OUT
HDMI OUT RESET IR IN DC 5VCAT IN
HDMI OUT RESET IR IN DC 5VCAT IN
HDMI OUT RESET IR IN DC 5VCAT IN
DVD or Blu-ray Player
TV
TV
TV
TV
Switch
Encoder
Decoder
Decoder
Decoder
Ethernet CAT5e/6
Ethernet CAT5e/6
HDMI Cable HDMI Cable
HDMI Cable
HDMI Cable
HDMI Cable
HDMI Cable

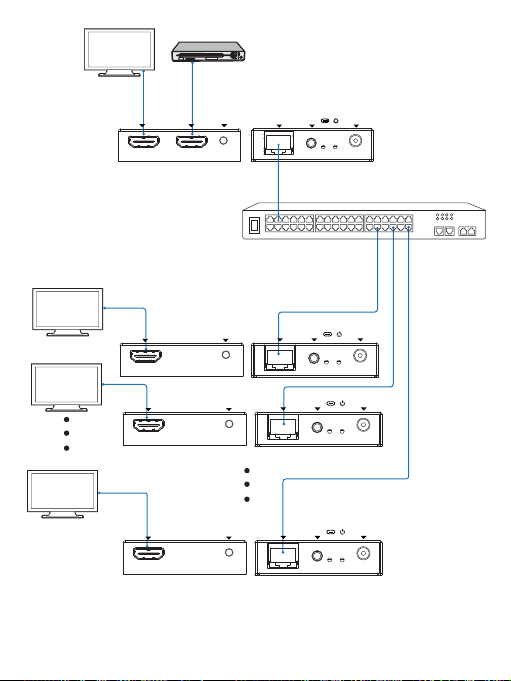

Figure 2: Encoder connects Decoder via switcher
(one Encoder to multiple Decoders)
6 / 6
