Instruction Manual
D A T E .
MODEL.
FORD-SYNC3-TDC2
VIDEO INTERFACE
Ford Video Interface
2019.07.26
FS-PAS-170830
FORD-SYNC3-TDC2
Spec
1. Input Spec. (MULTI VIDEO INTERFACE)
•1 x Digital RGB Input (Navigation System source)
•1 x Analog RGB Input (Navigation System source)
•1 x CVBS(REAR CAMERA) Input (Rear camera source)
•1 x CVBS(FRONT CAMERA) Input (Front camera source)
•1 x LVDS Input (Car Command System)
2. Output Spec.
•1 x LCD Output (LCD Operation)
•1 x Virtual Analog Touch (Navigation System source)
•1 x UART Digital Touch (Navigation System source)
3. Power Spec.
•Input Power : 8VDC ~ 24VDC
•Consumption Power : 12Watt, Max
4. Switch Input Mode
•Possible to select CAR model while switching mode by DIP S/W
•By button on the Commander in the car via CAN
FORD-SYNC3-TDC2

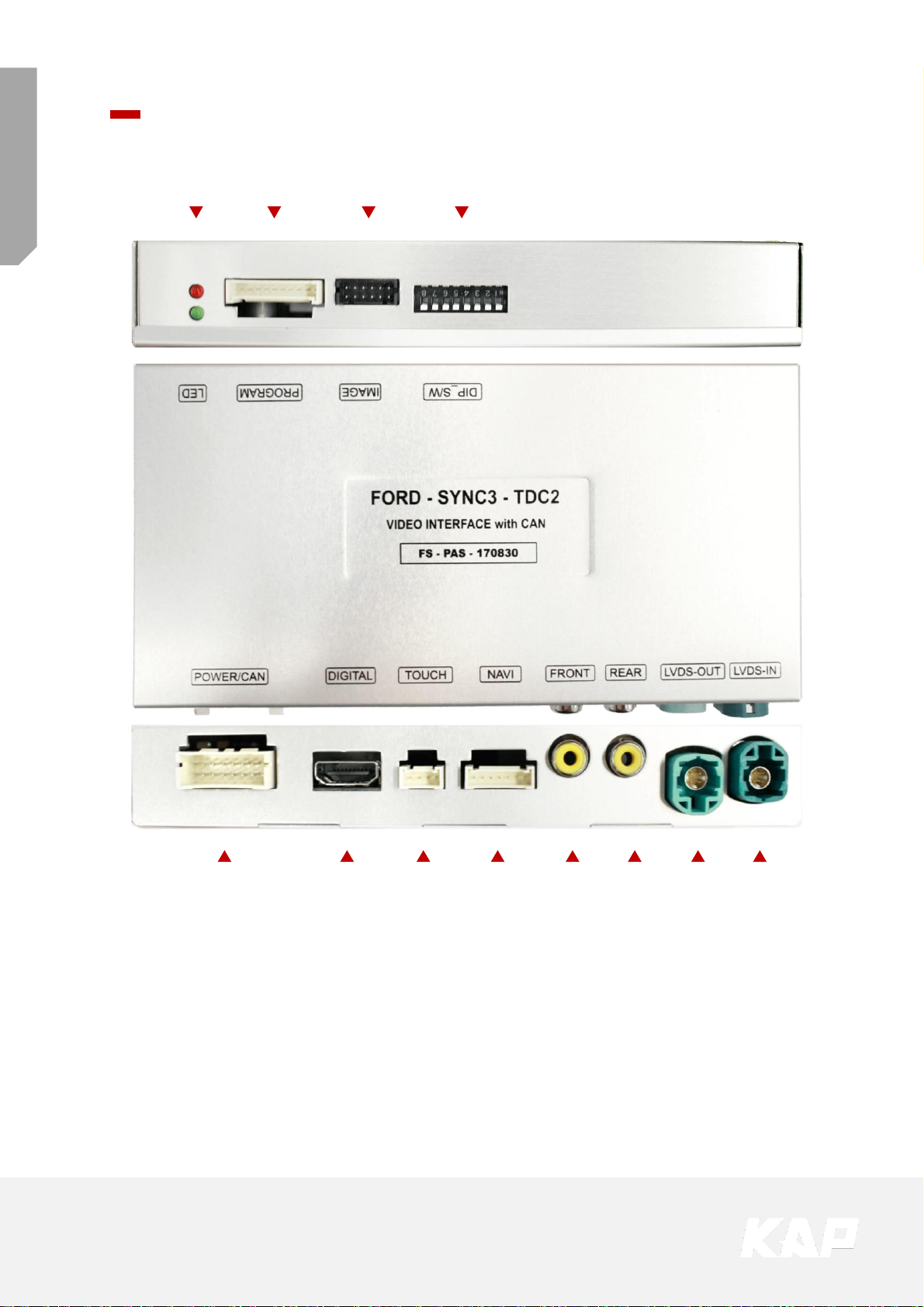

External Appearance
IMAGE DIP S/WPROGRAMLED
Power/CAN TouchDigital
RGB
NAVI FRONT REAR LCD
OUT
LCD
IN
FORD-SYNC3-TDC2
Connector Pin Assignment
2 4 6 8
10
12
14
16
1POWER Connect (16Pin)
1357911 13 15
■■■■■
YELLOW BROWN GREEN RED BLACK
ACC REAR DET CAN-L N.C N.C N.C FRONT VCC GND
No
Color
Connect
1234
2NAVI TOUCH Connect (4Pin)
1 2 3 4
■■■■
RED GREEN BLUE WHITE
Y- X- Y+ X+
No
Color
Connect
1234567
3NAVI Connect (7Pin)
1 2 3 4 5 6 7
■■■■■■■
RED GREEN BLUE WHITE BLACK GREEN ORANGE
R DATA G DATA B DATA SYNC GND DVB-T IR DVD IR
No
Color
Connect
2 4 6 8 10 12 14 16
■■■■■
BLUE ORANGE RED GREEN BLACK
N.C FRONT DET CAN-H N.C N.C REAR VCC MODE GND
No
Color
Connect
13579
11
13
15
FORD-SYNC3-TDC2
Product Composition
Interface RGB NAVI Cable Power Cable
Mode S/W OSD Board LVDS IN Cable
LVDS OUT Cable
FORD-SYNC3-TDC2
Dip Switch Setting
Car Type Select
PIN FUNCTION DIP S/W Selection
1 NAVI ON : Not Used
OFF : Used
2 DVB-T(AV1) ON : Not Used
OFF : Used
3 DVD(AV2) ON : Not Used
OFF : Used
4 N.C
5 N.C
6
CAR type SEL Bottom Picture
7
8
OFF : ▲UP
ON : ▼DOWN
FORD
F150 (2015~)
FORD
F150 (Special Model)
•Vehicles that do not
function as basic DIP-SW
among F150 models
FORD
Mustang (2017~)
Ranger (2018~)
Lincoln MKX (2018~)
FORD-SYNC3-TDC2
Mode Change Sequence
NAVI
Mode Change
Steering Wheel Button Control –F150 Basic
•You can set the mode change time of the ‘LEFT‘ or ‘VOICE‘ button in the OSD menu
(Select "OFF" when the button is not used)
Mode Change Button
LEFT
•Switch mode by pressing for 1.5 seconds
•Short press to switch OEM
VOICE
•Switch mode by pressing for 3 seconds
•Short press to switch OEM
Steering Wheel Button Control –F150 Specific vehicle
1
•In this case, set DIP-SW as shown
in the figure on the left.
Mode Change Button
LEFT
•Switch mode by pressing for 1.5 seconds
•Short press to switch OEM
VOICE
•Switch mode by pressing for 3 seconds
•Short press to switch OEM
1
•same as F150 but not distinguishable from
other vehicles
2
1
2
1
2
OEM NAVI AV1
(DVBT)
AV2
(DVD)
OEM
2
FORD-SYNC3-TDC2
Mode Change
Steering Wheel Button Control –Mustang
•You can set the mode change time of the ‘LEFT‘ or ‘VOICE‘ button in the OSD menu
(Select "OFF" when the button is not used)
Mode Change Button
LEFT
•Switch mode by pressing for 1.5 seconds
•Short press to switch OEM
VOICE
•Switch mode by pressing for 3 seconds
•Short press to switch OEM
1
2
1
2
1
2
Steering Wheel Button Control –Ranger
Mode Change Sequence
NAVI
OEM NAVI AV1
(DVBT)
AV2
(DVD)
OEM
FORD-SYNC3-TDC2
Mode Change
Steering Wheel Button Control –Lincoln MKX
•You can set the mode change time of the ‘LEFT‘ or ‘VOICE‘ button in the OSD menu
(Select "OFF" when the button is not used)
Mode Change Button
LEFT
•Switch mode by pressing for 1.5 seconds
•Short press to switch OEM
VOICE
•Switch mode by pressing for 3 seconds
•Short press to switch OEM
1
2
1
2
Mode Change Sequence
NAVI
OEM NAVI AV1
(DVBT)
AV2
(DVD)
OEM
FORD-SYNC3-TDC2

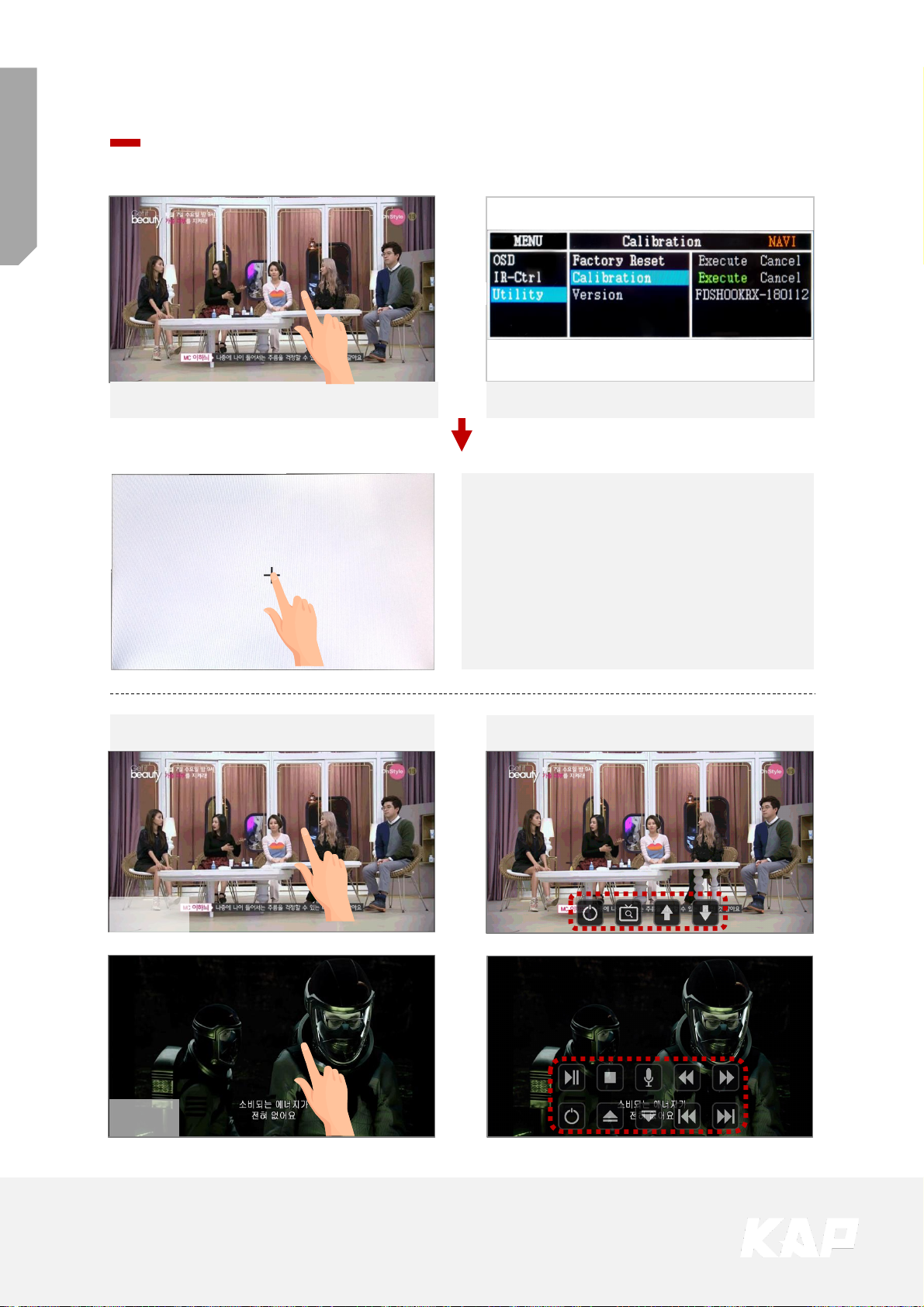

Touch Control
Touch Calibration / DVBT, DVD Control
Press Touch (Anywhere) Press Icon
•Touch the screen for 11 seconds
Method 1 Method 2
OR
•+ Touch according to the
shape coordinates.
Touch Calibration
•OSD menu ▶Utility ▶Calibration
DVBT
DVD
