ASSEMBLY INSTRUCTIONS
Sydney
ITEM NO.: K4711 EL Ash White Electric Lift
K4711 XL Ash White Hydraulic Lift
Assembly InstructionsSydney XL 2
1. Read the instructions carefully before beginning the assembly process to ensure proper assembly
of this product. Please open and inspect the contents of box(es) to see that all parts and hardware
are included.
2. Tools Required
180°
Screw cam bolts flush as
illustrated.
Press cam into hole until flush with
surface. The arrow direction must
be in the direction of the hole.
Insert bolt through pre-drilled
hole in edge of panel.
Turn clockwise to lock cam with bolt.
General Assembly Guidelines
3. Understanding How the Cam Fastener Works
Tip: place a small bit of WD-40 or similar
lubricant into the pre-installed cam bolt
holes to help the cam bolts screw in better.
4. Glue provided is to secure wood dowels in place and is optional. If glue is used during assembly,
locate the appropriate hole for the dowel, place a small amount of glue in the hole and insert the
dowel. Wipe away excess glue immediately. It is not necessary to glue the other end of the dowel
when attaching to other parts.
Use and Care Your cabinet normally requires a minimum amount of maintenance; however, the
following points are worth noting:
Cleaning – To remove marks and enhance the surface, wipe with a gentle all-purpose cleanser. DO NOT
use ammonia-based, harsh chemicals or abrasive cleaning agents. Wipe dry immediately.
Electrical and Hydraulic Lifts – Require annual lubrication with WD-40 or similar lubricant.
Phillips Screwdriver Hammer Electric Screwdriver
Torque set to 3-5
Assembly InstructionsSydney XL 3

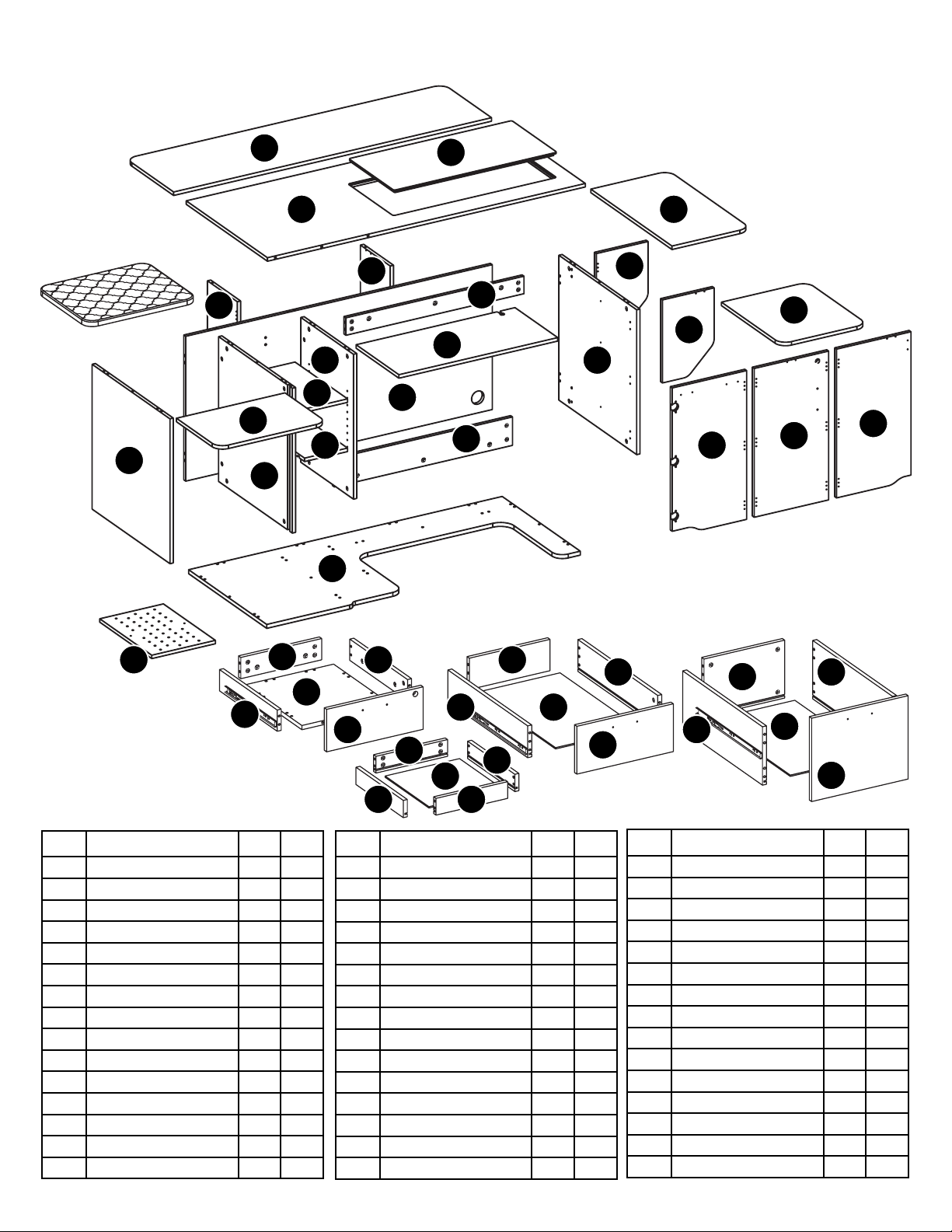

Parts List: Panels
A
X
Y1
Z
Y2
V1
V2
V3
O1
O2
O3
04
O5
O6
D
G
A3
A2
A4
B
A1
A5
O8
K1
K2
K3
K4
E
E
L
K6
L2
L3
L1
K7
K8
K9
K5
L4
L4
L5
L5
ITEM DESCRIPTION QT Y. BOX
Hardware Box 1 1 of 5
L6 Drawer Insert Tray Bottom 1 1 of 5
EShelves 2 1 of 5
K1 Top Drawer Front 1 1 of 5
K2 Middle Drawer Front 1 1 of 5
K3 Top Drawer Back 1 1 of 5
K4 Top Drawer Left Side 1 1 of 5
K5 Top Drawer Right Side 1 1 of 5
K6 Top Drawer Bottom 1 1 of 5
K7 Middle Drawer Back 1 1 of 5
K8 Middle Drawer Left Side 1 1 of 5
K9 Middle Drawer Right Side 1 1 of 5
LBottom Drawer Front 1 1 of 5
L1 Bottom Drawer Back 1 1 of 5
L2 Bottom Drawer Left Side 1 1 of 5
ITEM DESCRIPTION QT Y. BOX
L3 Bottom Drawer Right Side 1 1 of 5
XLeft Panel 1 1 of 5
Y1 Left Center Panel 1 1 of 5
A2 Right Side Leaf 1 2 of 5
DBack Panel 1 2 of 5
GBottom Panel 1 2 of 5
BLift Platform 1 3 of 5
L4 Drawer Insert Tray Sides 2 3 of 5
L5 Drawer Insert Tray Front/Back 2 3 of 5
L7 Large Drawer Bottoms 2 3 of 5
O1 Right Quilt Leaf Support 1 3 of 5
O2 Left Quilt Leaf Support 1 3 of 5
V1 Door Panel 1 1 3 of 5
V2 Door Panel 2 1 3 of 5
V3 Door Panel 3 1 3 of 5
ITEM DESCRIPTION QT Y. BOX
Ironing Pad 4 of 5
A3 Drawer Cover Panel 1 4 of 5
A4 Door Tabletop Panel 1 4 of 5
O3 Right Side Leaf Support 1 4 of 5
O4 Left Side Leaf Support 1 4 of 5
O8 Thread Spool Holder Panel 1 4 of 5
Metal Support Bar 1 5 of 5
ATop Panel 1 5 of 5
A1 Rear Quilt Leaf 1 5 of 5
A5 Sewing Well Cover Panel 1 5 of 5
O5 Lower Support Panel 1 5 of 5
O6 Upper Support Panel 1 5 of 5
Y2 Right Center Panel 1 5 of 5
ZRight Panel 1 5 of 5
04 NOT SHOWN: Electric Lift Support 1
L7
L7
L6
Assembly InstructionsSydney XL 4
Parts List: Hardware
TIP: Keep all the parts in their individually labeled bags. This will make finding parts easier as you assemble your cabinet.
Locking Plate Caster x5
t2
8x16 Fix Bolt x20
b1
6x35 Cam Bolt x82
c1
8x30 Dowel Pin x58
d1
Lift Rail
(Left) x1
Lift Rail
(Right) x1
3.5x14 Screw x170
s1
5⁄8“ Cam Cover x82
c2
Lock x1
Lock Plate x1
Key x2
L
Butt Hinge x20
h3
Alignment Pin x4
s5
Magnet x7
Catch Plate x7
m
Locking Caster x4
t1
Hinge Body x3
g1
3.5x20 Screw x10
s4
Handle x4
h
4x20 Fix Bolt x10
b2
3M Clear Adhesive
Panel Protector x4
3.5x30 Screw x12
s6
Peg x8
p1
Flap Hinge x2
h4
3x14 Screw x14
s2
Threaded
Dowel Pin x3
p
6x50 Dowel Pin x41
d2
Knob x2
h1
Cam Lock
Pre-installed parts
Caster Bracket
c5
Snag Free Hinge
h4
Stabilizing Foot for
O4 Panel (EL model only) x2
s7
Allen Wrench x1
a
14mm Wrench x1
r3
Adhesive Foam Sheet x1
Drawer Insert Runners x2
Lock x1
Key x2
L2
Metal Support Bar x1
Folding Hook x2
h2
Lift x1
Assembly InstructionsSydney XL 5
Step 1: Cabinet Shell
Locking Plate Caster x5
t2
8x16 Fix Bolt x20
b1
6x35 Cam Bolt x15
c1
G
G
b1
t2
c1
Attach t2 Plate Casters to the underside of Panel Gwith b1 Fix
Bolts.
Tighten with provided Allen Wrench.
Lock the Casters and flip Panel G over.
Install c1 Cam Bolts on Panel G.
Assembly InstructionsSydney XL 6
Step 1: Cabinet Shell
X
Y1
Y2
6x35 Cam Bolt x4
c1
8x30 Dowel Pin x16
d1
Lift Rail
(Left) x1
3.5x14 Screw x3
s1
c1
c1
d1
d1
d1
s1
Install 2 c1 Cam Bolts
and 4 d1 Dowel Pins in Panel X.
Install 6 d1 Dowel Pins in
Panel Y1.
Attach Left Lift Rail to
Panel Y2 with s1 Screws.
Install 2 c1 Cam Bolts
and 6 d1 Dowel Pins in Panel Y2.
Assembly InstructionsSydney XL 7
Step 1: Cabinet Shell
Z
D
6x35 Cam Bolt x8
c1
8x30 Dowel Pin x18
d1
Lift Rail
(Right) x1
3.5x14 Screw x3
s1
c1
c1
d1
d1
s1
Install 4 c1 Cam Bolts
and 6 d1 Dowel Pins in Panel Z.
Attach Right Lift Rail to
Panel Z with s1 Screws.
Install 4 c1 Cam Bolts
and 12 d1 Dowel Pins in Panel D.
Assembly InstructionsSydney XL 8
Step 1: Cabinet Shell
8x30 Dowel Pin x4
d1
d1
O5
O6
Y2
O5
O6
5⁄8“ Cam Cover x4
c2
Install 2 d1 Dowel Pins in Panel O6.
Install 2 d1 Dowel Pins in Panel O5.
Attach Panels O6 and O5 to Panel Y2.
Tighten cam locks and apply cam covers.
Assembly InstructionsSydney XL 9
Step 1: Cabinet Shell
5⁄8“ Cam Cover x2
c2
D
O5
O6
Y2
NOTE: The illustrations shown through Page 11 show upside down assembly.
Assembling these panels upside down will make attaching the bottom
(Panel G) easier.
Once the bottom is attached, you will flip the cabinet over.
You may need a second person to help you.
Attach Panel Y2 to Panel D as shown.
Tighten Cam Locks and apply Cam Covers.
Assembly InstructionsSydney XL 10
Step 1: Cabinet Shell
5⁄8“ Cam Cover x8
c2
Z
D
O6
O5
X
D
Y1
Assemble Panels Z, D and X
as shown here.
Tighten Cam Locks and
apply Cam Covers.
Attach Panel Y1 to Panel D as shown here.
Tighten Cam Locks and apply Cam Covers.
