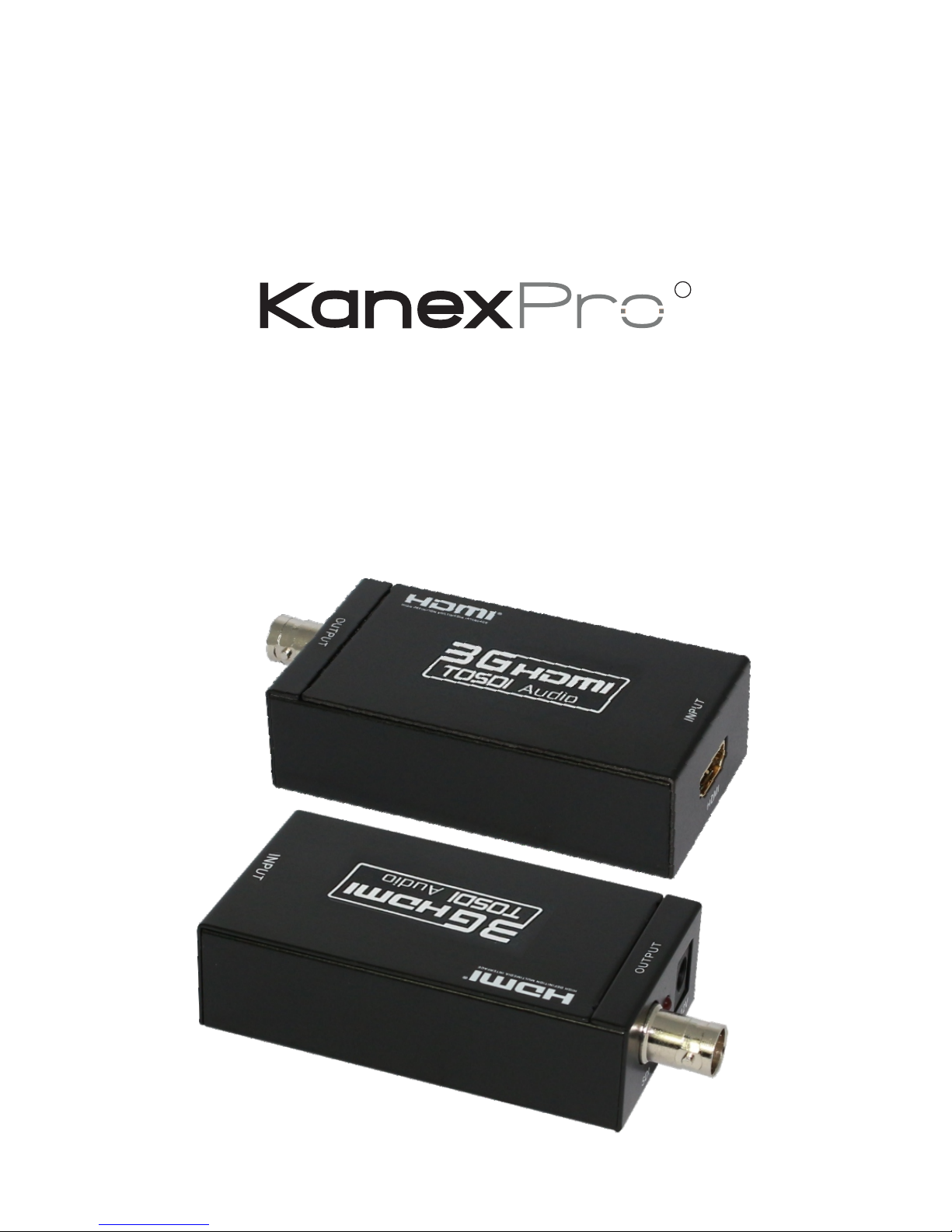

KanexPro EXT-HDSDIX Manuel utilisateur

HDMI to 3G/HD-SDI/ SDI Converter

EXT-HDSDIX

Introduction to EXT-HDSDIX

e KanexPro HDMI to SDI converter is a compact device designed to transform high resolution HDMI

sources such as HD cameras, GoPro cams, HDMI based PC's to an SDI monitor. e compact design can

easily t behind an SDI display, in the back of a rack or directly on a camera rig.

is SDI converter provides signal equalization and re-clocking for longer runs up to 300 meters on SD mode

and 100 meters for HD mode. Ideal for monitoring and recording solutions in the edit suite, on set or at live

events.

Application Example

Warranty

Operation controls and functions

Specications

Package Contents

Introduction

Features

Introduction

Features

EXT-HDSDIX

Support for HD-SDI runs up to 200 meters

SDI runs up to 300 meters

Supports signal re-clocking and equalization

Fit behind a monitor, in the back of a rack or directly on a camera rig

Up to eight channels of HDMI audio are passed through to the SDI output

Synchronized output audio video and audio

Network Unlimited Extender for Monitors

Convert an HDMI PC signal or HD camera into an HD-SDI signal

Video Output:

Input Resolutions (HDTV):

HDMI Input Timings:

SDI Output:

Distance:

Operation manual

HDMI to SDI converter

5V DC power supply

Video Input:

Specifications

Package Contents

1080p, 1920x1080

720p; 1280x720

1280x720, 480I (NTSC mode) 576i Standard PAL mode

Supports HDMI input timings: 480i@59.94, 576i,

and 1080i@50/59.94/60, 720p@50/59.94/60

and 1080p@23.98/24/25/29.97/30/50/59.94/60

Converts HDMI signal to SDI: 480i/576i to SD-SDI

(SMPTE 259M-C, at bitrates of 270 Mbit/s)720p/1080i to

HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or

1.485/1.001 Gbit/s) 1080p to 3G-SDI (SMPTE 424M

/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)

Supports SDI output distance up to 100 meters (3G-SDI),

200 meters (HD-SDI), or 300 meters (SD-SDI)

Bandwidth: SDI interface operates at bitrates of 2.970 Gbit/s, 2.970

/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.

Environmental: Operating Temperature: 0°C to +70°C

Operating Humidity: 10% to 85 % RH (no condensation)

Storage Temperature: -10°C to +80°C

Storage Humidity: 5% to 90 % RH (no condensation)

Regulatory Approvals Converter: FCC, CE, UL

Regulatory Approvals Power Supply: FCC, CE, UL

Input: 1 x HDMI

Input Connector: 1 x HDMI Female connector

Input Video Signal: HDMI

Output: 1 x SDI

Output Connector: 1 x BNC

Output Video Signal: SD/HD/3G SDI

Mechanical: Size: (LWH): 3.14"x1.61"x0.98"

Weight (net): 0.33 lbs. (150g)

Power Requirements: External power supply: 5V DC

Power consumption: 5W

Warranty: 1 Year parts & labor

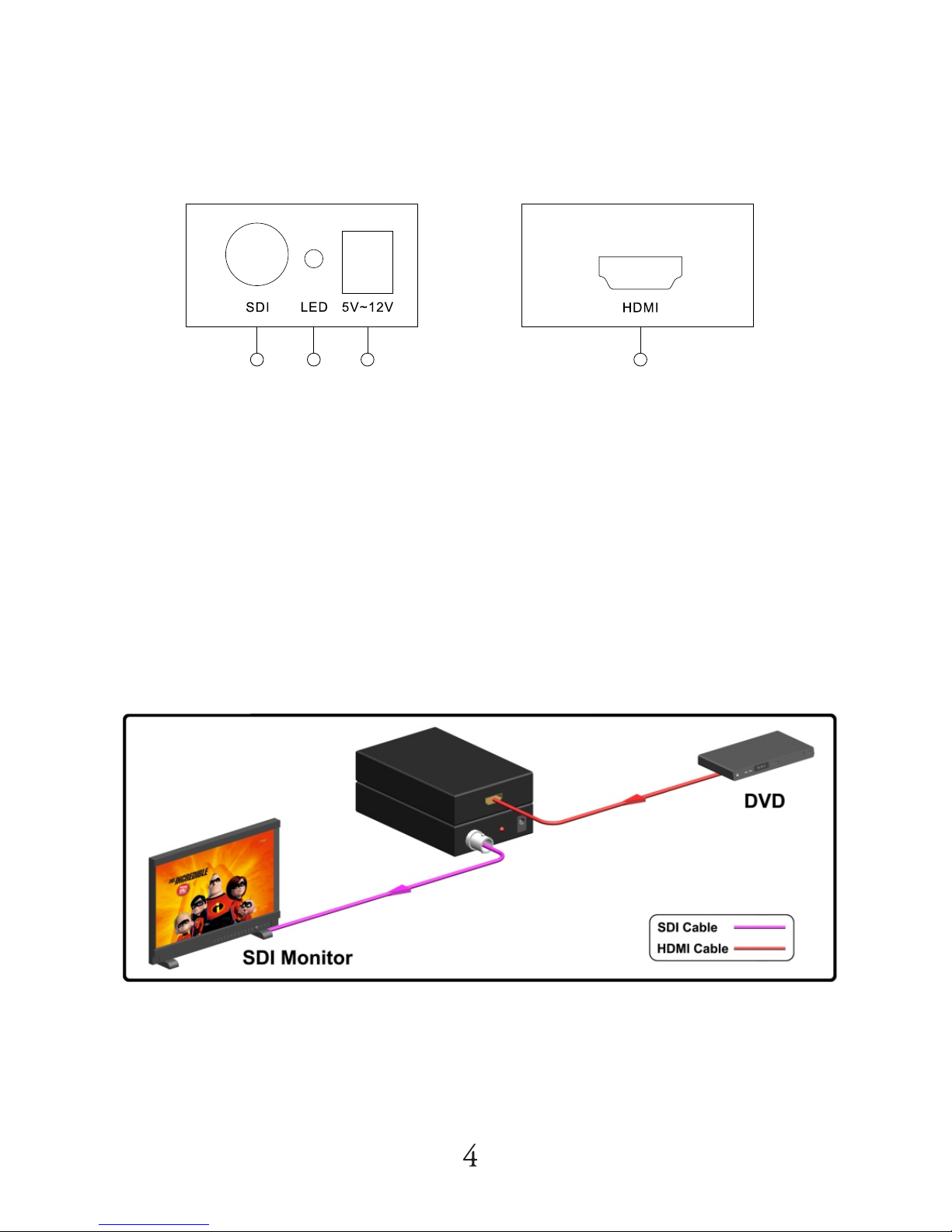

HDMI IN:

is slot is where you will connect the HDMI source with a HDMI cable

SDI-OUT:

is slot is where you will connect the SDI display with a coaxial cable

POWER LED:

is red LED will illuminate when the converter is connected to the provided power supply

DC IN:

Plug the 5V-12V DC power supply into the unit

Operation controls and functions

Application Example

1 2 3 4

A. Limited Warranty

KanexPro warrants that (a) its products (the “Product”) will perform greatly in agreement with the accompanying written materials for

a period of 1 year from the date of receipt and (b) that the product will be free from defects in materials and workmanship under

normal use and service for a period of 1 year.

B.CUSTOMER REMEDIES

KanexPro's entire liability and Customer's exclusive remedy shall be, at KanexPro option, either return of the price paid for the

product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to KanexPro with a

copy of customers' receipt. is Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.

Any replacement Product will be warranted for the remainder of the original warranty period or 90 days whichever is longer.

C.NO OTHER WARRANTIES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, KANEX DISCLAIMS LL OTHER WARRANTIES,

EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT AND ANY

RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES CUSTOMERS SPECIFIC LEGAL RIGHTS.

CUSTOMERS MAY HAVE OTHER RIGHTS DEPENDING ON THE JURISDICTION.

D.NO LIABILITY FOR DAMAGES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL KANEX BE LIABLE FOR

ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITATION, SPECIAL, INCIDENTAL,

CONSEQUENTIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS OF BUSINESS PROFITS, BUSINESS

INTERRRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF

THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF KANEX HAS BEEN ADVISED OF THE POSSIBILITY

OF SUCH DAMAGES.

Warranty

EXT-HDSDIX
