Instruction Booklet

Captiv12V

Portable

Vacuum Cleaner

KHV200

Important

Please retain your instruction

book for future use.

In the event that you need some assistance with your

Kambrook appliance, please contact our Customer Service

Department on 1300 139 798 (Australia) or 09 271 3980 (New

Zealand). Alternatively, visit us on our website at

www.kambrook.com.au

Contents

Kambrook Recommends p4

Safety First

Your Kambrook Captiv12V P6

Portable Vacuum Cleaner

Using Your Kambrook p7

Captiv12V Portable

Vacuum Cleaner

Cleaning Tips p10

Warranty p12

Kambrook Recommends Safety First

IMPORTANT: Please retain your

instruction book for future use.

At Kambrook, we believe that safe performance is the ﬁrst priority in any

consumer product, so that you, our valued customer can conﬁdently

use and trust our products. We ask that any electrical appliance that

you use be operated in a sensible fashion with due care and attention

placed on the following important operating instructions.

Important Safeguards For Your Kambrook

Captiv12V Portable Vacuum Cleaner

• Carefully read all instructions before

operating the Kambrook Portable

Vacuum Cleaner for the ﬁrst time and

save for future reference.

• This vacuum cleaner is intended

for household use only and not for

commercial or industrial use.

• Do not use without canister and ﬁlter

in place. Clean canister and ﬁlter after

picking up any perishable food items.

• Use only Kambrook Portable Vacuum

Cleaner accessory, ﬁlter and charger.

• Do not pick up anything that is burning

or smoking such as cigarettes, matches

or hot ashes.

• Avoid picking up hard, sharp objects

with the vacuum cleaner as they may

damage the canister and the ﬁlter.

• Do not use to pick up toxic substances,

ﬂammable or combustible liquids, such

as gasoline.

• The Kambrook Portable Vacuum

Cleaner is designed to pick up liquids.

Only the nozzle end of the canister

should be placed in a liquid.

• Do not operate in the presence of

explosives and/or ﬂammable fumes

or liquids.

• Do not unplug the charger by pulling

on the cord.

• Never carry the charger or charging

base by the cord or yank to disconnect

from an outlet; instead, grasp the

charger and pull to disconnect. Do not

pull cord around sharp edges or corners.

• Do not immerse the vacuum cleaner,

charger, cord or charging base in water

or any other liquid.

• Use only the charger supplied with this

appliance to recharge this portable

vacuum cleaner.

• Always switch the vacuum cleaner off

when charging.

• Do not attempt to use the charger with

any other product.

• The use of an extension cord is not

recommended. Only plug the charger

into a standard electrical outlet (230V or

240V outlet).

Important Safeguards For All

Electrical Appliances

• Fully unwind the power cord before use.

• Do not let the power cord hang over

the edge of a bench or table, touch

hot surfaces or become knotted.

• To protect against electric shock do not

immerse the power cord, power plug or

housing in water or any other liquid.

• The appliance is not intended for use

by persons (including children) with

reduced physical, sensory or mental

capabilities, or lack of experience

and knowledge, unless they have

been given supervision or instruction

concerning use of the appliance by a

person responsible for their safety.

• Children should be supervised

to ensure that they do not play with

the appliance.

• It is recommended to regularly inspect

the appliance. To avoid a hazard do

not use the appliance if power cord,

power plug or appliance becomes

damaged in any way. Return the

entire appliance to the nearest

authorised Kambrook Service Centre

for examination and/or repair.

• Any maintenance other than cleaning

should be performed at an authorised

Kambrook Service Centre.

• This appliance is for household use only.

Do not use this appliance for anything

other than its intended use. Do not use

in moving vehicles or boats. Do not use

outdoors. Misuse may cause injury.

• The installation of a residual current

device (safety switch) is recommended

to provide additional safety protection

when using electrical appliances. It

is advisable that a safety switch with

a rated residual operating current

not exceeding 30mA be installed in

the electrical circuit supplying the

appliance. See your electrician for

professional advice.

• Never handle the charger or vacuum

cleaner with wet hands.

• Do not put any object into any

openings. Do not use with any opening

blocked; keep free of dust, lint, hair, or

anything that may reduce airﬂow.

• Do not operate with a damaged

charger, cord or charging base, or after

the appliance has malfunctioned or

been damaged in any manner.

• Immediately cease use of the appliance

and return the entire Portable Vacuum

to the nearest authorised Kambrook

Service Centre for examination,

adjustment or repair.

• Any maintenance other than cleaning

bowl and ﬁlters should be performed at

an authorised Kambrook Service Centre.

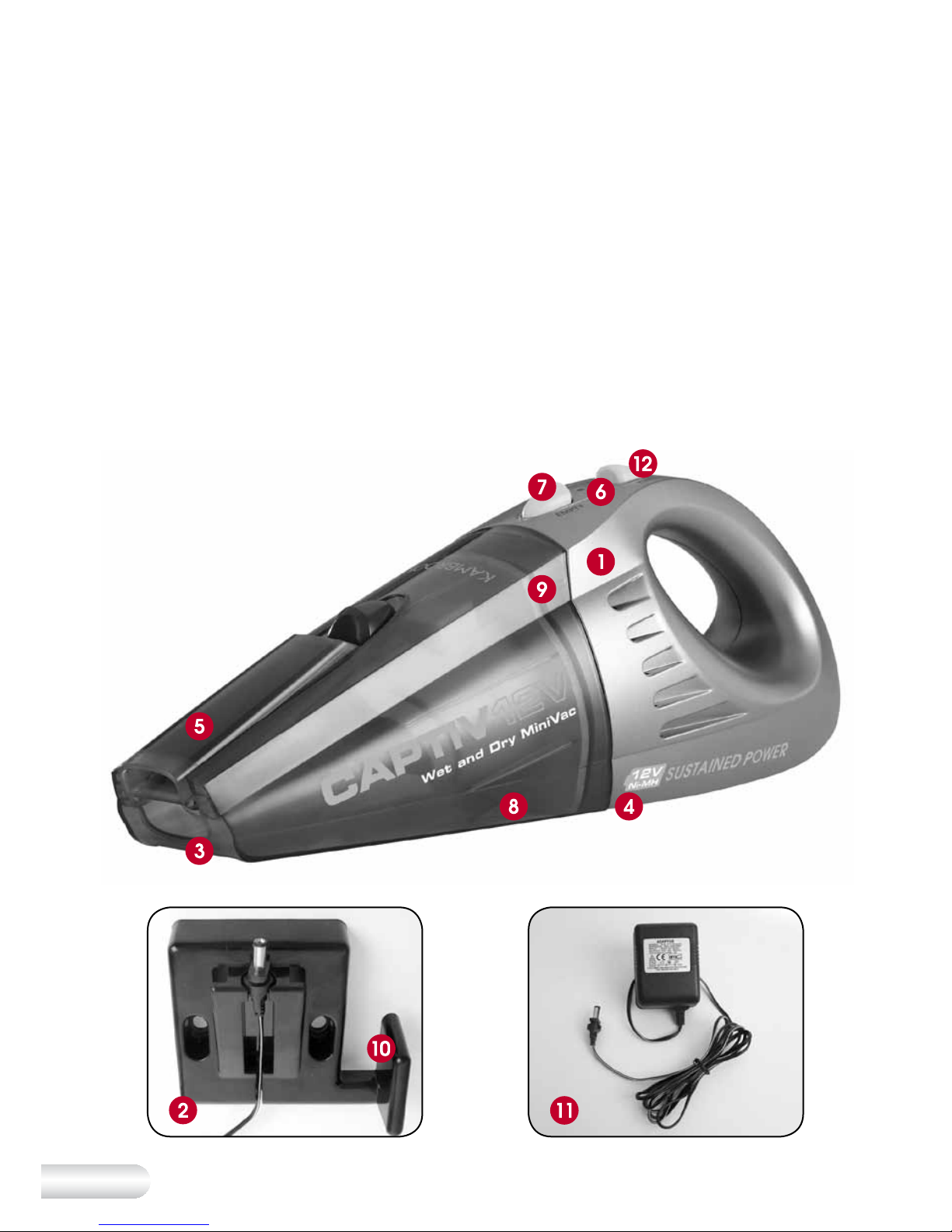

Your Kambrook Captiv12V

Portable Vacuum Cleaner

1. 12 volt power for efﬁcient

cleaning and performance

2. Cordless convenience

3. Wet and dry pick up

4. Advanced Ni-MH rechargeable

batteries for superior run time

5. Built-in crevice tool for

easy accessibility to hard

to reach areas

6. LED battery charging light for

peace of mind:

- red light for charging

- green light for fully charged

7. Dust/liquid canister latch release

8. Large capacity

dust/liquid canister

9. Washable ﬁlter and ﬁlter cover

10. Charging base with wall

mounting screws

11. Charger

12. On/Off switch for easy control

Not Shown

• Brush tool for use with the

built-in crevice tool

Using Your Kambrook Captiv12V

Portable Vacuum Cleaner

Before First Use

Remove any promotional material

from the portable vacuum cleaner.

When unpacking the vacuum, check

to see you have received the charger,

charging base and brush tool before

discarding the packaging.

WARNING: Before

ﬁrst use, charge your

portable vacuum

cleaner for at least 24

hours. Make sure that the

on/off switch is turned to

the ‘OFF’ position before

charging. Otherwise

the portable vacuum

cleaner will not charge.

To Wall Mount the Portable

Vacuum Cleaner

Charging Base

The Charging Base can be mounted

vertically or placed on a horizontal

surface such as a counter or shelf.

Fig. 1

Follow these steps when mounting

the base:

1. Pick a convenient position within

1m of an electrical outlet. If the

Charging Base will be mounted

closer to an outlet, wrap any

excess cord on the side of the

Charging Base.

2. Place the Charging Base against

the wall in the desired location

and mark the centre of one of

the holes.

3. Drill a 5mm diameter hole

through the centre of the hole.

Push a Plastic Wall Anchor into

the drilled hole.

4. Insert one of the included screws

and turn it until the screw head is

3mm above the wall surface.

5. Re-check the hole alignment,

then drill the second hole and

install the other Plastic Wall

Anchor and screw as in steps 3-4.

6. Slide the Charging Base into place.

Fig. 2

NOTE: The Charging Base

should be mounted on the wall

so that the pick up canister is

pointed up when the Portable

Vacuum Cleaner is placed in

the charging base.

Battery Charging Procedure

1. Plug the Charger into a 230V or

240V power point.

2. Ensure the Portable Vacuum

Cleaner is switched off

before charging.

3. Align the Charging Cord plug into

the Charging Base. Firmly press

down until the charging plug is

locked in the charging base as

shown in Fig. 3.

Fig. 3

4. Slide the Portable Vacuum

Cleaner downward onto the

Charging Base making sure that

it ﬁrmly hooks onto the Charging

Base and the Charger is ﬁrmly

inserted into the Portable Vacuum

Cleaner. The red charge light will

then illuminate. The charge light

will turn green when the battery is

fully charged.

Using Your Kambrook Captiv12V

Portable Vacuum Cleaner continued

NOTE: The Portable Vacuum

Cleaner can also be charged

when it is not attached to the

Charging Base. Firmly insert

the Charger into the Portable

Vacuum Cleaner.

5. To maintain a charge, keep

the Charger plugged into a

standard wall outlet. When

charging, the Charger may be

warm to touch – this is normal. It

is impossible to overcharge the

battery because the vacuum

cleaner is designed with

overcharge protection circuitry.

Fig. 4

WARNING: Always

recharge this appliance

after use to extend the

life of the battery.

Cleaning Tools

The Portable Vacuum Cleaner

includes a built-in crevice tool that

will make cleaning tasks easier.

Simply pull back the knob located on

top of the canister and extend the

crevice tool.

Fig. 5

The crevice tool is ideal for tight

places such as between car seats, in

corners, skirting boards etc.

A brush tool is also included. Simply

attach to the end of the crevice tool.

Operating the Portable

Vacuum Cleaner

Remove the vacuum cleaner from

the Charging Base and slide the On/

Off switch to the ‘ON’ position to

commence cleaning tasks.

Slide the On/Off switch to the ‘OFF’

position between cleaning tasks to

conserve power.

Picking Up Dry Debris

Use your vacuum cleaner for picking

up dirt, dust, food crumbs, etc.

from counters, bare ﬂoors, rugs, car

interiors, upholstered furniture, etc.

After dry pickups, empty and clean

the Canister, Filter and Filter Cover

before picking up liquid or wet spills.

Picking Up Liquids Or Wet Debris

1. For liquid pickups, do not ﬁll the

Canister beyond the end of the

inlet tube. If there is any liquid in

the Canister, hold the Canister

Nozzle down to avoid leakage.

Tipping the Canister Nozzle up

may cause the liquid to enter the

fan area.

2. After picking up perishable spills

(eg. milk, juice, etc.), empty the

vacuum cleaner‘s Canister, Filter

and Filter Cover immediately and

thoroughly clean the Canister,

Filter and Filter Cover to prevent

mould and mildew from forming.

Allow to dry thoroughly.

NOTE: The Portable Vacuum

Canister should be emptied and

cleaned before placed on the

charging base.

The Portable Vacuum Cleaner will be

more effective at cleaning up spills if

the following procedures are followed:

Carpet Clean Ups

1. Immediately vacuum up as much

of the spill as possible.

2. For oily spills, work some low

sudsing carpet shampoo into the

area according to the directions

on the shampoo container (do

not use solvent based cleaners).

Vacuum shampoo and spill

residue, then proceed to step 3.

For water soluble spills, dampen

the spill area using a spray bottle

of cold, clean water. Be careful

not to saturate the carpet.

3. Work water into the nap of

the carpet.

4. Vacuum water and spill residue.

5. Repeat the above procedure

if necessary.

6. Cover the cleaned spill area with

several layers of paper towel or

a cloth towel. Press on the towels

several times to soak up the

moisture. Brush up the nap of the

carpet.

Upholstery Clean Ups

1. Immediately vacuum as much of

the spill as possible.

2. Follow your furniture

manufacturer’s instructions for

spot cleaning upholstery.

NOTE: Never use ﬂammable

cleaners with the vacuum.

Cleaning Tips

Emptying/Cleaning Filter

and Canister

Liquids, dirt and debris (wet and dry)

picked up by the Portable Vacuum

Cleaner will collect in the Filter and

Canister. To empty/clean these parts,

please follow these steps:

1. Holding the Canister with one

hand and the Handle/Housing

with the other, depress the Canister

Latch and swing the Canister

away from the Handle/Housing.

Fig. 6

2. While holding the Canister in one

hand, remove the Filter and Filter

Cover with the other hand by

grasping the metal pull handle

on the sides of the Filter Cover

with your ﬁngers. Empty any dirt,

debris, or liquid from the Canister,

Filter and Filter Cover into the sink

or waste basket.

Fig. 7

Autres manuels pour Captiv KHV200

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kambrook Aspirateur

Kambrook

Kambrook Jaguar KVC30 Manuel utilisateur

Kambrook

Kambrook JAGUAR TWISTER KBV50 Manuel utilisateur

Kambrook

Kambrook Jaguar Power Twister KBV30 Manuel utilisateur

Kambrook

Kambrook JAGUAR TURBOTWISTER KBV50T Manuel utilisateur

Kambrook

Kambrook KBV420 Manuel utilisateur

Kambrook

Kambrook Captiv KHV200 Manuel utilisateur

Kambrook

Kambrook Jaguar KVC20 Manuel utilisateur

Kambrook

Kambrook Jaguar Dart KVC5 Manuel utilisateur

Kambrook

Kambrook CaptivG3 Cyclonic Manuel utilisateur

Kambrook

Kambrook Jaguar 1600W Manuel utilisateur

Kambrook

Kambrook JAGUAR TWISTER KBV50 Manuel utilisateur

Kambrook

Kambrook Jaguar KBV40 Manuel utilisateur

Kambrook

Kambrook Captiv2in1 Turbo KHV500 Manuel utilisateur

Kambrook

Kambrook KBV220 Manuel utilisateur

Kambrook

Kambrook JAGUAR KBV70 Manuel utilisateur

Kambrook

Kambrook Jaguar Soarer KVC23 Manuel utilisateur

Kambrook

Kambrook Jaguar Twister KHV100 Manuel utilisateur

Kambrook

Kambrook Jaguar KHV40 Manuel utilisateur

Kambrook

Kambrook Jaguar KVC12 Manuel utilisateur

Kambrook

Kambrook KBV220 Manuel utilisateur

Kambrook

Kambrook Captiv 12V Turbo Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
