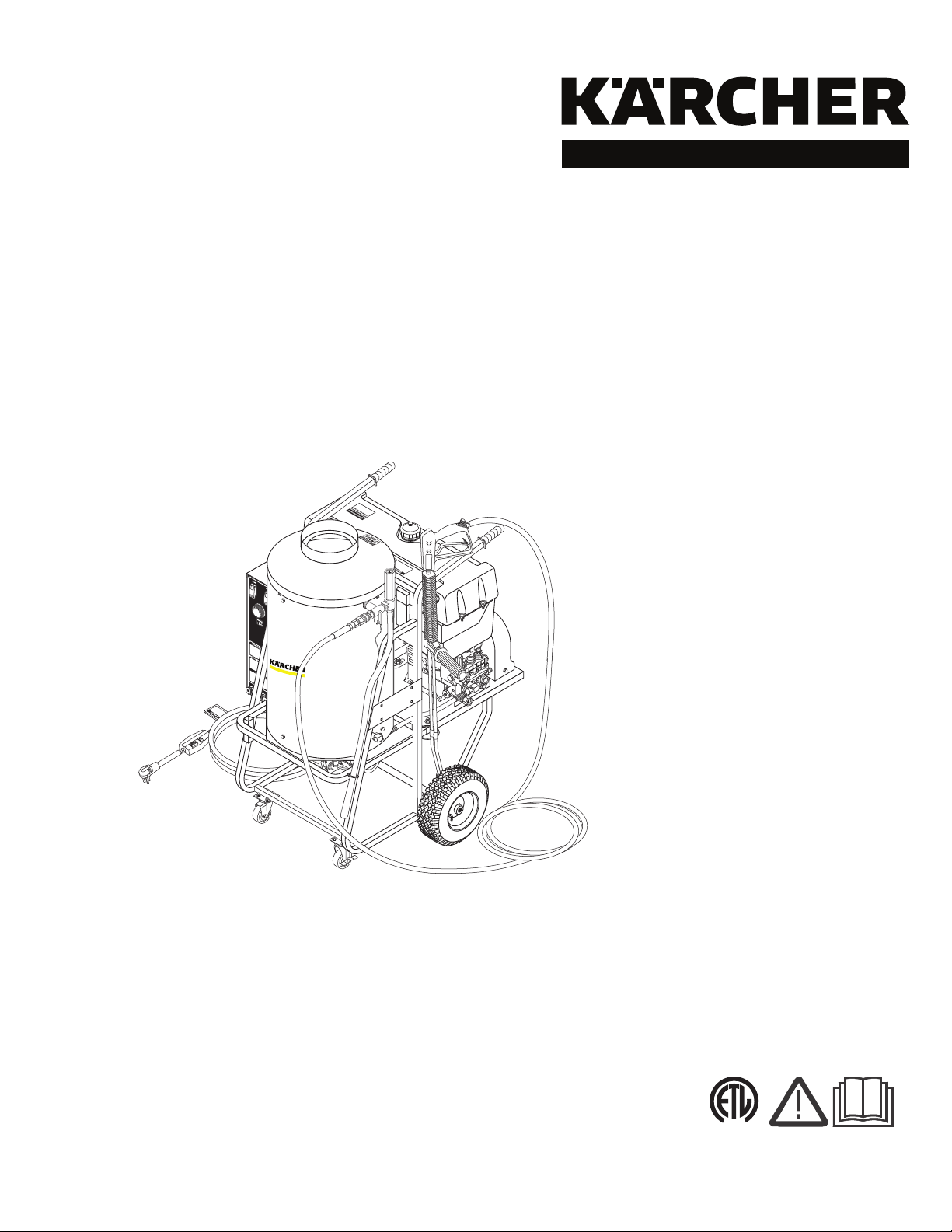

Kärcher HPB-392007A Manuel utilisateur

9.801-190.0 - W 03/22/19

HPB

Operator’s Manual

Pressure Washer

98011900-1

MODELS:

HPB-392007A

1.109-109.0

HPB-353007A

1.109-110.0

HPB-353007B

1.109-111.0

HPB-353007C

1.109-112.0

To locate your local Kärcher Commercial

Pressure Washer Dealer nearest you,

visit www.karchercommercial.com

Parts

HPB

1.109-109.0 HPB-392007A

1.109-110.0 HPB-353007A

1.109-111.0 HPB-353007B

1.109-112.0 HPB-353007C

Kärcher HPB Series Operator’s Manual 9.801-190.0 - W

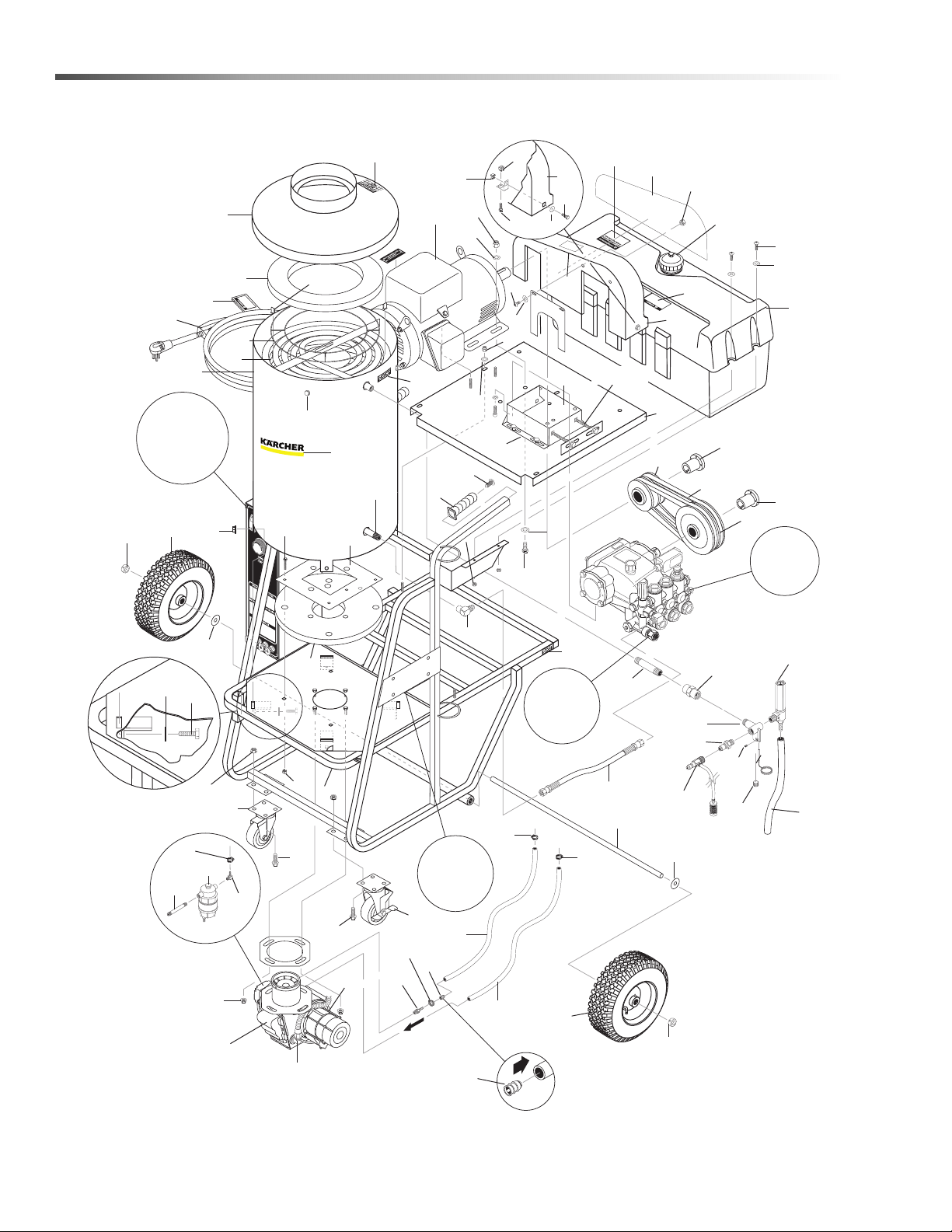

Main Assembly

98011900-25

To Fuel

Filter

To Tank

For

Detail See

Control Panel

Illus.

51 63

70 22

75, 26

71 14

18, 29,

84, 87

For

Detail See

Optional

Float Tank

Illus.

For

Detail See

Steam Valve

Options

Illus.

To Fuel

Tank

86, 69

27, 41, 71

68 30

For

Detail See

Pump

Illus.

Kärcher HPB Series Operator’s Manual 9.801-190.0 - W

25Kärcher HPB Series Operator’s Manual 9.801-190.0 - W

Main Assembly

REF PART NO. QTY DESCRIPTION NOTES

1 8.932-960.0 1 LABEL, DIESEL

2 9.800-006.0 1 LABEL, "HOT/CALIENTE" WITH ARROWS WARNING

3 8.932-969.0 1 LABEL, WARNING, SERVICE CORD

4 9.800-021.0 1 LABEL, HOT WATER OUTLET

5 8.932-985.0 1 LABEL, KARCHER, STRIPE, 17" x 3.875"

6 9.800-035.0 1 LABEL, WARNING (LEXAN)

7 9.802-272.0 1 WHEEL, 5" CASTER

8 9.802-070.0 2 GRIP, 1" SQUARE, HANDLE

9 8.706-612.0 1 TANK, FUEL, 9 GALLON POLY, BLACK

10 9.802-089.0 1 CAP, FUEL TANK, PLASTIC H60-AV

11 9.800-020.0 1 LABEL, COLD WATER INLET

12 9.803-062.0 1 FRAME ASSY

13 8.756-797.0 1 INJECTOR, CHEMICAL, NON ADJ 0.083(2.1MM)

14 9.803-064.0 1 POWER PLATFORM 1.109-109.0

- 9.803-063.0 1 POWER PLATFORM

15 9.802-107.0 2 FASTENER, RATCHET, BLACK NYLON

16 8.754-435.0 2 WHEEL & PU TIRE ASSY, 12" STEEL RIM

17 8.750-094.0 1 THERMOSTAT, 302°

18 - FOR MOTOR, PLEASE SEE SPECIFICATIONS

PAGES.

19 9.802-872.0 3 TAB, BELT GUARD MOUNT

20 8.902-433.0 1 VALVE, SAFETY RELIEF

21 8.932-965.0 1 LABEL, WARNING, EXPOSED PULLEY

22 9.802-792.0 4 NUT, CAGE, 3/8" X 12 GAUGE

23 9.802-905.0 1 INSULATION BLANKET, 18" OD X 4.5" ID

24 9.802-013.0 1 NIPPLE, 1/2" X 2-1/2"

25 9.802-775.0 4 NUT, 1/4", FLANGE

26 9.802-720.0 8 BOLT, 3/8" X 1" 6 1.109-109.0

27 9.802-733.0 2 BOLT, 3/8" X 3-1/2", TAP

28 9.802-995.0 1 COIL, 18"

- 9.802-896.0 1 INSULATION BLANKET

29 9.802-518.0 1 STRAIN RELIEF, 3/4" 1.109-109.0

- 9.803-279.0 1 STRAIN RELIEF, 1" 1.109-110.0,

1.109-111.0, 1.109-112.0

30 9.802-803.0 4 WASHER, 1/4"

31 8.933-031.0 1 OUTER WRAP, 18" COIL S.S.

32 9.802-973.0 1 TANK END 18"

33 8.717-442.0 1 INSULATION DISK

34 8.706-248.0 1 PLUG, 3/8"

35 9.802-171.0 1 NIPPLE, 3/8" X 3/8" NPT STREET MALE

36 9.149-003.0 1 MANIFOLD COIL DISCHARGE

37 9.802-043.0 1 ELBOW, 1/2" JIC X 1/2" FEMALE

38 8.918-423.0 1 HOSE, 3/8" X 22"

39 8.706-958.0 1 HOSE BARB, 1/4" BARB, 1/4" PIPE, 90°

Main Assembly

REF PART NO. QTY DESCRIPTION NOTES

40 9.802-273.0 1 WHEEL, 5" CASTER, W/BRAKE

41 9.802-789.0 2 NUT, 3/8" HEX

42 8.719-935.0 1 RETAINER RING, INSULATION

43 9.196-012.0 1 SCREW, 10-24 X 1/4"

44 8.711-785.0 30" HOSE, 3/8" PUSH-ON

45 8.725-306.0 1 FILTER, FUEL/H2O

46 9.802-781.0 4 NUT, 3/8" FLANGE, WHIZ LOC

47 9.803-264.0 1 NIPPLE, 1/4" X 3", BLACK PIPE

48 9.802-810.0 2 WASHER, 5/8" FLAT

49 9.802-770.0 7 SCREW, 1/4" X 1"

50 9.802-094.0 1 BELT GUARD

51 9.802-782.0 2 COLLAR, 5/8"

52 9.803-066.0 1 AXLE, SR

53 9.803-131.0 1 PUMP RAIL, BLACK

54 - - FOR PULLEY, PLEASE SEE SPECIFI CATIONS

PAGES.

55 - - FOR PULLEY, PLEASE SEE SPECIFI CATIONS

PAGES.

56 - - FOR BELT, PLEASE SEE SPECIFI CATIONS

PAGES.

57 - - FOR BUSHING, PLEASE SEE SPECIFI CATIONS

PAGES.

58 9.802-402.0 1 BUSHING, 24MM

59 - - FOR BURNER, PLEASE SEE SPECIFI CATIONS

PAGES.

60 9.802-825.0 4 CLIP, RETAINER

61 9.800-046.0 1 LABEL, BELT GUARD

62 9.803-030.0 1 RETAINER, BURNER INSULATION

63 9.802-768.0 4 SCREW, 3/8" X 1-1/4" WHIZ LOC

64 9.802-014.0 1 NIPPLE, 1/2" X 3", GALVANIZED

65 8.718-618.0 1 BOLT, 5/16" X 3/4"

66 8.718-980.0 4 WASHER, 5/16 FLAT

67 9.802-794.0 6 NUT, CAGE, 1/4" X 12 GAUGE

68 9.802-754.0 3 SCREW, 1/4" X 1/2", WHIZ LOC

69 9.802-752.0 8 SCREW, 1/4" X 1-1/4", WHIZ LOC

70 8.718-817.0 8 NUT, 1/4-20 WHIZ LOC

71 9.802-807.0 25 WASHER, 3/8", FLAT 1.109-109.0

- 9.802-807.0 23 WASHER, 3/8", FLAT 1.109-110.0,

1.109-111.0, 1.109-112.0

72 9.802-430.0 1 GFCI, 230V, 30 AMP 1.109-109.0

- 9.802-434.0 1 GFCI, 240V, 40 AMP 1.109-110.0

- 9.802-437.0 15 ft. SERVICE CORD, 10/4 1.109-111.0

- 9.802-429.0 15 ft. SERVICE CORD, 12/4 1.109-112.0

73 8.920-445.0 1 ADAPTER PLATE, PUMP

74 8.706-941.0 1 HOSE BARB, 1/4"

75 9.802-779.0 11 NUT, 3/8" ESNA

Kärcher HPB Series Operator’s Manual 9.801-190.0 - W

Main Assembly

76 9.802-254.0 28" FUEL LINE, 1/4"

77 8.709-069.0 4 CLAMP, SCREW, 5/16"W,1/4-5/8"D, SS

78 9.802-775.0 2 NUT 1/4" FLANGE ZN

79 9.804-082.0 2 WASHER, 1/4" FLAT ZINC

80 9.802-254.0 28" FUEL LINE, 1/4"

81 9.802-448.0 2.25 ft. CONDUIT, WATER TITE

82 9.802-517.0 1 CONNECTOR 1/2" L/T 90° BLACK

83 9.802-765.0 2 SCREW, 1/4-20 X 1/2" BH BLACK

84 9.802-436.0 41" CORD SERVICE 10-3 1.109-109.0

- 9.802-437.0 41" CORD SERVICE 10-4 1.109-111.0

- 9.802-425.0 41" CORD SERVICE 8-3 1.109-110.0

85 8.706-141.0 1 COUPLING, 1/2" X STEEL PIPE

86 9.802-793.0 4 NUT, CAGE 1/4" X 16 GAUGE

87 9.803-280.0 1 LOCK NUT 1" 1.109-110.0,

1.109-111.0, 1.109-112.0

88 9.802-778.0 4 NUT, WHIZ 5/16 FLANGE

89 8.754-911.0 1 CHECK VALVE, 1 WAY, 1/4" BARB

REF PART NO. QTY DESCRIPTION NOTES

Kärcher HPB Series Operator’s Manual 9.801-190.0 - W

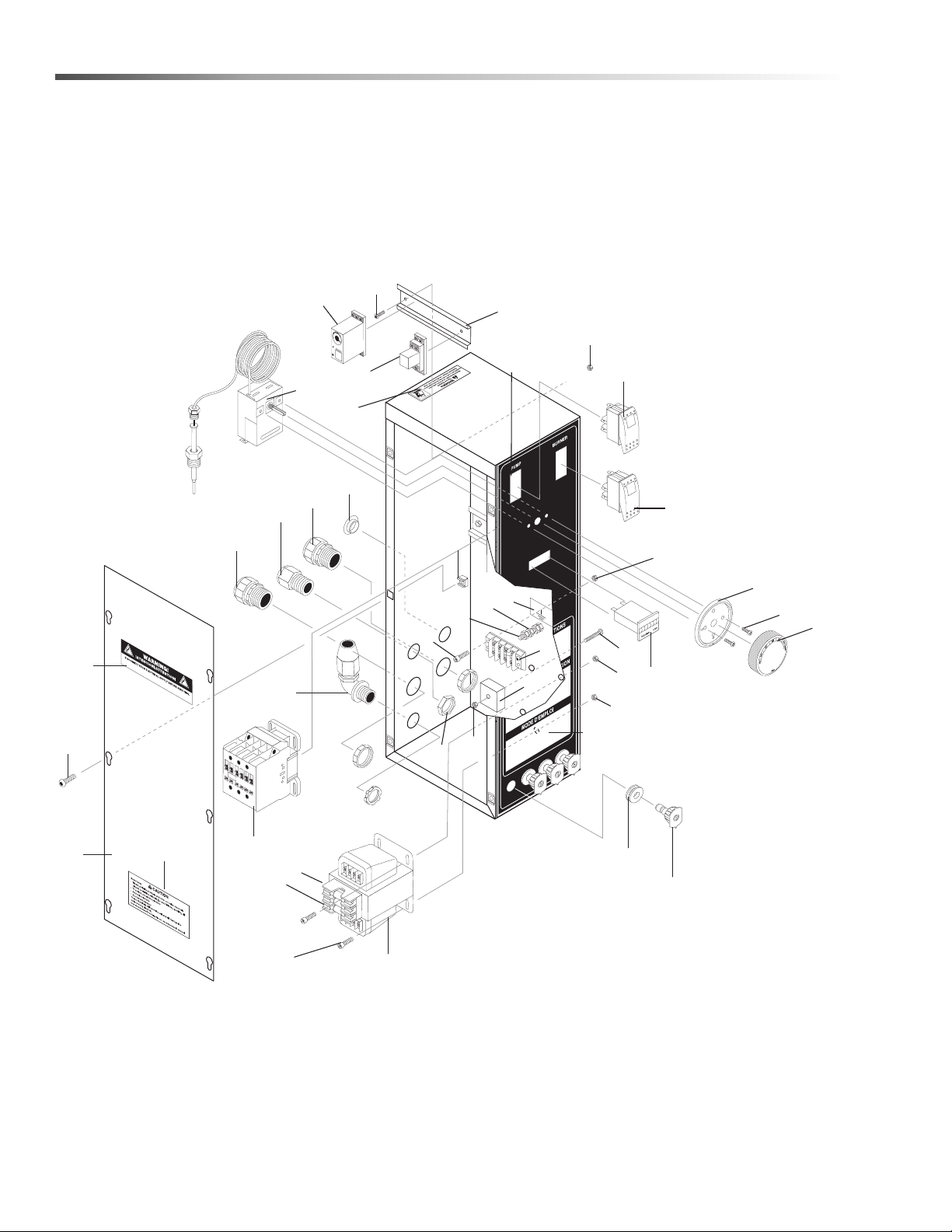

Control Panel

16 0

GROUND

2, 8

16 17

25 24

35, 36

34 32

Kärcher HPB Series Operator’s Manual 9.801-190.0 - W

29Kärcher HPB Series Operator’s Manual 9.801-190.0 - W

Control Panel

REF PART NO. QTY DESCRIPTION NOTES

1 9.802-451.0 2 SWITCH, ROCKER, CARLING W/GREEN LENS

- - 1 SWITCH, ROCKER, CARLING W/GREEN LENS TIME DELAY OPTION

- 9.802-452.0 1 ROCKER SWITCH, RED LENS TIME DELAY OPTION

2 9.802-447.0 48" CONDUIT, 1/4" SPLIT

3 - - FOR FUSE, PLEASE SEE SPECIFICATIONS PAGES.

4 - - FOR FUSE, PLEASE SEE SPECIFICATIONS PAGES.

5 - - FOR TRANSFORMER, PLEASE SEE

SPECIFICATIONS PAGES.

6 - - FOR CONTACTOR, PLEASE SEE SPECIFICATIONS

PAGES.

7 9.802-518.0 1 STRAIN RELIEF, STRAIGHT, L/T

- 9.802-521.0 1 STRAIN RELIEF, 3/4" WATERTIGHT 1.109-110.0

8 8.750-095.0 1 THERMOSTAT, 302°

9 9.802-283.0 1 HOUR METER OPTIONAL

10 8.712-358.0 1 NOZZLE, SAQCMEG 1505.5, YELLOW 1.109-109.0

- 8.712-359.0 1 NOZZLE, SAQCMEG 2505.5, GREEN 1.109-109.0

- 8.712-360.0 1 NOZZLE, SAQCMEG 4005.5, WHITE 1.109-109.0

- 8.712-346.0 1 NOZZLE SAQCMEG 1504, YELLOW 1.109-110.0,

1.109-111.0, 1.109-112.0

- 8.712-347.0 1 NOZZLE, SAQCMEG 2504, GREEN 1.109-110.0,

1.109-111.0, 1.109-112.0

- 8.712-348.0 1 NOZZLE, SAQCMEG 4004, WHITE 1.109-110.0,

1.109-111.0, 1.109-112.0

11 9.802-064.0 4 GROMMET, RUBBER, NOZZLE HOLDER

12 9.802-880.0 1 COVER, ELECTRICAL BOX

13 9.802-759.0 13 SCREW, 10/32" X 1/2"

- - 2 SCREW, 10/32" X 1/2" TIME DELAY OPTION

14 9.800-016.0 1 LABEL, DISCONNECT POWER SUPPLY

15 9.802-791.0 6 NUT, CAGE, 10/32" X 16 GAUGE

16 9.802-762.0 1 SCREW, 10/32" X 1-1/4"

- - 1 SCREW, 10/32" X 1-1/4" AUTO START/STOP

OPTION

17 9.802-695.0 4 NUT, 10/32" KEPS

- - 1 NUT, 10/32" KEPS AUTO START/STOP

DELAY OPTION

- - 2 NUT, 10/32" KEPS TIME DELAY OPTION

18 9.800-112.0 1 LABEL,KRCHR,HDS,CNTRL PNL,LRG,VRT AC OIL

19 9.800-040.0 1 LABEL, GROUND

20 9.802-517.0 1 CONNECTOR, 1/2", L/T 90°, BLACK

21 9.802-514.0 1 STRAIN RELIEF, STRAIGHT, L/T, SMALL

22 8.712-190.0 1 BEZEL, PLASTIC

23 9.802-525.0 1 LOCKNUT, 1/2"

24 9.802-103.0 1 BUSHING, SNAP, 5/8"

25 9.802-518.0 1 STRAIN RELIEF, STRAIGHT, L/T, LARGE

26 9.800-018.0 1 LABEL, TIPOVER HAZARD

Control Panel

REF PART NO. QTY DESCRIPTION NOTES

27 9.800-049.0 1 LABEL, CLEANING SOLUTION

28 9.196.012.0 2 SCREW, 10/24 X 1/4" HEX

29 9.802-457.0 4" DIN RAIL

- - 2" DIN RAIL TIME DELAY OPTION

30 9.802-491.0 1 BLOCK TERMINAL 4 POLE AUTO START/STOP,

TIME DELAY OPTION

31 9.802-472.0 1 TIMER SOLID STATE 120V, 5-60, MINUTE ADJ. AUTO START/STOP

OPTION

32 9.802-749.0 2 SCREW 8/32" X 3/4" AUTO START/STOP,

TIME DELAY OPTION

33 9.802-785.0 2 NUT 8/32" KEPS AUTO START/STOP,

TIME DELAY OPTION

34 8.751-306.0 1 TIMER, MULTI FUNCTION 24V-120/240V TIME DELAY OPTION

35 9.802-467.0 1 BASE RELAY TIME DELAY OPTION

36 9.802-468.0 1 RELAY 120V TIME DELAY OPTION

37 8.750-096.0 1 KNOB, THEMOSTAT 302°F

Kärcher HPB Series Operator’s Manual 9.801-190.0 - W

31Kärcher HPB Series Operator’s Manual 9.801-190.0 - W

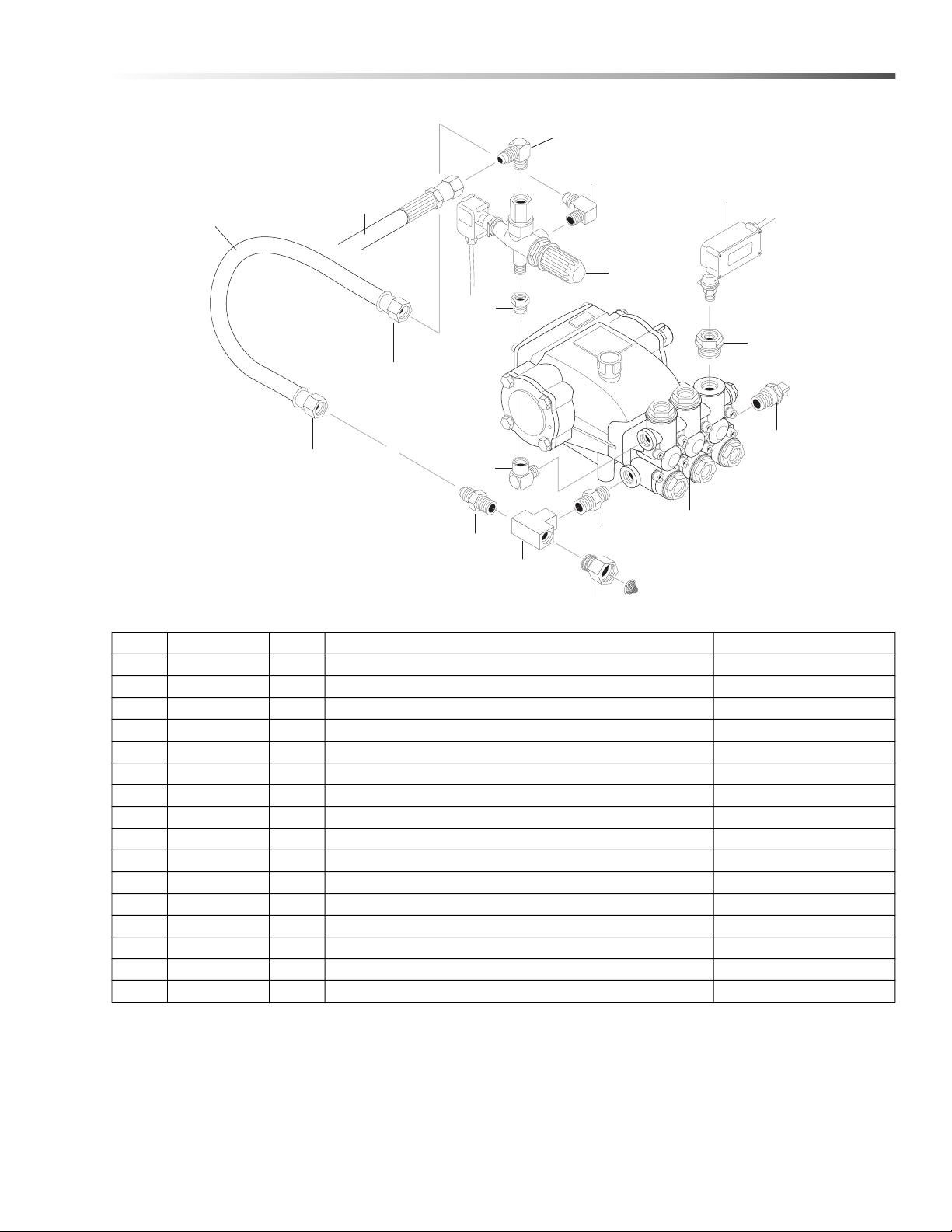

Auto Start/Stop Option

REF PART NO. QTY DESCRIPTION NOTES

1 9.802-146.0 1 SWIVEL, 1/2" MP X 3/4" GHF W/STRAINER

2 8.706-844.0 1 TEE, 1/2" FEMALE PIPE

3 8.706-797.0 1 NIPPLE, 1/2" HEX

4 9.802-127.0 1 NIPPLE, 1/2" JIC X 1/2" MPT PIPE

5 9.802-151.0 2 SWIVEL, 1/2" JIC FEM, PUSH-ON

6 9.802-259.0 16" HOSE, 1/2" PUSH-ON

7 9.802-039.0 1 ELBOW, 1/2" JIC, 3/8"

8 9.802-129.0 1 ELBOW, 1/2" JIC X 3/8"

9 9.802-362.0 1 UNLOADER, VB8 W/SWITCH

10 - - PUMP, PLEASE SEE SPECIFICATIONS PAGES

11 8.707-256.0 1 PUMP PROTECTOR, 1/2"

12 9.802-632.0 1 CAP, VALVE WITH 1/4" GA PORT

13 9.802-458.0 1 SWITCH, PRESSURE 1/4" NPT

14 8.706-207.0 1 ELBOW, 3/8" STREET

15 8.706-309.0 1 ADAPTER, 3/8" X 3/8" STREET

16 8.918-423.0 1 HOSE, 3/8" X 22", PRESSURE LOOP
