König Electronic HAV-PMS10 Manuel utilisateur

HAV-PMS10

Portable

Micro System

MANUAL

ANLEITUNG

MODE D’EMPLOI

GEBRUIKSAANWIJZING

MANUALE

MANUAL DE USO

HASZNÁLATI ÚTMUTATÓ

KÄYTTÖOHJE

BRUKSANVISNING

NÁVOD K POUŽITÍ

Packaging contents

1x HAV-PMS10 Portable Micro System

1x SC/DC adapter

1x USB cable

1x 3.5mm audio cable

1x Stereo earphone

1x USB Driver CD for Windows® 98SE

1x Manual

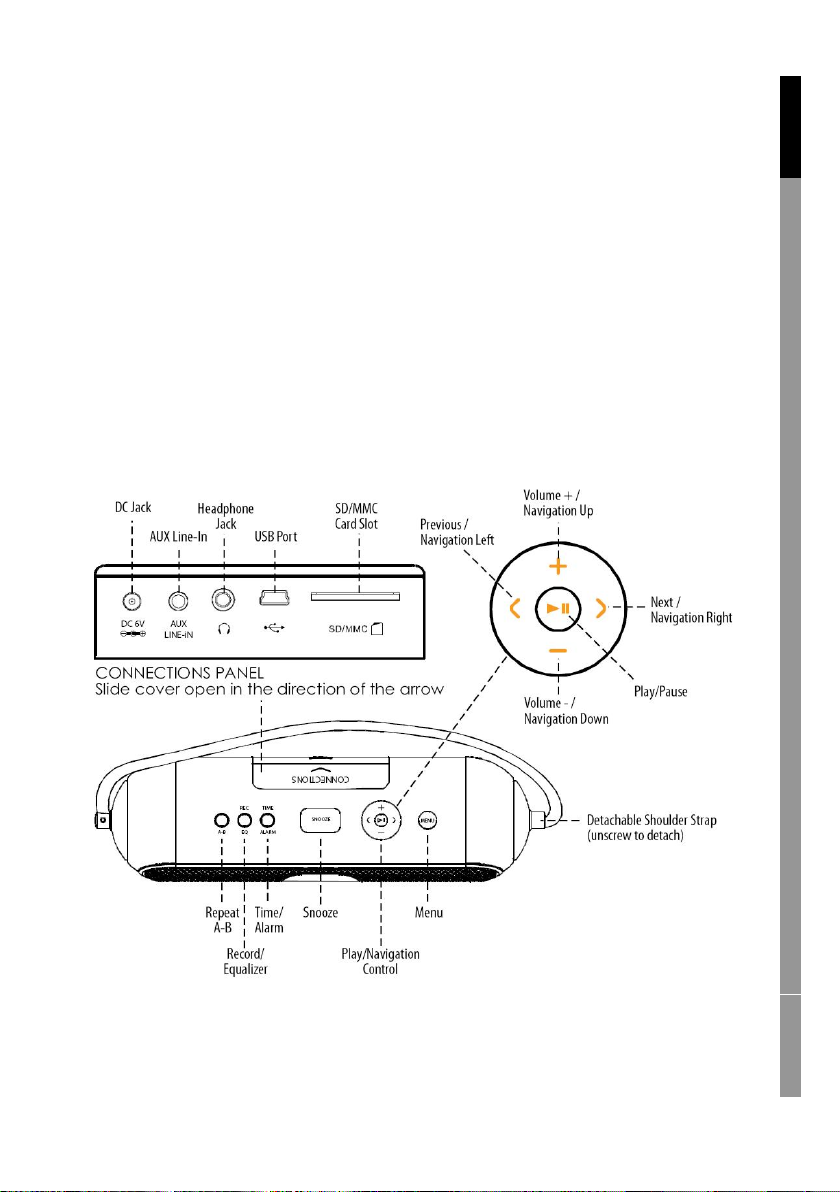

Location of controls

English Deutsch Français Nederlands

Italiano Español Magyar Suomi Svenska Česky

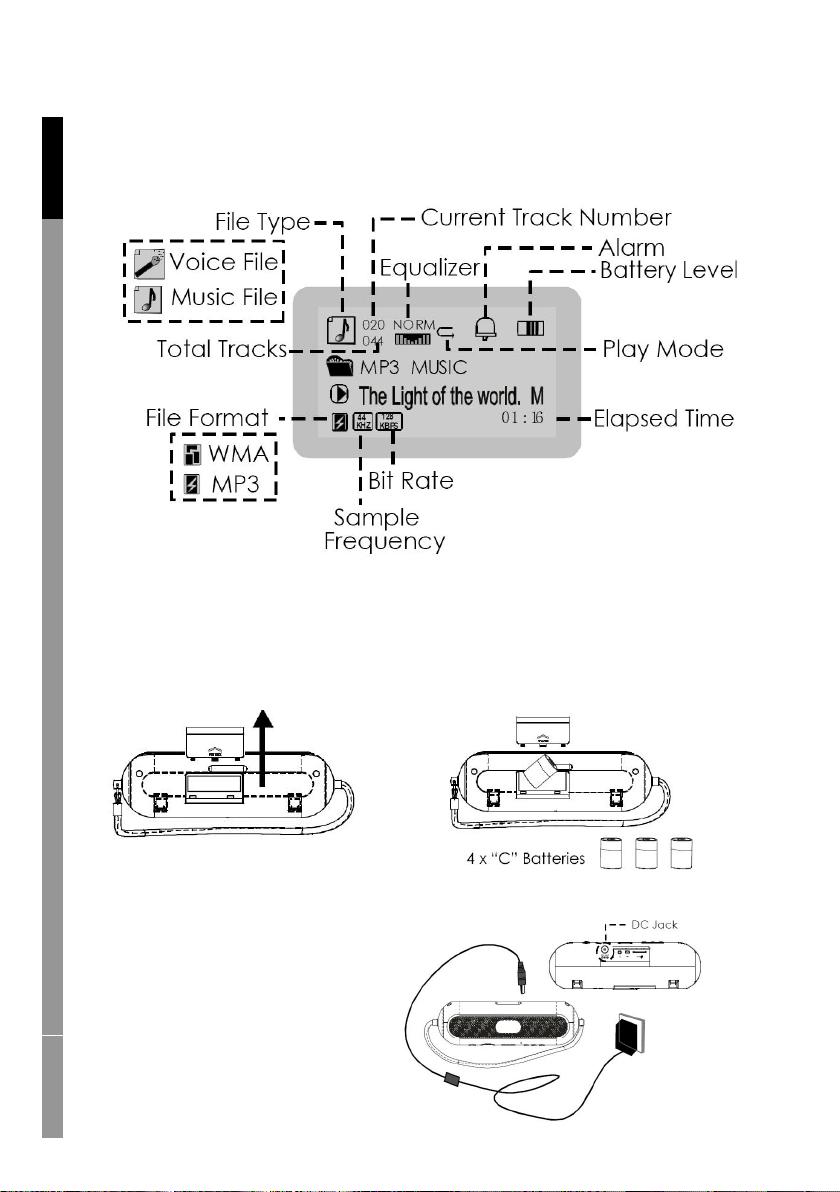

LCD display

Battery operation

Open the battery compartment according below figures. Insert 4x C

batteries as shown in the diagram inside the battery compartment.

AC/DC adapter operation

Open the connections panel on

the rear of the system in the

direction of the arrow. Connect

the mini plug to the 6V

connection and the power plug

to a 220~230V wall outlet.

EnglishDeutschFrançaisNederlands

ItalianoEspañolMagyarSuomiSvenskaČesky

Note: When the AC/DC adapter is connected the LCD backlight will turn

on and remain lit until the AC adapter is unplugged.

When the system is running on batteries, the LCD backlight will light

up briefly each time a button is pressed and then turn off. You can

adjust the time the LCD backlight will remain on for through the SYS

menu (see the SYSTEM MODE (SYS) section for details).

SD/MMC card installation

The integrated SD/MMC card slot lets you upgrade the player’s memory

capacity easily with additional SD/MMC cards.

To install an SD/MMC card:

1. Open the connections panel on the rear of the system in the direction

of the arrow.

2. Press the card in until a click is heard.

3. To remove the SD/MMC card, press the card in and it will jump out.

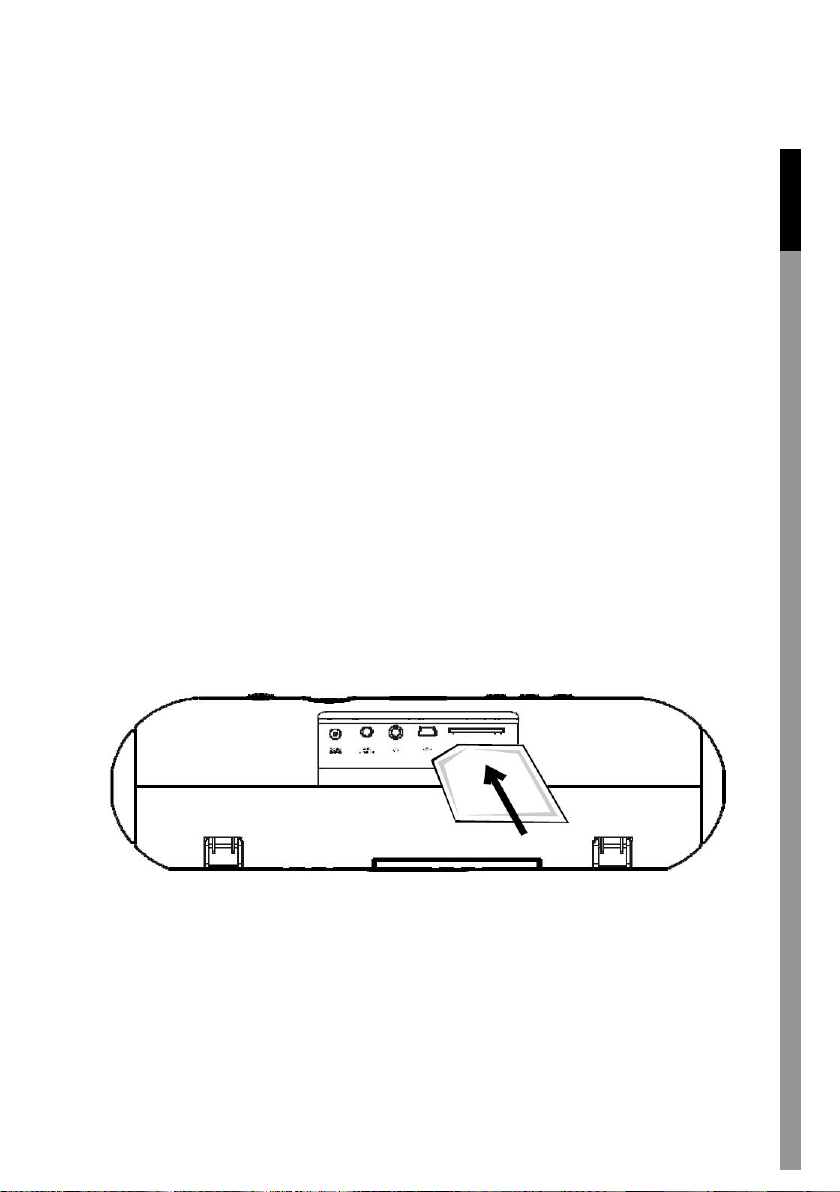

Important notice: Press the card in the slot exactly conforms below

figure. Trying in another way will damage the slot.

Connect to a computer

USB Driver Installation

It is not necessary to install the USB driver if your computer is running

Microsoft Windows ME/2000/XP or newer, or Macintosh OS X.

Computers running these operating systems will recognize

English Deutsch Français Nederlands

Italiano Español Magyar Suomi Svenska Česky

The system automatically when connected.

Microsoft Windows 98 SE

For Windows 98 SE it’s necessary to install the USB driver.

1. Navigate to MY COMPUTER and double-click on the CD/DVD drive

icon.

2. Double-click on the folder “Win98 USB Drivers” and then on the folder

“english”.

3. Double-click on the SETUP icon (SETUP.EXE) to start the USB driver

installation program.

4. Follow the on-screen instructions to complete the installation and then

restart the computer.

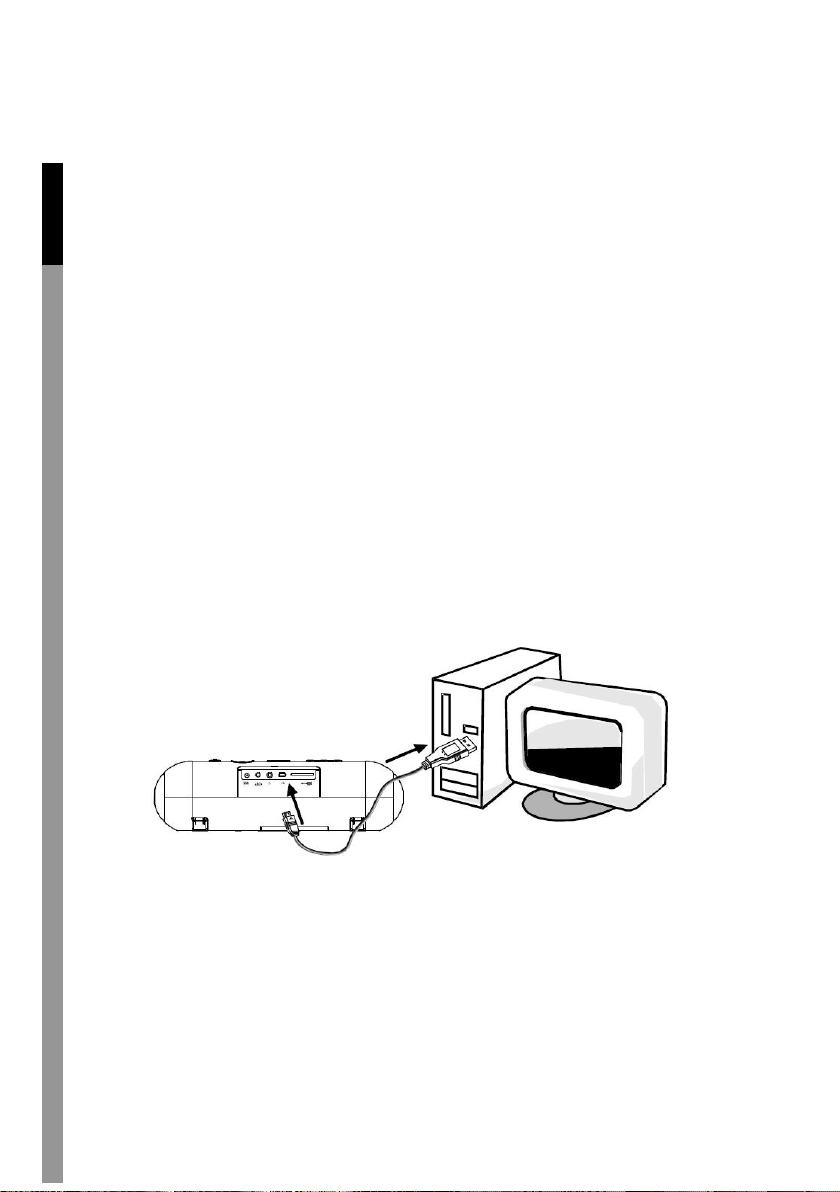

Connecting the USB cable to a computer

Turn the system in Standby mode. Open the connections panel and

connect the USB cable to the system and a computer. The computer will

recognize the system as a Removable Disk.

If a SD/MMC card is installed in the system. The computer will recognize

the card as a second Removable Disk.

Disconnecting from a computer

Microsoft Windows

1. Double-click the green arrow icon in the taskbar of the computer

screen (Safely Remove Hardware).

2. Select “USB Mass Storage Device” from the list that appears and then

click on “Stop”.

EnglishDeutschFrançaisNederlands

ItalianoEspañolMagyarSuomiSvenskaČesky

3. Select “USB Mass Storage Device” from the list that appears and then

click on “OK”.

4. Disconnect the USB cable from the system and the computer.

Macintosh OS X

1. Identify the appropriate Removable Disk icon, on the left side of the

Finder window.

2. Click on the “Eject” arrow on the right of the Removable Disk icon.

3. Disconnect the USB cable from the player and your computer.

Transferring files

The USB connection makes it easy to transfer music files (MP3/WMA)

between the system and a computer. Operate the system on AC/DC

power during transmission of files. Do not disconnect or interrupt the

system.

Transferring files with Microsoft Windows

1. Locate the files or folders you would like to transfer from the computer.

2. Select the files or folders with the mouse and press CTRL-C (copy) on

the keyboard.

3. Navigate to MY COMPUTER and double-click on the Removable Disk

icon. The computer will display all files and folders currently stored in the

player.

4. Press CTRL-V (paste) on the keyboard to transfer the files you

selected to the system.

Transferring files with Macintosh OS X

1. Open a Finder window. Locate the files you would like to transfer from

your computer.

2. Select the files/folders with the mouse and press APPLE-C (copy) on

the keyboard.

3. Click on the Removable Disk icon located on the left side of the finder

window.

4. The computer will display all files and folders currently stored in the

system.

5. Press APPLE-V (paste) on the keyboard to transfer the files you

selected to the system.

English Deutsch Français Nederlands

Italiano Español Magyar Suomi Svenska Česky

Note: It’s also possible to use the mouse to drag-and-drop files between

the system and the computer.

Basic operations

Standby mode

The system will enter Standby mode automatically when it is connected

to a power source. The LCD will display the time.

Power On/Off

To turn the system on, press play/pause while in Standby mode.

To turn the system off, press and hold play/pause.

Note: To display the time while the system is on, press and hold

TIME/ALARM. The LCD will return to a normal display after a few

seconds.

Menu navigation

Use following buttons to control the menus.

Press MENU to access the main menu.

Press </> for left/right

Press +/-for up/down

Press play/pause to confirm a selection.

Press MENU to cancel or return to the previous menu.

BASIC OPERATIONS

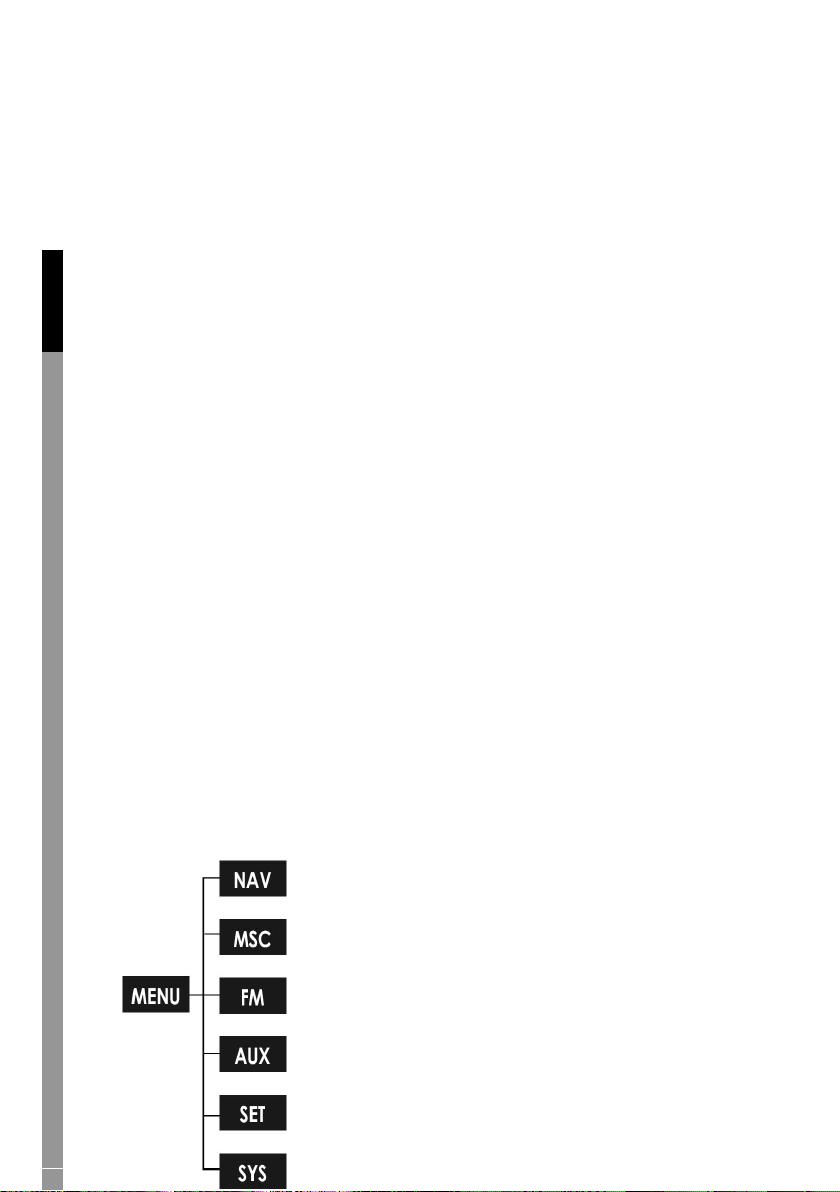

Main menu overview

NAV - NAVIGATION

Music, Voice, Play List (M3U), SD/MMC Card

MSC – MUSIC mode

FM - FM Radio

AUX -External Audio Input

EnglishDeutschFrançaisNederlands

ItalianoEspañolMagyarSuomiSvenska

SET-Clock Set, Alarm Set

SYS - SYSTEM: EQ, Repeat Mode, Display, Auto Off, Sleep Time, Recording, Resume,

Delete File, Format, Reset, Information, Alarm Mode

NAV

Music

Select and confirm MUSIC to find audio files (e.g. MP3, WMA) in the

“Root” folder of the system.

Voice

Select to find recorded audio files in the “Record” folder of the system.

The system will save all recorded files in this folder.

Play list (M3U)

Select to find playlist (M3U) files stored in the “Playlist” folder of the

system.

SD/MMC card

If an optional SD/MMC card is installed, select and confirm SD/MMC

CARD to find any files or folders stored on the card.

MSC

Enter Music mode to start music playback. To enter MSC mode, select

and confirm MSC in the Main menu (Playing an audio file in NAV mode

will place the system in MSC mode as well).

Operation

Press play/pause to play a track.

Press play/pause again to pause playback.

Press < or > while playback is paused to stop playback completely.

Press > to skip to the next track

Press and hold > to fast forward through the current track.

Press < to skip to the previous track

Press and hold < to reverse through the current track.

Press + /- to adjust the volume level.

Press REC/EQ for equalizer settings.

(Normal, Classical, Live, Pop or Rock).

English Deutsch Français Nederlands

Italiano Español Magyar Suomi Svenska Č

esky

Repeat play

Repeat Play options can be changed in the SYSTEM menu.

Options are Normal, One, All, Intro and Random.

(See the SYSTEM MODE (SYS) section for details)

Repeat A-B function

The A-B function allows to set a segment of a track to be played

repeatedly.

1. Press A-B to set the start point (A) of the track segment to be

repeated. The Play Mode Indicator will display A.

2. Press A-B again to set the end point (B) of the track segment.

3. The segment will now play in a loop and the Play Mode Indicator will

display A/B.

4. Press A-B again to resume normal playback.

Select and confirm FM in the main menu. There are two methods of

tuning into stations: MANUAL and PRESET. When the system is in

PRESET mode, the current preset station number will be displayed in

the upper-left corner of the screen. Press play/pause to change between

these two modes.

Manual tuning

Press < or > to search for a radio station frequency.

Preset tuning

Press < or > to select the previous or next preset radio station.

Store Preset Stations

The system can store up to 20 radio station.

1. Place the system in MANUAL tuning mode

2. Tune to the radio station you want to store as a preset (e.g. 91.5).

3. Press A-B. The preset station indicator on the screen will start blinking.

4. Press < or > to select the desired Preset number (e.g. 01).

5. Press play/pause to confirm and store the station.

Store presets automatically

EnglishDeutschFrançaisNederlands

ItalianoEspañolMagyarSuomiSvenska

1. Place the system in PRESET or MANUAL tuning mode.

2. Press and hold MENU.

3. The system will automatically seek and store the first 20 frequencies.

Note: this will overwrite previously stored preset stations.

Delete a Preset Station

1. Place the player in PRESET tuning mode.

2. Press < or > to select the preset station to delete.

3. Press A-B to delete the preset station.

AUX

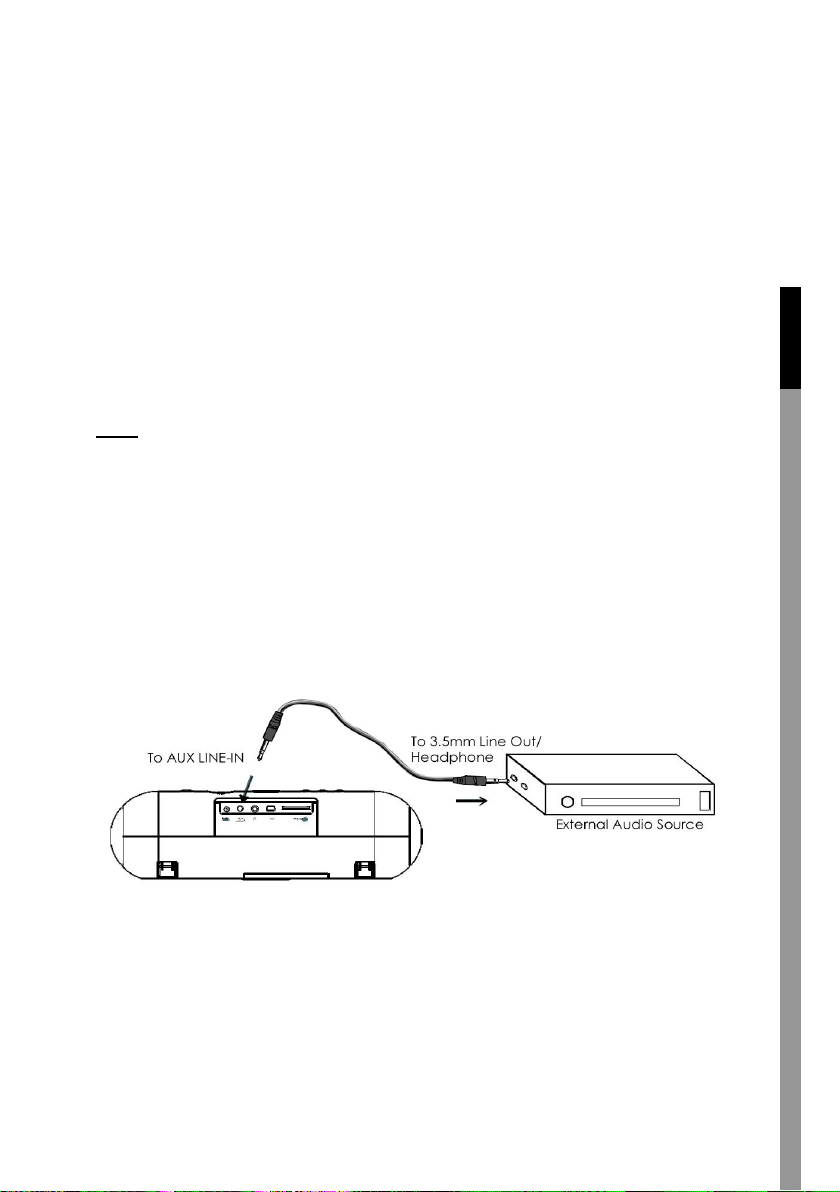

To connect an external audio source to the system.

1. Open the connections panel on the rear of the system in the direction

of the arrow.

2. Connect the 3.5mm audio cable to the AUX Line-in connection.

3. Connect the other end of the cable to the line-out of headphones

connection of the external audio source

4. Select and confirm AUX in the Main menu.

Recording

The system can record from 3 types of sources:

1. Microphone

2. Line-In

3. FM radio

English Deutsch Français Nederlands

Italiano Español Magyar Suomi Svenska

Table des matières

Autres manuels König Electronic Système stéréo

König Electronic

König Electronic HAV-MCS50 Manuel utilisateur

König Electronic

König Electronic HAV-MCS52 Manuel utilisateur

König Electronic

König Electronic HAV-MCS30 Manuel utilisateur

König Electronic

König Electronic HAV-MCS42 Manuel utilisateur

König Electronic

König Electronic HAV-SDC20 Manuel utilisateur

König Electronic

König Electronic IPD-SPEAKER40 Manuel utilisateur

König Electronic

König Electronic HAV-MC100 Manuel utilisateur

König Electronic

König Electronic HAV-MCS30 Manuel utilisateur

König Electronic

König Electronic HAV-MCS42 Manuel utilisateur

König Electronic

König Electronic HAV-MCS35 Manuel utilisateur

Manuels Système stéréo populaires d'autres marques

LG CM3330B Manuel utilisateur

Sony

Sony SS-CEP50 Manuel utilisateur

Cetacea Sound

Cetacea Sound CVS-II Manuel utilisateur

Aiwa

Aiwa XR-H66MD Manuel utilisateur

Denon

Denon UCD-250 Manuel utilisateur

Sanyo

Sanyo DC-MX41i Manuel utilisateur

Sharp

Sharp CD-ES600V Manuel utilisateur

Exibel

Exibel BDX600-UK Manuel utilisateur

Sanyo

Sanyo DC-F320 Manuel utilisateur

Philips

Philips FWM583X Manuel utilisateur

Sharp

Sharp CD-C462 Manuel utilisateur

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuel utilisateur

Aiwa

Aiwa XR-EM70 Manuel utilisateur

Cyrus

Cyrus Lyric Manuel utilisateur

Philips

Philips MCM159/98 Manuel utilisateur

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuel utilisateur

RCA

RCA RS3965SB Manuel utilisateur

Sharp

Sharp XL-UH240 Manuel utilisateur
