K-Mate BTH108Q Manuel utilisateur

BTH108Q

True Wireless Bluetooth Headset

User’s manual

Contents

◼Brief introduction…………...…………………………..…... 1

◼Before use……………………………………………………. 1

1. Overview…………………………………………………...……1

2. Charging for headset..……………………………………………2

2. Charging for charging case..…………………………………2

◼Getting started……..…………………………………………3

1. Wearing headset.............................................................3

2. One earbud connecting with cellphone......................................3

3. Two earbuds connecting with cellphone..........................................5

4. Earbuds pairing/connecting........................................................6

5. Function operation-use one earbud ....................................6

6. Function operation-use two earbuds ....................................8

7. Battery display........................................................................ ......8

8. Prompt tone……………………………………………….....9

9. Factory Reset……………………………………………..…..….9

◼Care and maintenance……………………………..……….10

◼FAQs……………………………………...…………………..11

◼Specification……………………………...………………..…11

Welcome to use this True Wireless Bluetoothheadset, BTH108Q. Please

read this user’s manual carefully before use.

◼Brief introduction

BTH108Q is a True Wireless Bluetooth Headset ,each ear piece comes with

a Microphone that can be used individually or used together for stereo

sound.The earbuds supports music and calling function,as well as touch

sensitive playback and pause control.

◼Before use

1. Overview

MFB touch-button

Top case

LED indicator (blue)

Charging pins

Microphone

Charging indicator light

LED indicator (red)

Charging jack

Charging metal contact

Big/medium/small Ear tips

2. Charging for headset

When the headset is low on power, it emits “Battery low” once every 2

minutes andthered Ledflashes slowly 4 times in a row every 1 minute .

Please recharge the battery of the headset.

The way of charging for the earbuds as following:

1. Put the earbuds into the charging case to ensure that the charging pins

connect well, and start charging when you see the red indicator light of

the earbuds on.

Red light on: Charging

Red light off: Finish charging

2. Charging should be completed in roughly 1.5 hours.

Remarks:

◆The left and right earbuds on charging case of an arbitrary charge can be

charged.

◆Please cover the charging case cover, so that the earbuds and the

charging case connect well when it is charging.

◆When the earbudsare not put into charge case, the indicator light of

charging case is off. When the earbudsare put into charging case, the

white indicator light of the charging case will light up and indicate the

power of the current charging case:

White LED flashes once every 2 seconds = low battery power;

White LED flashes three times every 2 seconds = sufficient battery power;

White LED remains on = full battery power;

After removing the earbuds from the charging case, the indicator LED of the

charging case will automatically extinguish after 1 minute.

3. Charging for charging case

When you put the earbuds into the charging case and find that the white

indicator light flashes once every 2 seconds, it means that the battery level

of the charging case is low. In addition the indicator light of the charging

case is off and it cannot charge the earbuds, it means that the battery of the

charging case has been exhausted.You need to charge the charging case:

The way of charging for the charging case as following:

Using USB cable

1) Plug the micro USB charging cable into the case’s charging jack.

2) Plug the USB cable into a USB port of PC or a 5Volt USB charge.

Red light on: Charging

Red light off: Finish charging

3) Charging should be completed in roughly 1.5 hours.

4）If the earbuds are in the charging case, it can charge the earbuds while

charging the charging case.

Remarks:

1) The battery is recyclable.

2) Batteries (battery pack or batteries installed) shall not be exposed to

excessive heat place, such as sunshine, fire or the like.

3) Please make sure the charging jack is dry before charge.

◼Getting started

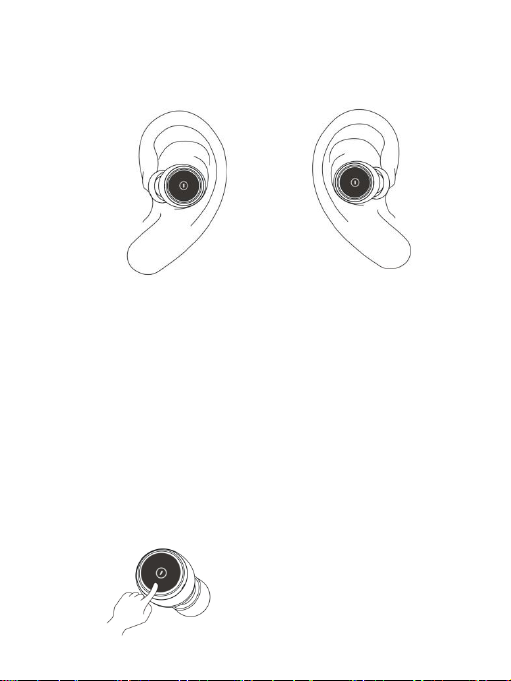

1. Wearing headset

a. Choose the suitable size ear tips

b. Ensure each earbuds is worn on the correct ear. “L”should be worn on the

left ear and “R”worn on the right ear.

Left ear Right ear

2.One earbud connecting with cellphone

Each earbuds can be connected singly to the cellphone.

1. Power on

1)When charging, the earbuds will turn on automatically when they are

taken out of the charging case.

2)If the earbuds are power off, you should press touch-button for about 3s

until blue LED flashes as the same time the earbuds emits “Power on”. Then

release. This is now in the “Power on”state.

2.Pairing

1) After the earbud is taken out of the charging case, it will be power on.

Then it will connect back to the phone you paired with before.When the

earbuds and the cellphone fails to connect back, the earbuds will

automatically enter the matching state.

2) If the earbuds are power off, you should press touch-button for about 5s

and release it when the red LED and blue LED flash quickly and alternately.

You will hear “Pairing”. The earbuds are in“Pairing”mode

3.Connecting

To connecting your earbuds to a Bluetooth device, first ensure the device

has Bluetooth enable and it is in pairing mode(See your device manual for

setting pairing mode) . Once your earbuds are in pairing mode, you should

be able to see it in the list of Bluetooth devices.

You should see BTH108Q-L for left earbuds or BTH108Q-R for the right

earbuds appear in your contactable devices list.After successful connection,

the earbuds prompts "Phone is connected".

You need to connect one of them to use as master.However,if you want to

use them singly,only connect the desired ear L or R, and turn off another

one.

4.When Left earbud is successfully paired with the phone, the phone will

Pop-up a dialog : “Headset would like to pair with your phone”. If you click

“pair”, the slave earbud will also be paired with the phone.And master-slave

switching function can be OK. If it is not confirmed at this time, Left earbud

and Right earbud cannot switch subsequently.

5.Power off

1）Auto power off once put into charging case

2）Press touch-button about 5s and release it till red LED is on,and earbuds

prompt “Power off”.

Remark:

◆The earbuds will automatically connect with the latest Bluetooth device

when power on again. If it does not reconnect after 2 minutes , it will

enter standby modeautomatically. After 3 minutes of standby mode, it

will turn off automatically.

◆After disconnecting from the phone, the earbuds will automatically

switch to standby mode (the blue light flashes once in 5 seconds), and

automatically turn off after 5 minutes to save energy.

◆If the earbuds disconnects from the phone beyond the distance, it will

automatically reconnect after returning the effective distance within 5

minutes, and automatically turn off after 5 minutes.

3.Two earbuds connecting with cellphone

In this mode use two earbuds at the same time to enjoy stereo sound.

1)Turn on the master earbud (BTH108Q-L) and connect it with you

Bluetooth device,then power on the other earbud and it will connect with

each other automatically.

2)master-slave switch: When master earbud is successfully paired with the

phone, the phone will Pop-up a dialog : “Headset would like to pair with

your phone”. If you click “pair”, the slave earbud will also be paired with

the phone.And master-slave switching function can be OK.In the following

cases, the slave earbud can automatically switch and connect to the mobile

phone, so you continue to use:

(1) in the process of use, when the master earbud is automatically turned off

at low power, the slave earbud will be automatically connected to the mobile

phone.

(2) when the master earbud is disconnected from the mobile phone out of

range, the slave earbud will be automatically connected to the mobile phone.

(3) when the master earbud is put into the charging case, the slave earbud

will be automatically connected to the mobile phone.

4.Earbuds pairing/connecting

Please use this step if two headset can not be connect with each

other.

1.Turn off two earbuds respectively(don’t put them into the charging case).

2.Clear the pairing list: Choose one of the earbuds. Firstly, enter the pairing

mode.Then hit the touch button 5 times, while the red LED and the blue

LED turns on for 1 second. The pairing list will be cleared when emits

prompt tone. The other headset cleans the pairing list by doing the same.

3.The earbuds will enter TWS pairing mode automatically when they are

turned on (indicator light status: red and blue lights flash slowly).After

successful connection, the master earbud(L) will emits“Pairing”after a

"dang"prompt, which indicator light status will be: red LED and blue LED

flash alternately(it keeps waiting to be paired with your phone), while the

slave earbud(R) will emits ‘Dang’and indicator status will be: blue LED

flash twice time every 5 seconds.

Remarks:

◆In normally the two earbuds will connect automatically once you have

taken out of the charging case,which set in factory.

◆You can connect the two earbuds according above operation if they failed

connecting.

5.Function operation-use one earbud

1. music

Function

Status of

earbuds

Prompt

tone

Play

Pausing

Double-click

touch-button

Double-click

touch-button

Dang

Pause

Playing

music

Double-click

touch-button

Double-click

touch-button

Dang

song

Playing

music

Press Left touch -

button about 2s

N/A

Dang

Next song

Playing

music

N/A

Press Right touch -

button about 2s

Dang

Volume up

Playing

music

N/A

Once-click Right

touch-button

Dang

Volume

down

Playing

music

Once-click Left

touch-button

N/A

Dang

2.Calling

Function

Status of

earbuds

Prompt tone

Cancel

calling

Calling

Once-click

touch-button

Once-click

touch-button

Two Tone_High

Falling after

Dang tone

Answering

Incoming

call ringing

Once-click

touch-button

Once-click

touch-button

Dang

Reject

Incoming

call ringing

Press touch -

button about 2s

Press touch -

button about 2s

Dang

End calling

During a call

Double-click

touch-button

Double-click

touch-button

Two Tone_High

Falling after

Dang tone

Transfer

audio

During a call

Press touch -

button about 2s

Press touch -

button about 2s

Two Tone_High

Falling

Active

SIRI

Connected

device

N/A

Triple-click

touch-button

“Voice dial”

Volume up

During a call

N/A

Once-click

touch-button

Dang

Volume

During a call

Once-click

N/A

Dang

Table des matières

Manuels casque populaires d'autres marques

Sena

Sena SMH10 Manuel utilisateur

IASUS

IASUS Stealth IA-NT4-BASIC-BT Manuel utilisateur

Sennheiser

Sennheiser EPOS ADAPT 230 Manuel utilisateur

Doro

Doro Flexus HS2005 Manuel utilisateur

GE 98971 Manuel utilisateur

Hama

Hama 00184070 Manuel utilisateur

Plantronics

Plantronics Blackwire 3200 Series Manuel utilisateur

Blue Tiger

Blue Tiger Advantage PLUS Manuel utilisateur

Jawbone

Jawbone Icon Manuel utilisateur

Jabra

Jabra FR 20 Manuel utilisateur

Roxcore

Roxcore Flow A+ Manuel utilisateur

Turtle Beach

Turtle Beach XP 510 Manuel utilisateur

Philips

Philips SHB6101 Manuel utilisateur

Jabra

Jabra PRO 9460 Duo Manuel utilisateur

HyperX

HyperX HyperX Cloud Flight Manuel utilisateur

Bose

Bose MIE2 Mobile Manuel utilisateur

Jabra

Jabra Steel Manuel utilisateur

HyperX

HyperX cloud ii Manuel utilisateur
