JVC LT-32FX77 Manuel utilisateur

ENGLISH

LT-32FX77

LT-37FX77

LT-42FX77

GGT0160-001A-H

WIDE LCD PANEL TV INSTRUCTIONS

GGT0160-001A-H_Cover.indd 1-2GGT0160-001A-H_Cover.indd 1-2 05/06/2007 14:06:4405/06/2007 14:06:44

I IIII

LT-32FX77

Introduction.indd I-IIIntroduction.indd I-II 24/05/2007 10:26:4324/05/2007 10:26:43

ENGLISH

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Expanding the world of

Enjoy rich multi-media with JVC

VHF/UHF

Digital camera

Video camera

Game console

Audio components

VCR DVD player

DVD recorder

Personal

Computer

beautiful images

First things ﬁrst!



Warning············································ 3

Getting started



Names of all the parts ······················ 5



Basic connections ···························· 7



Initial settings ··································· 9



Editing channels····························· 11

· Registering channels



Connecting external devices·········· 13

Let’s try it out



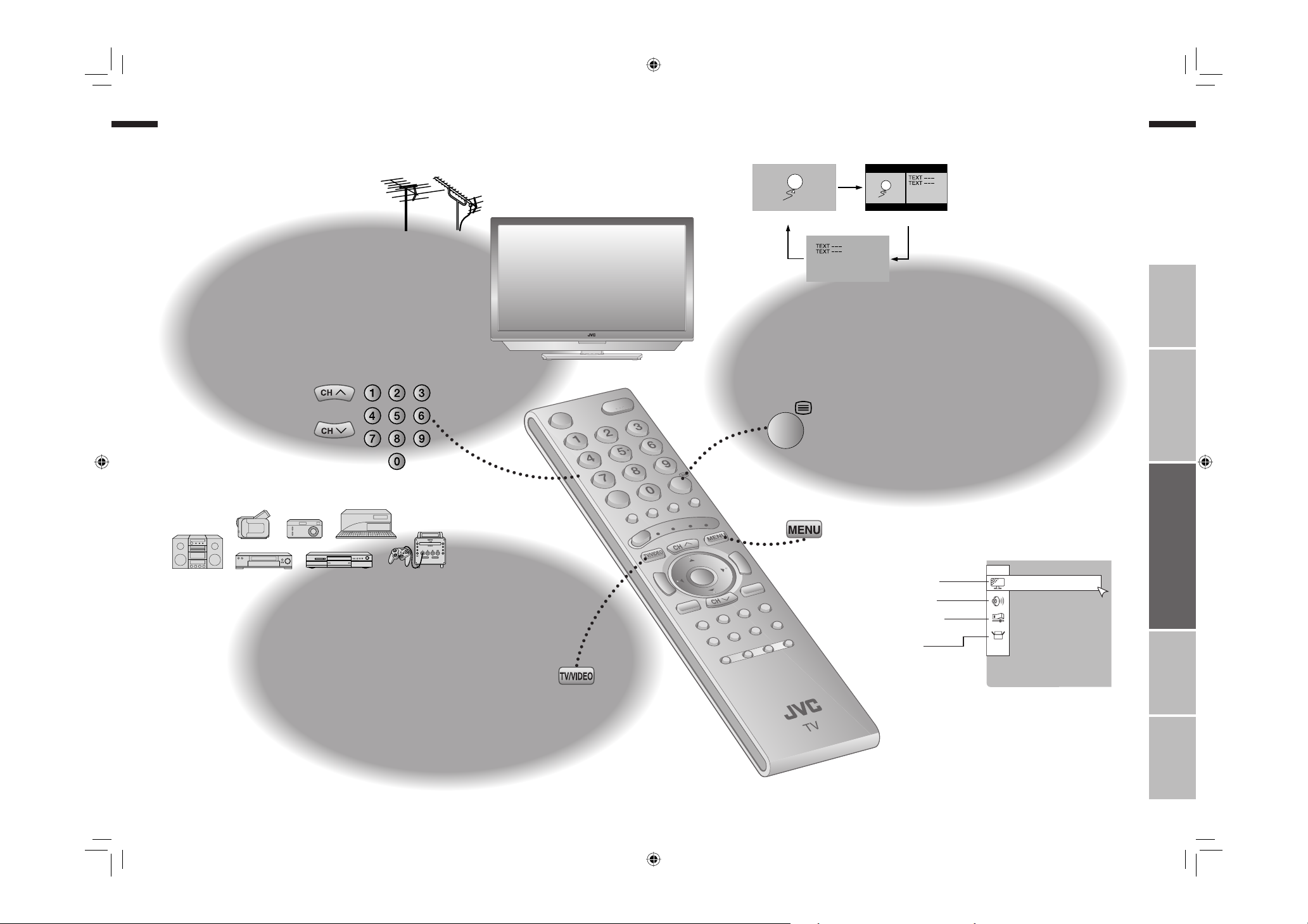

Enjoying your new TV! ··················· 15

· TV / Teletext / Video / etc.



Watching TV··································· 17



Viewing teletext ······························ 19



Watching videos / DVDs ················ 21

Try the advanced features



Useful functions······························ 23

· Take a snapshot

· View and search in multi-picture mode

· “Timer” / “Channel Guard”



Operate JVC recorders and other devices

··· 29

Just the way you like it



Customising your TV······················ 31



Advanced picture adjustment········· 33

Reduce noise / Watch a more natural picture

· Set the aspect ratio, etc.

When you have trouble



Troubleshooting ····························· 35



Technical information ····················· 38



“CH/CC” List··································· 41



Speciﬁcations ································· 42

Contents

LT-323742FX77_EN.indb 1-2LT-323742FX77_EN.indb 1-2 08/06/2007 09:06:1908/06/2007 09:06:19

ENGLISH

First things ﬁrst!

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Never dismantle the

rear panel!



It may cause an electric shock.

Never obstruct the

ventilation holes!



It may cause overheating or a ﬁre.

Handle LCD panel

with care!



Use a soft, dry cloth when cleaning.

Never try to repair

the TV yourself!

If the problem cannot be solved in

“Troubleshooting” (P. 35), unplug

the power cord and contact your

retailer.

If the TV is damaged

or behaving strangely,

stop using it at once!

Unplug the power cord and contact

your retailer.

Warning



For more details on installation, usage and safety Consult your retailer

Never expose to rain or

moisture!



To prevent ﬁre or electric

shock, never allow

liquids to enter the unit.

Hold the TV so as not to

scratch the screen!



Do not touch the screen when carrying the

TV.

Do not carry the

TV on your own!



In order to prevent accidents,

ensure that the TV is carried

by two or more people.

Please follow all the guidelines below

Never listen to

headphones at high

volume!



It may damage your hearing.

Never place anything on

the TV!



Placing liquids, naked

ﬂames, cloths, paper,

etc. on the TV may

cause a ﬁre.

Never insert objects into

the cabinet openings!



It may cause a fatal

electric shock. Take care

when children are near.

Unplug the power cord

when going out!



The power buttons on

the remote control and

the TV unit cannot

completely turn off the

TV. (Make appropriate

arrangements for

bedridden people.)

Make enough room for

inserting and removing

the power plug!

Place the TV as

close to the outlet as

possible!



The main power supply for this TV is

controlled by inserting or removing the

power plug.

Never cut or damage

the power cord!



If the AC plug is not the

right shape, or the power

cord is not long enough,

use an appropriate plug

adapter or extension cable.

(Consult your retailer.)

Follow this manual

regarding setup!



Connect only to a 110-240V, 50/60Hz

AC outlet.

When attaching the TV to

the wall, use the optional

JVC wall mounting unit!



Consult a qualiﬁed technician.



See the included manual on mounting

procedures.



JVC assumes no responsibility for

damage due to improper mounting.

Do not allow the TV

to fall!



Do not rest your elbows on, or allow

children to hang from the TV.

There is a risk that the TV will fall and

cause injuries.

LT-323742FX77_EN.indb 3-4LT-323742FX77_EN.indb 3-4 08/06/2007 09:06:1908/06/2007 09:06:19

ENGLISH

Getting started

TV/VIDEO

MENU/OK

CHANNEL

VOLUME

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Change channel / page /

Hyper Scan

Volume

Names of all the parts

Turn on “Cinema Surround” (P. 17)

Take a snapshot of the

screen (P. 23)

View in multi-picture

mode (P. 23)

Hold the current page

Bookmark pages

Reveal hidden pages

Enlarge the text

Switch brieﬂy

between teletext and TV

To index page

Return to TV /

Watch video, etc. (P. 21)

Power On / Off

Change channel / page

To teletext (P. 19)

Select and

conﬁrm settings in menus

To previous screen

Select Channel

Select the desired channel

number.

For Hyper Scan:

Switch between

“TV / VCR / DVD / AUDIO” (P. 29)



When watching TV / Video

Change the aspect ratio (P. 17)

Mute



When viewing teletext (P. 19)



Insert the batteries

Use two “AAA/R03” dry cell batteries.

Insert the batteries from the -end, making

sure the +and -polarities are correct.

Return to channel

you want to view

Display on-screen menu (P. 31)

Power On / Off

Remote control sensor

Power lamp

ON: Lit (Blue)

OFF: Unlit



Power lamp lights

while the TV is on.

“Power Lamp”

(P. 32)

To headphones (P. 13)

Display on-screen

menu / set

Switch between

TV / VIDEO devices

Press to

remove.

Cable cover

Remove the terminal cover

Change the direction of TV

Remote control

(RM-C1855)

“AAA/R03”

Batteries

Check accessories

For conﬁrming

the TV works

Colour buttons

Volume

Channel information (P. 17)



If the cover cannot be closed due to the cables being in the way

Do not force the cover to close (leave it open).



Connecting terminals on the back of the TV Connecting External devices (P. 13)



To remove the cable cover, refer to back of the cover.

Eco sensor



The screen

automatically

adjust brightness.

“Eco Sensor”

(P. 39)

Press and hold

PR changes without

changing the picture. Once

you stop pressing or

button, picture will

change to the desired PR.

LT-32FX77

For Sub-page in multi-picture

mode:

Select channelSelect the

desired channel number.

For Hyper Scan

PR changes without

changing the picture. Once

you stop pressing or

button, picture will change to

the desired PR.

Press and hold

LT-323742FX77_EN.indb 5-6LT-323742FX77_EN.indb 5-6 08/06/2007 09:06:2008/06/2007 09:06:20

ENGLISH

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Connect the aerial

Basic connections

200mm

50mm150mm 150mm 50mm

VCR / DVD Player



After all the connections have been made, insert the plug into an AC outlet.



If both composite and S-VIDEO cables are connected, S-VIDEO will be enable.



After all the connections have been made, insert the plug into an AC outlet.

AERIAL

Connect a VCR / DVD Player

AERIAL



Power requirements



Connect the power cord only to a 110-240V,

50/60Hz AC outlet.



When attaching the TV to the wall, use the

optional JVC wall mounting unit



Consult a qualiﬁed technician.



See the included manual on mounting procedures.



JVC assumes no responsibility for damage due to

improper mounting.



200mm × 200mm mount which conforms to VESA

standards.



Installation requirements



To avoid overheating, ensure the unit has ample

room.

Please read the user manuals of each device before setup.

It is necessary to connect an aerial to watch TV.



Connect with other devices “Connecting external devices” (P. 13)

Care when setting Tidying the cables



To remove the cable cover, refer to back of the cover.

VIDEO-1

(R)

(L)

(Y)

(Pr)

(Pb)

LT-32FX77

LT-323742FX77_EN.indb 7-8LT-323742FX77_EN.indb 7-8 08/06/2007 09:06:2208/06/2007 09:06:22

ENGLISH

> Language

Group-1

Group-2

Group-3

Group-4

Group-5

Teletext Language

CH/CC

CH 22

CH 23

CH 24

CH 25

CC 02

CC 04

CC 05

> Edit

14%

Auto Program

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Initial settings

Set the menu language, installation location and automatically register the TV channels.

These channels can be edited later in “Editing channels” (P. 11).



To the previous screen 



If the “JVC” logo does not appear or

if you wish to make changes later

“Language”, “Teletext language” and

“Auto Program” (P. 32)



Exit 

BACK

Begin

Select a language

Select the teletext language group

Check what was registered

1select



Shown only when

powering on for the ﬁrst time.



The power on the unit can also be used.



Edit channels

⁄ in “Editing channels” (P. 11)

2set

Conﬁrm



The remote control doesn’t

work



Conﬁrm the mode is set to “TV”.



For the teletext language group



“Language group for teletext”

(P. 38)



If the characters are unreadable.



“Language group for teletext”

(P. 38)

Automatically register channels

select

LT-323742FX77_EN.indb 9-10LT-323742FX77_EN.indb 9-10 08/06/2007 09:06:2208/06/2007 09:06:22

ENGLISH

· Registering channels

Set Up

Auto Program

Video-3 Setting

AI Volume

HDMI Setting

PC Position

Auto Demonstration

Video

Off

Video

Teletext Language

Edit/Manual

Video-1 Setting

Language

CH/CC

CH 22

CH 23

CH 24

CH 25

CC 02

CC 04

CC 05

> Edit

CH/CC

CH 21

CH 22

CH 23

CH 24

CH 25

CC 02

CC 03

CC 04

CC 05

>Edit

> Edit

CH/CCID

CH 21

CH 22

CH 23

CH 24

CH 25

CC 03

CC 04

CC 05

CH/CC

CH 21

CH 22

CH 23

CH 24

CH 25

CC 02

CC 03

CC 04

CC 05

> Edit

CH/CCID

CH 21

CH 22

CH 23

CH 24

CH 25

CC 02

CC 03

CC 04

CC 05

JVC

>Edit

CH/CC

CH 21

CH 22

CH 23

CH 24

CH 25

CC 02

CC 03

CC 04

>Edit

CH/CCID

CH 21

CH 22

CH 23

CH 24

CH 25

CC 02

CC 03

CC 04

CH/CC

CH 22

CH 23

CH 24

CH 25

CC 02

CC 03

CC 04

Edit

CH/CC

CH 02 (B/G)

CC 06

Manual

> Manual

CH/CC

CH 08 (B/G)

CC 06

CH/CC

CH 08

CC 06

Edit

>Manual

CH/CC

CH 08 (I)

CC 06

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Display the menu bar

Select “Set Up”

Select “Edit / Manual”

Finish

When coming from “Initial settings” (P. 9), skip to ⁄.

Select a row

Edit

Move a

channel’s

position

MOVE

Editing channels

Edit the channels registered with “Auto Program” in “Initial settings” (P. 9).



To the previous

screen





Exit



Edit a

channel

name

Insert a

channel

INSERT

Delete a

channel

DELETE

new channel

MANUAL

select

move out move in

select

1enter the ﬁrst

character

From high

frequencies

select a system



Receives the

broadcast

signal.



If you can not receive the

channel you want to view,

press 3to change the sound

system.

“Sound system in your

country or region” (P. 38)



Auto-search begins,

and the nearest

frequency is imported.

Repeat the previous

steps until the

desired channel is

displayed

From low

frequencies



“CH/CC” List (P. 41)

1Begin 2Select a destination 3Finish

1Begin 2Enter a channel name

2Select a “CH / CC” 3Enter a number

Beginning channel search

1Begin

3Set



Adjust



Channel ﬁne tuning 



If the picture or sound is unnatural 

1select

2next

1select

2next

set

1Begin

select

1Delete

(red)

next column

(green)

(yellow)

(blue) (green)

(blue)

(yellow)

LT-323742FX77_EN.indb 11-12LT-323742FX77_EN.indb 11-12 08/06/2007 09:06:2308/06/2007 09:06:23

ENGLISH

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Connecting external devices

You can connect many different devices to the rear panel of the TV.

Please read the user manuals of each device before setup.

(Connecting cables are not supplied with this TV.)

DVD player

(HDMI compatible)

Ampliﬁer

(L) (R)

OUT

Set-top box / Digital

broadcast tuner

Game consoles

“Technical information” (P. 38)

VCR / DVD recorder

PC IN

Video camera

VIDEO-1

VIDEO-2

VIDEO-3

: signal direction



Connect a “DVI” device to

“HDMI-1” (P. 38)

To “VIDEO-3” R/L

Headphones

(R)

Headphone

VIDEO-1

Watching videos

Output Input 

Composite signal /

Component signal /

S-VIDEO

· Sound L / R



Use Component signal

“Switch between video and

component signal” (P. 22)



Use S-VIDEO

“Using S-VIDEO” (P. 22)

VIDEO-2

Watching videos

Output Input 

Composite signal /

S-VIDEO

· Sound L / R



Use S-VIDEO

“Using S-VIDEO” (P. 22)

VIDEO-3

Watching DVDs

Output Input 

Composite signal /

Component signal

· Sound L / R



Use Component signal

“Switch between video and

component signal” (P. 22)

HDMI-1

HDMI-2

Connecting

HDMI devices

Output Input 

· HDMI signal

(P. 38)



“HDMI Setting” (P. 32)



HDMI-2 input does not support

analogue sound.

OUT

Video and sound signal of a TV channel

you are viewing outputs from this

terminal

Output 

Composite signal /

S-VIDEO

· Sound L / R



“Using OUT terminal” (P. 22)

VCR / DVD / other devices

(L)

(Y)

(Pb)

(Pr)

(R)

(L)

HDMI-2 HDMI-1

DVD player

(HDMI compatible)

VCR / DVD Player

IN HDMI-1

(Y)

(Pb)

(Pr)

(R) (L)

LT-323742FX77_EN.indb 13-14LT-323742FX77_EN.indb 13-14 08/06/2007 09:06:2608/06/2007 09:06:26

ENGLISH

Let’s try it out

· TV / Teletext / Video / etc.


TV mode TV and Text mode

Text mode

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Watching TV

PAGE

Enjoying your new TV!



View channel information



Change the aspect ratio



Enjoy “Cinema Surround”



PAGE

Personal preferences



Adjust the picture



Adjust the sound



Basic settings

(channel settings, etc.)



Advanced settings

(timer / channel guard, etc.)

Viewing teletext

PAGE



Enlarge the text



To the index page



Hold the current page



Switch brieﬂy between teletext and TV



Bookmark your favourite pages



Reveal hidden pages

PAGE Watching

videos / DVDs



Watch high quality video (S-VIDEO)



Switch between video and component signal



PC position adjustment

LT-323742FX77_EN.indb 15-16LT-323742FX77_EN.indb 15-16 08/06/2007 09:06:2708/06/2007 09:06:27

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JVC TV

JVC

JVC LT-32X667 Manuel utilisateur

JVC

JVC LT-22E710 Manuel utilisateur

JVC

JVC AV-14AT Manuel utilisateur

JVC

JVC AV-28R4SK Manuel utilisateur

JVC

JVC AV-28RT4BU Manuel utilisateur

JVC

JVC AV-21F9 Manuel utilisateur

JVC

JVC AV-27F703 - 27" Real Flat TV Manuel utilisateur

JVC

JVC AV-28KT1BUF Manuel utilisateur

JVC

JVC AV-32D501 Manuel utilisateur

JVC

JVC PD-42DX6BJ Manuel utilisateur

JVC

JVC InteriArt AV-28E50SK Manuel utilisateur

JVC

JVC AV-29ED5BN, AV-29ED5SN Manuel utilisateur

JVC

JVC I'Art AV-27F476 Manuel utilisateur

JVC

JVC AV-21KT1BEF Manuel utilisateur

JVC

JVC InteriArt T-V LINK AV-28H4BU Manuel utilisateur

JVC

JVC S Series Manuel utilisateur

JVC

JVC COLOUR TELEVISON AV-29LS24 Manuel utilisateur

JVC

JVC AV-29R8TEE Manuel utilisateur

JVC

JVC GGT0116-001A-H Manuel utilisateur

JVC

JVC AV-14F13/PH Manuel utilisateur

JVC

JVC I'ART AV-27F704 Manuel utilisateur

JVC

JVC AV-27750 Manuel utilisateur

JVC

JVC AV-21L91 Manuel utilisateur

JVC

JVC AV-21BX16S Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
