JVC 0801-Ki-NV-JET Manuel utilisateur

COLOUR TELEVISION

INSTRUCTIONS

Thank you for buying this JVC

colour television.

To make sure you understand how to

use your new TV, please read this

manual thoroughly before you begin.

AV-21L91

AV-25L91

AV-29L91

Contents

Safety precautions 2

Preparation 2

1 Insert the batteries into the remote control ... 2

2 Connecting the aerial and VCR.................. 3

3 Connecting other devices .......................... 4

4 Connect the power cord to the AC outlet... 4

5 Initial setting ............................................... 5

Basic operation 6

Remote control buttons and functions 7

ECO SENSOR button ..................................... 7

PICTURE MODE button ................................. 7

COLOUR SYSTEM button ............................. 7

SOUND SYSTEM button ............................... 7

button ............................................. 9

MUTING button ............................................. 8

DISPLAY button ............................................. 8

OFF TIMER button ......................................... 8

RETURN + button .......................................... 9

CHANNEL SCAN button................................ 9

Using the TV’s menus 10

Basic operation ............................................ 10

INPUT ........................................................... 11

PICTURE TILT ............................................... 11

VNR ............................................................... 11

COMPRESS (16:9) ........................................ 11

AUTO SHUTOFF .......................................... 12

CHILD LOCK ................................................. 12

BLUE BACK .................................................. 12

VIDEO-2 SET ................................................ 13

Picture Adjustments .................................... 13

Sound Adjustments..................................... 13

AI VOLUME .................................................. 14

AUTO CH PRESET ....................................... 14

MANUAL CH PRESET.................................. 15

SKIP .............................................................. 16

LANGUAGE .................................................. 16

TV buttons and parts 17

Using the buttons on the TV 18

Troubleshooting 19

Specifications Back cover

LCT1064-001A-H

LCT1064-001A-H_cover 01.12.10, 17:233

Safety precautions

WARNING

• To prevent fire or shock hazard, do not expose the TV to rain or moisture.

CAUTION

• Operate only from the power source indicated on the rear of the TV.

• Avoid damaging the power cord and mains plug. When you unplug the TV, pull it

out by the mains plug. Do not pull on the power cord.

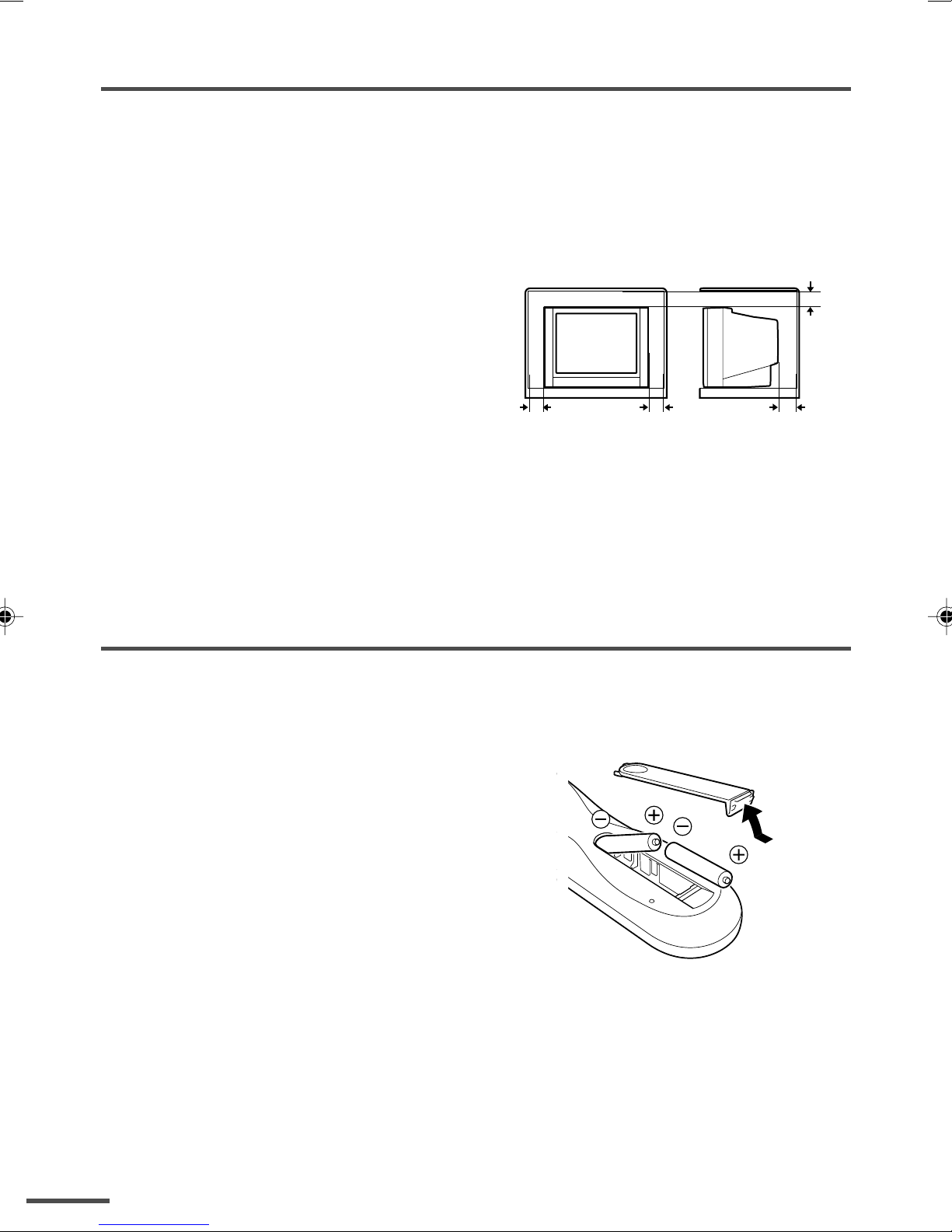

• Never block or cover the cabinet openings

for ventilation. Never install the TV where

good ventilation is unattainable. When

installing this TV, leave spaces for

ventilation around the TV more than the

minimum distances shown in the diagram.

• Do not allow objects or liquid into the

cabinet openings.

• In the event of a fault, unplug the TV and call a service technician. Do not attempt to

repair it by yourself or remove the rear cover.

• The surface of the TV screen is easily damaged. Be very careful with it when

handling the TV. Should the TV screen become soiled, wipe it with a soft dry cloth.

Never rub it forcefully. Never use any cleaner or detergent on it.

• When you don’t use this TV for a long period of time, be sure to unplug it.

Preparation

1 Insert the batteries into the remote control

Correctly insert two batteries, observing the ,and .polarities and inserting the .

end first.

CAUTION:

Follow the cautions printed on the batteries.

Notes:

•Use AA/R6/UM-3 dry cell batteries.

•If the remote control does not work properly,

fit new batteries.

The supplied batteries are for testing, not

regular use.

15 cm

10 cm 15 cm

10 cm

LCT1064-001A-H 01.12.10, 17:092

Preparation

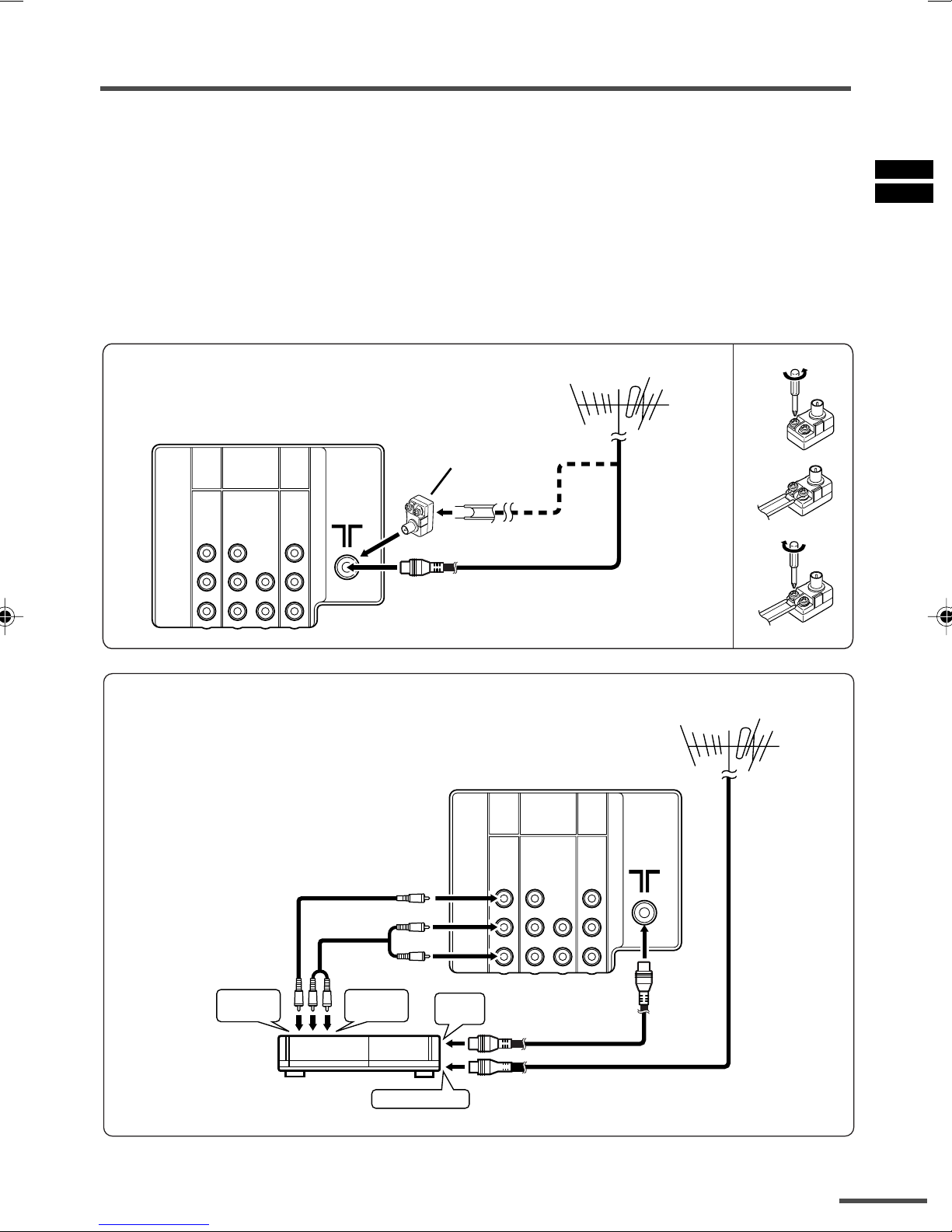

2 Connecting the aerial and VCR

•Read the manuals provided with the devices. Depending on the device, the connection method

may be different from the diagrams. Also the device settings may need to change depending on

the connection method.

•Turn off all the devices including the TV.

•Connecting cables are not supplied.

•When connecting monaural audio to the TV, use the L/MONO jack.

•If you connect the VCR to the TV only with an aerial cable, you should preset the video channel

from the VCR to the AV channel (channel number 0) on this TV. See “MANUAL CH PRESET” on

page 15 and preset it manually.

VIDEO-1

INPUT OUTPUT

COMPONENT

(VIDEO-2)

INPUT

RRRCR

To RF

output

To video

output

VCR

VHF/UHF outdoor aerial

To aerial input

To audio

output

MONO

Y/V

MONO

VIDEO-1

INPUT OUTPUT

COMPONENT

(VIDEO-2)

INPUT

MONO

Y/V

MONO

VHF/UHF outdoor aerial (1)

(2)

(3)

Matching

aerial

adapter

(supplied)

Connecting the aerial

Connecting the aerial and VCR

LCT1064-001A-H 01.12.10, 17:093

Preparation

3 Connecting other devices

If you are not connecting any other devices, skip step 3 and perform step 4.

•Use the headphones with a stereo mini jack (3.5 mm in diameter). When you connect the

headphones, the TV speakers go off.

•The OUTPUT terminal outputs the video and sound signals which you are viewing on the TV.

You can dub them onto the VCR connected to the OUTPUT terminal.

(The OUTPUT terminal cannot output component video signals. Also it cannot output any

signals when the TV is turned off.)

•Connect components outputting a component signal (Y/CB/CRsignal), such as a DVD player, to

the VIDEO-2 terminal, and set VIDEO-2 SET function to “COMPONENT”. (See page 13.)

•The following illustrations are for the AV-29L91. Your TV’s front and rear pannels may not look

exactly like the illustrations.

L/MONOVR

IN (VIDEO-3)

Headphones

Camcorder or TV game

VIDEO-1

INPUT OUTPUT

COMPONENT

(VIDEO-2)

INPUT

RRR

VVV

VCR (for playing)

VCR (for recording)

DVD player

(composite signals)

DVD player

(component video signals)

MONO

4 Connect the power cord to the AC outlet

Front

Rear

LCT1064-001A-H 01.12.10, 17:094

Preparation

5 Initial setting

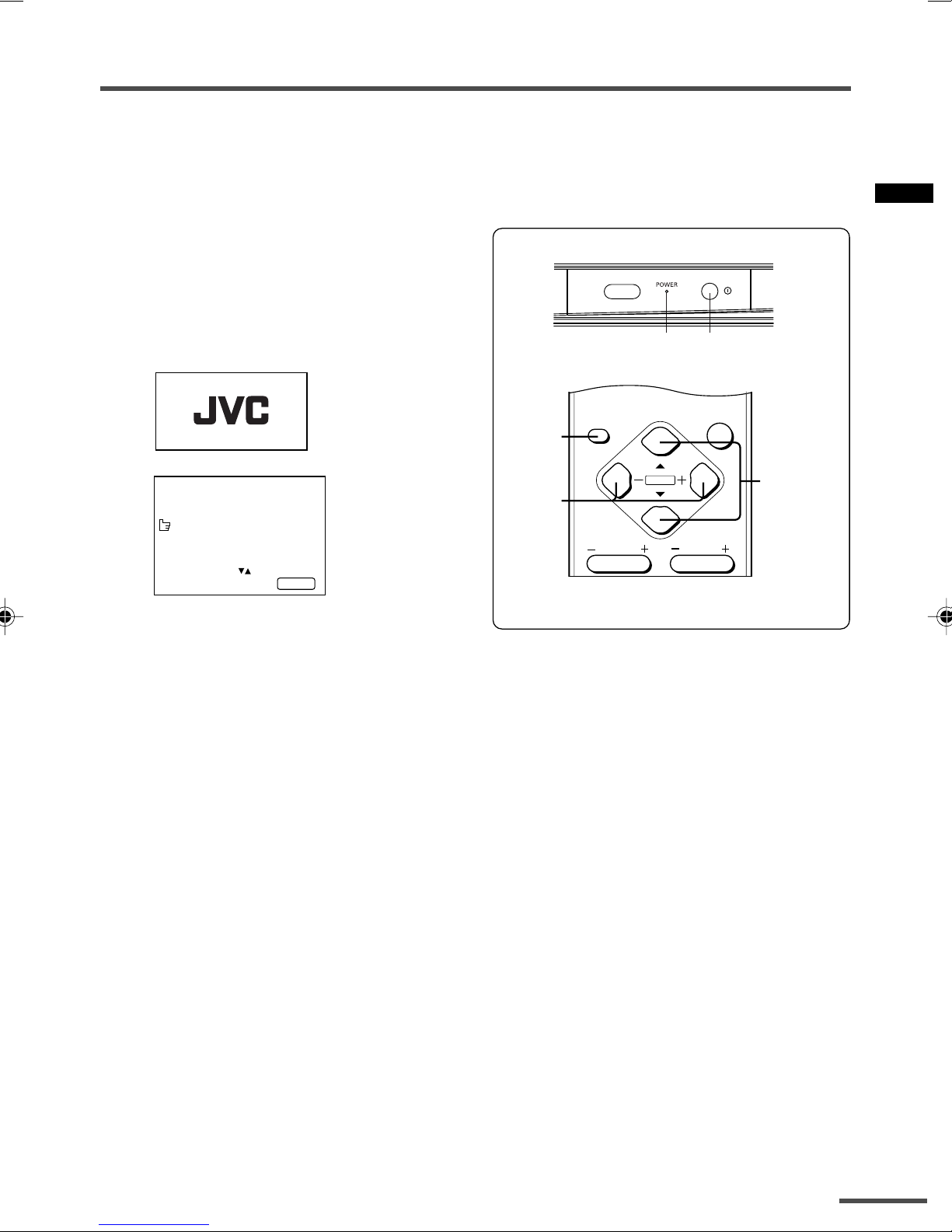

When the TV is first turned on, it enters the initial setting mode, and the JVC logo is

displayed. Follow the instructions on the on-screen display to perform the initial

settings.

1 Press the Main power button

on the TV.

The POWER lamp lights. After the

JVC logo has been displayed, the TV

automatically switches to the

language setting mode.

MENU 3

AUTO CH PRESET

MANUAL CH PRESET

LANGUAGE ENGLISH

SELECT BY EXIT BY

OPERATE BY -+

DISPLAY

•The JVC logo does not appear if your

TV has been turned on once before. In

this case, use the LANGUAGE and AUTO

CHPRESETfunctionstoperformtheini-

tial settings. For details, see pages 14

and 16.

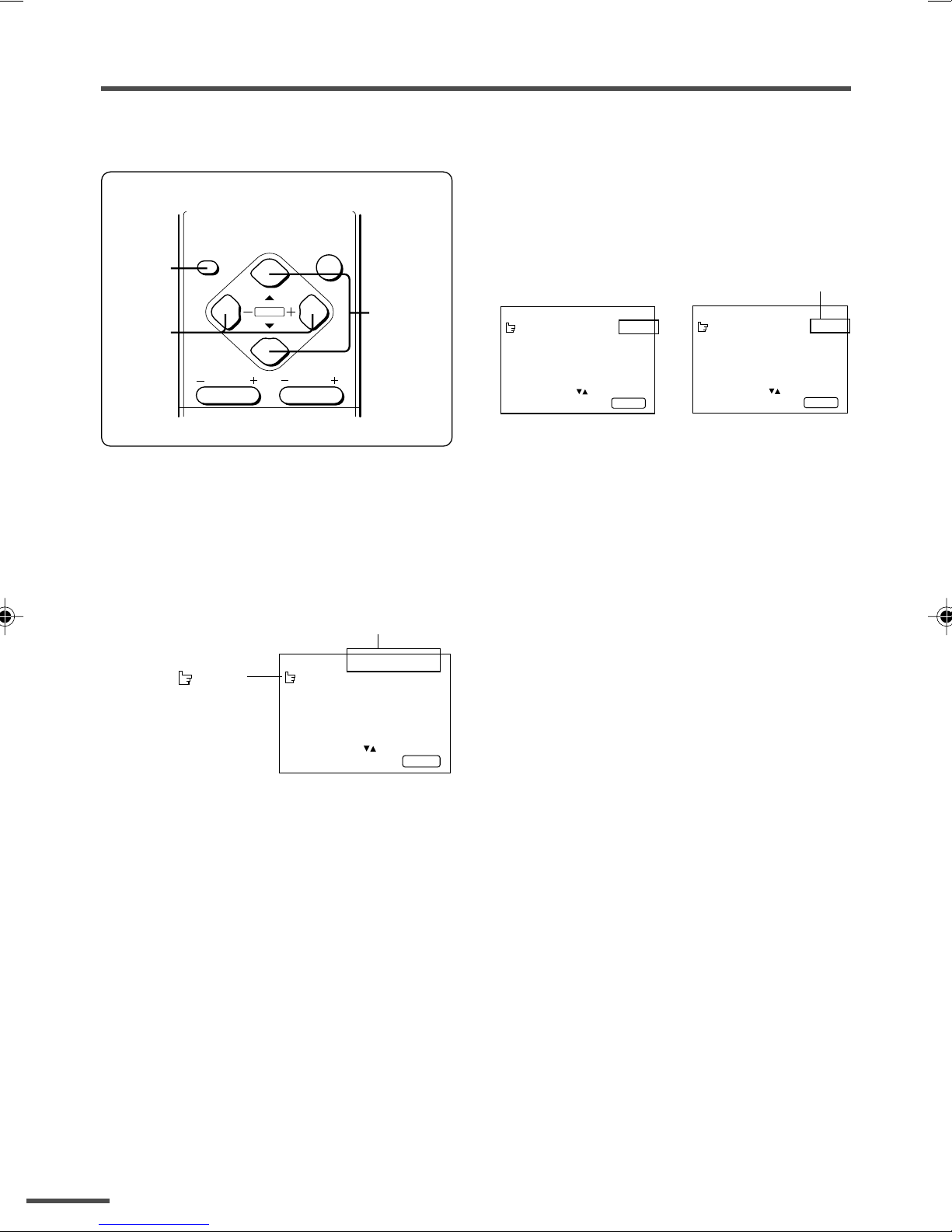

2 Press the MENU Mbuttons to select language.

3 Press the MENU Tbuttons to select “AUTO CH PRESET”

4 Press the MENU Mbuttons to start the AUTO CH PRESET function.

“>>>ON SEARCH” is displayed on the screen.

When all the TV channels that can be received on your TV have been preset, the

display goes out and the AUTO CH PRESET function operation is completed.

To stop the AUTO CH PRESET function, press the MENU mbuttons.

•If a TV channel you want to view is not set to the channel, set it with the MANUAL CH PRESET

function. For details, see page 15.

This completes initial setting.

Now you’re ready to enjoy your JVC TV.

DISPLAY

POWER

CHANNEL VOLUME

DISPLAY

button

MENU t

buttons

MENU m

buttons

POWER lamp Main power button

LCT1064-001A-H 01.12.10, 17:105

Basic operation

RM-C353 REMOTE CONTROL UNIT

DISPLAY

POWER

CHANNEL VOLUME

SYSTEM

COLOUR

OFF TIMER

TV/VIDEO

PICTURE MODE

CHANNEL SCAN

ECO SENSOR

SOUND MUTING

RETURN

I/II

123

456

-/--

1 Press the POWER button to turn

your TV on.

•If your TV does not turn on, press the Main

power button on the TV then press the

POWER button again.

•You can also turn on your TV by pressing

any of the following buttons;

- the CHANNEL mbutton

- the Number buttons

- the TV/VIDEO button

2 Select a channel.

■Press the CHANNEL mbutton.

•Up/down selection cannot be selected for

channels to which the SKIP has been set

to “YES”. See page 16.

■Press the Number buttons to enter

the channel number.

•If you want to enter a two-digit number,

press the -/-- button to select the two digit

mode “--”, then enter the channel num-

ber.

3 Press the VOLUME Mbutton to

adjust the sound.

4 To turn your TV off, press the

POWER button.

•We recommend that you press the Main

power button on the TV to turn the main

power off if you do not plan to use your TV

for a long time or if you wish to save energy.

If the picture is not clear:

Press the COLOUR SYSTEM button to

select another colour system, see page 7.

If the sound is not clear:

Press the SOUND SYSTEM button to select

another sound system, see page 7.

Viewing Images from an External

Device:

Press the TV/VIDEO button to select the

VIDEO mode.

•You can also use the INPUT function to select

the VIDEO mode. For details, refer to page 11.

LCT1064-001A-H 01.12.10, 17:106

Remote control buttons and functions

ECO SENSOR button

You can adjust this TV so that the screen

automatically adjusts to the optimum

contrast according to the brightness of your

room. This function reduces eye strain and

the power consumption of this TV.

Press this button to select the desired

mode.

DIGITAL ECO SENSOR DISPLAY:

The ECO SENSOR function switches on. In

this mode, the clover mark indicating the

brightness of your room is displayed for

several seconds each time the brightness

changes. The number of clover marks

displayed on screen increases as your room

becomes darker.

DIGITAL ECO SENSOR:

The ECO SENSOR function switches on.

However, in this mode, the clover mark will

not be displayed.

DIGITAL ECO SENSOR OFF:

The ECO SENSOR function switches off.

PICTURE MODE button

You can select one of three picture

adjustment settings as you like.

Press this button to select a mode.

BRIGHT:

Heightens contrast and sharpness.

STANDARD:

Standardizes picture adjustments.

SOFT:

Softens contrast and sharpness.

•Pressing this button returns all the picture set-

tings in “MENU 4” to their default settings.

COLOUR SYSTEM button

If the picture is not clear or no colour

appears, change the current colour system

to another colour system.

Press this button to select the colour

system.

AUTO PAL SECAM

NTSC3.58

NTSC4.43

AUTO:

Automatic colour system selection.

•For the colour systems in each country or

region, see the table“Broadcasting systems” on

page 20.

•If the picture is not normal in the AUTO mode,

change the AUTO mode to another colour

system.

SOUND SYSTEM button

If the sound is not clear even when the

picture appears normal, change the

current sound system to another sound

system.

Press this button to select the sound

system.

B/G I D/K M

•For the sound systems in each country or re-

gion, see the table “Broadcasting systems” on

page 20.

•You cannot select any sound system when in a

VIDEO mode.

LCT1064-001A-H 01.12.10, 17:107

Remote control buttons and functions

button

You can select a sound setting for stereo

broadcast programmes and bilingual

programmes.

Press this button to select a sound

setting.: Stereo sound

: Bilingual I (sub I) sound

: Bilingual II (sub II) sound

: Monaural sound

MONO: Cancels the multi-sound function,

and the sound becomes monaural.

•If you have poor reception of a stereo broad-

cast, you can change from stereo sound ( )

to monaural sound ( ) so that you can hear

the broadcast more clearly and easily.

•If the multi-sound function cannot work nor-

mally due to poor signal quality, noise may be

included in the sound, or the sound may change

many times. If this happens, change the sound

settingto MONO mode to cancel the multi-sound

function.

MUTING button

You can turn the sound off instantly.

Press this button.

To turn the sound on, press this button

again.

DISPLAY button

You can continuously display the current

channel number or VIDEO mode on the

screen.

Press this button.

To turn the display off, press this button

again.

•When selecting a VIDEO mode with no signal,

indication of the VIDEO mode becomes fixed

on the screen.

OFF TIMER button

You can set the TV to automatically turn off

after a set time.

Press this button to select the period of

time.

•You can set the period of time to a maximum of

120 minutes in 10 minute increments.

•1 minute before the OFF TIMER function turns

off the TV, “GOOD NIGHT!” appears.

To display the remaining time, press this

button once.

To cancel the OFF TIMER function, press

this button to set the period of time to 0.

•The OFF TIMER function will not turn off the

TV’s main power.

LCT1064-001A-H 01.12.10, 17:108

Remote control buttons and functions

CHANNEL SCAN button

You can quickly view all TV channels

programmes that you can view on your TV,

and search for the programme you want to

view.

1 Press this button to start scanning

TV channels.

The TV channel programmes are each

displayed for several seconds.

•The programmes of TV channels for which

the SKIP function is set to “YES” are not

displayed.

2 When you find the programme you

want to view, press this button

again to stop scanning.

RETURN + button

You can set a channel you frequently view

to the Return Channel and you can view

that channel at any time with one-touch.

To set the channel to the Return

Channel:

1 Select the channel you want to set

to the Return Channel.

2 Press this button and hold until the

message “RETURN PLUS PRO-

GRAMMED!”appears.

•When you turn off the TV, the Return Chan-

nel setting is cancelled.

To view the Return Channel:

Press this button.

•You can view two channels (current channel

andReturn Channel) alternately bypressingthis

button.

To cancel the Return Channel setting:

Press this button and hold until the

message“RETURN PLUS CANCELLED!”

appears.

If no channel is set to the Return

Channel:

You can view the channel selected right

before the current channel by pressing

this button.

LCT1064-001A-H 01.12.10, 17:109

Using the TV’s menus

This TV has a number of functions you can operate using the menus. To use all your TV’s

functions fully, you need to understand how to use the menus.

4 Press the MENU Mbuttons to

change function settings.

Example:

MENU 2

AUTO SHUTOFF OFF

CHILD LOCK OFF

BLUE BACK ON

VIDEO-2 SET COMPONENT

SELECT BY EXIT BY

OPERATE BY -+

DISPLAY

⇔

MENU 2

AUTO SHUTOFF ON

CHILD LOCK OFF

BLUE BACK ON

VIDEO-2 SET COMPONENT

SELECT BY EXIT BY

OPERATE BY -+

DISPLAY

•With some functions, the operation method

may differ.

5 Press the DISPLAY button to turn

the display off.

•To operate a menu using the buttons on

the front panel of the TV, refer to

“Operating menus” on page 18.

DISPLAY

POWER

CHANNEL VOLUME

DISPLAY

button

MENU t

buttons

MENU m

buttons

■Basic operation

1 Press the MENU Tbuttons.

One of the 5 menus is displayed.

MENU 1

INPUT TV

VNR ON

COMPRESS(16: ) ON

PICTURE TILT 00

SELECT BY EXIT BY

OPERATE BY -+

DISPLAY

2 Repeatedly press the MENU T

buttons to display a desired

menu.

•If you hold down the ybutton, the next

menu is displayed.

•If the selected function is on the first line,

pressing the rbutton displays the preced-

ing menu.

3 Repeatedly press the MENU T

buttons to select a desired

function.

The icon on the

left indicates the

currently selected

function.

MENU number

Changes the AUTO

SHUTOFF setting.

LCT1064-001A-H 01.12.10, 17:1010

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JVC TV

JVC

JVC LT-37E478 Manuel du propriétaire

JVC

JVC AV-21MS16 Manuel utilisateur

JVC

JVC LT-17AX5 Manuel utilisateur

JVC

JVC 0405TKH-CR-MU Manuel utilisateur

JVC

JVC AV-32X4 Manuel utilisateur

JVC

JVC AV 20F704 Manuel utilisateur

JVC

JVC AV-21C116 Manuel utilisateur

JVC

JVC EM42FTR Manuel utilisateur

JVC

JVC AV-14FT14 Manuel utilisateur

JVC

JVC LT-26HG45EAQ Manuel utilisateur

JVC

JVC AV-32F703/Y Manuel utilisateur

JVC

JVC AV-21F1EG Manuel utilisateur

JVC

JVC AV-21D33, AV-20N33, AV-14F33, Manuel utilisateur

JVC

JVC 0303-NIC-JMT Manuel utilisateur

JVC

JVC AV-14FN15 Manuel utilisateur

JVC

JVC AV-28MS1SN Manuel utilisateur

JVC

JVC SELECT LT-58EC3508 Manuel utilisateur

JVC

JVC AV-14F4 Manuel utilisateur

JVC

JVC LT-43VU6205 Manuel utilisateur

JVC

JVC AV-28BK5ECB Manuel utilisateur

JVC

JVC InteriArt AV28H20EUS Manuel utilisateur

JVC

JVC InteriArt AV-28R47SK Manuel utilisateur

JVC

JVC AV-20RM4SE Manuel utilisateur

JVC

JVC AV-27D104 Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
