JVC LoLux TK-T2101RU Manuel utilisateur

FIXED IR DOME CAMERA TK-T2101RU

FIXED IR DOME CAMERA TK-T2101RE

Instructions

Important Safety Information

Warning and Operating Notes

Installation and serving the camera should be performed only by qualied and

experienced technicians to conform to all local codes and to maintain your warranty.

WARNING! TheuseofCSAcertied/ULListedClass2poweradapters

arerequiredtoensurecompliance.

Note:

This product is intended to be supplied by a Listed Direct Plug-In Power Unit marked

“Class 2” or Listed Adapter marked “L.P.S.” (or “Limited Power Source”) and rated

output DC 12V, 0.415A minimum or AC 24V, 60Hz, 0.415A minimum.

WARNING! Toreducetheriskofreorelectricshock,donotexposethe

producttorainormoisture.

Operating Notes

Power Supply:This dome camera can operate on AC 24V or DC 12V.

Operating Conditions

• Avoid viewing very bright objects (example, light xtures) for extended periods.

• Avoid operating or storing the unit in the following locations:

- Extremely humid, dusty, hot, cold environments (where the operating

temperature is outside the recommended range of 14°F to 122°F [-10°C to

+50°C].)

- Close to sources of powerful radio or TV transmitters

- Close to uorescent lamps or objects reecting light

- Under unstable light sources (may cause ickering)

Note

(for USA)

Note Connectors and field wiring terminals for external Class 2

circuits provided with marking indicating minimum

of wiring to be used.

Caution

Connect only one camera to the power line, AC24V/DC12V.Do

not share the power line with other equipment. The power

cable between power source and the camera must be under 3 m.

Connect only one camera to the power line, AC24V/DC12V.

Do not share the power line with other equipment. The

power cable between power source and the camera must

be under 3 m.

Class

Class 2 shall be marked adjacent to

the field wiring terminals.

TABLE OF CONTENTS

1. Introduction.................................................................................. 3

1.1 Before You Begin----------------------------------------------------------------- 3

1.2 Dimensions----------------------------------------------------------------------- 3

1.3 Names of Camera Parts --------------------------------------------------------- 4

1.4 Routine Maintenance ------------------------------------------------------------ 4

2. Installation ................................................................................... 5

2.1 Disassembling the Camera ------------------------------------------------------ 5

2.2 Connecting the wiring ----------------------------------------------------------- 6

2.3 Mounting the Camera------------------------------------------------------------ 6

2.4 Optional Camera Settings ------------------------------------------------------- 7

2.5 Adjusting the Camera Position -------------------------------------------------- 8

2.6 Adjusting the Lens --------------------------------------------------------------- 8

2.7 Completing the Installation ----------------------------------------------------- 9

3. OSD Settings ...............................................................................10

3.1 Lens ----------------------------------------------------------------------------- 10

3.2 SHUTTER/AGC ------------------------------------------------------------------ 10

3.3 WHITE BAL ---------------------------------------------------------------------- 11

3.4 BACKLIGHT---------------------------------------------------------------------- 12

3.5 PICT ADJUST -------------------------------------------------------------------- 12

3.6 ATR* ----------------------------------------------------------------------------- 12

3.7 MOTION DET -------------------------------------------------------------------- 12

3.8 PRIVACY ------------------------------------------------------------------------ 12

3.9 DAY/NIGHT---------------------------------------------------------------------- 13

3.10 NR ------------------------------------------------------------------------------ 13

3.11 CAMERA ID -------------------------------------------------------------------- 13

3.12 LANGUAGE --------------------------------------------------------------------- 13

3.13 CAMERA RESET---------------------------------------------------------------- 13

3.14 SAVE ALL----------------------------------------------------------------------- 13

INTRODUCTION

1. Introduction

The dome camera is ideal for indoor installation in commercial and residential

environment. With 3-axis mount support, it provides exible installation on a ceiling

or wall even at an angle.

1.1 Before You Begin

Please read this manual carefully before you install the dome camera. Keep this

guide for future reference.

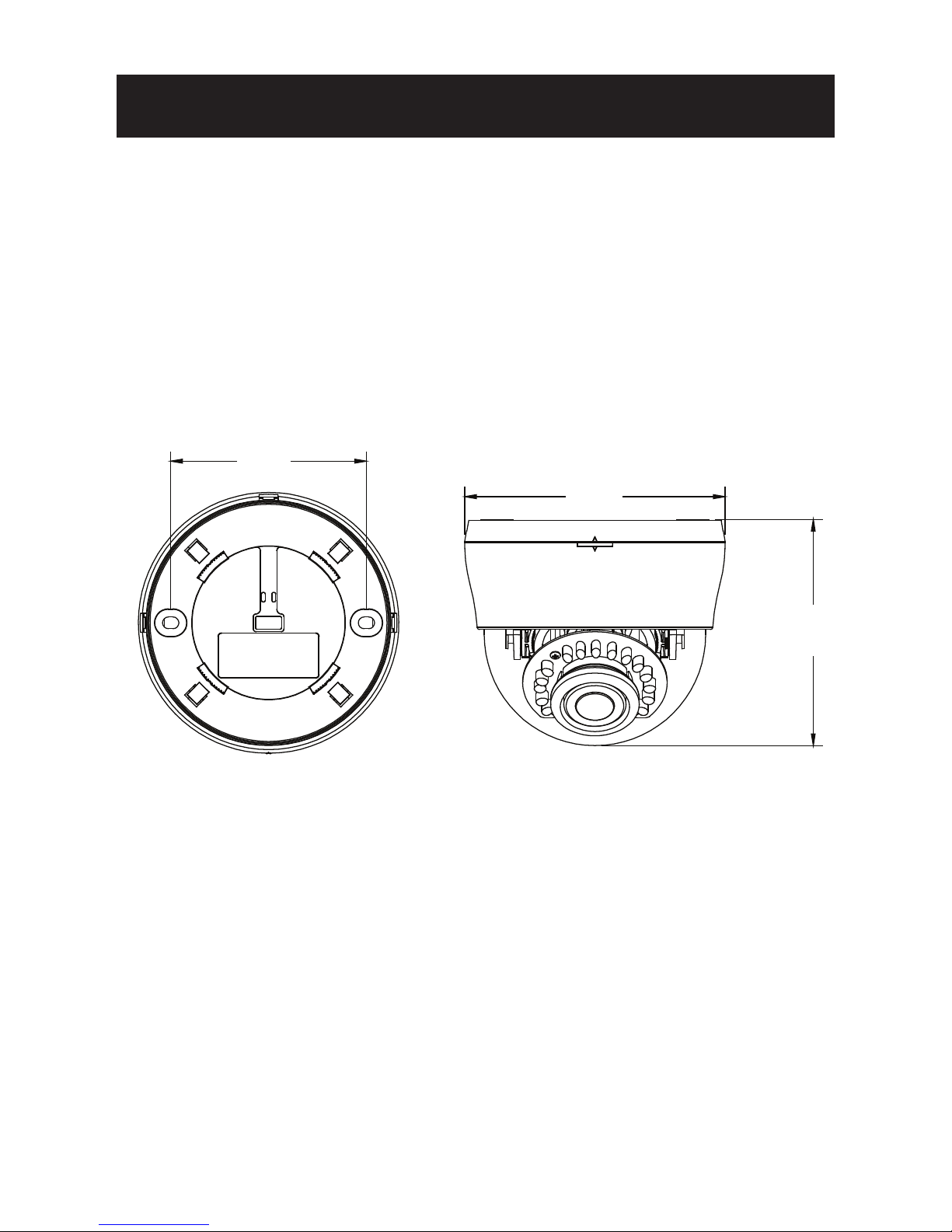

1.2 Dimensions

112mm

84mm

97mm

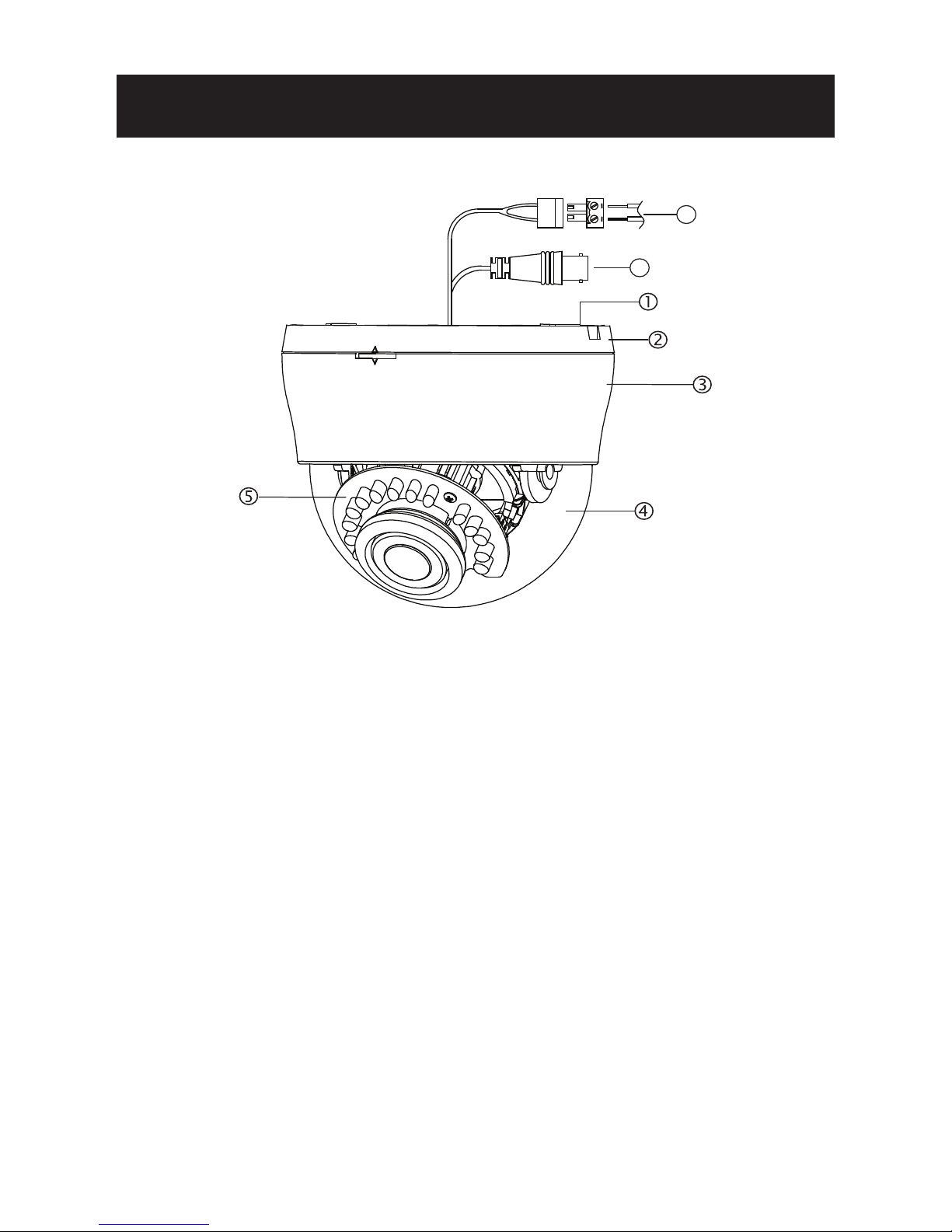

1.3 Names of Camera Parts

Figure 1-1 Camera parts

1. Conduit hole used for surface run power/video connector

2. Bottom case

3. Camera housing

4. Dome cover

5. IR board

a. AC 24V / DC 12V power input connector (red +, black -)

b. Video output connector

Note:See Figure 2-3 for camera board controls.

1.4 Routine Maintenance

• The dome cover is an optical part. Use a soft, dry cloth to remove any ngerprints

or dust.

• Clean the camera housing with a soft, dry cloth. For more stubborn stains, use a

cloth dampened with a small quantity of neutral detergent, then wipe dry.

Caution: Do not use volatile solvents such as alcohol, benzene or thinners to avoid

damaging the surface nish.

INTRODUCTION

INSTALLATION

2. Installation

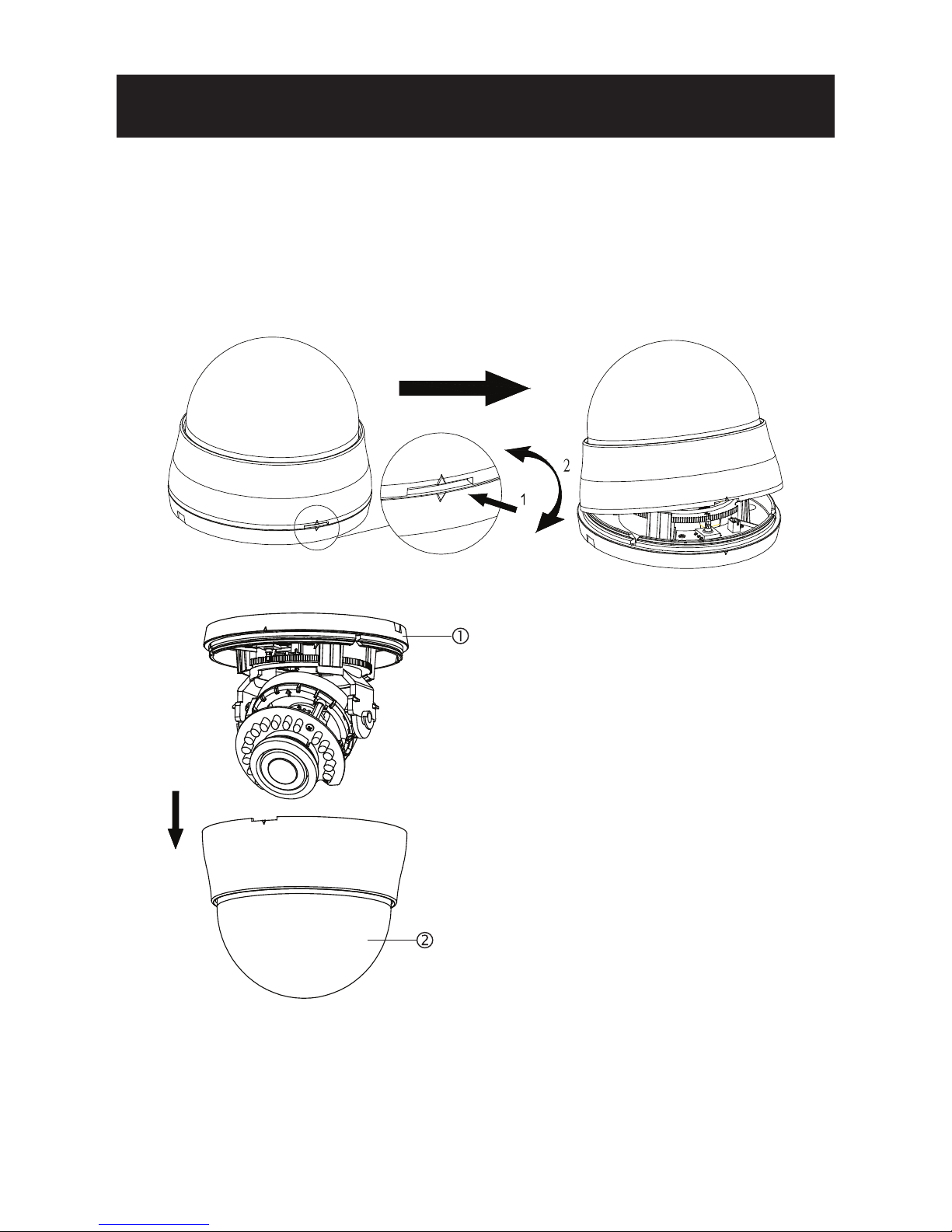

2.1 Disassembling the Camera

Before you mount and adjust the camera, follow these steps to disassemble the

camera.

1. Insert a coin or at tool to the side hole and twist to remove the dome cover.

2. Remove the dome cover (#2).

1. Bottom case

2. Dome cover

Figure 2-1 Disassemble the camera

INSTALLATION

2.2 Connecting the wiring

Refer to Figure 1-1 to connect the video connect output connector (#b) and 24

VAC/12 VDC power connector (#a).

Caution:For DC power supply use, make sure the polarity is correct to avoid

malfunction and / or camera damage.

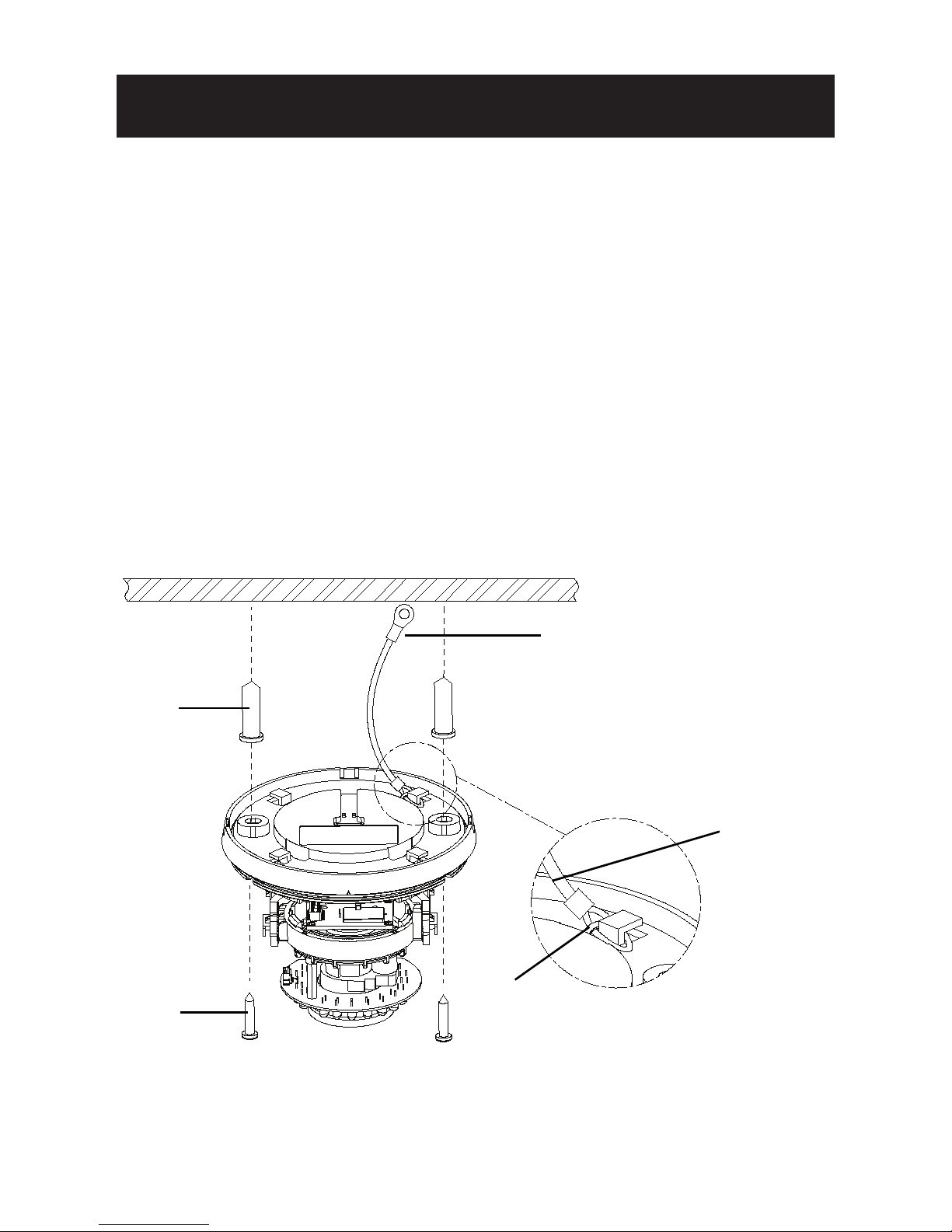

2.3 Mounting the Camera

1. Attach the mounting template to the wall or ceiling.

2. Drill two holes, then insert the screw anchors (#1) into the holes.

3. Secure the bottom case to the wall or ceiling with the TP4 x 15 mm tapping

screws supplied (#2).

Note:Depending on the material of your mounting surface, you may require different

screws and anchors than those supplied.

1. Screw anchors (x2), supplied

2. TP4 x 15 tapping screws (x2),

supplied

Figure 2-2 Camera installation

4. To prevent the camera from falling off, ensures it is connected to a firm place

(ceiling slab or channel) using a Safety Wire (fall prevention wire#3 is not

supplied).

Safety Wire (fall prevention

Please tighten a safety wire

3. Safety Wire(fall prevention

wire, not supplied)

①

②

③

wire#3 is not supplied).

using plastic band on a firm

place as photo.

Safety Wire

Plastic Band

INSTALLATION

2.4 Optional Camera Settings

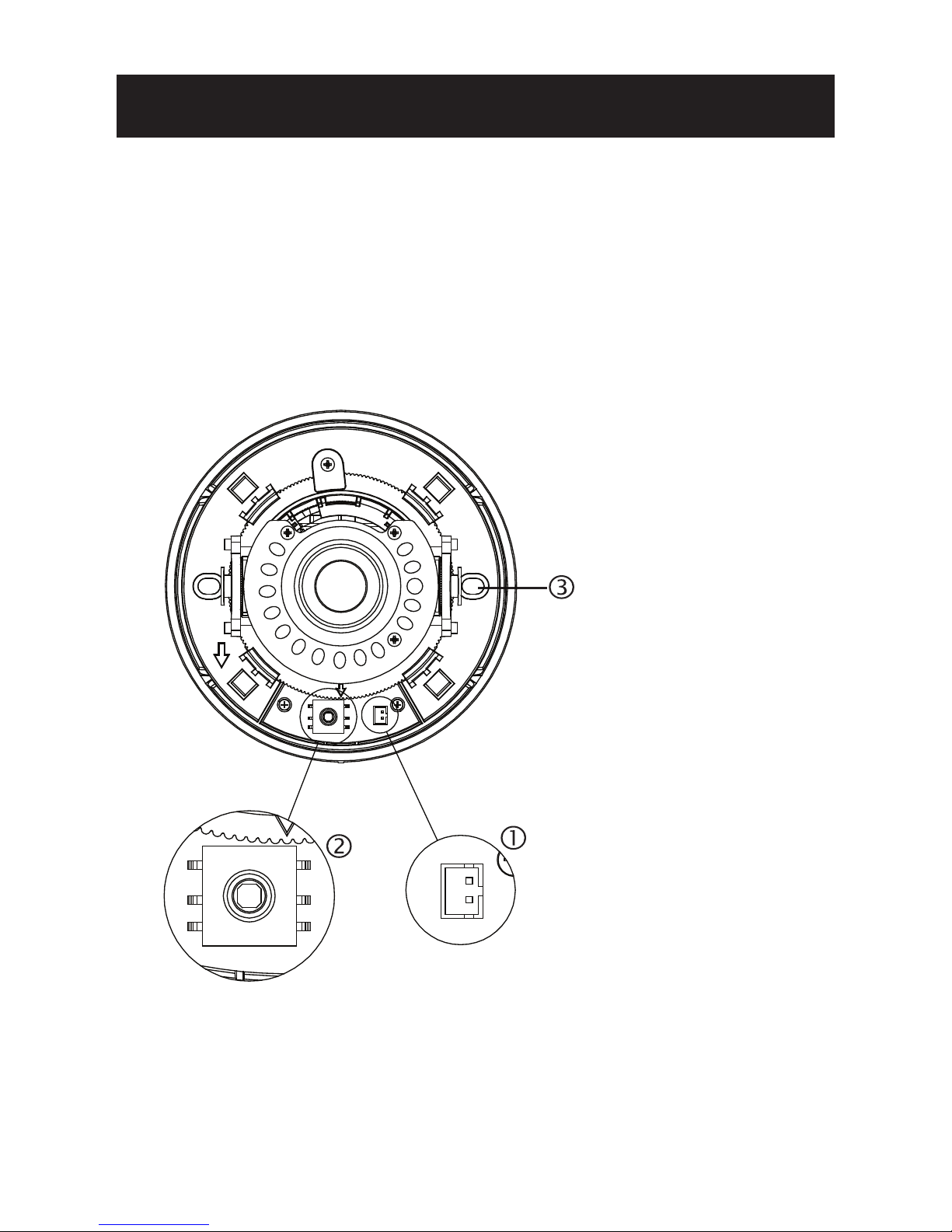

Refer to Figure 2-3 to locate the OSD joystick control on the camera board. Use the

joystick to access the OSD menu and congure the camera settings as required.

To use the OSD joystick control:

• Press the OSD joystick control straight down to enter the Main menu or a selected

item.

• Move the OSD joystick control UP, DOWN, LEFT and RIGHT to navigate through

menus and options.

For further information on OSD settings, refere to the “3. OSD Settings” section.

1. Monitor out

2. OSD Joystick Control

3. Camera mounting holes

Figure 2-3 Camera adjustment controls

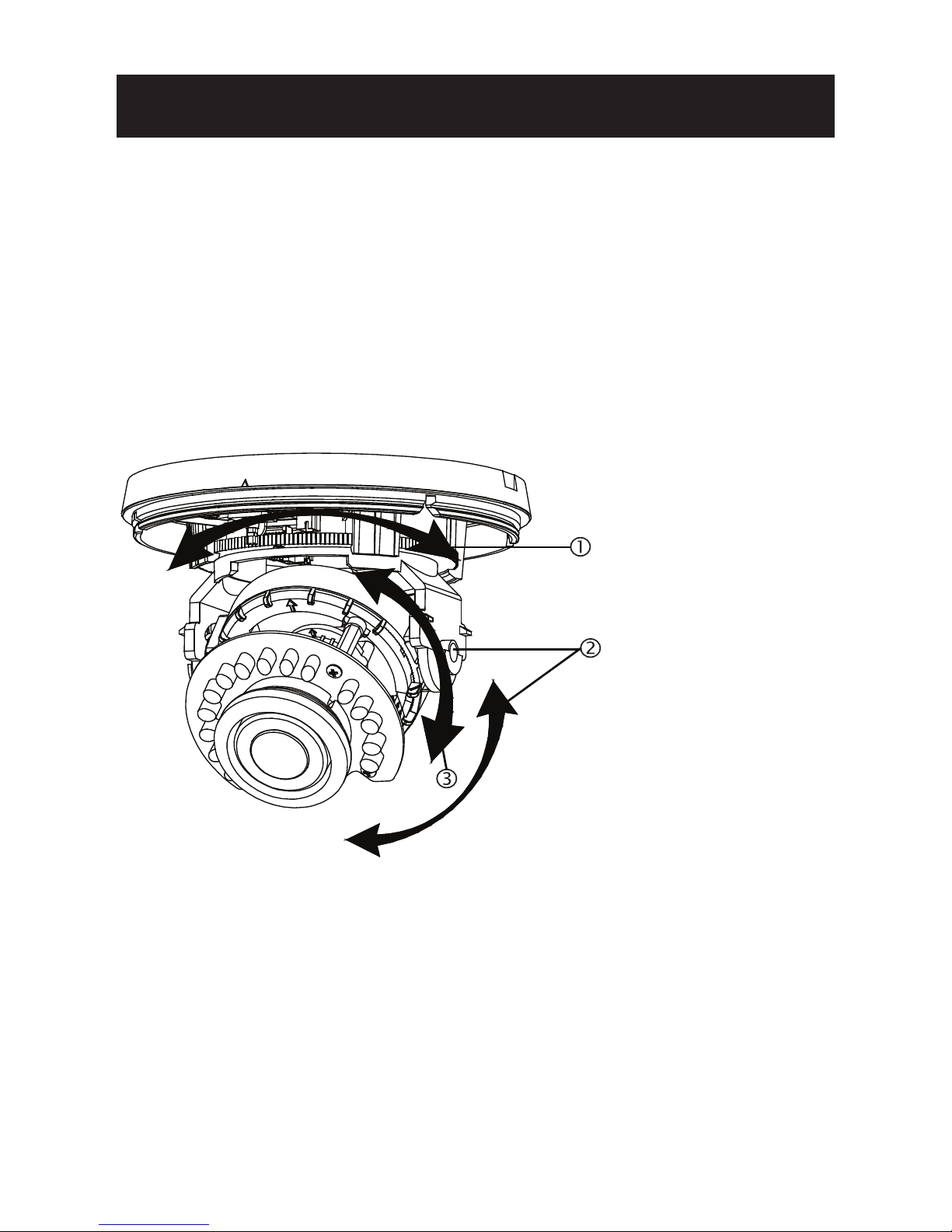

2.5 Adjusting the Camera Position

The dome camera has three axes for positioning the camera. While monitoring the

picture on the monitor, adjust the camera position as follows:

HorizontalAdjustment Rotate 3D assembly in the base. Do not turn assembly

more than 360° as this may cause the internal cables to twist and disconnect or

break. Before making horizontal adjustment, please adjust vertical adjustment to 90

degree (vertical) rst.

VerticalAdjustment After loosening the screw on the bracket, position the camera

as desired, then tighten the screw back to the bracket.

HorizontalRotationFor wall mount and tilted ceilings, rotate the lens base

(maximum 360°) until you are satised with the eld of view.

1. Rotate 3D assembly in base for

horizontal adjustment

2. Tilt adjustment bracket and screw

for vertical adjustment

3. Axis ring for horizontal rotation

for wall mount and tilted ceilings

Figure 2-4 Camera adjustment

2.6 Adjusting the Lens

1. Loosen the focus lever counter-clockwise a little, then adjust the focus for

optimum picture sharpness.

2. Loosen the zoom lever counter-clockwise a little, then rotate the zoom lever and

determine the image view.

3. Re-tighten the zoom lever and focus lever after adjustment.

Note:It is important that you lock the zoom and focus levers after making

adjustments. This will avoid the positions moving (for example, from temperature

changes or vibrations).

INSTALLATION
