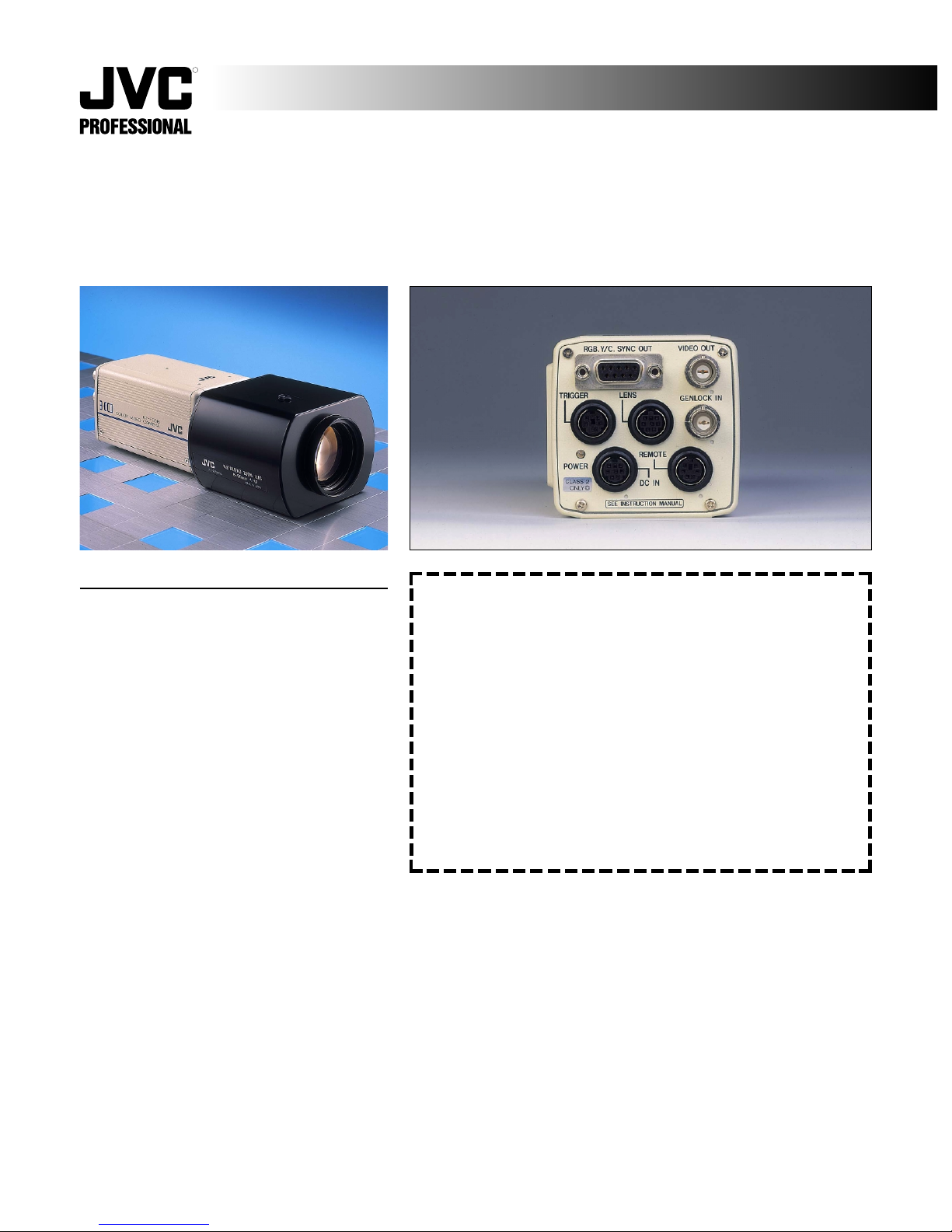

JVC KY-F55BU Manuel utilisateur

KY-F55BU

1/3-Inch 3-CCD High Resolution Color Video Camera

FEATURES

38 Million Pixel CCD

C-Mount Compatibility

Random Trigger Function

Slow Shutter for High Sensitivity

High-Resolution Mode (Frame Mode)

Variable Speed Electronic Shutter

Compact and Lightweight

SMPTE Type Color Bar Generator

Full-time Auto/Manual White Balance and

Two Auto White Memories

Widerange of Exposure Adjustment

Enhanced Automatic Level Control (ALC)

with Extended Electronic Iris (EEI)

Wide Range of Video Outputs

Auto Internal Sync/External Sync Switching

Flexible Camera Mountings

RS-232C Interface Capability (Camera

Control)

ARCHITECTS’AND ENGINEERS’BID SPECIFICATION

The color IT CCD camera shall be JVC Model KY-F55BU or equivalent. The KY-F55BU

camera shall incorporate a 1/3" interline transfer CCD for reducing smear, 380,000 [768(H)

x 494(V)] effective pixels, achieve a lower smear and high sensitivity of 2000 lx at f/5.6. The

camera shall display outstanding 750 lines of horizontal resolution and a S/N ratio of 60dB.

The camera shall be C-mount selectable. The KY-F55BU shall offer user-friendly on-screen

set-up and adjustment of camera setting plus many other features. A special menu shall

allow fine adjustment of color, master black and counter level. The KY-F55BU shall provide

a variety of synchronization modes. They shall provide color genlock to help ensure

optimum performance with image processors and screen splitters. The power source for

the KY-F55BU shall be 12V DC. All units must be UL listed.

KY-F55BU

System

Dimensions

Specifications

Image pickup device 1/3-inch interline CCD x 3 (R, G, B)

Color separation optical system 1/3-inch F1.4 RGB 3-color separation prism

Number of pixels (effective) 768 (H) x 494 (V)

Color system Wideband R-Y, B-Y encoder

Synchronizing system Internal/external

Genlocking input Composite video signal, VBS, BB, 1 V(p-p),

75-ohm (or black burst signal) BNC

Color bar generator Built-in, SMPTE type (NTSC)

Lens mount C-mount

Sensitivity F5.6, 2000 lx

Sensitivity selection (Through remote control); 0 dB/6 dB/9 dB/

12 dB/18 dB/ALC + EEI (Through camera);

0 dB/ALC/EEI/ALC + EEI

S/N ratio 60 dB (typical)

Registration 0.05% (excluding lens characteristics)

Horizontal resolution 750 TV lines (Y channel) 580 TV lines (R, G, B)

Contour correction Adjustable through remote

control unit RM-LP55U

Horizontal dual-edged

Vertical single-edged

Video signal output

Composite video signal VBS 1 V(p-p), 75 ohm

R/G/B signals 0.7 V(p-p), 75 ohm

Composite sync signal 2 V(p-p), 75 ohm

Y/C 358 output Y signal 1 V(p-p), 75 ohm

C signal 0.286 V(p-p), (burst level) 75 ohm

Electronic shutter speed 1/100, 1/250, 1/500, 1/1000, 1/2000 sec.

Variable scan 1/60.3 to 1/2077.6

Trigger connector 5-pin, 5V(p-p)

Lens pin connector 8-pin, applicable to the HZ-615MDU,

HZ-610MDU and HZ-G6350U

Remote input Compatible with the RM-LP55U convertible to

RS-232C with optional VC-P893U/894U

Power source 12 V DC (10.5 to 15 V), 7.5 W

(Camera head only)

Operating temperature range 23°F to 104°F (-5°C to +40°C)

Weight 1.1 lbs. (490g) (without lens)

2-9/16 (64)

5-1/4 (133)

4-3/4 (120) 2-13/16 (70)

2-5/8 (66)

Options

T14x5.5MDU

14:1

Motorized

zoom lens

HZ-G6350U

Variable focal lens

•C-mount for 1/3"

3-CCD camera

•Focal length: 5

mm to 8mm

HZ-M161U

Nikon

microscope

adapter

For use with

X2, Y2 series

microscope

HZ-M162U

Olympus

microscope

adapter

For use with

BH2, BX series

microscope

HZ-M163U

Zeiss

microscope

adapter

For use with

AXIO series

microscope

RM-LP55U

Camera remote

control unit

AA-P700U

AC power adapter

(Normal use)

AA-P700MDU

AC power adapter

(For UL2601)
