RX-777VBK

RX-777VSBK

RX-777VLBK

MODEL

No.

RX-7

f

7VBK

RX-777VSBK

RX-77/7VLBK

No.

20055

May.

1988

RX-777VBK

RX-777VSBK

RX-777VLBK

Warning

ahwnrnd

—

Safety

Precautions

1.

The

design

of

this

product

contains

special

hardware

and

many

circuits

and

components

specially

for

safety

purposes.

For

continued

protection,

no

changes

should

be

made

to

the

original

design

unless

authorized

in

writing

by

the

manufacturer.

Replacement

parts

must

be

identical

to

those

used

in

the

original

circuits.

Service

should

be

per-

formed

by

qualified

personnel

only.

.

Alterations

of

the

design

or

circuitry

of

the

product

should

not

be

made.

Any

design

alterations

of

the

product

should

not

be

made.

Any

design

alterations

or

additions

will

void

the

manufacturer's

warranty

and

will

further

relieve

the

manufacturer

of

responsibility

for

personal

injury

or

property

damage

resulting

therefrom.

.

Many

electrical

and

mechanical

parts

in

the

product

have

special

safety-related

characteristics.

These

characteristics

are

often

not

evident

from

visual

inspection

nor

can

the

protection

afforded

by

them

necessarily

be

obtained

by

using

replacement

components

rated

for

higher

voltage,

wattage,

etc.

Replacement

parts

which

have

these

special

safety

characteristics

are

identified

in

the

Parts

List

of

Service

Manual.

Electrical

components

having

such

features

are

identified

by

shading

on

the

schematics

and

by

(

A\)

on

the

Parts

List

in

the

Service

Manual.

The

use

of

a

sub-

stitute

replacement

which

does

not

have

the

same

safety

characteristics

as

the

recommended

replacement

part

shown

in

the

Parts

List

of

Service

Manual

may

create

shock,

fire,

or

other

hazards.

.

The

leads

in

the

products

are

routed

and

dressed

with

ties,

clamps,

tubings,

barriers

and

the

like

to

be

separated

from

live

parts,

high

temperature

parts,

moving

parts

and/or

sharp

edges

for

the

prevention

of

electric

shock

and

fire

hazard.

When

service

is

required,

the

original

lead

routing

and

dress

should

be

observed,

and

it

should

be

confirmed

that

they

have

been

returned

to

normal,

after

re-assembling.

.

Leakage

current

check

(Electrical

shock

hazard

testing)

After

re-assembling

the

product,

always

perform

an

isolation

check

on

the

exposed

metal

parts

of

the

product

{antenna

terminals,

knobs,

meta!

cabinet,

screw

heads,

headphone

jack,

control

shafts,

etc.)

to

be

sure

the

product

is

safe

to

operate

without

danger

of

electrical

shock.

Do

not

use

a

line

isolation

transformer

during

this

check.

e

Plug

the

AC

line

cord

directly

into

the

AC

outlet.

Using

a

‘Leakage

Current

Tester”,

measure

the

leakage

current

from

each

exposed

metal

part

of

the

cabinet,

particularly

any

exposed

metal

part

having

a

return

path

to

the

chassis,

to

a

known

good

earth

ground.

Any

leakage

current

must

not

exceed

0.5

mA

AC

(r.m.s.).

e

Alternate

check

method

Plug

the

AC

line

cord

directly

into

the

AC

outlet.

Use

an

AC

voltmeter

having

1,000

ohms

per

volt

or

more

sensi-

tivity

in

the

following

manner.

Connect

a

1,500

2

10

W

resistor

paralleled

by

a

0.15

uF

AC-type

capacitor

be-

tween

an

exposed

metal

part

and

a

known

good

earth

ground.

Measure

the

AC

voltage

across

the

resistor

with

the

AC

VOLTMETER

AC

voltmeter.

ae,

(Having

1000

ohms/volt,

:

'

or

more

sensitivity.)

Move

the

resistor

connection

to

each

exposed

metal

part,

particularly

any

exposed

metal

part

having

a

return

path

to

the

chassis,

and

measure

the

AC

volt-

Deh

BRE

AC

TXEE

h

i 5

r

i

age

across

the

resistor.

Now,

reverse

the

plug

in

the

Place

this

probe

AC

outlet

and

repeat

each

measurement.

Any

voltage

|

—-

on

each

exposed

measured

must

not

exceed

0.75

V

AC

(r.m.s.).

This

15002

10W

metal

part.

corresponds

to

0.5

mA

AC

(r.m:.s.).

Goad

cartingiound

.

This

equipment

has

been

designed

and

manufactured

to

meet

international

safety

standards.

.

It

is

the

legal

responsibility

of

the

repairer

to

ensure

that

these

safety

standards

are

maintained.

.

Repairs

must

be

made

in

accordance

with

the

relevant

safety

standards.

.

It

is

essential

that

safety

critical

components

are

replaced

by

approved

parts.

.

If

mains

voltage

selector

is

provided,

check

setting

for

local

voltage.

1-2

(No.

20055)

Instruction

Book

SPECIFICATIONS

AMPLIFIER

SECTION

Output

power:

(CD

IN~>SP.

OUT)

2-channel

operation

4-channel

operation

Front

channel

Rear

channel

Total

harmonic

distortion

Intermodulation

distortion

:

80

watts

per

channel,

min,

RMS,

both

channels

driven

into

8

ohms

from

20

Hz

to

20

kHz,

with

no

more

than

0.007

%

total

harmonic

distortion

80

watts

per

channel,

min,

RMS,

both

channels

driven

into

8

ohms

at

1

kHz,

with

no

more

than

0.003

%**

total

harmonic

distortion

:

75

watts

per

channel,

min,

RMS,

both

channels

driven

into

8

ohms

from

20

Hz

to

20

kHz,

with

no

more

than

0.007

%

total

harmonic

distortion

:

7

watts

per

channel,

min,

RMS,

both

channels

driven

into

8

ohms

at

1

kHz,

with

no

more

than

0.7

%

total

harmonic

distortion

:

0.003

%**

at

80

watts

(1

kHz,

8

ohms)

:

0.007

%

at

80

watts

Input

sensitivity/impedance

PHONO

:

TAPE

1

PLAY,

:

TAPE

2

PLAY,

CD,

VCR

1

PLAY,

VCR

2PLAY

Recording

output

level

Frequency

response

PHONO

(RIAA

equalization)

:

CD,

TAPE

1,

TAPE

2,

VCR

1,

VCR

2

S.E.A.

graphic

equalizer

Center

frequencies

Control

range

Signal-to-noise

ratio

PHONO

CD,

TAPE

1,

TAPE

2,

VCR

1,

VCR2

2.5

mV/47

kohms

220

mV/45

kohms

:

220

mV

20

Hz

—

20

kHz

+0.5

dB

5 Hz

—

50

kHz

+0

dB/-1

dB

:

63

Hz,

160

Hz.

400

Hz,

1

kHz,

2.5

kHz,

6.3

kHz,

16

kHz

:

£10

dB

:

71

dB

(66

IHF),

78

dB

('78

IHF)

:

100

dB

(66

IHF),

85

dB

(‘78

IHF)

RX-777VBK

RX-777VSBK

RX-777VLBK

FM

TUNER

SECTION

(IHF)

Tuning

range

:

87.5

MHz

—

108.0

MHz

Usable

sensitivity

-Mono

10.8

dBf,

0.9

nV/75

ohms

50

dB

quieting

-Mono

16.3

dBf,

1.8

uV/75

ohms

sensitivity

Stereo

38.3

dBf,

22.5

nV/75

ohms

Signal-to-noise

ratio

:Mono

82

cB

Stereo

73

dB

(A-net)

Total

harmonic

distortion

1

kHz

:Mono

0.15%

Stereo

0.2%

Frequency

response

-

30

Hz

—

15

kHz

+0.5

dB/—3

dB

Capture

ratio

>

1.5dB

Alternate

channel

:

70

dB

+400

kHz

selectivity


response

ratio

:

56

dB

at

98

MHz

IF

response

ratio

:

85

dB

at

98

MHz

Stereo

separation

:

40

dB

at

1

kHz

AM

TUNER

SECTION

(IHF)

Tuning

range

530

kHz

—

1,710

kHz

Sensitivity

30

pV*

(external),

300

pV

/m*

(loop

antenna)

Signal-to-noise

ratio

:

50

dB*

(100

mV/m)

Selectivity

-

38

dB

+10

kHz


response

ratio

40

dB*

IF

response

ratio

-65dB

Total

harmonic

0.5%

(100

mV/m)

distortion

VIDEO

SECTION

Output

signal

level

-

1

Vp-p

(at

1

Vp-p

input)

(VCR

1

REC,

VCR

2

REC,

MONITOR

OUT)

Impedance

:

75

ohms,

unbalanced

Synchronization

:

Negative

Signal-to-noise

ratio

45

dB

Crosstalk

45

dB

(3.58

MHz)

GENERAL

Power

requirements

»

AC

120

V~,

60

Hz

Power

consumption

:

325

watts,

425

VA

Dimensions

17-3/16"

x

5"

x

15-1/8"

(Wx

H

x

D)

(435

x

126

x

383

mm)

Weight

:

19.9

Ibs

(9.0

kg)

*

Measured

at

1,000

kHz

for

IHF.

**

Measured

by

JVC

Audio

Analysis

System.

Design

and

specifications

subject

to

change

without

notice.

(No.

20055)

1-3

RX-777VBK

RX-777VSBK

RX-777VLBK

ee

_COMPULINK

COMMUNICATION

SYSTEM

———

o

i

1/f

fC)

|

GXeaeoiems

DIGI

L

Oo

=|

SURROUND

Brie

c

2!

reper

REC

1

LOUDNESS

5

|

poe

@

FOOTE

nna

em

mH

fa

am

me

|

|e

FM

MUTE

Cox

MEMORY

©

IBALANCE

MINL1

1

2

—«

3

—

4

—«

5m

6

m7

me

op

max

ll

IMONQ/

FM.

MODE

/AUTO}!

CATV

Jvc

FOCT77V_DIGITAL

SURROUND

SYt|TEM

RECEIVER:

Dynnic:

Super-7%

atl

luck

COMPY

LINK

iitemote

ecceaveo—s

some

|

en

—

er

|

!

2

2

4

|

TAPE

par

=

oe

ieee

[ere

ee

=|

—

—=—

|

_—_

a

Fig.

13

1-4

(No.

20055)

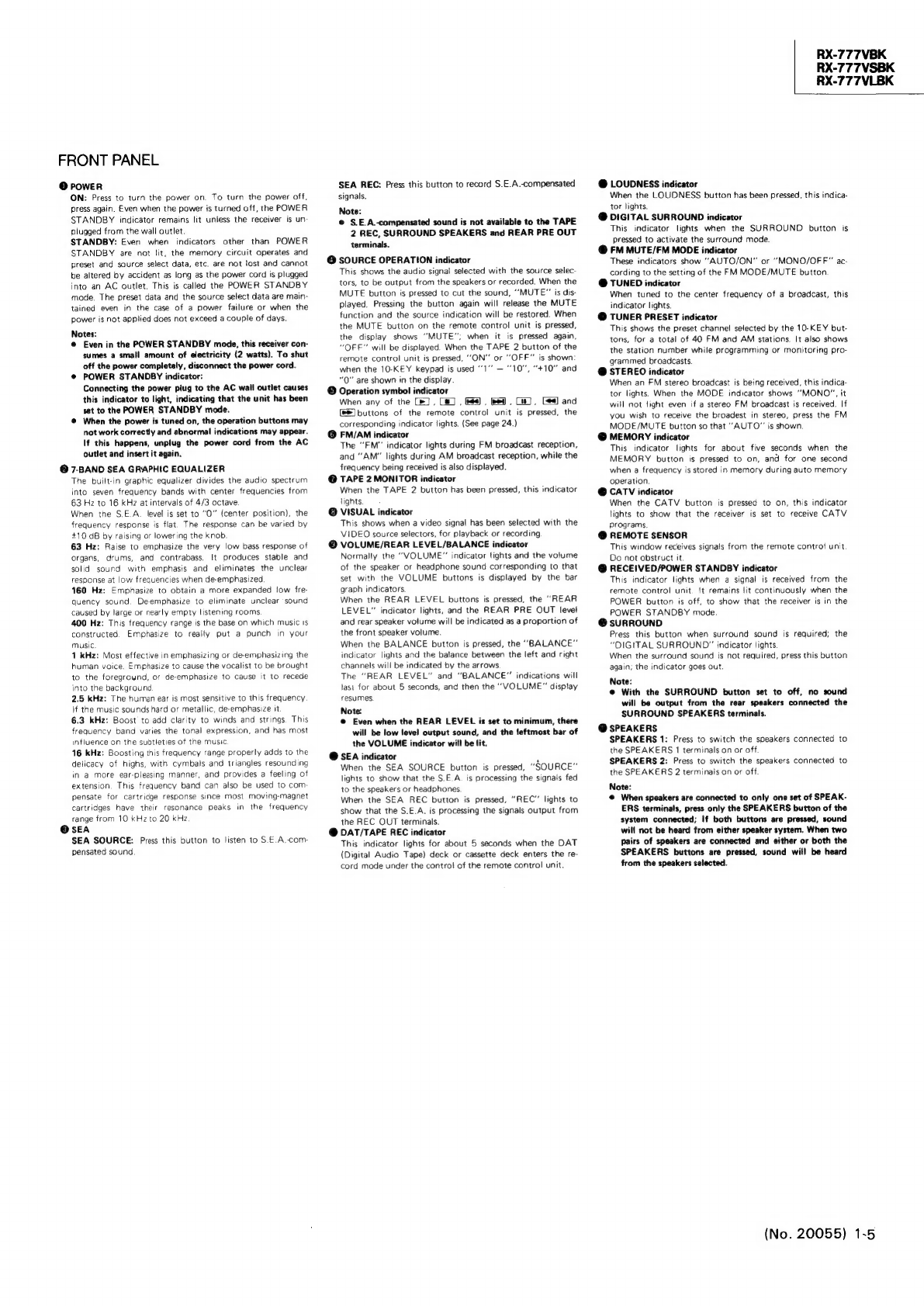

FRONT

PANEL

@

POWER

ON:

Press

to

turn

the

power

on.

To

turn

the

power

off,

press

again.

Even

when

the

power

is

turned

off,

the

POWER

STANDBY

indicator

remains

lit

unless

the

receiver

is

un-

plugged

from

the

wall

outlet.

STANDBY:

Even

when

indicators

other

than

POWER

STANDBY

are

not

lit,

the

memory

circuit

operates

and

preset

and

source

select

data,

etc.

are

not

fost

and

cannot

be

altered

by

accident

as

long

as

the

power

cord

is

plugged

into

an

AC

outlet.

This

is

called

the

POWER

STANDBY

mode.

The

preset

data

and

the

source

select

data

are

main-

tained

even

in

the

case

of

a

power

failure

or

when

the

power

is

not

applied

does

not

exceed

a

couple

of

days.

Notes:

@

Even

in

the

POWER

STANDBY

mode,

this

receiver

con-

sumes

a

small

amount

of

electricity

(2

watts).

To

shut

off

the

power

completely,

disconnect

the

power

cord.

@

POWER

STANDBY

indicator:

Connecting

the

power

plug

to

the

AC

wall

outlet

causes

this

indicator

to

light,

indicating

that

the

unit

has

been

set

to

the

POWER

STANDBY

mode.

@

When

the

power

is

tuned

on,

the

operation

buttons

may

not

work

correctly

and

abnormal!

indications

may

appear.

lf

this

happens,

unplug

the

power

cord

from

the

AC

outlet

and

insert

it

again.

@

7-BAND

SEA

GRAPHIC

EQUALIZER

The

built-in

graphic

equalizer

divides

the

audio

spectrum

into

seven

frequency

bands

with

center

frequencies

from

63

Hz

to

16

kHz

at

intervals

of

4/3

octave

When

the

S.E.A.

level

is

set

to

“0”

(center

position},

the

frequency

response

is

flat.

The

response

can

be

varied

by

+10

dB

by

raising

or

lowering

the

knob.

63

Hz:

Raise

to

emphasize

the

very

low

bass

response

of

organs,

drums,

and contrabass.

It

produces

stable

and

solid

sound

with

emphasis

and

eliminates

the

unclear

response

at

low

frequencies

when

de-emphasized

160

Hz:

Emphasize

to

obtain

a

more

expanded

iow

fre-

quency

sound,

De-emphasize

to

eliminate

unclear

sound

caused

by

large

or

nearly

empty

listening

rooms.

400

Hz:

This

frequency

range

is

the

base

on

which

music

ts

constructed.

Emphasize

to

really

put

a

punch

in

your

music.

1

kHz: Most

effective

in

emphasizing

or

de-emphasizing

the

human

voice.

Emphasize

to

cause

the

vocalist

to

be

brought

to

the

foregrownd,

or

de-emphasize

to

cause

it

to

recede

into

the

background

2.5

kHz:

The

human

ear

is

most

sensitive

to

this

frequency

If

the

music

sounds

hard

or

metallic,

de-emphasize

it

6.3

kHz:

Boost

to

add

clarity

to

winds

and

strings.

This

frequency

band

varies

the

tonal

expression,

and

has

most

influence

on

the

subtleties

of

the

music

16

kHz:

Boosting

this

frequency

range

properly

adds

to

the

delicacy

of

highs,

with

cymbals

and

triangles

resounding

in

a

more

ear-pleasing

manner,

and

provides

a

feeling

of

extension.

This

frequency

band

can

also

be

used

to

com-

pensate

for

cartridge

response

since

most

moving-magnet

cartridges

have

their

resonance

peaks

in

the

frequency

range

from

10

kHz

to

20

kHz

@OSEA

SEA

SOURCE:

Press

this

button

to

listen

to

S.€.A.-com-

pensated

sound

SEA

REC:

Press

this

button

to

record

S.E.A.-compensated

signals.

Note:

@

S.E.A.-compensated

sound

is

not

available

to

the

TAPE

2

REC,

SURROUND

SPEAKERS

and

REAR

PRE

OUT

terminals.

@

SOURCE

OPERATION

indicator

This

shows

the

audio

signal

selected

with

the

source

selec-

tors,

to

be

output

from

the

speakers

or

recorded.

When

the

MUTE

button

is

pressed

to

cut

the

sound,

“MUTE”

is

dis-

played.

Pressing

the

button

again

will

release

the

MUTE

function

and

the

source

indication

will

be

restored.

When

the

MUTE

button

on

the

remote

control

unit

is

pressed,

the

display

shows

“MUTE”;

when

it

is

pressed

again,

“OFF”

will

be

displayed.

When

the

TAPE

2

button

of

the

remote

control

unit

is

pressed,

‘'ON"

or

“OFF”

is

shown:

when

the

10-KEY

keypad

is

used

‘1°’

—

“10°,

“+10”

and

"0"

are

shown

in

the

display.

Operation

symbol

indicator

When

any

of

the

[=],

[a]

,

4),

bea),

(8),

[ee]

and

®

©)

buttons

of

the

remote

control

unit

is

pressed,

the

corresponding

indicator

fights.

(See

page

24.)

©

FM/AM

indicator

The

"FM"

indicator

lights

during

FM

broadcast

reception,

and

“AM”

lights

during

AM

broadcast

reception,

while

the

frequency

being

received

is

also

displayed.

@

TAPE

2

MONITOR

indicator

When

the

TAPE

2

button

has

been

pressed,

this

indicator

lights

@

VISUAL

indicator

This

shows

when

a

video

signal

has

been

selected

with

the

VIDEO

source

selectors,

for

playback

or

recording

@

VOLUME/REAR

LEVEL/BALANCE

indicator

Normally

the

“VOLUME”

indicator

tights

and

the

volume

of

the

speaker

or

headphone

sound

corresponding

to

that

set

with

the

VOLUME

buttons

is

displayed

by

the

bar

graph

indicators.

When

the

REAR

LEVEL

buttons

is

pressed,

the

“REAR

LEVEL”

indicator

lights,

and

the

REAR

PRE

OUT

level

and

rear

speaker

volume

will

be

indicated

as

a

proportion

of

the

front

speaker

volume.

When

the

BALANCE

button

is

pressed,

the

“BALANCE”

indicator

lights

and

the

balance

between

the

left

and

right

channels

will

be

indicated

by

the

arrows

The

“REAR

LEVEL”

and

“BALANCE”

indications

will

last

for

about

5

seconds,

and

then

the

“VOLUME”

display

resumes.

Note

@

Even

when

the

REAR

LEVEL

is

set

to

minimum,

there

will

be

low

level

output

sound,

and

the

leftmost

bar

of

the

VOLUME

indicator

will

be

lit.

@

SEA

indicator

When

the

SEA

SOURCE

button

is

pressed,

“SOURCE”

lights

to

show

that

the

S.E.A.

is

processing

the

signals

fed

to

the

speakers

or

headphones.

When

the

SEA

REC

button

is

pressed,

REC’

lights

to

show

that

the

S.E.A.

is

processing

the

signals

output

from

the

REC

OUT

terminals.

@

DAT/TAPE

REC

indicator

This

indicator

lights

for

about

5

seconds

when

the

DAT

(Digital

Audio

Tape)

deck

or

cassette

deck

enters

the

re-

cord

mode

under

the

contro!

of

the

remote

control

unit.

RX-777VBK

RX-777VSBK

RX-777VLBK

@

LOUDNESS

indicator

When

the

LOUDNESS

button

has

been

pressed,

this

indica-

tor

lights.

@

DIGITAL

SURROUND

indicator

This

indicator

lights

when

the

SURROUND

button

is

pressed

to

activate

the

surround

mode.

@

FM

MUTE/FM

MODE

indicator

These

indicators

show

“AUTO/ON"

or

'’MONO/OFF"

ac-

cording

to

the

setting

of

the

FM

MODE/MUTE

button

@

TUNED

indicator

When

tuned

to

the

center

frequency

of

a

broadcast,

this

indicator

lights.

@

TUNER

PRESET

indicator

This

shows

the

preset

channel

selected

by

the

10-KEY

but-

tons,

for

a

total

of

40

FM

and

AM

stations.

It

also

shows

the

station

number

while

programming

or

monitoring

pro-

grammed

broadcasts.

@

STEREO

indicator

When

an

FM

stereo

broadcast

is

being

received,

this

indica-

tor

lights.

When

the

MODE

indicator

shows

“MONO”,

it

will

not

light

even

if

a

stereo

FM

broadcast

is

received.

If

you

wish

to

receive

the

broadest

in

stereo,

press

the

FM

MODE/MUTE

button

so

that

“AUTO”

is

shown.

@

MEMORY

indicator

This

indicator

lights

for

about

five

seconds

when

the

MEMORY

button

is

pressed

to

on,

and

for

one

second

when

a

frequency

is

stored

in

memory

during

auto

memory

operation.

@

CATV

indicator

When

the

CATV

button

is

pressed

to

on,

this

indicator

lights

to

show

that

the

receiver

is

set

to

receive

CATV

programs.

@

REMOTE

SENSOR

This

window

receives

signals

from

the

remote

control

unit

Do

not

obstruct

it.

@

RECEIVED/POWER

STANDBY

indicator

This

indicator

lights

when

a

signal

is

received

from

the

remote

control

unit.

{t

remains

!it

continuously

when

the

POWER

button

is

off,

to

show

that

the

receiver

is

in

the

POWER

STANDBY

mode.

@

SURROUND

Press

this

button

when

surround

sound

is

required;

the

“DIGITAL

SURROUND"

indicator

lights.

When

the

surround

sound

is

not

required,

press

this

button

again;

the

indicator

goes

out.

Note:

@

With

the

SURROUND

button

set

to

off,

no

sound

will

be

output

from

the

rear

speakers

connected

the

SURROUND

SPEAKERS

terminals.

@

SPEAKERS

SPEAKERS

1:

Press

to

switch

the

speakers

connected

to

the

SPEAKERS

1

terminals

on

or

off.

SPEAKERS

2:

Press

to

switch

the

speakers

connected

to

the

SPEAKERS

2

terminals

on

or

off.

Note:

@

When

speakers

are

connected

to

only

one

set

of

SPEAK-

ERS

terminats,

press

only

the

SPEAKERS

button

of

the

system

connected;

If

both

buttons

are

pressed,

sound

will

not

be

heard

from

either

speaker

system.

When

two

pairs

of

speakers

are

connected

and

either

or

both

the

SPEAKERS

buttons

are

pressed,

sound

will

be

heard

from

the

speakers

selected.

(No.

20055)

1-5

RX-777VBK

RX-777VSBK

RX-777VLBK

@

PHONES

(Headphone

jack)

—

AUDIO

—

If

you

have

tuned

to

the

current

station

in

any

other

way

Ptug

stereo

headphones

into

this

jack

for

private

listening

and

to

monitor

recording.

If

you

want

to

listen

to

sound

from

the

headphones

only,

press

the

SPEAKERS

buttons

to

OFF.

@

DIGITAL

SURROUND

When

the

surround

sound

effect

is

required,

first

press

the

SURROUND

button,

then

press

any

of

the

following

but-

tons.

The

indicator

above

the

selected

button

will

light.

DOLBY

SURROUND:

Press

this

button

when

playing

back

a

program

source

encoded

with

Dolby

Surround

sound.

Dynamic

and

three-dimensional

surround

sound

{as

in

a

movie

theater)

will

be

obtained.

HALL:

When

this

button

is

pressed

while

listening

to

a

normal

stereo

source,

the

sound

field

will

be

expanded

and

a

surround

sound

effect

with

a

hall

ambience

will

be

obtained.

STADIUM:

When

this

button

is

pressed

while

listening

to

a

normat

stereo

source,

a

dynamic

surround

sound

effect

with

the

feeling

of

a

stadium

is

obtained.

®@

DOLBY

SURROUND*

Many

video

programs

{video

tapes

and

video

discs)

available

today

have

a

X)[pasvasees)”

mark

showing

that

they

have

been

transcribed

with

a

Dolby

Stereo

soundtrack.

The

soundtrack

of

these

movies

includes

exactly

the

same

surround

sound

information

as

the

films

you

see

in

movie

theaters.

As

the

RX-777VBK/VSBK

incorporates

a

Dolby

Surround

decoder

circuit,

you

can

get

a

similar

effect

to

that

in

a

movie

theater

equipped

with

Doiby

Stereo,

in

your

home.

The

RX-777VBK/VSBK

will

turn

your

listening

room

into

a

home

movie

theater!

*

Manufactured

under

license

from

Dolby

Laboratories

Licensing

Corporation.

Additionally

licensed

under

one

or

more

of

the

following

patents:

U.S.

Numbers

3,632,886,

3,746,792

and

3,959,590

“DOLBY”

and

the

double-D

symbol

[J

are

trade-

marks

of

Dolby

Laboratories

Licensing

Corporation

DELAY

TIME:

This

button

is

used

to

adjust

the

duration

of

reverberations

so

that

the

surround

sound

signal

com-

ponents

included

in

the

program

source

match

the

response

of

your

listening

room

Each

time

this

button

is

pressed,

the

delay

time

setting

is

changed

in

the

order*_1

>

2

>

35.

The

indicator

above

the

number

selected

number

will

light.

1

‘Select

this

position

when

the

listeners

and

the

rear

speakers

are

relatively

distant

from

the

front

speakers.

2

:Normally

set

to

this

position.

(First

select

this

position

and

play

the

source,

then,

adjust

to

find

the

most

ef-

fective

position

for

the

program

source.)

3

‘Select

this

position

when

the

listeners

and

the

rear

speakers

are

relatively

close

to

the

front

speakers.

REAR

LEVEL:

Adjust

the

level

of

the

signal

output

to

the

REAR

PRE

OUT

terminals

and

the

rear

speakers

relative

to

that

of

the

front

speakers

with

these

buttons.

Press

the

>

button

to

increase

the

relative

volume

level

and

press

the

<

button

to

decrease

it.

The

set

level

is

shown

in

the

display

for

about

5

seconds

@

SOURCE

—

VIDEO

-

VCR

1:

Press

this

button

to

watch

and

listen

to

the

source

from

the

VCR

connected

to

the

VCR

1

terminals.

VCR

2:

Press

this

button

to

watch

and

listen

to

the

source

from

the

VCR

connected

to

the

VCR

2

terminals.

1-6

(No.

20055)

PHONO:

Press

to

listen

to

a

turntable

connected

to

the

PHONO

terminals.

CD:

Press

this

button

to

listen

to

a

compact

disc

player

connected

to

the

CD

terminals.

FM:

Press

this

button

to

listen

to

an

FM

broadcast.

AM:

Press

this

button

to

listen

to

an

AM

broadcast

TAPE

1:

Press

to

listen

to

a

tape

deck

connected

to

the

TAPE

1

terminals.

@

MONITOR

TAPE

2:

Press

this

button

to

listen

to

a

tape

deck

connect-

ed

to

the

TAPE

2

terminals.

!f

this

button

is

pressed

again,

it

will

release

this

function

so

that

the

source

selected

by

another

source

selected

button

can

be

heard

@

LOUDNESS

Press

this

button

to

compensate

for

the

ear’s

lower

sensi-

tivity

at

tow

listening

levels.

@

CATV

Use

this

button

when

a

separate

CATV

Antenna

Control!

Unit

is

used.

When

connecting

the

CATV

cable

to

seceive

CATV

programs

or

if

the

FM

antenna

is

connected

to

“CATV

IN”

of

the

CATV

Antenna

Control

Unit

for

the

reception

of

FM

broadcasts,

push

this

button

so

that

the

CATV

indicator

lights.

Even

when

the

CATV

indicator

is

not

lit,

you

can

|isten

to

broadcasts

received

by

the

antenna

connected

to

the

EXT.

FM

IN

terminal

of

the

CATV

an-

tenna

control

unit.

CATV

button

functions

can

also

be

stored

in

each

preset

station

together

with

the

frequency

@

FM

MODE/MUTE

For

normal

FM

receptiom

for

the

automatic

elimination

of

interstation

noise,

press

this

button

so

that

FM

MODE

“AUTO”

and

FM

MUTE

“ON”

light

in

the

display

When

receiving

a

weak

or

noisy

FM

stereo

broadcast,

press

this

button

so

that

FM

MODE

“MONO”

and

FM

MUTE

“OFF”

light;

the

broadcast

will

be

heard

in

mono

but

reception

will

be

clearer

@

TUNER

10-KEY

(1

to

10,

+10)

Up

to

40

FM

and

AM

broadcast

frequencies

can

be

preset

in

this

receiver's

memory.

After

presetting,

select

the

de-

sired

channel

by

inputting

the

preset

channel

number

with

these

buttons.

When

selecting

a

preset

channel

numbered

“1

to

"10",

just

press

the

corresponding

numeric

button

When

selecting

preset

channels

numbered

‘11’

or

above,

first

press

the

+10

button

the

required

number

of

times,

then

press

a

button

from

1

to

10.

For

example,

to

select

preset

channel

35,

first

press

the

+10

key

three

times,

then

press

5.

Or,

to

select

preset

channel

40”,

press

+10

key

three

times,

then

10.

When

the

desired

preset

channel

is

recailed,

the

display

shows

the

preset

channel

number

and

the

frequency

@

PRESET

SCAN

This

lets

you

scan

preset

channels

to

find

a

broadcast

you

want

to

listen

to.

When

the

PRESET

SCAN

button

is

press-

ed,

preset

scanning

starts.

If

you

have

tuned

to

the

current

station

using

the

10-KEY

keypad,

the

tuner

scan

to

the

next

higher

preset

channel

and

the

broadcast

is

received

for

about

4

seconds

with

the

preset

channel

number

blinking

It

then

tunes

to

higher

preset

channels

in

sequence.

When

it

reaches

the

top

preset

channel,

it

goes

to

the

bottom

channel

and

scans

up

until

it

reaches

the

original

channel,

at

which

point

it

stops

scanning

will

start

from

preset

channel

1

and

finish

after

preset

channel

40

has

been

received,

then

the

broadcast

being

received

before

preset

scanning

was

started

will

be

heard

again.

When

you

hear

a

broadcast

you

want

to

listen

to,

press

the

PRESET

SCAN

button

again

to

stop

preset

scanning

@

MEMORY

Press

this

button,

and

the

MEMORY

indicator

will

tight

to

show

that

!t

is

ready

to

receive

a

memory

setting.

Pressing

the

station

select

button

while

the

MEMORY

indicator

is

lit

(for

about

five

seconds)

store

the

station

in

the

specified

memory.

At

this

time,

the

channel

number

is

shown

in

the

display.

@

AUTO

MEMORY

Press

this

button

and

one

of

the

PRESET

CHANNEL

numeric

keys

to

scan

and

preset

to

broadcasts

automatical-

ly.

Starting

from

the

frequency

being

displayed,

the

tuner

will

scan

to

higher

frequencies

until

a

broadcast

is

received

The

TUNED

indkeator

will

light

and

the

channel

number

you

have

pressed

earlier

will

flicker

for

3

seconds,

If

you

do

not

wish

to

store

this

frequency

in

memory,

press

this

but:

ton

within

4

seconds,

and

scanning

will

start

again.

Other-

wise,

the

MEMORY

indicator

and

channel

number

will

light

together

and

the

frequency

will

be

stored

in

the

channel

memory,

after

which

up-scanning

will

continue.

This

process

continues

until

the

preset

channel

with

the

highest

frequency

is

stored

in

memory.

If

the

frequency

reaches

its

upper

limit,

the

auto

memory

function

stops

and

the

chan-

nel

number

with

the

highest

frequency

in

the

memory

will

be

shown.

If

the

upper

limit

of

the

frequency

band

is

reaeh-

ed

before

this

happens,

the

upper

limit

frequency

is

shown.

Otherwise

when

this

process

ends,

the

last

frequency

tuned

to

and

its

corresponding

channel

number

are

displayed

Note:

®@

To

cancel

the

auto

memory

function,

press

any

of

the

buttons

in

the

tuner

section

other

than

the

AUTO

MEMORY

button.

@

TUNING

DOWN/UP

DOWN

(

<

):

Press

this

button

to

tune

to

a

lower

frequency

UP

(

>):

Press

this

button

to

tune

to

a

higher

frequency

Hoiding

either

button

pressed

for

more

than

1

second

and

then

releasing

it

starts

auto

tuning,

When

a

broadcast

is

received,

tuning

will

stop.

If

either

button

is

held

down

scanning

will

continue

even

when

a

broadcast

Is

received

In

auto

tuning,

pressing

either

button

stops

scanning.

When

tuning

toward

higher

frequencies,

if

the

upper

limit

fre-

quency

is

reached,

the

frequency

will

change

to

the

lower

limit

and

then

auto

tuning

restarts

in

the

direction

of

in-

creasing

frequencies.

When

tuning

toward

lower

frequencies,

if

the

lower

limit

is

reached,

the

frequency

will

change

to

the

upper

limit

and

auto

tuning

restarts

in

the

direction

of

lower

frequencies.

The

same

operation

is

also

performed

in

AM

tuning.

Each

time

these

buttons

are

tapped,

the

FM

frequency

will

change

in

100

kHz

steps,

and

the

AM

frequency

in

10

kHe

steps.

RX-777VBK

RX-777VSBK

RX-777VLBK

@

VOLUME

Adjust

the

volume

of

speakers

or

headphones

with

this

button.

Press

the

>

(up}

side

once

to

increase

the

volume

by

one

step,

and

the

<

(down)

side

once

to

decrease

it

by

one

step;

this

tevel

is

shown

by

the

VOLUME

indicator

Holding

down

either

side

of

this

button

will

cause

the

volume

to

rise

or

fall

continuously.

@

MUTE

Press

this

button

and

the

MUTE

indicator

will

light

and

the

sound

wil!

be

muted

instantaneously.

To

restore

the

volume

to

its

original

level,

press

this

button

again,

or

press

the

BALANCE

or

VOLUME

button.

@

BALANCE

Use

to

adjust

the

balance

between

the

left

and

right

speak-

ers.

Tap

the

L

side

to

shift

the

balance

to

the

left

by

one

step

and

the

R

side

to

shift

to

the

right.

Holding

the

button

pressed

changes

the

balance

continuously.

The

BALANCE

indicator

in

the

display

shows

the

current

balance

setting.

OPERATION

Before

use

Connect

each

component

correctly,

and

then

plug

the

power

cord

into

an

AC

wall

outlet

Basic

operation

Press

the

POWER

button

to

on

Select

the

speaker

system

with

the

SPEAKERS

buttons.

Proceed

through

the

steps

described

below,

as

required

Adjust

the

volume

and

the

balance

to

your

requirement

Use

the

SEA

buttons

to

obtain

the

tone

you

want

to

hear

When

a

surround

sound

effect

is

required,

press

the

SUR-

ROUND

button

and

related

buttons.

(Refer

to

page

13.)

Presetting

to

selected

stations

(FM

AM

or

CATV)

There

are

two

ways

to

preset

stations

using

the

TUNING

buttons:

A,

AUTO

‘TUNING/MANUAL

TUNING,

B.

AUTO

MEMORY

FUNCTION.

A.

—AUTO

TUNING/MANUAL

TUNING

—

(Refer

to

@

TUNING

DOWN/UP

buttons.)

1,

Press

the

FM

or

AM

button

When

tuning

to

a

CATV

FM

broadcast,

press

the

FM

button,

then

the

CATV

button.

2.

Tune

to

a

station

by

pressing

the

TUNING

DOWN/UP

button

for

auto

tuning

or

tapping

it

for

manual

tuning

3.

Press

the

MEMORY

button

so

that

the

MEMORY

indicator

AaARWNn

lights

4.

Press

any

of

the

TUNER

10-KEY

keypad

buttons

to

be

stored

in

memory

as

the

preset

channel

number

5.

Perform

the

same

pre-tuning

procedure

(steps

2, 3,

4)

for

the

remaining

channels.

Up

to

40

stations

can

be

preset

for

FM

and

AM

stations

in

total

B.

—

How

to

operate

the

AUTO

MEMORY

FUNCTION

~—

(Refer

to

@

AUTO

MEMORY

button)

1.

Press

the

FM

or

AM

button

When

tuning

jo

a

CATV

FM

broadcast,

press

the

FM

button,

then

the

CATV

button.

2.

Display

the

frequency

from

which

scanning

is

to

start

using

the

TUNING

DOWN/UP

button.

3.

Press

the

AUTO

MEMORY

button

and

one

of

the

10-KEY

buttons.

The

MEMORY

indicator

flickers

and

auto

scan-

ning

starts

from

the

displayed

frequency

towards

higher

fre-

quencies.

When

a

broadcast

is

received,

the

TUNED

indica-

tor

lights

and

the

selected

station

number

flashes.

|f

you

do

not

press

the

AUTO

MEMORY

button

again,

the

MEMORY

indicator

and

the

channel

number

light

together

and

the

frequency

is

stored

in

memory.

This

continues

until

the

preset

channel

with

the

highest

number

has

a

frequency

in

its

memory

or

auto

scanning

reaches

the

highest

frequency

Listening

to

broadcasts

1.

Press

the

FM

or

AM

button

so

taht

the

“FM”

or

“AM”

is

displayed

in

the

SOURCE

OPERATION

indicator.

2.

Select

the

desired

preset

channel

by

pressing

the

TUNER

10-KEY

buttons.

The

channel

number

corresponding

to

the

buttons

pressed

is

shown

in

the

display

Notes:

@

Adjust

the

antenna

so

that

the

“TUNED”

indicator

is

lit.

@

When

FM

broadcast

signals

are

too

weak

to

be

received

satisfactorily,

press

the

FM

MODE/MUTE

button

so

“MONO/OFF”

is

shown.

@

For

the

reception

of

AM

broadcasts,

set

the

loop

antenna

to

the

position

where

reception

is

best.

@

Before

listening

to

broadcasts,

first

preset

the

stations

correctly;

if

they

are

not

pre-tuning

accurately,

reception

will

be

noisy.

Listening

to

records

1.

Press

the

PHONO

button

so

that

the

“PHONO”

is

displayed

in

the

SOURCE

OPERATION

indicator.

2.

Operate

the

turntable

as

described

in

its

operation

manual.

Notes:

@

Use

a

turntable

with

an

MM

(moving

magnet)

cartridge.

©@

If

your

turntable

has

a

separate

ground

lead,

connect

it

to

the

rear

panel

GND

terminal.

Listening

to

CD

1.

Press

the

CD

button

so

that

the

“CD”

is

displayed

in

the

SOURCE

OPERATION

indicator.

2.

Operate

the

CD

player

as

described

in

its

operation

manual

Listening

to

tapes

1.

Press

the

TAPE

1

or

2

button

so

that

the

TAPE

1”

is

disptayed

in

the

SOURCE

OPERATION

indicator

or

the

"TAPE

2

MONITOR"

indicator

lights.

.

2.

Operate

the

tape

deck

for

playback

as

described

in

its

operation

manual

Watching

and

listening

to

VCR

1

(VCR

2)

1.

Press

the

VCR

1

(VCR

2)

button

so

that

the

SOURCE

OPERATION

and

VISUAL

indicators

light

and

“VCR

1”

("VCR

2”)

is

shown

with

each

one.

2.

Operate

the

video

unit

as

described

in

its

operation

manual.

Listening

to

another

audio

source,

while

watching

VCR

1

(VCR

2)

(Fig.

14)

When

you

want

to

listen

to

an

audio

source

while

watching

VCR

1

(VCR

2),

press

the

@

VIDEO

SOURCE

button

to

watch

a

video

source

(such

as

VCR

1)

and

then

the

@

AUDIO

SOURCE

button

to

hear

an

audio

source

(such

as

a

CD).

By

doint

so,

you

can

enjoy

the


of

VCR

1

and

the

sound

of

a

CD

Note

@

Connect

the

video

and

audio

signal

cords

of

the

video

unit

to

the

and

[VIDEO]

terminals

of

this

unit.

If

a

unit

other

than

a

video

unit

is

connected,

connect

it

to

the

terminals

only.

=

ie

{_

pa

COMPULINK

COMMUNICATION

SYSTEM

me

YER

;

Fig.

14

Recording

tapes

—

Recording

from

records

—

1.

Press

the

PHONO

button

so

that

the

PHONO”

is

displayed

in

the

SOURCE

OPERATION

indicator

2.

Operate

the

turntable.

3.

Operate

the

tape

deck

for

recording.

—

Recording

from

other

sources

(CD,

FM,

AM,

VCR

1,

VCR

2)

—

Press

the

button

corresponding

to

the

source

to

be

recorded.

All

other

operations

are

identical

to

those

when

recording

from

records.

Note

@

The

sound

you

hear

from

the

speakers

or

headphones

is

the

source

sound

(record

playback

sound

in

this

case),

not

the

signal

recorded

on

the

tape.

—

How

to

operate

the

monitor

white

recording

onto

a

tape

deck

—

1.

Connect

a

3-head

tape

deck

to

the

TAPE

2

terminals.

2.

Make

sure

that

the

signal

cords

are

connected

to

the

PLAY

and

REC

terminals,

and

remove

the

remote

cable

connected

to

the

tape

deck.

3.

Select

the

source

from

which

you

want

to

record

by

depres-

sing

the

corresponding

SOURCE

select

button.

4.

Operate

the

tape

deck

for

recording

as

described

in

its

operation

manual.

5.

By

playing

the

source

component,

you

can

record

on

the

tape

deck.

6.

While

recording

on

the

tape

deck,

the

recorded

sound

can

be

heard

by

pressing

the

TAPE

2

button

on

the

front

panel

or

remote

control

unit

Tape

dubbing

To

perform

tape

dubbing,

two

tape

recorders

should

be

con-

nected,

one

to

the

TAPE

1

terminals

(called

the

‘’No.

1”

tape

deck)

and

another

to

the

TAPE

2

(called

the

‘‘No.

2”

tape

deck}

—

Dubbing

from

deck

No.

1

to

deck

No.

2

—

1.

Press

the

TAPE

1

button.

Sound

can

be

monitored

through

speakers

or

headphones.

2.

Operate

the

No.

2

tape

deck

for

recording.

3.

Operate

the

No.

1

tape

deck

for

playback.

—

Dubbing

from

deck

No.

2

to

deck

No.

1

—

1.

Press

the

TAPE

2

button.

Sound

can

be

monitored

through

speakers

or

headphones.

2.

Operate

the

No.

1

tape

deck

for

recording

3.

Operate

the

No.

2

tape

deck

for

playback

(No.

20055)

1-7

RX-777VBK

RX-777VSBK

RX-777VLBK

Notes:

@

When

dubbing

from

the

tape

deck

(connected

to

the

TAPE

2

terminals)

onto

the

other

tape

deck,

select

a

button

other

than

“TAPE

1”.

@

When

dubbing

the

SOUND

signal

from

the

No.

2

tape

deck

to

VCR

1

or

VCR

2,

use

a

selector

other

than

“VCR

1”

or

“VCR

2".

@

While

playing

back

a

tape

on

the

tape

deck

{connected

to

the

TAPE

2

terminals),

you

cannot

record

other

source

sounds

onto

components

connected

to

the

REC

terminals

of

TAPE

1,

VCR

1

and

VCR

2.

@

During

dubbing,

$.E.A.

recording

onto

TAPE

2

is

impos-

sible.

@

Dubbing

is

possible

between

any

of

TAPE

1,

VCR

1

and

VCR

2,

and

S.E.A.

recording

is

also

possible.

®@

Dubbing

from

VCR

1

to

VCR

2

or

from

VCR

2

to

VCR

1

is

also

possible.

In

this

case,

press

the

source

side

button

(VCR

1

or

VCR

2).

Using

stereo

headphones

Stereo

headphones

can

be

plugged

into

the

front

panel

PHONES

jack.

The

signal

from

this

jack

is

independent

of

the

speakers.

1,

Plug

the

stereo

headphones

into

the

PHONES

jack

for

private

listening

2.

To

fisten

through

headphones

while

listening

to

the

speak-

ers,

press

the

appropriate

SPEAKERS

button

to

ON

(

=}

Note:

@

Pull

out

the

headphone

plug

when

not

in

use.

How

to

perform

surround

sound

play

Place

the

front

and

rear

speaker

systems

appropriately

refer-

ring

to

“Examples

of

Speaker

Placement

in

Surround

Sound

System”

on

page

14.

1,

Press

the

SURROUND

button

so

that

the

‘DIGITAL

SUR-

ROUND"

indicator

lights.

2.

Press

the

desired

surround

selector

mode

button

(DOLBY

SURROUND,

HALL

or

STADIUM)

Note:

@

When

playing

a

video

program

source

with

a

D0)

(pas

sono)”

mark

on

its

case,

press

the

DOLBY

SURROUND

button,

and

when

playing

back

a

normal

stereo

source,

press

the

HALL

or

STADIUM

button.

3.

Set

the

delay

time

appropriately

with

the

DELAY

TIME

buttons.

.

Play

back

the

program

source

.

Adjust

the

overall

volume

level

of

the

front

and

rear

speak-

ers

with

the

VOLUME

button,

then

adjust

the

relative

volume

of

the

rear

speakers

with

the

REAR

LEVEL

buttons.

Notes:

®

For

details

of

buttons

and

indicators

in

the

above

opera-

tions,

refer

to

the

description

of

the

‘Front

Panel”

section.

@

When

playing

back

or

recording

in

the

DOLBY

SURROUND

mode,

be

sure

to

set

the

@

SEA

buttons

to

OFF

to

obtain

the

original

information

included

in

the

program

correctly.

ahs

1-8

(No.

20055)

EXAMPLES

OF

SPEAKER

PLACEMENT

IN

SURROUND

SOUND

SYSTEM

The

following

diagrams

are

typical

examples

for

surround

sound

reproduction,

4

Front

Speakers

5

Surround/Rear

Speakers

!

Front

Speakers

ge

he

—

LES

Fig.

17

1.

A

standard

speaker

arrangement

for

surround

sound

reproduction.

This

configuration

gives

most

effective

surround

sound

with

enriched

“presence’’.

Most

suitable

for

playing

program

sources

encoded

with

Dolby

Surround

sound.

2.

Place

the

surround

speakers

at

the

left

and

right

sides

of

the

listen-

ing

position.

With

this

configuration,

the

separation

between

the

front

and

rear

may

be

slightly

decreased,

however,

the

extension

of

the

sound

fieid

will

be

much

wider.

With

this

placement,

set

the

surround

speakers

so

they

are

higher

than

listeners’

ears

and

direct

them

slightly

downward

to

get

a

wider

sound

field

3.

Place

four

speakers

in

front

of

the

listening

position.

Although

the

feeling

of

movement

will

be

slightly

decreased

when

playing

video

programs,

it

gives

more

natural

width

to

the

sound

field.

This

is

suitable

when

you

want

a

stable

sound

field

(or

‘‘presence’’),

especially

when

playing

normal

stereo

audio

sources.

Note:

@

If

the

walls

are

made

of

hard

wood

or

plaster,

when

the

surround

speakers

are

placed

facing

towards

the

walls

(reversing

the

placement

illustrated

in

the

above

examples

2

or

3),

a

more

favorable

effect

may

be

obtained.

Movie

programs,

etc.

encoded

with

the

Dolby

Surround

system

are

produced

so

that

the

volume

balance

between

the

front

channels

and

the

surround

channels

is

set

by

the

producer

of

the

individual

movie.

For

this

reason,

it

is

recommended

that

you

do

not

set

the

level

of

the

surround

channel

too

high,

to

obtain

a

Dolby

Surround

sound

effect

which

is

closer

to

that

intended.

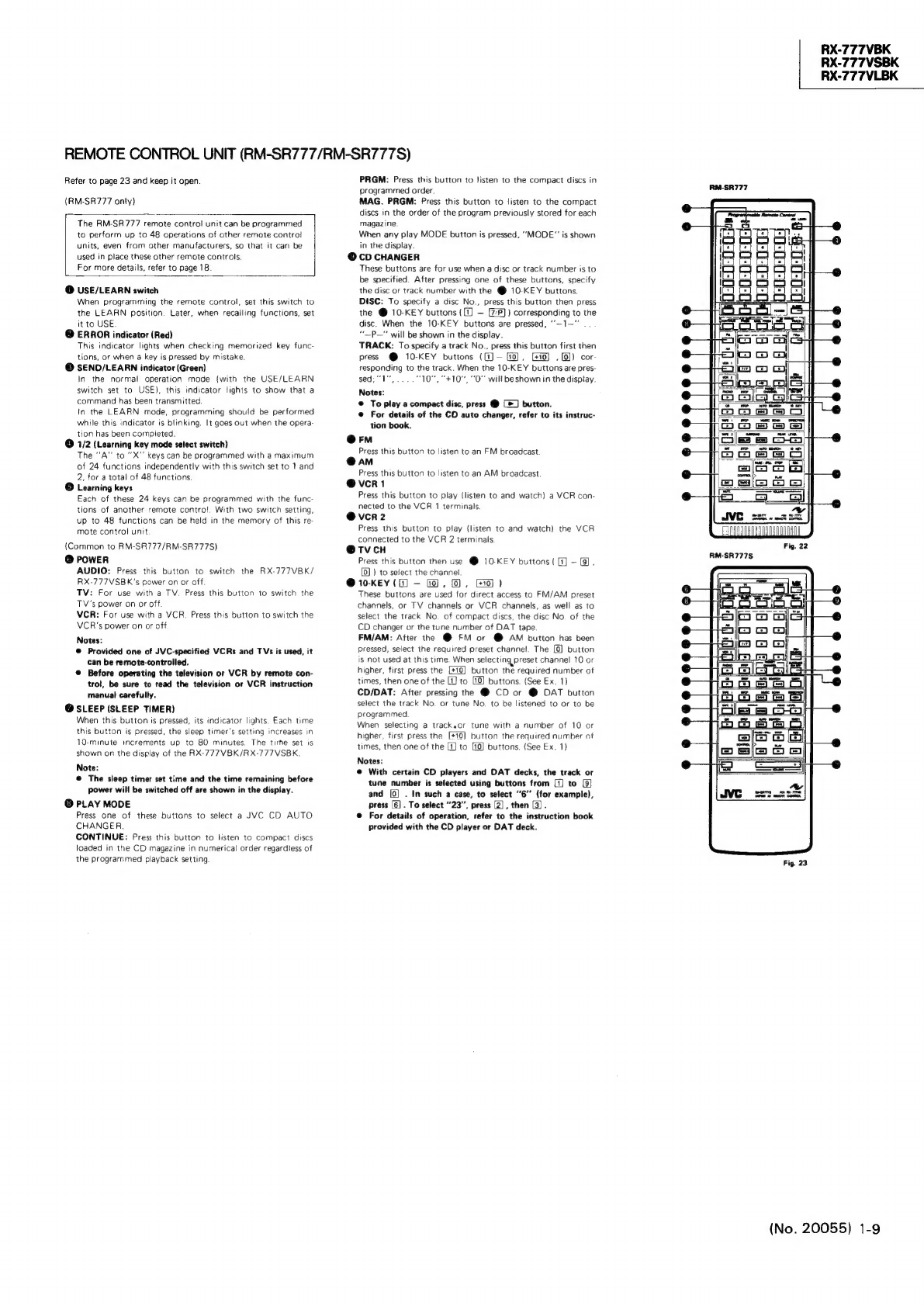

REMOTE

CONTROL

UNIT

(RM-SR777/RM-SR777S)

Refer

to

page

23

and

keep

it

open.

(RM-SR777

only)

The

RM-SR777

remote

control

unit

can

be

programmed

to

perform

up

to

48

operations

of

other

remote

contro!

units,

even

from

other

manufacturers,

so

that

it

can

be

used

in

place

these

other

remote

controls.

For

more

details,

refer

to

page

18.

@

USE/LEARN

switch

When

programming

the

remote

control,

set

this

switch

to

the

LEARN

position.

Later,

when

recalling

functions,

set

it

to

USE.

@

ERROR

indicator

(Red)

This

indicator

lights

when

checking

memorized

key

func-

tions,

or

when

a

key

is

pressed

by

mistake.

@

SEND/LEARN

indicator

(Green)

In

the

normal

operation

mode

(with

the

USE/LEARN

switch

set

to

USE),

this

indicator

lights

to

show

that

a

command

has

been

transmitted.

in

the

LEARN

mode,

programming

should

be

performed

while

this

indicator

is

blinking.

It

goes

out

when

the

opera-

tion

has

been

completed.

@

1/2

(Learning

key

mode

select

switch)

The

A"

to

'’X"'

keys

can

be

programmed

with

a

maximum

of

24

functions

independently

with

this

switch

set

to

1

and

2,

for

a

total

of

48

functions.

©

Learning

keys

Each

of

these

24

keys

can

be

programmed

with

the

func-

tions

of

another

remote

control.

With

two

switch

setting,

up

to

48

functions

can

be

held

in

the

memory

of

this

re-

mote

control

unit

{Common

to

RM-SR777/RM-SR777S}

@

POWER

AUDIO:

Press

this

button

to

switch

the

RX-777VBK/

RX-777VSBK’s

power

on

or

off

TV:

For

use

with

a

TV.

Press

this

button

to

switch

the

TV's

power

on

or

off.

VCR:

For

use

with

a

VCR,

Press

this

button

to

switch

the

VCR‘s

power

on

or

off

Notes:

@

Provided

one

of

JVC-specified

VCRs

and

TVs

is

used,

it

can

be

remote-controlled.

©

Before

operating

the

television

or

VCR

by

remote

con-

trol,

be

sure

to

read

the

television

or

VCR

instruction

manual

carefully.

@

SLEEP

(SLEEP TIMER)

When

this

button

is

pressed,

its

indicator

lights.

Each

time

this

button

is

pressed,

the

sleep

timer’s

setting

increases

in

10-minute

increments

up

to

80

minutes.

The

time

set

is

shown

on

the

display

of

the

RX-777VBK/RX-777VSBK.

Note:

©@

The

sleep

timer

set

time

and

the

time

remaining

before

power

will

be

switched

off

are

shown

in

the

display.

©

PLAY

MODE

Press

one

of

these

buttons

to

select

a

JVC

CD

AUTO

CHANGER.

CONTINUE:

Press

this

button

to

listen

to

compact

discs

loaded

in

the

CD

magazine

in

numerical

order

regardless

of

the

programmed

playback

setting

PRGM:

Press

this

button

to

listen

to

the

compact

discs

in

programmed

order.

MAG.

PRGM:

Press

this

button

to

listen

to

the

compact

discs

in

the

order

of

the

program

previously

stored

for

each

magazine.

When

any

play

MODE

button

is

pressed,

“MODE”

is

shown

in

the

display.

@

CD

CHANGER

These

buttons

are

for

use

when

a

disc

or

track

number

is

to

be

specified.

After

pressing

one

of

these

buttons,

specify

the

disc

or

track

number

with

the

@

10-KEY

buttons.

DISC:

To

specify

a

disc

No.,

press

this

button

then

press

the

@

10-KEY

buttons

({1]

—

[7F]}

corresponding

to

the

disc.

When

the

10-KEY

buttons

are

pressed,

‘’—1—"

..

““—P—"

will

be

shown

in

the

display.

TRACK:

To

specify

a

track

No.,

press

this

button

first

then

press

@

10-KEY

buttons

({1)

—

fio),

(i0}

,

0)

cor-

responding

to

the

track.

When

the

10-KEY

buttons

are

pres-

sed,

1")...

."10",

"+10",

“0”

will

be

shown

in

the

disptay.

Notes:

@

To

play

a

compact

disc,

press

@

[&]

button.

@

For

details

of

the

CD

auto

changer,

refer

to

its

instruc-

tion

book.

@rm

Press

this

button

to

listen

to

an

FM

broadcast

@am

Press

this

button

to

listen

to

an

AM

broadcast

@vcri

Press

this

button

to

play

(listen

to

and

watch)

a

VCR

con-

nected

to

the

VCR

1

terminals.

@vcr2

Press

this

button

to

play

{listen

to

and

watch)

the

VCR

connected

to

the

VCR

2

terminals.

@TVCH

Press

this

button

then

use

@

10-KEY

buttons

(

]

—

(9),

[0]

)

to

select

the

channel

@i10-KEY

(fH)

-

fo,

O,

)

These

buttons

are

used

for

direct

access

to

FM/AM

preset

channels,

or

TV

channels

or

VCR

channels,

as

well

as

to

select

the

track

No.

of

compact

discs,

the

disc

No.

of

the

CD

changer

or

the

tune

number

of

DAT

tape.

FM/AM:

After

the

@

FM

or

@

AM

button

has

been

pressed,

select

the

required

preset

channel.

The

[0]

button

is

not

used

at

this

time.

When

selecting

preset

channel

10

or

higher,

first

press

the

[+10]

button

the

required

number

of

times,

then

one

of

the

[1]

to

[10]

buttons.

(See

Ex.

1)

CD/DAT:

After

pressing

the

@

CD

or

@

DAT

button

select

the

track

No.

or

tune

No.

to

be

listened

to

or

to

be

programmed

When

selecting

a

track.or

tune

with

a

number

of

10

or

higher,

first

press

the

[+10]

button

the

required

number

of

times,

then

one

of

the

[1]

to

[10]

buttons.

(See

Ex.

1)

Notes:

@

With

certain

CD

players

and

DAT

decks,

the

track

or

tune

number

is

selected

using

buttons

from

[1]

to

{9}

and

[6)

.

In

such

a

case,

to

select

“6”

(for

example),

press

[6]

.

To

select

“23”,

press

(2)

,

then

(3)

.

@

For

details

of

operation,

refer

to

the

instruction

book

provided

with

the

CD

player

or

DAT

deck.

RX-777VBK

RX-777VSBK

RX-777VLBK

RM-SR777

pe

q

cal

"

yi

!

{

Seog

sill

»

sletetets|

arse

eos

fom

High:

i

ALE

O'lg

at

Bs

a

aot

3h

fh

0

]

al

Fig.

23

(No.

20055)

1-9

RX-777VBK

RX-777VSBK

RX-777VLBK

<

Examples

1

>

5:

Press

[5]

.

10:

Press

[10]

.

17:

Press

[+10]

once,

then

press

[7

20:

Press

[+10]

once,

then

press

[10]

.

25:

Press

[+10]

twice,

then

press

[5]

.

TV/VCR

1:

After

pressing

the

@

TV CH

or

@

VCR

1

button,

select

the

required

channel

using

buttons

(4)

to

[9

and

[0

Depending

on

the

VCR

or

TV

used,

it

may

be

necessary

to

press

the

[0]

button

first

to

select

a

one-digit

number.

(See

Ex.

2)

Note:

©

For

details

of

operation,

refer

to

the

instruction

book

of

the

VCR

or

TV.

<

Examples

2

>

4:

Press

{4]

.

Or,

press

[0]

then

[4]

.

13:

Press

4]

,

then

(3)

.

@

SEA

SOURCE

Press

this

button

to

listen

to

the

source

with

S.€.A.

com-

pensation.

When

the

SEA

SOURCE

button

is

pressed,

“ON”

is

shown

and

the

“SOURCE”

indicator

lights;

when

it

is

pressed

again,

OFF’

is

shown

and

“SOURCE”

goes

out.

@

SURROUND

ON/OFF

Press

this

button

to

switch

the

SURROUND

function

“ON”

and

"OFF".

When

the

SURROUND

ON/OFF

button

is

pressed

once,

“ON”

is

shown

and

"DIGITAL

SUR-

ROUND"

indicator

lights

in

the

display;

when

it

is

pressed

again,

“OFF”

is

shown

and

“DIGITAL

SURROUND"

goes

out.

@

PRESET

CHANNEL

(&)

,

&))

When

the

FM,

AM.

TV

CH

or

VCR

1

button

has

been

pressed;

preset

stations

or

TV

channels

can

be

selected

by

using

these

buttons

to

scan

the

available

stations

or

chan

nels

in

either

direction.

@

PHONO

PHONO

([®]):

Press

this

button

to

switch

the

source

to

“PHONO”

and

to

start

playing

a

record.

STOP

(

(@]):

Press

this

button

to

stop

playing

the

record

Note:

@

When

the

[©]

or

[a]

button

is

pressed,

the

correspond-

ing

symbol

is

shown

in

the

display.

@cp

CD

(

(&]):

Press

this

button

to

switch

the

source

to

“CD”

and

to

start

playing

a

compact

disc

STOP

(

(J):

Press

this

button

to

stop

playing

the

com-

pact

disc.

AUTO

SEARCH:

(

(hea)

):

Press

this

button

to

move

the

pickup

back

to

the

beginning

of

the

current

tune.

Each

time

the

button

is

pressed,

the

pickup

will

skip

to

the

beginning

of

the

previ-

ous

tune.

Keeping

this

button

pressed

causes

the

pickup

to

skip

back

continuously.

{

(Bet)

):

Press

this

button

to

move

the

pickup

to

the

begin-

ning

of

the

next

tune.

Each

time

this

button

is

pressed,

the

pickup

moves

forward

by

one

tune.

Keeping

this

button

pressed

causes

the

pickup

to

skip

forward

continuously

10

KEY:

Press

this

button

to

use

the

@

10-KEY

buttons

to

select

the

CD

track

No

t

1-10

(No,

20055)

Note:

@

When

the

(>),

(a),

ies)

or

>a

button

is

pressed,

the

corresponding

symbol

is

shown

in

the

display.

@

TAPE

1

TAPE

1

(

(®]):

Press

this

button

to

switch

the

source

to

“TAPE

1”

and

to

start

playing

a

tape

in

the

TAPE

1

cas-

sette

deck.

STOP

(

[2]

):

Press

this

button

to

stop

the

cassette

deck.

MUSIC

SCAN:

{

[ke]

):

Press

this

button

to

select

the

tune

by

fast-winding

the

tape

from

right

to

left.

(

):

Press

this

button

to

select

the

tune

by

fast-winding

the

tape

from

left

to

right

DIRECTION

(

[#1®]}:

Press

this

button

to

change

the

direc-

tion

of

tape

travel.

Note:

@

When

the

(>),

(a),

4)

or

Be4

button

is

pressed,

the

corresponding

symbo!

is

shown

in

the

display.

@

SURROUND

For

the

surround

sound

effect,

first

press

@

SURROUND

ON/OFF

button

to

activate

surround

sound

circuit,

then

use

these

buttons.

({DELAY)):

Each

time

this

button

is

pressed,

the

delay

time

setting

is

changed

in

the

order

C172

>

35.

([MODE}):

Each

time

this

button

is

pressed,

the

surround

mode

is

changed

in

the

ordereDOLBY

SURROUND

>

HALL

>

STADIUM35

The

display

shows

#DOLBY"

>

"HALL"

>

“STDUM;

in

order.

~~

REAR

LEVEL

(©),

4):

Adjust

the

relative

volume

of

the

rear

speakers

with

these

buttons,

Press

the

[+]

button

to

in-

crease

the

volume,

and

press

the

[]

button

decrease

it

Note:

@

Setting

using

these

buttons

will

be

shown

in

the

display,

in

the

same

way

as

when

operating

the

front

panel

con-

trols.

For

details,

refer

to

the

description

of

the

front

panel.

@

TAPE

2

Press

this

button

to

listen

to

the

source

connected

to

the

TAPE

2

terminals,

and

press

it

again

to

disengage

the

source

Note:

©

The

operating

indications

“ON”

or

“OFF”

will

be

shown

in

the

display.

@

DAT

DAT

(

[©

]):

Press

this

button

to

start

a

digital

audio

tape.

STOP

(

(1

}):

Press

this

button

to

stop

a

digital

audio

tape

AUTO

SERACH:

{

f¥#4)):

Press

this

button

to

select

the

beginning

of

the

corrent

tune

(

Pea

):

Press

this

button

to

select

the

beginning

of

the

next

tune

10-KEY:

Press

this

button

to

use

the

@

10-KEY

buttons

to

select

a

DAT

track.

Notes:

©

Connect

a

DAT

deck

to

the

TAPE

2

terminals

of

the

receiver.

©@

When

operating

the

DAT

deck,

press

@

TAPE

2

button

first,

then

press

@

DAT

operation

buttons,

or

CON-

TROL

DAT

buttons

(@,

@

).

@

When

the

(©)

,

(8),

[64

or

[P>@

button

is

pressed,

the

corresponding

symbol

is

shown

in

the

display.

@

The

[e@

and

[i

buttons

of

this

unit

have

the

same

function

as

the

[#4]

and

[4]

buttons

on

the

DAT

deck.

@

CONTROL

VCR:

Press

this

button

to

operate

the

VCR

connected

to

the

VCR

1

or

2

terminals.

TAPE

1:

Press

this

button

to

operate

the

cassette

deck

connected

to

the

TAPE

1

terminals.

DAT:

Press

this

button

to

operate

the

digital

audio

tape

deck

connected

to

the

TAPE

2

terminals.

@

TAPE

1/VCR/DAT

CONTROL

PAUSE/STILL

([1]):

Press

this

button

to

pause

during

playback

or

recording.

To

release,

press

the

PLAY

button

STOP

(

(J):

Press

this

button

to

stop

operation.

REC

(([0]):

Press

the

PLAY

button

while

pressing

this

button

to

start

recording.

When

TAPE

1

or

DAT

is

selected,

the

“DAT/TAPE

REC”

indicator

lights

for

about

5

seconds.

{

[#4]

}:

For

a

cassette

deck

or

DAT

deck:

Press

this

button

to

quickty

wind

the

tape

from

right

to

left.

For

a

VCR:

Press

this

button

to

set

from

the

stop

mode

to

the

rewind

mode.

During

playback,

press

this

button

for

high-speed

playback

in

the

reverse

direction

(Shuttle

search).

PLAY

(

(#1

):

Press

this

button

to

play

a

tape.

(

[b®]):

For

a

cassette

deck

or

DAT

deck:

Press

this

butten

to

quickly

wind

the

tape

from

left

to

right

For

a

VCR:

Press

this

button

to

transfer

from

the

stop

mode

to

the

fast-forward

mode.

During

playback,

press

this

button

for

high-speed

playback

in

the

forward

direction

(Shuttle

search).

Note:

©

The

symbols

corresponding

to

the

buttons

(i),

[a],

[#4]

and

[6]

will

be

shown

in

the

display.

They

are

not

shown

in

the

case

of

a

VCR.

@

MUTE

Press

this

button

to

instantly

mute

the

sound.

To

return

the

volume

to

its

original

level,

press

this

button

again,

or

press

the

BALANCE

or

VOLUME

button.

Note:

©

The

operating

indications

of

VOL

+”

or

VOL

"-"

and

“MUTE”,

“OFF”

will

be

shown

in

the

display.

@

voLuME{

©),

4)

Press

the

button

to

increase

the

volume

and

the

E]

button

to

decrease

it.
