Unpacking

Guide

LT-40C790

TV Stand Base

TV Stand Neck

Accessories

Pack

Instruction Book

& Quick Start Guide

✔✘

• Keep the protective bag on your TV until you have attached the

stand and positioned the TV.

• The LCD display is very fragile, and must be protected at all times

when installing and removing the base stand. Be sure that no hard

or sharp object, or anything that could scratch or damage the LCD

display, comes into contact with it. DO NOT exert pressure on the

front of the TV at any time because the screen could crack.

Fitting the Stand Neck and Base Together

1. Fit the neck onto the base.

2. Using the 4 stand base screws, screw the neck to the base.

Fitting the Stand to the TV

3. Ensure the TV is switched off and not connected to the mains power

supply.

4. Keep the protective bag on your TV, it will help to protect the TV.

Lay the TV down on a flat surface ideally on the edge of a table so the

base of the TV slightly overhangs the edge of the table, with the back

side facing up. Please make sure a soft cushioned material (such as a dry

bath towel or thick piece of foam) is placed beneath the screen.

5. Slide the stand under the lip, the neck will fit snugly over the screw

holes. Then screw the stand to the TV using the 4 stand neck screws

supplied. Protective

Bag

Cushioned

material

Remove the Protective Bag

If you don't have a table

big enough, you can use

the TV box. Lie the box flat,

make sure you place the

polystyrene back in the box

first to give the box some

rigidity and strength.

2 people are required

when unpacking your TV.

Don't lift the TV from the top

Slide under

the lip

SPDIF

Optic.OUT

VGA

ANT.

HDMI2(ARC)

HDMI3

LAN

AVIN

Table

Slide under

the lip

SCART

SPDIF

Optic.OUT

VGA

ANT.

HDMI1(ARC)

HDMI2

HDMI3

LAN

JVC 40' LED Smart HD TV LT-40C790 Unpacking Guide.indd 1 14/12/2018 15:40

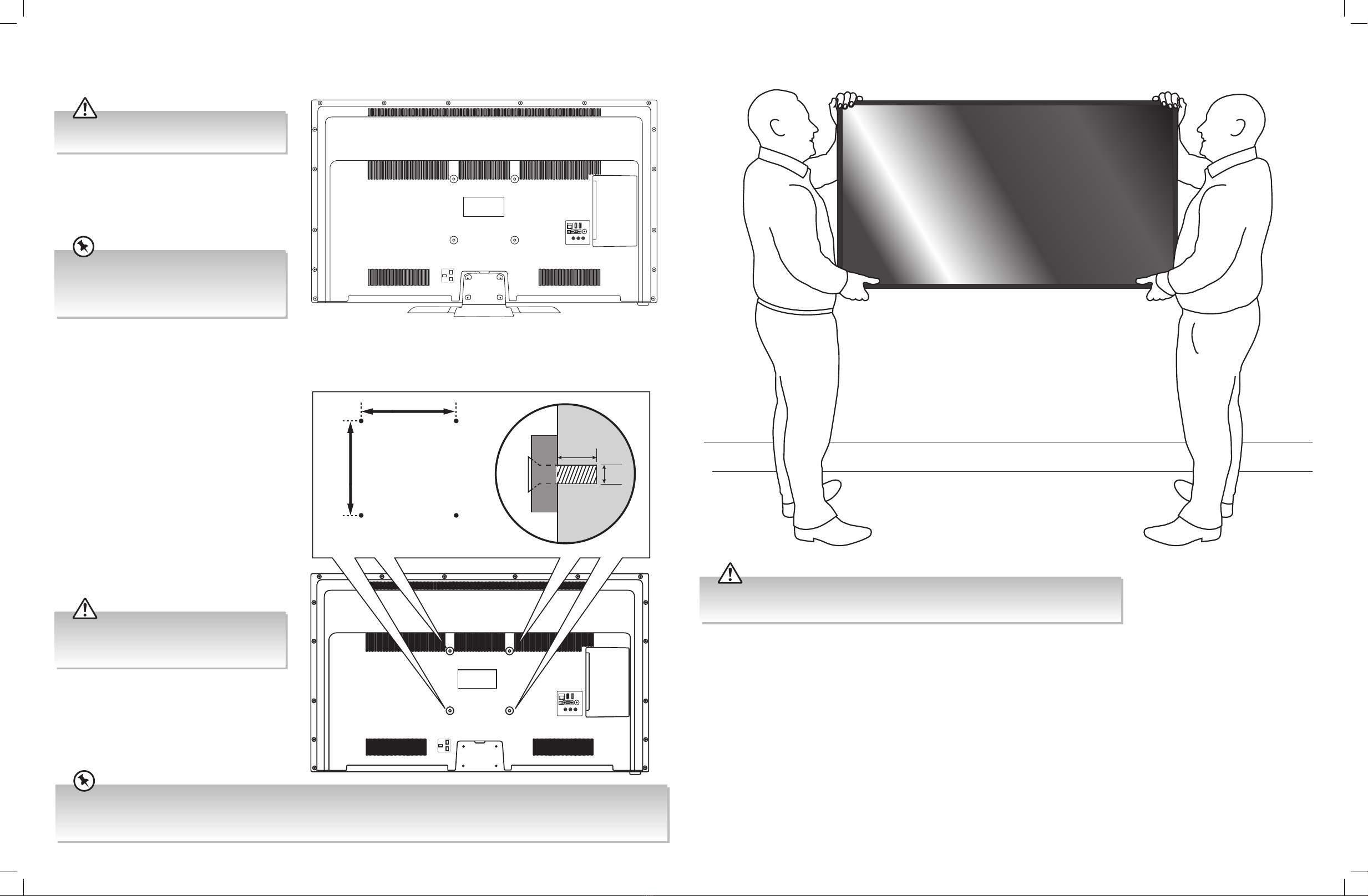

Remove the stand assembly before mounting the

TV onto the wall.

1. Remove the 4 stand neck screws from the neck of

the stand and detach the stand.

Mounting the TV to a Wall

2. This TV is designed to be wall-mounted with a

standard 200 mm x 200 mm mounting kit (sold

separately) designed for flat-panel TVs. Mount

this TV according to the instructions included in

the mounting kit. Due to space restrictions, we

recommend that you make all connections i.e

aerial/HDMI before mounting on to the wall.

Do not connect the power until all connections are

made and the TV is correctly wall mounted.

TV Weight

LT-40C790 - 9.18kg Four mounting holes

(size M6 screw)

10-13mm

200mm

SPDIF

Optic.OUT

VGA

ANT.

HDMI2(A RC)

HDMI3

LAN

AVIN

• If you are wall mounting your TV you may wish to buy a 90° HDMI adapter. This will help with your cable management.

• If you require additional assistance please call our Call Centre on (UK) 0344 561 1234 or (Ireland) 1 890 818 575. Our Customer Contact

Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.

If you don't have a table big enough, you can use

the TV box. Make sure you place the polystyrene

back in the box first to give the box some rigidity

and strength.

• 2 people are required when wall mounting large TVs.

• Make sure you hold the TV on the sides do not hold the screen, you may damage the screen.

(UG-LT-40C790-181214V1)

Always check the specification of your wall mount

bracket to make sure its suitable for the weight of

your TV.

SPDIF

Optic.OUT

VGA

ANT.

HDMI2(ARC)

HDMI3

LAN

AV IN

JVC 40' LED Smart HD TV LT-40C790 Unpacking Guide.indd 2 14/12/2018 15:40
