WIDE LCD PANEL TV INSTRUCTIONS

Trade Mark of the DVB Digital Video Broadcasting

Project (1991 to 1996) Number : 3925, 3926, 3927, 3928

LT-32DX7BJ LT-32DX7SJ

LT-26DX7BJ LT-26DX7SJ

LT-32&26DX7BJSJ.indb 2LT-32&26DX7BJSJ.indb 2 1/18/2006 4:18:54 PM1/18/2006 4:18:54 PM

Information for Users on Disposal of Old Equipment ENGLISH

[European Union]

This symbol indicates that the electrical and electronic equipment should not be disposed as

general household waste at its end-of-life. Instead, the product should be handed over to the

applicable collection point for the recycling of electrical and electronic equipment for proper

treatment, recovery and recycling in accordance with your national legislation.

By disposing of this product correctly, you will help to conserve natural resources and will

help prevent potential negative effects on the environment and human health which could

otherwise be caused by inappropriate waste handling of this product. For more information

about collection point and recycling of this product, please contact your local municipal

ofﬁce, your household waste disposal service or the shop where you purchased the product.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national

legislation.

(Business users)

If you wish to dispose of this product, please visit our web page www.jvc-europe.com to

obtain information about the take-back of the product.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with applicable national

legislation or other rules in your country for the treatment of old electrical and electronic

equipment.

Attention:

This symbol is only

valid in the European

Union.

LT-32&26DX7BJSJ.indb Sec1:1LT-32&26DX7BJSJ.indb Sec1:1 1/18/2006 4:18:54 PM1/18/2006 4:18:54 PM

Expanding the world of

LT-32&26DX7BJSJ.indb 2LT-32&26DX7BJSJ.indb 2 1/18/2006 4:18:54 PM1/18/2006 4:18:54 PM

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Enjoy rich multi-media with JVC

VHF / UHF / DVB-T broadcasting

Digital camera

Video camera

Game console

Audio components

VCR DVD player

DVD recorder

Personal

computer

beautiful images

First things ﬁrst!



Warning············································ 4

Getting started



Names of all the parts ······················ 6



Basic connections ···························· 8



Connecting external devices·········· 10



Initial settings ································· 12



Editing DTV channels····················· 14



Editing ATV channels····················· 16

Let’s try it out



Enjoying your new TV! ··················· 18

· TV / Teletext / EPG / Video / Menu



Watching TV··································· 20



Using EPG ····································· 22



Viewing teletext ······························ 24



Watching videos / DVDs ················ 26

Try the advanced features



Useful functions······························ 28

· Multi-picture / Favourite channel

· Sleep timer / Child lock



Useful functions······························ 30



Operate JVC recorders and other devices

··· 32

Just the way you like it



Customising your TV······················ 34



Using DTV······································ 36



Advanced picture adjustment········· 42

Reduce noise / Watch a more natural picture

· Set the aspect ratio, etc.

When you have trouble



Troubleshooting ····························· 44



CH/CC List ····································· 47



Technical information ····················· 48



Speciﬁcations ································· 49

Contents

*In this manual,

ATV : analogue terrestrial broadcasting (VHF / UHF)

DTV : digital terrestrial broadcasting (DVB-T)

LT-32&26DX7BJSJ.indb 3LT-32&26DX7BJSJ.indb 3 1/18/2006 4:18:54 PM1/18/2006 4:18:54 PM

First things

ﬁrst!

Never try to repair

the TV yourself!

If the problem cannot be solved in

“Troubleshooting” (P. 44), unplug

the power cord and contact your

retailer.

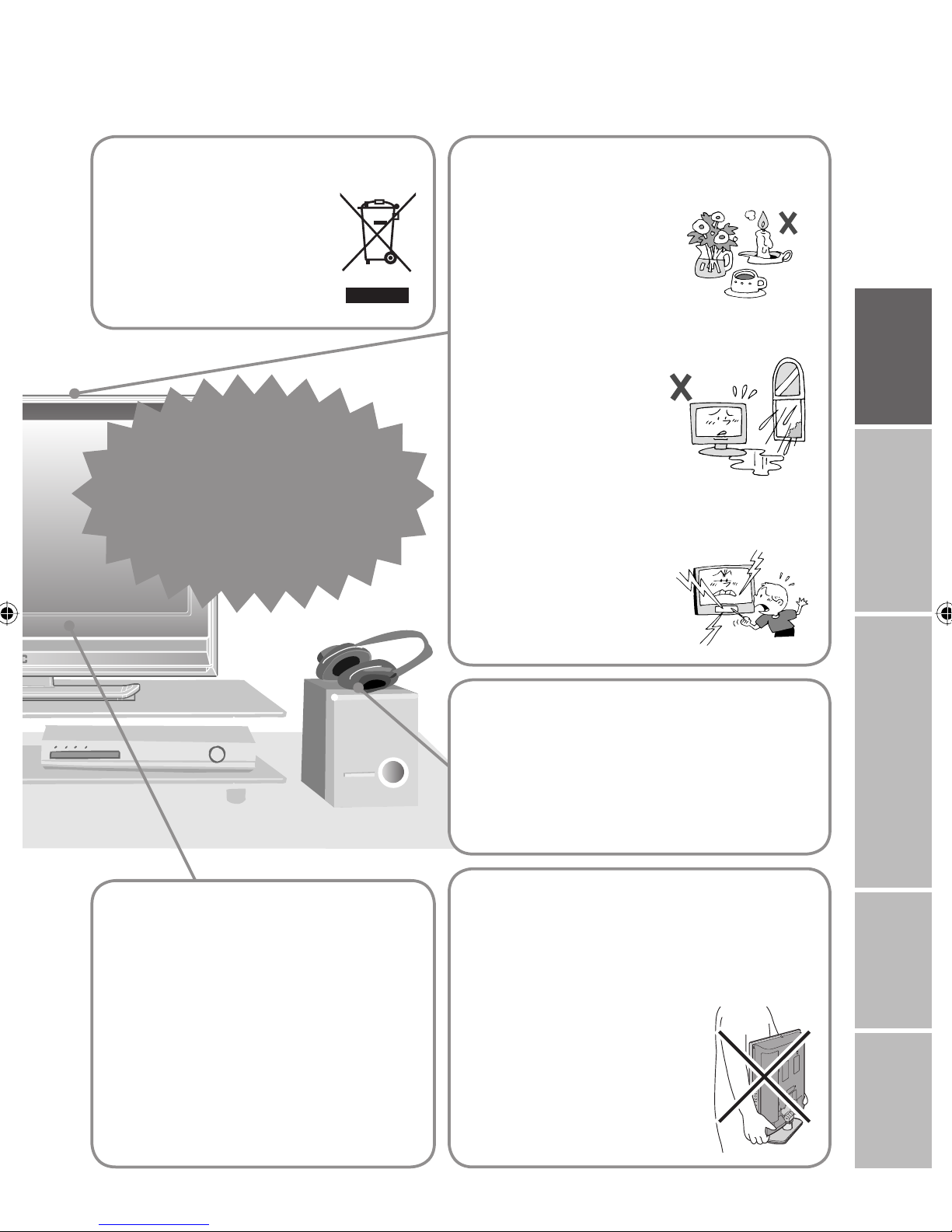

Warning



For more details on installation, usage and safety Consult your retailer

Please follow all the guidelines below

Unplug the power cord

when going out!



The power buttons on

the remote control and

the TV unit cannot

completely turn off the

TV. (Make appropriate

arrangements for

bedridden people.)



For more details on installation, usage and safety Consult your retailer

Make enough room for

inserting and removing

the power plug!

Place the TV as

close to the outlet as

possible!



The main power supply for this TV is

controlled by inserting or removing the

power plug.

Never cut or damage

the power cord!



If the AC plug is not the

right shape, or the power

cord is not long enough,

use an appropriate plug

adapter or extension cable.

(Consult your retailer.)



If you have cut or damaged the power cord.

“Technical information” (P. 48)



To change the fuse in UK plugs

“Technical information” (P. 48)

Follow this manual

regarding setup!



Connect only to a 220-240V, 50/60Hz

AC outlet.

When attaching the TV to

the wall, use the optional

JVC wall mounting unit!



Consult a qualiﬁed technician.



See the included manual on mounting

procedures.



JVC assumes no responsibility for

damage due to improper mounting.

Do not allow the TV

to fall!



Do not rest your elbows on, or allow

children to hang from the TV.

There is a risk that the TV will fall and

cause injuries.

LT-32&26DX7BJSJ.indb 4LT-32&26DX7BJSJ.indb 4 1/18/2006 4:18:55 PM1/18/2006 4:18:55 PM

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Never dismantle the

rear panel!



It may cause an electric shock.

Never obstruct the

ventilation holes!



It may cause overheating or a ﬁre.

Handle LCD panel

with care!



Use a soft, dry cloth when cleaning.

If the TV is damaged

or behaving strangely,

stop using it at once!

Unplug the power cord and contact

your retailer.

Never expose to rain or

moisture!



To prevent ﬁre or electric

shock, never allow

liquids to enter the unit.

Hold the TV so as not to

scratch the screen!



Do not touch the screen when carrying the

TV.

Do not carry the

TV on your own!



In order to prevent accidents,

ensure that the TV is carried

by two or more people.

Never listen to

headphones at high

volume!



It may damage your hearing.

Never place anything on

the TV!



Placing liquids, naked

ﬂames, cloths, paper,

etc. on the TV may

cause a ﬁre.

Never insert objects into

the cabinet openings!



It may cause a fatal

electric shock. Take care

when children are near.

On disposal of the

TV!



Follow the instruction in

“Information for Users on

Disposal of Old Equipment”

(P. 1).

LT-32&26DX7BJSJ.indb 5LT-32&26DX7BJSJ.indb 5 1/18/2006 4:18:55 PM1/18/2006 4:18:55 PM

Getting

started

TV/AV

/OK

Names of all the parts

Remote control sensor

Power lamp

ON: Lit (Green)

OFF: Unlit



Power lamp lights while

the TV is on.

“Power Lamp” (P. 35)

Illumination lamp



If the cover cannot be closed due to the cables being in the way

Do not force the cover to close (leave it open).



Connecting terminals on the back of the TV Connecting External devices (P. 10)



To remove the cable cover, refer to the included sheet.



Illumination lamp lights

while the TV is on.

“Illumination” (P. 35)

LT-26DX7BJ/SJ

Remove the terminal cover

Direction of TV Tidying the cables



To remove the cable cover, refer to the included sheet.

Change channel / page

Volume

Power On / Off

To headphones (P. 10)

Display on-screen

menu / set

Switch between

TV / AV devices

Press to

remove.

Cable cover

Press to

remove.

Cable cover

LT-32DX7BJ/SJ

LT-32&26DX7BJSJ.indb 6LT-32&26DX7BJSJ.indb 6 1/18/2006 4:18:55 PM1/18/2006 4:18:55 PM

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Turn on “3D Cinema Sound” (P. 20)

Take a snapshot

of the screen (P. 20)

View in multi-picture mode (P. 28)



When watching TV / Video

Change the aspect ratio (P. 20)



When operating a JVC VCR

or DVD (P. 26)



When choosing a favourite

channel (P. 29)

View subtitles (P. 20)

View the electronic

programme guide (EPG) (P. 22)



When watching DTV

when viewing teletext (P. 24)



When watching ATV (P. 16)

Remote control

(RM-C1905S)

Check accessories

To ATV / DTV

Power On / Off

Change channel / page

Watch video, etc. (P. 26)

Select and

conﬁrm settings in menus

To previous channel

Change channel / page

Switch between

“TV / VCR / DVR / DVD / HC” (P. 21)

Mute

Channel information

(P. 20)

Display on-screen menu (P. 34)

Colour buttons

Volume

To teletext (P. 24)

AAA/R03 Batteries

For conﬁrming

the TV works

Insert the batteries

Use two “AAA/R03” dry cell batteries. Insert the batteries from

the -end, making sure the +and -polarities are correct.



LT-26DX7BJ/SJ

To attach the stand, refer to the included sheet.

Body02_EN.indd 7Body02_EN.indd 7 1/24/2006 10:40:24 AM1/24/2006 10:40:24 AM

Basic connections

200mm

50mm150mm 150mm 50mm



Power requirements



Connect the power cord only to a 220-240V,

50/60Hz AC outlet.



When attaching the TV to the wall, use the

optional JVC wall mounting unit



Consult a qualiﬁed technician.



See the included manual on mounting procedures.



JVC assumes no responsibility for damage due to

improper mounting.



200mm × 200mm mount which conforms to VESA

standards.



Installation requirements



To avoid overheating, ensure the unit has ample

room.

Please read the user manuals of each device carefully before setup.

It is necessary to connect an aerial to watch TV.



Connect with other devices “Connecting external devices” (P. 10)

Care when setting

Connect the aerial



After all the connections have been made, insert the plug into an AC outlet.

AERIAL

LT-32&26DX7BJSJ.indb 8LT-32&26DX7BJSJ.indb 8 1/18/2006 4:19:02 PM1/18/2006 4:19:02 PM

CAM

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Watch pay-per-view

Contract with a broadcasting company beforehand.

1Unplug the power cord

2Insert the Viewing Card into the CAM.

3Insert the CAM.

4Plug the power cord, and turn the power on.



Set pay-per-view (P. 40)



The CAM and Viewing Card will be sent by the broadcasting

company after contracting with them.

VCR / DVD recorder



After all the connections have been made, insert the plug into an AC outlet.



Connect “T-V LINK” compatible recording device to “EXT-2”.



“T-V LINK” “What is “T-V LINK”?” (P. 12)

EXT-2

Connect a VCR / DVD recorder

AERIAL

EXT-1

Viewing

Card

Conditional

Access

Module

LT-32&26DX7BJSJ.indb 9LT-32&26DX7BJSJ.indb 9 1/18/2006 4:19:02 PM1/18/2006 4:19:02 PM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JVC Téléviseur LCD

JVC

JVC LT-Z26S2A Manuel utilisateur

JVC

JVC LT-46AM73 Manuel utilisateur

JVC

JVC LT-20B60SU Manuel utilisateur

JVC

JVC LT-55VAO9235 Manuel utilisateur

JVC

JVC LT-32DF7BC Manuel utilisateur

JVC

JVC LT-32A220 Manuel utilisateur

JVC

JVC DynaPix LT-47DV8BG Manuel utilisateur

JVC

JVC InteriArt LT-26A61SJ Manuel utilisateur

JVC

JVC Wide LCD Panel TV LT-26DA9BN Manuel utilisateur

JVC

JVC LT-23C88SJ Manuel utilisateur

JVC

JVC LT47XC58 Manuel utilisateur

JVC

JVC LT32A200 - 32" LCD TV Manuel utilisateur

JVC

JVC LT-26KM18/NSK Manuel utilisateur

JVC

JVC LT-26F80BU Manuel utilisateur

JVC

JVC LT-40V550 Manuel utilisateur

JVC

JVC Roku TV LT-43MAW804 Manuel utilisateur

JVC

JVC LT-32DE9BJ Manuel utilisateur

JVC

JVC InteriArt LT-26D50BJ Manuel utilisateur

JVC

JVC LT-26C50BU Manuel utilisateur

JVC

JVC LT - 32BX18 Manuel utilisateur

JVC

JVC LT-40MAT588 Manuel utilisateur

JVC

JVC LT-42PM30 Manuel utilisateur

JVC

JVC LT-Z26SX4B Manuel utilisateur

JVC

JVC LT-26S60SU Manuel utilisateur

Manuels Téléviseur LCD populaires d'autres marques

LG 32LC4R* Manuel utilisateur

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manuel utilisateur

Salora

Salora 22LED1600 Manuel utilisateur

Samsung

Samsung LA32E420 Mode d’emploi

Dell

Dell W1900 19 Instructions d'utilisation

Samsung

Samsung LN40C670M1F Manuel utilisateur

Samsung

Samsung Series 4+ Manuel utilisateur

Samsung

Samsung 5 Series Manuel utilisateur

Grundig

Grundig 40 VLE 8230 BP Manuel utilisateur

Philips

Philips 43PFL4901/F7 Manuel utilisateur

Sony

Sony Bravia XBR-43X830C Manuel utilisateur

LG 32LS350 Manuel utilisateur

VIORE

VIORE LED32VF60 Manuel utilisateur

Toshiba

Toshiba Regza 42HL167 Manuel utilisateur

Philips

Philips 20TA1000/93 Manuel utilisateur

Philips

Philips 32PFL3158T/12 Manuel utilisateur

Sony

Sony Bravia KDL-V32XBR2 Manuel utilisateur

Vizio

Vizio VP422HDTV10A - 42" Plasma TV Manuel utilisateur
