JVC LT-37DM6ZJ Manuel utilisateur
LT-37DM6ZJ
WIDE LCD PANEL TV INSTRUCTIONS
LCT1951-001A-U
Trade Mark of the DVB Digital Video Broadcasting
Project (1991 to 1996) Number : 3716
LT-37DM6ZJ.indb Cover2LT-37DM6ZJ.indb Cover2 9/13/2005 1:16:40 PM9/13/2005 1:16:40 PM
2
Expanding the world of
LT-37DM6ZJ.indb 2LT-37DM6ZJ.indb 2 9/13/2005 1:16:41 PM9/13/2005 1:16:41 PM
3
IMPORTANT! PREPARE USE
SETTINGS
TROUBLE?
Enjoy rich multi-media with JVC
VHF / UHF / DVB-T broadcasting
Digital camera
Video camera
Game console
Audio components
VCR DVD player
DVD recorder
Contents
First things first!
Personal
computer
Warning 4
Getting started
Names of all the parts
Basic connections
Connecting external devices
Initial settings
Editing DTV channels
Editing ATV channels
6
8
10
12
14
16
· TV / Teletext / EPG / Video / Menu
Let's try it out
Enjoying your new TV! 18
Watching TV
Using EPG
Viewing teletext
Watching videos / DVDs
Using a media card
· Multi-picture / Favourite channel
· Sleep timer / Child lock
Try the advanced features
Useful functions 32
·
Reduce noise / Watch a more natural picture
· Set the aspect ratio, etc.
Just the way you like it
Customising your TV
Using DTV
Advanced picture adjustment
36
38
44
When you have trouble
Troubleshooting
CH/CC List
Technical information
Specifications
46
49
50
51
20
22
24
26
28
beautiful images
*In this manual,
ATV : analogue terrestrial broadcasting (VHF/UHF)
DTV : digital terrestrial broadcasting (DVB-T)
Media Cards
LT-37DM6ZJ.indb 3LT-37DM6ZJ.indb 3 9/13/2005 1:16:41 PM9/13/2005 1:16:41 PM
4
Never cut or damage
the power cord!
Unplug the power cord
when going out!
Never insert objects
into the cabinet
openings!
Never place anything
on the TV!
Never try to repair
the TV yourself!
Please follow all the guidelines below
Warning
For more details on installation, usage and safety Consult your retailer
If the AC plug is not the right shape,
or the power cord is not long enough,
use an appropriate plug adapter
or extension cable.
(Consult your retailer.)
The power buttons on
the remote control and
the TV unit can not
completely turn off the
TV. (Make appropriate
arrangements for
bedridden people.)
It may cause a
fatal electric
shock.
Take care when
children are near.
Placing liquids, naked
flames, cloths, paper,
etc. on the TV may
cause a fire.
If the problem cannot be solved in
"Troubleshooting" (P. 42), unplug
the power cord and contact
your retailer.
If you have cut or damaged the power cord.
"Technical information" (P. 46)
To change the fuse in UK plugs
"Technical information" (P. 46)
Follow this manual
regarding setup!
Connect only to a 110-240V, 50/60Hz AC
outlet.
LT-37DM6ZJ.indb 4LT-37DM6ZJ.indb 4 9/13/2005 1:16:42 PM9/13/2005 1:16:42 PM
5
IMPORTANT! PREPARE USE
SETTINGS
TROUBLE?
If the TV is damaged
or behaving strangely,
stop using it at once!
Unplug the power cord and
contact your retailer.
It may cause an electric shock.
Never obstruct the
ventilation holes!
It may cause overheating or a fire.
Handle LCD panel
with care!
Use a soft, dry cloth when cleaning.
Never expose to rain
or moisture!
To prevent fire or
electric shock, never
allow liquids to enter
the unit.
Hold the TV so as not to
scratch the screen!
Do not touch the screen when carrying the
TV.
Do not carry the
TV on your own!
In order to prevent accidents,
ensure that the TV is carried
by two or more people.
Consult a qualified technician.
See the included manual on mounting
procedures.
JVC assumes no responsibility for damage
due to improper mounting.
When attaching the TV to
the wall, use the optional
JVC wall mounting unit!
Do not allow the TV
to fall!
Do not rest your elbows on, or allow children
to hang from the TV.
There is a risk that the TV will fall and cause
injuries.
Never listen to
headphones at high
volume!
It may damage your hearing.
Never dismantle the
rear panel!
LT-37DM6ZJ.indb 5LT-37DM6ZJ.indb 5 9/13/2005 1:16:42 PM9/13/2005 1:16:42 PM
6

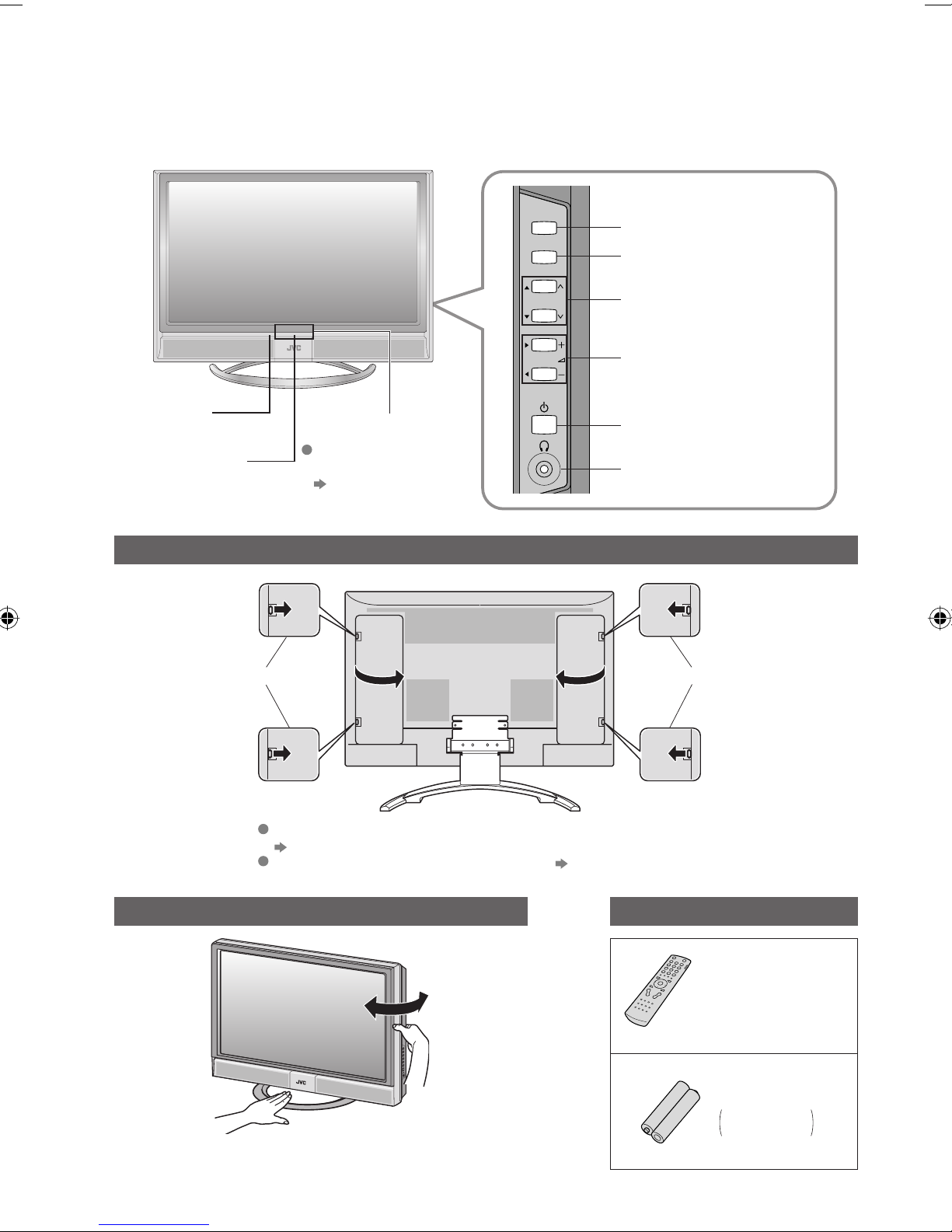

Check accessories
Remove the terminal covers
Change the direction of TV
P
MENU
/OK
TV/AV
Remote control
(RM-C1813H)
Change channel / page
Volume
Names of all the parts
AA/R6 Batteries
For confirming
the TV works
Power On/Off
To headphones
Display on-screen
menu / set
Switch between
TV / AV devices
(P. 10)
If the cover cannot be closed due to the cables being in the way
Do not force the cover to close (leave it open).
Connecting terminals on the back of the TV Connecting External devices (P. 10)
Remote control
sensor
Power lamp
ON: Lit (Green)
OFF: Unlit
Illumination lamp
Illumination lamp lights
while the TV is on.
“ILLUMINATION” (P.37)
Press to remove. Press to remove.
LT-37DM6ZJ.indb 6LT-37DM6ZJ.indb 6 9/13/2005 1:16:43 PM9/13/2005 1:16:43 PM
7
START
OK
> COUNTRY
IMPORTANT! PREPARE USE
SETTINGS
TROUBLE?
Change the aspect ratio (P. 20)
Turn on 3D sound (P. 20)
Take a snapshot
of the screen (P. 20)
View in multi-picture mode (P. 32)
View subtitles (P. 20)
View the electronic
programme guide (EPG)(P. 22)
To ATV/DTV
Power On/Off
Change the channel/page
Watch video, etc. (P. 26)
Select and
confirm settings in menus
To the previous channel
To teletext (P. 24)
Volume
Change the channel/page
Switch between VCR/TV/DVD
(P. 26)
When operating a JVC VCR
or DVD (P. 26)
When watching TV/Video
Mute
Insert the batteries
Use two AA/R6 dry cell batteries.
Insert the batteries from the - end, making
sure the and polarities are correct.
Channel information
(P. 20)
To menu (P. 36)
Follow on-screen instructions.
Follow instructions
in on-screen guides.
Other uses
The coloured buttons can perform different
functions according to the situation.
When watching DTV
when viewing teletext (P. 24)
(P. 16)
When watching ATV
When choosing a favourite
channel (P. 33)
(P. 24)
When viewing teletext
LT-37DM6ZJ.indb 7LT-37DM6ZJ.indb 7 9/13/2005 1:16:43 PM9/13/2005 1:16:43 PM
8
Care when setting
Connect the aerial
Basic connections
Please read the user manuals of each device carefully before setup.
It is necessary to connect an aerial to watch TV.
Connect with other devices "Connecting external devices" (P. 10)
200mm
50mm150mm 150mm 50mm
Power requirements
Connect the power cord only to a 110-240V,
50/60Hz AC outlet.
When attaching the TV to the wall, use the
optional JVC wall mounting unit
Consult a qualified technician.
See the included manual on mounting procedures.
JVC assumes no responsibility for damage due to
improper mounting.
Installation requirements
To avoid overheating, ensure the unit has ample
room.
Right side of back surface
After all the connections have been made, insert the plug into an AC outlet.
AERIAL
LT-37DM6ZJ.indb 8LT-37DM6ZJ.indb 8 9/13/2005 1:16:44 PM9/13/2005 1:16:44 PM
9
Watch pay-per-view
IMPORTANT! PREPARE USE
SETTINGS
TROUBLE?
Connect a VCR / DVD recorder AERIAL
VCR / DVD recorder
EXT-1
After all the connections have been made, insert the plug into an AC outlet.
Connect T-V LINK compatible recording device to EXT-2.
T-V LINK "What is T-V LINK?" (P. 12)
EXT-2
Right side of
back surface
Left side of
back surface
Insert the CAM.
The CAM and Viewing Card will be sent by the broadcasting
company after contracting with them.
Contract with a broadcasting company beforehand.
Insert the Viewing Card into the CAM.
Plug the power cord, and turn the power on.
Unplug the power cord
Set pay-per-view (P. 42) Viewing
Card
Conditional
Access
Module
LT-37DM6ZJ.indb 9LT-37DM6ZJ.indb 9 9/13/2005 1:16:44 PM9/13/2005 1:16:44 PM
10
Connecting external devices
You can connect many different devices to the rear panel of the TV.
Please read the user manuals of each device before setting up.
(Connecting cables are not supplied with this TV.)
Amplifier
(L) (R)
VCR / DVD recorder
(T-V LINK compatible)
AUDIO
OUT
Satellite broadcast tuner
Game consoles
Check for PC compatibility
"Technical information" (P. 50)
DVD player
PC IN
PC
Video camera
EXT-1
EXT-2
(T-V LINK)
EXT-3
EXT-4
(Y)
(Pb)
(L)
(L)
(L)
To EXT-3 R/L (PC IN)
Headphones
(Pr)
(R)
(R)
(R)
Headphones
LT-37DM6ZJ.indb 10LT-37DM6ZJ.indb 10 9/13/2005 1:16:44 PM9/13/2005 1:16:44 PM
