JVC DR-MX1SEF Manuel utilisateur

DR-MX1S

IS HERE TO HELP!

TOLL FREE: 1(800)252-5722

http://www.jvc.com

QUICK

START

GUIDE

QUICK

START

GUIDE

QUICK

START

GUIDE

Check Accessories

RF cable

Audio/Video cable

“AA“ battery x 2

(For remote control)

STANDBY/ ON VHS/HDD/DVD

S-VIDEO VIDEO

(MONO)

LAUDIO R VRS HDD DVD

DV IN

DISPLAY

SELECT

VHS TIMER REC MODE

HDD/DVD

RAM/RW

Remote

control

VHSHDDDVD

DVD

CABLE/DBS

DVD

AUSE

REC

REC MODE

REMAIN

DISPLAY

ON SCREEN

SLOW

SLOWPLAY/SELECT

STOP/

CLEAR

NAVIGATION

TOPMENU

RETURN

ENTER

TV/CBL/DBS

STANDBY/ON

VHS

TIMER

TV/

VIDEO

TV VOLUME

AUX

CANCEL

MEMO/MARK

PROGRAM

EDIT

DUBBING

TVMUTING

LIVE

JUMP

SET UP

REC LINK

AUDIO

SUBTITLE

ANGLE

LIVE CHECK

PROGRESSIVE

SCAN

LPT0975-005A

0305MNH-SW-BJ

Satellite Controller

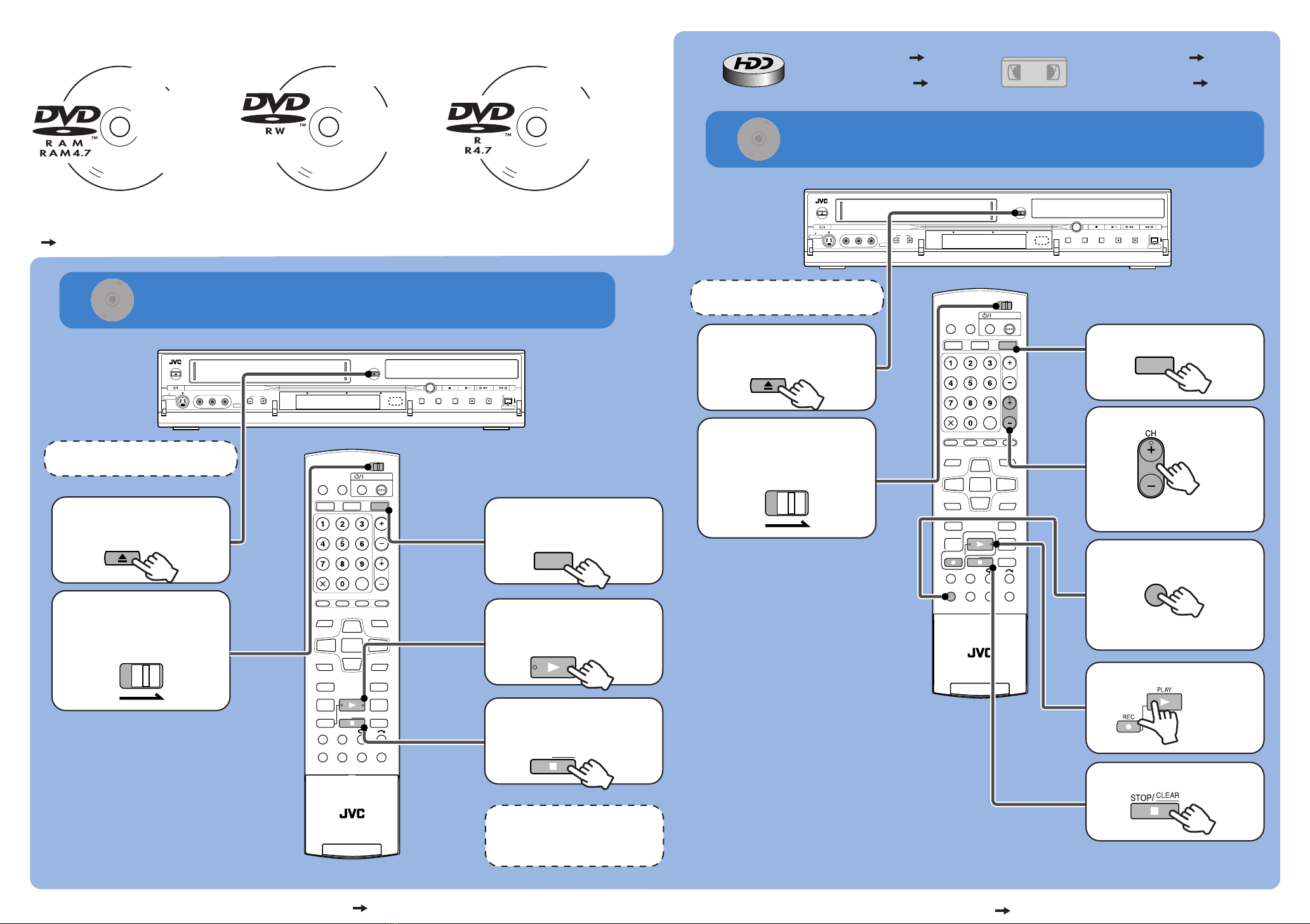

BASIC RECORDING

BASIC PLAYBACK

For more information, see the instruction manual. ( pg. 41, "Basic Recording")

NOTE:

When you use a DVD-RW disc, format it in "VR MODE" or "VIDEO MODE".

( pg. 87, "Format A Disc")

Editing or Live

Memory Playback

is possible.

Can be rewritten

100,000 times.

Can be rewritten

1,000 times.

Playable on

other DVD players

or PCs

(after finalized).

Recordable Discs

DVD-RAM DVD-RW DVD-R

For more information, see the instruction manual. ( pg. 27, "Basic Playback")

DVD

PLAY/SELECT

STOP/

CLEAR

DVD

PLAY/SELECT

REC

REC MODE

OP/

CLEAR

Select TV input/channel first.

Select DVD

Start Playback

Stop Playback

NOTE:

DVD disc must be finalized to play

on most DVD players.

(pg.88,"Finalize A Disc")

STOP/

CLEAR

PLAY/SELECT

DVD

1Insert a disc

Select TV input/channel first.

DVD

Basic Playback ( pg. 50)

Basic Recording ( pg. 53)

VHS

Basic Playback ( pg. 46)

Basic Recording ( pg. 44)

Select Channel/

Input

For cable box or DBS receiver users,

see page 24 on the instruction manual.

Select Mode

For the recording mode, see page 41

on the instruction manual.

Stop Recording

REC MODE

While holding

REC, press PLAY

Start Recording

DVD

CABLE/DBS

DVD

CABLE/DBS

2Slide the switch

to DVD

DVD

CABLE/DBS

1Insert a disc

2Slide the switch

to DVD

Select DVD

DVD

CABLE/DBS

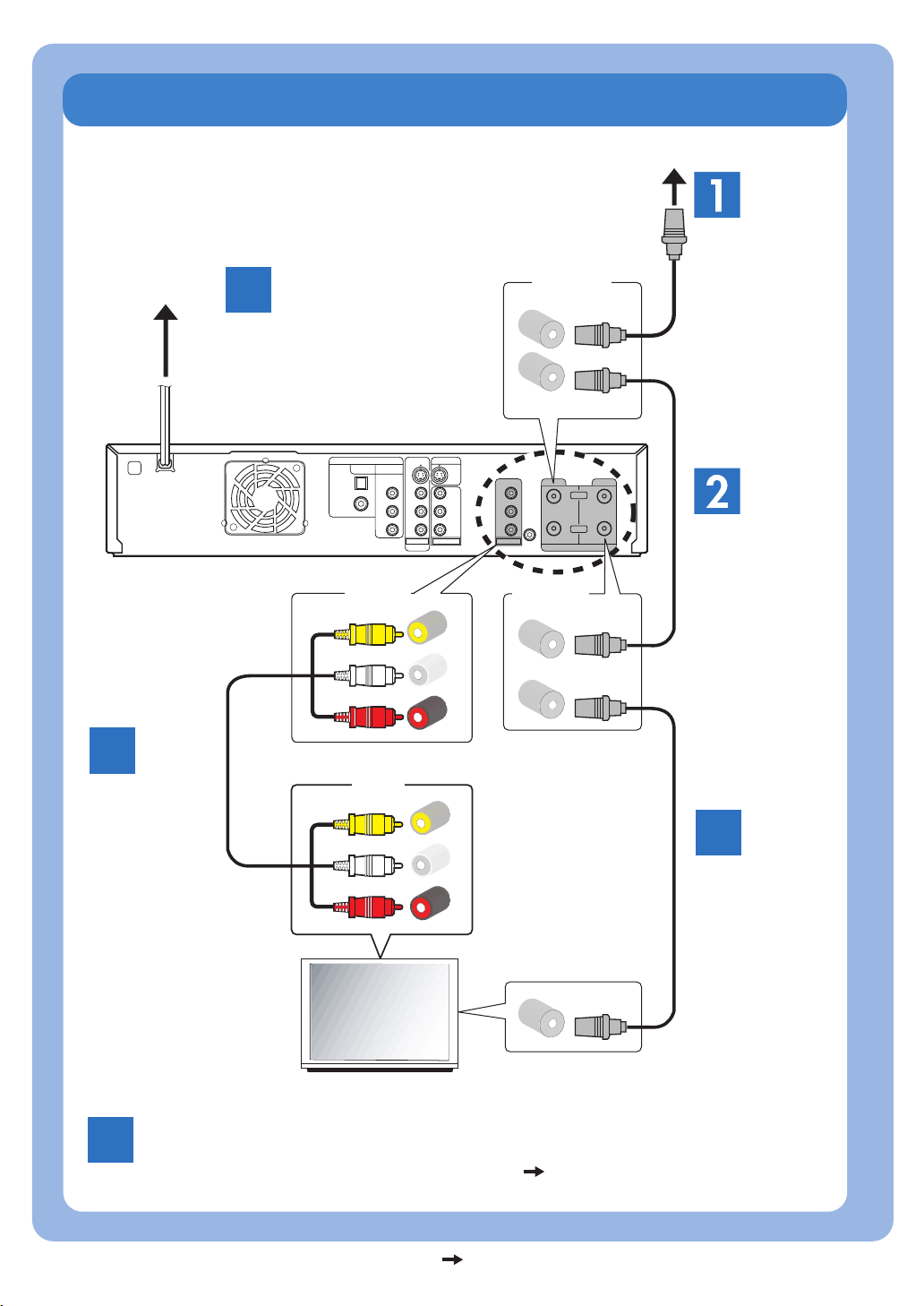

Connection Without Cable Box Or DBS Receiver

Back of unit

AC outlet

IN (VHS)

TV OUT

VHF / UHF

Plug to the

AC outlet.

RF cable

(not supplied)

Connect

your TV.

Audio/Video

cable

(supplied)

Antenna or cable

Connect

the aerial.

RF cable

(not supplied)

IN (HDD/DVD)

ANT. LOOP OUT

VHF / UHF

RF cable

(supplied)

Video

Audio (L)

Audio (R)

Video

Audio (L)

Audio (R)

OUTPUT

INPUT

With antenna or cable (no cable box), wait for clock and

channels to be set automatically.( pg. 20, “Plug & Play Set”)

For more information, see the instruction manual. ( pg. 19, "Basic Connections")

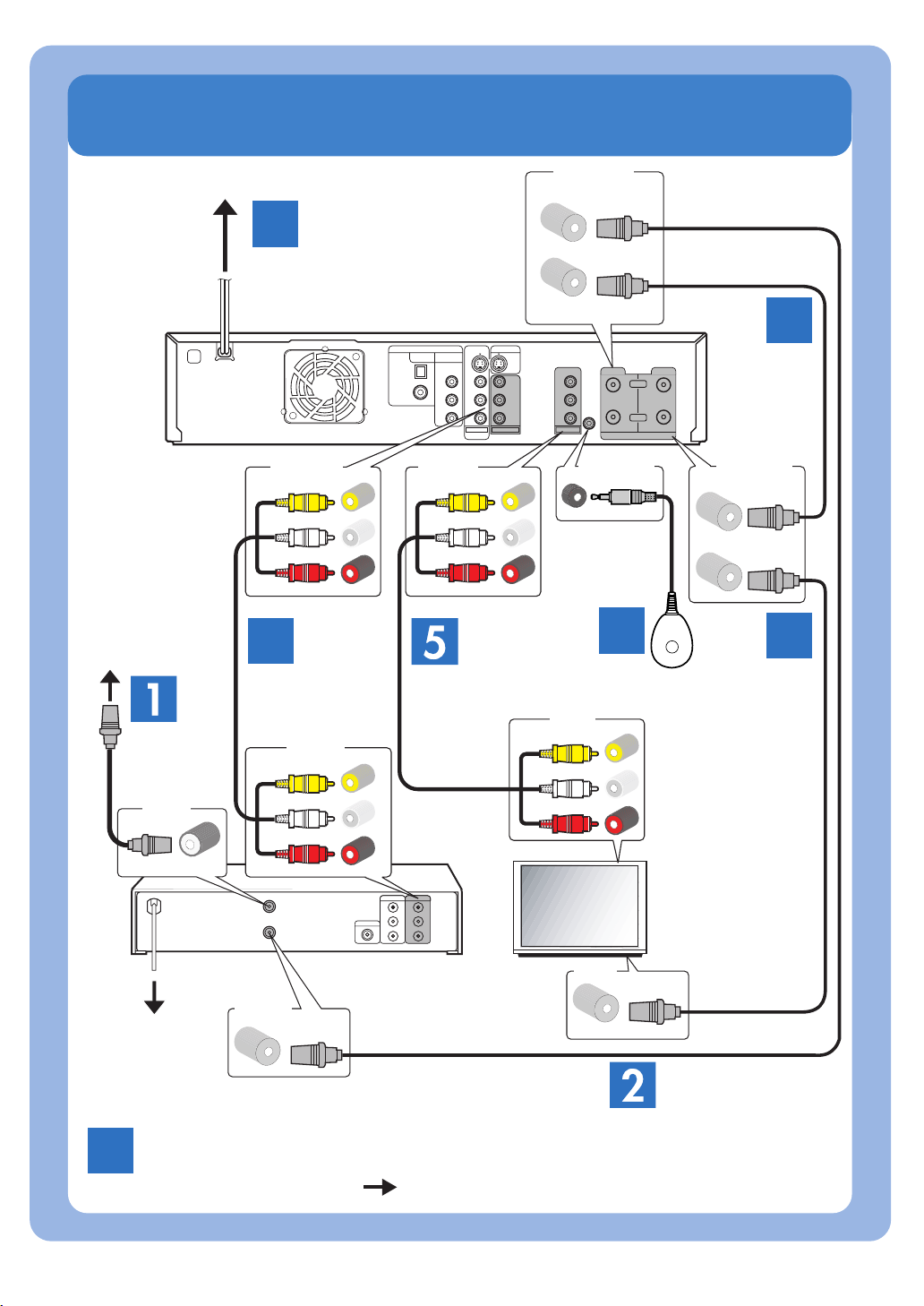

Connection With Cable Box Or DBS Receiver

(When your TV has only audio/video connectors)

With antenna or cable, wait for clock and channels to be

set automatically.( pg. 20, “Plug & Play Set”)

Back of

unit

AC outlet

Cable box or

DBS receiver

RF IN

IN (VHS)

TV OUT

VHF / UHF

IN (HDD/DVD)

ANT. LOOP OUT

VHF / UHF

RF cable

(supplied)

RF cable

(not

supplied)

RF cable

(not supplied)

Audio/Video cable

(supplied)

Satellite

Controller

(supplied)

Audio/Video

cable

(not supplied)

OUTPUT CABLE BOX

INPUT

Video

Audio (L)

Audio (R)

Video

Audio (L)

Audio (R)

INPUT L-1

OUTPUT

Video

Audio (L)

Audio (R)

Video

Audio (L)

Audio (R)

Antenna

or cable

RF cable

(not

supplied)

RF IN

RF OUT

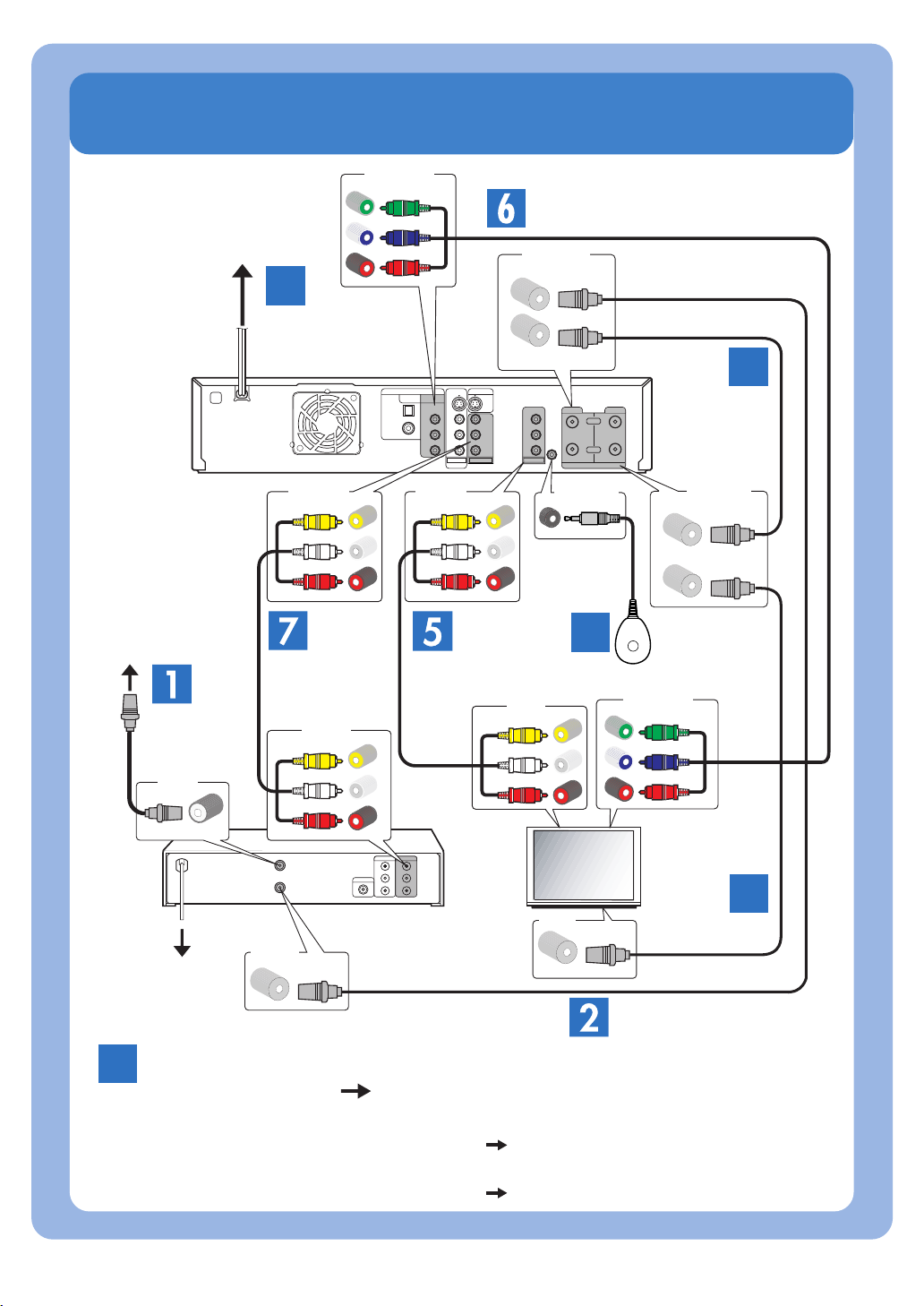

Connection With Cable Box Or DBS Receiver

(When your TV has component video connectors)

Back of unit

AC outlet

Cable box or

DBS receiver

RF IN

VIDEO OUT

COMPONENT

VIDEO INPUT

IN (VHS)

TV OUT

VHF / UHF

IN (HDD/DVD)

ANT. LOOP OUT

VHF / UHF

RF cable

(supplied)

Component Video cable

(not supplied)

RF cable

(not supplied)

RF cable

(not supplied)

Audio/Video cable

(supplied)

Audio/Video

cable

(not supplied)

OUTPUT

INPUT

Video

Audio (L)

Audio (R)

Video

Audio (L)

Audio (R)

INPUT L-1

OUTPUT

Video

Audio (L)

Audio (R)

Video

Audio (L)

Audio (R)

Antenna

or cable

RF cable

(not

supplied)

RF IN

RF OUT

NOTES : ・

When watching the images on the HDD/DVD deck with this connection,

set to the progressive scan mode.( pg. 83, "Scan Mode Set")

・

When watching the images on the VHS deck with this connection,

set to the progressive scan mode.( pg. 52, "VHS Progressive Scan")

With antenna or cable, wait for clock and channels to be

set automatically.( pg. 20 , “Plug & Play Set”)

Satellite

Controller

(supplied)

CABLE BOX
