JVC DR-MV5BEU Manuel utilisateur

“AA”battery x 2

(For remote control)

Check Accessories

Connection Without Cable Box Or DBS Receiver

AC outlet

Antenna or cable

Connect

the arial.

Plug to the

AC outlet.

With antenna or cable (no cable box), wait for clock and

channels to be set automatically. ( pg. 19, “Plug & Play Set”)

Connect your TV.

DR-MV5S

Remote control

RF cable

Audio/video cable

IS HERE TO HELP!

TOLL FREE: 1(800)252-5722

http://www.jvc.com

QUICK

START

GUIDE

For more information, see the instruction manual. (Zpg. 16, “Composite Connection (Without

Cable Box Or DBS Receiver)”)

LPT1032-003A

0205TYH-AL-BJ

Back of unit

Video

Audio (L)

Audio (R)

Video

Audio (L)

Audio (R)

OUT

VHF/UHF

OUTPUT

(DVD/VCR)

INPUT

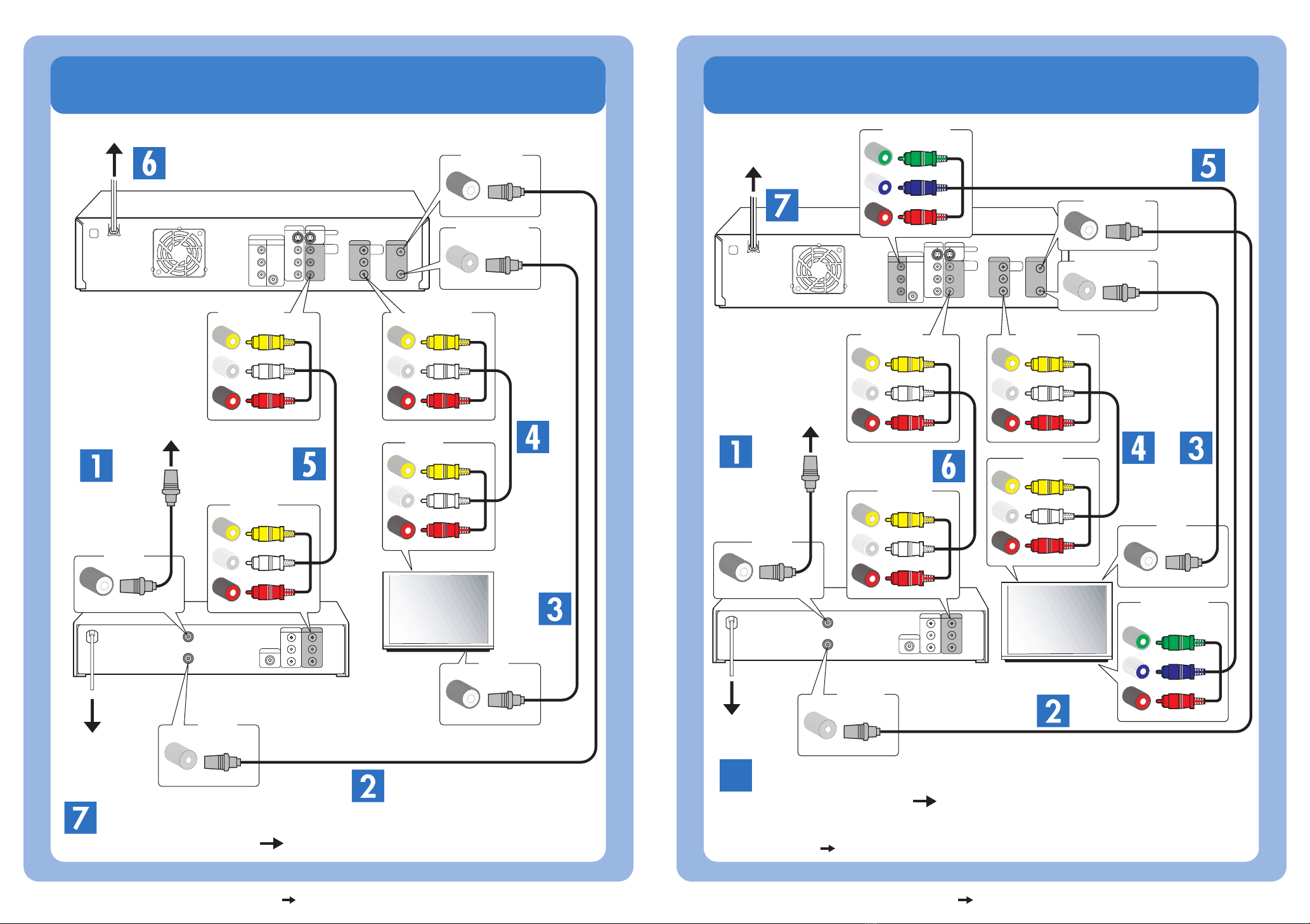

Connection With Cable Box Or DBS Receiver

(When your TV has only audio/video connectors)

TV TV

Back of unit

Connection With Cable Box Or DBS Receiver

(When your TV has component video connectors)

With antenna or cable, wait for clock and channels to be

set automatically. (Zpg. 19, “Plug & Play Set”)

AC outlet

Antenna

or cable

Connect

the arial.

For more information, see the instruction manual. (Zpg. 18, “Component Video Connection”)

For more information, see the instruction manual. (Zpg. 17, “Composite Connection (With Cable Box Or DBS Receiver)”)

NOTE: When watching the images on the VHS deck with this connection, set to the progressive

scan mode. (Zpg. 58, “VHS Progressive Scan”)

Cable box or

DBS receiver

AC outlet

Antenna

or cable

Component video cable

Connect

the arial.

Cable box or

DBS receiver

With antenna or cable, wait for clock and channels to be

set automatically. (Zpg. 19, “Plug & Play Set”)

RF OUT

VHF/UHF OUT

VHF/UHF IN

RF IN

INPUT

(DVD/VCR)

Video

Audio (L)

Audio (R)

OUTPUT

Video

Audio (L)

Audio (R)

INPUT

Video

Audio (L)

Audio (R)

OUTPUT

(DVD/VCR)

Video

Audio (L)

Audio (R)

RF OUT

Video

Audio (L)

Audio (R)

OUTPUT

Video

Audio (L)

Audio (R)

INPUT

Video

Audio (L)

Audio (R)

Video

Audio (L)

Audio (R)

COMPONENT

VIDEO OUT

COMPONENT

VIDEO INPUT

RF IN

INPUT

(DVD/VCR)

OUTPUT

(DVD/VCR)

VHF/UHF OUT

VHF/UHF IN

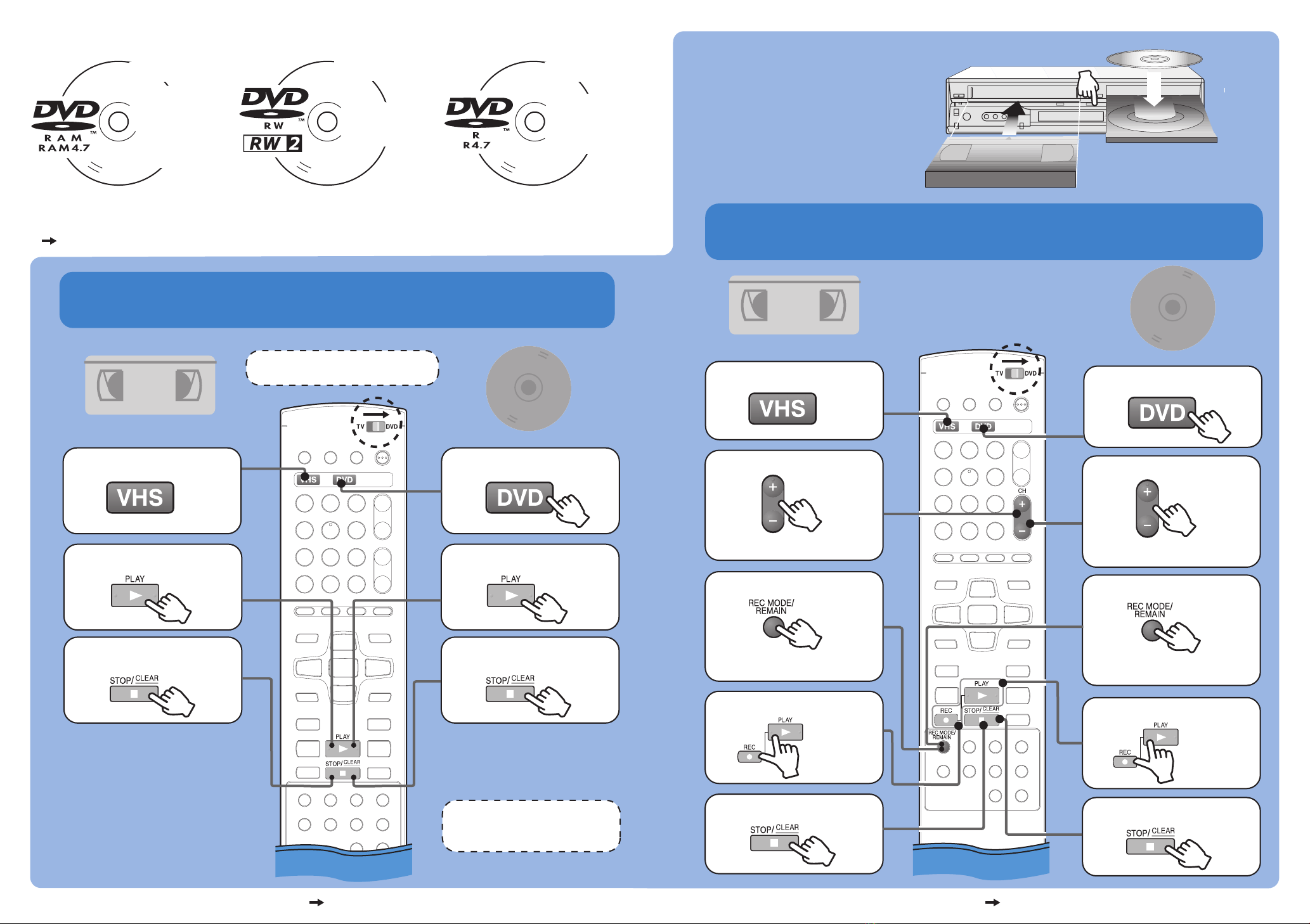

You can dub an entire cassette on a disc will ????. Blank parts are automatically cut.)

Select DVD

Select Channel/

Input

Select Mode

(Tape Speed)

Start Recording

While holding

REC, press PLAY While holding

REC, press PLAY

Stop Recording

Select VHS

Select Mode

Start Recording

Stop Recording

BASIC RECORDING

BASIC PLAYBACK

VHS/DV D

DVDVHS REC

VHS DVDDUBBING

DV IN

STANDBY/ON

S-VIDEO VIDEO AUDIO

Inserting Disc

or Cassette

Editing or Live

Memory Playback

is possible.

Can be rewritten

100,000 times.

Can be rewritten

1,000 times.

Playable on

other DVD players

or PCs

(after finalized).

Press twice

DVD

VHS

Recordable Discs

Select Channel/

Input

For cable box or DBS receiver users,

see page 30 on the instruction manual.

Select TV input/channel first.

For more information, see the instruction manual. (Zpg. 28 – 30, “Basic Recording”)For more information, see the instruction manual. (Zpg. 26, 27, “Basic Playback”)

Select DVD

Select VHS

NOTE:

When you use a DVD-RW disc, format it in "VR MODE" or "VIDEO MODE".

( pg. 78, "Format A Disc")

Start Playback

Stop Playback

Start Playback

Stop Playback

DVD

VHS

NOTE:

DVD disc must be finalized to play

on most DVD players.

DVD-RAM DVD-RW DVD-R

For cable box or DBS receiver users,

see page 28 on the instruction manual.

For the recording mode, see page 29

on the instruction manual.

For the recording mode, see page 30

on the instruction manual.

Start Dubbing

Stop Dubbing

One-Touch Expert Dubbing (VHS to DVD)

VHSVHS

Insert Blank Disc

and Cassette

Press more than 2 sec.

DVD

VHS

DVDVHS

VHSVHS DUBBINGDUBBING

For more information, see the instruction manual. (Zpg. 37, “One-Touch Expert Dubbing”)

VHS/DVD

DVDVHS REC

VHS DVDDUBBING

DV IN

STANDBY/ON

S-VIDEO VIDEO AUDIO

(Tape will automatically rewind to

beginning.)

You can dub an entire cassette on a disc with the best image quality.

(Blank parts are automatically cut.)
