JVC DR-M70SU Manuel utilisateur

RM-SDR053U

DVDRECORDER

REMOTE CONTROL

OPEN/

SETUP

ANDBY/ON

REPEA

ZOOM

RETURN

MENU/LIST

TOPMENU

CLEARAUDIO

PLAY

SLOWSLOW

AUSE

RECSTOP

VCRPlus+

PROG

ONSCREEN

ABC

.@/: DEF

JKL

GHI MNO

TUV

PQRSWXYZ

ENTER

REC

SPEEDREC

MONITOR

ANTENNA

AUDIO IN

VIDEO IN

AUDIO OUT

VIDEO OUT

(L1)

OUT

S-VIDEO

COMPONENT

VIDEO OUTPUT

DIGITAL AUDIO OUTPUT

PCM / BITSTREAM

COAXIAL

OUT

ANTENNA

INPUT

OUTPUT

VIDEO

AUDIO-R

AUDIO-L

VIDEO

AUDIO-R

AUDIO-L

QUICK

START

GUIDE

DR-M70SU

IS HERE TO HELP!

TOLL FREE: 1(800)252-5722

http://www.jvc.com

Check Accessories

Connection Without Cable Box Or Satellite Box

Remote control

AC outlet

Back of unit

Antenna or cable

Plug to the AC outlet.

Turn on the power of all the units. Select an appropriate external input

on your TV. (Refer to page 13,“After you have completed connections”)

For more information, see the instruction manual.

(

Refer to page

13,“Connection to a TV”)

Connect

the aerial.

Connect your TV.

RF cable

Audio/Video cable

“AA” batery x 2

(For remote control)

LPT1079-003A

0805TNH-FN-FN

E6750UD QG/

1VMN21327 ★★★★★

E6750UD_QG1.qxd 05.7.11 1:40 PM Page 1

ANTENNA

AUDIO IN

VIDEO IN

AUDIO OUT

VIDEO OUT

(L1)

OUT

S-VIDEO

COMPONENT

VIDEO OUTPUT

DIGITAL AUDIO OUTPUT

PCM / BITSTREAM

COAXIAL

RF IN

OUT

ANTENNA

INPUT

OUTPUT

VIDEO

AUDIO-R

AUDIO-L

INPUT

VIDEO

AUDIO-R

AUDIO-L

OUTPUT

VIDEO

AUDIO-R

AUDIO-L

VIDEO

AUDIO-R

AUDIO-L

RF OUT

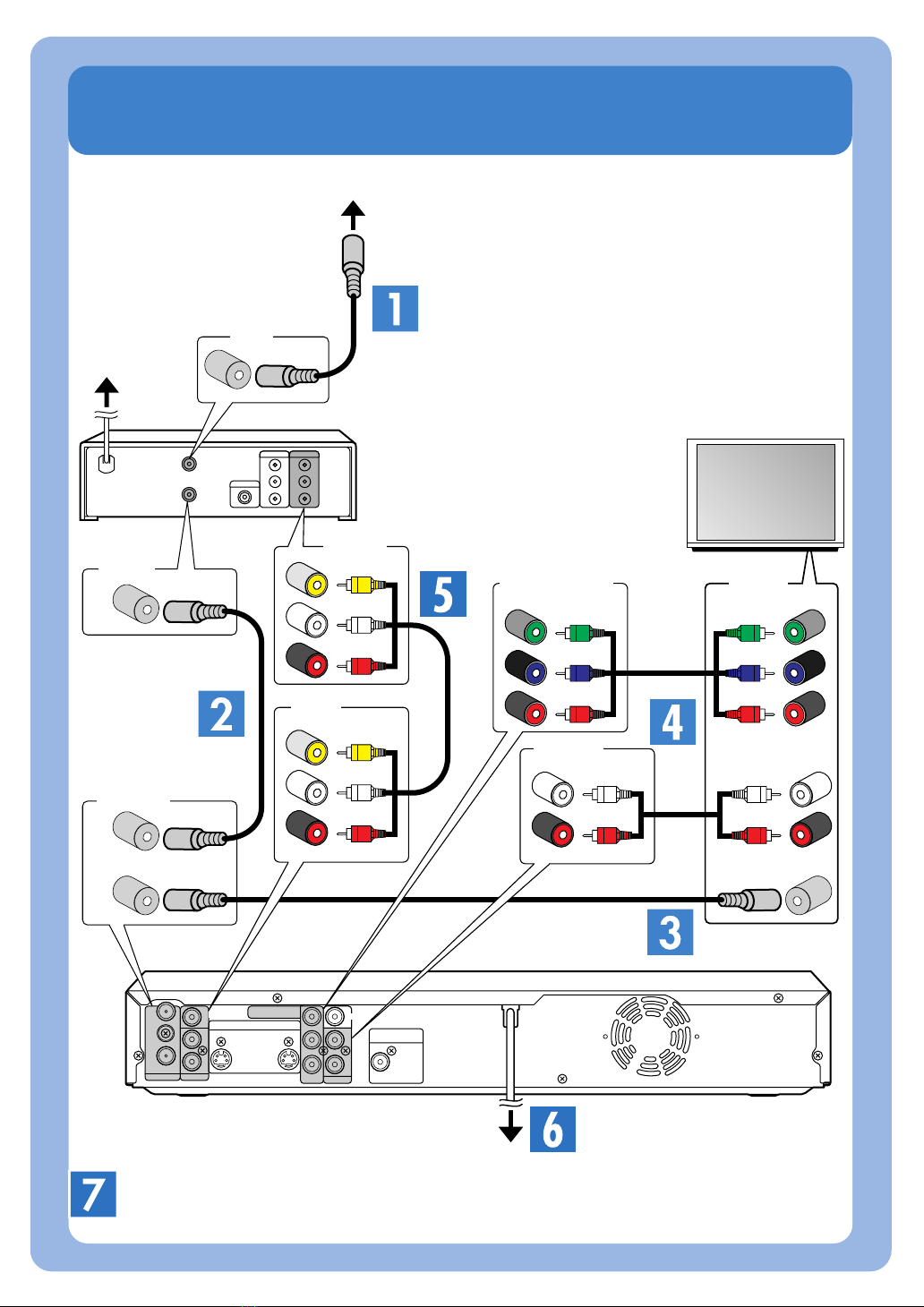

Connection With Cable Box Or Satellite Box

(When your TV has only audio/video connectors)

Connect the aerial.

AC outlet

Antenna or cable

Back of unit

Cable box or

Satellite box

Turn on the power of all the units. Select an appropriate external input

on your TV. (Refer to page 13,“After you have completed connections”)

E6750UD_QG1.qxd 05.7.11 1:40 PM Page 2

ANTENNA

AUDIO IN

VIDEO IN

AUDIO OUT

VIDEO OUT

(L1)

OUT

S-VIDEO

COMPONENT

VIDEO OUTPUT

DIGITAL AUDIO OUTPUT

PCM / BITSTREAM

COAXIAL

RF IN

OUT

ANTENNA

INPUT

AUDIO

OUTPUT

COMPONENT

VIDEO OUTPUT

AUDIO-R

AUDIO-L

INPUT

VIDEO

AUDIO-R

AUDIO-L

OUTPUT

VIDEO

AUDIO-R

AUDIO-L

AUDIO-R

AUDIO-L

RF OUT

PR/CR

PB/CB

PR/CR

PB/CB

Connection With Cable Box Or Satellite Box

(When your TV has component video connectors)

Connect the aerial.

AC outlet

Antenna or cable

Back of unit

Cable box or

Satellite box

Turn on the power of all the units. Select an appropriate external input

on your TV. (Refer to page 13,“After you have completed connections”)

E6750UD_QG1.qxd 05.7.11 1:40 PM Page 3

Recordable Discs

Can be rewritten

1,000 times.

Playable on

other DVD players

or PCs

(after finalized).

DVD-RW DVD-R

NOTE:

• When you use a DVD-RW disc, format it in “VR MODE” or “VIDEO MODE”.

(Refer to page 28,“Formatting a disc”)

• You cannot record on a DVD+RW/+R/-RAM disc.

•

To play back a recoreded disc with other DVD player, select Video mode (Refer to page 28).

• To play back a recoreded disc with other DVD player, it is necessary to finalize the disc

after finished recording (Refer to page 40).

PL AY

REC STOP

REC

SPEED

OPEN/

PL AY

STOP

OPEN/

REC

SPEED

REC

STOP

BASIC PLAYBACK

BASIC RECORDING

Insert

Playable Disc

Insert Recordable

Disc

Select

Channel/Input

Select

Rec Speed

Start Recording

Stop Recording

For the recording speed, see

page 26 on the instruction

manual.

Start Playback

Stop Playback

For more information, see the instruction manual. (Refer to page 31,“Basic recording” and

43-46 “Basic playback”)

E6750UD_QG1.qxd 05.7.11 1:40 PM Page 4
