CD RECEIVER KD-PDR35
ALAT PENERIMA CD KD-PDR35
For canceling the display demonstration, see page 6.
Untuk membatalkan tampilan demonstrasi, lihat halaman 6.
For installation and connections, refer to the separate manual.
Untuk instalasi dan penyambungan, lihat buku pedoman terpisah.
INSTRUCTIONS
BUKU PETUNJUK
GET0468-004A
[UN]
Cover_KD-PDR35_004A_f.indd 1Cover_KD-PDR35_004A_f.indd 1 12/11/06 11:57:14 AM12/11/06 11:57:14 AM

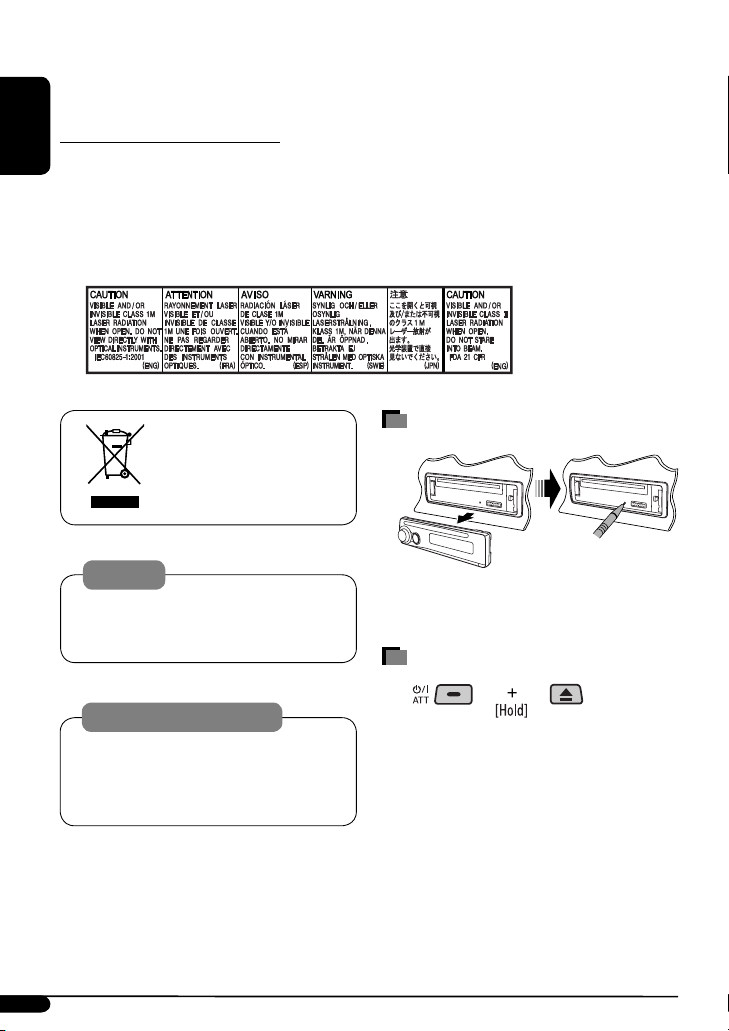

2
ENGLISH
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best
possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
1. CLA 1 LA ER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to
qualified service personnel.
3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical
instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUT IDE THE UNIT.
[European Union only]
Warning:
If you need to operate the unit while driving, be
sure to look ahead carefully or you may be involved
in a traffic accident.
How to reset your unit
• Your preset adjustments will also be erased.
How to orcibly eject a disc
• Be careful not to drop the disc when it ejects.
• If this does not work, reset your unit.
Caution on volume setting:
Discs produce very little noise compared with other
sources. Lower the volume before playing a disc
to avoid damaging the speakers by the sudden
increase of the output level.
EN02-05KD-PDR35_001A_pre.indd 2EN02-05KD-PDR35_001A_pre.indd 2 11/16/06 5:56:23 PM11/16/06 5:56:23 PM
ENGLISH
3
How to use the M MODE button
If you press M MODE, the unit goes into functions mode,
then the number buttons and 5/∞ buttons work as
different function buttons.
To use these buttons for their original functions
again after pressing M MODE, wait for 5 seconds
without pressing any of these buttons until the
functions mode is cleared or press M MODE again.
Detaching the control panel
Attaching the control panel
CONTENTS
Control panel .................................. 4
Remote controller RM-RK50 ........... 5
Getting started ................................ 6
asic operations ................................................... 6
Radio operations ............................. 7
Disc operations ................................ 8
Playing a disc in the unit ..................................... 8
iPod operations ............................... 11
Sound adjustments .......................... 13
General settings PSM .................. 14
External component operations ....... 16
Maintenance ................................... 16
More about this unit ........................ 17
Troubleshooting .............................. 21
Specifications .................................. 23
For safety...
• Do not raise the volume level too much, as this will
block outside sounds, making driving dangerous.
• Stop the car before performing any complicated
operations.
Temperature inside the car...
If you have parked the car for a long time in hot or cold
weather, wait until the temperature in the car becomes
normal before operating the unit.
Ex.: When number button 2 works as MO (monaural)
button.
EN02-05KD-PDR35_001A_pre.indd 3EN02-05KD-PDR35_001A_pre.indd 3 11/17/06 10:14:31 AM11/17/06 10:14:31 AM
4
ENGLISH
1 Control dial
2 0 (eject) button
3 Loading slot
4 EQ (equalizer) button
5 DI P (display) button
6 4 /¢ buttons
7 Display window
8 (standby/on attenuator) button
9 AUX (auxiliary) input jack
p 5 (up) / ∞ (down) buttons
q EL (select) button
w BAND button
e RC (source) button
r Remote sensor
DO NO expose the remote sensor to strong light
(direct sunlight or artificial lighting).
t MO (monaural) button
y M ( trong-station equential Memory) button
u Number buttons
i RPT (repeat) button
o RND (random) button
; M MODE button
a (control panel release) button
s Disc information indicators—
TAG (Tag information), (track/file), (folder)
d DI C indicator
f Playback mode / item indicators— RND (random),
(disc), (folder), RPT (repeat)
g Tuner reception indicators—MO (monaural),
T (stereo)
h .BA (super bass) indicator
j EQ (equalizer) indicator
k Tr (track) indicator
l ource display / Time countdown indicator
/ Main display
z ound mode (iEQ: intelligent equalizer)
indicators—JAZZ, ROCK, HIP HOP, CLA IC, POP ,
U ER
Parts identi ication
Control panel
Display window
EN02-05KD-PDR35_001A_pre.indd 4EN02-05KD-PDR35_001A_pre.indd 4 11/16/06 5:56:25 PM11/16/06 5:56:25 PM
ENGLISH
5
Remote controller — RM-RK50
Installing the lithium coin battery
(CR2025)
Aim the remote controller directly at the remote
sensor on the unit. Make sure there is no obstacle
in between.
Warning:
• Do not install any battery other than CR2025 or its
equivalent; otherwise, it may explode.
• Do not leave the remote controller in a place
(such as dashboards) exposed to direct sunlight
for a long time; otherwise, it may explode.
• tore the battery in a place where children cannot
reach to avoid risk of accident.
• To prevent the battery from over-heating,
cracking, or starting a fire:
– Do not recharge, short, disassemble, heat the
battery, or dispose of it in a fire.
– Do not leave the battery with other metallic
materials.
– Do not poke the battery with tweezers or
similar tools.
– Wrap the battery with tape and insulate when
throwing away or saving it.
Main elements and eatures
1 (standby/on/attenuator) button
• Turns the power on if pressed briefly or
attenuates the sound when the power is on.
• Turns the power off if pressed and held.
2 5 U (up) / D (down) ∞ buttons
• Changes the FM/AM bands with 5 U.
• Changes the preset stations with D ∞.
• Changes the folder of the MP3/WMA discs.
• While listening to an Apple iPod.
– Pauses or resumes playback with D ∞.
– Enters the main menu with 5 U.
(Now 5 U/D ∞/2 R/F 3 work as the menu
selecting buttons.)*
3 VOL – / VOL + buttons
• Adjusts the volume level.
4 OUND button
• elects the sound mode (iEQ: intelligent
equalizer).
5 OURCE button
• elects the source.
* 5 U : Returns to the previous menu.
D ∞ : Confirms the selection.
CR2025
Continued on the next page
EN02-05KD-PDR35_001A_pre.indd 5EN02-05KD-PDR35_001A_pre.indd 5 11/16/06 5:56:25 PM11/16/06 5:56:25 PM
6
ENGLISH
@ Adjust the sound as you want. (See
page 13.)
To drop the volume in a
moment (ATT)
To restore the sound, press
the button again.
To turn off the power
Basic settings
• See also “General settings — PSM” on pages 14 and
15.
1
2
1 anceling the display demonstrations
Select “ EMO,” then “ EMO OFF.”
2 Setting the clock
Select “CLOCK H” (hour), then adjust the hour.
Select “CLOCK M” (minute), then adjust the
minute.
3 Finish the procedure.
To check the current clock time while the
power is turned off
Clock time is shown on the display for
about 5 seconds. See also page 14.
6 2 R (reverse) / F (forward) 3 buttons
• Searches for stations if pressed briefly.
• Fast-forwards or reverses the track if pressed and
held.
• Changes the tracks if pressed briefly.
• While listening to an iPod (in menu selecting
mode):
– Selects an item if pressed briefly. (Then, press
∞ to confirm the selection.)
– Skips 10 items at a time if pressed and held.
Getting started
Basic operations
~ Turn on the power.
Ÿ
*1 You cannot select “CD” as the playback source
if there is no disc in the unit.
*2 “NO IPOD” appears if iPod is not connected.
! For FM/AM tuner
⁄ Adjust the volume.
Volume level appears.
VOL 20
EN06-13KD-PDR35_001A_pre.indd 6EN06-13KD-PDR35_001A_pre.indd 6 11/16/06 5:56:36 PM11/16/06 5:56:36 PM
7
ENGLISH
Radio operations
~
Ÿ
! Start searching for a station.
When a station is received, searching stops.
To stop searching, press the same button
again.
To tune in to a station manually
In step ! above...
1
2 Select a desired station frequency.
Lights up when receiving an FM stereo
broadcast with sufficient signal strength.
When an FM stereo broadcast is hard to
receive
Reception improves, but stereo effect will be lost.
To restore the stereo effect, repeat the same
procedure. “MONO OFF” appears and the MO indicator
goes off.
Storing stations in memory
You can preset six stations for each band.
FM station automatic presetting —
SSM (Strong-station Sequential
Memory)
1 Select the FM band (FM1 – FM3) you want to
store into.
2
3
“SSM” flashes, then disappears when automatic
presetting is over.
Local FM stations with the strongest signals are
searched and stored automatically in the FM band.
Lights up when monaural mode is activated.
88.3
M
MONO
SSM
EN06-13KD-PDR35_001A_pre.indd 7EN06-13KD-PDR35_001A_pre.indd 7 11/16/06 5:56:38 PM11/16/06 5:56:38 PM
8
ENGLISH
Disc operations
Playing a disc in the unit
All tracks will be played repeatedly until you change the
source or eject the disc.
To stop play and eject the disc
• Press SRC to listen to another
playback source.
To fast-forward or reverse the track
To go to the next or previous tracks
To go to the next or previous folders (only for
MP3 or WMA discs)
Manual presetting
Ex.: Storing FM station of 92.5 MHz into preset
number 4 of the FM1 band.
1
2
3
Listening to a preset station
1
2 Select the preset station (1 – 6) you want.
or
To check other information while listening
to the radio
lock Ô Frequency
Preset number flashes for a while.
92.5FM I
92.5P4
EN06-13KD-PDR35_001A_pre.indd 8EN06-13KD-PDR35_001A_pre.indd 8 11/16/06 5:56:39 PM11/16/06 5:56:39 PM
9
ENGLISH
Other main functions
Skipping tracks quickly during play
• For MP3 or WMA discs, you can skip tracks within the
same folder.
Ex.: To select track 32 while playing a track whose
number is a single digit (1 to 9)
1
2
Each time you press the button, you can skip 10
tracks.
• After the last track, the first track will be selected
and vice versa.
3
Prohibiting disc ejection
You can lock a disc in the loading slot.
To cancel the prohibition, repeat the same
procedure.
NO EJECT
To locate a particular track (for D) or folder
(for MP3 or WMA discs) directly
To select a number from 01 – 06:
To select a number from 07 – 12:
• To use direct folder access on MP3/WMA discs, it
is required that folders are assigned with 2-digit
numbers at the beginning of their folder names—
01, 02, 03, and so on.
To select a particular track in a folder
(for MP3 or WMA discs):
EN06-13KD-PDR35_001A_pre.indd 9EN06-13KD-PDR35_001A_pre.indd 9 11/16/06 5:56:39 PM11/16/06 5:56:39 PM
10
ENGLISH
Selecting the playback modes
You can use only one of the following playback modes
at a time.
1
2 Select your desired playback mode.
7 Repeat play
Mode Plays repeatedly
TRK RPT : The current track.
FLDR RPT* : All tracks of the current folder.
RPT OFF : Cancels.
7 Random play
Mode Plays at random
FLDR R D* : All tracks of the current folder,
then tracks of the next folder
and so on.
DISC R D : All tracks of the current disc.
R D OFF : Cancels.
* Only while playing an MP3 or a WMA disc.
: Corresponding indicator lights up
on the display

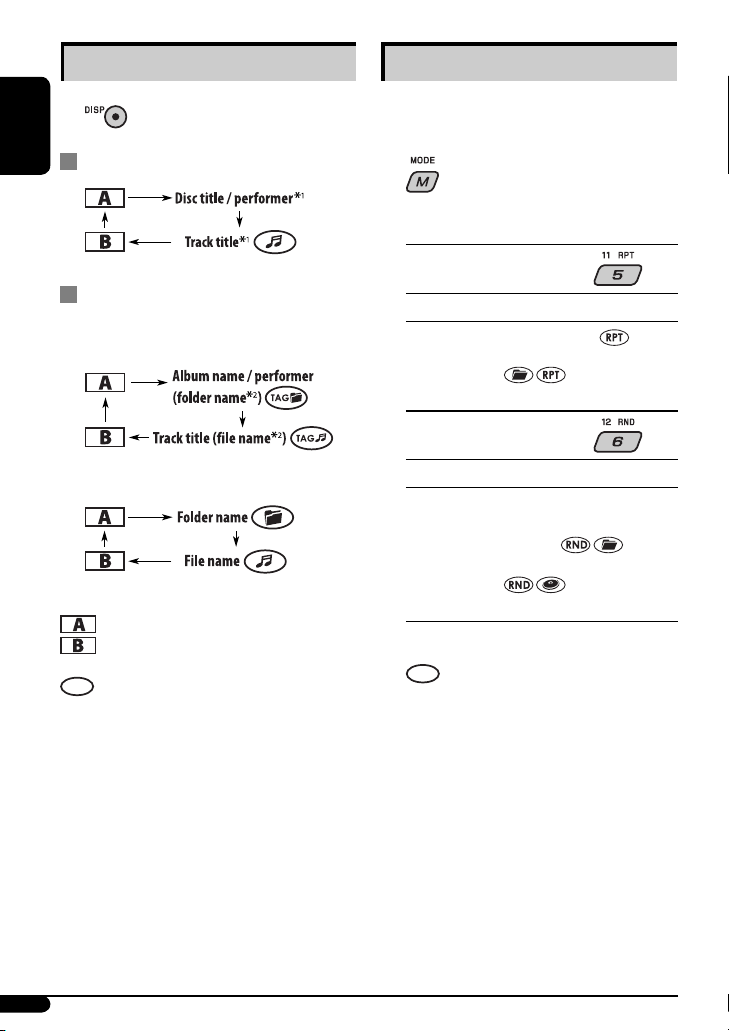

Changing the display information
While playing an audio CD or a CD Text
While playing an MP3 or a WMA track
• When “TAG DISP” is set to “TAG O ”
(see page 15)
• When “TAG DISP” is set to “TAG OFF”
: Clock with the current track number
: Elapsed playing time with the current
track number
: Corresponding indicator lights up on
the display
*1 If the current disc is an audio CD, “ O AME” appears.
*2 If an MP3/WMA file does not have Tag information,
folder name and file name appear. In this case, the
TAG indicator will not light up.
EN06-13KD-PDR35_001A_2.indd 10EN06-13KD-PDR35_001A_2.indd 10 12/15/06 9:59:13 AM12/15/06 9:59:13 AM
Autres manuels pour KD-PDR35
2
Table des matières
Langues :
Autres manuels JVC Récepteur de voiture
JVC
JVC KS-FX850R Manuel utilisateur
JVC
JVC KD-R324 Manuel utilisateur
JVC
JVC KW-AVX720 - DVD Player With LCD Manuel utilisateur
JVC
JVC KD-X40 Manuel utilisateur
JVC
JVC KD-G489UR Manuel utilisateur
JVC
JVC KD-S640 Mode d’emploi
JVC
JVC KD-R800 - 30K Color-Illumination Single-DIN CD... Manuel utilisateur
JVC
JVC KD-AHD75BT Manuel utilisateur
JVC
JVC EXAD KD-SHX855 Mode d’emploi
JVC
JVC KD-G421 Manuel utilisateur
JVC
JVC KD-G115 Manuel utilisateur
JVC
JVC KD-A315 Manuel utilisateur
JVC
JVC KS-F100 Manuel utilisateur
JVC
JVC KD-PDR51 Guide de démarrage rapide
JVC
JVC KW-XG704 Manuel utilisateur
JVC
JVC KD-R810 Manuel utilisateur
JVC
JVC KD-APD58 - Radio / CD Manuel utilisateur
JVC
JVC KD-X561DBT Manuel utilisateur
JVC
JVC KD-G847 Manuel utilisateur
JVC
JVC KS-F525 Manuel utilisateur
