CD RECEIVER KD-G396/KD-G395/KD-G245

Cover_KD-G396[U_UH]f.indd 1 8/21/07 4:34:09 PM

ENGLISH

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to

qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical

instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

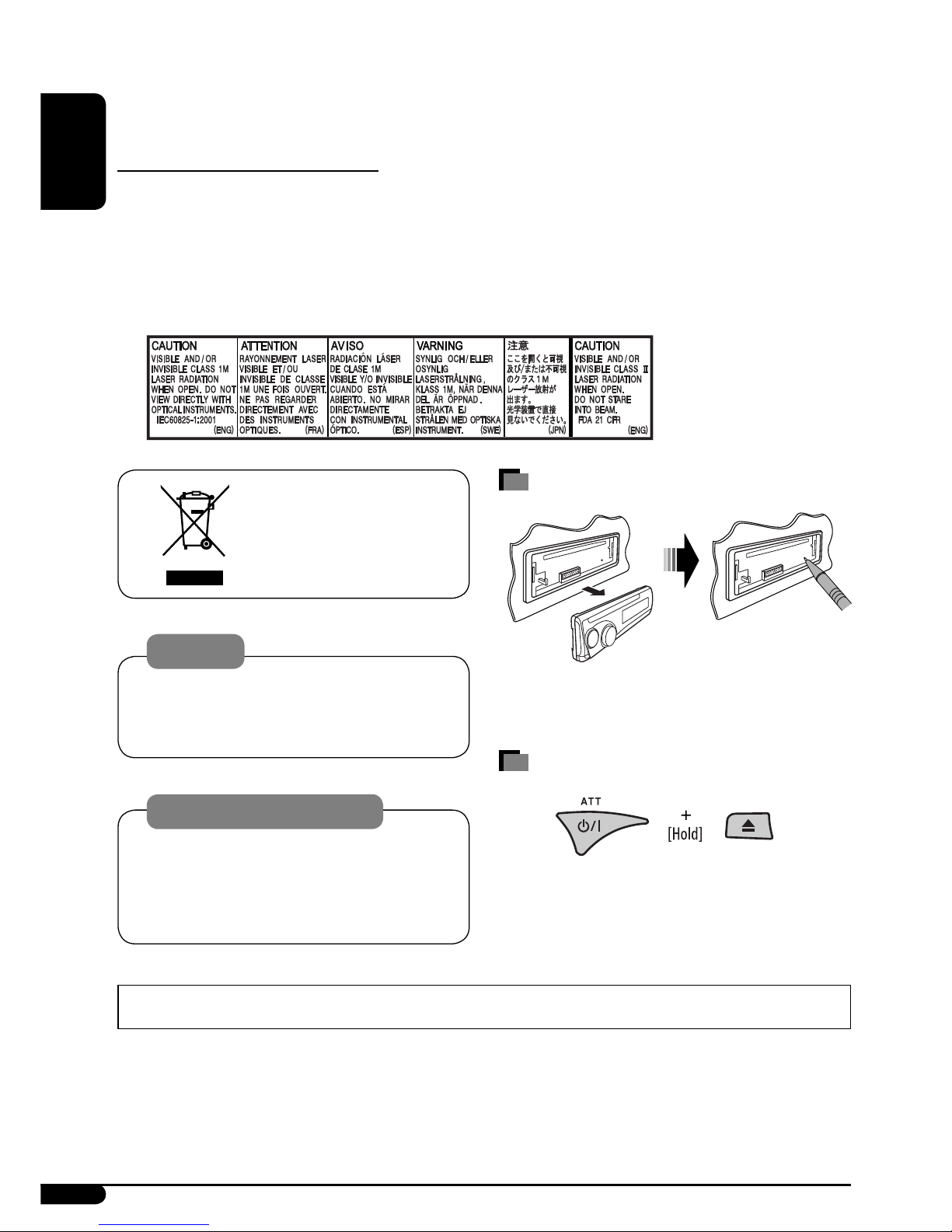

How to reset your unit

• Your preset adjustments will also be erased.

How to forcibly eject a disc

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

Warning:

If you need to operate the unit while driving, be

sure to look around carefully or you may be involved

in a traffic accident.

Caution on volume setting:

Discs produce very little noise compared with other

sources. Lower the volume before playing a disc

to avoid damaging the speakers by the sudden

increase of the output level.

[European Union only]

The control panel illustrations used for explanation in this manual is of KD-G395/KD-G245.

EN02-07_KD-G396[U_UH]f.indd 2 8/21/07 4:28:30 PM

ENGLISH

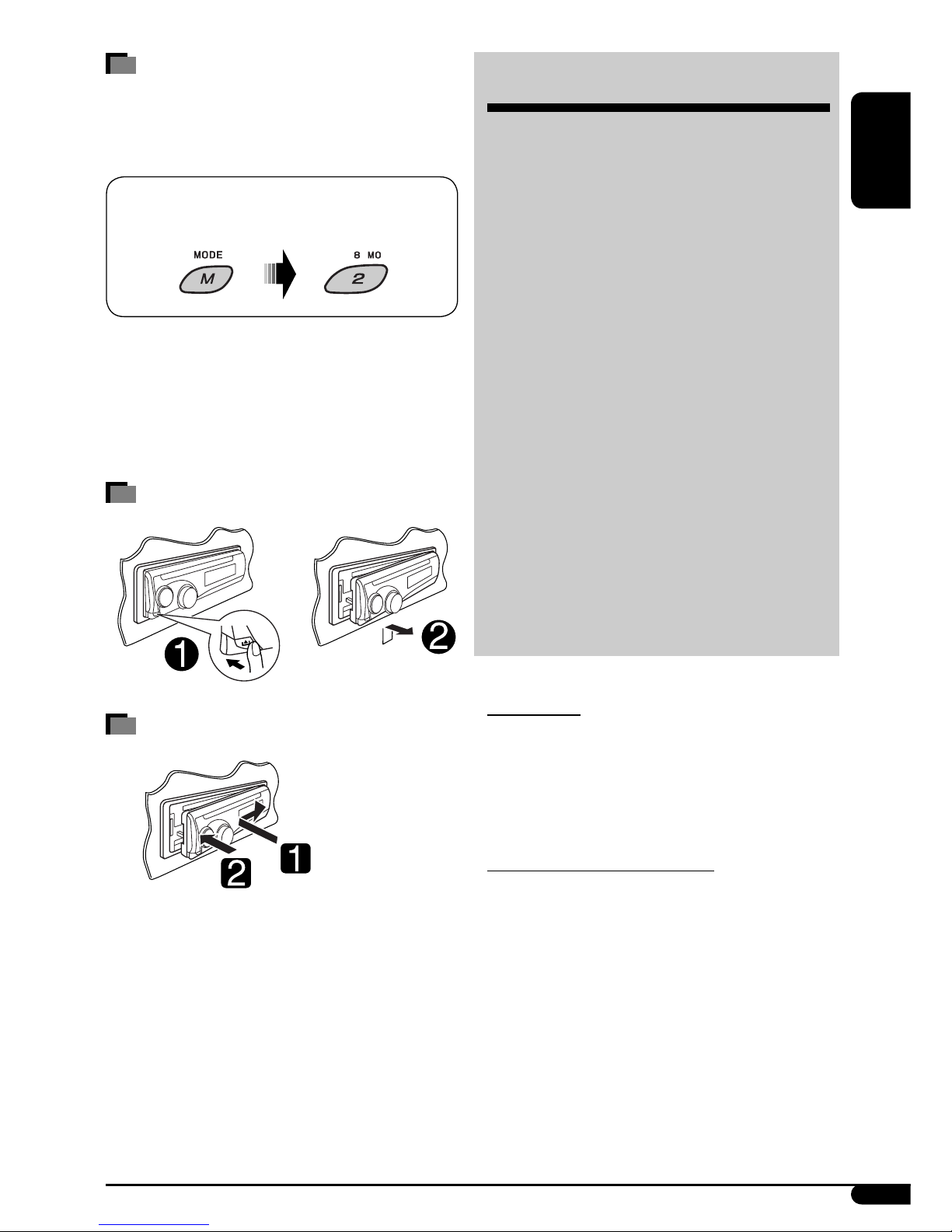

How to use the M MODE button

If you press M MODE, the unit goes into functions mode,

then the number buttons and 5/∞buttons will work

as different function buttons.

Ex.: When number button 2 works as

MO (monaural) button.

To use these buttons for their original functions

again after pressing M MODE, wait for 5 seconds

without pressing any of these buttons until the

functions mode is cleared, or press M MODE again.

Detaching the control panel

Attaching the control panel

CONTENTS

Control panel —

KD-G396/KD-G395/KD-G245.................. 4

Remote controller — RM-RK50........... 5

Getting started................................ 6

Basic operations................................................... 6

Radio operations ............................. 7

Disc operations................................ 8

Playing a disc in the unit ..................................... 8

Sound adjustments.......................... 10

Other external component

operations ................................... 11

General settings — PSM .................. 11

Maintenance................................... 13

More about this unit ........................ 14

Troubleshooting.............................. 16

Specifications.................................. 17

For safety...

• Do not raise the volume level too much, as this will

block outside sounds, making driving dangerous.

• Stop the car before performing any complicated

operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold

weather, wait until the temperature in the car becomes

normal before operating the unit.

EN02-07_KD-G396[U_UH]f.indd 3 8/21/07 4:28:32 PM

ENGLISH

;RND (random) button

aAUX (auxiliary) input jack

sKD-G396/KD-G395: Disc information indicators—

TAG (Tag information), (track/file), (folder)

dDISC indicator

fPlayback mode / item indicators—RND (random),

(disc), KD-G396/KD-G395: (folder),

RPT (repeat)

gTuner reception indicators—MO (monaural),

ST (stereo)

hLOUD (loudness) indicator

jEQ (equalizer) indicator

kTr (track) indicator

lSource display / Track number / Folder number /

Volume level indicator / Time countdown indicator

/Main display

zSound mode (iEQ: intelligent equalizer)

indicators—JAZZ, ROCK, HIP HOP, CLASSIC, POPS,

USER

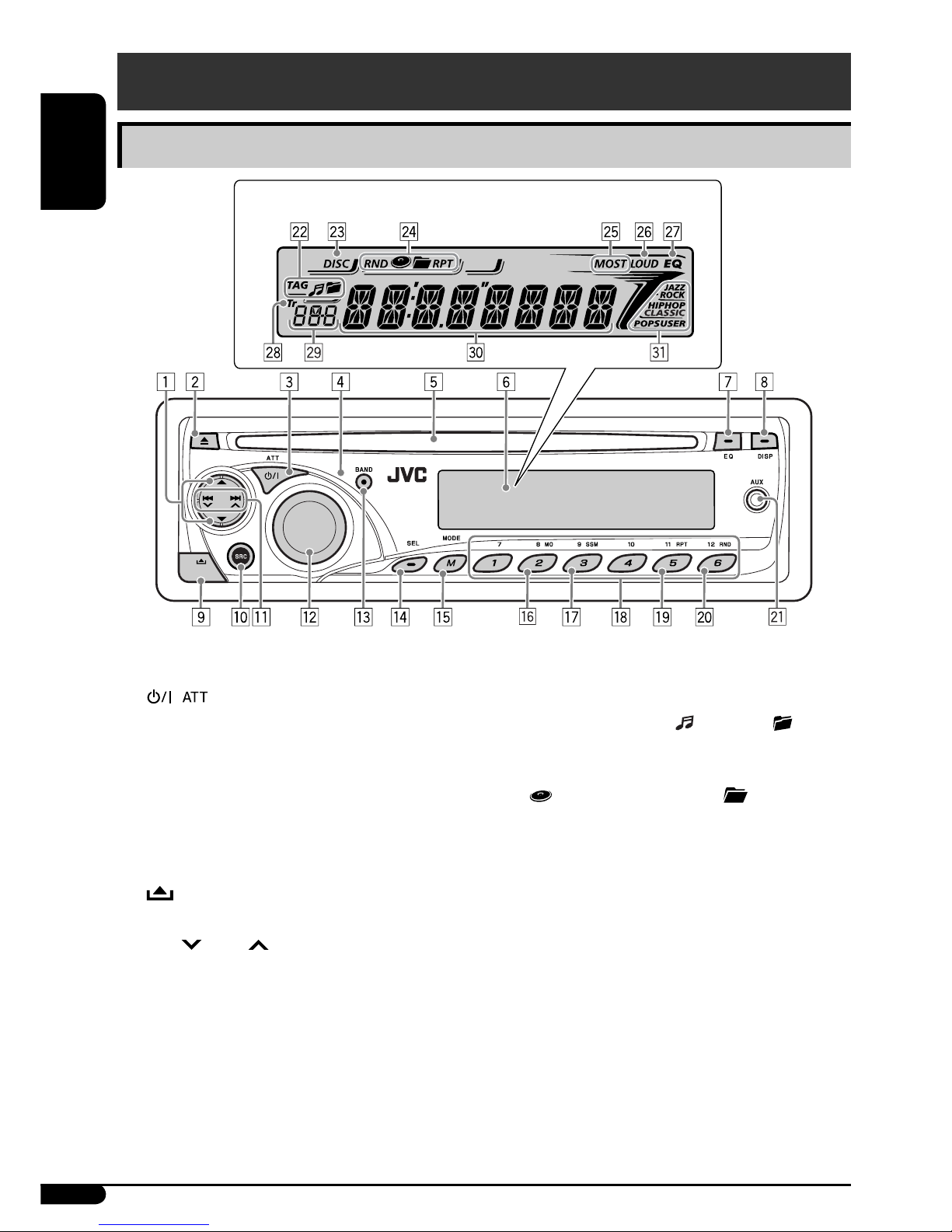

Parts identification

Display window

Control panel — KD-G396/KD-G395/KD-G245

15(up) / ∞(down) buttons

20(eject) button

3(standby/on attenuator) button

4KD-G396/KD-G395: Remote sensor

DO NOT expose the remote sensor to strong light

(direct sunlight or artificial lighting).

5Loading slot

6Display window

7EQ (equalizer) button

8DISP (display) button

9(control panel release) button

pSRC (source) button

q4/ ¢buttons

wControl dial

eBAND button

rSEL (select) button

tM MODE button

yMO (monaural) button

uSSM (Strong-station Sequential Memory) button

iNumber buttons

oRPT (repeat) button

EN02-07_KD-G396[U_UH]f.indd 4 8/21/07 4:28:33 PM

ENGLISH

Remote controller — RM-RK50

RM-RK50 is supplied only for KD-G396/KD-G395.

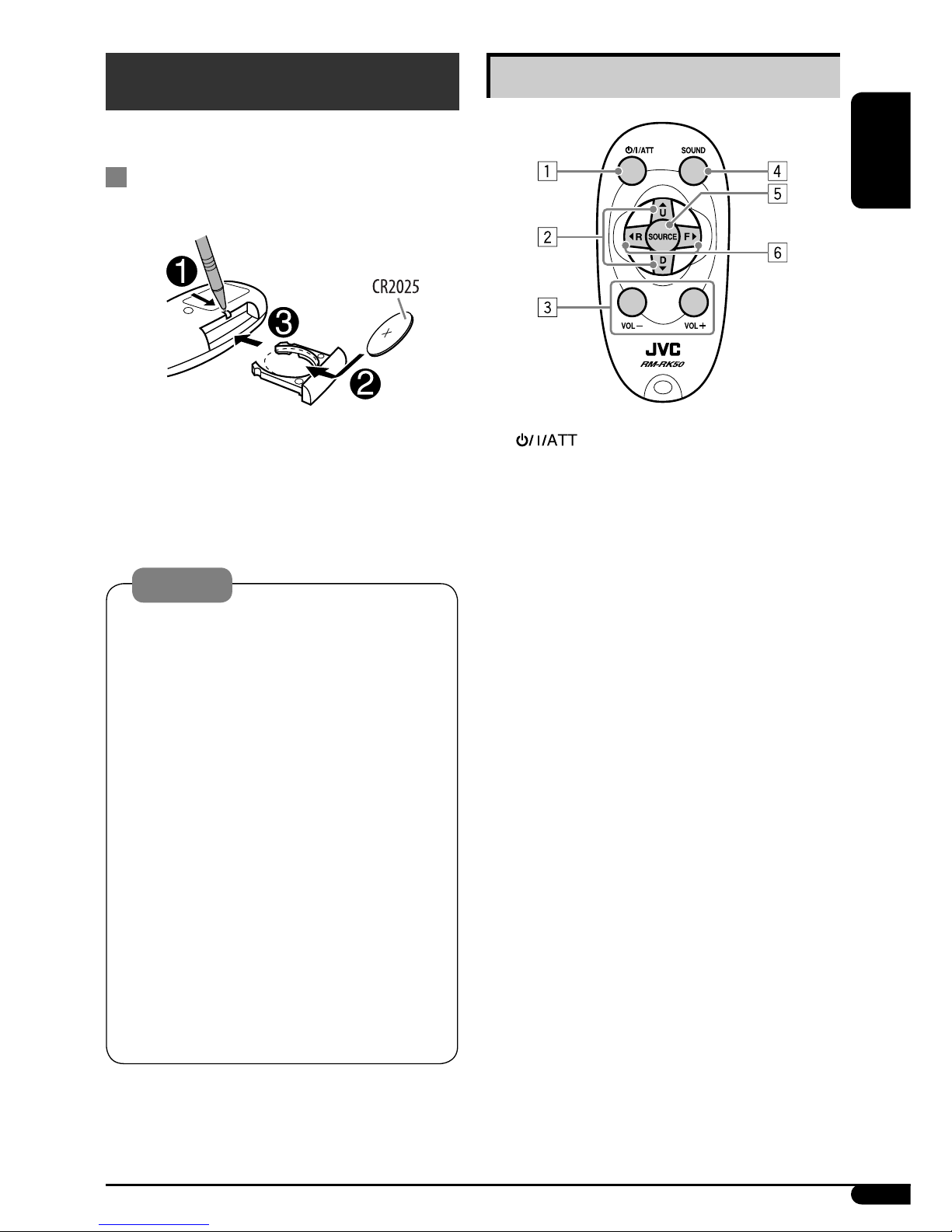

Installing the lithium coin battery

(CR2025)

Aim the remote controller directly at the remote

sensor on the unit. Make sure there is no obstacle

in between.

Warning:

• Do not install any battery other than CR2025 or

its equivalent; otherwise, it may explode.

• Do not leave the remote controller in a place

(such as the dashboard) exposed to direct

sunlight for a long time; otherwise, it may

explode.

• Store the battery in a place where children

cannot reach to avoid the risk of accidents.

• To prevent the battery from over-heating,

cracking, or starting a fire:

– Do not recharge, short, disassemble, heat the

battery, or dispose of it in a fire.

– Do not leave the battery with other metallic

materials.

– Do not poke the battery with tweezers or similar

tools.

– Wrap the battery with tape and insulate when

throwing away or saving it.

Main elements and features

1(standby/on/attenuator) button

• Turns the power on if pressed briefly or

attenuates the sound when the power is on.

• Turns the power off if pressed and held.

25U (up) / D (down) ∞buttons

• Changes the FM/AM bands with 5U.

• Changes the preset stations with D ∞.

• Changes the folder of the MP3/WMA discs.

3VOL – / VOL + buttons

• Adjusts the volume level.

4SOUND button

• Selects the sound mode (iEQ: intelligent

equalizer).

5SOURCE button

• Selects the source.

62R (reverse) / F (forward) 3buttons

• Searches for stations if pressed briefly.

• Fast-forwards or reverses the track if pressed and

held.

• Changes the track if pressed briefly.

EN02-07_KD-G396[U_UH]f.indd 5 8/21/07 4:28:33 PM

ENGLISH

Basic settings

• See also “General settings — PSM” on pages 11 and

12.

1Canceling the display demonstrations

Select “DEMO,” then “DEMO OFF.”

2Setting the clock

Select “CLOCK H” (hour), then adjust the hour.

Select “CLOCK M” (minute), then adjust the

minute.

3Finish the procedure.

To check the current clock time while the

power is turned off

Clock time is shown on the display for

about 5 seconds. See also page 12.

Getting started

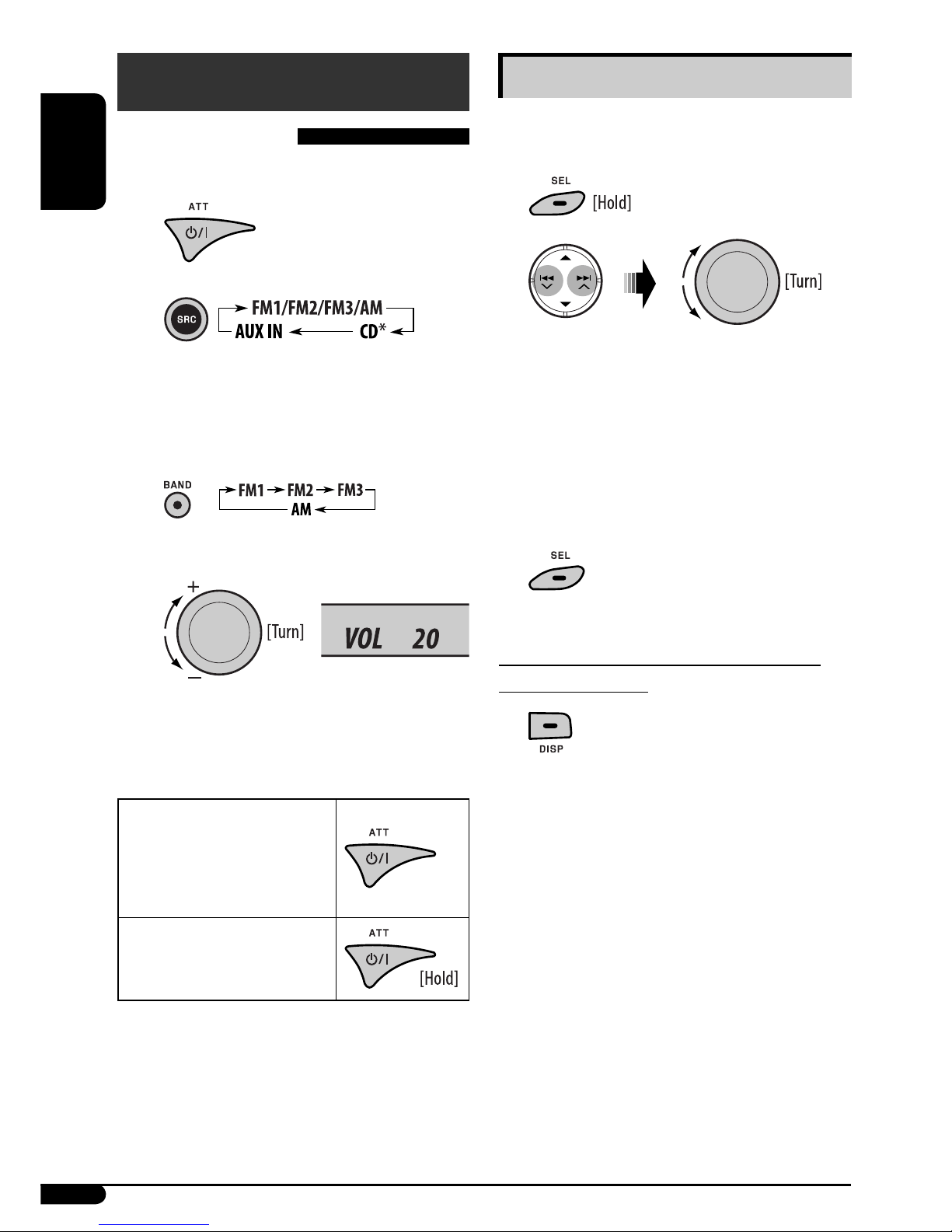

Basic operations

~Turn on the power.

* You cannot select “CD” as the playback source if

there is no disc in the unit.

!For FM/AM tuner

⁄Adjust the volume.

@Adjust the sound as you want. (See

page 10.)

To drop the volume in a

moment (ATT)

To restore the sound, press the

button again.

To turn off the power

Volume level appears.

EN02-07_KD-G396[U_UH]f.indd 6 8/21/07 4:28:34 PM

ENGLISH

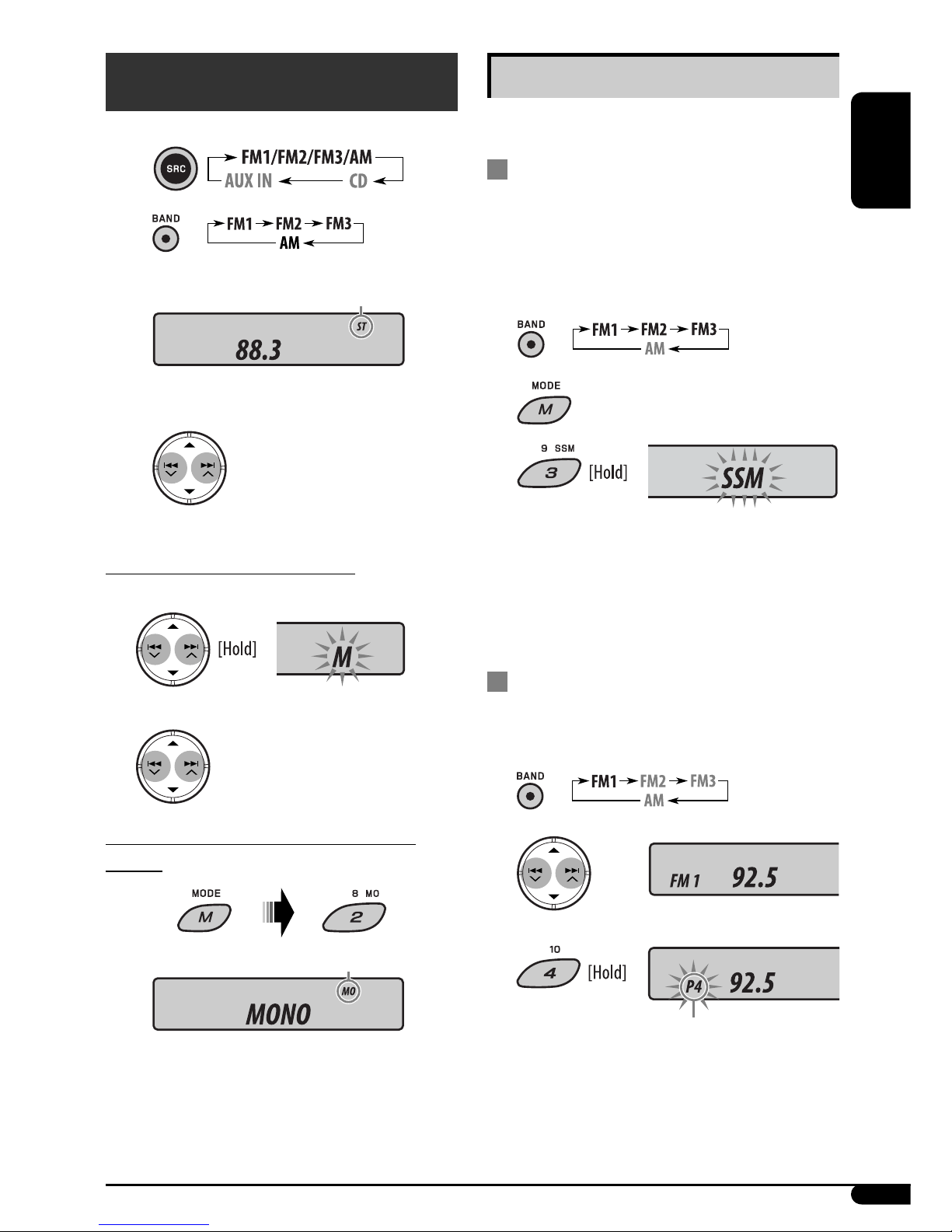

Storing stations in memory

You can preset six stations for each band.

FM station automatic presetting—

SSM (Strong-station Sequential

Memory)

1Select the FM band (FM1 – FM3) you want to

store into.

“SSM” flashes, then disappears when automatic

presetting is over.

Local FM stations with the strongest signals are

searched and stored automatically in the FM band.

Manual presetting

Ex.: Storing the FM station of 92.5 MHz into preset

number 4 of the FM1 band.

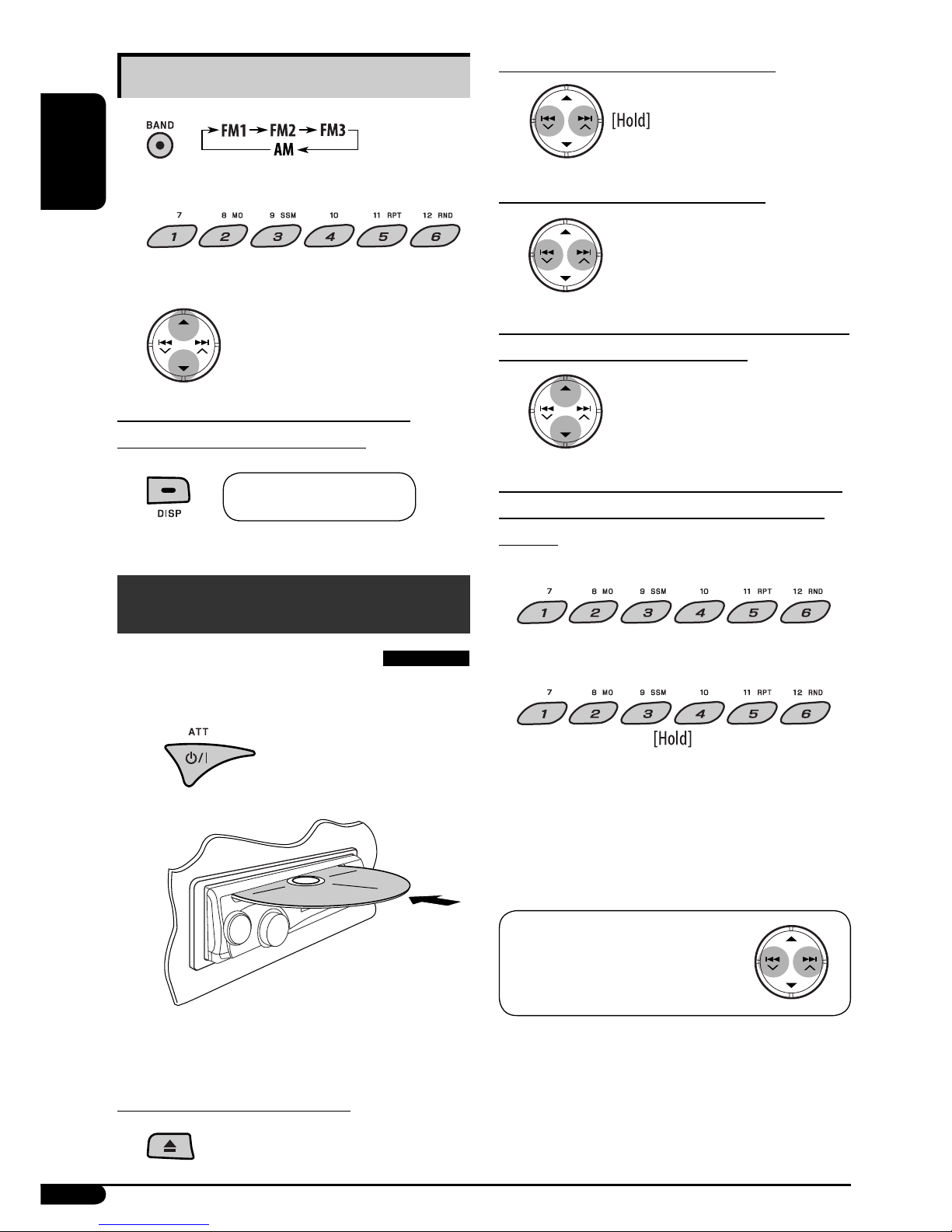

Radio operations

!Start searching for a station.

When a station is received,

searching stops.

To stop searching, press the

same button again.

To tune in to a station manually

In step !above...

2Select a desired station frequency.

When an FM stereo broadcast is hard to

receive

Reception improves, but the stereo effect will be lost.

To restore the stereo effect, repeat the same

procedure. “MONO OFF” appears and the MO indicator

goes off.

Lights up when receiving an FM stereo

broadcast with sufficient signal strength.

Lights up when monaural mode is activated.

Preset number flashes for a while.

EN02-07_KD-G396[U_UH]f.indd 7 8/21/07 4:28:35 PM

ENGLISH

To fast-forward or reverse the track

To go to the next or previous track

To go to the next or previous folder (for MP3/

WMA discs in KD-G396/KD-G395)

To locate a particular track (for CD) or folder

(for MP3/WMA discs in KD-G396/KD-G395)

directly

To select a number from 01 – 06:

To select a number from 07 – 12:

• To use direct folder access on MP3/WMA discs, it

is required that folders are assigned with 2-digit

numbers at the beginning of their folder names—

01, 02, 03, and so on.

To select a particular track in a folder

(for MP3/WMA disc):

Listening to a preset station

2Select the preset station (1 – 6) you want.

To check the other information while

listening to an FM or AM station

Disc operations

Playing a disc in the unit

~Turn on the power.

All tracks will be played repeatedly until you

change the source or eject the disc.

To stop play and eject the disc

• Press SRC to listen to another

playback source.

Clock ÔFrequency

EN08-13_KD-G396[U_UH]f.indd 8 8/21/07 4:33:13 PM

ENGLISH

Other main functions

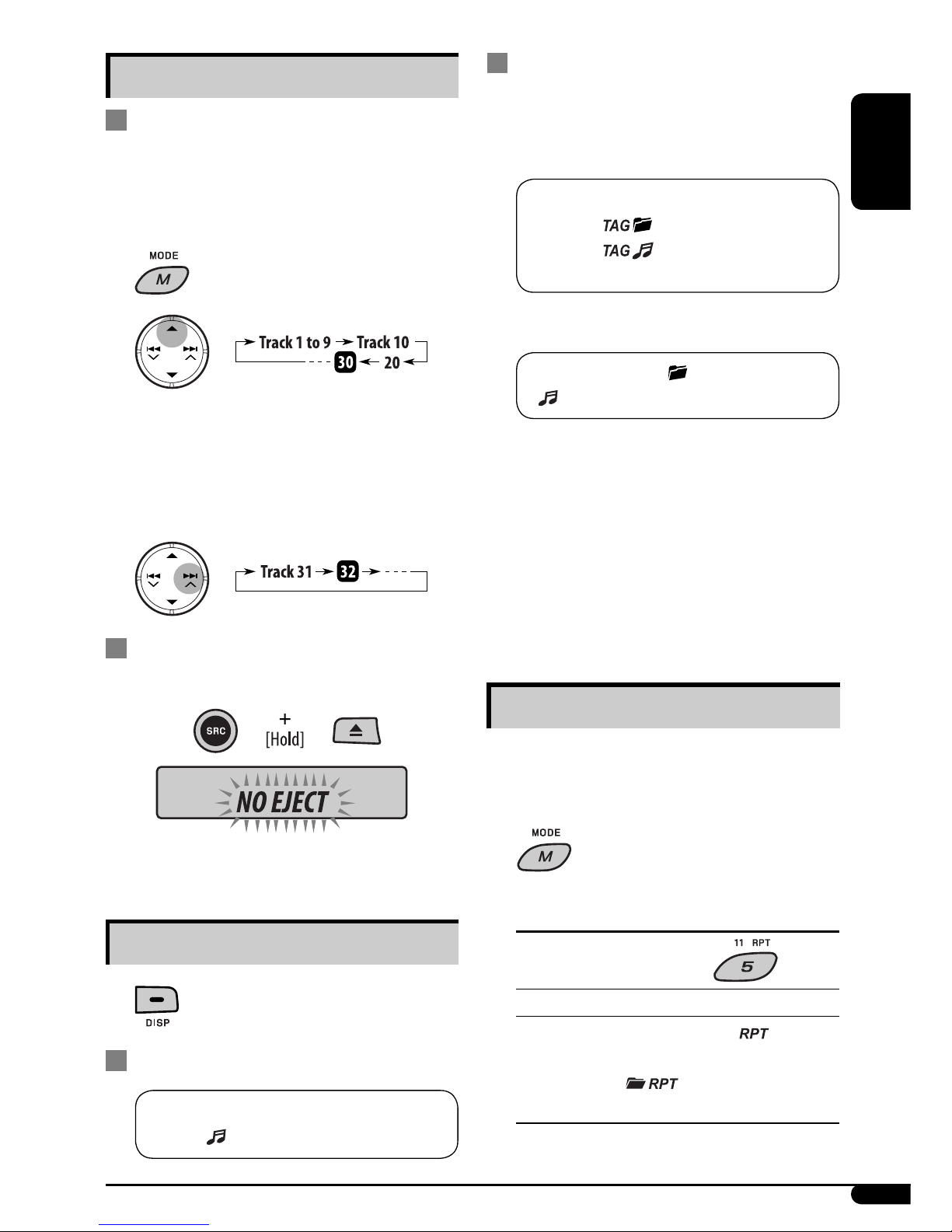

Skipping tracks quickly during play

• KD-G396/KD-G395: For MP3 or WMA discs, you can

skip tracks within the same folder

Ex.: To select track 32 while playing tracks whose

number is a single digit (1 to 9)

Each time you press the button, you can skip 10

tracks.

• After the last track, the first track will be selected

and vice versa.

Prohibiting disc ejection

You can lock a disc in the loading slot.

To cancel the prohibition, repeat the same

procedure.

Changing the display information

While playing an audio CD or CD Text

A=Disc title/performer*1=Track

title*1[ ] =B=(back to the beginning)

While playing an MP3 or a WMA track

(for KD-G396/KD-G395)

• When “TAG DISP” is set to “TAG ON”

(see page 12)

A=Album name/performer (folder

name*2) [ ] =Track title (file

name*2) [ ] =B=(back to the

beginning)

• When “TAG DISP” is set to “TAG OFF”

A=Folder name [ ] =File name

[ ] =B=(back to the beginning)

A: Clock with the current track number

B: The elapsed playing time with the current track

number

[ ] : Corresponding indicator lights up on the display

*1If the current disc is an audio CD, “NO NAME” appears.

*2If an MP3/WMA file does not have Tag information,

folder name and file name appear. In this case, the

TAG indicator will not light up.

Selecting the playback modes

You can use only one of the following playback modes

at a time.

2 Select your desired playback mode.

7Repeat play

Mode Plays repeatedly

TRK RPT : The current track. [ ]

FLDR RPT *: All tracks of the current folder.

[ ]

RPT OFF : Cancels.

Continued on the next page

EN08-13_KD-G396[U_UH]f.indd 9 8/21/07 4:33:16 PM

ENGLISH

7Random play

Mode Plays at random

FLDR RND *: All tracks of the current folder,

then the tracks of the next folder

and so on. [ ]

ALL RND : All tracks of the current disc.

[ ]

RND OFF : Cancels.

*KD-G396/KD-G395: Only while playing an MP3 or

a WMA disc.

[ ] : Corresponding indicator lights up on the

display

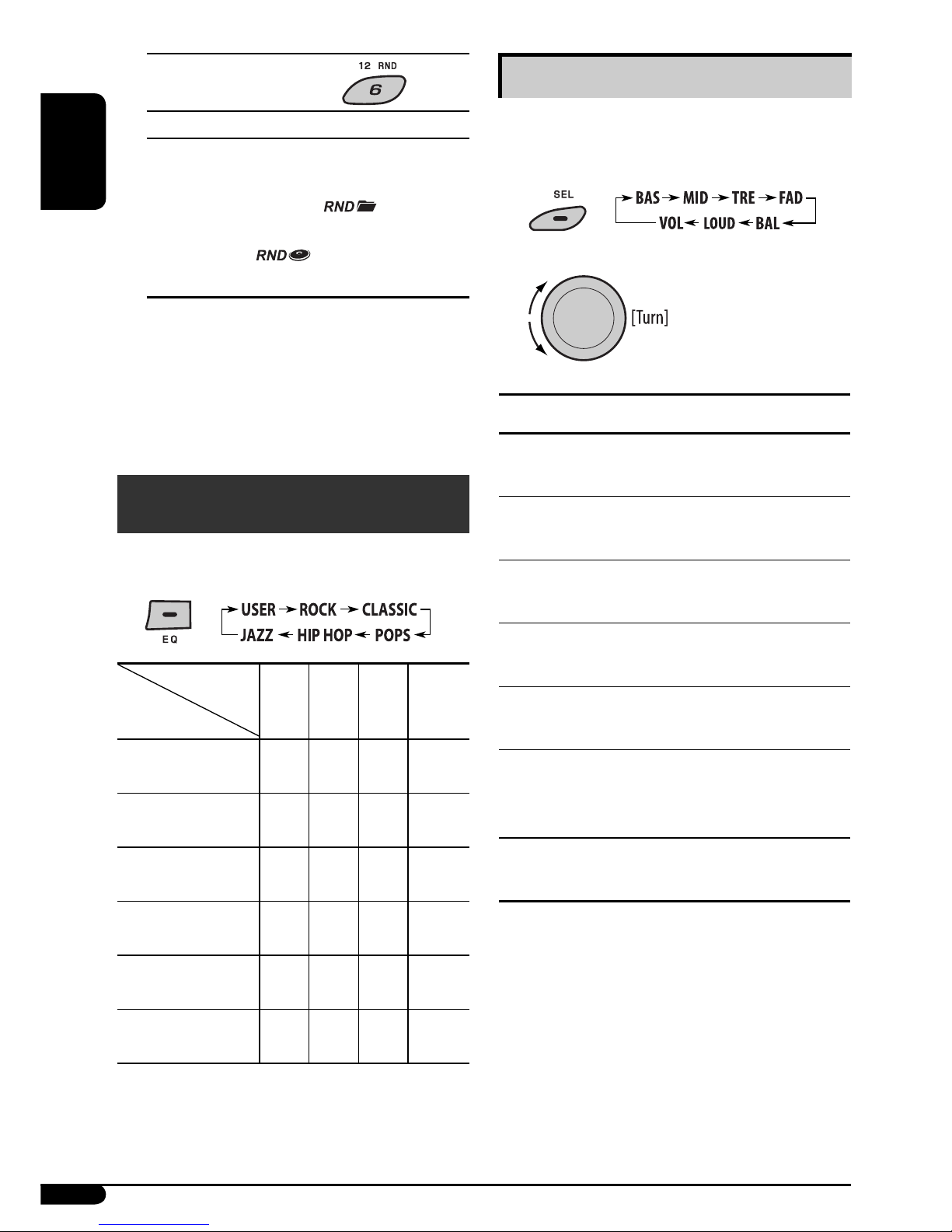

Sound adjustments

You can select a preset sound mode suitable to the

music genre (iEQ: intelligent equalizer).

Indication (For)

BAS MID TRE LOUD

USER

(Flat sound) 00 00 00 OFF

ROCK

(Rock or disco music) +03 00 +02 OFF

CLASSIC

(Classical music) +01 00 +03 OFF

POPS

(Light music) +02 +01 +02 OFF

HIP HOP

(Funk or rap music) +04 –02 +01 OFF

JAZZ

(Jazz music) +03 00 +03 OFF

BAS: Bass; MID: Mid-range; TRE: Treble; LOUD: Loudness

Adjusting the sound

You can adjust the sound characteristics to your

preference.

Indication, [Range]

BAS *1(bass), [–06 to +06]

Adjust the bass.

MID *1(mid-range), [–06 to +06]

Adjust the mid-range frequencies sound level.

TRE *1(treble), [–06 to +06]

Adjust the treble.

FAD *2(fader), [R06 to F06]

Adjust the front and rear speaker balance.

BAL (balance), [L06 to R06]

Adjust the left and right speaker balance.

LOUD *3(loudness), [LOUD ON or LOUD OFF]

Boost low and high frequencies to produce a

well-balanced sound at a low volume level.

VOL (volume), [00 to 50 or 00 to 30] *4

Adjust the volume.

*1When you adjust the bass, mid-range, or treble, the

adjustment you have made is stored for the currently

selected sound mode (iEQ) including “USER.”

*2If you are using a two-speaker system, set the fader

level to “00.”

*3The adjustment made (LOUD ON/LOUD OFF) will be

applied to all sound modes.

*4Depending on the amplifier gain control setting. (See

page 12 for details.)

Preset values

EN08-13_KD-G396[U_UH]f.indd 10 8/21/07 4:33:17 PM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JVC Récepteur de voiture

JVC

JVC KD-LX100 Manuel utilisateur

JVC

JVC KW-R930BTS Manuel utilisateur

JVC

JVC KD-AR5500 Manuel utilisateur

JVC

JVC KD-R616 Mode d’emploi

JVC

JVC KD-AR360 Manuel utilisateur

JVC

JVC CD Receiver KD-G227 Guide de l'administrateur

JVC

JVC KD-R746BT Manuel utilisateur

JVC

JVC KD-DB56 Manuel utilisateur

JVC

JVC KD-AVX40 - DVD Player With LCD monitor Manuel utilisateur

JVC

JVC KWAVX800 - EXAD - DVD Player Manuel utilisateur

JVC

JVC KD-G614 Manuel utilisateur

JVC

JVC KD-AR270 - Radio / CD Manuel utilisateur

JVC

JVC KW-ADV790 Mode d’emploi

JVC

JVC KS-FX833R Manuel utilisateur

JVC

JVC KD-DV7402 Manuel utilisateur

JVC

JVC KD-APD58 - Radio / CD Manuel utilisateur

JVC

JVC KW-XC777 - Radio / CD Instructions de montage

JVC

JVC KD-G511 Manuel utilisateur

JVC

JVC KDDV7400 - Car 50Wx4 DVD/CD Receiver Mode d’emploi

JVC

JVC KD-S6060 Manuel utilisateur

JVC

JVC KD-G444 Mode d’emploi

JVC

JVC KD-AVX44J Manuel utilisateur

JVC

JVC KW-M865BW Manuel utilisateur

JVC

JVC KD-S670 Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur

Medion

Medion Car Audio Manuel utilisateur
