For canceling the display demonstration, see page 7.
For installation and connections, refer to the separate manual.
INSTRUCTIONS
GET0532-005A
[A]
KD-DV7406/KD-DV7405
DVD/CD RECEIVER
Cover_KD-DV7406_005A_f.indd 1Cover_KD-DV7406_005A_f.indd 1 2/12/08 2:00:22 PM2/12/08 2:00:22 PM
2
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best
possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
1. CLA 1 LA ER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to
qualified service personnel.
3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical
instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUT IDE THE UNIT.
[European Union only]
Caution:
If the temperature inside the car is below 0°C, the
movement of animation and text scroll will be halted
on the display to prevent the display from being
blurred. appears on the display.
When the temperature increases, and the operating
temperature is resumed, these functions will start
working again.
For safety...
• Do not raise the volume level too much, as this will
block outside sounds, making driving dangerous.
• top the car before performing any complicated
operations.
Temperature insi e the car...
If you have parked the car for a long time in hot or cold
weather, wait until the temperature in the car becomes
normal before operating the unit.
EN02-09_KD-DV7406_005A_f.indd 2EN02-09_KD-DV7406_005A_f.indd 2 2/12/08 2:01:07 PM2/12/08 2:01:07 PM
3
How to reset your unit
• Your preset adjustments will also be erased (except the
registered Bluetooth device, see pages 26 and 27).
How to forcibly eject a isc
“Please Eject” appears on the display.
• Be care ul not to drop the disc when it ejects.
• I this does not work, reset your unit.
Caution on volume setting:
Digital devices (CD/U B) produce very little noise
compared with other sources. Lower the volume before
playing these digital sources to avoid damaging the
speakers by sudden increase of the output level.
Caution for DualDisc playback
The Non-DVD side of a “DualDisc” does not comply with
the “Compact Disc Digital Audio” standard. Therefore,
the use of Non-DVD side of a DualDisc on this product
may not be recommended.
WARNINGS:
(To prevent acci ents an amage)
• DO NOT install any unit or wire any cable in
a location where;
– it may obstruct the steering wheel an
gearshift lever operations.
– it may obstruct the operation of safety
evices such as air bags.
– it may obstruct visibility.
• DO NOT operate the unit while riving.
• If you nee to operate the unit while
riving, be sure to look aroun carefully.
• The river must not watch the monitor
while riving.
If the parking brake is not engage ,
“DRIVER MUST NOT WATCH THE MONITOR
WHILE DRIVING.” appears on the monitor,
an no playback picture will be shown.
– This warning appears only when the
parking brake lea is connecte to the
parking brake system built in the car
(refer to the Installation/Connection
Manual).
EN02-09_KD-DV7406_005A_f.indd 3EN02-09_KD-DV7406_005A_f.indd 3 2/12/08 2:01:09 PM2/12/08 2:01:09 PM
4

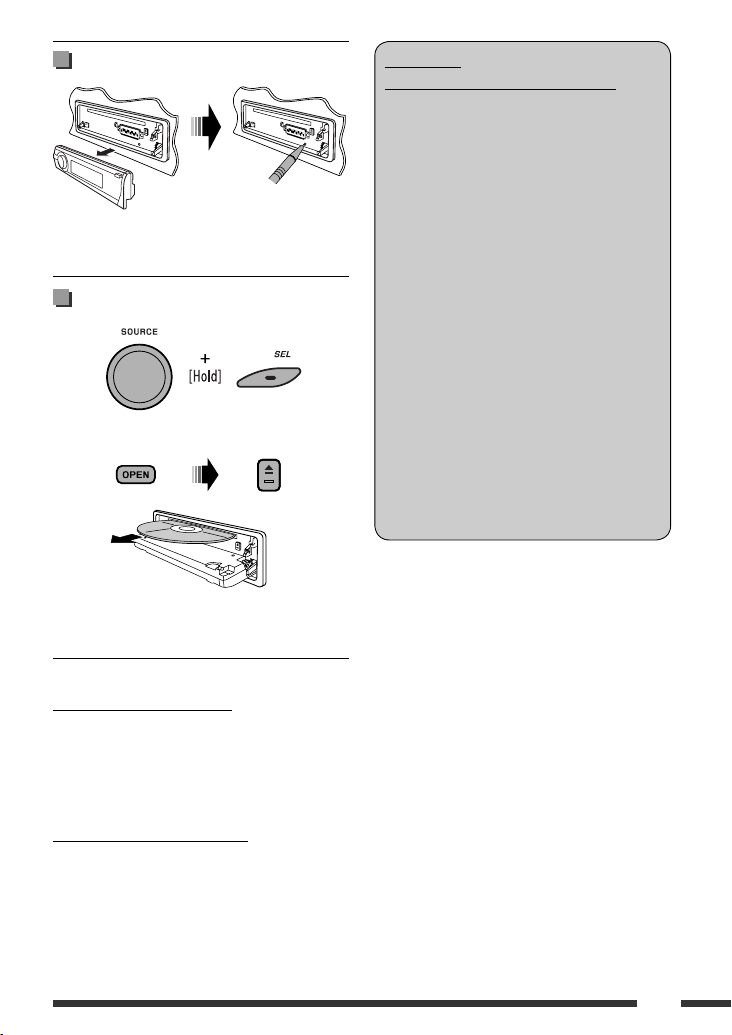

Detaching the control panel
Attaching the control panel
Opening an closing the control
panel
Avoid touching the connectors.
How to use the M MODE an SEL
buttons

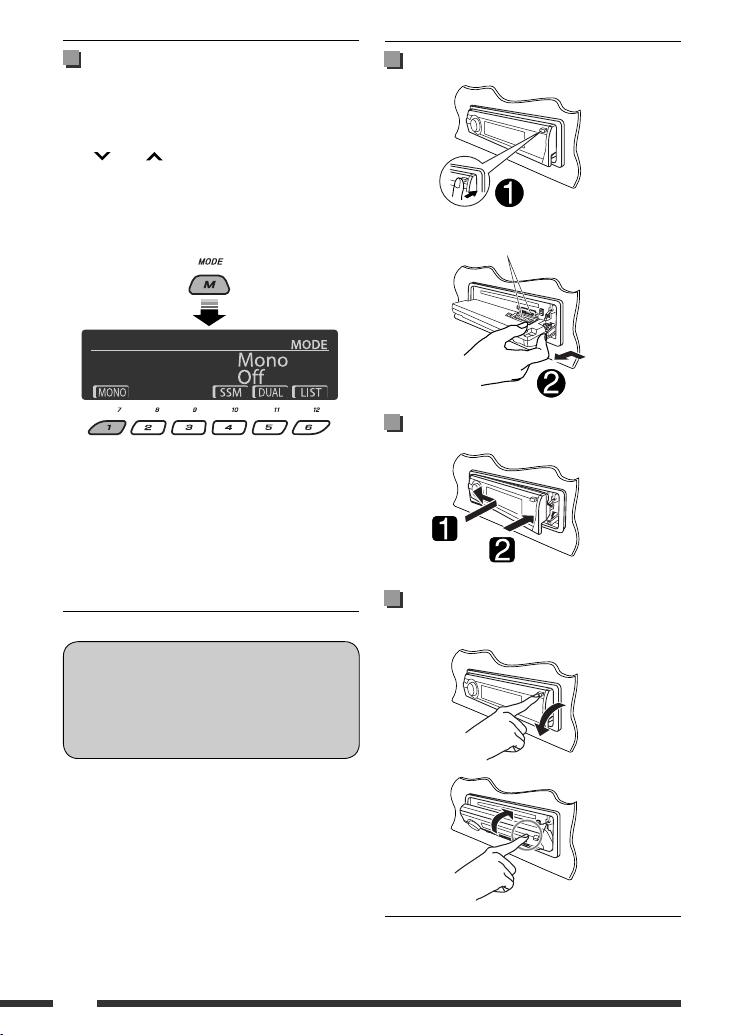

If you use M MODE or EL (select), the display and some
controls (such as the number buttons,
4 /¢ buttons, 5/∞ buttons, and the
control dial) enter the corresponding control mode.
Ex.: When you press number button 1 after pressing
M MODE, to operate the FM tuner.
To use these controls for original functions, press
M MODE again.
• However, pressing EL makes the unit enters a
different mode.
• Waiting for about 15 seconds (or 30 seconds for
Bluetooth sources) without pressing any of these
buttons will automatically cancels the control.
In ication language:
In this manual, English indications are used
for purposes of explanation. You can select
the indication language on the monitor on the
“LANGUAGE” setting (see page 45).
Open...
Close...
EN02-09_KD-DV7406_005A_f.indd 4EN02-09_KD-DV7406_005A_f.indd 4 2/12/08 2:01:10 PM2/12/08 2:01:10 PM
5
CONTENTS
INTRODUCTIONS
Playable disc type ........................................................................................................................... 6
Preparation ..................................................................................................................................... 7
OPERATIONS
Basic operations .............................................................................................................................. 8
• Using the control panel ............................................................................................................................ 8
• Using the remote controller (RM-RK252) ................................................................................................. 9
Listening to the radio ...................................................................................................................... 12
Disc operations ................................................................................................................................ 14
• Operations using the control panel .......................................................................................................... 15
• Operations using the remote controller (RM-RK252) ............................................................................... 18
Listening to the U B device ............................................................................................................. 24
Dual Zone operations ...................................................................................................................... 25
EXTERNAL DEVICES
Listening to the Bluetooth® devices ................................................................................................ 26
• Using the Bluetooth cellular phone ......................................................................................................... 28
• Using the Bluetooth audio player ............................................................................................................ 30
Listening to the CD changer ............................................................................................................ 31
Listening to the iPod ....................................................................................................................... 32
Listening to the other external components ................................................................................... 36
SETTINGS
electing a preset sound mode ....................................................................................................... 38
General settings — P M ................................................................................................................ 40
Disc setup menu .............................................................................................................................. 45
Bluetooth settings .......................................................................................................................... 47
Title assignment ............................................................................................................................. 48
REFERENCES
Maintenance ................................................................................................................................... 49
More about this unit ....................................................................................................................... 50
Troubleshooting .............................................................................................................................. 58
pecifications .................................................................................................................................. 62
EN02-09_KD-DV7406_005A_f.indd 5EN02-09_KD-DV7406_005A_f.indd 5 2/12/08 2:01:11 PM2/12/08 2:01:11 PM
6
Disc type Recording format, file type, etc Playable
DVD DVD Video (Region Code: 4) *1
DVD Audio
DVD-ROM
DVD Recordable/Rewritable
(DVD-R/-RW *2, +R/+RW *3)
• DVD Video: UDF bridge
• DVD-VR
• DivX/MPEG- /MPEG-2/MP3/
WMA/WAV: ISO 9660 level ,
level 2, Romeo, Joliet
DVD Video
DVD-VR
DivX/MPEG /MPEG2
MP3/WMA/WAV
AAC
JPEG/MPEG4
DVD+VR
DVD-RAM
Dual Disc DVD side
Non-DVD side
D/V D Audio CD/CD Text (CD-DA)/DTS-CD *4
VCD (Video CD)
SVCD (Super Video CD)
CD-ROM
CD-I (CD-I Ready)
D Recordable/Rewritable
( D-R/-RW)
• ISO 9660 level , level 2, Romeo,
Joliet
CD-DA
DivX/MPEG /MPEG2
MP3/WMA/WAV
AAC
JPEG/MPEG4
*1 If you insert a DVD Video disc of an incorrect Region Code, “REGION CODE ERROR” appears on the monitor.
*2 DVD R recorded in multi border format is also playable (except for dual layer discs). DVD RW dual layer discs are not
playable.
*3 It is possible to play back finalized +R/+RW (Video format only) discs. +RW double layer discs are not playable.
*4 To reproduce DTS sound, use the DIGITAL OUT terminal (see also pages 46 and 56).
Playable disc type
EN02-09_KD-DV7406_005A_f.indd 6EN02-09_KD-DV7406_005A_f.indd 6 2/14/08 10:53:49 AM2/14/08 10:53:49 AM
7INTRODUCTIONS

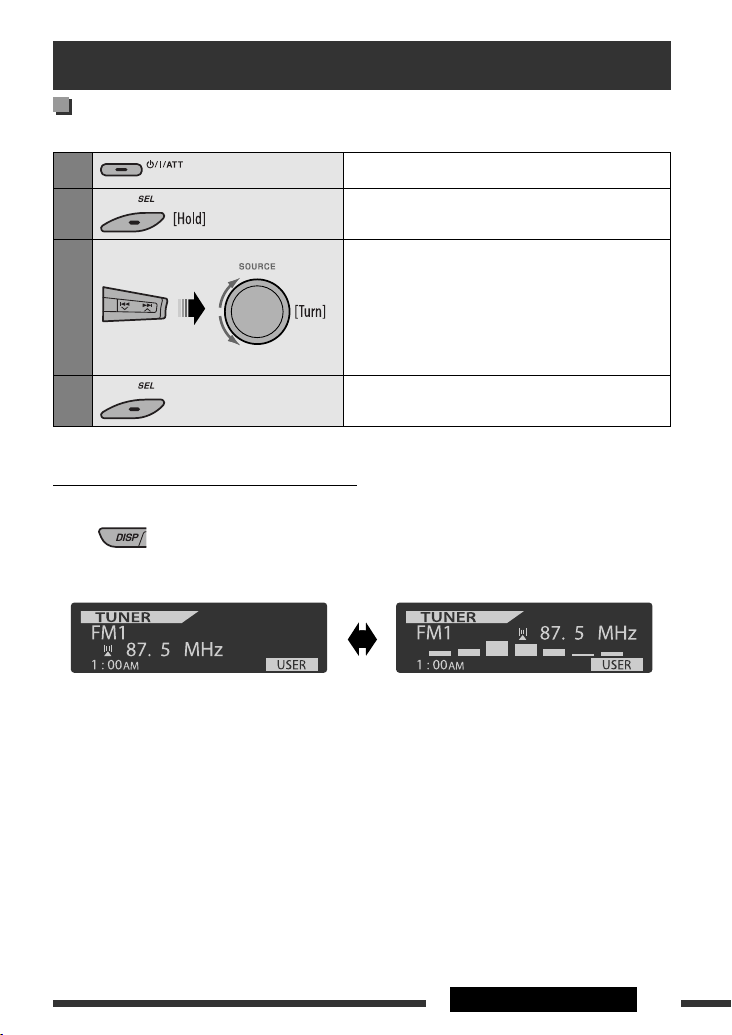

Preparation
Cancel the isplay emonstration an set the clock
• ee also pages 40 and 41.
1Turn on the power.
2Enter the PSM settings.
3Cancel the isplay emonstrations
elect “Demo,” then “Off.”
Set the clock
elect “Clock Hr” (hour), then adjust the hour.
elect “Clock Min” (minute), then adjust the minute.
elect “24H/12H,” then “24Hours” or “12Hours.”
4Finish the proce ure.
Changing the isplay information an pattern
When the power is turned off: Check the current clock time
Ex.: When tuner is selected as the source
ource operation display
• If a station has been assigned a title, station
title appears after about 5 seconds.
• To assign a title to a station, see page 48.
Audio level meter display
(see “LevelMeter” on page 40)
EN02-09_KD-DV7406_005A_f.indd 7EN02-09_KD-DV7406_005A_f.indd 7 2/12/08 2:01:12 PM2/12/08 2:01:12 PM
8
Basic operations

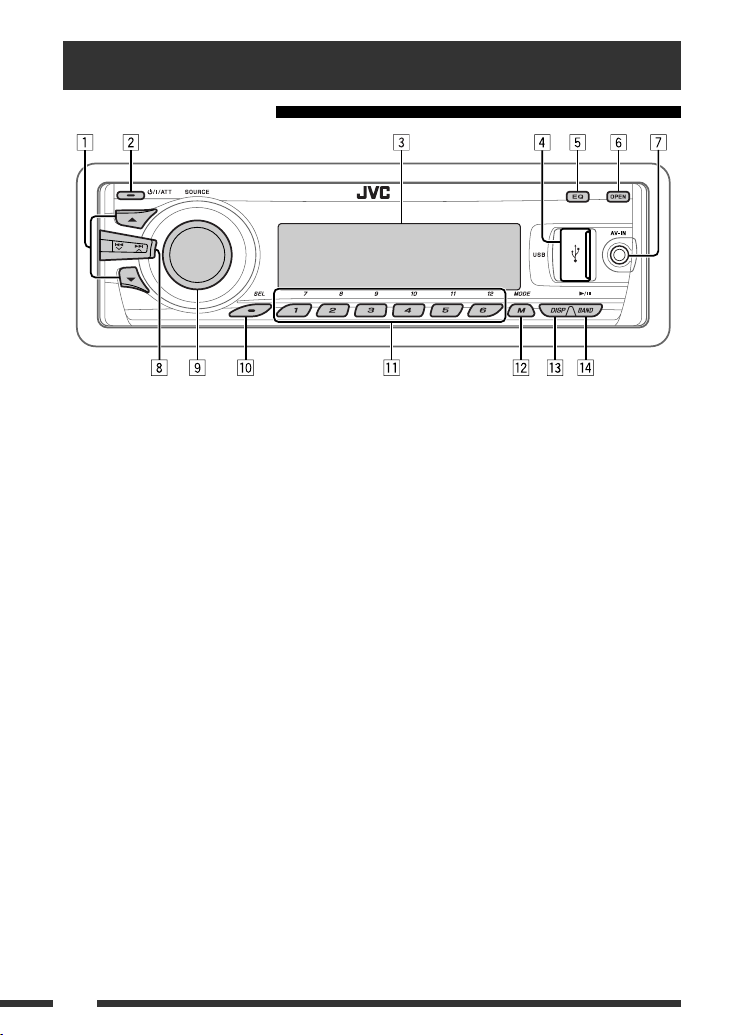

Using the control panel
9 • Volume control [Turn].
• elect the source [Press] *1.
TUNER = DISC *2 = USB *2 (or USB-iPo ) *2
= CD-CH *2/iPo *2 (or EXT IN) =
BT-PHONE *2 = BT-AUDIO *2 = LINE IN =
AV IN = (back to the beginning)
p • elect/adjust the sound mode.
• Enter the P M settings [Hold].
q • TUNER: elect preset station.
• DISC/USB/CD-CH: elect chapter/title/
program/folder/track/disc (for CD changer).
• BT-PHONE: Dial preset phone number *3.
w • Enter functions mode.
• BT-PHONE: Activate Voice Dialing [Hold].
e Change the display information and pattern.
r • TUNER: elect the bands.
• DISC/USB/USB-iPo : tart/pause playback.
• BT-AUDIO: tart/pause playback.
*1 Holding SOURCE will enter the Bluetooth menu i a
Bluetooth phone is connected.
*2 You cannot select these sources i they are not ready
or not connected.
*3 For storing preset phone number, see page 30.
1 • TUNER: elect preset station.
• DISC/USB/CD-CH: elect title/program/
playlist/folder.
• USB-iPo : Enter the main menu [Hold].
• iPo : Enter the main menu/Pause playback/
Confirm selection.
• BT-PHONE/BT-AUDIO: elect a registered
device.
2 • Turn on the power.
• Turn off the power [Hold].
• Attenuate the sound (if the power is on).
3 Display window
4 U B (Universal erial Bus) input jack
5 elect the sound mode
6 Flip down the control panel.
• To eject the disc, flip down the control panel
then press 0 on the unit.
7 AV-IN (video) input jack
8 • TUNER: earch for station.
• DISC/USB/USB-iPo /CD-CH/iPo : elect
chapter/track.
• BT-AUDIO: Reverse skip/forward skip.
EN02-09_KD-DV7406_005A_f.indd 8EN02-09_KD-DV7406_005A_f.indd 8 2/12/08 2:01:12 PM2/12/08 2:01:12 PM
9OPERATIONS
Continued on the next page

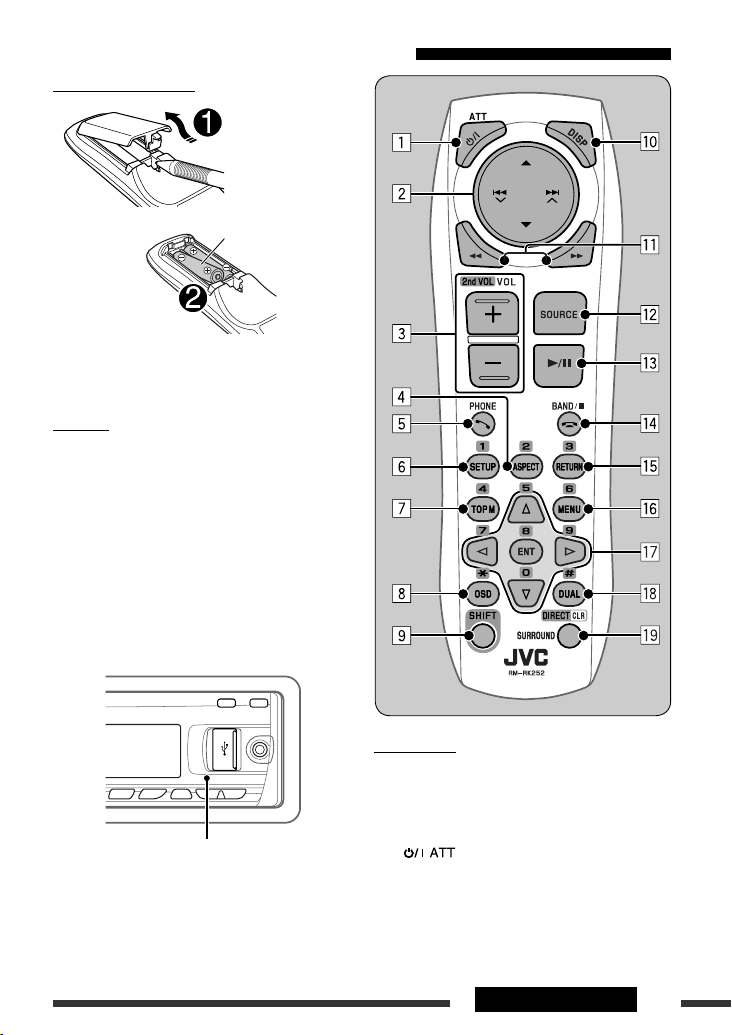

Installing the battery
Insert the batteries into the remote controller by
matching the polarity (+ and –) correctly.
Caution:
Battery shall not be exposed to excessive heat such as
sunshine, fire, or the like.
If the effectiveness of the remote controller
ecreases, replace both batteries.
Before using the remote controller:
• Aim the remote controller directly at the remote
sensor on the unit.
• DO NOT expose the remote sensor to bright light
(direct sunlight or artificial lighting).
Using the remote controller (RM-RK252)
R03/LR03/AAA
Remote sensor
IMPORTANT:
If Dual Zone is activated (see page 25), the remote
controller only functions for operating the DVD/CD
player.
1*1 button
• Turns the power on if pressed briefly or
attenuates the sound when the power is on.
• Turns the power off if pressed and held.
EN02-09_KD-DV7406_005A_f.indd 9EN02-09_KD-DV7406_005A_f.indd 9 2/12/08 2:01:13 PM2/12/08 2:01:13 PM
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels JVC Récepteur de voiture
JVC
JVC KD-G635 Mode d’emploi
JVC
JVC KD-ABT22 Manuel utilisateur
JVC
JVC KD-A615J Manuel utilisateur
JVC
JVC KD-G301 Manuel utilisateur
JVC
JVC KD-R960BTS Manuel utilisateur
JVC
JVC KD-G386 Manuel utilisateur
JVC
JVC KD-R907 Manuel utilisateur
JVC
JVC KW-XC888 Manuel utilisateur
JVC
JVC EXAD KD-SHX851 Mode d’emploi
JVC
JVC EXAD KD-SHX855 Mode d’emploi
JVC
JVC KW-XG500 - Radio / CD Player Manuel utilisateur
JVC
JVC KW-AVX838 Manuel utilisateur
JVC
JVC KD-AVX2 - DVD Player With LCD Monitor Manuel utilisateur
JVC
JVC KW-GX500 Manuel utilisateur
JVC
JVC KD-G351 Mode d’emploi
JVC
JVC KD-ABT22 Manuel utilisateur
JVC
JVC KD-HDR20 Manuel utilisateur
JVC
JVC Model KD-S10J Manuel utilisateur
JVC
JVC KS-F315EE Manuel utilisateur
JVC
JVC KD-Lh401 Manuel utilisateur
