COLOR VIDEO CAMERA

TK-C9200U

TK-C9200E(EX)

TK-C9201EG(EX)

TK-C9300U

TK-C9300E(EX)

TK-C9301EG(EX)

INSTRUCTIONS

For Customer Use:

Enter below the Serial No. which is located on the

body. Retain this information for future reference.

Model No. TK-C9200U

Serial No.

TK-C9300U

LST0984-001B

Contents

Introduction

Contents ............................................................................................................. 2

Features ............................................................................................................. 3

Operating Precautions ....................................................................................... 4

Connection/Installation

Mounting the Lens ............................................................................................. 6

Connection ......................................................................................................... 7

Mounting the Camera ........................................................................................ 9

Setting/Adjustment

Switch Settings ................................................................................................ 11

Adjusting the Back Focus ................................................................................ 12

Fine-tuning the Focus ...................................................................................... 13

Adjusting the Auto White Balance .................................................................... 14

Others

Specifications ................................................................................................... 15

Introduction

Thank you for purchasing this product.

Before use, please read this "INSTRUCTIONS" and the information materials

included to ensure proper use of this product.

The model names (EX) are omitted in the text below.

TK-C9200E(EX)/TK-C9201EG(EX)/TK-C9300E(EX)/TK-C9301EG(EX) are not

evaluated by UL.

The instructions in this manual are for

TK-C9200U/TK-C9200E(EX)/TK-C9201EG(EX)/

TK-C9300U/TK-C9300E(EX)/TK-C9301EG(EX).

Features

Wide dynamic range (WIDE-D) function (TK-C9300U/TK-C9300E/TK-C9301EG

only)

DAY/NIGHT surveillance with auto IR cut filter on/off (Color/B&W shooting)

(TK-C9300U/TK-C9300E/TK-C9301EG)

Easy DAY/NIGHT function (TK-C9200U/TK-C9200E/TK-C9201EG)

3D noise reduction (3DNR)

4 areas privacy mask

Built-in display mode (CRT or LCD selectable)

How to read this manual

Conventions and symbols

Note : Indicates operating precautions.

Memo : Indicates reference data regarding limitations on functions, usage

and the like.

A: Indicates a reference page or item.

Contents of this manual



JVC KENWOOD Corporation holds the copyright to this manual. Any part or all

of this manual may not be reproduced without prior consent from the company.

Product names of other companies described in this manual are trademarks

or registered trademarks of the respective companies. Symbols such as , ,

and are omitted in this manual.

Design, specifications and other contents described in this manual are

subject to change for improvements without prior notice.

Introduction

Operating Precautions

mStorage and Location of Use

vDo not install the camera in the following places.

- In a place exposed to rain or moisture.

- In a place with vapor or oil, for example in a kitchen.

- When the ambient temperature rises above or falls below the acceptable

range (from -10 f to 50 f)

- In a place at which corrosive gases are emitted.

- Near a source of radiation, X-rays, strong radio waves or magnetism.

- In a place subject to vibration.

- In a place with excessive dirt.

vUsing this unit in the vicinity of the transmitting antenna of a radio or TV,

devices that emit strong electromagnetic waves such as a transformer or motor,

or wireless devices such as a transistor or mobile phone may give rise to noises

in the image and changes in its color.

vThis camera has been designed for indoor use. When using it outdoors, it is

necessary to use an outdoor camera housing (optional).

mMaintenance

vWipe the camera with a dry, soft cloth to remove any dirt.

Do not use benzene or thinner to wipe the camera. Doing so may melt the

surface or cause it to fog. For tough stains, wipe with a neutral detergent diluted

with water, followed by wiping with a dry cloth.

mEnergy Conservation

vWhen the camera is not in use for a long time, turn off the power for safety and

energy conservation reasons.

mCopyright Protection

vWith the exception of the user being the copyright holder or when permission

such as for duplication has been granted by the copyright holder, permission is

required in principle for the duplication, modification, or transmission of

copyrighted material.

vUnauthorized duplication, modification, or transmission of copyrighted material

may constitute a copyright infringement, and the user may be liable to

compensate for any damages. When using copyrighted material, be sure to

check the license agreement of the copyrighted material thoroughly.

vWhen rights or rights holders are involved with regard to the targeted

duplicating subject, permission may be required for shooting or using

(processing) it. Be sure to check the licensing conditions thoroughly.

mDisclaimer

vMotion detection is not a feature to prevent theft or fire. We do not accept

liability for any damages that may occur.

Introduction

vWe will not be responsible for any inconveniences or disturbances caused in

the event of privacy invasion as a result of camera footages of this product.

mOthers

vWhen using this camera with [AGC] set to "MID" or "HIGH", the sensitivity

increases automatically for dark images and the screen may appear grainy, but

this is not a malfunction.

vWhen the DAY/NIGHT switch is set to "AUTO", the image turns black-and-white

in a dark location. As the sensitivity level is increased in this case, the screen

may appear grainy and more white spots may appear. When switching between

modes, the brighter area on the screen is emphasized and visibility may be

reduced. However, this is not a malfunction.

vBefore mounting the camera to the mounting location, attach the lens to be

used on the camera and check the back focus.

vWhen shooting an extremely bright object (e.g. lamp), the image on the screen

may have white vertical tailings (smear) or expansion (blooming) may appear

around it. This is a characteristic of the CCD and not a malfunction.

vWhen the white balance of this camera is set to "ATW-N" or "ATW-W" and

depending on the conditions of the object, the color tone may differ slightly from

the actual color due to the principle of the automatic tracking white balance

circuit. This is not a malfunction.

vWhen this camera is used under high temperatures, vertical stripes may appear

on the screen. This is a characteristic of the CCD and not a malfunction.

vWhen this camera is moved from a cold to warm place, condensation may

occur and the camera may not work. In this case, leave the camera under room

temperature for about one hour before turning on the power.

vWhen the power supply voltage is momentarily disrupted or drops due to

lightning, turning on the air-conditioner or the like, image distortion or noise may

occur.

vWhen the power supply voltage of the camera drops, the input protection circuit

inside the camera operates, and the camera may be turned off. Make use of a

voltage rating within 510 % for the camera’s power supply voltage.

vThe 3D noise reduction function of this camera may result in afterimage of a

moving subject. Afterimage is more likely to occur when using the camera with

[DNR LEVEL] set to "HIGH". This is not a malfunction.

Introduction

Mounting the Lens

1Check the mounting method of the lens before mounting.

This camera is compatible with CS-mount lens.

To use a C-mount lens, a C-mount adapter is necessary. For details about the C-

mount adapter, consult your JVC dealer.

Never use a lens that exceeds the dimension (a) in the below figure as it will

damage the inner part of the camera and will not allow normal installation. This

will result in a malfunction.

(a)

(b)

12.5 mm

Flange back (b) Dimension (a)

5.5 mm or less

2Turn the lens clockwise and mount it securely on the camera.

3In the case of a DC IRIS lens, check the pin arrangement and

connect the lens cable to the socket.

POWER IRIS

Memo vVideo IRIS lens cannot be used.

vIf the plug of the lens cable is different, connect with a 4 pin plug. For

details about the 4 pin plug, consult your JVC dealer.

4 pin plug Pin number DC IRIS lens

Brake (-)

Brake (+)

Drive (+)

Drive (-)

Connection/Installation

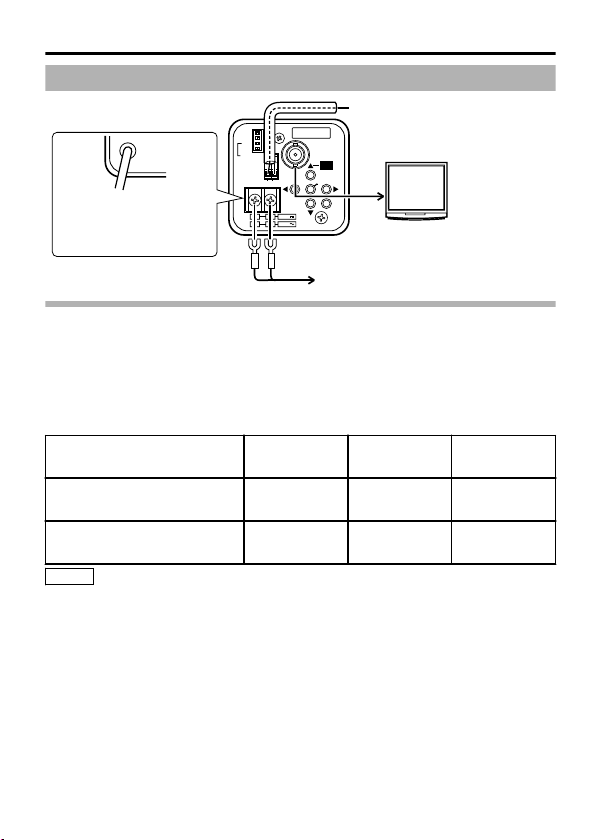

Connection

SET

MANUAL

SEE INSTRUCTION

GNDAUX

ONLY (ETYPE)

ISOLATED POWER

(U TYPE)

CLASS 2 ONLY

OUT

VIDEO

CRT

AES OFF

LCD

BLC OFF

D/N AUTO

MONITORTYPE

DC12V

AC24V

1 2

ADJUST

FOCUS

Connect to AC 220 V-

AC 240 V power supply

(TK-C9201EG/

TK-C9301EG) Connect to AC 24V or DC 12V

power supply (TK-C9200U/

TK-C9200E/TK-C9300U/TK-C9300E)

(Apage 8)

(TK-C9300U/TK-C9300E/

TK-C9301EG)

Monitor

To the terminal of infrared

illumination device etc.

(Apage 8)

(Apage 7)

(Apage 8)

Connecting the Power Supply Cable

When power is supplied to the camera, the [POWER] lamp on the side panel

lights up.

AC24 V or DC12 V (TK-C9200U/TK-C9200E/TK-C9300U/TK-C9300E)

To prevent connection errors or a cable disconnection, use a lug plate to connect

to the terminal. The following table shows the connection distances when 2-core

VVF (vinyl-insulated vinyl sheath cables) are used. (Reference value)

Conductor diameter (mm) Φ 1.0 and

Φ 1.6 and

Φ 2.0 and

Maximum connection

distance: DC 12 V

50 m 140 m 220 m

Maximum connection

distance: AC 24 V

130 m 350 m 550 m

Memo vIf thin cables are used, the resistance of the cables will be high and a

significant voltage drop will occur when the camera is at its maximum

power consumption. Either use a thick cable with low resistance or

place the power supply near to the camera and shorten the length of

the cable to restrict the voltage drop at the rated current of camera to

below 10 %. If voltage drop occurs during operation, the performance

will be unstable.

vDo not connect an AC 24 V cable to a commercial power supply. If it is

connected by mistake, the internal circuit may be damaged. Sent the

camera to the nearest JVC service center for inspection as the internal

circuit may be damaged.

Connection/Installation

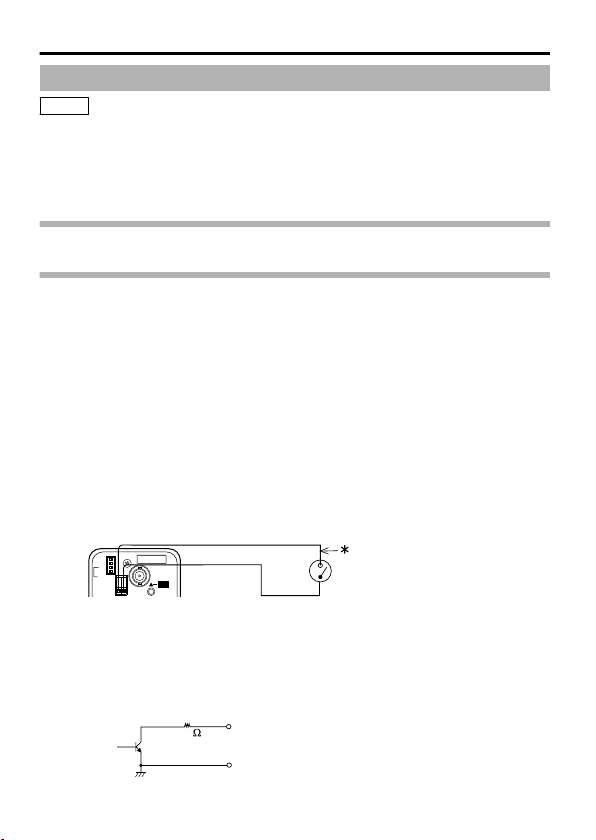

Connection (Continued)

Memo vDo not connect DC 12 V and AC 24 V cables at the same time.

vWhen using a DC 12 V power supply, ensure that the polarities of the

cable are correct.

mAC 220 V - AC 240 V (TK-C9201EG/TK-C9301EG)

When using this camera, install it near the socket so that power disconnection

may be made immediately.

Connecting the Monitor

Connect with a 75 K coaxial cable (BNC) such as RG-59.

Connecting the Alarm Input/Output Terminal (TK-C9300U/TK-

C9300E/TK-C9301EG only)

Menu settings may be required depending on the connected equipment. (Refer to

[AUX FUNCTION] in the separate "MENU SETTING".)

The default setting has been set to alarm input (IN:ALARM).

mAlarm input terminal

Connect the infrared sensor, door sensor, metal sensor, manual switch sensor

and the like.

vTo prevent noise from entering the internal circuit, supply non-voltage setting

signal to the alarm input signal.

vDo not supply voltage.

vUsing the menu, you can select whether to set to alarm when the contact is

short (MAKE), or when the contact is open (BREAK).

vSupply such that the alarm signal stays at a minimum of 200 ms or more.

Otherwise, the alarm signal may not be recognized.

AUX(IN) Please use a shielded cable.

GND

SET

MANUAL

SEE INSTRUCTION

ONLY(E TYPE)

ISOLATEDPOWER

(UTYPE)

CLASS 2 ONLY

OUT

VIDEO

CRT

OFF

LCD

BLC OFF

D/N AUTO

MONITORTYPE

ADJUST

FOCUS

WIDE-D OFF

mAlarm output terminal

Connect to alarm devices such as alarm, indicator, light or buzzer.

vThe alarm output signal is open collector output and turns ON during an alarm.

(Maximum voltage 16 V, current 30 mA)

vThis terminal has a polarity. Make sure to connect such that a higher voltage is

output from the + terminal than from the - terminal. Otherwise, it will result in

damages.

AUX(OUT)

GND

100

Connection/Installation

Mounting the Camera

When mounting the camera on a fixer, pan/tilt and the like, use the camera-

mounting screw hole located on the camera-mounting bracket. (Length of screw: 7

mm or less)

MAX.

Camera-mounting

screw hole

Camera-mounting bracket fastening

screws (x2: M2.6 x 6 mm)

Rotation-preventive

hole

Camera-mounting bracket

Note Use a camera-mounting screw with a length shorter than 7 mm from the

camera-mounting face. Use camera-mounting bracket fastening screws

with length shorter than 6 mm. Do not use a screw that is longer than the

specified length. It may damage the internal parts.

mMounting the Camera-Mounting Bracket on Top of the Camera

The camera-mounting bracket is originally mounted at the bottom of the camera

before shipment but it can also be mounted on top of the camera.

1Remove the camera-mounting bracket fastening screws (x2).

The camera-mounting bracket is removed from the camera.

2Mount the camera-mounting bracket on top of the camera.

3Mount the camera onto a fixer, pan/tilt unit and the like.

BF LOCK

Camera-mounting

bracket fastening

screws

Camera-mounting

bracket

POWER IRIS

Connection/Installation

Mounting the Camera (Continued)

mFall Prevention

vSpecial attention is required when installing the camera to the wall or ceiling.

You should not engage in the installation work yourself. Ask a professional to do

the job, because injuries and accidents may occur if the camera falls.

vWhen installing the camera on a fixer, pan/tilt unit and the like, make sure to

install it firmly using a rotation-preventive hole to prevent fall.

vTo prevent fall, connect the camera to a section with sufficient strength (ceiling

slab or channel) using a fall prevention wire.

vPay attention to the length, strength, routing and material (insulation properties)

of the fall prevention wire used.

vUse the screw (M3 x 6 mm) on the back of the camera for the installation of the

fall prevention wire. Do not use a screw that is longer than 6 mm as it may

damage the internal parts.

Fall Prevention Wire

DC12V

SET

MANUAL

SEE INSTRUCTION

GNDAUX

ONLY(E TYPE)

ISOLATEDPOWER

(UTYPE)

CLASS 2 ONLY

OUT

VIDEO

CRT

OFF

AES OFF

LCD

BLC OFF

D/N AUTO

MONITORTYPE

AC24V

1 2

ADJUST

FOCUS

M3 x 6 mm

6mm

2 mm

6 mm

Note When mounting the camera to the ceiling, ensure to wear safety glasses

to protect the eye from any falling objects.

Connection/Installation

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JVC caméscope

JVC

JVC GZMC100 - Everio 2MP 4 GB Microdrive... Manuel utilisateur

JVC

JVC ProHD GY-HM650 2.0 Manuel utilisateur

JVC

JVC 0104-FO-ID-PJ Manuel utilisateur

JVC

JVC GR-AXM710 Manuel utilisateur

JVC

JVC GR DVL 200 Manuel utilisateur

JVC

JVC GZMC500US - Everio Camcorder - 1.33 MP Manuel utilisateur

JVC

JVC GZ-R440 Manuel d'utilisation et d'entretien

JVC

JVC GR-DF428 Manuel utilisateur

JVC

JVC GR-AX280 Manuel utilisateur

JVC

JVC Everio GZ-HM430U Manuel d'utilisation et d'entretien

JVC

JVC GZ-R18 Manuel d'utilisation et d'entretien

JVC

JVC GR-D94 Manuel utilisateur

JVC

JVC GZ-F170 Manuel utilisateur

JVC

JVC GR-AXM151US Manuel utilisateur

JVC

JVC GZ-EX210BUA Manuel utilisateur

JVC

JVC GR-D750AS Manuel utilisateur

JVC

JVC GZ-MG155U Manuel utilisateur

JVC

JVC Streamcorder GY-DV301E Guide d'installation

JVC

JVC GR-AXM43 Manuel utilisateur

JVC

JVC GR-DF425 Manuel utilisateur

JVC

JVC Everio GZ-HD620 Manuel utilisateur

JVC

JVC GY-HD250 Manuel utilisateur

JVC

JVC GR-FX11 Manuel utilisateur

JVC

JVC LYT1426-001B Manuel utilisateur

Manuels caméscope populaires d'autres marques

Toshiba

Toshiba CAMILEO Z100 Manuel utilisateur

Panasonic

Panasonic NV-VS40B Manuel utilisateur

Canon

Canon RC 260 Manuel utilisateur

Sony

Sony Handycam DCR-DVD7E Manuel utilisateur

Brinno

Brinno TimeLapse TLC200 Manuel utilisateur

Panasonic

Panasonic AG-HMC152EN Manuel utilisateur

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuel utilisateur

MYDLINK

MYDLINK DCS-6100LH Manuel utilisateur

Sony

Sony video Hi8 Handycam CCD-TR555 Manuel utilisateur

SECURECOM

SECURECOM V-5014B Manuel utilisateur

Panasonic

Panasonic HDC-SD100 Manuel utilisateur

Sharper Image

Sharper Image U-VIDEO Manuel utilisateur

Canon

Canon LEGRIA HV40 Manuel utilisateur

Sony

Sony Handycam DCR-VX2000 Manuel utilisateur

RCA

RCA CC616 Manuel utilisateur

Panasonic

Panasonic NVM40 Manuel utilisateur

ATIK Cameras

ATIK Cameras Horizon Manuel utilisateur

Sony

Sony Handycam HDR-CX580V Manuel utilisateur
