DIGITAL VIDEO CAMERA

INSTRUCTIONS

GR-DVP3

Please visit our Homepage on the World Wide

Web and answer our Consumer Survey

(in English only):

http://www.jvc-victor.co.jp/english/index-e.html

ENGLISH

CONTENTS

AUTOMATIC

DEMONSTRATION

GETTING STARTED

9 – 18

VIDEO RECORDING &

PLAYBACK

19 – 26

VIDEO RECORDING ............. 20 – 22

VIDEO PLAYBACK ............... 23 – 26

DIGITAL STILL CAMERA (D.S.C.)

RECORDING &

PLAYBACK

27 – 38

D.S.C. RECORDING .............. 28 – 29

D.S.C. PLAYBACK ................ 30 – 38

ADVANCED

FEATURES

39 – 75

USING MENUS FOR

DETAILED ADJUSTMENT ...... 40 – 46

FOR RECORDING ................ 47 – 57

DUBBING ......................... 58 – 61

USING THE REMOTE

CONTROL UNIT ................ 62 – 73

SYSTEM CONNECTIONS ........ 74 – 75

REFERENCES

76 – 99

DETAILS ................................... 77

TROUBLESHOOTING ............ 78 – 83

USER MAINTENANCE ................... 84

INDEX ............................. 85 – 92

CAUTIONS ........................ 93 – 95

TERMS ............................ 96 – 97

SPECIFICATIONS ................. 98 – 99

2EN

Using This Instruction Manual

• All major sections and subsections are listed in the Table Of Contents on the cover page.

• Notes appear after most subsections. Be sure to read these as well.

• Basic and advanced features/operation are separated for easier reference.

It is recommended that you . . .

..... refer to the Index (墌pgs. 85 – 92) and familiarise yourself with button locations, etc. before use.

..... read thoroughly the Safety Precautions and Safety Instructions that follow. They contain extremely important

information regarding the safe use of this product.

You are recommended to carefully read the cautions on pages 93 through 95 before use.

Dear Customer,

Thank you for purchasing this digital video camera. Before use, please read the safety information and precautions

contained in the following pages to ensure safe use of this product.

SAFETY PRECAUTIONS

NOTES:

●

The rating plate (serial number plate) and safety

caution are on the bottom and/or the back of

the main unit.

●

The rating plate (serial number plate) of the AC

Power Adapter /Charger is on its bottom.

WARNING:

TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE

THIS UNIT TO RAIN OR

MOISTURE.

CAUTIONS:

䡲If you notice smoke or a peculiar smell coming

from the camcorder or AC Power Adapter/

Charger, shut it down and unplug it immedi-

ately. Continue using the camcorder or AC

Power Adapter/Charger under these conditions

could lead to fire or electric shock. Contact

your JVC dealer. Do not attempt to repair the

malfunction yourself.

䡲To prevent shock, do not open the cabinet. No

user serviceable parts inside. Refer servicing to

qualified personnel.

䡲When you are not using the AC Power

Adapter/Charger for a long period of time, it is

recommended that you disconnect the power

cord from AC outlet.

EN3

CAUTIONS:

●This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for

playback with a television of a different standard. However, live recording and LCD monitor/viewfinder

playback are possible anywhere.

●Use the JVC BN-V107U/V114U battery packs and, to recharge them or to supply power to the camcorder

from an AC outlet, use the provided multi-voltage AC Power Adapter /Charger. (An appropriate conver-

sion adapter may be necessary to accommodate different designs of AC outlets in different countries.)

When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all

sides to allow for ventilation (10 cm or more on both sides, on top and at the rear).

Do not block the ventilation holes.

(If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)

No naked flame sources, such as lighted candles, should be placed on the apparatus.

When discarding batteries, environmental problems must be considered and the local rules or laws

governing the disposal of these batteries must be followed strictly.

The apparatus shall not be exposed to dripping or splashing.

Do not use this equipment in a bathroom or places with water.

Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases,

potted plants, cups etc.) on top of this unit.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

4EN

䡲This camcorder is designed exclusively for the digital video cassette, SD Memory Card and

MultiMediaCard. Only cassettes marked “ ” and memory cards marked “ ” or

“”can be used with this unit.

Before recording an important scene . . .

.... make sure you only use cassettes with the Mini DV mark .

.... make sure you only use memory cards with the mark or .

.... remember that this camcorder is not compatible with other digital video formats.

.... remember that this camcorder is intended for private consumer use only. Any commercial

use without proper permission is prohibited. (Even if you record an event such as a show,

performance or exhibition for personal enjoyment, it is strongly recommended that you

obtain permission beforehand.)

SAFETY PRECAUTIONS

Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as

lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock.

CAUTION!

The following notes concern possible physical damage to the camcorder and to the user.

When carrying, be sure to always securely attach and use the provided strap. Carrying or holding

the camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a

malfunction.

Take care not to get your finger caught in the cassette holder cover. Do not let children operate the

camcorder, as they are particularly susceptible to this type of injury.

Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to

the camcorder.

CAUTION!

Attaching the camcorder to the Docking Station with cables (S-Video, Editing, etc.) connected, then

leaving it on top of the TV is not recommended, as tripping on the cables will cause the camcorder

to fall, resulting in damage.

Attach only the optional JVC VL-V3U Video Light, VL-F3U Video Flash or MZ-V3U Stereo Zoom

Microphone to the camcorder’s Info-Shoe.

EN5

• Docking Station

CU-V507U

• Remote Control Unit

RM-V717U

• CD-ROM

• Audio/Video Cable

(ø3.5 mini-plug to RCA plug)

• Editing Cable

• Battery Pack

BN-V107U

• AAA (R03) Battery x 2

(for remote control unit)

• Memory Card 8 MB

(Already inserted in the

camcorder)

PROVIDED ACCESSORIES

NOTE:

In order to maintain optimum performance of the camcorder, provided cables may be equipped

with one or more core filter. If a cable has only one core filter, the end that is closest to the filter

should be connected to the camcorder.

• AC Power Adapter/Charger

AA-V100A, AA-V100EA,

AA-V100ED or AA-V100SH

• DC Cord

• Grip Belt

(墌pg. 6 for attachment)

•Strap

(墌pg. 7 for attachment)

6EN

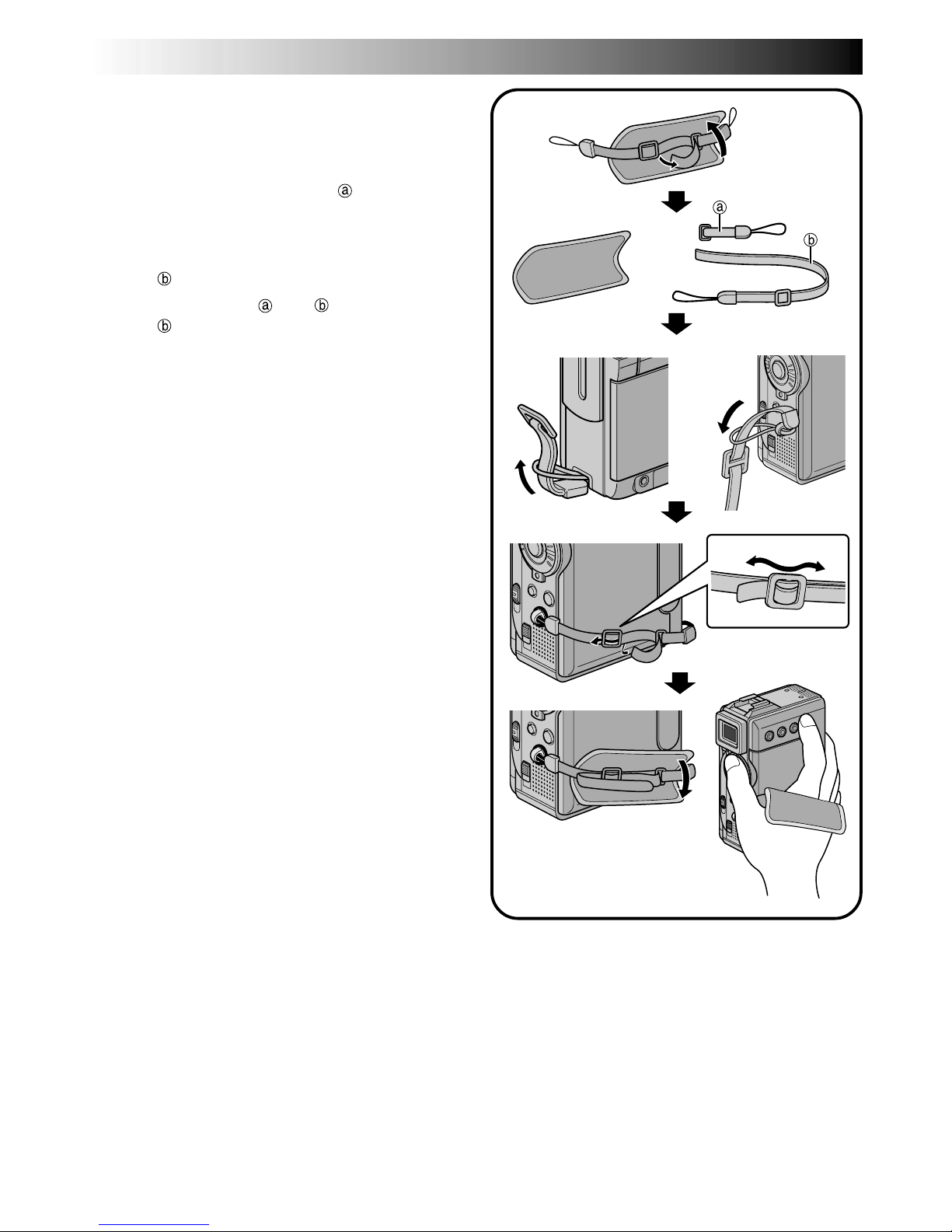

How To Attach The Grip Belt

1Remove the pad and separate the two

straps.

2Thread one end of the strap through the

eyelet, then pass the other end through the

loop.

3Repeat the same procedure to attach the

strap to the other eyelet.

4Connect the strap and and thread the

strap through the buckle, then adjust the

grip (墌pg. 12).

5Attach the pad.

EN7

How To Attach The Strap

1Thread one end of the strap through the

eyelet, then pass the other end through the

loop.

2Attach the screw to the tripod mounting

socket. To tighten the screw firmly, use a

coin, etc.

3Adjust the length with the adjuster.

NOTES:

●

You can use the strap as a shoulder strap by

adjusting the length with the adjuster.

●

Because a loose screw may cause damage to the

camcorder, make sure to tighten the screw firmly to

the tripod mounting socket when carrying the

camcorder.

●

Use the strap only with this camcorder.

●

Do not grip the camcorder too firmly when the

screw is attached. Doing so may cause damage to

the tripod mounting socket.

8EN

MOD EDEMO –

OFF

AUTOMATIC DEMONSTRATION

Automatic Demonstration takes place

when “DEMO MODE”is set to “ON”

(factory-preset).

䡲Available when the Power Switch is set to

“ ” or “ ” and no cassette is in the

camcorder.

䡲Performing any operation during the demon-

stration stops the demonstration temporarily. If

no operation is performed for more than 1

minute after that, the demonstration will

resume.

䡲“DEMO MODE”remains “ON”even if the

camcorder power is turned off.

䡲To cancel Automatic Demonstration:

1. Set the Power Switch to “ ” while

pressing down the Lock Button located on

the switch and press MENU. The Menu

Screen appears.

2. Press +or –to select “SYSTEM”and

press SET/SELECT. The SYSTEM Menu

appears.

3. Press +or –to select “DEMO MODE”and

press SET/SELECT. The Sub Menu appears.

4. Press +or –to select “OFF”and press SET/

SELECT.

5. Press +or –to select “RETURN”, and

press SET/SELECT twice. The normal screen

appears.

NOTE:

If you do not slide the lens cover down, you

cannot see the actual changes of the Automatic

Demonstration activated on the LCD monitor or

viewfinder.

Sub Menu

Lock Button

MENU Button

Power Switch

+, –ButtonSET/SELECT Button

Lens Cover

Slide down the lens cover

while pressing down the

Lock Button located on the

cover.

Slide up the lens cover to

protect the lens when the

camcorder is not in use.

NOTE:

When sliding down the lens

cover, be sure not to touch

the lens.

Lens Cover

Lock Button

EN9

GETTING STARTED

CONTENTS

Power ................................................................ 10 – 11

Grip Adjustment .............................................................12

Viewfinder Adjustment ....................................................12

Tripod Mounting .............................................................12

Date/Time Settings .........................................................13

Loading/Unloading A Cassette ...........................................14

Recording Mode Setting ...................................................15

Loading A Memory Card ...................................................16

Picture Quality Mode Setting .............................................17

Image Size Mode Setting ..................................................17

Operation Mode .............................................................18

10 EN

GETTING STARTED

(cont.)

Power

This camcorder’s 2-way power supply system lets you

choose the most appropriate source of power. Do not use

provided power supply units with other equipment.

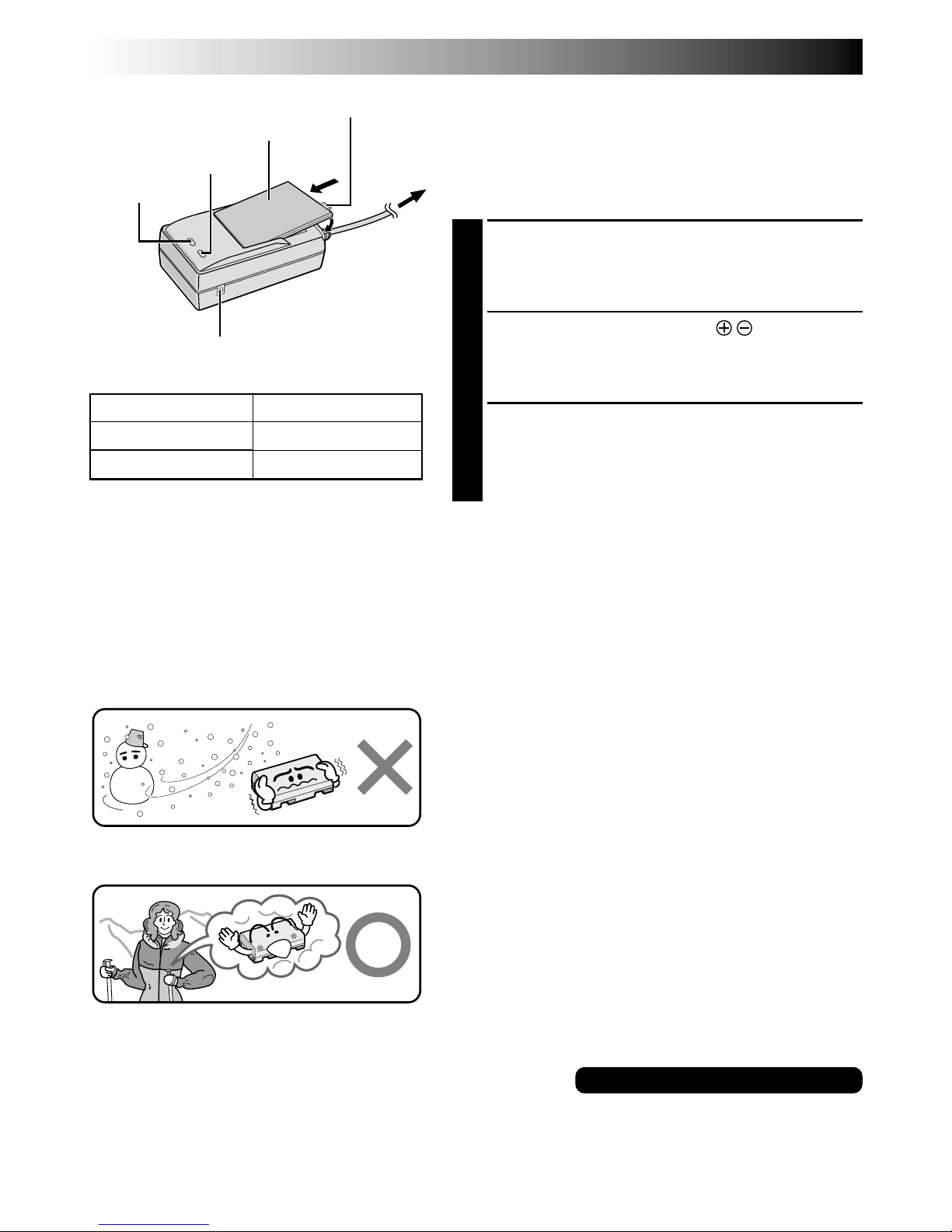

CHARGING THE BATTERY PACK

Make sure you unplug the camcorder’s DC cord from

the AC Power Adapter/Charger. Plug the AC Adapter/

Charger’s power cord into an AC outlet. The POWER

indicator lights.

Attach the battery pack with the mark aligned

with the corresponding marks on the AC Power

Adapter/Charger. The CHARGE Indicator begins

blinking to indicate charging has started.

When the CHARGE indicator stops blinking but stays

lit, charging is finished. Remove the battery by

pushing up the protruding part. Remember to unplug

the AC Adapter/Charger’s power cord from the AC

outlet.

AC outlet

CHARGE

indicator

POWER

indicator

Battery pack

DC OUT connector

AC Power

Adapter/Charger

NOTES:

●

If the protective cap is attached to the battery pack, remove it first.

●

If you connect the camcorder’s DC cord to the AC Power Adapter/Charger during battery charging, power is

supplied to the camcorder and charging stops.

●

When charging the battery pack for the first time or after a long storage period, the CHARGE indicator may

not light. In this case, remove the battery pack from the AC Power Adapter/Charger, then try charging again.

●

If the battery operation time remains extremely short even after having been fully charged, the battery is

worn out and needs to be replaced. Please purchase a new one.

Lithium-ion is vulnerable in colder

temperatures.

About Batteries

DANGER! Do not attempt to take the batteries apart, or

expose them to flame or excessive heat, as it may cause a fire

or explosion.

WARNING! Do not allow the battery or its terminals to come

in contact with metals, as this can result in a short circuit and

possibly start a fire.

The Benefits Of Lithium-Ion Batteries

Lithium-ion battery packs are small but have a large power

capacity. However, when one is exposed to cold temperatures

(below 10°C), its usage time becomes shorter and it may cease

to function. If this happens, place the battery pack in your

pocket or other warm, protected place for a short time, then

re-attach it to the camcorder. As long as the battery pack itself

is not cold, it should not affect performance.

(If you’re using a heating pad, make sure the battery pack does

not come in direct contact with it.)

Battery pack

BN-V107U

BN-V114U (optional)

Charging time

approx. 1 hr. 30 min.

approx. 2 hr.

Protruding part

For other notes, 墌pg. 77

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JVC caméscope

JVC

JVC Everio GZ-E105BEK Manuel d'utilisation et d'entretien

JVC

JVC GR-D252 Manuel utilisateur

JVC

JVC GR-DVP3EG Manuel utilisateur

JVC

JVC EVERIO GZ-HM690BUS Manuel utilisateur

JVC

JVC GZ-MG36E/EK Manuel utilisateur

JVC

JVC GR-SXM760A Manuel utilisateur

JVC

JVC LYT0087-001B Manuel utilisateur

JVC

JVC GR-DVL155EG Manuel utilisateur

JVC

JVC LYT0191-001B Manuel utilisateur

JVC

JVC GY-DV550U Manuel utilisateur

JVC

JVC GR-DVL400ED Manuel utilisateur

JVC

JVC GR-C1 Manuel utilisateur

JVC

JVC EVERIO GS-TD1BEK Manuel d'utilisation et d'entretien

JVC

JVC GR-D72 Manuel utilisateur

JVC

JVC GZ-MG31U Manuel utilisateur

JVC

JVC GR-DV1EG Manuel utilisateur

JVC

JVC GY- HD101 Manuel utilisateur

JVC

JVC GR-SXM37 Manuel utilisateur

JVC

JVC HD10U - Camcorder - 1.18 MP Manuel utilisateur

JVC

JVC GR-D320E Manuel utilisateur

JVC

JVC GZMG630RUS - Everio Camcorder - 800 KP Manuel utilisateur

JVC

JVC TK-C920 Manuel utilisateur

JVC

JVC GR-SXM77EA Manuel utilisateur

JVC

JVC EVERIO GZ-HM440U Manuel utilisateur

Manuels caméscope populaires d'autres marques

Toshiba

Toshiba CAMILEO Z100 Manuel utilisateur

Panasonic

Panasonic NV-VS40B Manuel utilisateur

Canon

Canon RC 260 Manuel utilisateur

Sony

Sony Handycam DCR-DVD7E Manuel utilisateur

Brinno

Brinno TimeLapse TLC200 Manuel utilisateur

Panasonic

Panasonic AG-HMC152EN Manuel utilisateur

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuel utilisateur

MYDLINK

MYDLINK DCS-6100LH Manuel utilisateur

Sony

Sony video Hi8 Handycam CCD-TR555 Manuel utilisateur

SECURECOM

SECURECOM V-5014B Manuel utilisateur

Panasonic

Panasonic HDC-SD100 Manuel utilisateur

Sharper Image

Sharper Image U-VIDEO Manuel utilisateur

Canon

Canon LEGRIA HV40 Manuel utilisateur

Sony

Sony Handycam DCR-VX2000 Manuel utilisateur

RCA

RCA CC616 Manuel utilisateur

Panasonic

Panasonic NVM40 Manuel utilisateur

ATIK Cameras

ATIK Cameras Horizon Manuel utilisateur

Sony

Sony Handycam HDR-CX580V Manuel utilisateur
