GR-AXM30

COMPACT VHS CAMCORDER

INSTRUCTIONS

LYT0002-0N4B

Compact VHS



PAL

GETTING STARTED

RECORDING

Basic Recording ...................... 14

Basic Features ........................ 18

Advanced Features .................. 20

Programme AE With Special

Effects .................................. 20

Exposure Control .................... 21

Focusing ................................ 22

Fader ..................................... 24

Wide ..................................... 24

Instant Titles ........................... 25

Character Generator ............... 25

Date/Time Character Insert ..... 26

Manual White Balance

Adjustment ........................... 27

Using Menu For Detailed

Adjustment ........................... 28

Self-Timer .............................. 30

Animation .............................. 31

Time Lapse ............................. 31

PLAYBACK

Basic Playback ....................... 32

Features............................... 33

Basic Connections .................... 34

Using The Cassette Adapter ........ 35

EDITING

Tape Dubbing ......................... 36

Random Assemble Editing [R.A.Edit] ...

USING REMOTE CONTROL

UNIT

Insert Editing ......................... 42

Audio Dubbing.............................

USER MAINTENANCE

TROUBLESHOOTING

INDEX

LCD monitor/viewfinder ............ 47

Controls ............................... 48

Connectors ............................ 48

Indicators ............................. 48

Other Parts ........................... 48

Terms .................................. 50

CAUTIONS

SPECIFICATIONS

CONTENTS

2EN

Dear Customer,

Thank you for purchasing the JVC Compact VHS

camcorder. Before use, please read the safety

information and precautions contained in the

following pages to ensure safe use of your new

camcorder.

Using This Instruction Manual

•All major sections and subsections are listed in the

Table Of Contents (Zcover page).

•Notes appear after most subsections. Be sure to

read these as well.

•Basic and advanced features/operation are

separated for easier reference.

It is recommended that you . . .

..... refer to the Index (Zpg. 47 – 50) and

familiarize yourself with button locations, etc.

before use.

..... read thoroughly the Safety Precautions that

follow and cautions (Zpg. 51 – 53). They

contain extremely important information

regarding the safe use of your new camcorder.

This unit is produced to comply with Standard

IEC Publ. 65.

Warning on lithium battery

The battery used in this device may present a

fire or chemical burn hazard if mistreated. Do

not recharge, disassemble, heat above 100°C or

incinerate.

Replace the battery with Panasonic (Matsushita

Electric), Sanyo or Maxell CR2025; use of

another battery may present a risk of fire or

explosion.

nDispose of used battery promptly.

nKeep away from children.

nDo not disassemble and do not dispose of in

fire.

CAUTIONS:

nTo prevent shock, do not open the cabinet.

No user serviceable parts inside. Refer

servicing to qualified personnel.

nWhen you are not using the AC Power

Adapter/Battery charger for a long period of

time, it is recommended that you disconnect

the power cord from AC outlet.

NOTES:

●

The rating plate (serial number plate) and

safety caution are on the bottom and/or the

back of the main unit.

●

The rating plate (serial number plate) of the

AC Power Adapter/Charger is on its bottom.

WARNING:

TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE

THIS UNIT TO RAIN OR

MOISTURE.

SAFETY

PRECAUTIONS

EN 3

This camcorder is designed to be used with

PAL-type colour television signals. It cannot be

used for playback with a television of a different

standard. However, live recording and

viewfinder playback are possible anywhere.

Use the BN-V12U/BN-V22U/BN-V25U battery

packs and, to recharge them, the provided

multi-voltage AC Power Adapter/Charger. (An

appropriate conversion adapter may be

necessary to accommodate different designs of

AC outlets in different countries.)

nThis camcorder is designed exclusively for the

VHS-C video cassette. Only cassettes marked

VHS-C can be used with this unit.

nHQ VHS is compatible with existing VHS

equipment.

PAL

ATTENTION USERS OF

RECHARGEABLE BATTERIES

DO NOT DISPOSE RECHARGEABLE BATTERIES OR PRODUCTS POWERED BY NON-

REMOVABLE RECHARGEABLE BATTERIES, THESE BATTERIES AND PRODUCTS CAN BE

RECYCLED.

AT THE END OF NORMAL LIFE,

IN AUSTRALIA, RETURN TO YOUR POINT OF PURCHASE OR MAIL TO:

Hagemeyer (Australasia) B.V. 5-7 Garema Circuit Kingsgrove NSW 2208 Australia

Attn : Service Dept.

Phone : (02)750 3777

IN NEW ZEALAND, PLEASE RETURN BATTERIES BY MAIL TO:

Hagemeyer (NZ) Limited P.O. Box 100589 Auckland 1000

Phone : (09)415 8758

4EN

REMEMBER

Programme AE with Special

Effects (Zpg. 20, 21)

nAuto Mode Lock

nAuto Mode Release

nElectronic Fog Filter nND Effect

nSepia nTwilight nSports

n1/1000 sec. High Speed Shutter

n1/2000 sec. High Speed Shutter Random Assemble Editing

(Zpg. 37 – 39)

Variable-Speed Hyper Zoom

(Zpg. 18)

Zoom-in

Zoom-out

LCD Colour Monitor

(Zpg. 16)

The Logical Choice

The only compact video

cassettes that can be

used with your VHS VCR*

PAL















Integrated Auto Light

(Zpg. 19)

PROVIDED ACCESSORIES

•AC Power Adapter/

Charger AA-V11EA •Cassette Adapter C-P7U •Remote Control

Unit RM-V704U

or RM-V700U

•Battery Pack

BN-V12U

•Editing Cable

180°

90°

•DC Cord

•Lithium Battery

CR2025 x2 •Shoulder Strap

EN 5

Using the battery pack

1Hook-on the battery pack's top end to the

camcorder. (Charging procedure, Zpg. 6)

2Push in the battery pack until it locks into

place.

To remove the battery pack

Slide BATT. RELEASE and pull out the battery

pack.

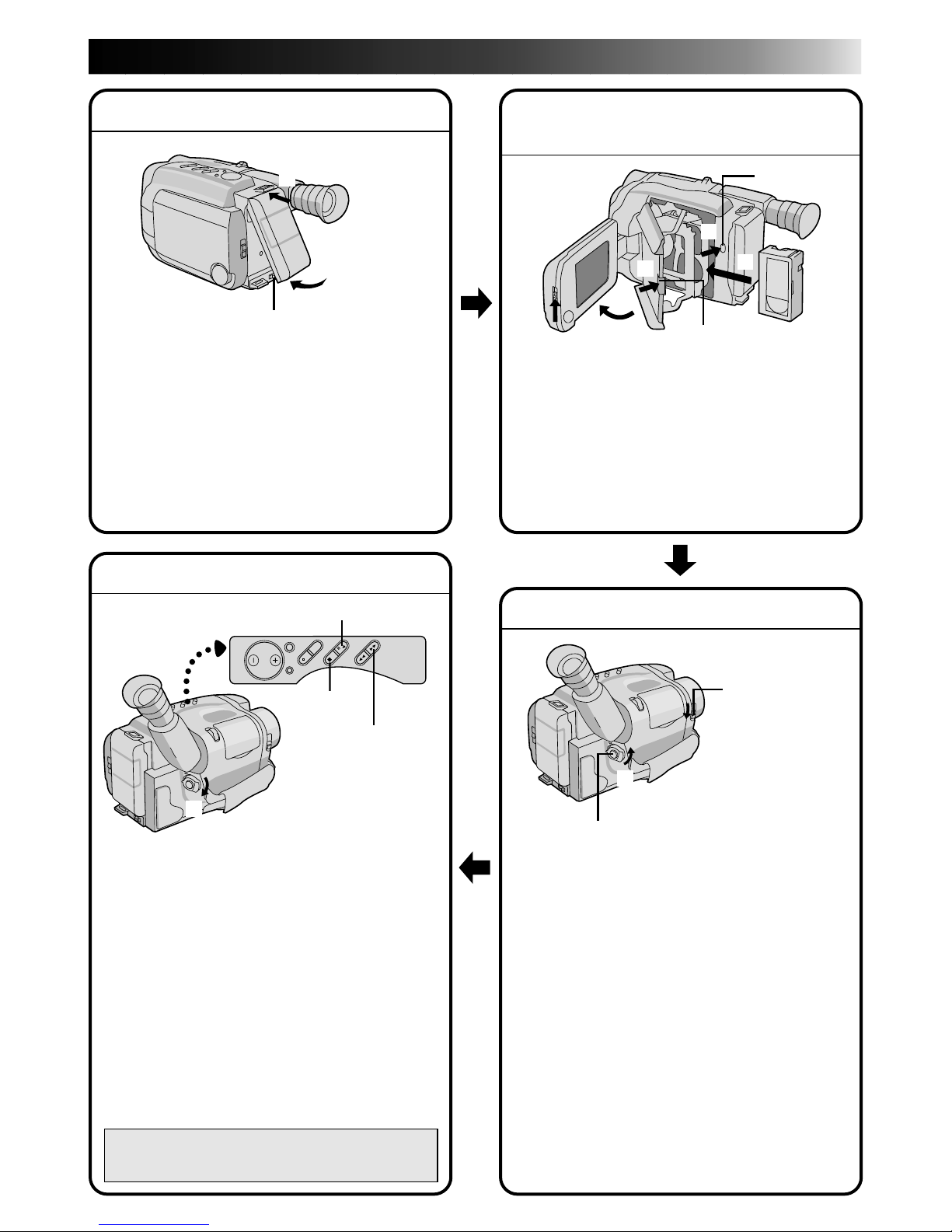

QUICK OPERATION GUIDE

1Slide the LENS COVER open/close knob to

open the lens cover.

2Set the power switch to “CAMERA”.

— The power indicator will light and an

image will appear in the LCD monitor or

the viewfinder.

3Press the Recording Start/Stop button.

— Recording starts.

•To stop recording temporarily, momentarily

press the Recording Start/Stop button once

again.

(For more details, Zpg. 14, 15)

•The viewfinder switches off automatically to

save power when the LCD monitor is

opened at an angle of over 45 degrees.

•The LCD monitor turns on/off when it is

opened/closed at approx. 45 degrees.

SUPPLY POWER INSERTING A VIDEO

CASSETTE

PLAYBACK

SHOOTING

1Slide MONITOR OPEN to open the LCD

monitor.

•Open to an angle of over 45 degrees.

2Press EJECT to open the cassette holder.

3Insert a video cassette.

4Press PUSH to close the cassette holder.

(For more details, Zpg. 11)

PLAY/PAUSE

STOP

REW

Hook on.

Push in.

BATT. RELEASE

Set to “PLAY”

LENS COVER

open/close knob

Recording Start/Stop button

Set to “CAMERA”

MONITOR OPEN

EJECT

PUSH

1Set the power switch to “PLAY”.

2Press REW.

— The tape will automatically stop at the

beginning of the tape.

3Press PLAY/PAUSE.

— Playback starts and the playback picture

appears in the viewfinder or the LCD

monitor.

•To stop playback, press STOP.

(For more details, Zpg. 32.)

•The viewfinder switches off automatically to

save power when the LCD monitor is

opened at an angle of over 45 degrees.

•The LCD monitor turns on/off when it is

opened/closed at approx. 45 degrees.

Or simply play back the tape on a VHS

VCR using the Cassette Adapter. Zpg. 35

6EN

GETTING STARTED

Power

This camcorder’s 3-way power supply system lets you

choose the most appropriate source of power.

NOTES:

●

No function is available without power supply.

●

Use only specified power supply.

●

Do not use provided power supply units with other

equipment.

CHARGING THE BATTERY PACK

SUPPLY POWER

Connect the charger’s AC power cord to a wall

outlet. The power indicator lights.

ATTACH BATTERY PACK

Align the marks and slide the battery pack in the

direction of the arrow until it locks in place.

The CHG. indicator lights.

DETACH BATTERY PACK

When charging is completed, the END indicator

lights. Slide the battery pack opposite the direction of

the arrow.

Approximate recording time (unit: min.)

USING THE BATTERY PACK

ATTACH BATTERY PACK

Hook its top end to the camcorder and push the

battery pack in until it locks in place.

DETACH BATTERY PACK

Slide BATT. RELEASE and pull out the battery pack.

BATT. PACK CHARGE DISCHARGE

BN-V12U approx. 1 hr. 10 min. approx.

3 hrs. 30 min.

BN-V22U approx. 2 hrs. 10 min. approx. 7 hrs.

BN-V25U approx. 2 hrs. 40 min. approx. 10 hrs.

BATT. LCD monitor on/ LCD monitor off/

PACK Viewfinder off Viewfinder on

BN-V12U 50 (35) 55 (35)

BN-V22U 110 (75) 120 (80)

BN-V25U 150 (100) 160 (105)

REFRESH indicatorREFRESH switch

To AC outlet

POWER

indicator

END

indicator

( ): when the light is on.

CHG. (charge) indicator

Marks

**REFRESH

The AC power adapter features a REFRESH

function that allows you to fully discharge

the battery pack before recharging.

Perform the REFRESH function after no

less than 5 chargings.

To discharge the battery . . .

..... attach the battery pack to the adapter

as shown in the above illustration.

Then push REFRESH. The REFRESH

indicator lights when discharging

starts, and goes out when discharging

is complete.

ATTENTION:

Before detaching the power source,

make sure that the camcorder’s power

is turned off. Failure to do so can result

in a camcorder malfunction.

BATT. RELEASE

Hook on.

Push in.

EN 7

NOTES:

●

The recording time per charge is affected by such factors as the time spent in Record/Standby mode and

the frequency of zooming. It is safer to have spare battery packs.

●

Charging times noted on page 6 are for fully discharged battery pack, and discharging times are for fully

charged battery pack.

●

Charging and discharging times vary according to the ambient temperature and the status of the battery pack.

●

Remember to set the charge marker after charging a battery pack or after detaching a discharged one from

your camcorder.

●

Perform the REFRESH function after no less than 5 chargings.

●

High temperatures can damage the battery pack, so use only where good ventilation is available. Don’t

allow it to discharge in container, such as a bag.

●

If you stop recharging or discharging part way through, make sure to remove the battery pack before

unplugging the adapter’s AC cord.

●

Remove the battery pack from the adapter immediately after discharging.

●

To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.

●

Make sure you unplug the DC cord before charging or discharging the battery pack.

●

A blinking CHG. indicator means that the battery pack has become hot. Wait until it cools down to continue.

●

The CHG. indicator may not light properly with a brand new battery pack, or with one that’s been stored

for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHG.

indicator should light during recharging. If not, contact your nearest JVC dealer.

USING A CAR BATTERY

Use the optional Car Battery Charger/Adapter

(connect as shown in the above illustration).

NOTES:

●

When using the car battery, leave the engine idling.

●

The optional Car Battery Charger (BH-V3E) can

also be used to charge the battery pack.

●

When using the optional Car Battery Charger,

refer to the respective instruction booklet.

USING AC POWER

Use the AC Power Adapter (connect as shown in

the above illustration).

NOTE:

The supplied AC Power Adapter/Charger features

automatic voltage selection in the AC range from

110 V to 240 V.

To DC in jack

DC OUT

terminal

To AC outlet

**CHARGE MARKER

A charge marker is provided on the battery pack to

help you remember whether it has been charged or

not. Two colours are provided (red and black)—you

choose which one means charged and which

means discharged.

Charge marker

AC Power

Adapter/Charger AA-V11EA

DC cord

Car Battery Charger/Adapter

BH-V3E (optional)

To car's cigarette

lighter socket

8EN

GETTING STARTED

(cont.)

Clock (Lithium) Battery Insertion/Removal

This battery is necessary for clock operation and to

perform date/time settings.

SWITCH OFF POWER

Switch off the unit’s power and remove the power

supply unit.

OPEN COVER

Open the clock battery compartment cover while

pressing the release tab.

REMOVE BATTERY (when replacing)

Insert a pointed, non-metallic object between the

battery and the compartment ( A) and pull the

battery out.

INSERT BATTERY

Ensure that the plus (+) side is up and insert a

CR2025 lithium battery and push it in.

CLOSE COVER

Close the compartment cover until it clicks in place.

NOTE:

See “SAFETY PRECAUTIONS” (

pg. 2) for information

on safe handling of lithium batteries.

EN 9

SET

CANCEL

1.1.00 12:00

GAIN UP S.LX

TELE MACRO OFF

INTERVAL TIMER OFF

REC TIME OFF

JLIP ID NO. 07

SET CHARACTER 

DATE/TIME 

END :MENU KEY

Date/Time Setting

SELECT MODE

First set the power switch to “CAMERA”. Turn the

PROGRAM AE select dial to any position except

AUTO LOCK.

ACCESS MENU SCREEN

Press MENU.

SELECT FUNCTION

Press –to move the highlight bar down to “DATE/

TIME”, then press NEAR. The Set Date And Time

screen appears.

SET DATE/TIME

Press FAR or NEAR until the item you want to set

begins blinking, then press +or –until the correct

setting appears.

•If you decide you want to return the date and time

to the previous settings, press FAR or NEAR to

move the highlight bar to “CANCEL”, then press

MENU.

•If you’re satisfied with the settings, go on to step 5.

START CLOCK OPERATION

Once you’ve set the date and time, press FAR or

NEAR until “SET” begins to blink, then press MENU.

The Menu screen reappears.

CLOSE MENU

Press MENU.

NOTES:

●

To display the date and time in the LCD monitor or the

viewfinder and on a connected TV, see “Date/Time

Insert” (

pg. 26).

●

If, in step 4, you input an invalid date (30. 2., 31. 6.,

etc.) and perform step 5, “INPUT ERROR” appears

blinking at the bottom of the screen. Press +, –, FAR or

NEAR to input the correct number.

NEAR

MENU FAR

PROGRAM AE select dial

Menu Screen

Set Time and

Date Screen

Date

Day/Month/Year

Time

24-hour indication

LCD monitor or viewfinder

10 EN

SP LP

T30 T30 T45 T60

GETTING STARTED

(cont.)

Tape Length Setting

Set the tape length according to the length of the tape

used.

SET TAPE LENGTH

Press T30•45•60 until the required indication

appears in the LCD monitor or the veiwfinder. T30 =

30 minutes of recording time, T45 = 45 minutes,

and T60 = 60 minutes (in SP).

NOTE:

The tape remaining time (

pg. 15) displayed in the

LCD monitor or the viewfinder is correct only if the

correct tape length has been selected.

Recording Mode Setting

Set depending on your preference.

SET RECORDING MODE

Press SP•LP button. “SP” (Standard Play) provides

higher picture and sound quality and is better for

dubbing, while “LP” (Long Play) is more economi-

cal, providing twice the recording time.

NOTE:

If the recording mode is switched during recording, the

playback picture will be blurred at the switching point.

T30•45•60 tape length select button

Tape length indicator

Recording mode indicator

Set POWER to “CAMERA”.

SP-LP recording

mode button

LCD monitor or

viewfinder

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JVC caméscope

JVC

JVC GR-AXM900 Instructions de montage

JVC

JVC GY-HM180U Manuel utilisateur

JVC

JVC GR-DVP7EA Manuel utilisateur

JVC

JVC GR-AXM300 Manuel utilisateur

JVC

JVC GR-D70EX Manuel utilisateur

JVC

JVC GR-D340E/EK Manuel utilisateur

JVC

JVC GR-D72 Manuel utilisateur

JVC

JVC GY-DV300U - 1/3" 3-ccd Dv Camcorder Instructions d'installation et d'utilisation

JVC

JVC Everio LYT2197-001A-M Instructions d'utilisation

JVC

JVC JY-HD10 Manuel utilisateur

JVC

JVC GR-AX640U Manuel utilisateur

JVC

JVC GZ-HD3U Manuel utilisateur

JVC

JVC Connected Cam GY-HC900CHU Manuel utilisateur

JVC

JVC GY-DV5000U Manuel utilisateur

JVC

JVC Everio R GZ-R560U Manuel d'utilisation et d'entretien

JVC

JVC GZ-R15BE Manuel d'utilisation et d'entretien

JVC

JVC GR-D225 Manuel utilisateur

JVC

JVC EVERIO GZ-HM550 Manuel utilisateur

JVC

JVC GY-HD250 Manuel utilisateur

JVC

JVC GY-HM200 Manuel utilisateur

JVC

JVC GZ-MS123 Manuel

JVC

JVC GZ HD10 - Everio Camcorder - 1080p Manuel utilisateur

JVC

JVC GR-D770U Manuel utilisateur

JVC

JVC GR-D390U Manuel utilisateur

Manuels caméscope populaires d'autres marques

Toshiba

Toshiba CAMILEO Z100 Manuel utilisateur

Panasonic

Panasonic NV-VS40B Manuel utilisateur

Canon

Canon RC 260 Manuel utilisateur

Sony

Sony Handycam DCR-DVD7E Manuel utilisateur

Brinno

Brinno TimeLapse TLC200 Manuel utilisateur

Panasonic

Panasonic AG-HMC152EN Manuel utilisateur

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuel utilisateur

MYDLINK

MYDLINK DCS-6100LH Manuel utilisateur

Sony

Sony video Hi8 Handycam CCD-TR555 Manuel utilisateur

SECURECOM

SECURECOM V-5014B Manuel utilisateur

Panasonic

Panasonic HDC-SD100 Manuel utilisateur

Sharper Image

Sharper Image U-VIDEO Manuel utilisateur

Canon

Canon LEGRIA HV40 Manuel utilisateur

Sony

Sony Handycam DCR-VX2000 Manuel utilisateur

RCA

RCA CC616 Manuel utilisateur

Panasonic

Panasonic NVM40 Manuel utilisateur

ATIK Cameras

ATIK Cameras Horizon Manuel utilisateur

Sony

Sony Handycam HDR-CX580V Manuel utilisateur
