SCHEMATIC DIAGRAMS

CD-ROM No.SML200604

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

HARD DISK CAMCORDER

GZ-MG67US, GZ-MG77US

GZ-MG67USM [M6E635],

GZ-MG77USM [M6E637]

2-1(No.YF146)

CHARTS AND DIAGRAMS

NOTES OF SCHEMATIC DIAGRAM

Safety precautions

The Components indentified by the symbol are

critical for safety. For continued safety, replace safety

critical components only with manufacturer's recom-

mended parts.

1. Units of components on the schematic diagram

Unless otherwise specified.

1) All resistance values are in ohm. 1/6 W, 1/8 W (refer to

parts list).

Chip resistors are 1/16 W.

K: KΩ(1000Ω), M: MΩ(1000KΩ)

2) All capacitance values are in µF, (P: PF).

3) All inductance values are in µH, (m: mH).

4) All diodes are 1SS133, MA165 or 1N4148M (refer to parts

list).

2. Indications of control voltage

AUX : Active at high.

AUX or AUX(L) : Active at low.

3. Interpreting Connector indications

Note: If the voltages are not indicated on the schematic

diagram, refer to the voltage charts.

12 3

2.5

(5.0) 1.8

PB and REC modes

(Voltage of PB and REC modes

are the same)

PB mode

REC mode

4. Voltage measurement

1) Regulator (DC/DC CONV) circuits

REC : Colour bar signal.

PB : Alignment tape (Colour bar).

— : Unmeasurable or unnecessary to measure.

2) Indication on schematic diagram

Voltage indications for REC and PB mode on the sche-

matic diagram are as shown below.

5. Signal path Symbols

The arrows indicate the signal path as follows.

NOTE : The arrow is DVC unique object.

Playback signal path

Playback and recording signal path

Recording signal path

(including E-E signal path)

Capstan servo path

Drum servo path

(Example)

R-Y

Playback R-Y signal path

Recording Y signal path

6. Indication of the parts for adjustments

The parts for the adjustments are surrounded with the circle

as shown below.

7. Indication of the parts not mounted on the circuit board

“OPEN” is indicated by the parts not mounted on the circuit

board.

R216

OPEN

Removable connector

Wire soldered directly on board

Non-removable Board connector

Board to Board

Connected pattern on board

The arrows indicate signal path

Note: The Parts Number, value and rated voltage etc. in

the Schematic Diagram are for references only.

When replacing the parts, refer to the Parts List.

Note: For the destination of each signal and further line

connections that are cut off from the diagram,

refer to "BOARD INTERCONNECTIONS"

(No.YF146)2-2

CIRCUIT BOARD NOTES

1. Foil and Component sides

1) Foil side (B side) :

Parts on the foil side seen from foil face (pattern face)

are indicated.

2) Component side (A side) :

Parts on the component side seen from component face

(parts face) indicated.

2. Parts location guides

Parts location are indicated by guide scale on the circuit board.

rts location are indicated by guide scale on the circuit board.

Note: For general information in service manual, please

refer to the Service Manual of GENERAL INFORMA-

TION Edition 4 No. 82054D (January 1994).

LOCATION

REF No.

IC101 B C 6 A

IC Category : IC

Horizontal “A” zone

Vertical “6” zone

B : Foil side

(A : Component side)

C : Chip component

D : Discrete component)

2-3(No.YF146)

YTU94074-30

YTU94077-30

YTU94074-24

YTU94077-24

YTU94074-12

YTU94077-12 YTU94074-12

YTU94077-12

YTU94074-36

YTU94077-36

YTU94074-6

YTU94077-6

YTU94128-4

VDCPU

ANA_IN

MPGFLD

FOCUS04

XVOEN

PMD1

PMA5

MPGFLD

CAM_CLK

PMD11

PMD3

AOBD

GND

PMA0

SDR_DQ31

ACHI3

XPMBLS1

SDR_DQ30

REG_3.1V

VI1

PMA14

REG_4.9V

PMA9

HGout+

MPGVSYNC

PMD9

REG_3.1V

AIOBCK

TG_CS

PMA1

ACHI5

PMA0

SDR_DQ26

DV2CKOUT

FLDCPU

SDR_DQ29

SDR_DQ24

XPMOE

CAM_VD

GND

VI0

PMINT

PMD11

VI4

CAM_OUT

PMA12

DMACLR

CAM_CLK

ASPECT

CAM_IN

PMD2

GND

INT_L

SCPU_CS

VI3

ACHI2

TG_VD

PMA7

SPK-

SDR_DQ25

SDR_DQ28

XCACK

SDR_DQ31

PMD14

SDR_DQ22

PMD12

MPGHSYNC

ZOOM04

PMD2

DV2OUT4

GND

REG_4.9V

PMD0

AUDIO_CS

CLK27A

VI5 ZOOM02

REG_3.1V

PMA6

S_SHUT

SDR_DQ30

SDR_DQ27

PMD9

PMA1

IR_OUT

PSCTL

ACHI4

CAM_IN

PMD3

REG_4.9V

OSD_CS

PMD1

ANA_CLK

ACHI6

AOBD

CLK27A

PMA5

MPGHSYNC

SDR_DQ26

SDR_DQ28

DMABREQ

VI2

PMD7

CLK27_AT

CLK27B

OP_CS

ACHI8

PMA8

DV2OUT2

CAM_OUT

HGVss-

V_OUT

AIBD

REG_1.5V

PMD7

HDCVF

ACHI7

SDR_DQ25

PMA4

VI4

SREG2.5V

PMD10

M_REG4.9

SDR_DQ27

CN101

XCREQ

FOCUS02

PMA7

DV1IN0

DMASREQ

C_OUT

OP_CS

ZOOM03

CLK27_AT

PMD6

INT_R

VDCVF

SDR_DQ24

VI6

VI3

REG_1.5V

SDR_DQ20

DRIVE+

SDR_DQ23

SREG2.5V

ASPECT

PMA13

DV1CLKIN

DV1IN4

AU_SIG/R

HDIRS

AIOLRCK

Y_OUT

TG_HD

XPMBLS0

MON_B

MCLKI

SDR_DQ23

VI7

PMD6

VI2

DMASREQ

SDR_DQ21

PMD8

SDR DQ18

PMA15

REG_3.1V

DV1IN2

SCPU_SCK

F_VCC

PMD5

MON_G

PMA0

SDR_DQ22

L_MUTE

PMD5

DV2OUT0

PMD4

VI1

CAM_VD

PMD4

PMA10

DV1IN5

VDCPU

SSGFLD

FOCUS03

AIBD

SCPU_SI

S_SHUT

DV2CKOUT

VI5

ANA_CS

AOMCLK

SPK+

MON_R

SDR_DQ21

HDIRS

XPMDE

XCINT

DV2OUT5

PMD15

DV1IN1

MPEG_RST

PMA6

DV1IN3

FLDCPU

PMA8

SDR_DQ19

VI7

HGout-

SCPU_SO

BUZZER

VI0

ANA_RST

AIOLRCK

SDR_DQ20

ZOOM01

DMACLR

XPMWE

XPMCS1

DV2OUT6

PLLSTOP

PMD13

PMA11

REG_3.1V

PMA2

OSD_VD

SDR_DQ29

PMA3

DV2CKOUT

CLK27B

AU_SIG/L

VI6

XCREQ

SDR_DQ19

DMABREQ

PMD15

ACHI1

DV2OUT1

XPMWE

DV1IN6

DRIVE-

SSGFLD

PMD0

PMD14

PMD10

PMA3

A_MUTE

XPMBLS0

ID_LAT

PMA9

PD_L

XPMCS1

HGVcc+

ID_LAT

MPGVSYNC

DV2OUT7

SDR DQ18

PMD13

FOCUS01

DV2OUT3

XCACK

PMINT

DV1IN7

PMA11

ACHI9

DUMP+

GND

PMA4

PMD12

PMD8

XPMBLS1

IRIS_PS

AOMCLK

PMA2

REG_3.1V

F/Z_RST

CCD_CTL

REG_14V

ANA_OUT

INT_GND

ANA_CLK

ANA_OUT

XPMWAIT

HRP

DSP_RST

CN7601

CN7602

CN402

JP7601

JP7602

JP7603

CN103

CN6001

V27_OUT

TVSEL

EEPRM_CK

EEPRM_DI

EEPRM_CS

EEPRM_DO

AFE_RST

CN401

CN7701

CN7603

DUMP-

Z_VCC

F_LED

CN403

SREG1.8V

PPRO8

PPRO4

PPRO1

PPRO11

SOF

PPRO3

PPRO0

PPRO6

GA_SEN

PPRO2

PPRO10

VLD_PIX

PPRO5

PPRO9

PPRO7

VCLK

PMA4

PMA6

PMA2

PMA5

PMA1

PMA8

PMA7

PMA9

PMA3

PMD0

PMD1

PMA2

PMD3

PMA20

PMA21

XPMCS0

XUSB_CS1

XUSB_CS0

XUSB RST

XUSB_INT

XPMOE

XPMWE

REG_3.1V

GND

XUSB_CS1

FLSH_RST

CN106

SREG1.8V

REG_4.9V

NTXD_IN

NTXD_OUT

NTXD_IN

NTXD_OUT

IRIS_PS

F/Z_RST

CN107

TG_HD

TG_VD

CDS_CSA

ACHI1

CAM_CLK

CAM_OUT

ACHI5

ACHI6

ACHI8

ACHI7

ACHI4

ACHI2

ACHI3

ACHI9

ACHI11

ACHI10

CN802

CN801

CN105

ACHI12

ACHI13

LH1_

CAM_3.1V

GND

CCDOUTA

ADCLK

CCDOUTB

BCHI13

BCHI4

BCHI6

BCHI9

BCHI7

BCHI12

BCHI1

BCHI2

BCHI11

BCHI3

BCHI5

BCHI10

BCHI8

V4A

CCD

RG1

V1A

LH1_

SUB

V3A

V2A

ADCL

V1B

V2B

V3B

V4B

CAM

REG_

TG_VD

TG_HD

MCLKI

VDIRS

HDIRS

VDIRS

REG_3.1V

GND

CAM_VD

GA_SI

GA_SEN

GA_SCK

VDCCD

SSGFLD

HDCCD

AFE_RST

FLDCPU

VDCPU

ACHI13

ACHI10

ACHI11

ACHI12

BCHI13

BCHI4

BCHI6

BCHI9

BCHI7

BCHI12

BCHI1

BCHI2

BCHI11

BCHI3

BCHI5

BCHI10

BCHI8

CDS_CSB

VDIRS

GATE_PLS

REG_1.2V

SDCD

PPRO3

PPRO0

PPRO6

PPRO2

PPRO10

PPRO8

PPRO5

PPRO4

PPRO9

PPRO7

PPRO1

VCLK

PPRO11

SOF

VLD_PIX

STRB_ENV

STRB_CHG

STRB_SNS

STRB_AD

SDWP

GA_SI

GA_SCK

VDCCD

HDCCD

Y_GYAMP

CDS_CSB

CDS_CSA

P_GYAMP

G_RST

OP_THRMO

F_PTR_AD

Z_PTR_AD

CN201

ANA_CLK

ANA_OUT

RESET_SW

AU_SIG/L

AU_SIG/R

C_OUT

V_OUT

Y_OUT

MON_B

MON_G

MON_R

HDCVF

B/L(LED)SMS

HRP

SIG_GND

BL_GND

VDCVF

BL_POWER

BL_GND

LCD_CS

LCD_CTL

MON_R

MON_G

HDCVF

REG_4.9V

MON_B

ANA_CLK

ANA_OUT

LCD_RVS

SIG_GND

BL_POWER

LCD HINGE

REV

M_RVS

REG_3.1V

SIG_GND

LCD_RVS

LCD_CS

LCD_CTL

VDCVF

BL_POWER[15V]

REG_3.1V

HRP

GND

P_MEDIA

LCD_OPEN

KEY_A

SET_SW

KEY_C

INFO_SW

ACES_LED

CHRG_LED

PLAY_SW

REC_SW

POFF_SW

LITHIUM

S_DET

P_DET

REG_4.9V

GND

UNREGCHK

I_MTR

V_BATT

CLK_OUT

AL_3.1V

REG_CS

DRV_3.3V

DC_CHEK

REG_1.2V

D_BATT

GND

T_BATT

ADP_L

CHRG_EVR

DATA_OUT

SJIG_RST

OFF

PLAY

REC

TRASH

SW MENU

LIGHT

INFO

LED RED

POW/CHRG LED BLUE

ACCESS

LCD OPEN

A/V JACK

GND

REG+CCD

GND

REG-CCD

GND

KEY_B

GND

HOST_LED

SPK+

SPK-

KEY_A

INFO_SW

SET_SW

CAM_3.1V

LED GREEN

HOST

CROSS KEY

S JACK

VIDEO

DSC

LITHIUM

AUTO

BL_REGA

LCD_BLK

BL_REGA

LCD_BLK

POL

VSS1

C21P

VCOML

VSS

VB(G)

VGL

GCS

VDDA0

C41N

PDO

VCIOUT

VCOMH

C12N

VDD1

C41P

VC(B)

VDD

C21N

GCL

C22P

VA(R)

16:9 LCD MODULE

C31P

GDA

C22N

C11P

C12P

VGH

VDDA1

VCL

VCOIN

C11N

VDDA

C31N

SPK-

SPK+

HGVss-

HGVcc+

ZOOM04

Z_PTR_AD

F_PTR_AD

Z_LED

FOCUS02

F_LED

FOCUS04

Z_VCC

ZOOM01

DRIVE+

FOCUS03

DUMP-

FOCUS01

GND

DRIVE-

F_VCC

ZOOM02

HGout+

HGout-

DUMP+

OP_THRMO

ZOOM03

MIC_R

MIC_L

INT_GND

INT MIC OP BLOCK

CDS_CSB

BCHI12

BCHI8

BCHI4

REG_4.9V

GND

BCHI1

ACHI10

ACHI6

GND

ACHI2

Y_GYAMP

CAM_3.1V

TG2_RST

BCHI13

BCHI9

BCHI5

REG_4.9V

GND

BCHI2

GND

ACHI11

ACHI7

ACHI3

CAM_3.1V

CDS_CSA

TG_CS

TG_HD

G_RST

BCHI6

GND

BCHI3

GND

ACHI12

BCHI10

ACHI8

ACHI4

MCLKI

CAM_OUT

TG_VD

P_GYAMP

GND

BCHI7

BCHI11

GND

ACHI13

ACHI9

ACHI5

ACHI1

GND

CAM_CLK

CCD_CTL

V3B

GND

22 2417 2120

SUB

352

Vdd1

Vout2

V1B

GND

V2B

RG1

Vdd2

V4B

GND

LH1_2

CCDOUT2

V3B

GND

V1B

REG-CCD

GND

REG-CCD

RG1

V4A

V2B

GND

CCD_CTL

V1A

REG+CCD

V3A

REG+CCD

RG2

V2A

CCD_OUT1

GND

V4B

SUB

GND

LH1_1

101112

151413

V4A

V3A

V2A

V1A

RCsub

VOUT1

LH1_1

LH1_2

RG2

IC5201

CCD

OPERATION

MONITOR

(Page2-41)

(Page2-28)

CDS(Page2-29)

OP DRV(Page2-23)

AUDIO(Page2-9)

MPEG2(Page2-11)

(Page2-19)

P.PRCS

(Page2-21)

V I/O(Page2-13)

OPE IF(Page2-35)

OPERATION(Page2-37)

BOARD INTERCONNECTION

NOTES: The number of patch cords ( ) are indicated by interconnected.

(No.YF146)2-4

YTU94074-6

YTU94077-6

YTU94074-14

YTU94077-14

YTU94074-6

YTU94077-6

YTU94105-40

YTU94077-40

DV2OUT3

SDR_DQ8

SDR_A8

PMA12

SDR_CS0

ACES_LED

PMA9

SDR_DQ17

PMD14

SDR_DQ3

DC_CHEK

SCPU_CS

LCD_RVS

SDR_DQ15

PMA1

SDR_DQ13

PMA20

NCFD7

PMD10

PMD15

KEY_C

DV2OUT0

SDR_A1

PMA13

SDR_DQ3

SDR_A4

SDR_BA1

SDR_CLK

PMA13

SDR_DQ16

BUZZER

PMD13

SDR_DQ2

NXCFCE1

XJRESET

SDR_A10

PMA8

PMD4

PMA2

PMA16

.1V

PMA21

NCFD6

PMA19

GND

SDR_DQ26

SDR_A1

DV2OUT2

SDR

DQ29

SDR_A12

SDR_BA0

SDR_DQM3

SDR_A5

SDR_DQ24

SDR_DQ14

PMA17

SDR_DQ1

V_BATT

NXCFCE0

SDR_A3

PMD11

SDR_A9

PMA9

PMD3

GND

PMA15

ARMTMS

KEY_A

SDR_DQ25

SDR_A3

SDR_DQ28

DV2OUT4

SDR_DQM2

SDR_WE

SDR_A6

SDR_DQ22

PMA16

SDR_DQ0

SDR_DQ9

SDR_BA0

PMA18

SDR_CLK

SDR_A8

PMD2

PMD1

PMD15

SREG_2.5V

NCFD4

ARMTDO

DATA_OUT

SDR_A2

SDR_DQ27

SDR_CKE

SDR_DQ13

DV2OUT5

NCFRESET

POFF_SW

SDR_DQM3

SDR_DQM0

SDR_A7

PMA15

SDR_DQ4

SDR_A7

PMD1

PMD2

3AAZEROG

NCFD11

SDR_DQM1

PMD0

SDR_DQ26

SDR_DQ28

REQ

SDR_DQ12

PMA5

DV2OUT7

SDR_DQM1

PMA5

PMA14

REG_3.1V

SDR_DQ10

PMA20

NXCFIORD

PMD8

PMA3

XPMCS7

SDR_RAS

SDR_A4

PMA3

SDR_DQ25

SDR_DQ7

SDR_DQ11

PMA6

SDR_DQ27

NXCFWAIT

PMA18

SDR_DQM2

PMD6

SDR_DQ2

SDR_A6

NU_TX

PMD12

PMA4

ANA_CLK

XPMWE

GND

SDR_DQM0

NCFBVD1

LCD_OPEN

PMA2

SDR_DQ24

SDR_DQ10

NXCFIOWR

SDR_DQ20

PMA7

A_MUTE

NCFD10

SDR_DQ23

PMA8

XPMWE

IR_RMC

SDR_A5

SDR_DQ5

PMD13

PMD3

AUDIO_CS

XPMOE

IR_OUT

SDR_WE

NCFD15

PMA1

SDR_DQ23

SDR_DQ9

REQ

SDR_DQ21

PMA10

NCFD8

SDR_DQ18

PMD9

MOD0

SDR_A0

PMD7

PMD4

SDR_BA1

SDR_DQ11

ANA_OUT

PMD12

ARMTCK

SCPU_SI

PMA0

NCFBVD2

REG_CS

SDR_DQ22

SDR_DQ8

NCFRDY

REG_3.1V

SDR_A2

SDR_CAS

NCFD3

PMD11

SDR_DQ16

T_BATT

PMA14

PMD10

PMD5

SDR_A10

SDR_DQ12

SCPU_SO

SDR_CAS

PMA7

FLSH_RST

NCFD14

SDR_DQ21

SDR_DQ7

SCPU_SCK

PMA4

PMD5

NCFD9

I_MTR

SDR_DQ19

PMA21

PMD14

PMD6

AL_3.1V

REG_3.1V

SDR_A9

SDR_DQ1

SDR_RAS

PMA11

SJIG_RST

SDR_DQ20

NCFD12

SDR_DQ6

PLAY_SW

SDR_A11

XPMOE

SDR

DQ29

NCFD2

SDR_A11

PMA17

PMD7

DV2OUT6

SDR_DQ0

SDR_CS0

XARMTRST

PMA10

PMA12

SDR_DQ19

NCFD13

SDR_DQ5

CHRG_EVR

L_MUTE

PMA19

LS0

NCFD0

PMD0

PMD8

SDR_DQ15

PD_L

DV2OUT1

SDR_DQ6

SDR_CKE

LCD_CS

ARMTDI

PMA11

CHRG_LED

PMA6

SDR_DQ18

SDR_DQ4

NU_RX

ADP_L

REC_SW

SDR_DQ17

SDR_A0

LS1

SDR_A12

NCFD1

PMD9

XPMCS7

SDR_DQ14

TG2_RST

REG+CCD

M_REG4.9

XPMWAIT

ANA_IN

OSD_CS

DSP_RST

ANA_RST

OSD_VD

ANA_CS

PSCTL

DSP_RST

CN110

CN102

NCFA2

NCFA1

NCFA0

NCFD5

V27_OUT

EEPRM_DO

EEPRM_DI

HOST_LED

TVSEL

AFE_RST

SDWP

SDR_VDD SDR_VDD

DV1CLKIN

DV1IN7

DV1IN5

DV1IN0

DV1IN3

PLLSTOP

DV1IN4

DV1IN6

MPEG_RST

XCINT

XPMCS0

DV1IN1

DV1IN2

XVOEN

SDDAT0

SDDAT1

SDDAT2

SDDAT3

SDCD

SDCLK

SDCMD

USBDP

USBDN

3AAZEROG

P_DET

S_DET

LITHIUM

INFO_SW

SET_SW

P_MEDIA

LCD_CTL

BL_POWER

UNREGCHK

CLK_OUT

D_BATT

KEY_B

IR_RMC

LIT_3V

PS_ZEROG

SBT5

SBD5

SJIG_RX

SJIG_TX

WORD

ZEROG_HZEROG_H

ZGH_OUT

ZGH_THRU

ZOOM_SW

CN403

CN6002

PMA4

PMA6

PMA2

PMA5

PMA1

PMA8

PMA7

PMA3

PMD14

PMD7

PMD13

PMD0

PMD8

PMD11

PMD1

PMD10

PMD4

PMD9

PMD5

PMA2

PMD15

PMD3

PMD12

PMD6

CFBVD1

CFRDY

CFBVD2

XUSB_RST

NXCFIOWR

NCFA1

NCFD6

NCFD13

NCFD14

NCFD4

NXCFCE0

NCFD7

NCFD9

NCFD3

NCFD11

NCFD0

NCFD12

NXCFCE1

NXCFWAIT

NCFD5

NCFD10

NCFD1

NCFD15

NXCFIORD

NCFD8

NCFD2

NCFA2

NCFA0

NCFRESET

NCFBVD2

NCFBVD1

NCFRDY

SDDAT0

SDCLK

SDDAT2

SDDAT1

SDCMD

SDDAT3

SDCD

SDWP

XCFIOWR

CFA0

CFD4

CFD14

CFD0

CFD5

XCFCE0

CFD11

CFD12

CFD9

CFD13

CFD7

CFD1

XCFCE1

CFRESET

CFD10

CFD2

CFD8

CFD15

XCFIORD

CFD3

CFD6

CFA2

CFA1

CN111

XBRDMACK

XCFWAIT

BRDMARQ

AL_3.1V

XUSB_INT

XUSB_CS0

RST

SREG1.8V

REG_4.9V

XUSB_RST

XUSB_INT

OUT

VBUS

XUSBHOST

REG_4.9V

REG_15V

USBDN

USBDP

EEPRM_CS

EEPRM_CK

CN104

CAM_CLK

MCLKI

TG2_RST

TG_CS

747

LH1_1

V4A

CAM_OUT

CCDOUT1

RG1

V1A

LH1_2

SUB

V3A

V2A

ADCLK

V1B

V2B

V3B

V4B

RG2

CN803

CN113

CN112

P_GYAMP

CAM_3.1V

GND

G_RST

CAM_3.1V

REG_4.9V

Y_GYAMP

TG_VD

TG_HD

REG-CCD

REG+CCD

REG_14V

REG_1.2V

ISO100

ISO200

ENV

DC JACK

REG_1.5V

JIG CONNECTOR

REG_1.5V

BATT_TERM

DRV_3.3V

REG_1.2V

GND

REG_4.9V

CAM_3.1V

REG_3.1V

-+TD

XARMTRST

SJIG_RST

XJRESET

GND

REG_3.1V

SBT5

GND

NU_RX

NU_TX

MON_B

HRP

WORD

MON_R

AL_3.1V

MON_G

SJIG_TX

VDCVF

ARMTDO

ARMTCK

ZGH_OUT

ZGH_THRU

ARMTMS

SJIG_RX

ARMTDI

SBD5

MOD0

DRV_3.3V

CFBVD2

XCFCE1

XCFCE0

CFA2

CFA0

CFBVD1

CFA1

CFRDY

DMACK-

GND

XCFWAIT

GND

DIOR-

DIOW-

GND

DMARQ

GND

CFD15

CFD0

CFD14

CFD1

CFD13

CFD2

CFD12

CFD3

CFD11

CFD4

CFD10

CFD5

CFD9

CFD6

CFD8

CFD7

GND

CFRESET

HDD

/DASP-

/CS1-

/CS0-

/DA2

/DA0

/PDIAG-

/GROUND

/DD15

/DD0

/DD14

/DD1

/DD13

/DD2

/DD12

/DD3

/DD11

/DD4

/DD10

/DD5

/DD9

/DD6

/DD8

/DD7

/GROUND

/DA1

/NC

/INTRQ

/GROUND

/IOROY

/RESET-

/NC

ACK

GND

D GREEN

SPEAKER

SPK-

SPK+

USB

LOCK

CU-SD008U

SD CARD

XBRDMACK

XCFIORD

XCFIOWR

BRDMARQ

GND

HARF_SW

FULL_SW

GND

TRIG SW

WB_SENS

RMC

ZOOM_SW

GND

ZOOM UNIT

GND

REG_3.1V

REG_4.9V

GND

REG_4.9V

GND

TG_HD

TG_VD

CCD_CTL

REG+CCD

GND

REG-CCD

GND

ISO200

STRB_ENV

GATE_PLS

STRB_SNS

REG_4.9V

STRB_AD

STRB_CHG

ISO100

M_REG4.9

JVC

STROBE

MAIN

REAR

CDS

yf146_y10619001a_rev0.1

(Page2-27)

)

GYRO

(Page2-33)

(Page2-31)

MAIN IF

(Page2-5)

USB HOST(Page2-25)

DSP MEM(Page2-17)

DSP

(Page2-15)

SUB CPU

(Page2-7)

REAR IF(Page2-38)

REG(Page2-39)

2-5(No.YF146)

IC171

KSM-2003LN2E

RMC

OUT

GND

VCC

R171

IR_RMC

REG_3.1V

GND

C171

10/6.3

R172

1.5k

L171

NQR0129-002X

Q171

RPM-22PB

W/B

GND

REG_4.9V

C172

10/6.3

IR_OUT

C122

0.1

C121

OPEN

IC121

NAL0035-001X

GND

Tout

AGND

AOZ

AOY

6AOX

7NC

8NC

9NC

10NC

STBYB

GND

AVCC

VREF

DVCC

16 GND

17 GND

18 GND

19 ZeroG

20 DGND

3AAZEROG

GND

AL_3.1V

L121

SDDAT3

R145 47k

R141 47k

REG_3.1V

SDCD

SDDAT1

R142 47k

L141

NQR0129-002X

SDCMD

SDCLK

SDDAT0

GND

R147 10k

R144 47k

R143 47k

SDDAT2

SDWP

CN104

QGF0534F2-06X

TELE

234

WIDE

WORD

GND

MON_R

SBD5

REG_3.1V

MON_G

R197

MON_B

NU_RX

HRP

ARMTDO

NU_TX

XARMTRST

ARMTDI

ARMTCK

AL_3.1V

XJRESET

ARMTMS

CN110

QGB0512L1-30X

R196

R198

SJIG_TX

MOD0

VDCVF

SJIG_RX

SBT5

SJIG_RST

ZOOM_SW

CN107

QGA1001F1-04X

1234

INT_R

INT_GND

INT_L

REG_3.1V

GND

C141

10/6.3

R146 47k

ZGH_OUT

ZGH_THRU

PS_ZEROG

CN105

QGF0309F2-53X

1GND

2CAM_3.1V

3CAM_3.1V

4GND

5CAM_CLK

6CAM_OUT

7TG_CS

8TG2_RST

9CDS_CSB

10P_GYAMP

11G_RST

12GND

13BCHI13

14BCHI12

15BCHI11

16BCHI10

17BCHI9

18BCHI8

19GND

20BCHI7

21BCHI6

22BCHI5

23BCHI4

24BCHI3

25BCHI2

26BCHI1

27GND

28ACHI13

29ACHI12

30ACHI11

31ACHI10

32ACHI9

33ACHI8

34ACHI7

35GND

36ACHI6

37ACHI5

38ACHI4

39ACHI3

40ACHI2

41ACHI1

42GND

43MCLKI

44GND

45CDS_CSA

46Y_GYAMP

47CCD_CTL

48TG_VD

49TG_HD

50GND

51REG_4.9V

52REG_4.9V

53GND

GND

CAM_3.1V

CAM_CLK

CAM_OUT

TG_CS

TG2_RST

CDS_CSB

P_GYAMP

G_RST

BCHI13

BCHI12

BCHI11

BCHI10

BCHI9

BCHI8

BCHI7

BCHI6

BCHI5

BCHI4

BCHI3

BCHI2

BCHI1

ACHI13

ACHI12

ACHI11

ACHI10

ACHI9

ACHI8

ACHI7

ACHI6

ACHI5

ACHI4

ACHI3

ACHI2

ACHI1

MCLKI

CDS_CSA

Y_GYAMP

CCD_CTL

TG_VD

TG_HD

REG_4.9V

GND

ISO200

STRB_ENV

GATE_PLS

REG_4.9V

STRB_CHG

ISO100

M_REG4.9

STRB_SNS

STRB_AD

REG+CCD

REG_-7.5V

GND

TP1

NNZ0163-001X TP2

NNZ0163-001X

D181

LAST NO.

SYMBOL NO. 1

117

SYMBOL NO. 110~

VACANT NO.

113

C 111

LAST NO.

110 111 112 113 114

MAIN(MAIN IF)

TO CDS(CN802)

TO GA,P.PRCS

TO ZOOM UNIT

TO JIG CONNECTOR

TO INT MIC

TO DSP

TO P.PRCS

TO GA,P.PRCS

TO P.PRCS

TO SUB CPU

TO P.PRCS

TO P.PRCS,OP DRV

TO CN101,103

TO SUB CPU

TO CN101,103,110,SUB CPU

TO AUDIO

TO DSP TO CN101,V I/O TO SUB CPU

TO DSP

TO SUB CPU

TO CN101,103,IC121,SUB CPU

TO DSP

TO CN101,103,SUB CPU

TO SUB CPU

TO USB HOST

TO DSP,USB HOST

TO P.PRCS,USB HOST

TO Q161

TO CN103

TO SUB CPU

TO OP DRV

TO P.PRCS

TO SUB CPU

TO CN103,OP DRV

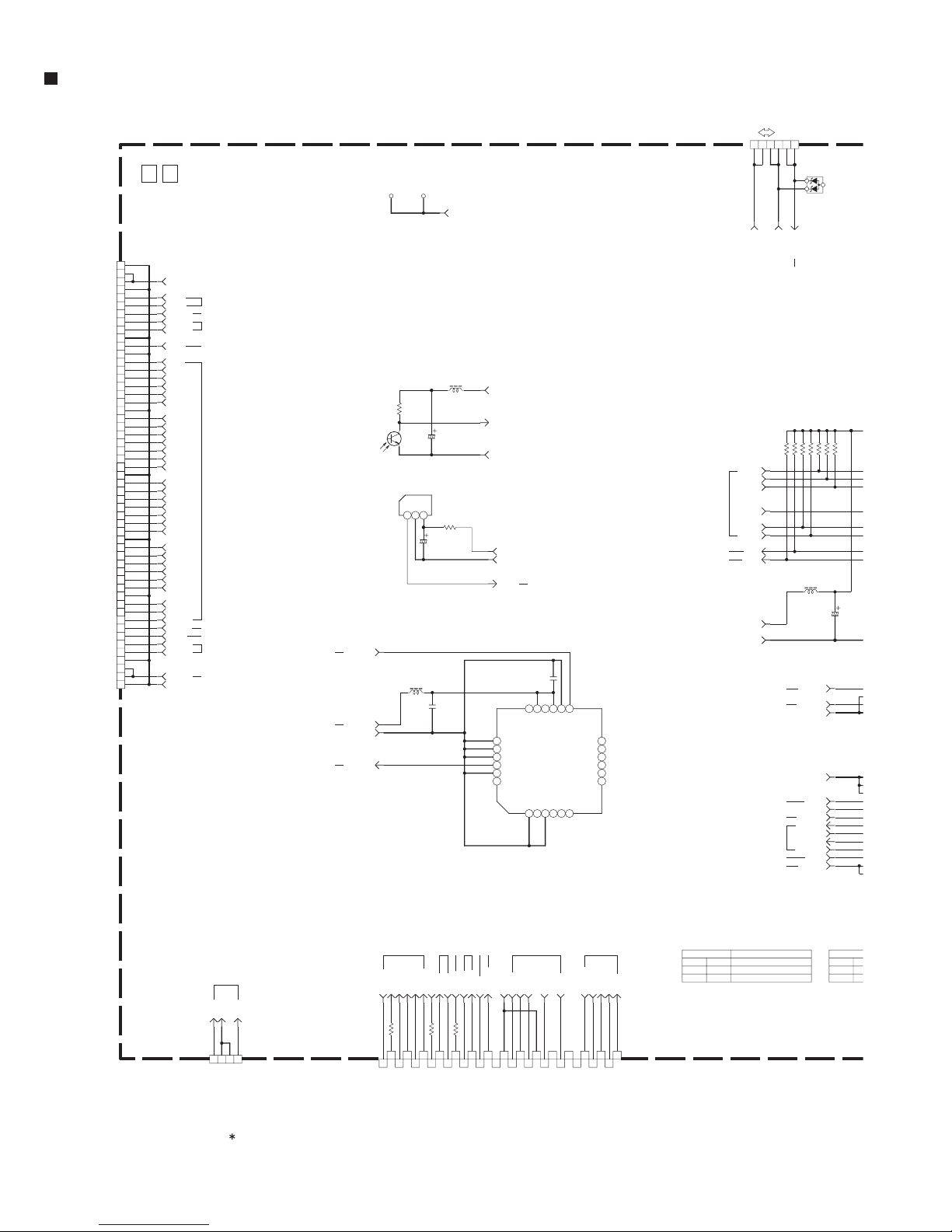

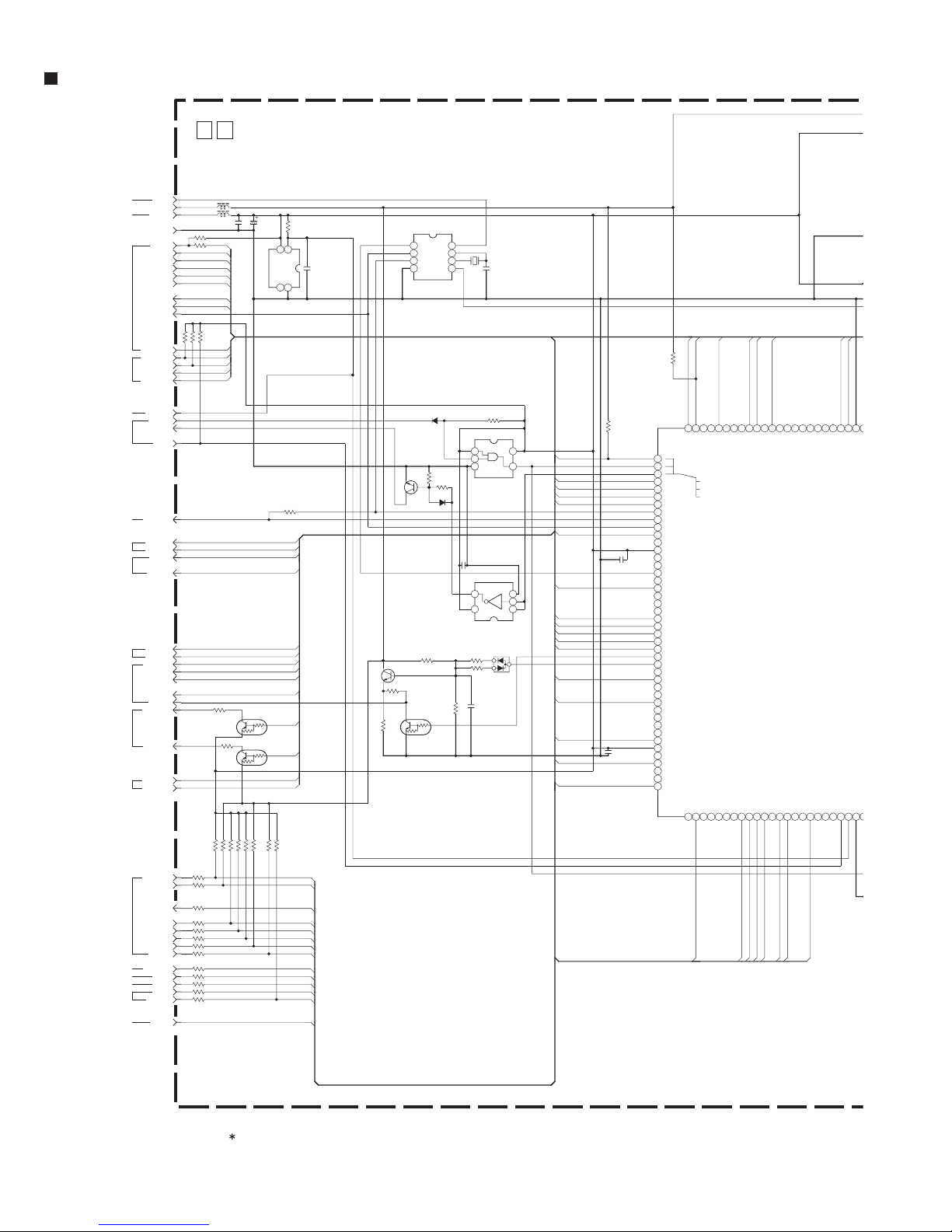

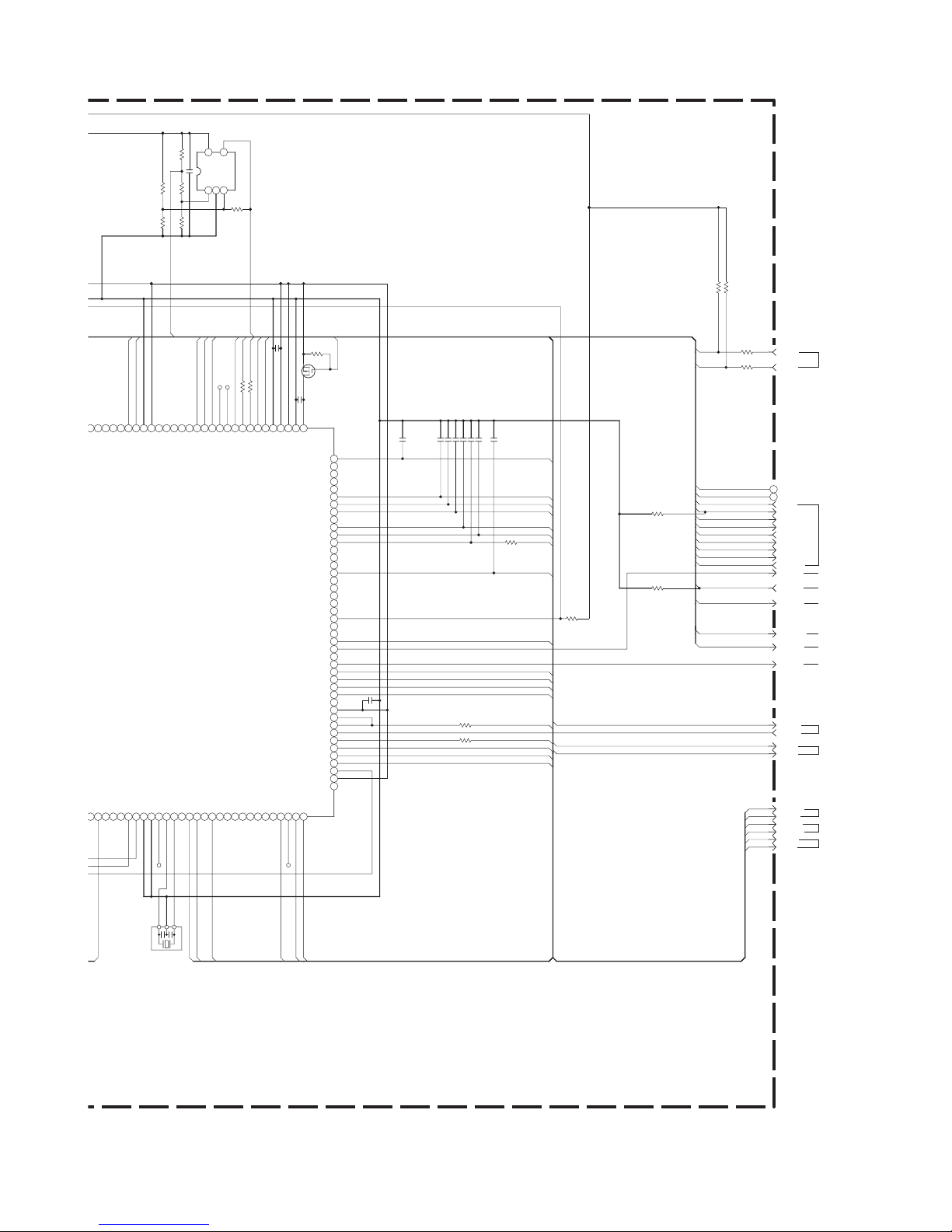

MAIN(MAIN IF) SCHEMATIC DIAGRAM

NOTES: 1. For the destination of each signal and further line connections that are cut off from this diagram, refer to "BOARD INTERCONNECTIONS".

2. The parts with marked ( ) is not used.

(No.YF146)2-6

V_OUT

AU_SIG/L

P_DET

C_OUT

Y_OUT

S_DET

AU_SIG/R

GND

D191

RB715W-X

R191

LIT_3V

CHRG_LED

PLAY_SW

SET_SW

SJIG_RST

LCD_OPEN

REC_SW

POFF_SW

INFO_SW

KEY_C

LCD_RVS

ACES_LED

KEY_A

P_MEDIA

REG_4.9V

HRP

REG_3.1V

MON_R

MON_B

MON_G

VDCVF

HDCVF

ANA_OUT

LCD_CS

ANA_CLK

LCD_CTL

AL_3.1V

USBDN

VBUS

USBDP

GND

L131

NQR0506-002X

CN102

QGF0508F3-40X

3.3V

DASP-

CS1-

CS0-

DA2

DA0

PDIAG-

DA1

INTRQ

DMACK-

GROUND

IORDY

GROUND

DIOR-

DIOW-

GROUND

DMARQ

GROUND

DD15

DD0

DD14

DD1

DD13

DD2

DD12

DD3

DD11

DD4

DD10

DD5

DD9

DD6

DD8

DD7

GROUND

RESET-

R145 47k

R148 22

L141

0129-002X

C142 0.1

R147 10k

R144 47k

R143 47k

R150 22

9 SD_DATA2

1 SD_DATA3

2 SD_CMD

3 VSS(GND)

4 VDD(DSC_3V)

5 SD_CLK

6 VSS2

7 SD_DATA0

8 SD_DATA1

R149 22

R151 22

CN104

QGF0534F2-06X

BL_POWER

C111

47/6.3

L111

DRV_3.3V

CFD11

CFBVD2

CFD10

CFD15

XCFIOWR

CFA1

CFD14

CFD9

CFD4

CFA2

CFD5

XCFCE1

CFD13

CFD3

CFD8

CFRDY

CFD2

XCFCE0

CFD1

CFD7

CFD12

XCFIORD

CFD6

CFD0

CFRESET

CFBVD1

XCFWAIT

CFA0

GND

C141

10/6.3

D141

OPEN

123

10 CARD_DET

11 TERMINAL

12 WP_SW

13 GND

CN111

NNZ0156-001X

14GND

D142

OPEN

123

R146 47k

Q162

OPEN

R165

OPEN

Q161

OPEN

REG_15V

C161

OPEN R163

OPEN C162

OPEN

R162

OPEN

R164

OPEN

REG+CCD

GND

R161

OPEN

R169

ADP_L

GND

REG_1.2V

KEY_B

CAM_3.1V

REG_1.5V

M_REG4.9

REG_-7.5V

AL_3.1V

CHRG_EVR

L161

NQL38DK-100X

UNREGCHK

DRV_3.3V

REG_CS

SJIG_RST

T_BATT

V_BATT

I_MTR

CLK_OUT

REG_4.9V

REG_3.1V

D_BATT

REG_15V

DATA_OUT

CAM_3.1V

R166 OPEN

R167

XUSBHOST

46 CAM_3.1V

47 CAM_3.1V

48 GND

49 REG_3.1V

50 REG_3.1V

51 REG_3.1V

52 GND

53 GND

CN103

QGF0508F3-53X

1GND

2GND

3 D_BATT

4 KEY_B

5 DC_CHEK

6 CHRG_EVR

7 REG_CS

8GND

9 CLK_OUT

10 DATA_OUT

11 GND

12 SJIG_RST

13 I_MTR

14 GND

15 V_BATT

16 T_BATT

17 GND

18 ADP_L

19 GND

20 REG-CCD

21 GND

22 REG+CCD

23 GND

24 UNREGCHK

25 GND

26 AL_3.1V

27 GND

28 DRV_3.3V

29 DRV_3.3V

30 DRV_3.3V

31 GND

32 REG_1.2V

33 REG_1.2V

34 REG_1.2V

35 GND

36 GND

37 REG_1.5V

38 REG_1.5V

39 REG_1.5V

40 GND

41 GND

42 REG_4.9V

43 REG_4.9V

44 REG_4.9V

45 GND

DC_CHEK

BL_POWER

R170

R173

OPEN

CN101

QGF0547C3-50X

1GND

2GND

3 AU_SIG/L

4 AU_SIG/R

5 P_DET

6 V_OUT

7 C_OUT

8 S_DET

9 Y_OUT

10 GND

11 GND

12 LITIHIUM

13 POFF_SW

14 REC_SW

15 PLAY_SW

16 CHRG_LED

17 ACES_LED

18 KEY_C

19 INFO_SW

20 SET_SW

21 KEY_A

22 P_MEDIA

23 LCD_OPEN

24 RESET_SW

25 GND

26 GND

27 GND

28 GND

29 GND

30 HRP

31 REG_3.1V

32 REG_3.1V

33 REG_4.9V

34 REG_4.9V

35 REG_4.9V

36 BL_POWER

37 MON_B

38 MON_G

39 MON_R

40 HDCVF

41 VDCVF

42 LCD_CTL

43 ANA_CLK

44 ANA_OUT

45 LCD_CS

46 LCD_RVS

47 SPK+

48 SPK-

49 HOST_LED

50 GND

SPK+

SPK-

HOST_LED

XBRDMACK

BRDMARQ

REG_15V

C202

1R203

8.2k C201

R205

24k

Q201

2SA1577/QR/-X

R202

27k

R206

OPEN

REG_14V

GND

Q202

UMX1N-W

R204

1.8k

R201

OPEN

CN112

QGF0549C2-14W

1NC

2 GND

3 GND

4 GND

5 ISO200

6 STRB_ENV

7 GATE_PLS

8 STRB_SNS

9 REG_4.9V

10 STRB_AD

11 STRB_CHG

12 ISO100

13 M_REG4.9

14 M_REG4.9

GND

ISO200

TRB_ENV

GATE_PLS

REG_4.9V

TRB_CHG

ISO100

M_REG4.9

TRB_SNS

STRB_AD

CN113

QGA1002C1-04X

1 REG+CCD(15V)

2 GND

3 REG-CCD(-7.5V)

4 GND

REG+CCD

REG_-7.5V

GND

J101

QNZ0847-001

R117 0

R116 0

R115 0

RA111

RA112

RA113

RA114

D181

_0.5%

171

162

Q 162

VACANT NO.

LAST NO.

SYMBOL NO. 161~

198

SYMBOL NO. 191~

VACANT NO.LAST NO.

191

168 192~195

yf146_y10620001a_rev0.1

TO ZOOM UNIT TO HDD

TO REAR(CN6001)

TO OPERATION(CN401)

TO CDS(CN803)

TO STOROBE

TO CN103 TO USB HOST

TO CN103

TO DSP

TO USB HOST

TO V I/O

TO CN101

TO CN113

TO AUDIO

TO SUB CPU

TO V I/O

TO SUB CPU

TO V I/O

TO SUB CPU

TO CN103,110,SUB CPU

TO CN110,V I/O

TO CN103,105

TO CN110,V I/O

TO V I/O

TO CN110,V I/O

TO SUB CPU

TO SUB CPU,AUDIO,V I/O

TO SUB CPU

TO AUDIO

TO SUB CPU

TO MAIN IF

TO SUB CPU

TO CN101,110,SUB CPU

TO SUB CPU

TO CN112

TO MAIN IF

TO SUB CPU

TO CN101,110,

IC121,SUB CPU

TO CN102

TO MPEG2,P.PRCS

TO CN112,OP DRV

TO CN101,105

TO CN101,110,

IC121,SUB CPU

ONS".

2-7(No.YF146)

ZOOMSW

SCPU_SI

REG_CS

FLSH_RST

AUDIO_CS

OSD_CS

3AAZEROG

ANA_CLK

CHRG_EVR

UNREGCHK

SBT5

A_MUTE

PD_L

KEY_ACH

PMEDIA

DIAL_OFF

ANA_IN

ADP_L

T_BATT

CHRGLED

DIAL_REC

ANA_OUT

ANA_CLK

SCPU_CS

KEY_BCH

DIAL_REC

I_MTR

CHRG_EVR

DIAL_PB

MONI_SW

DC_CHEK

DIAL_OFF

PMEDIA

SBD5

ANA_OUT

DIAL_PB

IR_RMC

V_BATT

EEPRM_DI

EEPRM_CS

LCDRVS

SDET

LCDRVS

SETSW

KEY_CCH

LCD_CTL

ANA_CLK

LCD_CTL

ACESLED

ZGH_THRU

ANA_CS

SCPU_SO

LCD_CS

L_MUTE

REG_CS

HOSTLED

TG2_RST

EEPRM_CK

EEPRM_DO

PDET

SBD5

PS_ZEROG

DBATT

SCPU_SCK

ANA_OUT

PSCTL

ZGH_OUT

DC_CHEK

ANA_RST

DBATT

INFOSW

SBT5

LCD_CS

ISO200

R1020 1K

SJIG_RX

BUZZER

C1025

0.1

R1008 1K

ANA_OUT

R1010

680

REC_SW

C1004

0.1

L1002

10u

KEY_A

DATA_OUT

R1005

2.2K

R1022 1k

Q1001

DTC124EE-X

R1054

47k

SBD5

C1046 0.1

IC1001

MN102H60GJ

LCD_BL

S_DET

DIAL_PB

DIAL_OFF

DIAL_REC

30 5

CHRG_EVR

DC_CHEK

MODE_SW/P_MEDIA

WORD

RESET

VSS

MODE

VSS

SBD5

SBT5

P_DET

D_BATT

ISO200

FLSH_RST

ANA_IN

ANA_OUT

ANA_CLK

RXD

TXD

97 EEP_CS

51 SCPU_IN

52 SCPU_OUT

50 SCPU_CLK

68 DATA_IN

69 DATA_OUT

67 CLK_OUT

79 SCPU_CS

22 VDD

28 RTC_CS

1 REG_CS

39 OSD_CS

14 EEP_IN

15 EEP_OUT

13 EEP_CLK

9 ANA_CS

93 BZ_FREQ

94 BZ_ENV

90 ANA_RST

10 SYTG_RST

2 LCD_CS

17 VDD

6 LCD_RVS

84 PS_CTL

R1057 100k

R1001

100k

ANA_CLK

REG_CS

CHRG_LED

R1007

4.7k

R1009

680

LCD_CTL

IC1002

RS5C314-X

VDD

XIN

XOUT

INTR

VSS

SIO

CLK

R1055

10k

A_MUTE

C1026

0.1

CLK_OUT

ADP_L

R1006

4.7k

PD_L

SJIG_TX

C1006

PS_ZEROG

R1058 100k

SET_SW

V_BATT

ANA_CLK

D_BATT

R1056

4.7k

SJIG_RST

PLAY_SW

R1028 1k

3AAZEROG

L_MUTE

GND

ZOOM_SW

R1051 2.7k

R1062 100k

D1001

DA221-X

R1036

OPEN

P_MEDIA

Q1002

2SC4617/QR/-X

R1024 1k

R1083 100k

REG_3.1V

T_BATT

R1017 1k

X1002

NAX0564-001X

IC1005

SN74AHC1G04DC-X

123

D1002

1SS376-X

LCD_CS

INFO_SW

Q1003

DTA124EE-X

R1052 18k

R1018 1k

R1053

150k

UNREGCHK

KEY_B

POFF_SW

IC1004

SN74AHC1G08DC-X

74AHC1G08GW-X

123

C1005

10/6.3

Q1004

2SC5658/QRS/-X

CHRG_EVR

C1031

R1014

OPEN

ZGH_THRU

ACES_LED

C1044

0.01

R1031 1k

DC_CHEK

LCD_RVS

R1016

2.2k

KEY_C

L1001

NQR0129-002x

R1061 100k

R1060 100k

R1003

2.2K

D1003

OPEN

SBT5

LIT_3V

WORD

ANA_OUT

AUDIO_CS

AL_3.1V

R1023 1k

LCD_OPEN

R1015

OPEN

R1059 100k

IR_RMC

R1063 47k

HOST_LED

R1025 1k

Q1006

DTA124EE-X

R1019 1k

R1004

2.2K

IC1003

S-80827CNNB-G-W

OUT

DET

VSS

R1082 100k

R1064 1k

R1030 1k

ZGH_OUT

I_MTR

R1029 1k

MAIN(SUB CPU)

TO MAIN IF(CN101)

TO MAIN IF(CN103)

TO MAIN IF(CN110)

TO MAIN IF(CN101,

103,110)

TO MAIN IF(CN110)

TO MAIN IF(CN103)

TO MAIN IF(CN101),

AUDIO,V I/O

TO MAIN IF(CN101),

AUDIO,V I/O

TO MAIN IF(CN101)

TO AUDIO

TO MAIN IF(CN101)

TO MAIN IF(CN121)

TO MAIN IF(CN101)

TO MAIN IF(CN104)

TO MAIN IF(CN101)

TO MAIN IF(CN103)

TO MAIN IF(CN101)

TO MAIN IF(IC171)

TO MAIN IF(CN101,

103,110,IC121)

MAIN(SUB CPU) SCHEMATIC DIAGRAM

NOTES: 1. For the destination of each signal and further line connections that are cut off from this diagram, refer to "BOARD INTERCONNECTIONS".

2. The parts with marked ( ) is not used.

(No.YF146)2-8

ACESLED

SCPU_SI

SYSSEL1

ZEROG_H

EEPRM_DI

KEY_BCH

AVREF_OF

V27_OUT

SCPU_SO

SYSSEL0

ADP_L

TVSEL

KEY_CCH

ANA_OUT

MONI_SW

HOSTLED

BATT_H

AUDIO_CS

I_MTR

3AAZEROG

KEY_ACH

ZOOMSW

PDET

SCPU_CS

PMEDIA

SBD5

UNREGCHK

OSD_CS

SYSSEL0

AVREF_OF

A_MUTE

V27_OUT

SCPU_SCK

FLSH_RST

PSCTL

ANA_CLK

SYSSEL1

CHRGLED

SDET

ZGH_THRU

ANA_RST

EEPRM_CS

EEPRM_DO

INFOSW

SETSW

V_BATT

PD_L

TVSEL

IR_RMC

T_BATT

ZGH_OUT

T_BATT

EEPRM_CK

ANA_IN

L_MUTE

PS_ZEROG

ANA_CS

TG2_RST

BATT_H

SBT5

ISO100

ISO200

R1074

10k

OSD_CS

TL1066

SCPU_CS

C1020 0.01

C1016 0.01

EEPRM_CK

SCPU_SO

ANA_CS

R1073

62k

ANA_RST

IC1001

MN102H60GJD

MODE_SW/P_MEDIA

WORD

RESET

VSS

OSCO

OSCI

AUDIO_CS

A_MUTE

ISO100

L_MUTE

FAN_CTL2

PD_L

HOSTLED

75NMI

76JLIP_INT

38INFO_SW

33LCD_OPEN

80BATT_H

36ADP_L

78OSD_VD

77ZEROZINT

533AAZEROG

83VDD

58REMOTE

60ACESLED

81CHRGLED

26ZEROG_H

29DSP_RST

16AFE_RST

48NT_PAL

96RTC_INT

65V_BATT

44T_BATT

UNREGCHK

47ZOOM_SW

63KEY_A

64KEY_B

46KEY_C

45I_MTR

VREF+

VREF-

AVDD

VDD

AVSS

SET_SW

V27_OUT

RESERVED

ZDH_THRU

RESERVED

AVREF_OF

PS_ZEROG

100

ZGH_OUT

MODE

VSS

SBD5

SBT5

R1069 100k

SCPU_SI

R1077

R1086 0R0

TL1005

R1072

82k

TL1067

R1043

100k

ANA_CLK

R1065

SCPU_SCK

C1043

0.01

ANA_IN

TL1004

C1017 0.01

C1018 0.01

PSCTL

P_DET

S_DET

IC1007

TC75S56FU-X

[-]

VSS

[+]

OUT

VDD

ZEROG_H

R1066 1k

C1001

0.1

EEPRM_CS

C1015 0.01

TG2_RST

C1008 0.01

R1075

100k

C1034 0.01

R1085 0R0

C1013 0.01

R1045

C1045

0.01

V27_OUT

OSD_VD

R1070 100k

FLSH_RST

ANA_OUT

TL1032

R1071

100k

C1014 0.01

EEPRM_DO

R1068 100k

R1037

AFE_RST

TL1030

Q1005

2SJ347-X

R1076

100k

X1001

NAX0784-001X

123

R1046

OPEN

R1084 0R0

EEPRM_DI

TVSEL

DSP_RST

ISO100

ISO200

yf146_y10621001a_rev0.1

TO MAIN IF(CN103)

TO P.PRCS

TO GA,P.PRCS

TO P,PRCS

TO MAIN IF(CN105)

TO DSP MEM

TO DSP

TO V I/O,DSP

TO V I/O

ONS".

2-9(No.YF146)

C2204 1

R2601

2.2k

C2606 0.0047

C2623

10p

Q2401

2SC4617/QR/-X

C2604

0.022

L2402

10u

C2217

0.1

C2203

R2212

2.7

C2233

OPEN

C2602

OPEN

R2213

2.7

R2608 2.2k

C2401

10/6.3

C2223

0.1

L2603

NQR0269-013X

R2408

OPEN

C2624

10p

R2607 2.2k

R2203

39k

C2603

0.022

R2602

2.2k

C2235

OPEN

C2224

0.1

C2218

0.1

C2202

L2601

NQR0269-013X C2605 0.0047

R2401

4.7k

C2613

R2202

560k

C2655

0.1

C2205 1

C2612

R2204

150k

C2611

L2602

NQR0269-013X

R2609

22k

C2405

0.1

C2403

10/6.3

R2610

22k

C2601

OPEN

C2656

0.1

IC2201

AK4660VQ

SPK+

MUTE

SPK-

PDN

SVDD

SGND

BCLK1

MCLK1

LRCK1

MUTET

HVCM

AGND

AVDD

VCOM

MOUT

MIN

BEEP2

BEEP1

37 PREOR

38 PRENR

39 EXTR

40 INTR

41 MGND

42 MVDD

43 MPWR

44 MRF

45 INTL

46 EXTL

47 PRENL

48 PREOL

INT_R

INT_GND

INT_L

SPK+

SPK-

MAIN(AUDIO)

TO INT MIC

(CN107)

TO MAIN IF

(CN101)

MAIN(AUDIO) SCHEMATIC DIAGRAM

NOTES: 1. For the destination of each signal and further line connections that are cut off from this diagram, refer to "BOARD INTERCONNECTIONS".

2. The parts with marked ( ) is not used.

Autres manuels pour GZ-MG67US

Ce manuel convient aux modèles suivants

Autres manuels JVC caméscope

JVC

JVC LYT0002-0M8B Manuel utilisateur

JVC

JVC GR-X5AA Manuel utilisateur

JVC

JVC EVERIO GZ-MG47E Manuel utilisateur

JVC

JVC GZ-E300 Manuel utilisateur

JVC

JVC ProHD GY-HM600 Manuel utilisateur

JVC

JVC GR-D201US Manuel utilisateur

JVC

JVC GZ HD5 - Everio Camcorder - 1080i Mode d’emploi

JVC

JVC GZ-RX515 Manuel d'utilisation et d'entretien

JVC

JVC Everio GZ-MG750 Manuel utilisateur

JVC

JVC GR-DVL9000U Manuel utilisateur

JVC

JVC Everio GZ-RY980 Manuel d'utilisation et d'entretien

JVC

JVC D-9 Manuel utilisateur

JVC

JVC TK-C751 Manuel utilisateur

JVC

JVC GR-DVF20 Manuel utilisateur

JVC

JVC GR-D770U Manuel utilisateur

JVC

JVC GR-DVF7 Manuel utilisateur

JVC

JVC Connected Cam GY-HC550E Manuel utilisateur

JVC

JVC GZ-MG135U Manuel utilisateur

JVC

JVC Connected Cam GY-HC900CHU Manuel utilisateur

JVC

JVC GZ-EX210 Everio Manuel d'utilisation et d'entretien

JVC

JVC GZ-MG330R - Everio Camcorder - 35 x Optical... Manuel utilisateur

JVC

JVC GY-DV700WE - Pro-dv Camcorder Manuel utilisateur

JVC

JVC Everio GZ-VX775 Manuel d'utilisation et d'entretien

JVC

JVC GZ-MG67US Guide de démarrage rapide

Manuels caméscope populaires d'autres marques

Toshiba

Toshiba CAMILEO Z100 Manuel utilisateur

Panasonic

Panasonic NV-VS40B Manuel utilisateur

Canon

Canon RC 260 Manuel utilisateur

Sony

Sony Handycam DCR-DVD7E Manuel utilisateur

Brinno

Brinno TimeLapse TLC200 Manuel utilisateur

Panasonic

Panasonic AG-HMC152EN Manuel utilisateur

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuel utilisateur

MYDLINK

MYDLINK DCS-6100LH Manuel utilisateur

Sony

Sony video Hi8 Handycam CCD-TR555 Manuel utilisateur

SECURECOM

SECURECOM V-5014B Manuel utilisateur

Panasonic

Panasonic HDC-SD100 Manuel utilisateur

Sharper Image

Sharper Image U-VIDEO Manuel utilisateur

Canon

Canon LEGRIA HV40 Manuel utilisateur

Sony

Sony Handycam DCR-VX2000 Manuel utilisateur

RCA

RCA CC616 Manuel utilisateur

Panasonic

Panasonic NVM40 Manuel utilisateur

ATIK Cameras

ATIK Cameras Horizon Manuel utilisateur

Sony

Sony Handycam HDR-CX580V Manuel utilisateur
