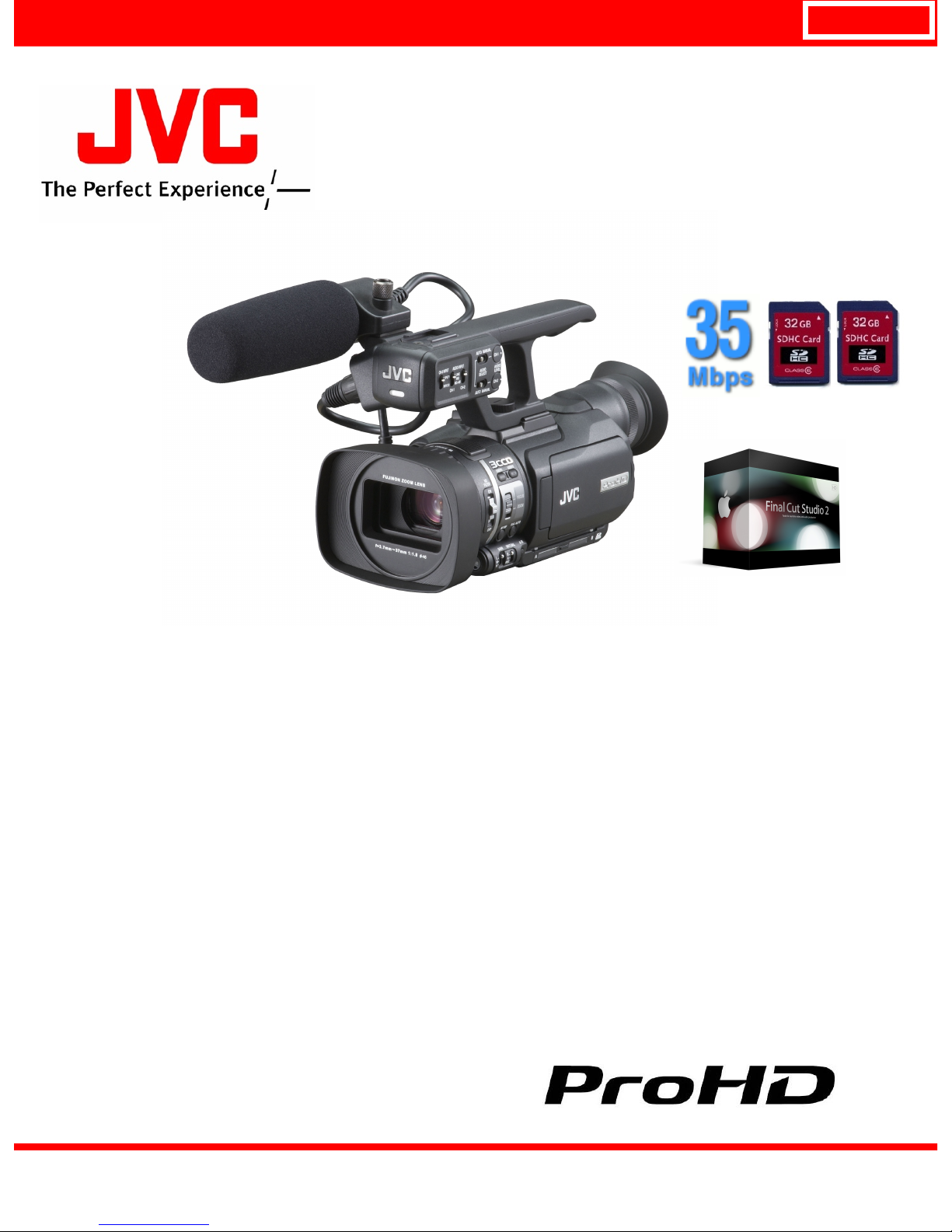

ProHD Memory Camera Recorder

GY-HM100

NEW PRODUCT NEWS

Apr 2009 Release Preliminary

World’s first tapeless Compact Hand-Held camcorder to

record Apple Quicktime™ file format (for Final Cut Pro™)

directly to S HC memory cards

(*2): 32GB card, MPEG-2 19Mbps recording mode

World’s first native support for Apple QuickTime file

format (for Final Cut Pro)

GY-HM1 natively records in the file format used by Apple

QuickTime™ (for Final Cut Pro™)—the most popular NLE

system in the professional video market today—and the ISO

base media file format. The recorded files can be transferred

to most NLE systems seamlessly.

S HC Media Card recording with 2 card slots

GY-HM1 records files directly to widely available SDHC

media cards. SDHC memory cards are highly reliable yet

inexpensive—comparable to professional tape costs. GY-

HM1 has two card slots, allowing for more than six

hours(*2) of continuous recording.

35Mbps MPEG-2 (HQ) and 19Mbps/25Mbps SP Modes

GY-HM1 records 192 x1 8 HD video using the

MPEG-2 Long GOP codec at 35Mbps in HQ mode. This

provides long recording times for efficient media usage

without compromising picture quality. Additionally, GY-

HM1 records 72 p (19Mbps) and 1 8 i (25Mbps) in SP

mode.

Compact Hand-Held form factor

Weighing only 3.2 lbs., the GY-HM1 is the smallest and

lightest HD camcorder to offer true 35Mbps professional

performance. Its size and portability open up new

possibilities for high-quality HD recording applications,

while reducing the strain of hand-held operation.

Newly developed 1/4” progressive 3CC and 10x high-

quality lens developed by Fujinon

3 newly developed CCDs deliver razor sharp images with

superb color reproduction. JVC's proprietary 1 8 p digital

processor applies 5 advanced noise reduction technologies.

A 1 x Fujinon lens provides edge-to-edge sharpness, and

offers manual or auto focus, zoom and iris.

NEW PRODUCT NEWS

Information in this document is subject to change without notice.

Apple and Final Cut Pro are trademarks of Apple Inc.

All product names stated in this document are trademarks or registered trademarks of their respective companies.

Marks such as TM, ®, and © are omitted in this document.

Specifications

Preliminary

AF/OIS and a range of manual functions

Professional switch layout and comprehensive video settings

.44” color viewfinder/2.8” LCD display

Built-in stereo microphone and 2-channel balanced audio inputs, mic/line switchable, built-in

phantom power supply

HDMI output, USB 2. interface

Features

Power DC 6. V (AC adaptor), DC 7.2V (Battery)

Power consumption 7.2W (with VF and LCD monitor)

Dimensions 1 8(W) x 178(H) x 65(D)mm (5-7/16" x 7" x 14- /8")

Mass Appro.1.4kg ( .2lbs)

(Including battery, microphone)

Operating temperature 0

℃

to 40

℃

( 2°F to 104°F)

Storage temperature -10

℃

to 60

℃

(18°F to 140°F)

Operating humidity 0% to 80%

Storage humidity Under 85%

Image sensor 1/4" Progressive scan CCD

Synchronizing system Internal synchronization

Stabilizer Optical image stabilizer

Lens Fujinon F1.8, 10x, f= .7- 7mm ( 5mm conversion: 9 to 90mm)

Filter diameter 46mm

Shutter speed 1/4 to 1/10000

Gain 0, , 6, 9, 12, 15, 18 dB, ALC

ND filter 1/10

LCD display 2.8”

Viewfinder 0.44”

Recording media 2x SDHC memory card Class 6

Video recording Video codec: MPEG2 Long GOP

File format: Quick time format for Final Cut Pro/ISO base media file format

Recording mode 60Hz setting: HQ mode:1920 x 1080/59.94i, 29.97p, 2 .98p,

1440 x 1080/59.94i, 1280 x 720/59.94p, 29.97p, 2 .98p

SP mode: 1440 x 1080/59.94i, 1280 x 720/59.94p, 29.97p, 2 .98p

50Hz setting: HQ mode:1920 x 1080/50i, 25p

1440 x 1080/50i, 1280 x 720/50p, 25p

SP mode: 1440 x 1080/50i, 1280 x 720/50p, 25p

Audio recording LPCM 2ch, 48kHz/16-bit(Internal stereo mic/External mic input)

Recording media Multimedia card/SD card/SDHC card

Format JPEG

Video output Composite output (480i, 4: /16:9) (φ .5mm mini jack)

Component output (480i /720p /1080i) (Multi-pin cable)

HDMI output (480i / 720p /1080i)

Audio input

XLR x2 (MIC,+48V/LINE)

Mic input φ .5mm mini jack

Audio output φ .5mm mini jack

Headphone φ .5mm mini jack

USB

USB2.0, mini B

Battery pack x1, AC adapter x1, Battery charger x1, Microphone x1,

Wireless remote control unit x1, Component cable x1, A/V cable x1

PROVIDED ACCESSORIES

STILL IMAGE RECORDING

GENERAL

CAMERA

RECORDING

INTERFACE
