Dear Customer,

Thank you for purchasing the JVC Compact VHS

camcorder. Before use, please read the safety

information and precautions contained in the

following pages to ensure safe use of your new

camcorder.

Warning on lithium battery

The battery used in this device may present a

fire or chemical burn hazard if mistreated. Do

not recharge, disassemble, heat above 100°C or

incinerate.

Replace battery with Panasonic (Matsushita

Electric), Sanyo or Maxell CR2025; use of

another battery may present a risk of fire or

explosion.

nDispose of used battery promptly.

nKeep away from children.

nDo not disassemble and do not dispose of in

fire.

Crossed Out Dust Bin Mark

nThe Crossed Out Dust Bin

Mark on the battery pack

indicates that the product

complies with Directives

91/157/EEC and 93/86/

EEC.

nNickel-Cadmium (Ni-Cd)

battery pack must be

recycled or disposed of

properly.

This camcorder is designed to be used with

PAL-type colour television signals. It cannot be

used for playback with a television of a different

standard. However, live recording is possible

anywhere. Use the BN-V12U/V22U/V25U

battery packs and, to recharge them, the

provided multi-voltage AC Power Adapter/

Charger. (An appropriate conversion adapter

may be necessary to accommodate different

designs of AC outlets in different countries.)

NOTES:

●

The rating plate (serial number plate) and

safety caution are on the bottom and/or the

back of the main unit.

●

The rating plate (serial number plate) of the

AC Power Adapter/Charger is on its bottom.

This unit is produced to comply with Standard

IEC Publ. 65.

2EN

625

PAL

Using This Instruction Manual

•All major sections and subsections are listed in the

Table Of Contents (Zpg. 3).

•Notes appear after most subsections. Be sure to

read these as well.

•Basic and advanced features/operation are

separated for easier reference.

It is recommended that you . . .

..... refer to the Index (Zpgs. 46 – 48) and

familiarize yourself with button locations, etc.

before use.

..... read thoroughly the Safety Precautions that

follow and cautions (Zpgs. 49, 50). They

contain extremely important information

regarding the safe use of your new camcorder.

SAFETY

PRECAUTIONS

WARNING:

TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE

THIS UNIT TO RAIN OR

MOISTURE.

CAUTIONS:

nTo prevent shock, do not open the cabinet.

No user serviceable parts inside. Refer

servicing to qualified personnel.

nWhen you are not using the AC Power

Adapter/Battery charger for a long period of

time, it is recommended that you disconnect

the power cord from AC outlet.

Cassettes marked “ ” and “ ” can be

used with this camcorder. However, S-VHS

recordings are possible only with cassettes

marked “ ”.

MAJOR FEATURES CONTENTS

EN 3

GETTING STARTED 4

Power .............................................. 4

Clock (Lithium) Battery Insertion/Removal ... 6

Viewfinder Adjustment .......................... 6

Date/Time Setting ................................ 7

Tape Length Setting............................... 8

Recording Format Setting........................ 8

Loading/Unloading A Cassette.................. 9

Grip Adjustment................................. 10

Shoulder Strap Attachment .................... 10

Tripod Mounting................................. 10

RECORDING 11

Basic Recording ................................. 11

Basic Features ................................... 12

Advanced Features ............................. 16

PLAYBACK 30

Basic Connections ............................... 30

Basic Playback .................................. 32

Features.......................................... 33

Using The Cassette Adapter ................... 34

EDITING 35

Tape Dubbing .................................... 35

Random Assemble Editing [R.A.Edit] ......... 36

USING REMOTE CONTROL

UNIT 40

Insert Editing .................................... 42

Audio Dubbing ................................... 43

TROUBLESHOOTING 44

INDEX 46

Controls .......................................... 46

Connectors ....................................... 47

Indicators ........................................ 47

Other Parts ...................................... 47

Viewfinder ....................................... 48

CAUTIONS 49

SPECIFICATIONS 51

GETTING STARTED

RECORDING

PLAYBACK

EDITING

nProgram Manager (Zpg. 16 – 27)

nProgramme AE with Special Effects

(Zpgs. 16, 17)

• Auto Mode Lock • Auto Mode Release

• Electronic Fog Filter • ND Effect

• Sepia • Twilight • Sports

• 1/1000 sec. High Speed Shutter

• 1/2000 sec. High Speed Shutter

nPicture Stabilizer (Zpg. 20)

nDigital Hyper Zoom (Zpg. 12)

nDigital Fades/Wipes (Zpg. 21)

nEasyEdit with Random Assemble Editing

(Zpg. 36 – 39)

nBuilt-In Auto Light (Zpg. 15)

PROVIDED ACCESSORIES

•AC Power Adapter/

Charger AA-V11EG

•Shoulder Strap

•Battery Pack

BN-V12U

•Cassette Adapter

C-P7U

•AUDIO/VIDEO

(A/V) cable

•S-VIDEO cable

•Cable Adapter

•Lithium Battery

CR2025 x 2

•Remote Control

Unit RM-V704U

or RM-V700U

•Editing cable

•DC cord

4EN

GETTING STARTED

REFRESH indicatorREFRESH switch

CHG. (charge) indicator

Marks

END

indicator

POWER

indicator

ATTENTION:

Before detaching the power source, make

sure that the camcorder’s power is turned

off. Failure to do so can result in a

camcorder malfunction.

Hook on.

Push in.

BATT. RELEASE

Power

This camcorder’s 3-way power supply system lets you

choose the most appropriate source of power.

NOTES:

●

No function is available without power supply.

●

Use only specified power supply.

●

Do not use provided power supply units with other

equipment.

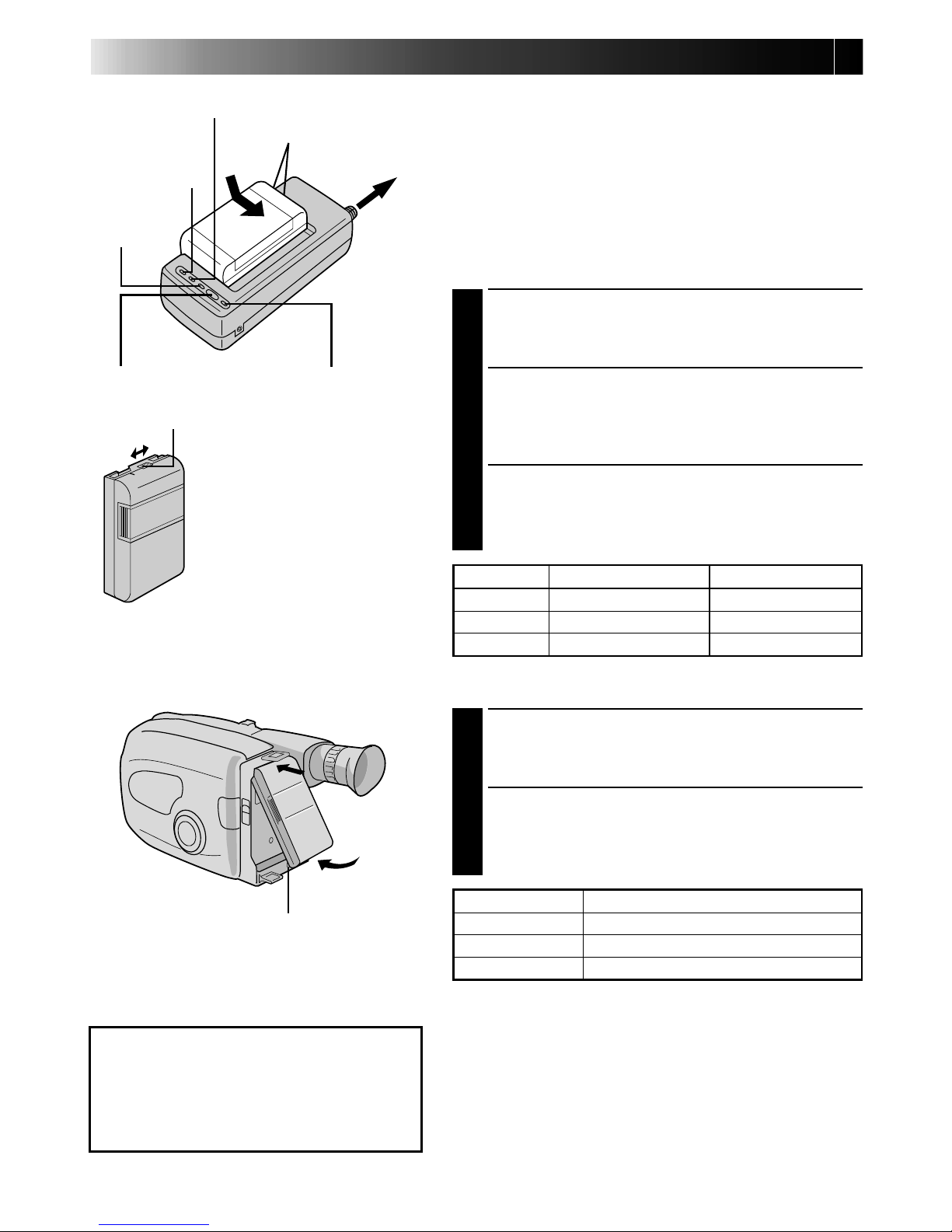

CHARGING THE BATTERY PACK

SUPPLY POWER

Connect the charger’s AC power cord to a wall

outlet. The power indicator lights.

ATTACH BATTERY PACK

Align the marks and slide the battery pack in the

direction of the arrow until it locks in place.

The CHG. indicator lights.

DETACH BATTERY PACK

When charging is completed, the END indicator

lights. Slide the battery pack opposite the direction

of the arrow.

To AC outlet

BATT. PACK CHARGE DISCHARGE

BN-V12U approx. 1 hr. 10 min. approx. 3 hrs. 30 min.

BN-V22U approx. 2 hrs. 10 min. approx. 7 hrs.

BN-V25U approx. 2 hrs. 40 min. approx. 10 hrs.

USING THE BATTERY PACK

ATTACH BATTERY PACK

Hook its top end to the camcorder and push the

battery pack in until it locks in place.

DETACH BATTERY PACK

Slide BATT. RELEASE and pull out the battery pack.

Charge marker

** CHARGE MARKER

A charge marker is provided on

the battery pack to help you

remember whether it has been

charged or not. Two colors are

provided (red and black)—you

choose which one means

charged and which means

discharged.

BATT. PACK APPROXIMATE RECORDING TIME

BN-V12U 45 min. (30 min.)

BN-V22U 1 hr. 40 min. (1 hr. 10 min.)

BN-V25U 2 hrs. 5 min. (1 hr. 35 min.)

( ) : when the video light is on.

**REFRESH

The AC power adapter features a REFRESH function that

allows you to fully discharge the battery pack before

recharging.

To discharge the battery . . .

..... attach the battery pack to the adapter as shown in the

illustration to the left. Then push REFRESH. The

REFRESH indicator lights when discharging starts,

and goes out when discharging is complete.

EN 5

NOTES:

●

The recording time per charge is affected by such factors as the time spent in Record/Standby mode and

the frequency of zooming. It is safer to have spare battery packs.

●

Charging times noted on page 4 are for fully discharged battey pack, and discharging times are for fully

charged battery pack.

●

Charging and discharging times vary according to the ambient temperature and the status of the battery

pack.

●

Remember to set the charge marker after charging a battery pack or after detaching a discharged one from

your camcorder.

●

Perform the REFRESH function after no less than 5 chargings.

●

High temperatures can damage the battery pack, so use only where good ventilation is available. Don’t

allow it to discharge in container, such as a bag.

●

If you stop recharging or discharging part way through, make sure to remove the battery pack before

unplugging the adapter’s AC cord.

●

Remove the battery pack from the adapter immediately after discharging.

●

To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.

●

Make sure you unplug the DC cord before charging or discharging the battery pack.

●

A blinking CHG. indicator means that the battery pack has become hot. Wait until it cools down to

continue.

●

The CHG. indicator may not light properly with a brand new battery pack, or with one that’s been stored

for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHG.

indicator should light during recharging. If not, contact your nearest JVC dealer.

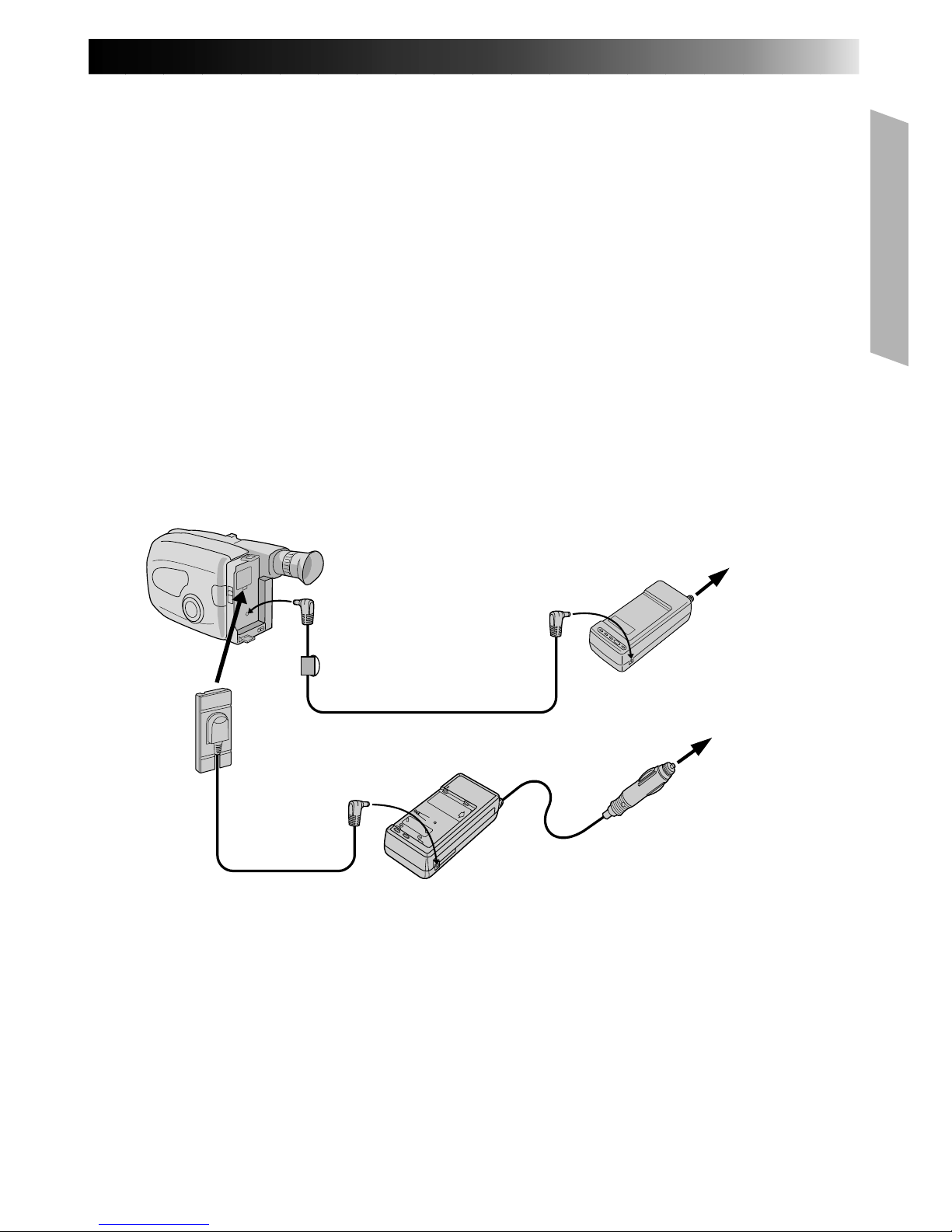

USING AC POWER

Use the AC Power Adapter (connect as shown in

the above illustration).

NOTES:

●

The supplied AC Power Adapter/Charger features

automatic voltage selection in the AC range from

110 V to 240 V.

●

When using the provided DC cord, make sure

you connect the end of the cable with the core

filter to the camcorder. The core filter improves

performance of equipment.

USING A CAR BATTERY

Use the optional Car Battery Charger/Adapter

(connect as shown in the above illustration).

NOTES:

●

When using the car battery, leave the engine

idling.

●

The optional Car Battery Charger (BH-V3E) can

also be used to charge the battery pack.

●

When using the optional Car Battery Charger,

refer to the respective instruction booklet.

To DC in jack

DC OUT

terminal

To AC outlet

Car Battery Charger/Adapter

BH-V3E (optional)

AC Power

Adapter/Charger

AA-V11EG

To car’s

cigarette

lighter socket

Core Filter

DC cord

6EN

GETTING STARTED

(cont.)

Clock (Lithium) Battery Insertion/Removal

This battery is necessary for clock operation and to

perform date/time settings.

SWITCH OFF POWER

Switch off the unit’s power and remove the power

supply unit.

OPEN COVER

Open the clock battery compartment cover while

pressing the release tab.

REMOVE BATTERY (when replacing)

Insert a pointed, non-metallic object between the

battery and the compartment ( A) and pull the

battery out.

INSERT BATTERY

Ensuring the plus (+) side is up, insert a CR2025

lithium battery and push it in.

CLOSE COVER

Close the compartment cover until it clicks in place.

NOTE:

See “SAFETY PRECAUTIONS” (

pg. 2) for information

on safe handling of lithium batteries.

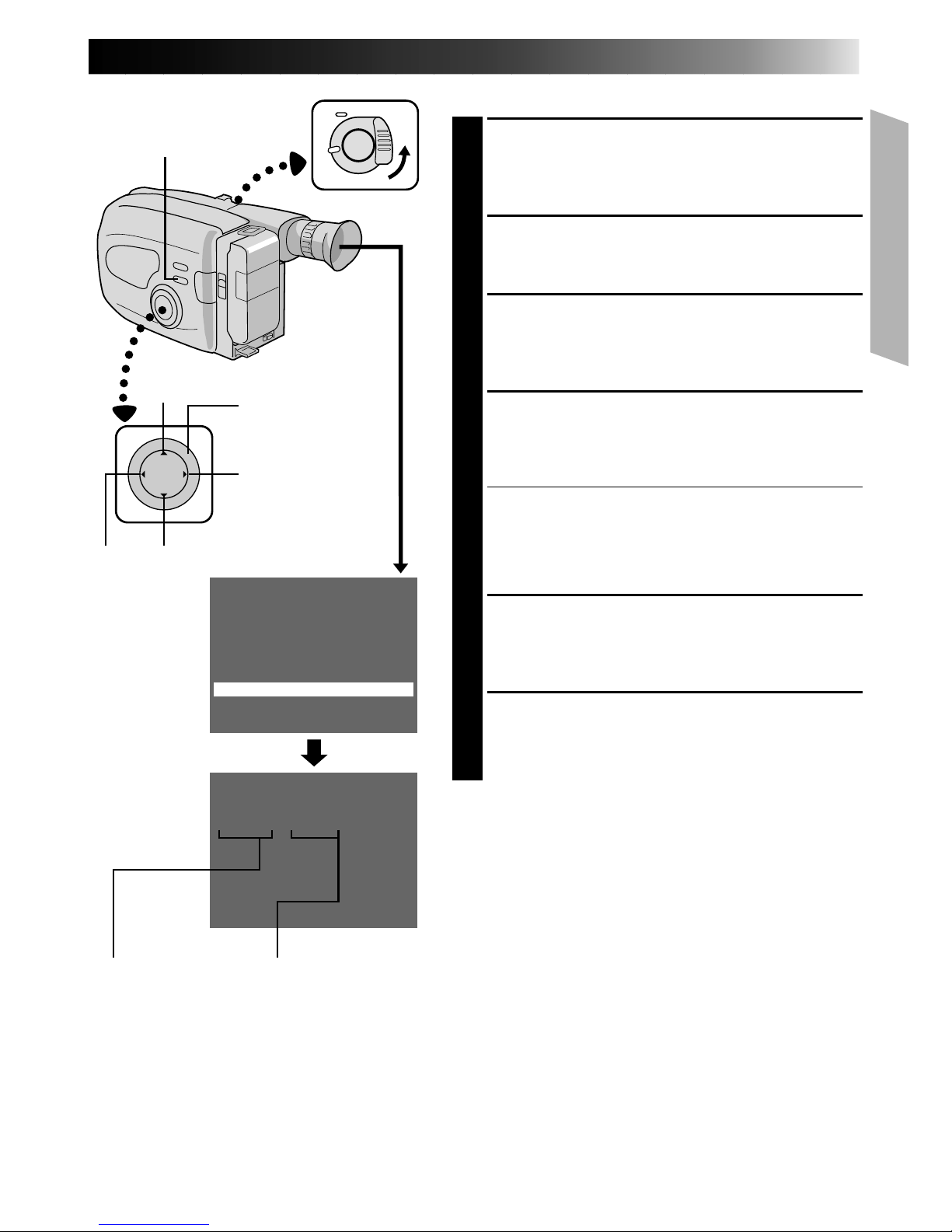

Viewfinder Adjustment

POSITION VIEWFINDER

Adjust the viewfinder manually for best viewability

(see illustration at left).

SELECT MODE

Set the power switch to CAMERA.

ADJUST DIOPTER

Turn the diopter adjustment control until the

indications in the viewfinder are clearly focused.

Set POWER to “CAMERA”.

EN 7

Set Cancel

1.1.00 10:45

–

Gain Up NORM

Tele Macro OFF

Interval Timer OFF

Rec Time OFF

JLIP ID NO. 07

Tally ON

Set Character 

Date/Time 

END :MENU KEY

Date/Time Setting

SELECT MODE

First set the power switch to “CAMERA”. Turn the

PROGRAM AE select dial to any position except

AUTO LOCK.

ACCESS MENU SCREEN

Press MENU.

SELECT FUNCTION

Press –to move the highlight bar down to “Date/

Time”, then press NEAR. The Set Date And Time

screen appears.

SET DATE/TIME

Press FAR or NEAR until the item you want to set

begins blinking, then press +or –to until the correct

setting appears.

•If you decide you want to return the date and time

to the previous settings, press FAR or NEAR to

move the highlight bar to “Cancel”, then press

MENU.

•If you’re satisfied with the settings, go on to step 5.

START CLOCK OPERATION

Once you’ve set the date and time, press FAR or

NEAR until “Set” begins to blink, then press MENU.

The Menu screen reappears.

CLOSE MENU

Press MENU.

NOTES:

●

To display the date and time in the viewfinder and on a

connected TV, see “Date/Time Character Insert”

(

pg. 24).

●

If, in step 4, you input an invalid date (30. 2, 31. 6,

etc.) and perform step 5, “Input Error” appears blinking

at the bottom of the screen. Press +, –, FAR or NEAR to

input the correct number.

PROGRAM AE

select dial

NEAR

FAR

Set Time and

Date Screen

Menu Screen

Time

24-hour indication

Date

Day/Month/Year

8EN

30 30 45 60

GETTING STARTED

(cont.)

Tape Length Setting

Set the tape length according to the length of the tape

used.

SET TAPE LENGTH

Press 30•45•60 until the required indication

appears in the veiwfinder. 30 = 30 minutes of

recording time, 45 = 45 minutes, and 60 = 60

minutes.

NOTE:

The tape remaining time (

pg. 11) displayed in the

viewfinder is correct only if the correct tape length has

been selected.

Recording Format Setting

When using an S-VHS-C cassette, set to either of the

recording formats.

SET RECORDING FORMAT

Press S-VHS/VHS button until the required

indication appears in the viewfinder.

: Super VHS

T: Regular VHS

NOTE:

Super VHS recordings cannot be made on VHS-C tapes.

S-VHS VCR

Regular VHS VCR

COMPATIBILITY BETWEEN S-VHS AND VHS

Recording Playback

Recorded tapeCamcorderBlank tape Cassette adapter

S-VHS-C cassette

VHS recordingsVHS-C cassette

•The recorded format (S-VHS or

VHS) is automatically detected

when playlback begins.

•S-VHS recorded tapes cannot

be viewed on regular VHS VCRs.

Set POWER to “CAMERA”.

Tape length indicator

30•45•60

tape length

select button

S-VHS/VHS recording

format select button

Recording format

indicator

Playback

The pictures recorded with the camcorder can be viewed in playback by directly connecting it to a TV; and

can also be played back using a VCR.

S-VHS

recordings

EN 9

Loading/Unloading A Cassette

OPEN CASSETTE HOLDER

Slide EJECT until the holder opens. Do not use force

to open.

INSERT/REMOVE CASSETTE

Make sure the label is facing outward.

CLOSE CASSETTE HOLDER

Press PUSH and make sure the holder is closed and

locked.

NOTES:

●

A cassette holder can’t be opened unless a power

supply is attached.

●

Make sure that the tape is not slack when loading the

cassette. If there is any slack, turn the gear on the

cassette in the direction of the arrow to take up the

slack.

●

Make sure the Erase Protection tab is in the position

that allows recording. If not, slide the tab. Some

cassettes have removable tabs. If the tab has been

removed, cover the hole with adhesive tape.

●

The cassette holder can’t be opened while the

camcorder is in the record mode.

GearErase protection

Turn to take

up slack.

10 EN Grip Adjustment

EXPAND LOOP

Separate the Velcro strip.

INSERT HAND

Pass your right hand through the loop and grasp the

grip.

ADJUST STRAP LENGTH

Adjust so your thumb and fingers can easily operate

the Recording Start/Stop button and Power Zoom

lever. Refasten the Velcro strip.

Shoulder Strap Attachment

ATTACH STRAP

Following the illustration at left, thread the strap

through the top of the eyelet 1, then fold it back

and thread it through the keeper 2, and then

through the buckle 3. Repeat the procedure to

attach the other end of the strap to the other eyelet,

making sure the strap isn’t twisted.

ADJUST LENGTH

Adjust as shown in the illustration at left 1, then

slide both keepers snug against the eyelets to

prevent slipping 2.

Tripod Mounting

ALIGN AND TIGHTEN

Align the screw and camera direction stud on the

tripod with the camera’s mounting socket and stud

hole. Then tighten the screw.

Recording Start/Stop button

GETTING STARTED

(cont.)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JVC caméscope

JVC

JVC GZ-R15BE Manuel d'utilisation et d'entretien

JVC

JVC GR-DVF11U Manuel utilisateur

JVC

JVC GR-D295U - MiniDV Camcorder w/25x Optical... Manuel utilisateur

JVC

JVC GR-AX655 Manuel utilisateur

JVC

JVC GR-D850U Manuel utilisateur

JVC

JVC GZ-MG130US Manuel utilisateur

JVC

JVC Everio GZ-EX315BEK Manuel d'utilisation et d'entretien

JVC

JVC GR-D370AH Manuel utilisateur

JVC

JVC Everio GZ-VX815BEK Manuel d'utilisation et d'entretien

JVC

JVC GR-DVL355EG Manuel utilisateur

JVC

JVC GR-SXM335U Manuel utilisateur

JVC

JVC GR-SX860 Manuel utilisateur

JVC

JVC YU30052-513-2 Manuel utilisateur

JVC

JVC GR-D370UC Guide de l'administrateur

JVC

JVC EverioR GZ-RY980 Manuel d'utilisation et d'entretien

JVC

JVC GZMC200 - Everio 2MP 4GB Microdrive... Manuel utilisateur

JVC

JVC GR-D63 Manuel utilisateur

JVC

JVC GR-D650U Manuel utilisateur

JVC

JVC GR D 240 Manuel utilisateur

JVC

JVC GZX900US - Everio Camcorder - 1080i Instructions d'utilisation

JVC

JVC JY-HM360AG Manuel utilisateur

JVC

JVC GR-D50 Manuel utilisateur

JVC

JVC TK-WD310 Manuel utilisateur

JVC

JVC GR-D93 Manuel utilisateur

Manuels caméscope populaires d'autres marques

Toshiba

Toshiba CAMILEO Z100 Manuel utilisateur

Panasonic

Panasonic NV-VS40B Manuel utilisateur

Canon

Canon RC 260 Manuel utilisateur

Sony

Sony Handycam DCR-DVD7E Manuel utilisateur

Brinno

Brinno TimeLapse TLC200 Manuel utilisateur

Panasonic

Panasonic AG-HMC152EN Manuel utilisateur

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuel utilisateur

MYDLINK

MYDLINK DCS-6100LH Manuel utilisateur

Sony

Sony video Hi8 Handycam CCD-TR555 Manuel utilisateur

SECURECOM

SECURECOM V-5014B Manuel utilisateur

Panasonic

Panasonic HDC-SD100 Manuel utilisateur

Sharper Image

Sharper Image U-VIDEO Manuel utilisateur

Canon

Canon LEGRIA HV40 Manuel utilisateur

Sony

Sony Handycam DCR-VX2000 Manuel utilisateur

RCA

RCA CC616 Manuel utilisateur

Panasonic

Panasonic NVM40 Manuel utilisateur

ATIK Cameras

ATIK Cameras Horizon Manuel utilisateur

Sony

Sony Handycam HDR-CX580V Manuel utilisateur
