JVC GR-SXM770A Manuel utilisateur

LYT0675-001B

INSTRUCTIONS

GR-SXM770A

GR-SXM77EA

VHS

PAL

625

COMPACT

VHS CAMCORDER

ENGLISH

CONTENTS

SAFETY PRECAUTIONS

2 – 3

PROVIDED ACCESSORIES

AUTOMATIC

DEMONSTRATION

GETTING STARTED

7 – 16

VIDEO RECORDING &

PLAYBACK

17 – 26

VIDEO RECORDING............18 – 21

VIDEO PLAYBACK..............22 – 26

DIGITAL STILL CAMERA (D.S.C.)

RECORDING &

PLAYBACK

27 – 34

D.S.C. RECORDING ............28 – 29

D.S.C. PLAYBACK ..............30 – 34

ADVANCED

FEATURES

35 – 57

REFERENCES

58 – 71

TROUBLESHOOTING ............59 – 61

DETAILS ...........................62 – 63

INDEX .............................64 – 67

CAUTIONS ........................68 – 70

SPECIFICATIONS .........................71

2EN

Using This Instruction Manual

•All major sections and subsections are listed in the Table Of Contents on the cover.

•Notes appear after most subsections. Be sure to read these as well.

•Basic and advanced features/operation are separated for easier reference.

It is recommended that you . . .

.... refer to the Index (pgs. 64 – 67) and familiarise yourself with button locations, etc. before use.

.... read thoroughly the Safety Precautions. They contain extremely important information regarding the safe

use of this product.

SAFETY PRECAUTIONS

You are recommended to carefully read the cautions on pages 68 – 70 before use.

WARNING:

TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE

THIS UNIT TO RAIN OR

MOISTURE.

Dear Customer,

Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read the safety information

and precautions contained in the following pages to ensure safe use of this product.

Cassettes marked “ ” and “ ” can be used with this camcorder.

However, S-VHS recordings are possible only with cassettes marked “ ”.

625

CAUTIONS:

If you notice smoke or a peculiar smell coming

from the camcorder or AC Adapter, shut it

down and unplug it immediately. Continue

using the camcorder or AC Adapter under

these conditions could lead to fire or electric

shock. Contact your JVC dealer. Do not

attempt to repair the malfunction yourself.

To prevent shock, do not open the cabinet. No

user serviceable parts inside. Refer servicing to

qualified personnel.

When you are not using the AC Adapter for a

long period of time, it is recommended that

you disconnect the power cord from AC outlet.

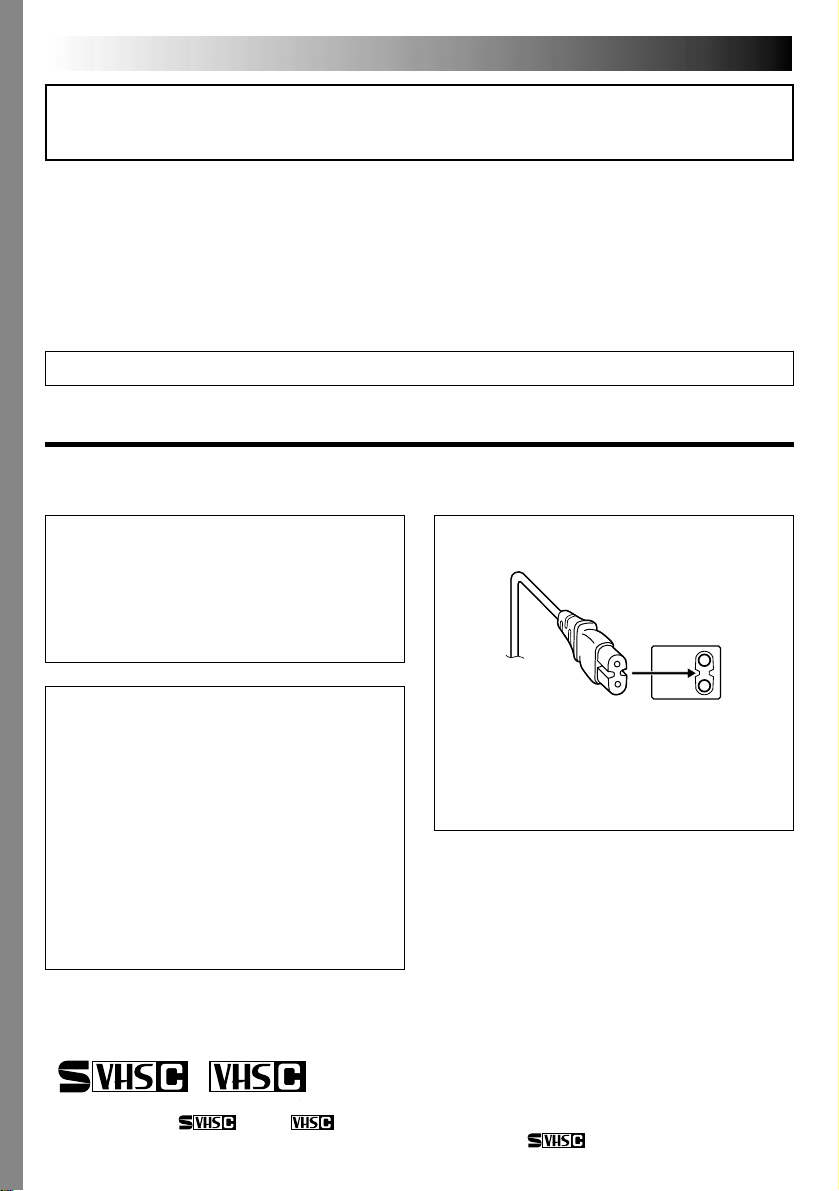

CAUTION:

To avoid electric shock or damage to the unit,

first firmly insert the small end of the power

cord into the AC Adapter until it is no longer

wobbly, and then plug the larger end of the

power cord into an AC outlet.

EN3

When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all

sides to allow for ventilation (10 cm or more on both sides, on top and at the rear).

Do not block the ventilation holes.

(If the ventilation holes are blocked by a newspaper, or cloth etc. heat may not be able to get out.)

No naked flame sources, such as lighted candles, should be placed on the apparatus.

When discarding batteries, environmental problems must be considered and local rules or laws governing

the disposal of these batteries must be followed strictly.

The apparatus shall not be exposed to dripping or splashing.

Do not use this equipment in a bathroom or places with water.

Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases,

potted plants, cups etc.) on top of this unit.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

CAUTIONS:

This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for

playback with a television of a different standard. However, live recording and LCD monitor/viewfinder

playback are possible anywhere.

Use the JVC BN-V11U/V12U/V20U/V400U battery packs and, to recharge them or to supply power to

the camcorder from an AC outlet, use the provided multi-voltage AC Adapter and Power Cord.

(An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in

different countries.)

NOTES:

●

The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main

unit.

●

The rating information and safety caution of the AC Adapter are on its bottom.

ATTENTION USERS OF RECHARGEABLE BATTERIES

DO NOT DISPOSE RECHARGEABLE BATTERIES OR PRODUCTS POWERED BY NON-

REMOVABLE RECHARGEABLE BATTERIES, THESE BATTERIES AND PRODUCTS CAN BE

RECYCLED.

AT THE END OF NORMAL LIFE,

IN AUSTRALIA, RETURN TO YOUR POINT OF PURCHASE OR MAIL TO:

Hagemeyer (Australasia) B.V. 5-7 Garema Circuit Kingsgrove NSW 2208 Australia

Attn : Service Dept.

Phone : (02)750 3777

IN NEW ZEALAND, PLEASE RETURN BATTERIES BY MAIL TO:

Hagemeyer (NZ) Limited P.O. Box 100589 Auckland 1000

Phone : (09)415 8758

4EN

•AC Adapter

AP-V10A or AP-V10EA

•Remote Control Unit

RM-V716U

•Shoulder Strap•Battery Pack

BN-V11U

•A/V (Audio/Video) Cable

•AAA (R03) Battery x 2

(for Remote Control Unit)

•S-Video Cable

PROVIDED ACCESSORIES

•Core Filter x 5

(for provided A/V Cable,

S-Video Cable, AC Adapter

and PC Connection Cable)

•Lens Cap

•Power Cord

•PC Connection Cable

(for Windows®PC)

•Editing Cable

(ø3.5 mini-plug cable)

•CD-ROM

The CD-ROM contains the

following 4 software programmes:

•Picture Navigator

Presto!

•Mr. Photo

•PhotoAlbum

•ImageFolio

•AA (R6) Battery

(for Cassette Adapter)

•Cassette Adapter

C-P7U

EN5

How To Attach The Core Filter

Attach the provided Core Filters to the provided A/V Cable, S-Video Cable, AC Adapter and PC Connection

Cable. The Core Filter reduces interference.

132

How To Attach The Lens Cap

To protect the lens, attach the provided lens cap to the camcorder as shown in the illustration.

Release the stoppers on both ends of the Core

Filter.

Run the cable through the Core Filter, leaving

approx. 5 cm of cable between the cable plug

and the Core Filter. Wind the cable around the

outside of the Core Filter as shown in the

illustration.

•Wind the cable so that it is not slack.

NOTE:

Take care not to damage the cable.

Close the Core Filter until it clicks shut.

Connect the end of the cable with the Core

Filter to the camcorder.

5 cm

Stopper

With the provided AC Adapter, attach Core Filters to both ends of the cable as shown below.

5 cm 5 cm

6EN

AUTOMATIC DEMONSTRATION

Automatic Demonstration takes place when ”DEMO MODE”is set to ”ON”

(factory-preset).



Available when the Power Switch is set to ” ” or ” ” and the VIDEO

mode is selected (the DSC Lamp is not lit).



Operating the Power Zoom Lever during the demonstration stops the

demonstration temporarily. If the Power Zoom Lever is not moved for

more than 1 minute after that, the demonstration will resume.



“DEMO MODE”remains ”ON”even if the camcorder power is turned

off.



To cancel Automatic Demonstration, set the Power Switch to “ ” and

press MENU while the demo is in progress. This takes you directly to the

demo mode’s Setting Menu (so you will not have to go through the main

Menu Screen). Rotate MENU to select “OFF”and press it.

NOTE:

When a tape whose Erase Protection tab is in the position that allows recording is loaded in the

camcorder, demonstration is not available.

DEMO MODE

Setting Menu

EN7

GETTING STARTED

CONTENTS

Power.................................................. 8 – 9

Grip Adjustment ......................................... 10

Viewfinder Adjustment.................................. 10

Shoulder Strap Attachment ............................. 10

Tripod Mounting .......................................... 10

Date/Time Settings...................................... 11

Recording Format Setting ........................ 12 – 13

Recording Mode Setting ................................. 14

Tape Length Setting ...................................... 14

Loading/Unloading A Cassette ......................... 15

Picture Mode Setting .................................... 16

8EN

GETTING STARTED

Power

This camcorder’s 2-way power supply system lets you

choose the most appropriate source of power. Do not use

provided power supply units with other equipment.

CHARGING THE BATTERY PACK

Make sure the battery pack is attached to the

camcorder. Hook its end to the camcorder 1and

push the battery in until it locks in place 2.

•If the battery pack is attached in the wrong position,

a malfunction may occur.

Set the Power Switch to “OFF”. Connect the AC

Adapter to the camcorder 3, then connect the Power

Cord to the AC Adapter 4.

Plug the Power Cord into an AC outlet 5.

The CHARGE lamp on the camcorder blinks to

indicate charging has started.

When the CHARGE lamp stops blinking but stays lit,

charging is finished. Unplug the Power Cord from the

AC outlet. Disconnect the AC Adapter from the

camcorder.

To Detach The Battery Pack . . .

.... slide BATTERY RELEASE and pull out the battery pack.

NOTES:

●

During charging or discharging, the camcorder cannot

be operated.

●

Charging and discharging is not possible if the wrong

type of battery is used.

●

When charging the battery pack for the first time or after

a long storage period, the CHARGE lamp may not light.

In this case, remove the battery pack from the

camcorder, then try charging again.

●

If the battery operation time remains extremely short

even after having been fully charged, the battery is worn

out and needs to be replaced. Please purchase a new

one.

●

Using the optional AA-V15 AC Power Adapter/Charger,

you can charge the BN-V11U/V12U/V20U/V400U

battery pack without the camcorder. However, it cannot

be used as an AC adapter.

To AC outlet

Battery pack

AC Adapter

Battery pack

BN-V11U

BN-V12U (optional)

BN-V20U (optional)

BN-V400U (optional)

Charging time

approx. 1 hr. 30 min.

approx. 2 hrs. 20 min.

approx. 4 hrs. 30 min.

CHARGE Lamp

REFRESH:

Charging a battery with some charge remaining reduces that battery’s capacity. Perform the procedure

below to fully discharge the battery pack before recharging.

1. Perform steps 1through 3of “CHARGING THE BATTERY PACK”.

2. Press REFRESH on the camcorder for over 2 seconds. The REFRESH lamp on the camcorder blinks to

indicate discharging has started.

3. When discharging is finished, charging automatically starts and the CHARGE lamp blinks.

When you are not using a battery pack for a long period of time, be sure to fully discharge it before storing

because leaving a battery with some charge left over also reduces performance.

To DC IN

connector

For other notes, pg. 62

Hook on.

Push in.

BATTERY RELEASE Switch

REFRESH Button

REFRESH Lamp

Power Switch

EN9

USING AC POWER

Use the AC Adapter (connect as shown in the illustration).

NOTES:

●

The provided AC Adapter features automatic voltage

selection in the AC range from 110 V to 240 V.

●

For other notes,



pg. 62.

To DC IN

connector

To AC outlet

AC Adapter

Charge marker

A charge marker is provided on

the battery pack to help you

remember whether it has b een

charged or not. Two colours are

provided (red and black)—you

choose which one means

charged and which means

discharged.

ATTENTION:

Before detaching the power source, make

sure that the camcorder’s power is turned

off. Failure to do so can result in a

camcorder malfunction.

NOTES:

●

Recording time is reduced significantly under the

following conditions:

•

Zoom or Record-Standby mode is engaged repeatedly.

•

The LCD monitor is used repeatedly.

●

Before extended use, it is recommended that you

prepare enough battery packs to cover 3 times the

planned shooting time.

USING THE BATTERY PACK

Perform step 1of “CHARGING THE BATTERY PACK”

(pg. 8).

Approximate recording time (unit: min.)

( ) : when the video light is on

Battery pack

BN-V11U

BN-V12U

(optional)

BN-V20U

(optional)

BN-V400U

(optional)

Viewfinder on

(45)

130

(75)

305

(185)

LCD monitor on

(40)

110

(65)

265

(170)

10 EN

GETTING STARTED

(cont.)

PAUSE

180

Power Zoom

Lever

Recording

Start/Stop

Button

Set to “”or

“”.

Shoulder Strap Attachment

Following the illustration, thread the strap through the

eyelet 1, then fold it back and thread it through the

buckle 2. Repeat the procedure to attach the other

end of the strap to the other eyelet 3, making sure

the strap is not twisted.

Adjust as shown in the illustration 4.

CAUTION:

When using a tripod, be sure to open and extend

its legs fully to Stabilize the camcorder. To

prevent damage to the unit caused by falling

over, do not use a small-sized tripod.

Tripod Mounting

Align the screw and camera direction stud on the

tripod with the camera’s mounting socket and stud

hole. Then tighten the screw.

Grip Adjustment

Separate the Velcro strip.

Pass your right hand through the loop and grasp the

grip.

Adjust so that your thumb and fingers can easily

operate the Recording Start/Stop Button and Power

Zoom Lever. Refasten the Velcro strip.

Viewfinder Adjustment

Set the Power Switch to “ ” or “ ”.

Adjust the viewfinder manually for best viewability.

Turn the Dioptre Adjustment Control until the

indications in the viewfinder are clearly focused.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JVC caméscope

JVC

JVC Everio LYT2197-001A-M Instructions d'utilisation

JVC

JVC Everio R GZ-R445BE Manuel d'utilisation et d'entretien

JVC

JVC GR-AX285 Manuel utilisateur

JVC

JVC GY-DV5000 Manuel utilisateur

JVC

JVC GZ-HM960BUS Manuel utilisateur

JVC

JVC GR-AX880 Guide de démarrage rapide

JVC

JVC 1105ASR-NF-VM Manuel utilisateur

JVC

JVC Everio GZ-MS210 Manuel d'utilisation et d'entretien

JVC

JVC GR-D20 Manuel

JVC

JVC GR-DVL522 Manuel utilisateur

JVC

JVC Enverio GZ-MS250 BEK Manuel d'utilisation et d'entretien

JVC

JVC GZ-MS95 EK Manuel

JVC

JVC GR-SXM947UM Manuel utilisateur

JVC

JVC GR-DVL100 Manuel utilisateur

JVC

JVC GY-DV5100 Manuel utilisateur

JVC

JVC GY-HD250U - 3-ccd Prohd Camcorder Manuel utilisateur

JVC

JVC Connected Cam GY-HC500E Manuel utilisateur

JVC

JVC GR-DF460 Manuel utilisateur

JVC

JVC GZ-MG21USM Manuel utilisateur

JVC

JVC GY-HM790CHU Manuel utilisateur

JVC

JVC EverioR GZ-R405 Manuel d'utilisation et d'entretien

JVC

JVC GR-DVL505 Manuel utilisateur

JVC

JVC GZ-EX250BUS Manuel utilisateur

JVC

JVC GZ MG555 - Everio Camcorder - 5.4 MP Manuel utilisateur

Manuels caméscope populaires d'autres marques

Toshiba

Toshiba CAMILEO Z100 Manuel utilisateur

Panasonic

Panasonic NV-VS40B Manuel utilisateur

Canon

Canon RC 260 Manuel utilisateur

Sony

Sony Handycam DCR-DVD7E Manuel utilisateur

Brinno

Brinno TimeLapse TLC200 Manuel utilisateur

Panasonic

Panasonic AG-HMC152EN Manuel utilisateur

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuel utilisateur

MYDLINK

MYDLINK DCS-6100LH Manuel utilisateur

Sony

Sony video Hi8 Handycam CCD-TR555 Manuel utilisateur

SECURECOM

SECURECOM V-5014B Manuel utilisateur

Panasonic

Panasonic HDC-SD100 Manuel utilisateur

Sharper Image

Sharper Image U-VIDEO Manuel utilisateur

Canon

Canon LEGRIA HV40 Manuel utilisateur

Sony

Sony Handycam DCR-VX2000 Manuel utilisateur

RCA

RCA CC616 Manuel utilisateur

Panasonic

Panasonic NVM40 Manuel utilisateur

ATIK Cameras

ATIK Cameras Horizon Manuel utilisateur

Sony

Sony Handycam HDR-CX580V Manuel utilisateur
