JVC GR-DVM75 Manuel utilisateur

JVC

ENGLISH

DIGITAL VIDEO CAMERA

GR-DVM75

GR-DVM55

Please visit our Homepage on the World Wide

Web and answer our Consumer Survey

(in English only):

Mini T

NTSC

DIGITAL

STILL CAMERA

The camcorder illustrations

appearing in this instruction

manual are of the CR-DVM75.

INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which is located on the

bottom of cabinet. Retain this information for future reference.

Model No.

Serial No.

AUTOMATIC

DEMONSTRATION

VIDEORECORDING

............. 18 - 20

VIDEOPLAYBACK

.............. .21 -

D.S.C.RECORDING............. .26 -

D.S.C.PLAYBACK

............... .28 -

USINGMENUSFOR

DETAILEDADJUSTMENT

......38 -

FORRECORDING

............... .45 -

DUBBING

........................ .57 - 61

USINGTHEREMOTE

CONTROLUNIT................

SYSTEMCONNECTIONS

........74 -

DETAILS...................................

TROUBLESHOOTING

............

USERMAINTENANCE

.................. .84

INDEX............................ .85 - 92

CAUTIONS....................... .93 - 95

TERMS........................... .96 - 97

SPECIFICATIONS

................ .98 - 99

The D.S.C. (Digital Still Camera) features are

available on GR-DVM75.

Dear Customer,

Thank you for purchasing this digital video camera. Before use, please read the safety information and

precautions contained in the following pages to ensure safe use of this product.

;ing This Instruction Manual

III major sections and subsections are listed in theTable Of Contents on the cover page.

tiotes appear after most subsections. Be sure to read these as well.

3asic and advanced features/operation are separated for easier reference.

is recommended that you . . .

. refer to the Index fm pgs. 85 - 92) and familiarize yourself with button locations, etc. before use.

. read thoroughly the Safety Precautions and Safety Instructions that follow. They contain extremely

important information regarding the safe use of this product.

You are recommended to carefully read the cautions on pages 93 through 95 before use.

iAFETY PRECAUTIONS

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. 1

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVLCING TO QUALIFIED SERVICE PERSONNEL, I

The lightning flash with arrowhead symbol, wilhin an

equilateral triangle, is intended to alert the user to the

presence of uninsulated “dangerous voltage” within the

product’s enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

WARNING:

TO REDUCETHE RISKOF FIRE

OR ELECTRICSHOCK, DO

NOT EXPOSETHIS APPARATUS

TO RAIN OR MOISTURE.

NOTES:

The rating plate (serial number plate) and safety

caution are on the bottom and/or the back of

the main unit.

The rating information and safety caution of the

AC Adapter are on its upper and lower sides.

:AUTIONS:

)This camcorder is designed to be used with NTSC-type color television signals. It cannot be used for

playback with a television of a different standard. However, live recording and LCD monitor/viewfinder

playback are possible anywhere.

)Use the JVC BN-V507U/V514U battery packs and, to recharge them or to supply power to the

camcorder from an AC outlet, use the provided multi-voltage AC Adapter. (An appropriate conversion

adapter may be necessary to accommodate different designs of AC outlets in different countries.)

Caution: (applies to Jack Box)

To reduce the risk of fire, do not remove

cover. No user-serviceable pans inside.

Refer servicing to qualified service person.

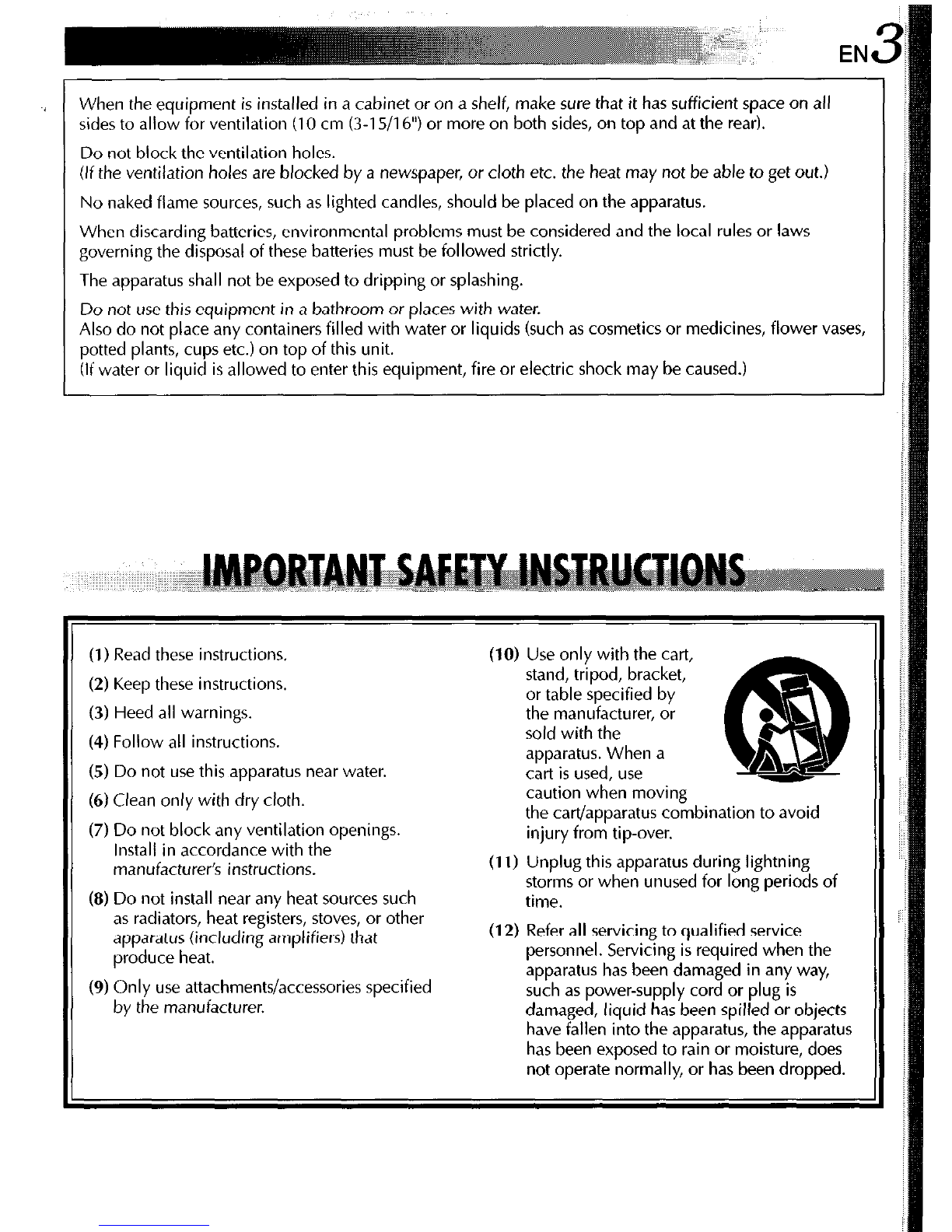

When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all

sides to allow for ventilation (10 cm (3-l 5/l 6”) or more on both sides, on top and at the rear).

Do not block the ventilation holes.

(If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)

No naked flame sources, such as lighted candles, should be placed on the apparatus.

When discarding batteries, environmental problems must be considered and the local rules or laws

governing the disposal of these batteries must be followed strictly.

The apparatus shall not be exposed to dripping or splashing.

Do not use this equipment in a bathroom or places with water.

Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases,

potted plants, cups etc.) on top of this unit.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

(1) Read these instructions.

(2) Keep these instructions.

(3) Heed all warnings.

(4) Follow all instructions.

(5) Do not use this apparatus near water.

(10) Use only with the cart,

stand, tripod, bracket,

or table specified by

the manufacturer, or

sold with the

apparatus. When a

cart is used, use

(6) Clean only with dry cloth.

(7) Do not block any ventilation openings.

Install in accordance with the

manufacturer’s instructions.

(8) Do not install near any heat sources such

as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that

produce heat.

caution when moving

the cart/apparatus combination to avoid

injury from tip-over.

(11) Unplug this apparatus during lightning

storms or when unused for long periods of

time.

(12) Refer all servicing to qualified service

personnel. Servicing is required when the

apparatus has been damaged in any way,

such as power-supply cord or plug is

damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does

not operate normally, or has been dropped.

(9) Only use attachments/accessories specified

by the manufacturer.

SAFETYPRECAUTIONS

Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, aswell as

lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock.

CAUTION!

The following notes concerh possible physical damage to the camcorder and to the user.

When carrying, be sure to hold the camcorder firmly in your hand, with the grip strap securely

around your wrist. Carrying or holding the camcorder by the viewfinder and/or the LCD monitor

can result in dropping the unit, or in a malfunction.

Take care not to get your finger caught in the cassette holder cover. Do not let children operate the

camcorder, asthey are particularly susceptible to this type of injury.

Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to

the camcorder.

CAUTION!

Connecting cables (Audio/Video, S-Video, etc.) to the camcorder and leaving it on top of the TV is

not recommended, astripping on the cables will cause the camcorder to fall, resulting in damage.

MiniwNTscSa MultiMediaCard

This camcorder is designed exclusively for the digital video cassette, SD Memory Card and

MultiMediaCard. Only cassettesmarked “‘?&“’ and memory cards* marked “Sa” or

“Mult~MediaCatd”

can be used with this unit.

Before recording an important scene. . .

.... make sure you only use cassettes with the Mini DV mark ‘Y&‘.

.... make sure you only use memory cards* with the mark

5%.

MultiMediaCard.

.... remember that this camcorder is not compatible with other digital video formats.

.... remember that this camcorder is intended for private consumer use only. Any commercial

use without proper permission is prohibited. (Even if you record an event such as a show, ’

performance or exhibition for personal enjoyment, it is strongly recommended that you

obtain permission beforehand.)

*Memory cards can be used with GR-DVM75 only.

AC Adapter

AP-Vl OU

AAA (R03) Battery x 2

(for remote control unit)

Editing Cable

CR-DVM75: Both plugs have 1 ring

around the pin.

CR-DVM55: One plu has 3 rings

around ti e pin and

the other has 1 ring

around the pin.

PC Connection Cable

(CR-DVM55 only)

Battery Pack

BN-V507U

Memory Card

8 MB (CR-DVM75 only)

(Already inserted in the

camcorder)

Audio/Video Cable

(03.5 mini-plug to RCA plug)

USB Cable

(CR-DVM75 only)

Remote Control Unit

RM-V717U

CD-ROM

Jack box

CR-DVM75: CU-V506

CR-DVM55: C&V505

NOTE:

In order to maintain optimum performance of the camcorder, provided cables may be equipped

with one or more core filter.

Automatic Demonstration takes place

when “DEMO MODE” is set to “ON”

(factory-preset).

Available when the Power Switch is set to

“

“ or ” IHINand no cassette is in the

camcorder.

Performing any operation during the

demonstration stops the demonstration

temporarily. If no operation is performed for

more than 1 minute after that, the demonstra-

tion will resume.

“DEMO MODE” remains “ON” even if the

camcorder power is turned off.

To cancel Automatic Demonstration:

1. Set the Power Switch to I’ 0 * while

pressing down the Lock Button located on

the switch and press the MENU Wheel in.

The Menu Screen appears.

2. Rotate the MENU Wheel to select 0FzI

SYSTEM” and press it. The SYSTEM Menu

appears.

3. Rotate the MENU Wheel to select “DEMO

MODE” and press it. The Sub Menu

appears.

4. Rotate the MENU Wheel to select “OFF”

Power Switch

lock Button

and press it.

5. Rotate the MENU Wheel to select

“tiRETURN”, and press it twice. The

normal screen appears.

CR-hM75 only

L Battery pack

Open the cover.

Battery pack 1 Charging time 1

1 BN-V507U 1 approx. 1 hr. 30 min. 1

1 BN-V514U (optional) 1 approx. 2 hr. 45 min. 1

Power

This camcorder’s 2-way power supply system lets you

choose the most appropriate source of power. Do not use

provided power supply units with other equipment.

CHARGING THE BATTERY PACK

Insert the terminal end @ of the battery pack into the

battery pack mount, then firmly push the end 0 of

the battery pack in the direction of the arrow until it

locks into place as shown in the illustration.

Set the Power Switch to “OFF”. Connect the AC

Adapter to the camcorder 0.

Plug the AC Adapter into an AC outlet 0.

The CHARGE lamp on the camcorder blinks to

indicate charging has started.

1 When the CHARGE lamp stops blinking but stays lit,

charging is finished. Unplug the AC Adapter from the

AC outlet. Disconnect the AC Adapter from the

camcorder.

To Detach The Battery Pack. . .

....

slide BAlT. RELEASE and detach it.

NOTES:

During charging, the camcorder cannot be operated.

Charging is not possible if the wrong type of battery is

used.

When charging the battery pack for the first time or

after a long storage period, the CHARGE lamp may not

light. In this case, remove the battery pack from the

camcorder then try charging again.

If the battery operation time remains extremely short

even after having been fully charged, the battery is

worn out and needs to be replaced. Please purchase

new one.

Using the optional AA-VSOU AC Power Adapter/

Charger, you can charge the BN-V507U/V5 14lJ battery

pack without the camcorder. However, it cannot be

used as an AC adapter.

Before detaching the power source, make

off. Failure to do so can result in a

NOTES:

0 Recording time is reduced significantly

under the following conditions:

Zoom or Record-Standby mode is engaged

repeatedly.

Battery pack LCD monitor off/ LCD monitor on/

Viewfinder on Viewfinder off

BN-V507U CR-DVM75: 1 hr. GR-DVM75:50 min.

CR-DVM55: 1hr.10min. CR-DVM55: 1hr.

BN-V514U CR-DVM75: 2 hr.10min. CR-DVM75: 1hr.50 min.

(orational) CR-DVM55: 2 hr.25min. GR-DVM55: 2 hr. I

The 1CD monitor is used repeatedly

Before extended use, it is recommended

that

you prepare enough battery packs to cover 3

times the planned shooting time.

CR-DVM75: 6 hr.10min. CR-DVM75: 5 hr.15min.

CR-DVM55:6 hr.50min. CR-DVM55: 5 hr.50min.

INFORMATION:

The extended-use battery pack kit IS a set composed of a battery pack and AC Power Adapter/Charger:

VU-V840 KIT: BN-V840U battery pack & AA-VI 5U AC Power Adapter/Charger

VU-V856 KIT: BN-V856lJ battery pack & AA-V80U AC PowerAdapter/Charger

Read the kit’s instruction manual before using.

Neither BN-V840tJ nor BN-V856U can be charged by using the AC Adapter provided with this camcorder.

Use only the AA- VI 5U AC Power Adapter/Charger for BN- V84OU battery pack and only AA-V80U AC

Power Adapter/Charger for BN-V856U battery pack. Also, by using the optional JVC VC-VBN856U DC

Cord, it will be possible to connect BN-V840U or BN-V856U battery packs to the camcorder and supply

power directly to the camcorder.

Open the cover.

USING AC POWER

Use the AC Adapter (connect as shown in the illustration).

NOTES:

The provided AC Adapter features automatic voltage

selection in the AC range from 110 V to 240 V

For other notes, W pg. 77.

About Batteries

lithium-ion is vulnerable in colder temperatures.

DANGER! Do not attempt to take the batteries apart, or expose them to flame or excessive heat, as it may

cause a fire or explosion.

WARNING! Do not allow the battery or its terminals to come in contact with metals, as this can result in a

short circuit and possibly start a fire.

The Benefits Of Lithium-Ion Batteries

Lithium-ion battery packs are small but have a large power capacity. However, when one is exposed to cold

temperatures (below 10°C/500F), its usage time becomes shorter and it may cease to function. If this happens,

place the battery pack in your pocket or other warm, protected place for a short time, then re-attach it to the

camcorder. As long as the battery pack itself is not cold, it should not affect performance.

(If you’re using a heating pad, make sure the battery pack does not come in direct contact with it.)

GripAdjustment

Power Switch

Diopter Adjustment

Control

Separate the Velcro strip,

Pass your right hand through the loop and grasp the

grip.

Adjust your thumb and fingers through the grip, to

easily operate the Recording Start/Stop button and

Power Switch and Power Zoom Lever. Be sure to

fasten the Velcro strip to your preference.

ViewfinderAdjustment

Set the Power Switch to “El” or “0” while pressing

down the Lock Button located on the switch.

Pull out the viewfinder fully.

Turn the Diopter Adjustment Control until the

indications in the viewfinder are clearly focused.

TripodMounting

Align the screw on the tripod with the camera’s

mounting socket. Then tighten the screw.

*Some tripods are not equipped with studs.

CAUTION:

When attaching the camera to a tripod, extend its

legs to stabilize the camcorder. It is not advised to use

small sized tripods. This may cause damage to the

unit by falling over.

Autres manuels pour GR-DVM75

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JVC caméscope

JVC

JVC GY-HD250U - 3-ccd Prohd Camcorder Guide de configuration

JVC

JVC GR-DV3000 Manuel utilisateur

JVC

JVC HM700U - Camcorder - 1080p Manuel utilisateur

JVC

JVC Everio GZ-VX755 Manuel d'utilisation et d'entretien

JVC

JVC Everio LYT2197-001A-M Instructions d'utilisation

JVC

JVC GY-DV550E - Studio Dv Camcorder Manuel utilisateur

JVC

JVC Procision GC-PX100 Manuel d'utilisation et d'entretien

JVC

JVC GR-AXM241 Manuel utilisateur

JVC

JVC GY-DV5000 Manuel utilisateur

JVC

JVC GR-D340E/EK Manuel utilisateur

JVC

JVC CYBERCAM GR-DVF31 Guide de configuration

JVC

JVC GZ-VX700BUS Guide de l'utilisateur

JVC

JVC GR-D390AS Manuel utilisateur

JVC

JVC GR-AXM341U Manuel utilisateur

JVC

JVC Everio GZ-HM30AA Manuel d'utilisation et d'entretien

JVC

JVC GR-SZ7000 Manuel utilisateur

JVC

JVC GR-DVL822U Manuel utilisateur

JVC

JVC GZ-EX250BUS Manuel utilisateur

JVC

JVC GR-D51 Manuel utilisateur

JVC

JVC GR-FX36ED Manuel utilisateur

JVC

JVC GY-DV300U - 1/3" 3-ccd Dv Camcorder Manuel utilisateur

JVC

JVC KY F560U Manuel utilisateur

JVC

JVC GR-DV808 Manuel utilisateur

JVC

JVC GR-DVP7 Manuel utilisateur

Manuels caméscope populaires d'autres marques

Toshiba

Toshiba CAMILEO Z100 Manuel utilisateur

Panasonic

Panasonic NV-VS40B Manuel utilisateur

Canon

Canon RC 260 Manuel utilisateur

Sony

Sony Handycam DCR-DVD7E Manuel utilisateur

Brinno

Brinno TimeLapse TLC200 Manuel utilisateur

Panasonic

Panasonic AG-HMC152EN Manuel utilisateur

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuel utilisateur

MYDLINK

MYDLINK DCS-6100LH Manuel utilisateur

Sony

Sony video Hi8 Handycam CCD-TR555 Manuel utilisateur

SECURECOM

SECURECOM V-5014B Manuel utilisateur

Panasonic

Panasonic HDC-SD100 Manuel utilisateur

Sharper Image

Sharper Image U-VIDEO Manuel utilisateur

Canon

Canon LEGRIA HV40 Manuel utilisateur

Sony

Sony Handycam DCR-VX2000 Manuel utilisateur

RCA

RCA CC616 Manuel utilisateur

Panasonic

Panasonic NVM40 Manuel utilisateur

ATIK Cameras

ATIK Cameras Horizon Manuel utilisateur

Sony

Sony Handycam HDR-CX580V Manuel utilisateur
