JVC GR-DVL317U Manuel utilisateur

LYT0711-001A

INSTRUCTIONS

GR-DVL817

GR-DVL517

GR-DVL515

GR-DVL317

DIGITAL VIDEO CAMERA

The D.S.C. (Digital Still Camera) features

are available on GR-DVL817.

For Customer Use:

Enter below the Model No. and Serial No. which is located on the

bottom of cabinet. Retain this information for future reference.

Model No.

Serial No.

Please visit our Homepage on the World Wide Web and

answer our Consumer Survey (in English only):

http://www.jvc-victor.co.jp/english/index-e.html

ENGLISH

CONTENTS

AUTOMATIC

DEMONSTRATION

GETTING STARTED

7 – 14

VIDEO RECORDING &

PLAYBACK

15 – 24

VIDEO RECORDING ............ 16 – 20

VIDEO PLAYBACK .............. 21 – 24

DIGITAL STILL CAMERA (D.S.C.)

RECORDING &

PLAYBACK

25 – 36

D.S.C. RECORDING ............ 26 – 27

D.S.C. PLAYBACK .............. 28 – 36

ADVANCED

FEATURES

37 – 69

FOR RECORDING ................ 38 – 45

USING THE MENU FOR

DETAILED ADJUSTMENT ...... 46 – 51

DUBBING ......................... 52 – 55

USING THE REMOTE

CONTROL UNIT ................ 56 – 67

SYSTEM CONNECTIONS ........ 68 – 69

REFERENCES

70 – 91

DETAILS ................................... 71

TROUBLESHOOTING ............ 72 – 76

USER MAINTENANCE ................... 77

INDEX ............................. 78 – 84

CAUTIONS ........................ 85 – 87

TERMS ............................ 88 – 89

SPECIFICATIONS ................. 90 – 91

2EN

CAUTIONS:

●This camcorder is designed to be used with NTSC-type color television signals. It cannot be used for

playback with a television of a different standard. However, live recording and LCD monitor/viewfinder

playback are possible anywhere.

●Use the JVC BN-V408U/V416U/V428U battery packs and, to recharge them or to supply power to the

camcorder from an AC outlet, use the provided multi-voltage AC Adapter. (An appropriate conversion

adapter may be necessary to accommodate different designs of AC outlets in different countries.)

Using This Instruction Manual

•All major sections and subsections are listed in the Table Of Contents on the cover page.

•Notes appear after most subsections. Be sure to read these as well.

•Basic and advanced features/operation are separated for easier reference.

It is recommended that you . . .

.... refer to the Index (pgs. 78 – 84) and familiarize yourself with button locations, etc. before use.

.... read thoroughly the Safety Precautions and Safety Instructions that follow. They contain extremely

important information regarding the safe use of this product.

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated "dangerous voltage" within the

product's enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

You are recommended to carefully read the cautions on pages 85 through 87 before use.

NOTES:

●

The rating plate (serial number plate) and safety

caution are on the bottom and/or the back of

the main unit.

●

The rating information and safety caution of the

AC Adapter are on its upper and lower sides.

WARNING:

TO REDUCE THE RISK OF FIRE

OR ELECTRIC SHOCK, DO

NOT EXPOSE THIS APPARATUS

TO RAIN OR MOISTURE.

Dear Customer,

Thank you for purchasing this digital video camera. Before use, please read the safety information and

precautions contained in the following pages to ensure safe use of this product.

EN3

When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all

sides to allow for ventilation (10 cm (3-15/16") or more on both sides, on top and at the rear).

Do not block the ventilation holes.

(If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)

No naked flame sources, such as lighted candles, should be placed on the apparatus.

When discarding batteries, environmental problems must be considered and the local rules or laws

governing the disposal of these batteries must be followed strictly.

The apparatus shall not be exposed to dripping or splashing.

Do not use this equipment in a bathroom or places with water.

Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases,

potted plants, cups etc.) on top of this unit.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

IMPORTANT SAFETY INSTRUCTIONS

(1) Read these instructions.

(2) Keep these instructions.

(3) Heed all warnings.

(4) Follow all instructions.

(5) Do not use this apparatus near water.

(6) Clean only with dry cloth.

(7) Do not block any ventilation openings.

Install in accordance with the

manufacturer’s instructions.

(8) Do not install near any heat sources such

as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that

produce heat.

(9) Only use attachments/accessories specified

by the manufacturer.

(10) Use only with the cart,

stand, tripod, bracket,

or table specified by

the manufacturer, or

sold with the

apparatus. When a

cart is used, use

caution when moving

the cart/apparatus combination to avoid

injury from tip-over.

(11) Unplug this apparatus during lightning

storms or when unused for long periods of

time.

(12) Refer all servicing to qualified service

personnel. Servicing is required when the

apparatus has been damaged in any way,

such as power-supply cord or plug is

damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does

not operate normally, or has been dropped.

4EN

SAFETY PRECAUTIONS

Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as

lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock.

CAUTION!

The following notes concern possible physical damage to the camcorder and to the user.

When carrying, be sure to always securely attach and use the provided shoulder strap. Carrying

or holding the camcorder by the viewfinder and/or the LCD monitor can result in dropping the

unit, or in a malfunction.

Take care not to get your finger caught in the cassette holder cover. Do not let children operate the

camcorder, as they are particularly susceptible to this type of injury.

Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to

the camcorder.

CAUTION!

Connecting cables (Audio/Video, S-Video, etc.) to the camcorder and leaving the unit on top of the

TV is not recommended, as tripping on the cables will cause the camcorder to fall, resulting in

damage.

This camcorder is designed exclusively for the digital video cassette, SD Memory Card and

MultiMediaCard. Only cassettes marked “”and memory cards* marked “ ” or

“”can be used with this unit.

Before recording an important scene . . .

.... make sure you only use cassettes with the Mini DV mark .

.... make sure you only use memory cards* with the mark or .

.... remember that this camcorder is not compatible with other digital video formats.

.... remember that this camcorder is intended for private consumer use only. Any commercial use

without proper permission is prohibited. (Even if you record an event such as a show,

performance or exhibition for personal enjoyment, it is strongly recommended that you obtain

permission beforehand.)

*Memory cards can be used with GR-DVL817 only.

EN5

•Remote Control Unit

RM-V716U (GR-DVL817

only)

•CD-ROM

(GR-DVL817/DVL517/

DVL515 only)

•AAA (R03) Battery x 2

(for remote control unit)

•Audio/Video Cable

(ø3.5 mini-plug to RCA plug)

•Editing Cable

(GR-DVL817 only)

•Shoulder Strap

•MultiMediaCard

8 MB (GR-DVL817 only)

(Already inserted in the

camcorder)

•USB Cable

(GR-DVL817 only)

•Battery Pack

BN-V408U

•AC Adapter

AP-V10U

•Remote Control Unit

RM-V715U (GR-DVL517/

DVL515/DVL317 only)

•Lens Cap ( pg. 6 for

attachment)

•PC Connection Cable

(GR-DVL517/DVL515 only)

PROVIDED ACCESSORIES

NOTE:

In order to maintain optimum performance of the camcorder, provided cables may be equipped

with one or more core filter.

6EN

AUTOMATIC DEMONSTRATION

Automatic Demonstration takes place when “DEMO MODE”

is set to “ON”(factory-preset).

Available when the Power Switch is set to “”or “ ” and

no cassette is in the camcorder.

Performing any operation during the demonstration stops

the demonstration temporarily. If no operation is performed

for more than 1 minute after that, the demonstration will

resume.

“DEMO MODE”remains “ON”even if the camcorder

power is turned off.

To cancel Automatic Demonstration:

1. Set the Power Switch to “”while pressing down the

Lock Button located on the switch and press the MENU/

BRIGHT wheel in. The Menu Screen appears.

2. Rotate the MENU/BRIGHT wheel to select “SYSTEM”

and press it. The SYSTEM Menu appears.

3. Rotate the MENU/BRIGHT wheel to select “DEMO

MODE”and press it. The Sub Menu appears.

4. Rotate the MENU/BRIGHT wheel to select “OFF”and

press it.

5. Rotate the MENU/BRIGHT wheel to select “

RETURN”,

and press it twice. The normal screen appears.

NOTE:

If you do not detach the Lens Cap, you cannot see the actual changes of the Automatic Demonstration

activated on the LCD monitor or viewfinder.

MOD EDEMO –

OFF

MENU/BRIGHT Wheel

Sub Menu

132

How To Attach The Lens Cap

To protect the lens, attach the provided lens cap to the camcorder as shown in the illustration.

NOTE:

To confirm the lens cap is on correctly make sure the cap is flush to the camera.

GR-DVL817 only

Lock Button

Power Switch

EN7

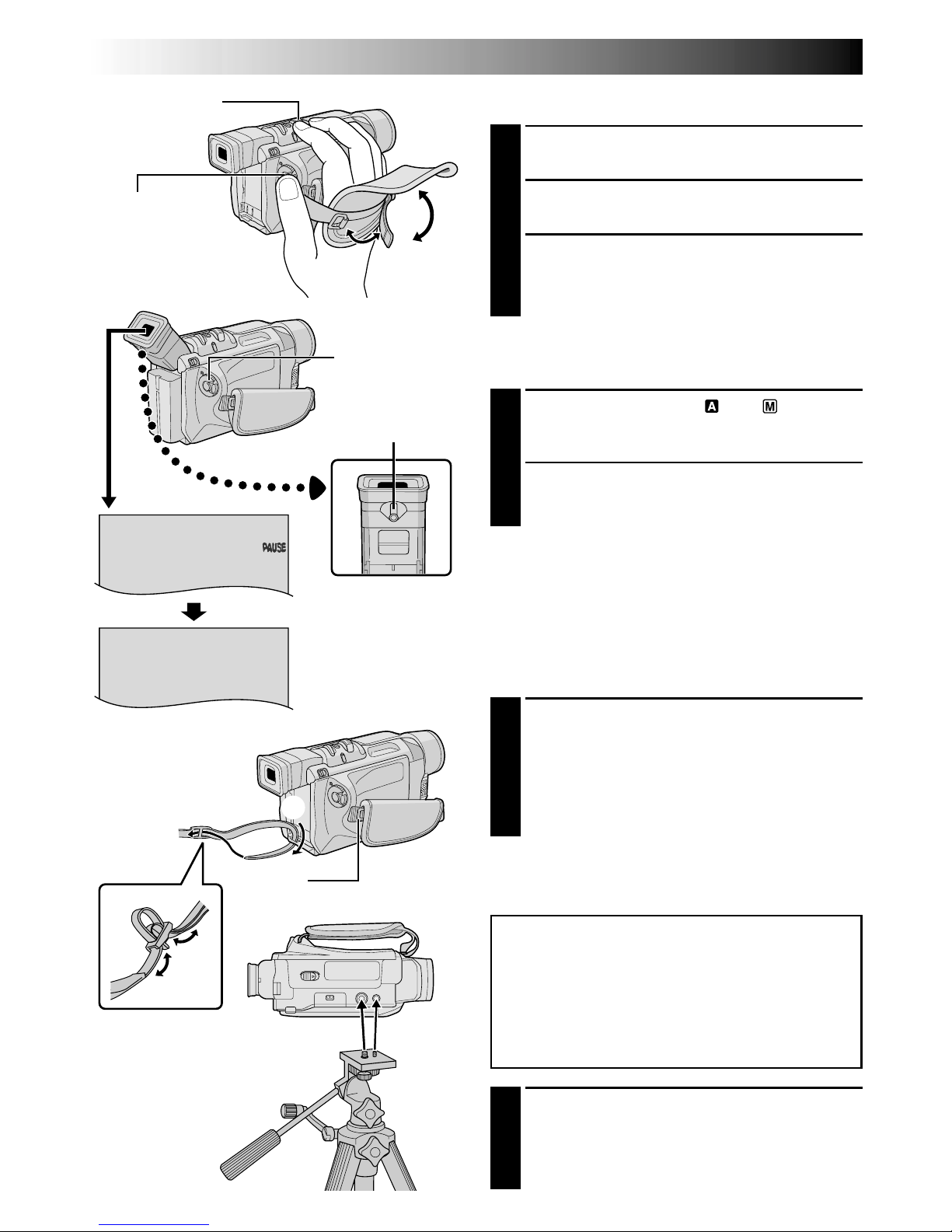

GETTING STARTED

CONTENTS

Power.................................................. 8 – 9

Grip Adjustment ......................................... 10

Viewfinder Adjustment.................................. 10

Shoulder Strap Attachment ............................. 10

Tripod Mounting .......................................... 10

Date/Time Settings...................................... 11

Loading/Unloading A Cassette ......................... 12

Recording Mode Setting ................................. 13

Loading A Memory Card (GR-DVL817 only) .............. 14

Picture Quality Mode Setting (GR-DVL817 only) ......... 14

8EN

GETTING STARTED

(cont.)

Power

This camcorder’s 2-way power supply system lets you

choose the most appropriate source of power. Do not use

provided power supply units with other equipment.

CHARGING THE BATTERY PACK

Tilt the viewfinder upward 1. With the arrow on the

battery pack pointing downward, push the battery

pack slightly against the battery pack mount 2, then

slide down the battery pack until it locks in place 3.

Set the Power Switch to “OFF”. Connect the AC

Adapter to the camcorder 4.

Plug the AC Adapter into an AC outlet 5.

The CHARGE lamp on the camcorder blinks to

indicate charging has started.

When the CHARGE lamp stops blinking but stays lit,

charging is finished. Unplug the AC Adapter from the

AC outlet. Disconnect the AC Adapter from the

camcorder.

To Detach The Battery Pack . . .

.... slide BAT. RELEASE and pull out the battery pack.

NOTES:

●

If the protective cap is attached to the battery pack,

remove it first.

●

During charging, the camcorder cannot be operated.

●

Charging is not possible if the wrong type of battery is

used.

●

When charging the battery pack for the first time or after

a long storage period, the CHARGE lamp may not light.

In this case, remove the battery pack from the

camcorder, then try charging again.

●

If the battery operation time remains extremely short

even after having been fully charged, the battery is worn

out and needs to be replaced. Please purchase a new

one.

●

Using the optional AA-V40U AC Power Adapter/

Charger, you can charge the BN-V408U/V416U/V428U

battery pack without the camcorder. However, it cannot

be used as an AC adapter.

To AC outlet

Battery pack

AC Adapter

Battery pack

BN-V408U

BN-V416U (optional)

BN-V428U (optional)

Charging time

approx. 1 hr. 30 min.

approx. 2 hrs.

approx. 3 hrs. 20 min.

CHARGE Lamp

To DC

connector

For other notes, pg. 71

BAT. RELEASE Switch

Power Switch

EN9

USING AC POWER

Use the AC Adapter (connect as shown in the illustration).

NOTES:

●

The provided AC Adapter features automatic voltage

selection in the AC range from 110 V to 240 V.

●

For other notes,



pg. 71.

ATTENTION:

Before detaching the power source, make

sure that the camcorder’s power is turned

off. Failure to do so can result in a

camcorder malfunction.

NOTES:

●

Recording time is reduced significantly under

the following conditions:

•

Zoom or Record-Standby mode is engaged

repeatedly.

•

The LCD monitor is used repeatedly.

•

The playback mode is engaged repeatedly.

●

Before extended use, it is recommended that

you prepare enough battery packs to cover 3

times the planned shooting time.

USING THE BATTERY PACK

Perform step 1of “CHARGING THE BATTERY PACK”

(pg. 8).

Approximate recording time (unit: min.)

( ) : when the video light is on

Battery pack

BN-V408U

BN-V416U

(optional)

BN-V428U

(optional)

BN-V840U

(optional)

BN-V856U

(optional)

LCD monitor on

1 hr.

(35 min.)

2 hrs.

(1 hr. 10 min.)

3 hrs. 30 min.

(2 hrs.)

5 hrs.

(2 hrs. 55 min.)

7 hrs.

(4 hrs.)

Viewfinder on

1 hr. 15 min.

(40 min.)

2 hrs. 30 min.

(1 hr. 20 min.)

4 hrs. 20 min.

(2 hrs. 20 min.)

6 hrs. 15 min.

(3 hrs. 20 min.)

8 hrs. 40 min.

(4 hrs. 40 min.)

Lithium-ion is vulnerable in colder temperatures.

About Batteries

DANGER! Do not attempt to take the batteries apart, or expose them to flame or excessive heat, as it may

cause a fire or explosion.

WARNING! Do not allow the battery or its terminals to come in contact with metals, as this can result in a

short circuit and possibly start a fire.

The Benefits Of Lithium-Ion Batteries

Lithium-ion battery packs are small but have a large power capacity. However, when one is exposed to cold

temperatures (below 10°C/50°F), its usage time becomes shorter and it may cease to function. If this happens,

place the battery pack in your pocket or other warm, protected place for a short time, then re-attach it to the

camcorder. As long as the battery pack itself is not cold, it should not affect performance.

(If you’re using a heating pad, make sure the battery pack does not come in direct contact with it.)

To DC connector

To AC outlet

AC Adapter

INFORMATION:

The extended-use battery pack kit is a set composed of a battery pack and AC Power Adapter/Charger:

VU-V840 KIT : BN-V840U battery pack & AA-V15U AC Power Adapter/Charger

VU-V856 KIT : BN-V856U battery pack & AA-V80U AC Power Adapter/Charger

Read the kit's instruction manual before using.

Neither BN-V840U nor BN-V856U can be charged by using the AC Adapter provided with this camcorder. Use only

the AA-V15U AC Power Adapter/Charger for BN-V840U battery pack and only AA-V80U AC Power Adapter/Charger

for BN-V856U battery pack. Also, by using the optional JVC VC-VBN856U DC Cord, it will be possible to connect the

BN-V840U or BN-V856U battery packs to the camcorder and supply power directly to the camcorder.

10 EN

PAUSE

Grip Adjustment

Separate the Velcro strip.

Pass your right hand through the loop and grasp

the grip.

Adjust your thumb and fingers through the grip,

to easily operate the Recording Start/Stop button

and Power Switch and Power Zoom Lever. Be

sure to fasten the Velcro strip to your preference.

Viewfinder Adjustment

Set the Power Switch to “ ” or “ ” while

pressing down the Lock Button located on the

switch.

Turn the Diopter Adjustment Control until the

indications in the viewfinder are clearly

focused.

Diopter

Adjustment Control

Power Switch

GETTING STARTED

(cont.)

Shoulder Strap Attachment

Make sure the battery pack is removed.

Following the illustration, thread the strap

through the eyelet 1, then fold it back and

thread it through the buckle 2. Repeat the

procedure to attach the other end of the strap to

the other eyelet 3located under the Grip Strap .

Confirm the strap is not twisted.

CAUTION:

When attaching the camera to a tripod,

extend its legs to stabilize the camcorder. It

is not advised to use small sized tripods.

This may cause damage to the unit by

falling over.

To attach the camera to a tripod, align the

direction stud and screw to the mounting socket

and stud hole on the camera. Then tighten the

screw clockwise. Some tripods are not

equipped with studs.

Power Zoom Lever

Recording Start/

Stop button

Tripod Mounting

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JVC caméscope

JVC

JVC Streamcorder GY-DV300 Manuel utilisateur

JVC

JVC GR-AX841 Manuel utilisateur

JVC

JVC Everio GZ-MS118 Manuel utilisateur

JVC

JVC GR-D370UCM Manuel utilisateur

JVC

JVC GY-DV550 Manuel utilisateur

JVC

JVC GR-DX77US Manuel utilisateur

JVC

JVC GR-SZ3000 Manuel utilisateur

JVC

JVC GZ-MG275AG Manuel utilisateur

JVC

JVC GR-D340E/EK Manuel utilisateur

JVC

JVC Enverio GZ-MS250 BEK Manuel d'utilisation et d'entretien

JVC

JVC GY-HM70U Manuel utilisateur

JVC

JVC GZ-EX355 Everio Manuel utilisateur

JVC

JVC GR-AX911U Manuel utilisateur

JVC

JVC 1208YDR-YG-MD Manuel

JVC

JVC GZ-R15BE Manuel d'utilisation et d'entretien

JVC

JVC GY-HM200E Manuel utilisateur

JVC

JVC Everio GZ-MG750 Manuel utilisateur

JVC

JVC GR-D238 Manuel utilisateur

JVC

JVC EVERIO GZ-HM450US Manuel utilisateur

JVC

JVC LYT0191-001B Manuel utilisateur

JVC

JVC Everio R GZ-R495AE Manuel d'utilisation et d'entretien

JVC

JVC GR-AXM151US Manuel utilisateur

JVC

JVC Everio GZ-V500 Manuel utilisateur

JVC

JVC Everio GZ-R10 Manuel d'utilisation et d'entretien

Manuels caméscope populaires d'autres marques

Toshiba

Toshiba CAMILEO Z100 Manuel utilisateur

Panasonic

Panasonic NV-VS40B Manuel utilisateur

Canon

Canon RC 260 Manuel utilisateur

Sony

Sony Handycam DCR-DVD7E Manuel utilisateur

Brinno

Brinno TimeLapse TLC200 Manuel utilisateur

Panasonic

Panasonic AG-HMC152EN Manuel utilisateur

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuel utilisateur

MYDLINK

MYDLINK DCS-6100LH Manuel utilisateur

Sony

Sony video Hi8 Handycam CCD-TR555 Manuel utilisateur

SECURECOM

SECURECOM V-5014B Manuel utilisateur

Panasonic

Panasonic HDC-SD100 Manuel utilisateur

Sharper Image

Sharper Image U-VIDEO Manuel utilisateur

Canon

Canon LEGRIA HV40 Manuel utilisateur

Sony

Sony Handycam DCR-VX2000 Manuel utilisateur

RCA

RCA CC616 Manuel utilisateur

Panasonic

Panasonic NVM40 Manuel utilisateur

ATIK Cameras

ATIK Cameras Horizon Manuel utilisateur

Sony

Sony Handycam HDR-CX580V Manuel utilisateur
