GR-AXM23

COMPACT VHS CAMCORDER

INSTRUCTIONS

LYT0091-001A

Compact VHS

PAL

GETTING STARTED

RECORDING

Basic Recording ...................... 14

Basic Features ........................ 18

Advanced Features .................. 22

Programme AE With Special

Effects .................................. 22

Fader ..................................... 24

Wide ..................................... 24

Super LoLux (Gain Up) ............ 25

Instant Titles ........................... 25

Character Generator ............... 26

Using Menu For Detailed

Adjustment ........................... 27

Focusing ................................ 30

Exposure Control .................... 32

Manual White Balance

Adjustment ........................... 33

Self-Timer .............................. 34

Animation .............................. 35

Time Lapse ............................. 35

PLAYBACK

Basic Playback ....................... 36

Features ............................... 37

Using The Cassette Adapter ........ 39

Basic Connections .................... 40

TAPE DUBBING

USER MAINTENANCE

TROUBLESHOOTING

INDEX

LCD monitor/viewfinder ............ 45

Controls ............................... 47

Connectors ............................ 47

Indicators ............................. 47

Other Parts ........................... 47

Terms .................................. 48

CAUTIONS

SPECIFICATIONS

CONTENTS

2EN

Dear Customer,

Thank you for purchasing the JVC Compact VHS

camcorder. Before use, please read the safety

information and precautions contained in the

following pages to ensure safe use of your new

camcorder.

Using This Instruction Manual

•All major sections and subsections are listed in the

Table Of Contents (Zcover page).

•Notes appear after most subsections. Be sure to

read these as well.

•Basic and advanced features/operation are

separated for easier reference.

It is recommended that you . . .

.... refer to the Index (Zpg. 45 – 48) and

familiarize yourself with button locations, etc.

before use.

.... read thoroughly the Safety Precautions that

follow and cautions (Zpg. 49, 50). They

contain extremely important information

regarding the safe use of your new camcorder.

This unit is produced to comply with Standard

IEC Publ. 65.

Warning on lithium battery

The battery used in this device may present a

fire or chemical burn hazard if mistreated. Do

not recharge, disassemble, heat above 100°C or

incinerate.

Replace the battery with Panasonic (Matsushita

Electric), Sanyo or Maxell CR2025; use of

another battery may present a risk of fire or

explosion.

nDispose of used battery promptly.

nKeep away from children.

nDo not disassemble and do not dispose of in

fire.

CAUTIONS:

nTo prevent shock, do not open the cabinet.

No user serviceable parts inside. Refer

servicing to qualified personnel.

nWhen you are not using the AC Power

Adapter/Battery charger for a long period of

time, it is recommended that you disconnect

the power cord from AC outlet.

NOTES:

●

The rating plate (serial number plate) and

safety caution are on the bottom and/or the

back of the main unit.

●

The rating plate (serial number plate) of the

AC Power Adapter/Charger is on its bottom.

WARNING:

TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE

THIS UNIT TO RAIN OR

MOISTURE.

SAFETY

PRECAUTIONS

EN 3

This camcorder is designed to be used with

PAL-type colour television signals. It cannot be

used for playback with a television of a different

standard. However, live recording and

viewfinder playback are possible anywhere.

Use the BN-V12U/BN-V22U/BN-V25U battery

packs and, to recharge them, the provided

multi-voltage AC Power Adapter/Charger. (An

appropriate conversion adapter may be

necessary to accommodate different designs of

AC outlets in different countries.)

nThis camcorder is designed exclusively for the

VHS-C video cassette. Only cassettes marked

VHS-C can be used with this unit.

nHQ VHS is compatible with existing VHS

equipment.

PAL

ATTENTION USERS OF

RECHARGEABLE BATTERIES

DO NOT DISPOSE RECHARGEABLE BATTERIES OR PRODUCTS POWERED BY NON-

REMOVABLE RECHARGEABLE BATTERIES, THESE BATTERIES AND PRODUCTS CAN BE

RECYCLED.

AT THE END OF NORMAL LIFE,

IN AUSTRALIA, RETURN TO YOUR POINT OF PURCHASE OR MAIL TO:

Hagemeyer (Australasia) B.V. 5-7 Garema Circuit Kingsgrove NSW 2208 Australia

Attn : Service Dept.

Phone : (02)750 3777

IN NEW ZEALAND, PLEASE RETURN BATTERIES BY MAIL TO:

Hagemeyer (NZ) Limited P.O. Box 100589 Auckland 1000

Phone : (09)415 8758

4EN

MAJOR FEATURES

REMEMBER

Programme AE with Special

Effects (Zpg. 22)

nAuto Mode Lock

nAuto Mode Release

nElectronic Fog Filter

nND Effect

nSepia

nTwilight

nSports

n1/1000 sec. High Speed Shutter

n1/2000 sec. High Speed Shutter

22 x Optical Hyper Zoom

(Zpg. 18)

Zoom-in

Zoom-out

5Sec.-Rec (5 sec. Recording)

(Zpg. 20)

LCD Colour Monitor

(Zpg. 16)

Program Manager II

(Zpg. 22 – 35)

Programme AE with Special Effects,

Fader, Wide, Super LoLux, Instant

Titles, Menu Adjustment (Focus,

Exposure Control and so on.)

PROVIDED ACCESSORIES

•AC Power Adapter/

Charger AA-V15EA

• Cassette Adapter

C-P7U

•Battery Pack

BN-V12U

•Shoulder Strap

The Logical Choice

The only compact video

cassettes that can be

used with your VHS VCR*

PAL

180°90°

• Lithium Battery

CR2025 x 1 (for clock operation) •DC Cord

EN 5

Using the battery pack

1Hook-on the battery pack’s top end to the

camcorder. (Charging procedure, Zpg. 6)

2Push in the battery pack until it locks into

place.

To remove the battery pack

Slide BATT. RELEASE and pull out the battery

pack.

QUICK OPERATION GUIDE

1Set the Power Switch to “PLAY”.

2Press REW.

— The tape will automatically stop at the

beginning of the tape.

3Press PLAY/PAUSE.

— Playback starts and the playback picture

appears.

•To stop playback, press STOP.

(For more details, Zpg. 36.)

•The viewfinder switches off automatically to

save power when the LCD monitor is

opened at an angle of over 45 degrees.

•The LCD monitor turns on/off when it is

opened/closed at approx. 45 degrees.

Or simply play back the tape on a VHS

VCR using the Cassette Adapter. Zpg. 39

1Slide the LENS COVER Open/Close Switch

to open the lens cover.

2Set the Power Switch to “CAMERA”.

— The power indicator will light and an

image will appear.

3Press the Recording Start/Stop Button.

— Recording starts.

•To stop recording temporarily, momentarily

press the Recording Start/Stop Button once

again.

(For more details, Zpgs. 14 – 17)

• The viewfinder switches off automatically to

save power when the LCD monitor is

opened at an angle of over 45 degrees.

• The LCD monitor turns on/off when it is

opened/closed at approx. 45 degrees.

SUPPLY POWER INSERTING A VIDEO

CASSETTE

PLAYBACK SHOOTING

1Open the LCD monitor to an angle of over

45 degrees.

2Press EJECT to open the cassette holder.

3Insert a video cassette.

4Press PUSH to close the cassette holder.

(For more details, Zpg. 11)

BATT. RELEASE

Hook on.

PLAY/PAUSE

STOP

Push in.

Recording

Start/Stop Button

Set to

“CAMERA”.

Set to “PLAY”.

REW

EJECTPUSH

Open

LENS COVER

Open/Close Switch

6EN

GETTING STARTED

Power

This camcorder’s 3-way power supply system lets you

choose the most appropriate source of power.

NOTES:

●

No function is available without power supply.

●

Use only specified power supply.

●

Do not use provided power supply units with other

equipment.

CHARGING THE BATTERY PACK

SUPPLY POWER

Connect the charger’s AC power cord to a wall

outlet.

ATTACH BATTERY PACK

Align the marks and slide the battery pack in the

direction of the arrow until it locks in place.

•The CHG. indicator begins blinking to indicate

charging has started.

DETACH BATTERY PACK

When the CHG. indicator stops blinking but stays lit,

charging is finished. Slide the battery pack opposite

the direction of the arrow.

USING THE BATTERY PACK

ATTACH BATTERY PACK

Hook its top end to the camcorder and push the

battery pack in until it locks in place.

DETACH BATTERY PACK

Slide BATT. RELEASE and pull out the battery pack.

REFRESH

The AC power adapter features a REFRESH

function that allows you to fully discharge

the battery pack before recharging.

Perform the REFRESH function after no less

than 5 chargings.

To discharge the battery . . .

..... attach the battery pack to the adapter

as shown in the above illustration.

Then push REFRESH. The REFRESH

indicator lights when discharging

starts, and goes out when discharging

is complete.

CHG. (charge)

indicator

Marks

To AC outlet

Hook on.

Push in.

BATT. RELEASE

REFRESH indicator

REFRESH switch

BATT. PACK

CHARGE DISCHARGE

BN-V12U approx. 1 hr. 10 min. approx. 3 hrs. 30 min.

BN-V22U approx. 2 hrs. 10 min. approx. 7 hrs.

BN-V25U approx. 2 hrs. 40 min. approx. 10 hrs.

ATTENTION:

Before detaching the power source,

make sure that the camcorder’s power

is turned off. Failure to do so can result

in a camcorder malfunction.

Approximate recording time (unit: min.)

LCD LCD LCD

BATT. monitor on/ monitor off/ monitor on/

PACK Viewfinder off Viewfinder on Viewfinder on

BN-V12U 60 60 50

BN-V22U 125 130 110

BN-V25U 165 170 145

EN 7

CHARGE MARKER

A charge marker is provided on the battery pack to

help you remember whether it has been charged or

not. Two colours are provided (red and black)—you

choose which one means charged and which

means discharged.

NOTES:

●

The recording time per charge is affected by such factors as the time spent in Record-Standby mode and

the frequency of zooming. It is safer to have spare battery packs.

●

Charging times noted on page 6 are for fully discharged battery pack, and discharging times are for fully

charged battery pack.

●

Charging and discharging times vary according to the ambient temperature and the status of the battery pack.

●

Remember to set the charge marker after charging a battery pack or after detaching a discharged one from

your camcorder.

●

Perform the REFRESH function after no less than 5 chargings.

●

While the AC Power Adapter/Charger’s power cord is disconnected from the AC outlet, it is possible to

discharge the battery by pressing the REFRESH switch. During that time, the AC Power Adapter/Charger

does not charge the battery. When disharging is complete, detach the battery from the AC Power Adapter/

Charger to store it.

●

High temperatures can damage the battery pack, so use only where good ventilation is available. Don’t

allow it to discharge in container, such as a bag.

●

If you stop recharging or discharging part way through, make sure to remove the battery pack before

unplugging the adapter’s AC cord.

●

Remove the battery pack from the adapter immediately after discharging.

●

To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.

●

Make sure you unplug the DC cord before charging or discharging the battery pack.

●

The CHG. indicator may not light properly with a brand new battery pack, or with one that’s been stored

for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHG.

indicator should blink during recharging. If not, contact your nearest JVC dealer.

Charge marker

USING A CAR BATTERY

Use the optional Car Battery Charger/Adapter

(connect as shown in the illustration above).

NOTES:

●

When using the car battery, leave the engine idling.

●

The optional Car Battery Charger (BH-V3E) can

also be used to charge the battery pack.

●

When using the optional Car Battery Charger,

refer to the respective instruction booklet.

USING AC POWER

Use the AC Power Adapter (connect as shown in

the illustration above).

NOTE:

The supplied AC Power Adapter/Charger features

automatic voltage selection in the AC range from

110 V to 240 V.

To DC IN jack

DC cord

DC OUT

terminal

To AC outlet

Car Battery Charger/Adapter

BH-V3E (optional)

To car’s

cigarette

lighter socket

AC Power

Adapter/Charger

AA-V15EA

8EN

GETTING STARTED

(cont.)

Clock (Lithium) Battery Insertion/Removal

This battery is necessary for clock operation and to

perform date/time settings.

SWITCH OFF POWER

Switch off the unit’s power and remove the power

supply unit.

OPEN COVER

Open the clock battery compartment cover while

pressing the release tab.

REMOVE BATTERY (when replacing)

Insert a pointed, non-metallic object between the

battery and the compartment ( A) and pull the

battery out.

INSERT BATTERY

Ensure that the plus (+) side is up and insert a

CR2025 lithium battery and push it in.

CLOSE COVER

Close the compartment cover until it clicks in place.

NOTE:

See “SAFETY PRECAUTIONS” (

pg. 2) for information

on safe handling of lithium batteries.

EN 9

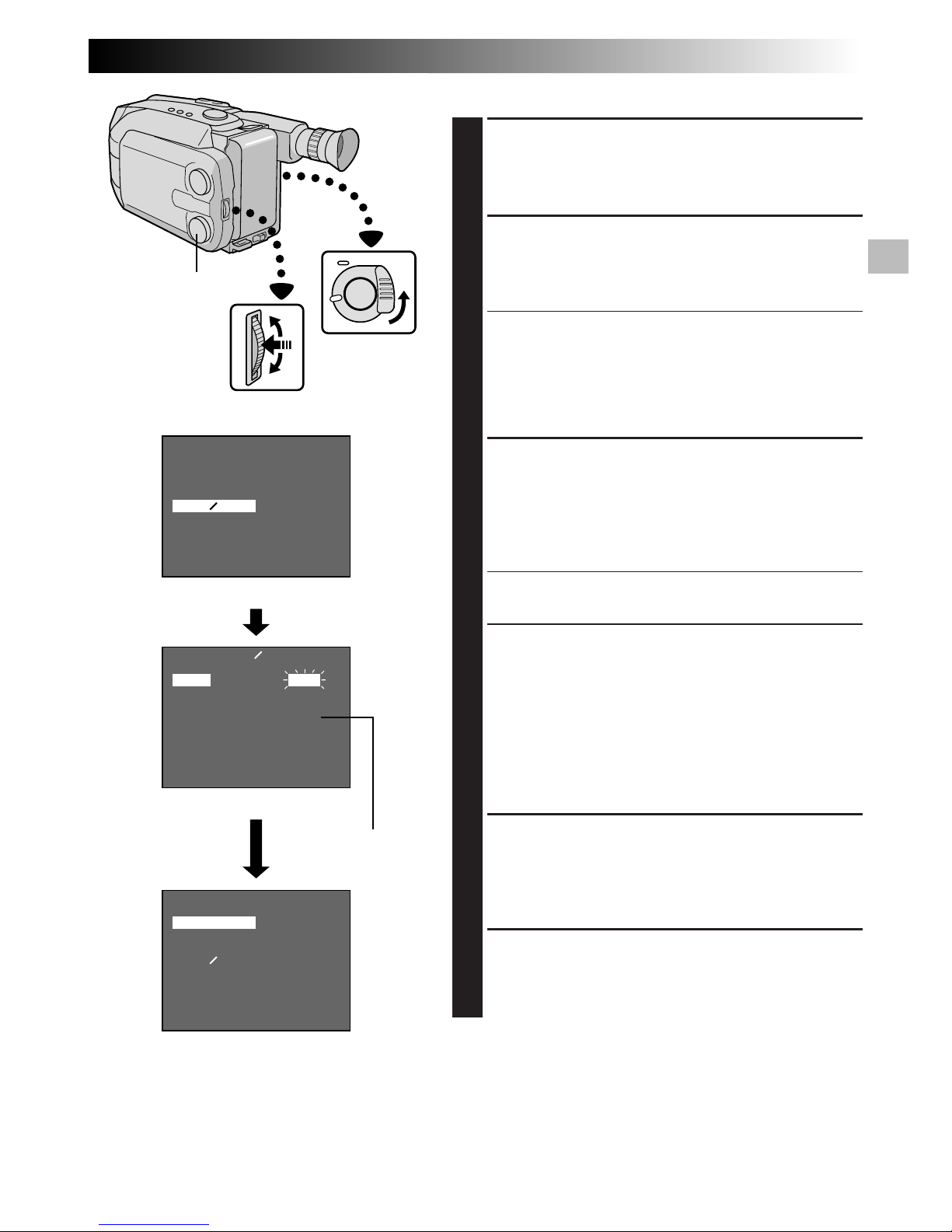

Date/Time Setting

ACCESS MENU SCREEN

First set the Power Switch to “CAMERA”. Turn the

Select Dial to any position except AUTO LOCK,

then press the MENU Jog Dial.

SELECT FUNCTION

Rotate the MENU Jog Dial to move the highlight bar

to “DATE/TIME”, then press it. The DATE/TIME

Setting Menu appears.

•If you decide you want to return the date and time

to the previous settings, rotate the MENU Jog Dial

to move highlight bar to “EXIT” and press it, then

go to step 6.

•If you want to set only the time without changing

the date, go to step 4.

SET DATE

Rotate the MENU Jog Dial to move the highlight bar

to the item you want to set and then press it. When

the setting begins blinking, rotate the MENU Jog

Dial until the correct setting appears and then press

it. The setting stops blinking.

•Repeat this procedure until you’re satisfied with

the Date settings (“YEAR”, “MONTH” and “DAY”).

SET TIME

Rotate the MENU Jog Dial to move the highlight bar

to “TIME” and then press it. When the hour setting

begins blinking, rotate the MENU Jog Dial until the

correct setting appears and then press it. When the

hour setting stops blinking and the minute setting

begins blinking, rotate the MENU Jog Dial until the

correct setting appears and then press it. The minute

setting stops blinking.

START CLOCK OPERATION

When none of these settings (YEAR, MONTH, DAY,

TIME) blinks, rotate the MENU Jog Dial to move the

highlight bar to “EXIT”, and press it. The Menu

Screen appears and “MENU END” is highlighted.

CLOSE MENU

Press the MENU Jog Dial.

NOTE:

To display the date and time in the LCD monitor or the

viewfinder and on a connected TV, see “Date/Time/

Character Insert” (

pg. 21).

MENU END

FOCUS

EXPOSURE

DATE TIME

TELE MACRO

TAPE LENGTH

M. W. B.

ZOOM SPEED

MENU END

FOCUS

EXPOSURE

DATE TIME

TELE MACRO

TAPE LENGTH

M. W. B.

ZOOM SPEED

DATE TIME

YEAR

MONTH

DAY

TIME

EXIT

1998

22:50

AUTO

25. 12. 98

OFF

T30

AUTO

FAST

AUTO

1. 1. 98

OFF

T30

AUTO

FAST

Menu Screen

DATE/TIME Setting Menu

LCD monitor or viewfinder

24-hour indication

Jog Dial

Select Dial

10 EN

GETTING STARTED

(cont.)

Tape Length Setting

Set the tape length according to the length of the tape

used.

ACCESS MENU SCREEN

First set the Power Switch to “CAMERA”. Turn the

Select Dial to any position except AUTO LOCK,

then press the MENU Jog Dial.

SELECT FUNCTION

Rotate the MENU Jog Dial to move the highlight bar

to “TAPE LENGTH”, then press it. The TAPE

LENGTH Setting Menu appears.

SET TAPE LENGTH

Rotate the MENU Jog Dial to move the highlight bar

to the correct setting. T30=30 minutes of recording

time, T45=45 minutes, and T60=60 minutes (in SP).

•If you decide you want to return the tape length to

the previous setting, rotate the MENU Jog Dial to

move the highlight bar to “EXIT”.

CLOSE MENU

Press the MENU Jog Dial. The Menu Screen

reappears and the highlight bar is on “MENU END”.

Then press the MENU Jog Dial again to close the

Menu Screen.

NOTES:

●

The tape remaining time (

pg. 15) displayed in the

viewfinder is correct only if the correct tape length has

been selected.

●

Once you have set the tape length, it remains un-

changed even if the Select Dial is returned to AUTO

LOCK.

Recording Mode Setting

Set depending on your preference.

SET RECORDING MODE

First set the Power Switch to “CAMERA”. Press SP/LP

Button for more than 1 second. “SP” (Standard Play)

provides higher picture and sound quality and is

better for dubbing, while “LP” (Long Play) is more

economical, providing twice the recording time.

NOTE:

If the recording mode is switched during recording, the

playback picture will be blurred at the switching point.

MENU END

FOCUS

EXPOSURE

DATE TIME

TELE MACRO

TAPE LENGTH

M. W. B.

ZOOM SPEED

AUTO

25. 12. 98

OFF

T60

AUTO

FAST

MENU END

FOCUS

EXPOSURE

DATE TIME

TELE MACRO

TAPE LENGTH

M. W. B.

ZOOM SPEED

AUTO

25. 12. 98

OFF

T30

AUTO

FAST

T30

T45

T60

EXIT

TAPE LENGTH

SP T30

LCD monitor or viewfinder

Menu Screen

TAPE LENGTH Setting Menu

SP/LP Recording Mode Button

Viewfinder

Tape length

indicator

Recording mode

indicator

Select Dial

MENU Jog Dial

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JVC caméscope

JVC

JVC GR-AXM100 Manuel utilisateur

JVC

JVC LYT0291-001B Manuel utilisateur

JVC

JVC Everio GZ-R10 Manuel d'utilisation et d'entretien

JVC

JVC SuperLoLux TK-C9200U Manuel utilisateur

JVC

JVC Everio GZ-EX515BEK Manuel d'utilisation et d'entretien

JVC

JVC GR-DV700 Manuel utilisateur

JVC

JVC GR-AXM220 Manuel utilisateur

JVC

JVC Everio GZ-HM300 Manuel d'utilisation et d'entretien

JVC

JVC Everio GZ-MG750 Manuel d'utilisation et d'entretien

JVC

JVC GZ-MS95 EK Manuel

JVC

JVC Everio GZ-HM320 Manuel d'utilisation et d'entretien

JVC

JVC GR-DX35 Manuel utilisateur

JVC

JVC GR-DVX400ED Manuel utilisateur

JVC

JVC GZ-HD5US Manuel utilisateur

JVC

JVC GY-DV300U - 1/3" 3-ccd Dv Camcorder Manuel utilisateur

JVC

JVC GR-FXM42EK Manuel utilisateur

JVC

JVC Everio GZ-R10 Manuel utilisateur

JVC

JVC LYT0873-001A Manuel d'instructions

JVC

JVC GZ-R440 Manuel d'utilisation et d'entretien

JVC

JVC GR-D366EK Manuel utilisateur

JVC

JVC GR-D270 Manuel utilisateur

JVC

JVC GC-PX100BE Manuel d'utilisation et d'entretien

JVC

JVC GZ-MS130AA Manuel utilisateur

JVC

JVC GR-AX26 Manuel utilisateur

Manuels caméscope populaires d'autres marques

Toshiba

Toshiba CAMILEO Z100 Manuel utilisateur

Panasonic

Panasonic NV-VS40B Manuel utilisateur

Canon

Canon RC 260 Manuel utilisateur

Sony

Sony Handycam DCR-DVD7E Manuel utilisateur

Brinno

Brinno TimeLapse TLC200 Manuel utilisateur

Panasonic

Panasonic AG-HMC152EN Manuel utilisateur

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuel utilisateur

MYDLINK

MYDLINK DCS-6100LH Manuel utilisateur

Sony

Sony video Hi8 Handycam CCD-TR555 Manuel utilisateur

SECURECOM

SECURECOM V-5014B Manuel utilisateur

Panasonic

Panasonic HDC-SD100 Manuel utilisateur

Sharper Image

Sharper Image U-VIDEO Manuel utilisateur

Canon

Canon LEGRIA HV40 Manuel utilisateur

Sony

Sony Handycam DCR-VX2000 Manuel utilisateur

RCA

RCA CC616 Manuel utilisateur

Panasonic

Panasonic NVM40 Manuel utilisateur

ATIK Cameras

ATIK Cameras Horizon Manuel utilisateur

Sony

Sony Handycam HDR-CX580V Manuel utilisateur
