Juniper Mist AP12 Manuel

AP12 Hardware Installation Guide

Overview

The Mist AP12 contains three IEEE 802.11ax radios that deliver up to 2x2

MIMO with two spatial streams when operating in multi-user (MU) or single-

user (SU) mode.

AP12 Hardware Installation Guide

I/O ports

Reset Reset to the factory default settings

Eth0+PoE 10/100/1000BASE-T RJ45 interface that supports 802.3at

PoE PD

Pass Thru Passive RJ45 Pass Thru (rear to bottom)

Eth1+PSE 10/100/1000BASE-T RJ45 interface with Class 2 PSE out

(enabled if you have 802.3at PoE input on Eth0)

Eth2-Eth3 10/100/1000BASE-T RJ45 interfaces

AP12 Hardware Installation Guide

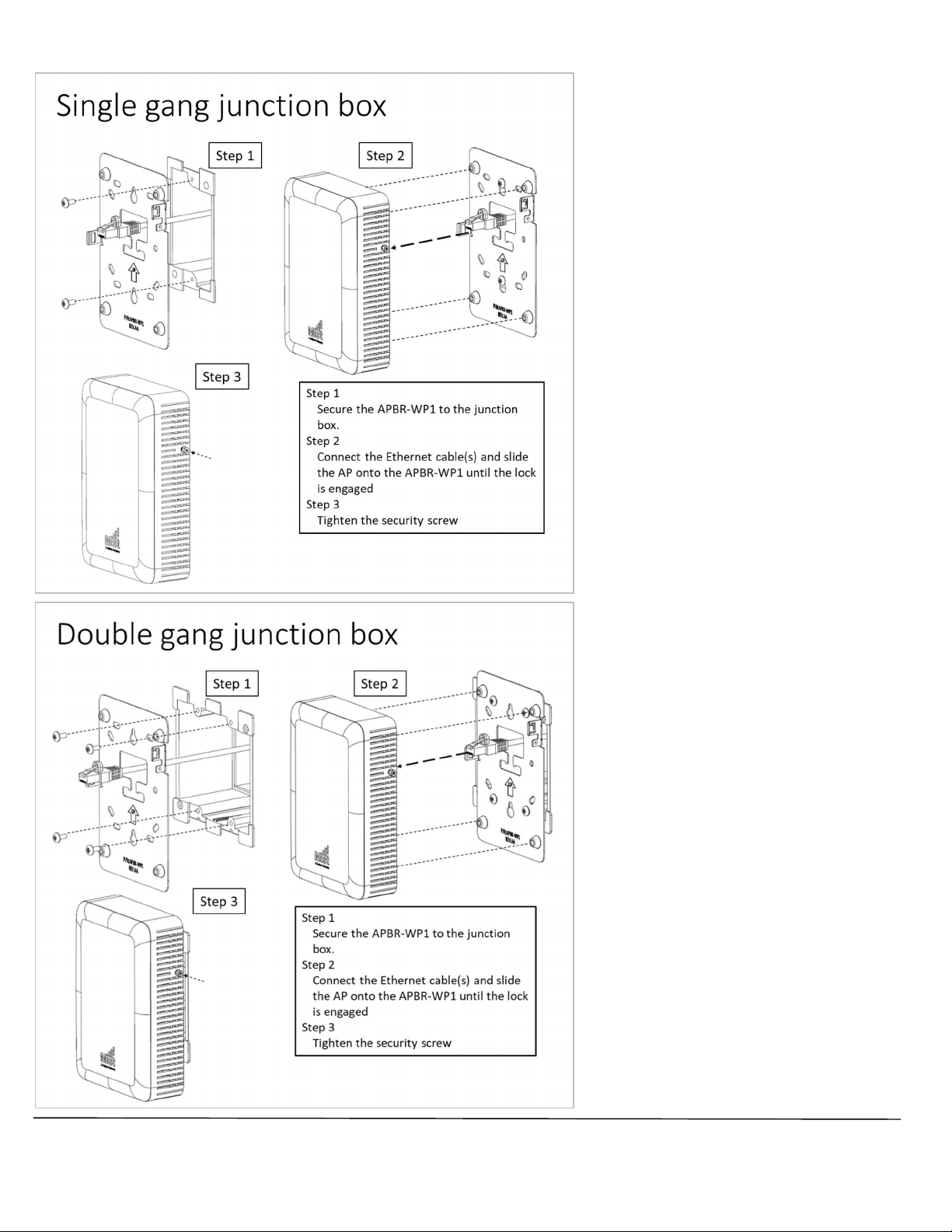

AP12 Mounting

AP12 Hardware Installation Guide

Technical Specifications:

Feature Description

Power options 802.3at/802.3af PoE

Dimensions 100mm x 150mm x 40mm (3.93in x 5.91in x 1.57in)

Weight 0.6 kg (1.32 lbs)

Operating

temperature 0° to 40° C

Operating humidity 10% to 90% maximum relative humidity, non-condensing

Operating altitude 3,048m (10,000 ft)

I/O

1 – 10/100/1000BASE-T auto-sensing RJ-45 with PoE In

1 – 10/100/1000BASE-T auto-sensing RJ-45 with PoE Out

2 – 10/100/1000BASE-T auto-sensing RJ-45

Pass Thru from the rear to the bottom I/O area

5GHz - 2x2:2SS 802.11ax MU-MIMO & SU-MIMO

2.4GHz – 2x2:2SS 802.11ax MU-MIMO & SU-MIMO

2.4GHz / 5GHz scanning radio

2.4GHz BLE with Omni Antenna

Maximum PHY rate

Total maximum PHY rate – 1775 Mbps

5GHz – 1201 Mbps

2.4GHz – 574Mbps

Indicators Multi-color status LED

Compliance standards

CAN/CSA-C22.2 No. 62368-1-14

FCC Part 15.247, 15.407, 15.107, and 15.109

RSS-247

ICES-003 (Canada)

AP12 Hardware Installation Guide

Warranty Information

The AP12 Access Point comes with a limited lifetime warranty.

Ordering Information:

Access Points

AP12-US 802.11ax 2+2 Wall Plate AP – Internal Antenna for the

US Regulatory domain

AP12-WW 802.11ax 2+2 Wall Plate AP – Internal Antenna for the

WW Regulatory domain

Mounting brackets

APBR-WP1 Bracket for AP12

APBR-DS1

Desk stand for AP12

AP12 Hardware Installation Guide

Regulatory Compliance Information:

This product and all interconnected equipment must be installed indoors within the same

building, including the associated LAN connections as defined by the 802.3at Standard.

If you need further assistance with purchasing the power source, please contact Juniper

Networks, Inc.

FCC Requirement for Operation in the United States of

America:

FCC Guideline for Human Exposure

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 25

cm between the radiator & your body.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one of the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

● Consult the dealer or an experienced radio/TV technician for help.

FCC Caution

● Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate this equipment.

● This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

AP12 Hardware Installation Guide

Industry Canada

This device complies with RSS-247 of the Industry Canada Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may cause

undesired operation.

Ce dispositif est conforme à la norme CNR-247 d'Industrie Canada applicable aux appareils

radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1)

le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit

accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un

fonctionnement indésirable.

This radio transmitter (IC: 22068-AP12 / Model: AP12) has been approved by ISED to

operate with the antenna type listed below with maximum permissible gain indicated.

Antenna types not included in this list, having a gain greater than the maximum gain

indicated for that type, are strictly prohibited for use with this device.

Le présent émetteur radio (IC: 22068-AP12 / Model: AP12) a été approuvé par ISED pour

fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible

maximal. Les types d'antenne non inclus dans cette liste, et dont le gain est supérieur au

gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.

Approved antenna(s) list:

Antenna No. Brand Model Antenna Net

Gain (dBi)

Frequency

range (GHz) Antenna Type Connector

Type

Int WiFi Dual

Ant

2.4 – 2.484

5.15 – 5.85 Omnidirectional N/A

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 29

cm between the radiator & your body.

Déclaration d'exposition aux radiations:Cet équipement est conforme aux limites

d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet

équipement doit être installé et utilisé avec un minimum de 29 cm de distance entre la

source de rayonnement et votre corps.

AP12 Hardware Installation Guide

IC Caution

(i) The device for operation in the band 5150-5250 MHz is only for indoor use to reduce

the potential for harmful interference to co-channel mobile satellite systems;

(ii) The maximum antenna gain permitted for devices in the bands 5250-5350 MHz and

5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit;

(iii) The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be

such that the equipment still complies with the e.i.r.p. limits specified for point-to-point

and non-point-to-point operation as appropriate; and

(iv) Users should also be advised that high-power radars are allocated as primary users

(i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these

radars could cause interference and/or damage to LE-LAN devices.

Avertissement

Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des instructions

précises sur les restrictions susmentionnées, notamment :

(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement

pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux

systèmes de satellites mobiles utilisant les mêmes canaux;

(ii) le gain maximal d'antenne permis pour les dispositifs utilisant les bandes de 5250 à 5

350 MHz et de 5470 à 5725 MHz doit être conforme à la limite de la p.i.r.e;

(iii) le gain maximal d'antenne permis (pour les dispositifs utilisant la bande de 5 725 à 5

850 MHz) doit être conforme à la limite de la p.i.r.e. spécifiée pour l'exploitation point à

point et l’exploitation non point à point, selon le cas;

(iv) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de

haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour

les bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du

brouillage et/ou des dommages aux dispositifs LAN-EL.
