Audio player for CAR
JAUX_BT-01 Model:
JAUX_BT-01_MMI_2G
INSTALLATION MANUAL
1. INTRODUCTION ..................................................................... 2
2. RECOMMENDATIONS ............................................. .............. 2
3. SCHEME OF CONNECTIONS ................................ ............... 3
4. BASIC TECHNICAL PARAMETERS ....................................... 4
5. ELEMENTS SET ..................................................................... 4
Content
ul. Zgorzelicka 34 , 97-200 Tomaszow Mazowiecki POLAND
JuNa PPHU Manufacturer
2
INTRODUCTION
RECOMMENDATIONS
ul. Zgorzelicka 34 , 97-200 Tomaszow Mazowiecki POLAND
JuNa PPHU Manufacturer
Module JAUX_BT-01 is a modern microprocessor which it allows you to
add a new feature of the car by an additional line input audio and streaming audio
from mobile devices via Bluetooth Audi equipped with audio-visual MMI 2G.
The module allows you to connect most external audio devices which have
analogue output or Bluetooth. The use of so-called connections. Plug & Play
allows for quick and easy way connection to the car.
1. The device should be installed in the workshop by qualified staff or persons
with experience and practice in this type of installation.
2. During the installation must be kept general principles of safety and pay
attention to All the important threats that may cause damage to the vehicle.
3. Before installation, please carefully read this instruction and keep it.
4. Each manufactured device with cables is tested before the sale.
Therefore, after the correct installation of the device, it should work without
difficulty.
5. In order to ensure high quality and development of our products, the JUNA
company reserves the right to make technical changes.
6. The device can be returned only if it wasn't install in vehicle.
Device must be in original packing with attached bill of purchase.
7. Warranty does not cover:
- mechanical damage
- flooded with water or other liquid
- Interference in order to repair or design change does not
approved by the manufacturer
- improper exploitation – operation.
3
ul. Zgorzelicka 34 , 97-200 Tomaszow Mazowiecki POLAND
JuNa PPHU Manufacturer
SCHEME OF CONNECTIONS
JAUX_BT-01
Audio IN
RL
The system
MMI MOST
Power
system
MMI 12V
4
5
6
3
2
1
7
5

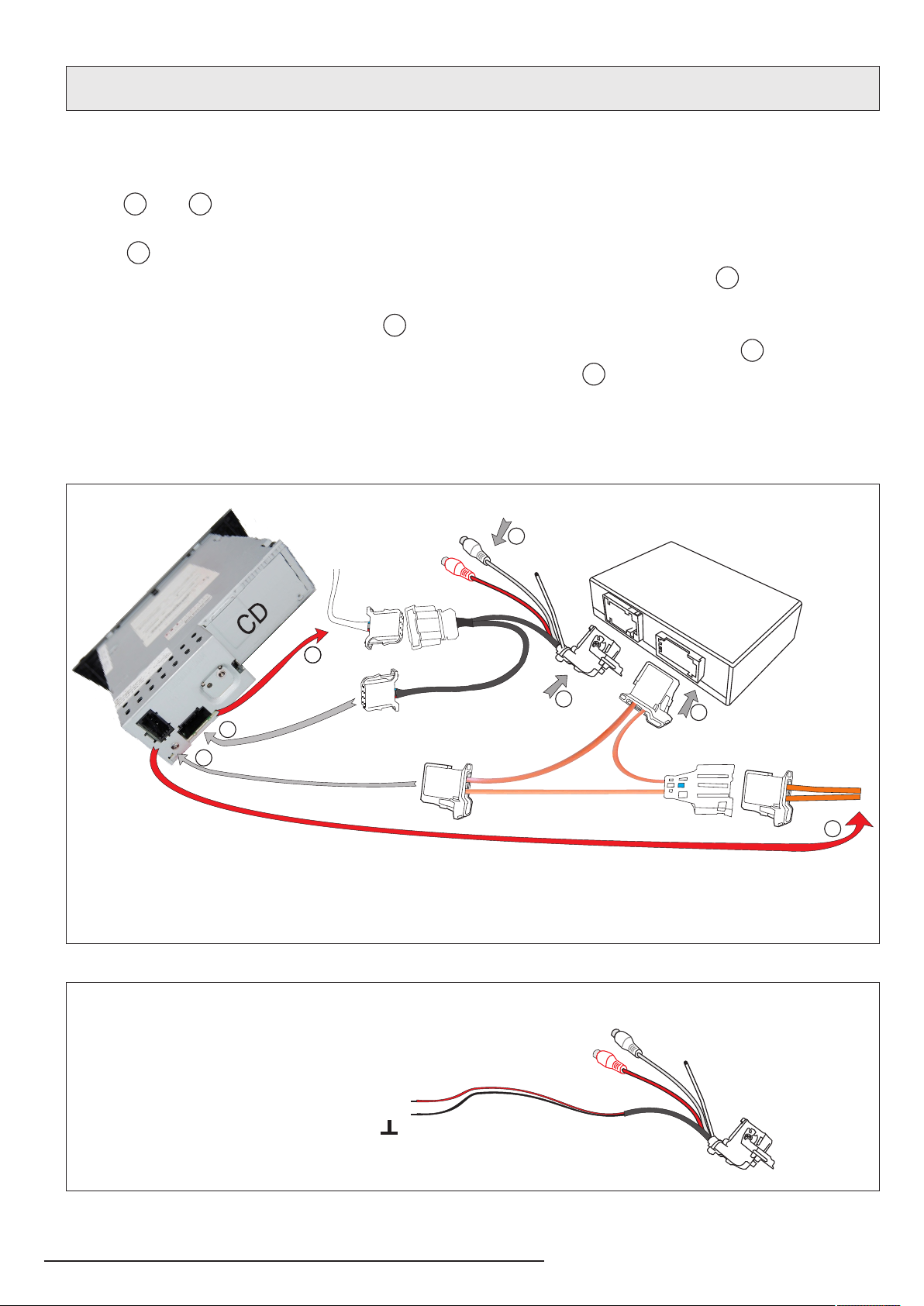

Fig 1.
JuNa Manufacturer
An exemplary connection method using the connection of the terminals CD
1. Turn off the ignition and the system MMI.
2. Connect the plug of fiber optic cluster and plug of electrical cable wiring.
Point and
3. Disconnect fiber optic plug from CD and connect it to fiber optic cluster.
Point
4. Connect second plug of fiber optic cluster to socket in CD. Point
5. Disconnect supply socket from CD and connect it to socket in
JAUX_BT-01 cable wiring. Point
6. Connect a supply plug form JAUX_BT-01 cable wiring to CD. Point
7. Connect any audio source to CINCH socket. Point
8. Turn on the ignition and the system MMI.
9. Push SOURCE button on control panel and select CD in order to display
available devices. Our device is visible as 6-disc CD changer.
1
7
2
6
5
3
4
Antenna bluetooth
NOTE: DO NOT CONNECT
Fig 2.
Another cable when it is not possible
to use cable Plug & Play.
Audio IN
RL
Antenna bluetooth
NOTE: DO NOT CONNECT
+12V
GROUND
Red
Black or Brown
4
BASIC TECHNICAL PARAMETERS
ul. Zgorzelicka 34 , 97-200 Tomaszow Mazowiecki POLAND
JuNa PPHU Manufacturer
1. Supply voltage - 12V
2. Current consumption in active state - 72mA
3. Current consumption in standby mode - 20mA
4. Input Audio Stereo - 1Vpp
5. Communication and control - Network MOST
6. Housing - Metal
7. Dimensions - W-92 x D 60 x H 26 mm
8. Weight - 155g

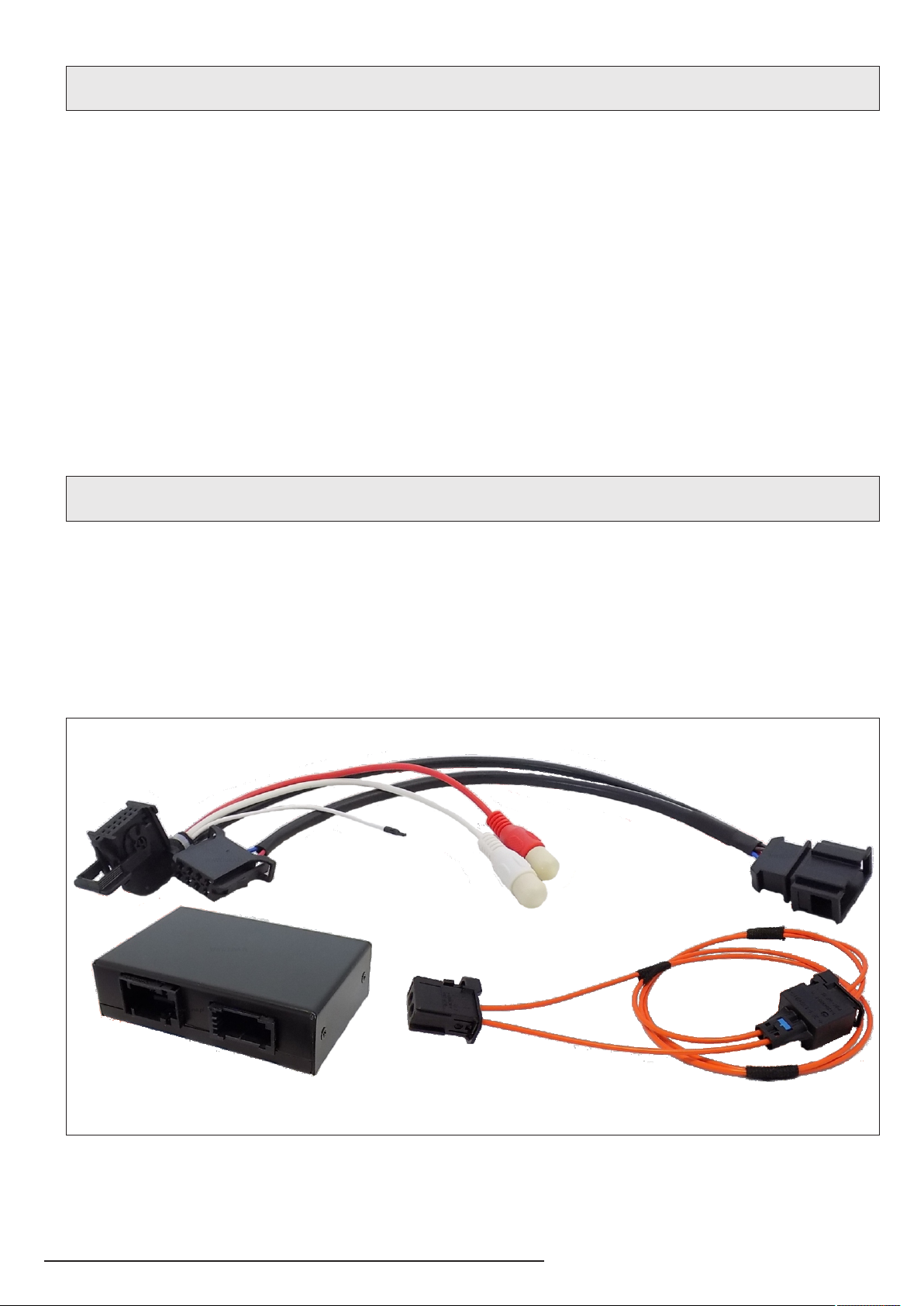

ELEMENTS SET
1. Control unit - JAUX_BT-01
2. Connection cable - W-AUX102
3. Fiber optic splitter MOST - K-SW101
Fig 3.
JuNa Manufacturer
