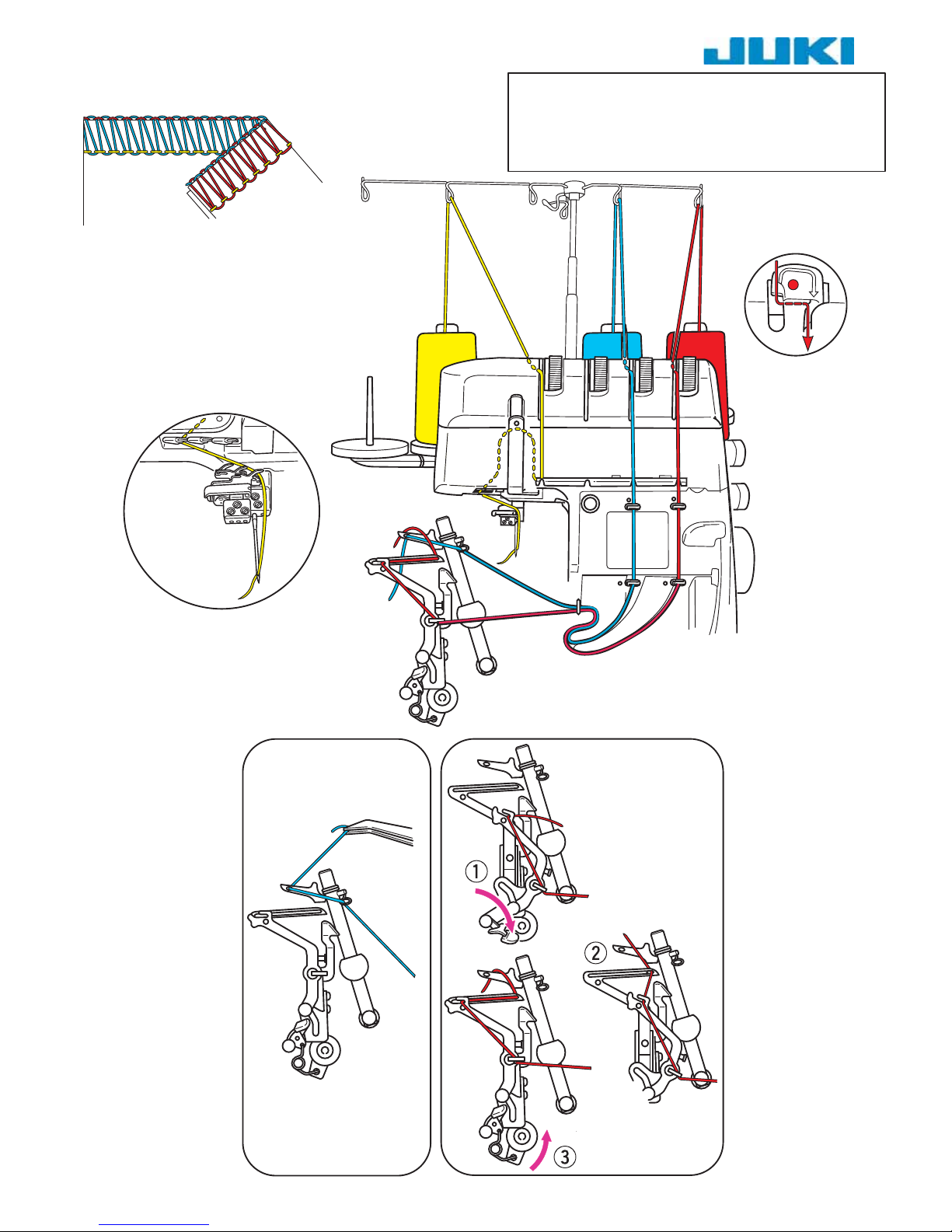

Threading Chart
of 2-needle, 4-thread overlock sewing
MO-735 P.1
.
.
1Thread upper looper 2
Thread lower looper
Needle position
and
needle thread path.
12
3
4
3~5 3~5 3~5 3~5 Thread tension
Stitch length
2.5
Please thread in
numerical order 1~4.
1. Switch the machine off. (power switch "O")
2. Pull the release lever forward to activate the upper looper. (Page 44)
3. Push the button to lower the upper knife arm. (Page 44)
4. Lower the upper knife. (Page 12)
5. Attach the knife guard. (Page 45)
* For more details, please refer to instruction manual.
Threading preparations
432
R
LL
C
LL
R
1
2
MO-735 P.2
Thread lower looper
Threading Chart
of 2-needle, 3-thread super stretch
Upper looper
converter
Please thread in
numerical order 2~4.
5~7 3~5 3~5 Thread tension
Stitch length
2.5
.
.
Needle position
and
needle thread path.
1. Switch the machine off. (power switch "O")
2. Pull the release lever forward to activate the upper looper. (Page 44)
3. Push the button to lower the upper knife arm. (Page 44)
4. Lower the upper knife. (Page 12)
5. Attach the knife guard. (Page 45)
* For more details, please refer to instruction manual.
Threading preparations
1
12
3
R
LL
C
LL
R
2
Threading Chart
of 1-needle, 3-thread overlock sewing
(left needle)
Please thread in
numerical order 1~4.
1. Switch the machine off. (power switch "O")
2. Pull the release lever forward to activate the upper looper. (Page 44)
3. Push the button to lower the upper knife arm. (Page 44)
4. Lower the upper knife. (Page 12)
5. Attach the knife guard. (Page 45)
* For more details, please refer to instruction manual.
.
.
Threading preparations
Thread tension
3~53~53~5
Stitch length
2.5
Thread lower looper
Thread upper looper
MO-735 P.3
Needle position
and
needle thread path.
12
3
R
LL
C
LL
R
12
Threading Chart
of 1-needle, 3-thread overlock sewing
(right needle)
Please thread in
numerical order 1~3.
Thread lower looper
Thread upper looper
MO-735 P.4
Needle position
and
needle thread path.
3~5 3~5 3~5 Thread tension
Stitch length
2.5
.
.
1. Switch the machine off. (power switch "O")
2. Pull the release lever forward to activate the upper looper. (Page 44)
3. Push the button to lower the upper knife arm. (Page 44)
4. Lower the upper knife. (Page 12)
5. Attach the knife guard. (Page 45)
* For more details, please refer to instruction manual.
Threading preparations
12
3
R
LL
C
LL
R
12
Threading Chart
of 1-needle, 3-thread flatlock
(left needle)
.
.
Please thread in
numerical order 1~3.
1~2 3~5 6 ~8 Thread tension
Stitch length
2.5
Thread upper looper
Thread lower looper
MO-735 P.5
Needle position
and
needle thread path.
1. Switch the machine off. (power switch "O")
2. Pull the release lever forward to activate the upper looper. (Page 44)
3. Push the button to lower the upper knife arm. (Page 44)
4. Lower the upper knife. (Page 12)
5. Attach the knife guard. (Page 45)
* For more details, please refer to instruction manual.
Threading preparations
12
3
R
LL
C
LL
R
12
Threading Chart
of 1-needle, 3-thread flatlock
(right needle)
.
.
1~2 3~5 6 ~8 Thread tension
Stitch length
2.5
Please thread in
numerical order 1~3.
Needle position
and
needle thread path.
Thread upper looper
Thread lower looper
MO-735 P.6
1. Switch the machine off. (power switch "O")
2. Pull the release lever forward to activate the upper looper. (Page 44)
3. Push the button to lower the upper knife arm. (Page 44)
4. Lower the upper knife. (Page 12)
5. Attach the knife guard. (Page 45)
* For more details, please refer to instruction manual.
Threading preparations
12
3
R
LL
C
LL
R
12
Threading Chart
of 1-needle, 3-thread narrow seam
Please thread in
numerical order 1~3.
.
.
5~7 5~7 3~5 Thread tension
Stitch length
1~1.8
Needle position
and
needle thread path.
Thread upper looper
Thread lower looper
MO-735 P.7
1. Switch the machine off. (power switch "O")
2. Pull the release lever forward to activate the upper looper. (Page 44)
3. Push the button to lower the upper knife arm. (Page 44)
4. Lower the upper knife. (Page 12)
5. Attach the knife guard. (Page 45)
* For more details, please refer to instruction manual.
Threading preparations
12
3
R
LL
C
LL
R
12
Threading Chart
of 1-needle, 3-thread roll hem
Please thread in
numerical order 1~3.
.
.
5~7 4~6 6~8 Thread tension
Stitch length
1~1.8
Needle position
and
needle thread path.
Thread upper looper
Thread lower looper
MO-735 P.8
1. Switch the machine off. (power switch "O")
2. Pull the release lever forward to activate the upper looper. (Page 44)
3. Push the button to lower the upper knife arm. (Page 44)
4. Lower the upper knife. (Page 12)
5. Pull selection lever to the front marking on the stitch plate. (Page 21)
6. Attach the knife guard. (See page 45)
* For more details, please refer to instruction manual.
Threading preparations
32
R
LL
C
LL
R
1
2
Threading Chart
of 1-needle, 2-thread wrapped overlock
sewing (left needle)
Please thread in
numerical order 2~3.
.
.
5~7 3~5 Thread tension
Stitch length
2.5
Needle position
and
needle thread path.
Thread lower looper
MO-735 P.9
Upper looper
converter
1. Switch the machine off. (power switch "O")
2. Pull the release lever forward to activate the upper looper. (Page 44)
3. Push the button to lower the upper knife arm. (Page 44)
4. Lower the upper knife. (Page 12)
5. Attach the knife guard. (Page 45)
* For more details, please refer to instruction manual.
Threading preparations
32
R
LL
C
LL
R
2
Threading Chart
of 1-needle, 2-thread wrapped
overlock (right needle)
Please thread in
numerical order 2~3.
.
.
Needle position
and
needle thread path.
5~7 3~5 Thread tension
Stitch length
2.5
MO-735 P.10
Thread lower looper
1Upper looper
converter
1. Switch the machine off. (power switch "O")
2. Pull the release lever forward to activate the upper looper. (Page 44)
3. Push the button to lower the upper knife arm. (Page 44)
4. Lower the upper knife. (Page 12)
5. Attach the knife guard. (Page 45)
* For more details, please refer to instruction manual.
Threading preparations
