JUKI MO-50e Manuel utilisateur

2-Needle,3/4-Thread Overlock Sewing Machine

Instruction Manual

MO-50e/51e

IMPORTANT:

Read all safety regulations carefully and

understand them before using your sewing

machine.

Retain this instruction manual for future reference.

110V~240V/15W.

20. Close cover before operating machine.

Replace bulb with same type rated 15Watts.

Use foot controller 7. - Details of the machine

9. - Accessories

9. - Accessory Box

9. - Looper cover

9. - Waste collector

11. - Attaching the foot control

11. - Sewing speed

11. - Assembling the thread stand

11. - Thread cones

11. - Power/ light switch

13. - Handwheel

13. - Presser foot lifter

13. - Changing the presser foot

15. - Inserting needles

15. - To lower the upper knife

17. - Threading/ Preparation

17. - Upper looper ( )Blue

19. - Lower looper (Red)

21. - Right needle (Green)

23. - Left needle (Yellow)

23. - After threading

25. - Sewing test

25. - Check your trial run

27. - Adjusting the thread tension

29. - Stitch length

29. - Cutting width

31. - Gathering*

- 3 thread overlock

- 3 thread rolled hem

- Unpicking seams

- Changing light bulb

- Cleaging and lubricating

31. - Differential feed*

13. Using the machine

17. Threading

Contents

25. Trial sewing, thread tension

27. Adjusting the thread tension

29. Adjustments and settings

31. Differential feed*

33. Practical sewing

35. Maintenance

37. Trouble shooting guide

41. Technical data

1. Safety regulations

5. Contents

7. Details of the machine

9. Preparing the machine

4C-315A221

4C-316B22

4C-326C22

4C-316C24

4C-316C26

4C-316C28

4C-326G22

4C-326C25

4C-326C23

Foot controller (100v) Japan

Foot controller (115v) U.S.A.

Foot controller (220v) South Africa

Foot controller (220v) Argentina

Foot controller (220v) Korea

Foot controller (220v) the Middle East

Foot controller (230v) Europe

Foot controller (240v) U.K.

Foot controller (240v) Australia

Looper cover

Looper cover opening indent

Knife guard

Cloth plate

Stitch plate

Presser foot

Upper looper tension dial

Lower looper tension dial

Right needle tension dial

Left needle tension dial

Thread take up cover

Thread guide plate

Accessory box

Bulb cover

Power / light switch

Handwheel

Machine socket

Thread stand

Anti-vibration cone

Spool holder pin

Retractable support rod

Open thread guide

Presser foot lifter

Stitch length dial

Differential feed dial

Details of the machine

Screwdriver

Tweezers

Cleaning brush

Set of needles ELX705

Net

Spool caps

Waste collector

Hexagon wrench

Upper knife

Oiler

All standard accessories are stored

in the box. Pull out to open.

Push in to close.

To open, push to the right with your thumb

in the indent and tilt towards you.

To close push it up and the cover engages

automatically.

Fabric waste will be collected as you sew.

Push the waste collector under the front of the

machine and slightly to the left towards the cloth

plate cover.

To open push the lever up.

To close push the cover up to the

right, it snaps into position

automatically.

Preparing the machine

Accessories

Accessory Box

Looper cover

Waste collector

Cloth plate cover

Raise the support rod fully, turning slightly

until the positioning catches engage.

The anti-vibration cone should be used with the

wider edge to the bottom on the spool holder

pin when sewing with cones.

When using household spools remove the

anti-vibration cones.

Place spool on spool holder pins and push

the spool caps on.

If threads slip and get twisted, cover the spools

with the nets supplied in the accessory box.

The power switch is conveniently placed on the

handwheel side of the machine.

"I"-ON

"O"-OFF

Plug foot control into machine socket (A)

and then into main socket (B).

The sewing speed can be adjusted by

increasing or decreasing the pressure

on the foot control (C).

Preparing the machine

Assembling the thread stand

Thread cones

Power/light switch

Attaching the foot control

Sewing speed

OFF

To raise the presser foot, raise the lever

on the rear of the machine until it engages.

-Switch the machine off"O".

-Raise the presser foot.

Press the catch (A) to release the presser

foot from the clamp.

Raise the presser foot lifter to the highest

position and remove the presser foot sole

to the left.

To attach the presser foot sole, place it under

the shaft. The groove in the shaft should line

up exactly with the presser foot pin.

Lower the shank and the presser foot will

engage automatically.

The handwheel turns counterclockwise.

Using the machine

Handwheel

Presser foot lifter

Changing the presser foot

- Turn the handwheel to raise the needles.

- Open the looper cover.

- Press the upper knife holder to the right.

Turn the knob clockwise until the knife

engages.

- Close the looper cover.

- Switch the machine off"O".

Disconnect machine from electricity supply.

- Turn the handwheel until needles are fully

raised.

- Lower the presser foot.

- Use the hexagon wrench to loosen the

needle setscrew. Remove needle.

- Insert the needle flat side towards the back,

as far as possible into the needle clamp.

Tighten the screw.

- The left needle is set higher than the right

needle.

- Turn the knob anti-clockwise.

The knife snaps automatically into its

lower position. Close the looper cover.

Using the machine

Inserting needles

Raising the upper knife

To lower the upper knife:

4312

- Place the spool on the spool

holder pin.

- Bring thread up from back to front

through guide (1).

- Pull the thread under the

guider (2) up to go around the

pre-tension (3).

- Thread guide (4,5,6).

- Thread looper eye (7).

- Disconnect machine from

electricity supply.

- Support rod with thread guide

must be fully raised.

- Open the looper cover and the

cloth plate cover.

- Turn the handwheel towards you

until needles are fully raised.

- Thread the machine in the correct

sequence.

Threading

Threading / Preparation

Upper looper (Blue)

- Place the spool on the

spool holder pin.

- Bring thread up from back to front

through guide (1).

- Pull the thread under the

protector (2) and pass under the

guider up to go around the

pre-tension (3).

- Thread guide (4,5,6).

Threading

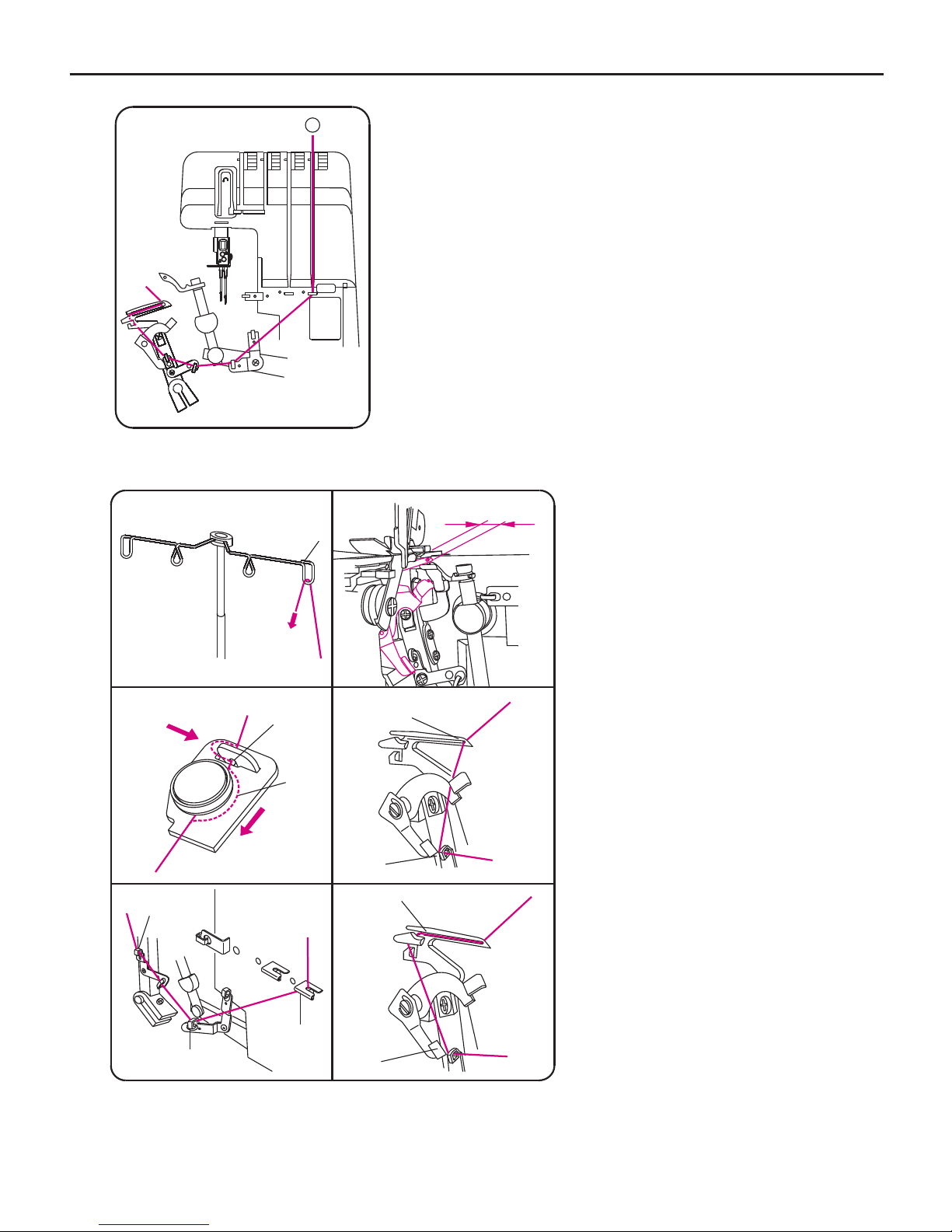

Lower looper (red)

- Turn the balance wheel

toward you until the lower

looper extending out

5-10mm from the needle

plate edge.

- Pull the thread

with tweezers to pass the

lower looper hole (A).

- Draw the thread with your left

hand tightly.

- Use your finger to push the

automatic threader (B) up to the

topmost, and then thread goes

through the lower looper ( )

automatically.

5~10mm
