FT-826 Hydraulic Veterinary Surgery Table
Quick Install Manual
Installation:
Step 1: Open Crate
Using a powered screwdriver, remove the top and three sides of the shipping crate.
Step 2: Remove Table From Crate
The table is heavy. Do not attempt to move it with less than two people.
Do not lift the table by the table top. Lift by the table frame or by the table base.
Step 3: Position the table where it will be used.
Step 4: Level the table using the adjustable feet.
Installation is complete!
Quick Use Guide
1. Raising and Lowering the Table
Pump the foot pedal to raise the table.
Hold the foot pedal down to lower the table back to the starting position.
2. Tilting
Rotate the wheel on the side of the table to tile it forwards or backwards.

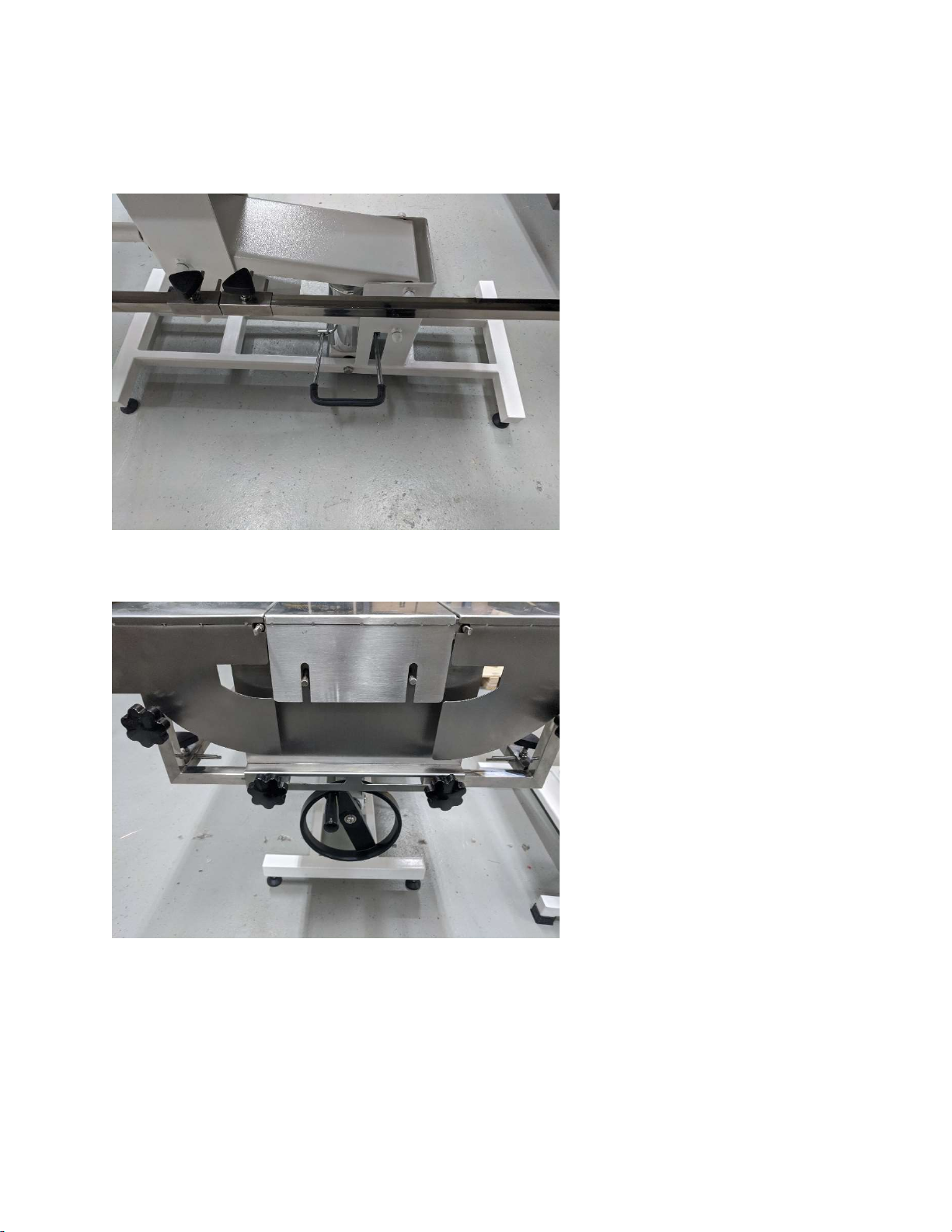

3. Raising the leaves
a. Loosen the upper handle on both sides of the leaf.
b. Raise the leaf. The pin it is rotating on will move in the slot, and the pin will end up at the very
end of the slot.
c. The pin may slide slightly out of the slot at high angles.
d. Tighten the upper handle of both sides of the leaf.
Final Position of the leaf
