Jonsered LT2223A2 Mode d’emploi

SERVICE

Spare parts

Ersatzteile

Pièces détachées

Reserve onderdelen

Repuestos

Reservdelar

I0700110

IPL, LT2223 A2, 2007-07, 502 52 52-05

LT2223A2

502 52 52-05

96041004000

532 40 86-43 Rev. 2

ILLUSTRATED PARTS LIST

MODEL NO. 96041004000

CUSTOMER CATALOG NO. LT2223A2

PRODUCT NO. 960 41 00-40

TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40

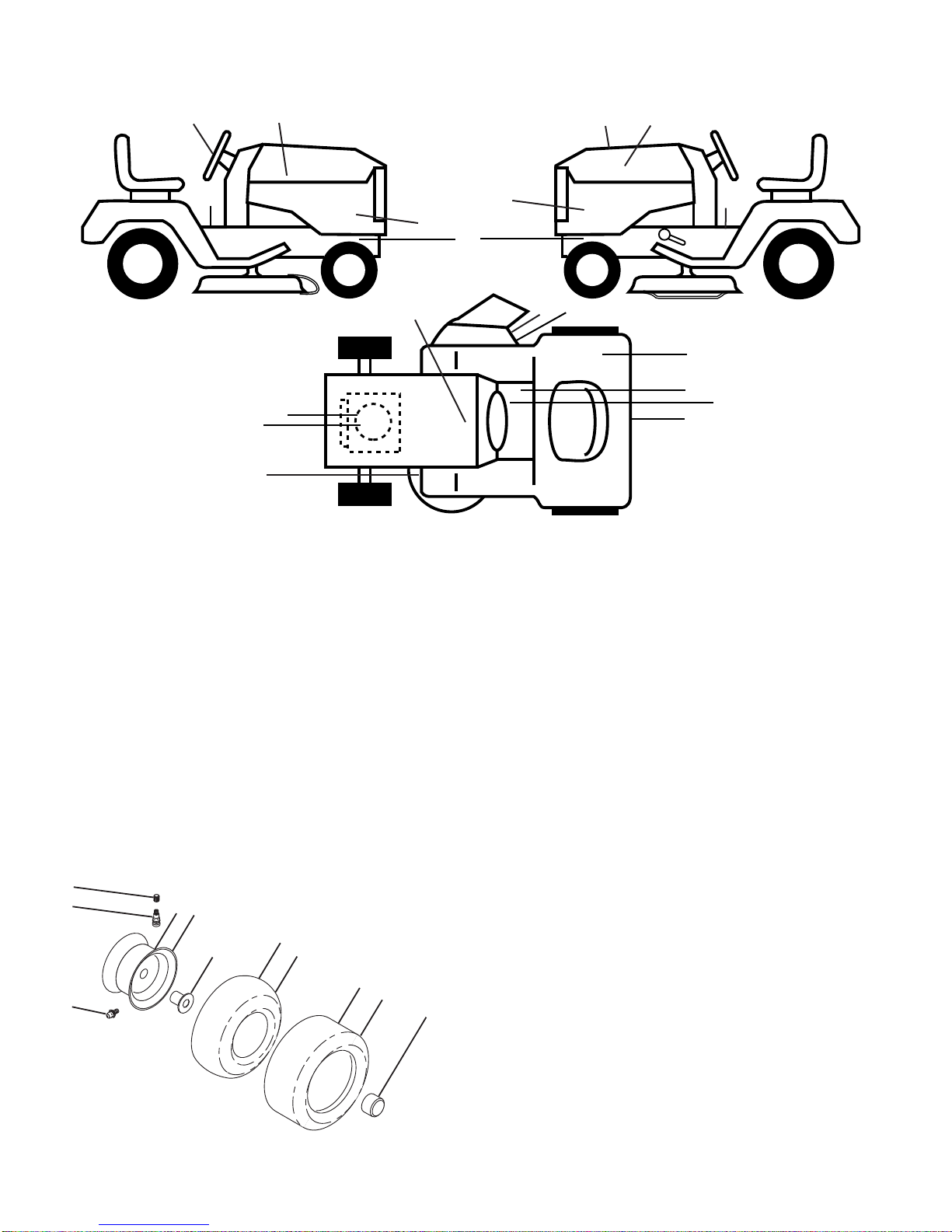

DECALS

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

410

598

wheel_art_1-vgt

WHEELS AND TIRES

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

16 16

1 532 05 91-92 Cap, Valve, Tire

2 532 06 51-39 Stem, Valve

3 532 14 45-09 Rim Assembly, Front

4 532 05 99-04 Tube, Front (Service Item Only)

5 532 10 62-30 Tire, Front

6 532 12 49-57 Fitting, Grease (Front Wheel Only)

7 532 12 49-59 Bearing, Flange (Front Wheel Only)

8 532 17 50-39 Cap, Axle (Front Wheel Only)

9 532 18 47-08 Tire, Rear

10 532 12 49-26 Tube, Rear (Service Item Only)

11 532 40 17-82 Rim Assembly, Rear

- - 532 14 43-34 Sealant, Tire (10 oz. Tube)

1 532 40 03-89 Decal, Warning Sym.

3 532 19 68-41 Decal, Warning Engine

5 532 19 87-85 Decal, Schematic

6 532 40 91-43 Decal, Engine

7 532 18 39-30 Decal, Cover/Belt Guard

8 532 18 21-66 Decal, Cutfinger

9 532 14 50-05 Decal, Battery, Dan/Poi

10 532 18 04-33 Decal, Fender DB/CE

11 532 15 97-36 Decal, Hot Muffler

12 532 15 97-37 Decal, Brake/Clutch Sym.

13 532 18 57-73 Decal, Steering Whl

14 532 40 93-74 Decal, Panel Side

15 532 19 63-57 Decal, Deflector

16 532 18 95-53 Decal, Hood Logo

17 532 41 17-83 Decal, Replacement

18 532 17 83-02 Decal, Cruise Control

19 532 14 08-37 Decal, Parking Brake

- - 532 16 69-60 Decal, Bypass

- - 532 16 25-98 Decal, Load Limit

- - 532 41 19-03 Pad, Footrest, LH

- - 532 41 22-79 Pad, Footrest, RH

- - 532 40 86-37 Manual, Oper (Euro)

- - 532 40 86-38 Manual, Oper (Scan)

- - 532 40 86-40 Manual, Oper (E-Bloc)

- - 532 40 86-41 Manual, Oper (Baltic)

FUSE

STARTER

SOLENOID

BATTERY

ELECTRIC CLUTCH

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

REGULATOR

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

LIGHT

SWITCH

HEADLIGHTS

STATOR

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF SO EQUIPPED)

JUNCTION

CONNECTOR

PTO SWITCH

(DISENGAGED)

A2A1

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

CHARGING SYSTEM OUTPUT

16 AMP DC @ 36 RPM

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR

WIRING.

02929-194276_Regulated-Tex

IGNITION SWITCH

CIRCUITPOSITION

OFF B+A1

RUN/OVERRIDE

B + S + A1START

M+G+A1

B+A1RUN

“MAKE”

L+A2

02929

BLACK

BLACK /WHITE

ORANGE

RED

BROWN

BLUE

BLACK

BLACKBLACK

BLACK

RED

RED RED

RED

WHITE

GRAY

BLACK

POWER OUTLET

(IF SO EQUIPPED)

12V

TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40

SCHEMATIC

194276D

TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40

ELECTRICAL

Battery _28

100

227

79 21

AMPS

102

101

TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 14 49-27 Battery

2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4

8 532 18 64-91 Battery Box

16 532 17 61-38 Switch Interlock

21 532 17 56-88 Harness Socket Light

22 532 00 41-52 Bulb, Light # 1156

24 532 40 02-53 Cable Battery

25 532 19 88-93 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 14 54-91 Cable Ground 21" Blk 6 Ga.

29 532 40 15-45 Switch Seat

30 532 19 33-50 Switch Ign

33 532 14 04-01 Key Ign Molded Generic

34 532 11 07-12 Switch Light/Reset

40 532 40 21-67 Harness Ignition Dash

41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2

42 532 13 15-63 Cover Terminal Red

43 532 19 25-07 Solenoid

45 532 17 75-00 Ammeter

46 532 17 75-01 Gauge Hourmeter

50 532 17 46-51 Switch PTO

55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4

71 532 19 42-76 Harness Chassis

79 532 17 52-42 Socket Asm Bulb

90 532 40 07-24 Cover Terminal Battery

91 532 19 02-70 Strap Battery

99 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4

100 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.

101 532 19 83-17 Pigtail Harness Clutch

102 532 40 44-54 Harness Pigtail

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40

CHASSIS

chassis-tex_Stealth_II_SRS_6

180

183

200

235

165

228

194

153

148

130

122

181

182

176

175

195

194

189

150

161

177

196

162

176

198

199

222

162 68

189

152

278

139

TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40

CHASSIS

KEY PART

NO. NO. DESCRIPTION

5 532 41 18-76 Dash

14 532 18 13-51 Hood

18 532 18 13-52 Grille

34 532 19 61-25 Plate Engine

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 41 18-77 Fender

58 532 19 43-14 Bracket Support Fender

68 817 49 05-08 Screw 5/16-18 x 1/2

99 532 40 59-17 Rod Asm Bypass

122 532 19 25-12 Screw 10-32 x 5/8

130 532 19 16-11 Screw 10 x 3/4 Single Lead-Hex

139 532 17 18-73 Bolt Shoulder 5/16-18

148 532 16 46-55 Bumper Extrusion

150 532 17 53-51 Air Duct

152 532 19 95-35 Shield Browning

153 532 16 18-40 Lens Bar

161 532 41 18-79 Window Fuel

162 532 14 24-32 Screw

165 532 19 68-26 Support Tank Rear

175 532 19 32-36 Crossmember

176 532 40 07-76 Screw 10-24 x 5/8

177 532 19 52-27 Bushing Steering

180 532 40 15-59 Chassis

181 532 40 47-96 Bushing Mtg. Fender Crgo

182 532 19 25-51 Dash Lower

183 874 78 05-20 Bolt Fin Hex 5/16-18 unc x 1-1/4

189 817 00 05-12 Screw 5/16-18 x 3/4

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

195 532 40 41-37 Plug Hole Dash Lower

196 532 41 18-80 Console Asm. Deck Lift

198 532 41 18-81 Indicator Deck Lift

199 532 19 63-77 Plate Deck Lift

200 873 93 05-00 Nut Lock 5/16-18 unc

222 532 13 77-29 Screw 1/4-20 x 5/8

228 532 19 51-61 Stud Fastner

235 532 40 61-29 Spacer Fender

278 532 19 63-94 Bracket Hood

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40

DRIVE

56 213

171

197 196

206

207

209

186

189 49

187

190

208 210

170

211

166

211

185 188

161

184

167

160

163

214

125

215

125

153

222

224

125

226

125

80 125

159

15 159

116

153

216

143

225

125

116

162

169

116

drive-tex_50-Husq TuffTorq

205

230

183

230

183

205

TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40

DRIVE

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

1 532 41 40-06 Transaxle, TUFFTORQ K46

2 532 18 62-11 Key

7 532 19 98-44 Hub Asm Wheel

9 532 14 00-80 Bolt Hub Wheel Rear

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 41 36-78 Spring, Brake

26 532 19 96-79 Spring Return Cruise

29 532 40 38-06 Rod, Brake

33 812 00 00-01 Ring E

35 532 19 72-75 Rod, Brake, Park

42 532 12 48-72 Cover, Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove 910" Offset

56 532 13 09-69 V-Belt, Drive

64 532 19 78-65 Shaft Asm. Pedal Brake Control

74 532 14 24-32 Screw 1/4 x 1/2

80 532 40 44-83 Bracket Strap Torque

92 874 76 05-20 Bolt Fin Hex 5/16-18 unc x 1.25

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

125 817 00 05-12 Screw 5/16-18 x 3/4

143 817 49 05-08 Screw 5/16-18 x 1/2

153 532 12 47-88 Retainer Spring

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 19 54-03 Spring, Return, Clutch

162 532 19 57-85 Spacer Transaxle

163 532 40 10-34 Rod Pedal Control

166 532 19 72-90 Nut Push .625

167 532 40 52-57 Latch Brake Parking

169 874 49 05-60 Bolt Hex Flghd 5/16-18 x 3.75

170 532 19 43-22 Keeper Belt Centerspan

171 872 11 06-16 Bolt RDHD SQNK 3/8-16 unc x 2

183 532 40 04-24 Spacer Split

184 532 41 17-16 Handle Parking Brake

185 872 11 06-20 Bolt Rdhd Sqnk 3/8-16 x 2-1/2

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

196 817 00 06-16 Screw 3/8-16 x 1

197 532 19 97-69 Link Clutch Anti-Rotation

205 532 12 17-48 Washer

206 532 19 78-67 Bracket Mount Latch Cruise

207 532 19 78-68 Latch Control Cruise

208 532 19 78-69 Gear Sector Control Cruise

209 532 19 94-66 Rod Control Cruise

210 532 19 78-60 Rocker Asm. Pedal Control

211 532 12 01-83 Bearing Nylon

213 532 41 23-24 Knob Control Cruise

214 532 40 17-22 Pedal Forward

215 532 40 17-23 Pedal Reverse

216 532 19 61-31 Bracket Pulley Idler

222 879 21 20-10 Washer 21/32 x 1-1/4 x 10 Ga.

224 532 41 22-98 Console Toolbox

225 532 40 33-19 Keeper Belt Trans.

226 532 40 08-31 Bracket Mount Torque

230 532 18 89-67 Washer Hardened

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

Autres manuels pour LT2223A2

Table des matières

Autres manuels Jonsered Tondeuse à gazon

Jonsered

Jonsered Z42F Manuel utilisateur

Jonsered

Jonsered FR 2216 MA 4X4 Mode d’emploi

Jonsered

Jonsered LT2118A Manuel utilisateur

Jonsered

Jonsered FR2312 MA Manuel utilisateur

Jonsered

Jonsered LM2146C Manuel utilisateur

Jonsered

Jonsered LT 13(A) Manuel utilisateur

Jonsered

Jonsered LM 2146CMD Manuel utilisateur

Jonsered

Jonsered LT2217 A Guide de configuration

Jonsered

Jonsered LT2316CMA2 Manuel utilisateur

Jonsered

Jonsered yardpro YP51-450S Manuel utilisateur

Jonsered

Jonsered Front Rider FR13 Manuel d'instructions

Jonsered

Jonsered LT2114A Manuel utilisateur

Jonsered

Jonsered LT2216 Manuel utilisateur

Jonsered

Jonsered LT15A Manuel utilisateur

Jonsered

Jonsered LM 2153CMDAE Manuel utilisateur

Jonsered

Jonsered FR2211R Manuel utilisateur

Jonsered

Jonsered FRM13 Automatic Manuel utilisateur

Jonsered

Jonsered J160AWD Manuel utilisateur

Jonsered

Jonsered LM2146M Manuel utilisateur

Jonsered

Jonsered LM 2152CMDAE Manuel utilisateur

Jonsered

Jonsered LT2118CMA Manuel utilisateur

Jonsered

Jonsered LM 2146 CD Manuel utilisateur

Jonsered

Jonsered LT2213C Manuel utilisateur

Jonsered

Jonsered LM 2146CMD Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
