Jonsered LM2153CMDAW Mode d’emploi

S E R V I C E

Spare parts

Ersatzteile

Pièces détachées

Reserve onderdelen

Repuestos

Reservdelar

Ersätter 106 xx xx-xx

I0600015

IPL, LM2153 CMDAW, 2006-01, 544 33 77-01

LM2153CMDAW

544 33 77-01

Replaces

Ersetzt

Remplace

Vervangt

Reemplaza

96141005900

400093 12.08.05 VB

ILLUSTRATED PARTS LIST

CUSTOMER MODEL NUMBER LM2153CMDAW

PRODUCT NUMBER 961 41 00-59

MFG. ID. NUMBER 96141005900

ROTARY LAWN MOWER - - MODEL NUMBER LM2153CMDAW (96141005900) PRODUCT NO. 961 41 00-59

KEY PART

NO. NO. DESCRIPTION

1 532 40 29-05 Upper Handle (Includes Foam Grip)

2 532 15 36-05 Lower Handle

3 532 40 29-32 Control Bar

4 532 18 35-67 Engine Zone Control Cable

5 532 19 15-74 Handle Bolt

6 532 19 18-56 Handle Knob

7 532 05 17-93 Hairpin Cotter

8 532 06 64-26 Wire Tie

9 532 18 04-79 Kit, Rear Door (Includes Key #16 and 17)

10 532 12 84-15 Pop Rivet

11 532 18 25-38 Support Bracket, LH

12 532 18 25-39 Support Bracket, RH

13 817 06 04-10 Screw 1/4-20 x 5/8

14 532 19 60-36 Handle Bracket Assembly, LH

15 532 19 60-37 Handle Bracket Assembly, RH

16 532 18 00-71 Spring, LH

17 532 18 00-72 Spring, RH

18 532 13 20-04 Keps Locknut 1/4-20

19 532 19 47-88 Rope Guide

20 532 17 92-05 Foot Guard, C.E.

21 532 05 45-83 Screw, Tapping 1/4-20 x 1/2

24 - - - Engine, Briggs, Model Number 12H602

(order parts from engine manufacturer)

25 532 15 04-06 Hex Head Thread Rolling Screw 3/8-16 x 1-1/8

26 532 14 52-12 Hex Flange Nut

27 532 40 25-95 Wheel & Tire Assembly, Rear, 12"

28 532 16 08-28 Shoulder Bolt 5/16-18 x .33

30 532 40 25-71 Axle Arm Assembly, RH

31 532 70 10-37 Selector Knob

32 532 19 01-57 Selector Spring

33 873 80 05-00 Nut, Hex 5/16-18

34 532 40 25-72 Axle Arm Assembly, LH

36 532 18 41-93 Bolt

KEY PART

NO. NO. DESCRIPTION

37 532 15 00-78 Thread Cutting Screw w/Sems 5/16-18 x 3/4

38 819 11 22-06 Washer

40 532 19 09-39 Mounting Bracket, Debris Shield

41 532 19 23-25 Screw

43 532 19 89-10 Debris Shield

44 532 40 00-92 Kit, Lawn Mower Housing

(Includes Key Numbers 10, 11, 12 and 45)

45 532 18 21-66 Danger Decal

46 532 19 77-52 Blade Adapter / Pulley

47 532 19 93-77 Blade, 21"

48 532 85 10-74 Hardened Washer

49 532 85 02-63 Helical Washer 3/8-24 x 1-3/8 Grade 8

50 532 85 10-84 Hex Head Machine Screw 3/8-24 x 1-3/8 Grade 8

57 532 12 51-62 Upstop Bracket

58 532 75 06-34 Screw

59 532 17 50-71 Discharge Deﬂector

60 532 17 57-35 Hinge Bracket

61 532 19 30-00 Spring

62 532 17 56-50 Hinge Rod

63 873 80 04-00 Nut, Hex

64 532 17 50-66 Mulcher Door

65 532 19 74-80 O-Ring

66 532 08 83-48 Washer, Flat 1/2

96 532 19 79-91 Clip, Cable

97 532 19 71-62 Keeper, Belt

98 532 18 22-27 Screw #8

99 532 18 22-28 Nut #8

- - 532 40 00-90 Operator’s Manual, European

- - 532 40 00-91 Operator’s Manual, Scandinavian

- - 532 40 00-97 Operator’s Manual, Baltic

- - 532 40 00-98 Operator’s Manual, East Bloc

ROTARY LAWN MOWER - - MODEL NUMBER LM2153CMDAW (96141005900) PRODUCT NO. 961 41 00-59

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

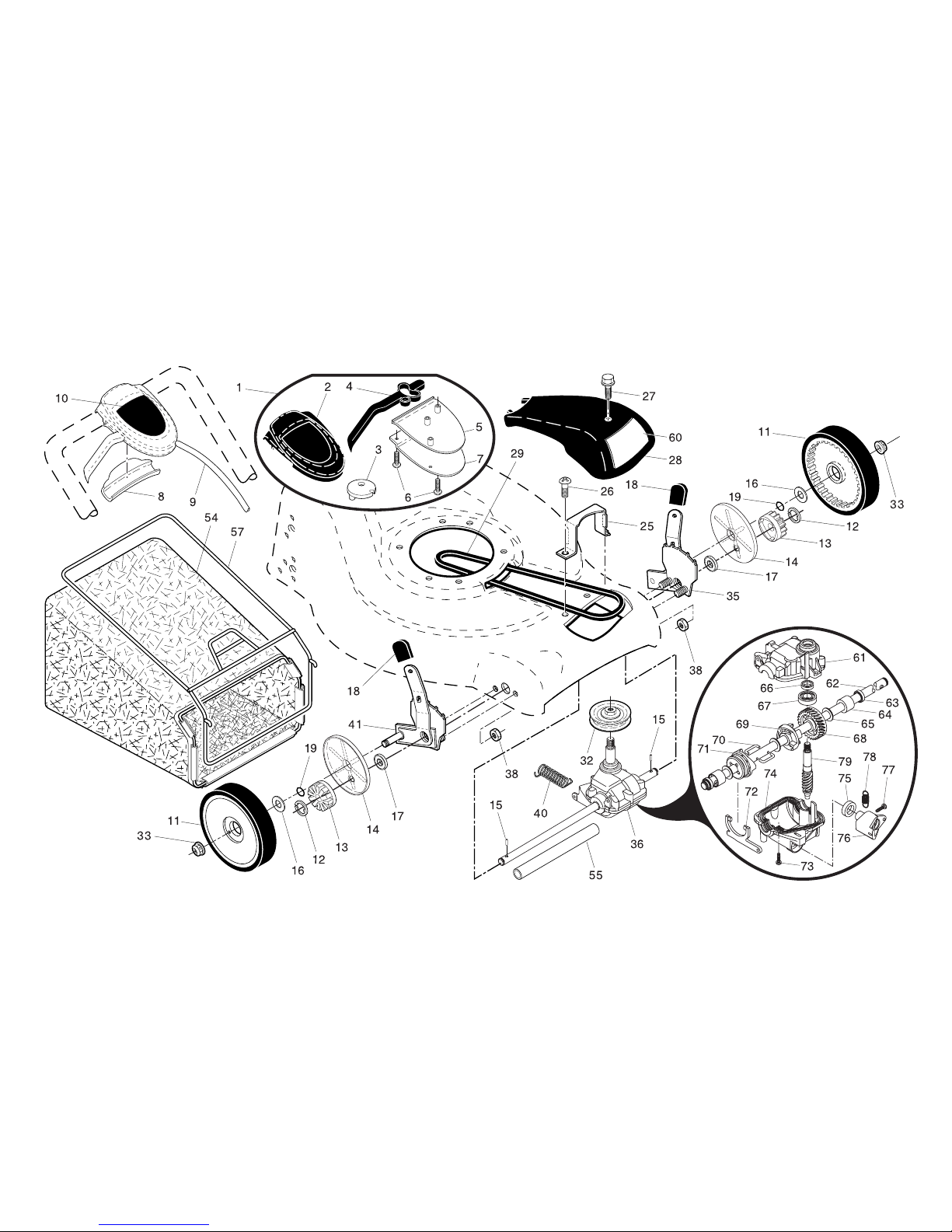

ROTARY LAWN MOWER - - MODEL NUMBER LM2153CMDAW (96141005900) PRODUCT NO. 961 41 00-59

KEY PART

NO. NO. DESCRIPTION

1 532 19 61-78 Drive Control Assembly (Includes Cable)

2 532 19 57-45 Cover, Drive Control, Upper

3 532 18 73-53 Pulley

4 532 18 82-81 Lever, Drive Control

5 532 19 57-44 Cover, Drive Control, Lower

6 532 18 16-98 Screw

7 532 40 07-23 Bracket, Drive

8 532 18 49-87 Cap, Drive

9 532 19 61-80 Cable Assembly, Drive

10 532 19 34-66 Decal, Drive

11 532 40 25-67 Wheel & Tire Assembly

12 812 00 00-58 E-Ring

13 532 75 00-03 Pinion

14 532 18 94-03 Dust Cover

15 532 19 10-17 Pawl, Drive

16 532 06 77-25 Washer 1/2 x 1-1/2 x .134

17 532 19 10-39 Bearing, Wheel Adjuster

18 532 70 10-37 Selector Knob

25 532 19 90-89 Belt Keeper

26 532 15 00-78 Screw

27 532 17 52-62 Pan Head Tapping Screw #10-24 x 2-3/4

28 532 18 14-68 Drive Cover

29 532 19 68-53 V-Belt

32 532 19 40-18 Drive Pulley

33 532 08 39-23 Locknut, Hex

35 532 19 51-10 Kit, Wheel Adjuster, LH

(Includes Knob and Bearing)

36 532 18 82-96 Gearcase Assembly, Complete

38 873 80 04-00 Locknut, Hex 1/4-20

KEY PART

NO. NO. DESCRIPTION

40 532 19 28-49 Spring

41 532 19 51-07 Kit, Wheel Adjuster, RH

(Includes Knob and Bearing)

54 532 40 19-05 Grassbag Assembly

55 532 17 57-39 Driveshaft Cover

57 532 19 46-43 Frame, Grassbag

60 532 19 34-58 Decal, Drive Cover

61 532 19 68-86 Case, Upper

62 532 19 68-85 Shaft, Output

63 532 18 35-08 Seal, Output Shaft

64 532 18 35-11 Bushing

65 532 18 35-09 Washer

66 532 18 35-14 Seal, Worm Shaft

67 532 18 35-06 Bearing, Ball

68 532 18 34-99 Gear, 27 Teeth

69 532 19 68-84 Fixed Dog Clutch

70 532 18 35-05 Wireform

71 532 19 68-83 Movable Dog Clutch

72 532 19 68-82 Fork

73 532 18 35-13 Screw, Case

74 532 19 68-81 Case, Lower

75 532 19 68-80 Seal, Lever

76 532 19 68-79 Lever

77 532 19 68-78 Screw, Lever

78 532 19 68-77 Spring

79 532 18 35-02 Shaft, Worm

ROTARY LAWN MOWER - - MODEL NUMBER LM2153CMDAW (96141005900) PRODUCT NO. 961 41 00-59

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.
