JONATHAN Y JYL8506A Manuel utilisateur

WARNING

INSPECT ITEM CAREFULLY BEFORE ATTEMPTING TO INSTALL. IF THERE IS ANY DAMAGE OR

OBVIOUS DEFECT, DO NOT INSTALL. ITEM MAY NOT BE RETURNED ONCE IT HAS BEEN INSTALLED.

CARE AND MAINTENANCE

Model# JYL8506A

Product Dimensions: 10.25"Lx 10.25"W x 63.5"H

Unplug lamps before using any cleaning solutions. Dust shades with a feather duster or with an appropriate

vacuum-brush attachment. Wipe with a soft, dry cloth and clean lamp bases with the methods appropriate to

the material. Avoid the use of chemicals and household cleaners as they may damage the finish.

NOTICE& IMPORTANT SAFETY INSTRUCTIONS

* Please make sure that you have all parts indicated before you begin assembly of this item

* This item should be assembled on a soft surface to prevent scratching the finish during assembly

* To reduce the risk of fire, electrical shock or injury to persons or property, please follow the guideline below

for safe use and installation

*The external flexible cable or cord of this lamp cannot be replaced;

If the cord is damaged, the lamp shall be destroyed

**This portable lamp has a polarized plug (one blade is wider than the other) as a safety feature to reduce the risk

of electric shock. this plug will fit in a polarized outlet only one way. if the plug does not fit fully in the outlet, reverse

the plug, if it still does not fit, contact a qualified electrician. Never use with an extension cord unless the plug can

be fully inserted. do not attempt to disgard this safety feature.

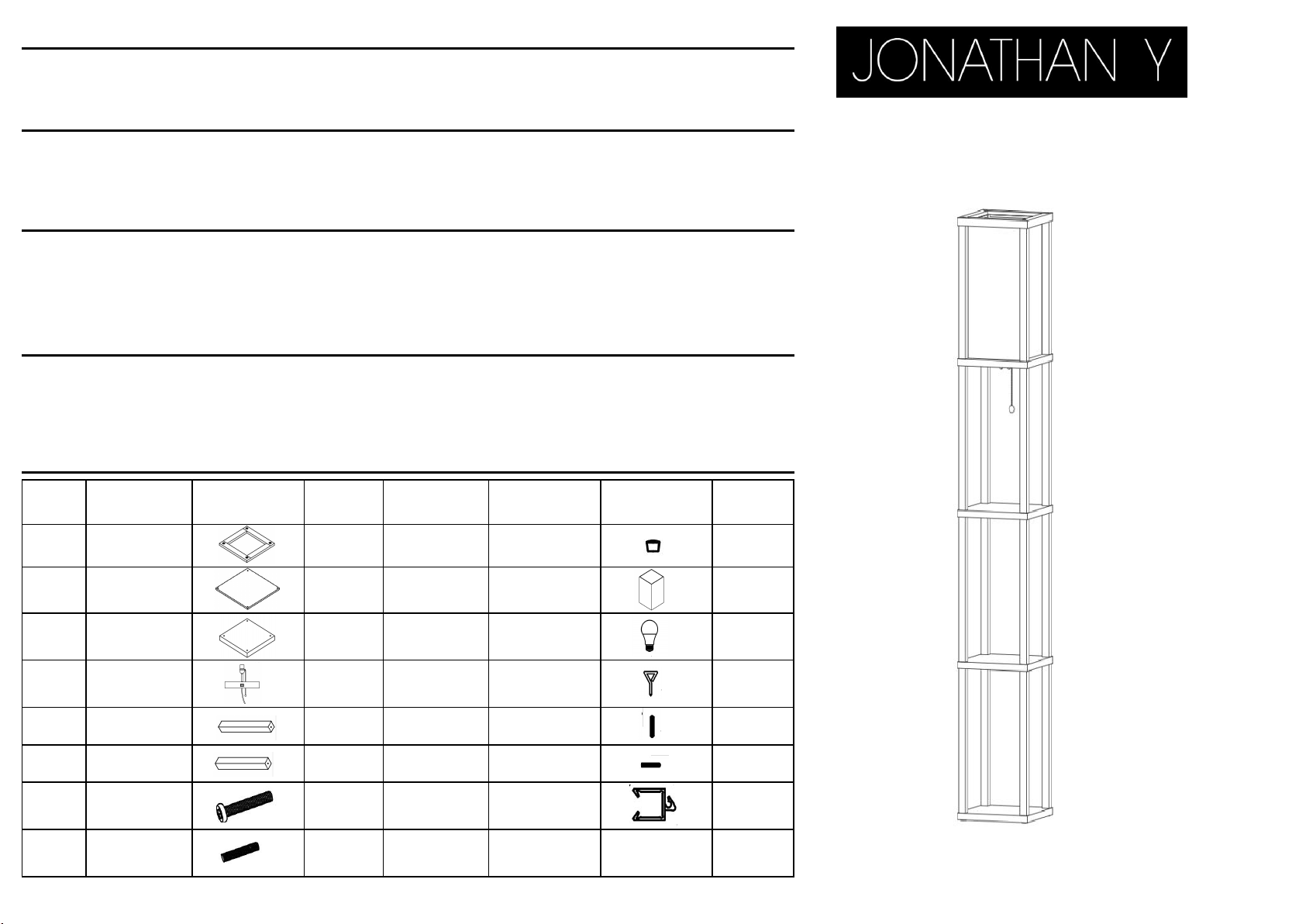

Part List and Hardware List

PIECE DESCRIPTION PICTURE QUANTITY PIECE DESCRIPTION PICTURE QUANTITY

A Top shelf 1X I screw cover 4X

B Middle shelf 2X J Shade 1X

C Base shelf 1X K Bulb 1X

D Socket board 1X L Screwdriver 1X

ETop Square

tube

4X M Cork 4X

FMiddle Square

tube

12X N Wool Mat 4X

G screws 8X O Wire clip 3X

H thread-pipe 12X

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list.

If any part is missing or damaged, do not attempt to assemble the product.

Estimated Assembly Time: 6 minutes.

PLEASE USE ON/OFF TYPE"A" BULB MAX 60-WATT OR CFL BULB MAX 13-WATT OR LED BULB MAX 9-WATT

THERE IS LED 9.5-WATT BULB IN THE BOX

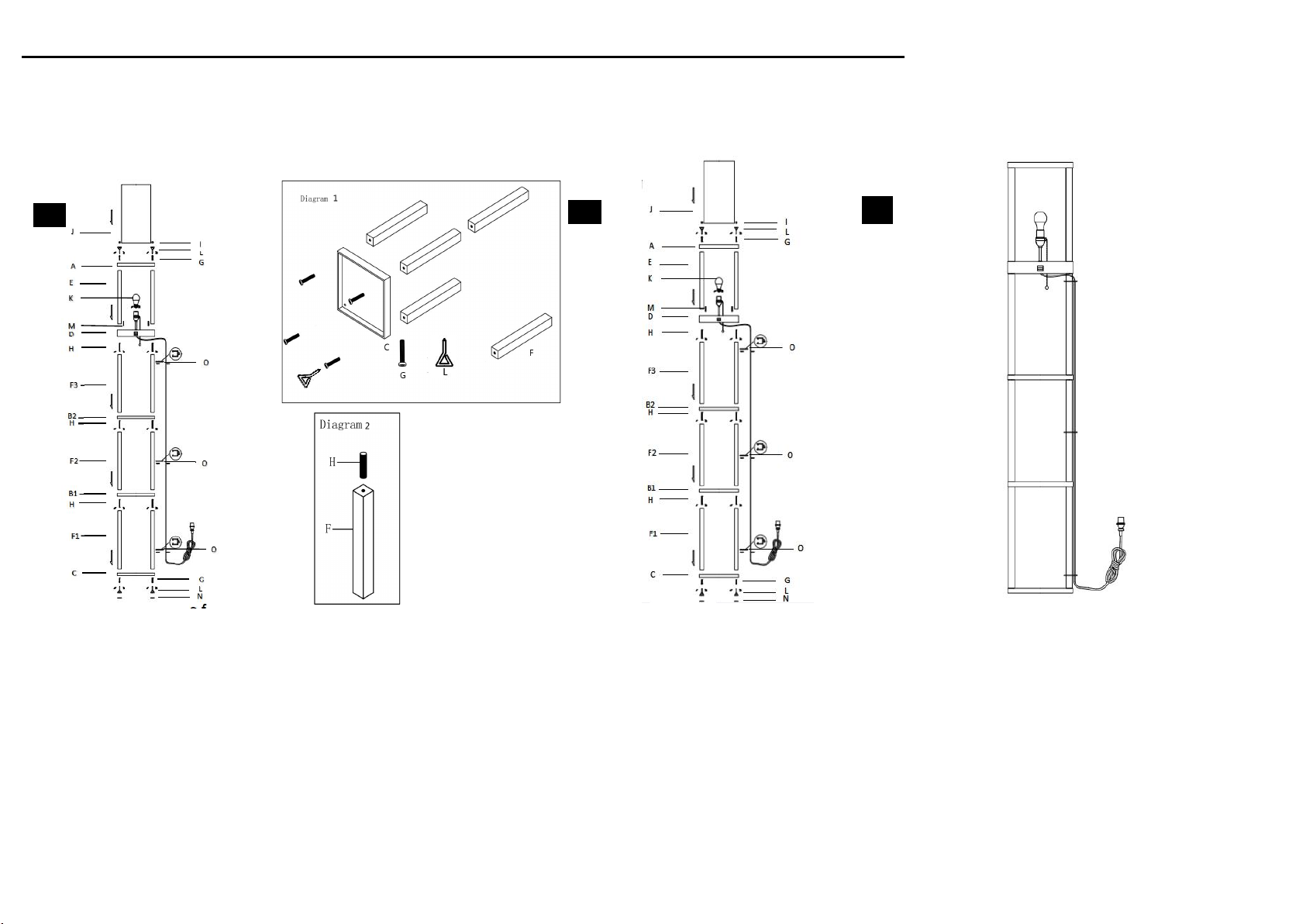

Step 1

Step 2

Step 3

Carefully remove all parts from the box and remove

Insert 4pcs Middle Square tube(F3) into the 4pcs Top

Put the light on a level surface to check

all plastic coverings.

Square tube(E) by the thread-pipe(H) through the

if everything is stable.

Refer to Diagram 1: innsert 4pcs Middle Square tube(F1) Socket board(D)

onto the Base shelf (C) with the screws(G)by the Screwdriver(L) Insert 3pcs Wire Clip (O) onto the

and place the Wool Mat (N) to cover the screw holes.

Insert Top shelf(A) onto the Top Square tube(E)with the

Square tube(F1-F2-F3)

screws(G) by the Screwdriver(L),and place the

Refer to Diagram 2: insert 4pcs Middle Square tube(F1)

screw cover (I) to cover the screw holes.

Insert the wire into the Wire Clip (O),

into the 4pcs Middle Square tube(F2) by the thread-pipe(H)

Secure the wire and prevent tripping

through the Middle shelf(B1).

Step 3

Insert the 4pcs Cork(M) into the Socket board(D) holes

Insert 4pcs Middle Square tube(F2) into the 4pcs Middle

Put the the Shade (J) onto the Socket board(D)

Square tube(F3) by the thread-pipe(H) through the

Insert the bulb(K) into the Socket board(D).

Middle shelf(B2).

ENJOY YOUR LAMP
