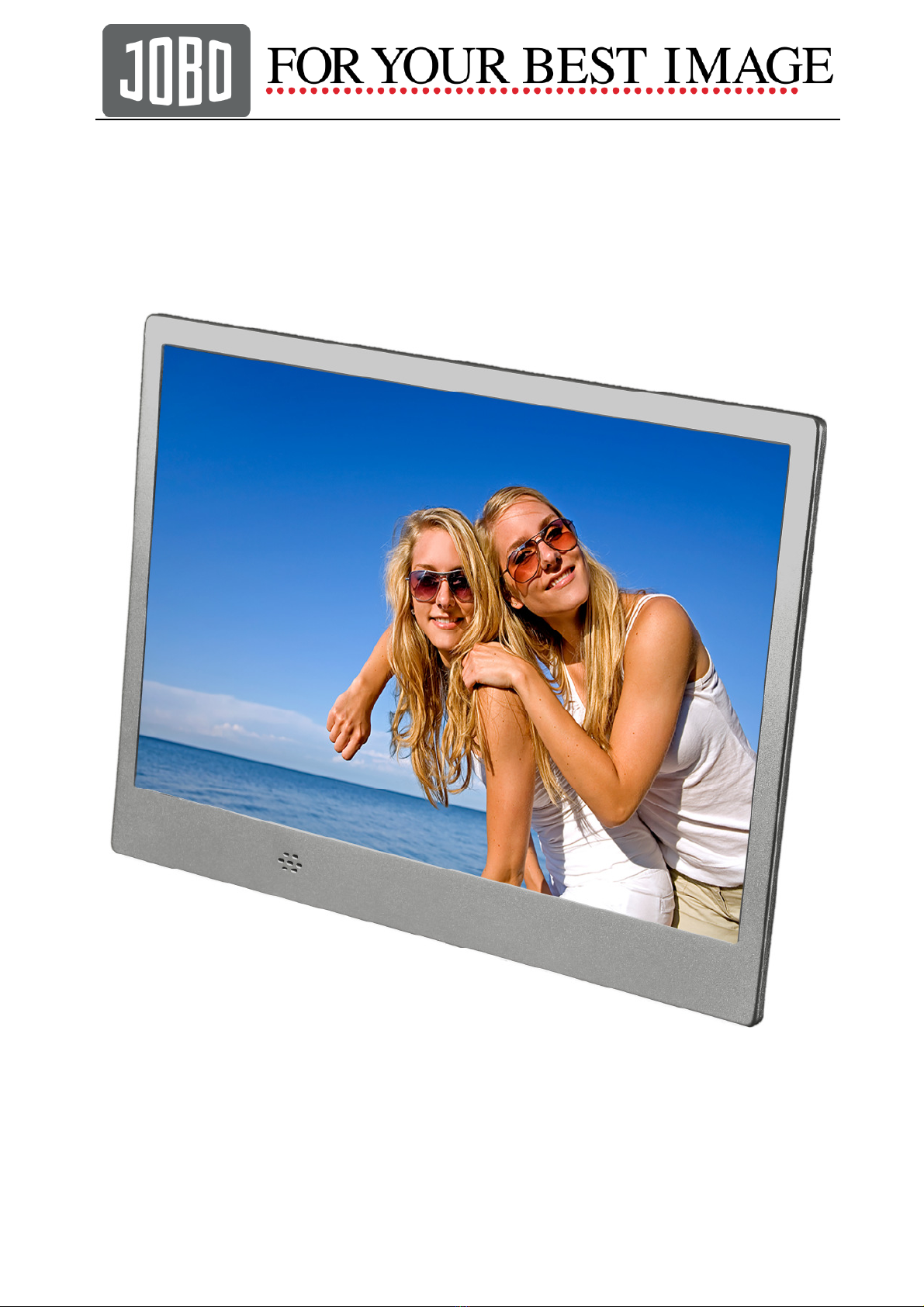

JOBO Plano 10 IPS Manuel utilisateur

Digital Photo Frame user manual

PLANO 10 IPS

www.jobo.com

GB 2

EG-Konformitätserklärung

Declaration of Conformity

Hiermit erklären wir, die JOBO International GmbH,

Kölner Straße 58a,

D-51645 Gummersbach

dass das Gerät Digitaler Bilderrahmen “ PLANO 10 IPS ”aufgrund ihrer Konzipierung und

Bauart in der von uns in den Verkehr gebrachten Ausführung den grundlegenden

Sicherheits- und Gesundheitsanforderungen der EG-Richtlinie R&TTE- Richtlinie

1999/5/EG, Richtlinie 2004/108/EG und Niederspannungsrichtlinie 2006/95/EG entspricht.

R&TTE- Richtlinie EN 300 328 V1.7.1(2006-10)

EN 301489-1 V1.9.2 (2011-09)

EN 301489-17 V2.2.1 2012-09

EN 62479:2010

EN 60950-1: 2006+A11:2009 + A1:2010 +A12:2011

Niederspannungsrichtlinie: EN 60950-1/2006+A11:2009 +A1:2010 + A12:2011

Bei einer nicht mit uns abgestimmten Änderung des Geräts oder einer anderen

als der vorgesehenen Verwendung verliert diese EG-Konformitätserklärung ihre Gültigkeit.

Gummersbach, 15.5.2014 Johannes Bockemühl

Geschäftsführer

www.jobo.com

GB 3

Cautions

Precautions and maintenance

•For indoor use only.

•To avoid risk of fire or electric shock, do not expose the unit to moisture or condensation

condition.

•To avoid overheating，do not block the ventilation holes on the Digital Photo Frame.

●Keep the Digital Photo Frame from direct sunlight.

●Do not dismantle the Digital Photo Frame. There is a risk of electric shock and there are no

user-serviceable parts inside. Dismantling the Digital Photo Frame will void your warranty.

Cleaning the LCD Screen

Treat the screen carefully. Because the screen of the Digital Photo Frame is made of glass and it

would be easily broken or scratched.

You can use a soft, non-abrasive cloth such as a camera lens or glass cloth to clean the LCD

screen If fingerprints or dust accumulate on the LCD screen, It will be better to moisten the

cleaning cloth with detergent to wipe the screen..

Introduction:

Thank you for your purchase of the Digital Photo Frame. It is designed to allow quick and easy

view of photos taken from your digital camera, mobile phone, or from a memory storage card.

Please read this User Manual carefully to learn the correct way to use the Digital Photo Frame.

WARNING:

Please power off the unit before inserting or removing a card or USB device.,

Do not put the unit in water or moisture condition to prevent the risk of electric

shock…

www.jobo.com

GB 4

Features:

•Supported Photo formats: JPEG

•Supported Audio formats: Mp3, WMA

•Supported Video File Formats: MPEG1,MPEG4 , H.264

•Supported Memory Cards: SD/MMC/SDHC and USB stick

•USB Connection: Mini USB functions as card reader for your PC

•Built-in Calendar, Clock, Alarm Clock

•Built-in Clock and calendar with slideshow window

•Adjustable brightness, contrast, saturation

•Supports slideshow with background music

•Supports viewing pictures in thumbnail mode

•Built-in speaker

•Adjustable slideshow speed and various of transition effects

•OSD Language：OSD Language: English and other languages selectable

Packaging Check List:

•10.1inch digital photo frame 1 piece

•User manual 1 piece

•Remote Control 1 piece

•AC/DC adapter 1 piece

CONTENTS

1. Product Diagram 5

2. Installing & Replacing the Battery 6

3. Getting Started 7

4. Operating Instruction 7

5. Photo Mode 8

6. Video Mode 9

7. Music Mode 9

8. Clock Calendar mode 10

9. File Manager (Copy and Delete) 11

10. System function setting 11

11. Technical Parameters 14

12. Troubleshooting Guide 14

www.jobo.com

GB 5

1 Product Diagram

Remote Control

1. MUTE

2. PHOTO

3. Play/Pause

4. Left

5. SETUP

6. Turn up volume.

7. Turn down volume.

8. Switch On/Off

9. VIDEO

10. EXIT

11. Right

12. Back Music

13. Previous music/video

14. Next music/video

15. Fast forward+

16. Fast backward

17. DOWN

18. Press to confirm.

19. UP

20. MUSIC

www.jobo.com

GB 6

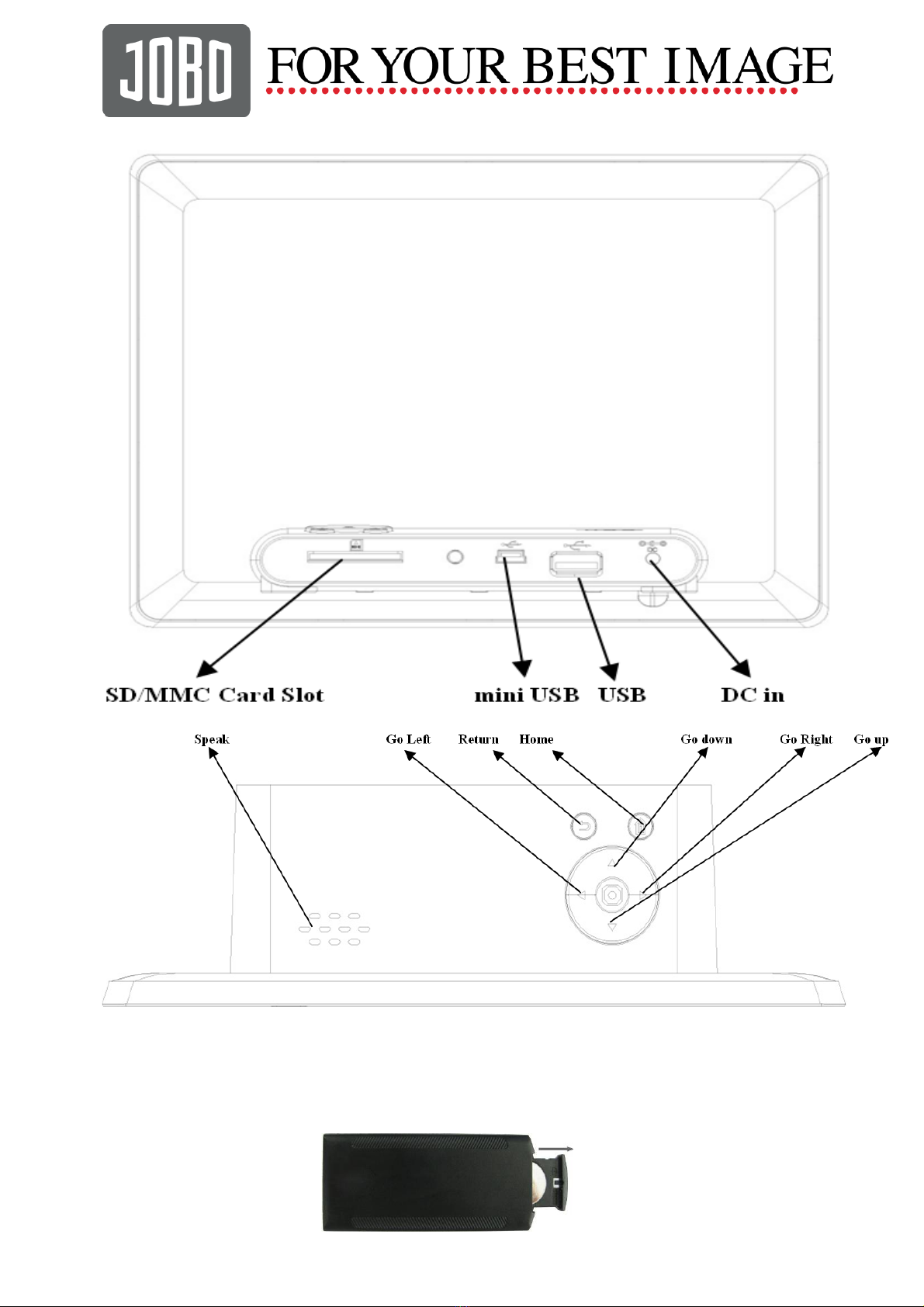

Back Side Buttons

2. Installing & Replacing the Battery

Place the remote control face down, press down on the ridged area of the battery cover and pull

towards you to remove the tray. Place one CR2025 lithium button-cell battery on the tray with the

positive “+” side facing you. Reinsert the tray.

www.jobo.com

GB 7

3. Getting Started

Remove the protective film covering on the LCD.Remove the plastic battery insulator from the

battery compartment and make sure the remote control has a battery inside. Please refer to

“Installing & Replacing Battery” if you need a new battery.

When insert the plug and then the unit will power on, to power off press the On/Off button on the

Remote Control.

4. Operating instruction

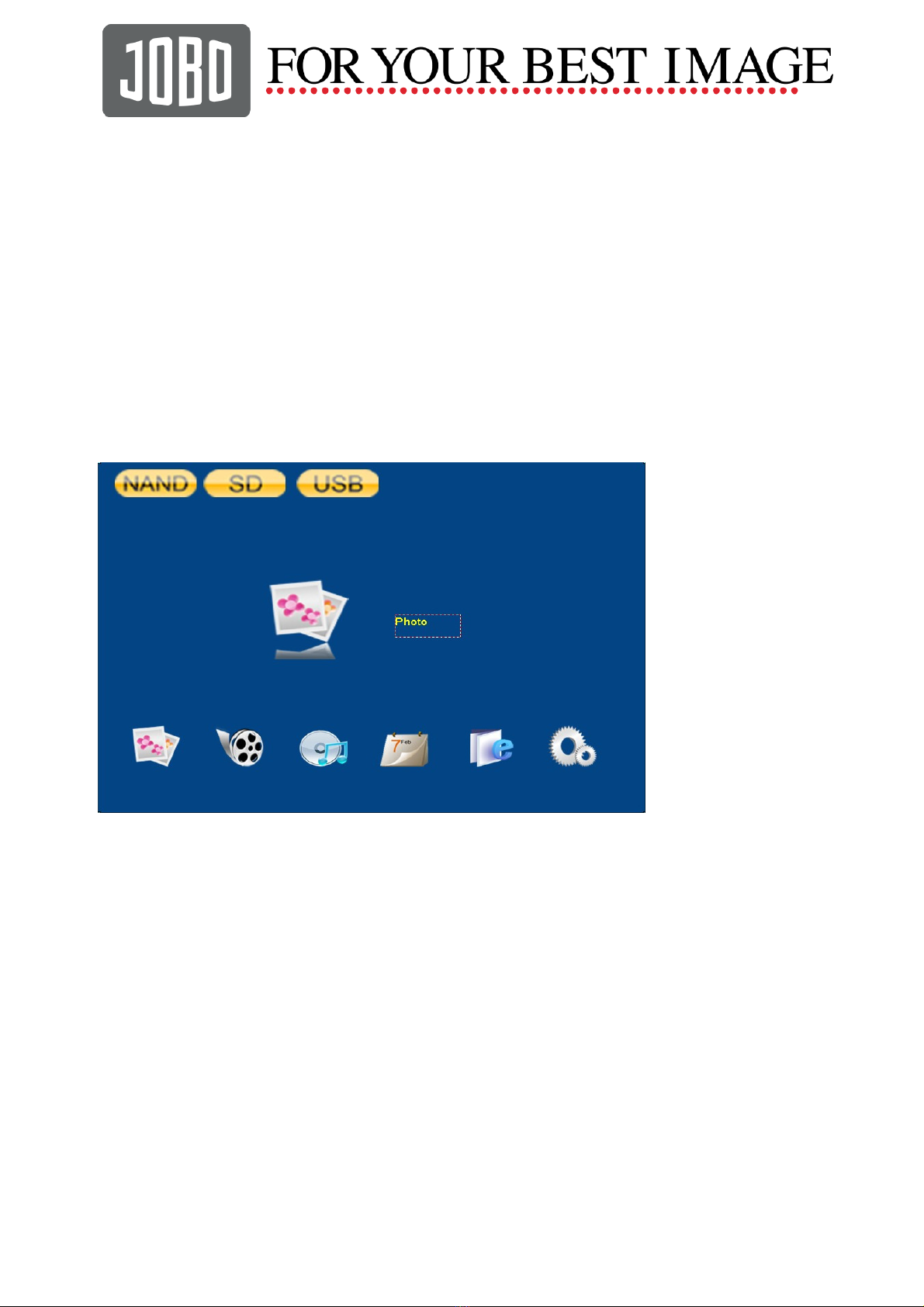

After startup picture, there will be the menu as:

【

NAND】【SD】【USB】

【Photo】【Video】【Music】【Calendar】【File】【Setting】

User can choose desired function, and then press OK to confirm it.

The photo frame supports reading USB-disk & memory card (SD/MMC.. System will read

USB-disk firstly by default when 2 kinds of media inserted.

USB connection

When connected with a PC, it will go directly to the USB mode and display "Connecting PC ..."

message. At the same time on the PC you can see the DPF icon on the screen. Disconnect the

USB cable or press the ESC key to exit the U disk mode. The photo frame can also be used as a

card reader while connected to your PC.

www.jobo.com

GB 8

5. Photo Mode

Select Image browsing, enter the picture browsing mode.

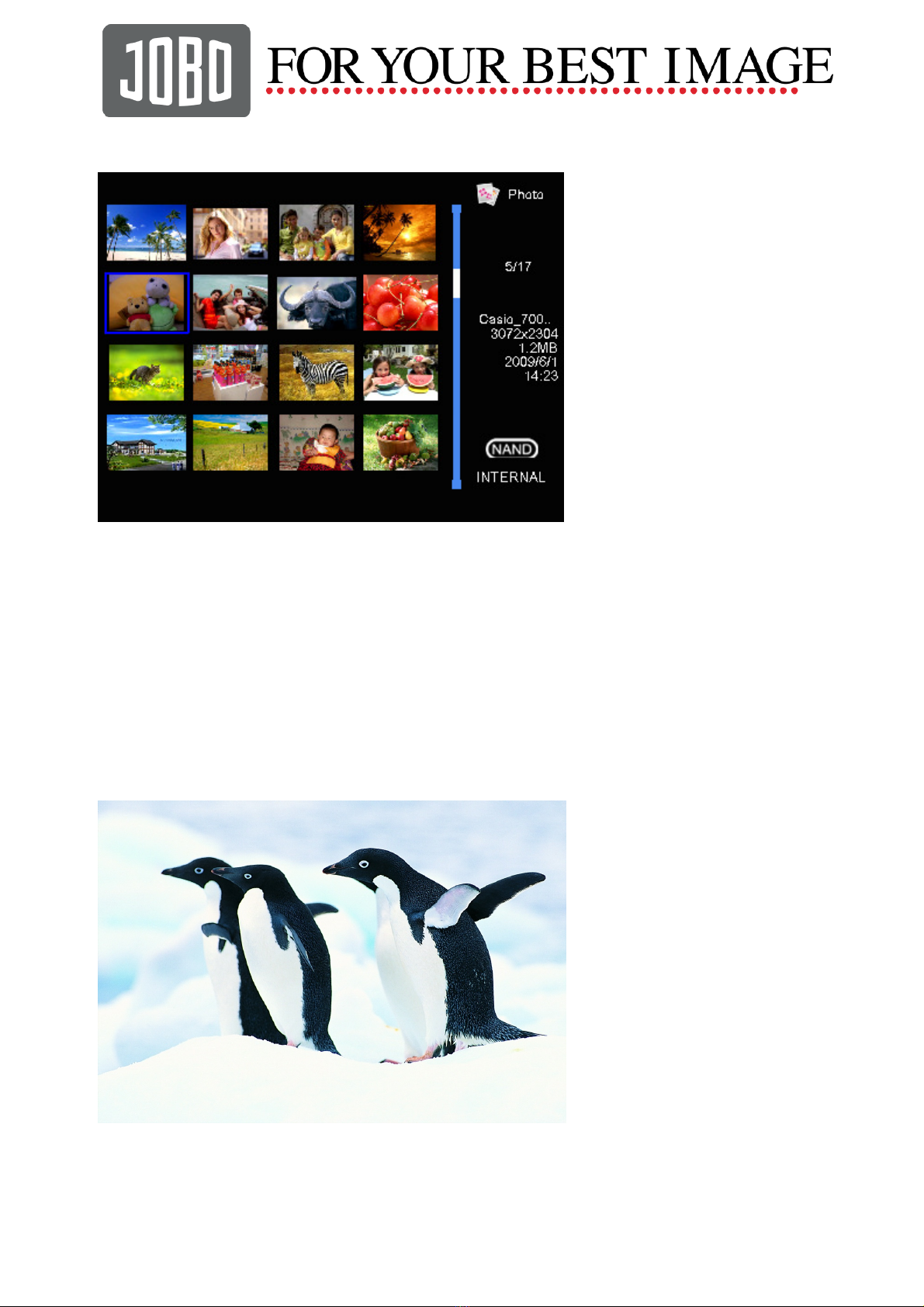

In the picture preview window, you can simultaneously display multiple small figure (1-20 sheets..

Photos details will be displayed on the right area of the display. This can include: total number of

files and file location, file name, image resolution, image size and image modification date.

Press the arrow keys (up, down, left, right. to select a picture, press the OK button to enter current

picture. You can toggle between Browse Mode and Slideshow Mode by pressing enter.

5.2 Browse Mode: To browse during single picture display you need to manually switch the picture

with the left and right button.

5.3 Slideshow Mode: The pictures will show one after the other with a delay time as set in setting

menu.

www.jobo.com

GB 9

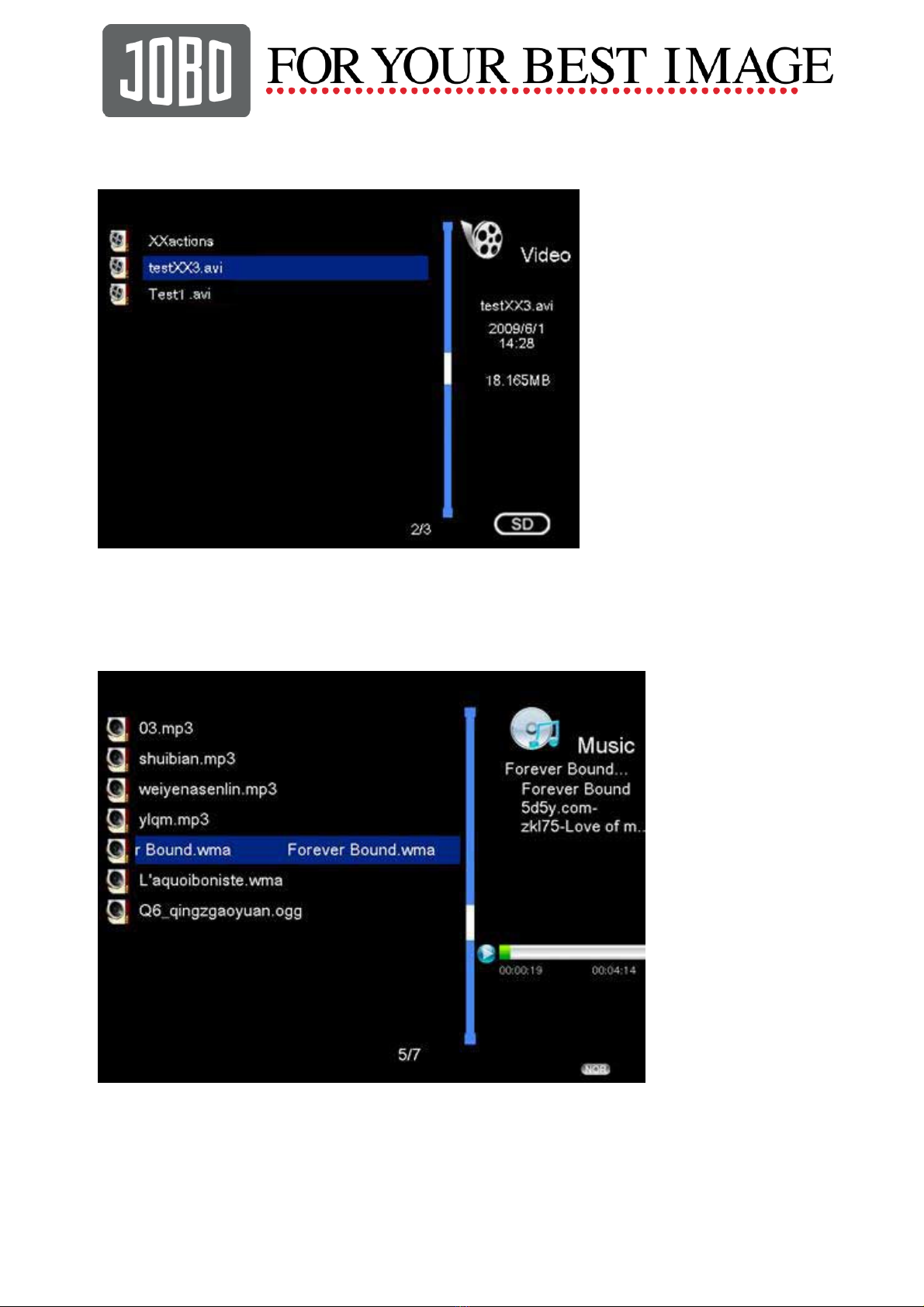

6. Video Mode

ENTER the video mode. Enter the video file list window, as shown below:

7. Music Mode

ENTER the music player. It will show the music file selection screen. Currently

supported music formats MP3, WMA, WAV, AAC, OGG.

The right side of the display will show information about the music file, which may include the song

file name, song title, artist name, album name, etc.

www.jobo.com

GB 10

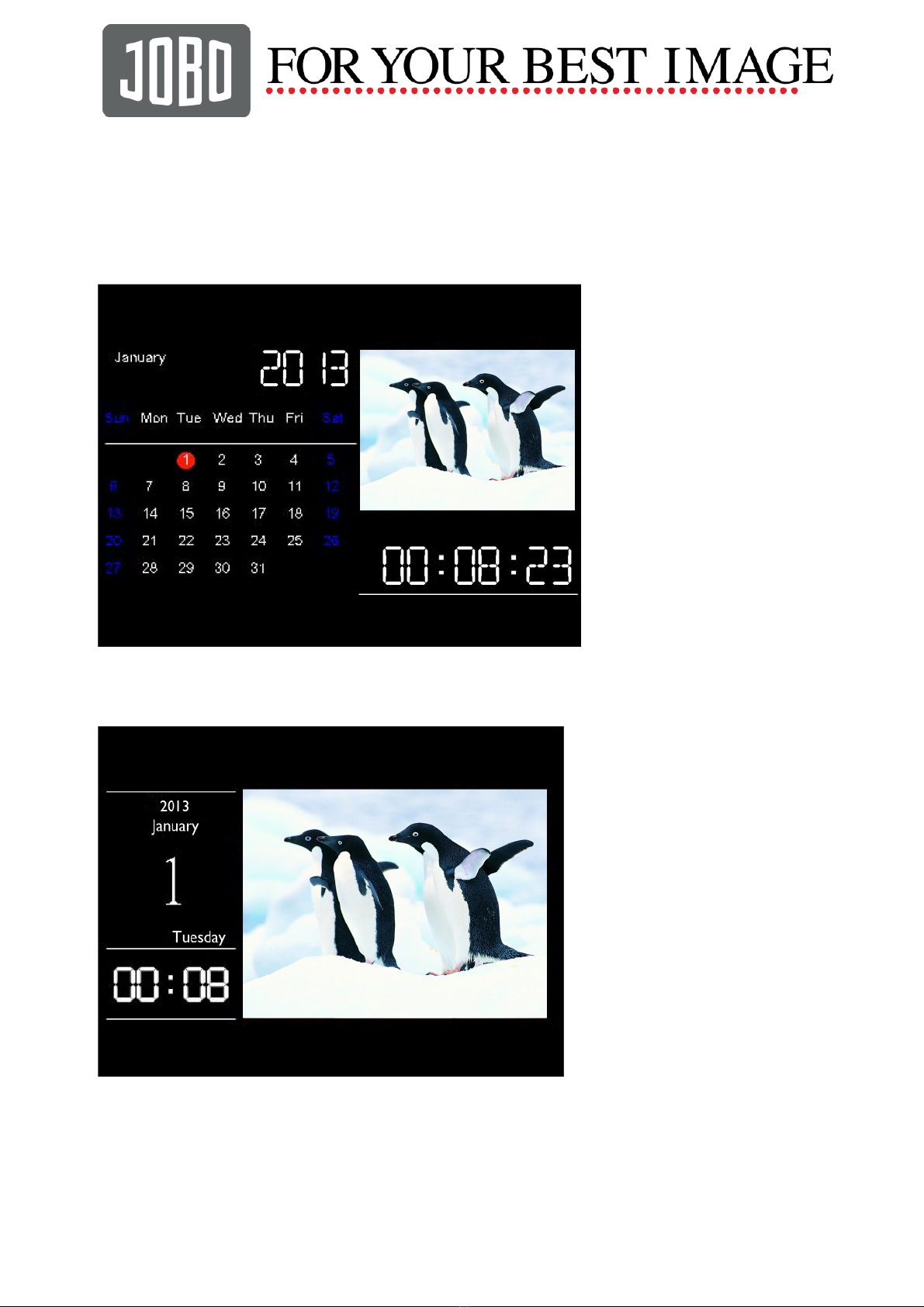

8 Clock Calendar mode

There are two clock calendar display modes: monthly calendar, calendar

Two kinds of time format: 12-hour, 24-hour clock. In the settings menu you can change the type of

calendar which you like.

Monthly calendar

This mode will show the date and the whole month together with a Slideshow picture.

Current date calendar

This mode only shows the current date together with a Slideshow picture.
