JMA SX Series Manuel utilisateur
Stadium Antenna
(SX-* / DX-* / XGU-*)
Weep Hole Modification Guide
CONFIDENTIAL © 2023 JMA Wireless. All Rights Reserved.
Overview of weep hole additions
2
•Tohelp create new weep holes on JMA stadium antennas (SX-*, DX-*, and XGU-* models),
this guide was created for alterations made directly in the field.
•Because there are many potential tilt and install angles, this guide allows for on-the-spot
judgments to be made about where the ideal placement for new weep holes may be –this guide
will help avoid damage to the antenna itself while drilling new holes.
•This guide includes:
1) A guideline of key parameters for drilling new weep holes into the stadium antennas,
including widths for new holes, clearance for drill depth, etc.
2) A drawing of the front of the stadium antenna, showing what areas on the radome should be
avoided when drilling, since elements of the antenna could be damaged.
•SX antennas can either be mounted vertically or horizontally. As such, weep holes are required
to be drilled on site, prior to installation, dependent on the antenna orientation.
CONFIDENTIAL © 2023 JMA Wireless. All Rights Reserved.
Key details for drilling weep holes
3
Notes
Hole diameter
Hole
should be created using single drill with a 1/8” bit.
# of weepholes
Minimum
of 4 weep holes nearest to the low point as possible
Drill depth
Drill
has to go only ¼” deep; drill a complete hole in the Radome (the Radome is only .100” thick).
Re-sealing holes
Recommended to
use outdoor Silicone to seal the existing weep holes that will not be needed.
Considerations
Hard stop
Setting
a ¼” hard stop on the drill bit is encouraged to limit risk of over-drilling.
Danger
zones
If
it is required to drill in highlighted danger zones, the maximum clearance is ¼”.
Side of
radome
There are
no danger zones if drilling from side of radome, but drilling should be limited to ¼” to reduce risk.
CONFIDENTIAL © 2023 JMA Wireless. All Rights Reserved.
Stadium antenna guide table of contents
4
Model number Page
SX02FIT165-4X 5
SX04FRO128, SX08FRO128 6
SX04FRO220 7
SX04FRO165, SX10FRO165 8
SX04FRO230, SX08FRO230 9
DX10FRO260 10
DX12FRO260 11
XGU-165-I (EOL) 12
XGU-FRO-124-I (EOL) 13
XGU-FRO-128-I (EOL) 14
XGU-FRO-130-I (EOL) 15
XGU-FRO-230-I (EOL) 9
XGU-465-I (EOL) 16
CONFIDENTIAL © 2023 JMA Wireless. All Rights Reserved.
SX02FIT165-4X weep hole modifications
Specs of antenna –danger zones for drilling, and silicone sealant use
5
ADD SILICONE SEALANT
ALONG SEAM ON ALL SIDES
AND IN PRESCRIBED
LOCATIONS INDICATED IN
RED TO COVER ALL CUTOUTS
ON BACK FACE.
ADD 2 HOLES IN PRESCRIBED
LOCATIONS ON BOTTOM FACE
OF PRODUCTREGARDLESS OF
CONNECTOR ORIENTATION.
PRODUCT MOUNTED WITH
CONNECTORS POINTED UP PRODUCT MOUNTED WITH
CONNECTORS POINTED DOWN
CONFIDENTIAL © 2023 JMA Wireless. All Rights Reserved.
SX04FRO128, SX08FRO128 weep hole modifications
Topof antenna
Danger zones for drilling –showing front of radome
Specs of antenna
Topof antenna
Frontview
Back view
Topof antenna
6
Danger zone–
Advised tonot
drill within
theseborders
CONFIDENTIAL © 2023 JMA Wireless. All Rights Reserved.

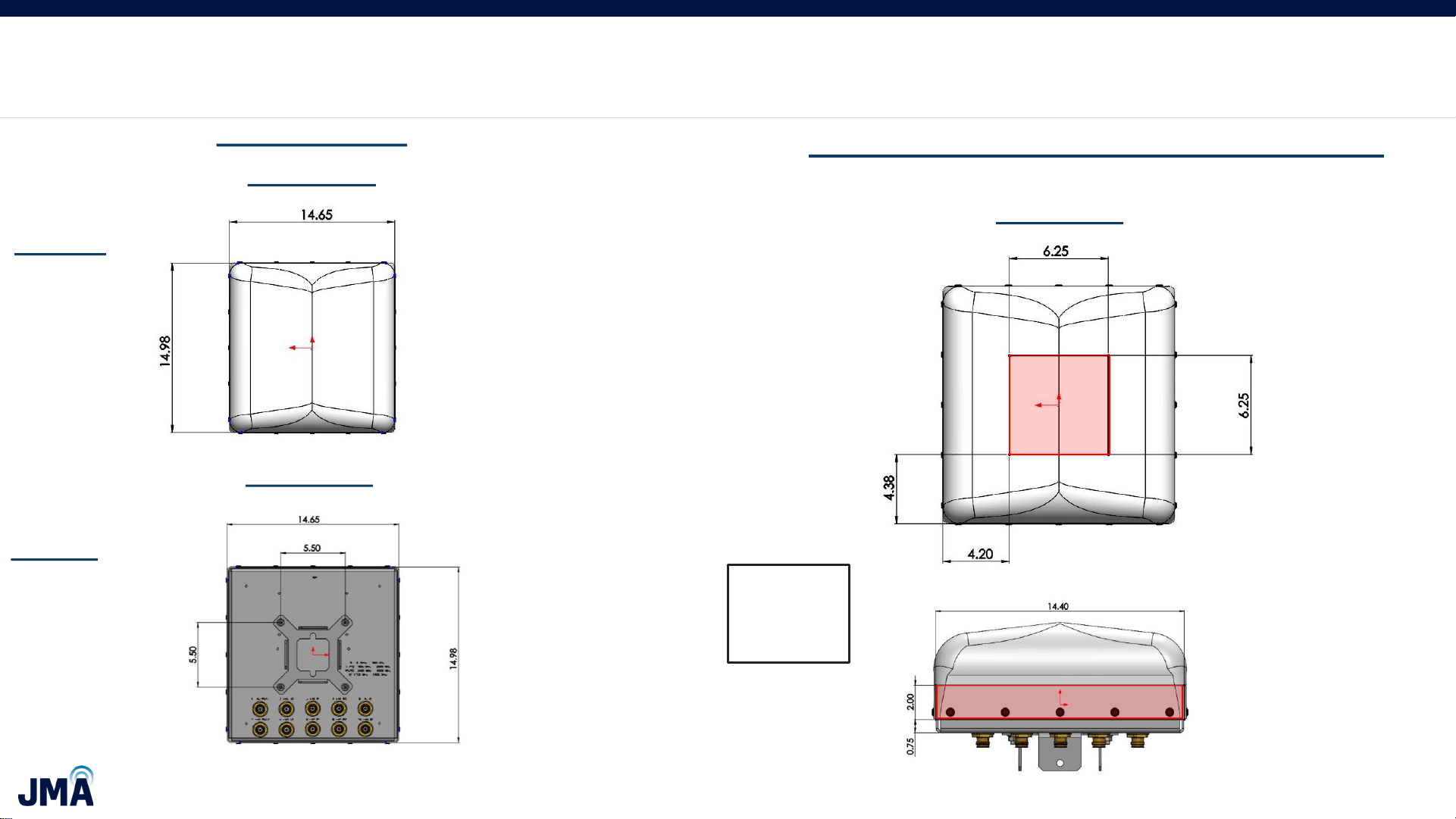

SX04FRO220 weep hole modifications
Topof antenna
Danger zones for drilling –showing front of radome
Specs of antenna
Topof antenna
Frontview
7
Danger zone–
Advised tonot
drill within
theseborders
CONFIDENTIAL © 2023 JMA Wireless. All Rights Reserved.
SX04FRO165, SX10FRO165 weep hole modifications
Topof antenna
Danger zones for drilling –showing front of radome
Danger zone–
Advised tonot
drill within
these borders
Specs of antenna
Topof antenna
Frontview
Back view
Topof antenna
8
CONFIDENTIAL © 2023 JMA Wireless. All Rights Reserved.
SX04FRO230, SX08FRO230, XGU-FRO-230-I weep hole modifications
Topof antenna
Danger zones for drilling –showing front of radome
Specs of antenna
Topof antenna
Frontview
Back view
Topof antenna
Danger zone–
Advised tonot
drill within
theseborders
9
XGU-FRO-230-I shown for
reference
CONFIDENTIAL © 2023 JMA Wireless. All Rights Reserved.

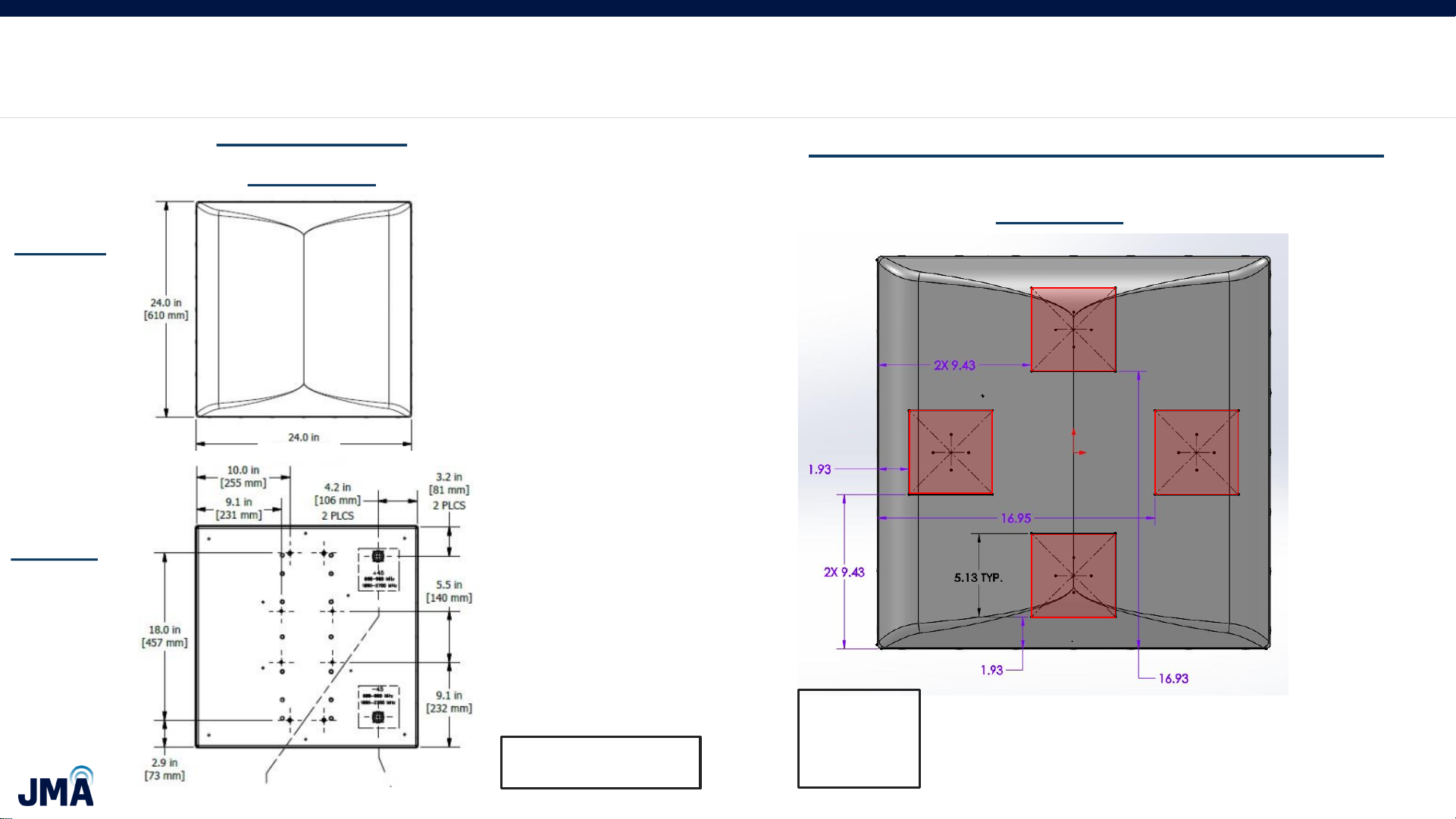

DX10FRO260 weep hole modifications
Topof antenna
Danger zones for drilling –showing front of radome
Specs of antenna
Topof antenna
Frontview
Danger zones–
Advised tonot
drill within
theseborders
10
