JL Audio Stealthbox Series Manuel utilisateur

Stealthbox®

INSTALLATION GUIDE

SB-D-QDRAM/10W3v3, JL AUDIO, Inc 2018 Page 1

for the

SB-D-QDRAM/10W3v3

SKU# 94049

2002-Up Dodge 1500 Ram Quad Cab &

2003-Up Dodge 2500, 3500 Ram Quad Cab

This Stealthbox is a product which

requires professional installation skills

and tools.

Please read this installation guide thor-

oughly before beginning the project.

It will guide you step by step through

the installation. Several of the steps in

this process may require two people to

accomplish.

It is absolutely vital that the enclo-

sure be properly mounted to the

vehicle according to these instructions.

Failure to mount the enclosure properly

presents two problems: 1) The sub-

bass performance will suffer due to the

movement of the enclosure caused by

the force exerted by the woofer(s) and

2) A loose enclosure presents a serious

safety hazard in the event of a collision

or sudden deceleration.

Please enjoy your JL Audio Stealthbox

responsibly.

STEP 1:

Remove the passenger side metal floor

extension, if equipped.

STEP 2:

Remove the paper backing and place

supplied wax square onto the floor.

The center of wax square needs to measure 5”

from transmission hump.

The rear edge of the wax square is against the

start of the curvature.

STEP 3:

Thread the supplied socket set screw

into the Stealthbox. Leaving 1/2” exposed.

STEP 4:

Place the Stealthbox into the passen-

ger’s side cavity and push down.

STEP 5:

The threaded rod will leave an

impression, onto the was square.

STEP 6:

With a 1/2” drill bit. Drill a hole into the

floor using the imprint in the wax square as guide.

START

HERE

Continued on Next Page ➔

www.jlaudio.com

Specifications:

Enclosure Type: Acoustical Suspension (Sealed)

Driver Type: 10W3v3-3-2

Nominal Impedance: 2Ω

Cont. Power Handling: 500Watts

JL Audio recommends using a high quality amplifier such as the JL Audio XD300/1v2. The diagram below shows the

recommended crossover settings for the XD300/1v2 when being used to power your Stealthbox®.

Included Hardware:

(1) 3”x3”Wax Square

(1) 3/8”-16 X 3” Socket Set Screw

(1) 3/8” Flat Washer

(1) 3/8” Fender Washer

(1) 3/8” Split Lock Washer

(1) 3/8” Hex Nut

10369 N. Commerce Pkwy, Miramar, Florida 33025-392 Phone: 954.443.1100 Fax: 954.443.1111

The JL Audio XD300/1v2 is a very versatile audio component. Please consult the owner’s manual for detailed informa-

tion about installing and tuning this amplifier.

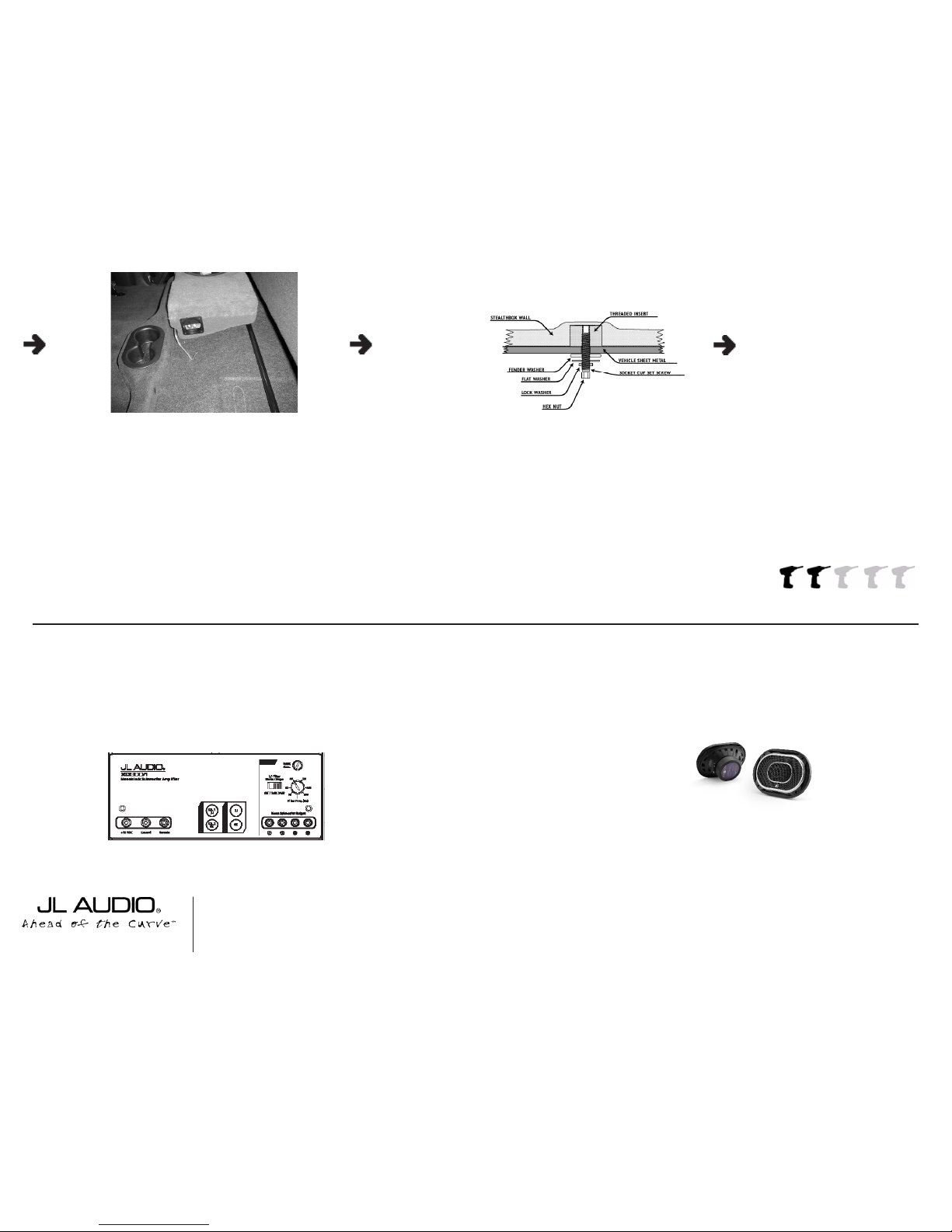

STEP 7: At this time, run speaker cable to the

Stealthbox location and check for proper operation

of the woofer.

STEP 8: Remove the wax square from the floor

and expose 1-1/2” of the socket set screw out of

the Stealthbox.

STEP 9: Place the Stealthbox back into the pas-

senger’s side cavity. Carefully inserting the socket

set screw through the drilled floor.

STEP 10: Place the supplied fender washer, flat

washer, lock washer and then hex nut, onto the

exposed socket set screw.

Note: 2009-Up models may require slightly

bending the heat shield above the exhaust to

access the set screw.

Note: Some models may require cutting and

removal of the underseat carpet and/or carpet

padding to access the set screw.

SB-D-QDRAM/10W3v3, JL AUDIO, Inc 2018 Sheet SKU#011163 Revision 11.02.2018Page 2

www.jlaudio.com

Mid/High Frequency Driver Information:

CONGRATULATIONS!

INSTALL COMPLETE.

Front Location Driver Size:

6”x 9”

Applicable JL Audio Products:

C1-690x, C1-690tx, C1-690, & C2-690x

Rear Location Driver Size:

6.0”

Applicable JL Audio Products:

C1-650x, C1-650, C2-600x, C3-600

Cont.

From

Page

Difficulty Of Installation:
