JL Audio Stealthbox SB-POL-RXPC/10TW3 Manuel utilisateur

Continued on Next Page

SB-POL-RXPC/10TW3 INSTR_SKU# 011448

Enclosure Type: Sealed

Driver Type: 10TW3-D4

Nominal Impedance: 2 ohms

Continuous Power Handling: 400 watts (RMS method)

INSTALLATION GUIDE

for the

SB-POL-RXPC/10TW3

SKU# 94622

2015 & Up Polaris Ranger XP & Crew Cab

Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.

With proper installation, your new vehicle-specific enclosed subwoofer system

will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox® installed by your

authorized JL Audio dealer. The installation professionals employed by your

dealer have the necessary tools and experience to disassemble and reassemble

your vehicle properly. If you prefer to perform your own installation, please read

this installation guide completely before beginning the process.

If you choose to perform the installation yourself, it is absolutely

vital that the Stealthbox®be properly mounted to the vehicle

according to these instructions. Failure to mount the enclosure

properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the

enclosure caused by the force exerted by the woofer(s).

2) A loose enclosure presents a serious safety hazard in the event of a

collision or sudden deceleration.

INSTALLATION

D IFF IC ULT Y:

ESTIMATED TIME:

1/2 H OUR

OUT

INCLUDED HARDWARE

Continued on Next Page

Page 2 • JL Audio, Inc., 2016

SB-POL-RXPC/10TW3 INSTR_SKU# 011448

Note: For optimum performance, JL Audio recommends applying the included Foam Strips (or sound damping material) to surrounding plastic panels to reduce unwanted vibrations.

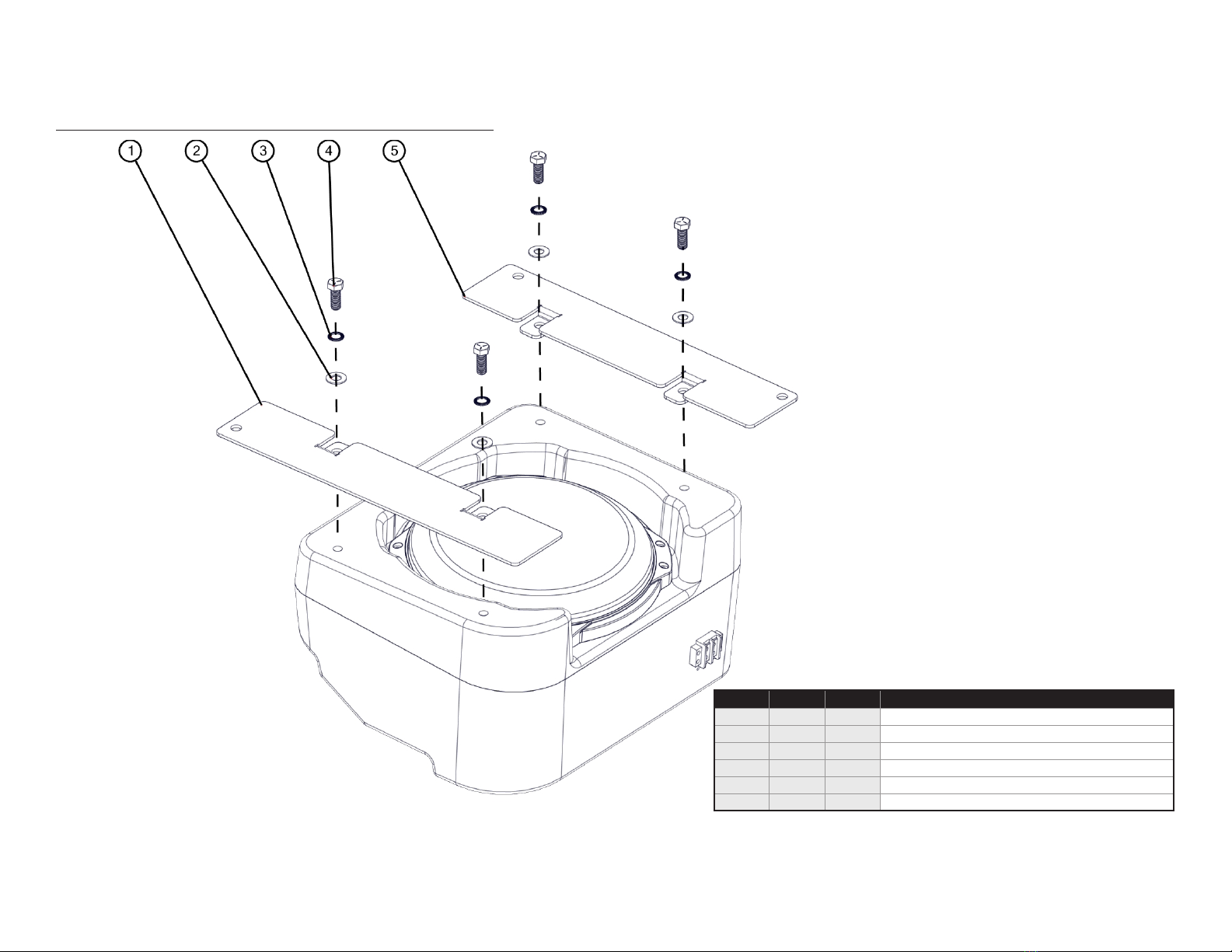

BOM ID Qty SKU Description

1 1 153681 Passenger Bracket

2 4 153737 3/8” Stainless Steel Flat Washer

3 4 153731 3/8” Stainless Steel Serrated Spring Lock Washer

4 4 153736 3/8 - 16 x 1” Stainless Steel Serrated Flange Bolt

5 1 153680 Driver Bracket

- 1 150249 Foam Strips (not shown)

POWER RECOMMENDATION

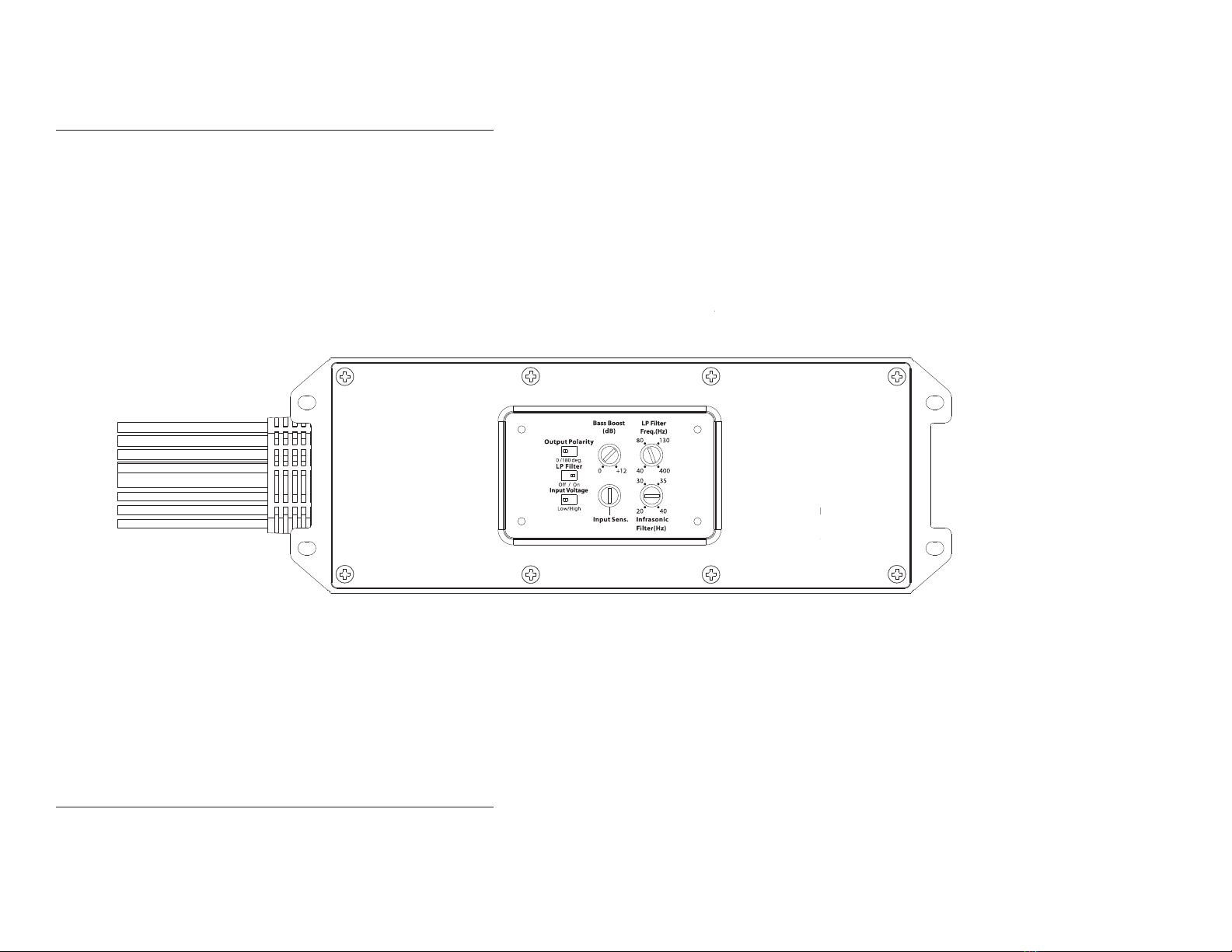

JL Audio recommends high quality ampliers such as the JL Audio MX300/1. The diagram below shows the recommended crossover settings for the MX300/1. For a detailed description of the

amplier settings, consult the owner’s manual for the amplier. If another amplier is being used, please reference this illustration and use similar settings on that amplier.

CONNECTIONS

Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using an 8 AWG power kit such as the XD-PCS4-1B for your

Stealthbox® amplier. Other kits are available should you be using more than one amplier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for

both channels of the amplier. JL Audio recommends using 12AWG speaker wire for subwoofers such as the XC-BCS12-25.

Continued on Next Page

Page 3 • JL Audio, Inc., 2016

SB-POL-RXPC/10TW3 INSTR_SKU# 011448

Page 4 • JL Audio, Inc., 2016 Continued on Next Page

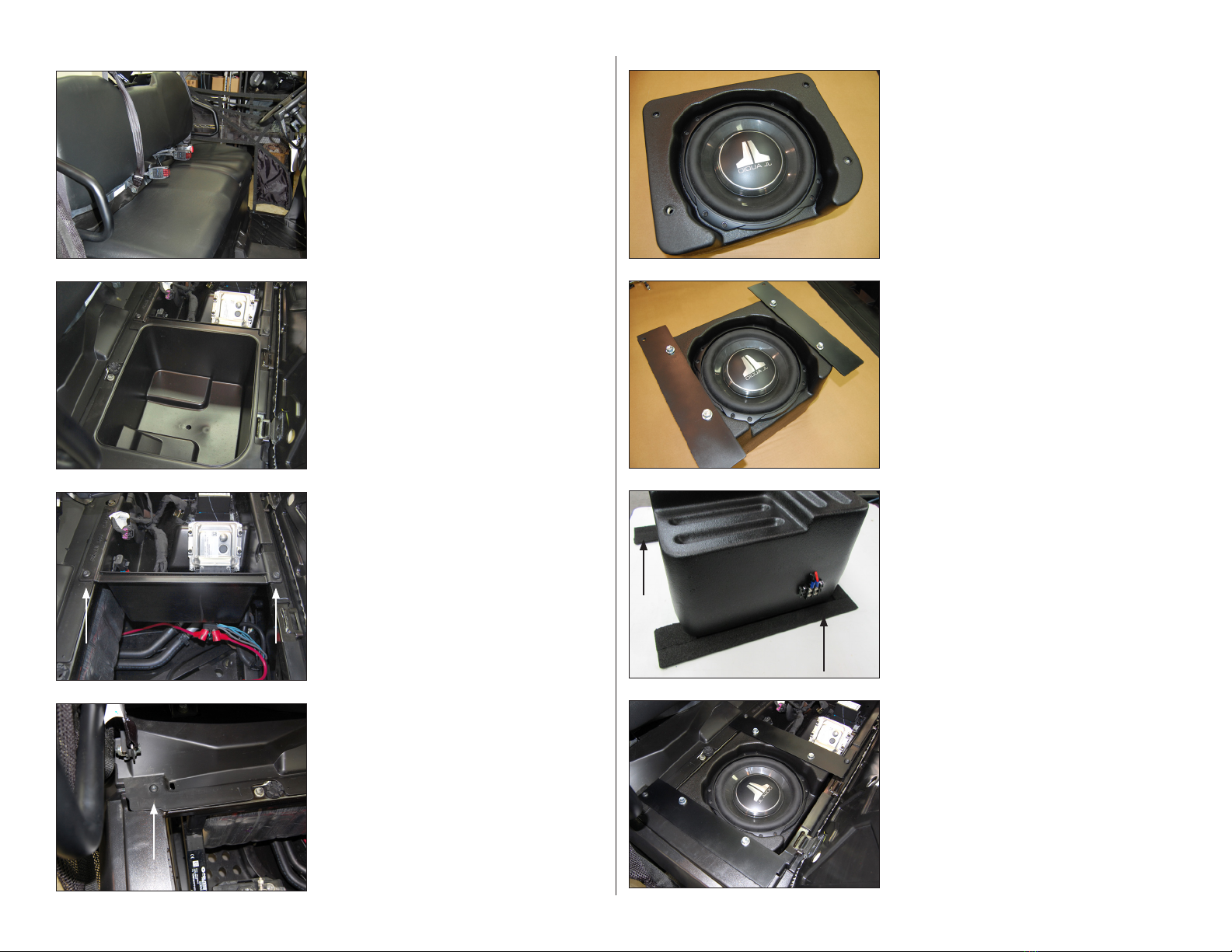

STEP 8

Attach speaker cable to the barrier strip on the

enclosure. Place the Stealthbox® into position

in the vehicle, and secure with the three

factory bolts removed in Steps 3-4. Route the

speaker cable as necessary.

STEP 7

Flip the Stealthbox® over, and attach the Foam

Strips to the exposed side of the Passenger

Bracket and Driver Bracket as shown.

STEP 6

Attach the Passenger Bracket to the Stealthbox

using a pair of 3/8 - 16 x 1” Serrated Flange

Bolts, 3/8” Serrated Spring Lock Washers, and

3/8” Flat Washers as illustrated on Page 2.

Repeat the process for the Driver Bracket.

STEP 5

Place the Stealthbox® on a flat surface with the

woofer facing up as shown. In this orientation,

the left side of the enclosure is the passenger

side.

STEP 4

Locate and remove the indicated factory bolt

in the rear corner on the passenger side.

STEP 3

Locate and remove the two indicated factory

bolts near the center of the vehicle.

STEP 2

Fold the seat forward, and remove the plastic

storage tray.

STEP 1

Empty the vehicle.

SB-POL-RXPC/10TW3 INSTR_SKU# 011448

Page 5 • JL Audio, Inc., 2016

CONGRATULATIONS!

You have completed the installation for this model! Enjoy your new Stealthbox®!

SB-POL-RXPC/10TW3 INSTR_SKU# 011448

STEP 9

Fold the seat back down.

Note: For optimum performance, we

recommend applying the included Foam Strips

(or sound damping material) to surrounding

plastic panels to reduce unwanted vibrations.

MID/HIGH FREQUENCY DRIVER FITMENT

VeX™ Enclosed Speaker Systems are ideal for powersports and o-road vehicle applications. Each

weatherproof pod can be mounted to a roll cage precisely aimed for optimum sound. Mounting

xtures are available to t a variety of roll cage diameters.

(954) 443-1100

www.jlaudio.com

JLA-SKU# 011448 • ver. 09.16.2016 • 10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA

All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, and “Stealthbox” and the Stealthbox logo are registered trademarks of JL Audio, Inc. “Ahead of the

Curve”, its respective logo, and “How we play”are trademarks of JL Audio, Inc.
